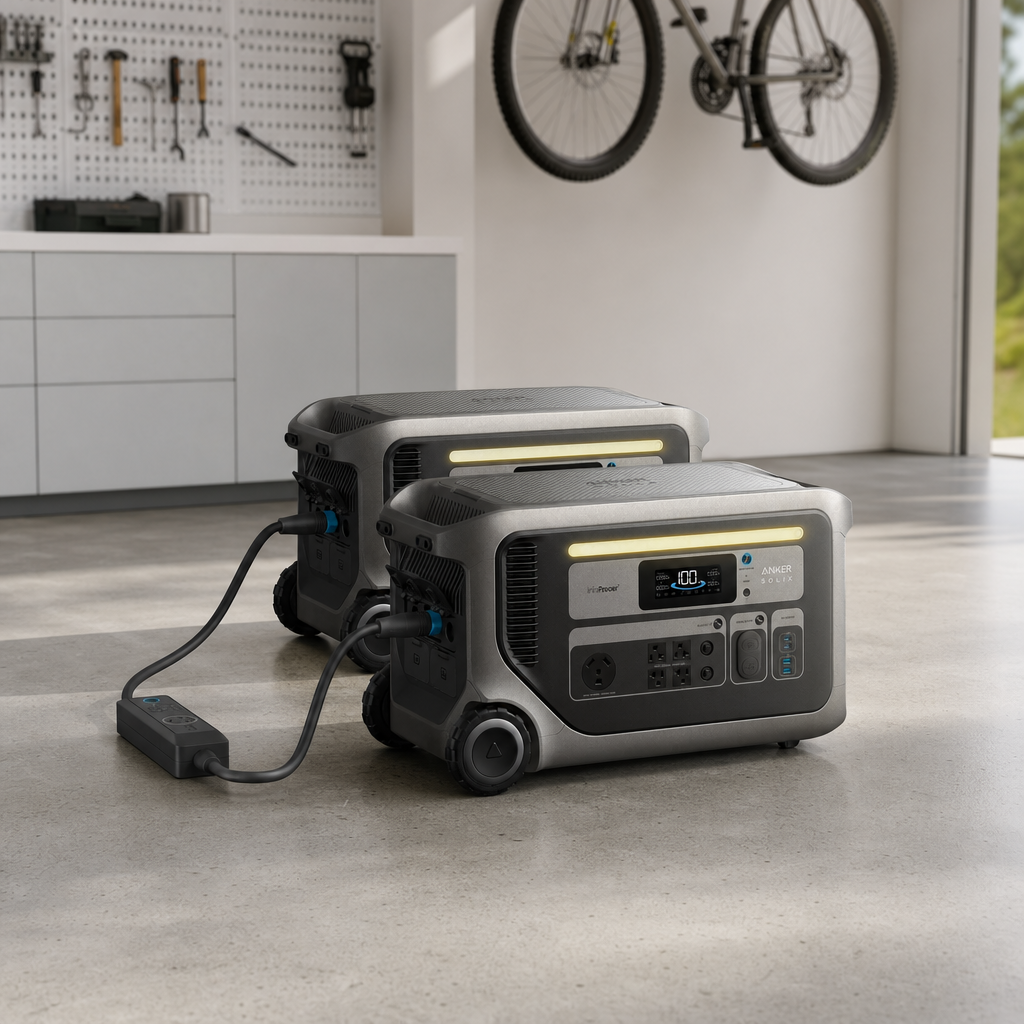

Anker SOLIX F3000 Dual Power Station System with Double Voltage Hub
Equipment Type: High-capacity portable battery energy storage system.
Primary Applications: Whole-home blackout backup, off-grid cabins, emergency HVAC and sump pump support, construction jobsites, heavy appliance operation, and mobile power distribution.
Performance Specifications
- Combined Output: 7200W at 240V via dedicated hub synchronization
- Per Unit Rating: 3600W continuous AC, 5400W SurgePad™ peak surge
- System Storage: 6144Wh combined capacity (two × 3072Wh LFP modules)
- Expansion Path: Scalable to 24.576kWh add-on battery banks
- Input Parameters: 6000W maximum total draw (AC: 3600W | Solar: 1600W high-PV at 11–165V, 800W low-PV at 11–60V)
- Electrical Conditions: 20ms UPS transfer time; maintains steady 240V/30A (NEMA L14-30) or 240V/20A (NEMA 6-20) delivery without load drop-off
- Physical Dimensions: 651 × 300 × 377 mm per station; 41.5 kg net weight each
Safety Features and Certifications
- Continuous steady-load architecture engineered to prevent voltage sag during prolonged high-draw operation
- Lithium Iron Phosphate cell chemistry provides inherent thermal runaway resistance and built-in electrical fault isolation
Installation and Maintenance Requirements
- Configuration: Tool-free plug-and-play hub connection links two units to mixed high-voltage and standard outlets
- Utility Inputs: Accepts AC wall power, generator bypass, or independent solar charging per station while operating in parallel
- Maintenance Schedule: Monitor port integrity and update firmware via companion app; LFP chemistry retains 80% capacity after 4,000 complete cycles
Warranty and Service Information
- Term: Three-year limited warranty covers both SOLIX F3000 units
- Inclusions: Printed manual, safety warning notices, and warranty registration card included in packaging
Branding and References
- Manufacturer: Anker
- Model Identifiers: SOLIX F3000 Portable Power Station; Anker SOLIX Double Voltage Hub
Differentiators
- Natively synthesizes dual 120V sources into a single 240V/7200W outlet without external inverters or manual phase adjustment
| Specification | Details |
| F3000 Capacity | 3,072 Wh |
| Expansion Battery Capacity | 3,072 Wh |
| Maximum Scalability | 2× F3000 + 6× Batteries (Total: 24.576 kWh) |
| Specification | Details |
| AC Rated Power | 3,600W Max |
| SurgePad™ Power | 5,400W |
| AC Voltage | 120V (Single F3000), 240V (Two F3000s in Parallel) |
| AC Sockets | 1× NEMA TT-30R | 4× NEMA 5-20R |
| Output Ports | 11× |
| Specification | Details |
| Maximum Input Power | 6,000W |
| AC Input Power | 3,600W Max |
| DC Input Ports | 2 |
| Solar Input Power | High-PV: 1,600W, 11–165V | Low-PV: 800W, 11–60V |
| Specification | Details |
| Battery Type | LFP (Lithium Iron Phosphate) |
| Battery Life Cycle | 80% Efficiency After 4,000 Cycles |
| Net Weight | 41.5 kg / 91.5 lb |
| Dimensions | 651 × 300 × 377 mm / 25.6 × 11.8 × 14.8 in |
| 120V Fuel Generator Bypass | Yes |
| Light Bar | Yes |
| Smart App Control | Yes |
| UPS | 20 ms |
| Specification | Details |
| Product Type | Double Voltage Output Hub for Anker SOLIX F3000 |
| Primary Function | Combines output from two power stations to power high-demand appliances |
| AC Output | 3600W at 120V | NEMA L14-30: 240V, 30A Max, 60Hz, 7200W Max | NEMA 6-20: 240V, 20A Max, 50Hz/60Hz, 4800W Max |
| Input Power | AC Input 120V, 3600W Max |
| Use Case | Powers multiple appliances or heavy-duty equipment with doubled AC output |
