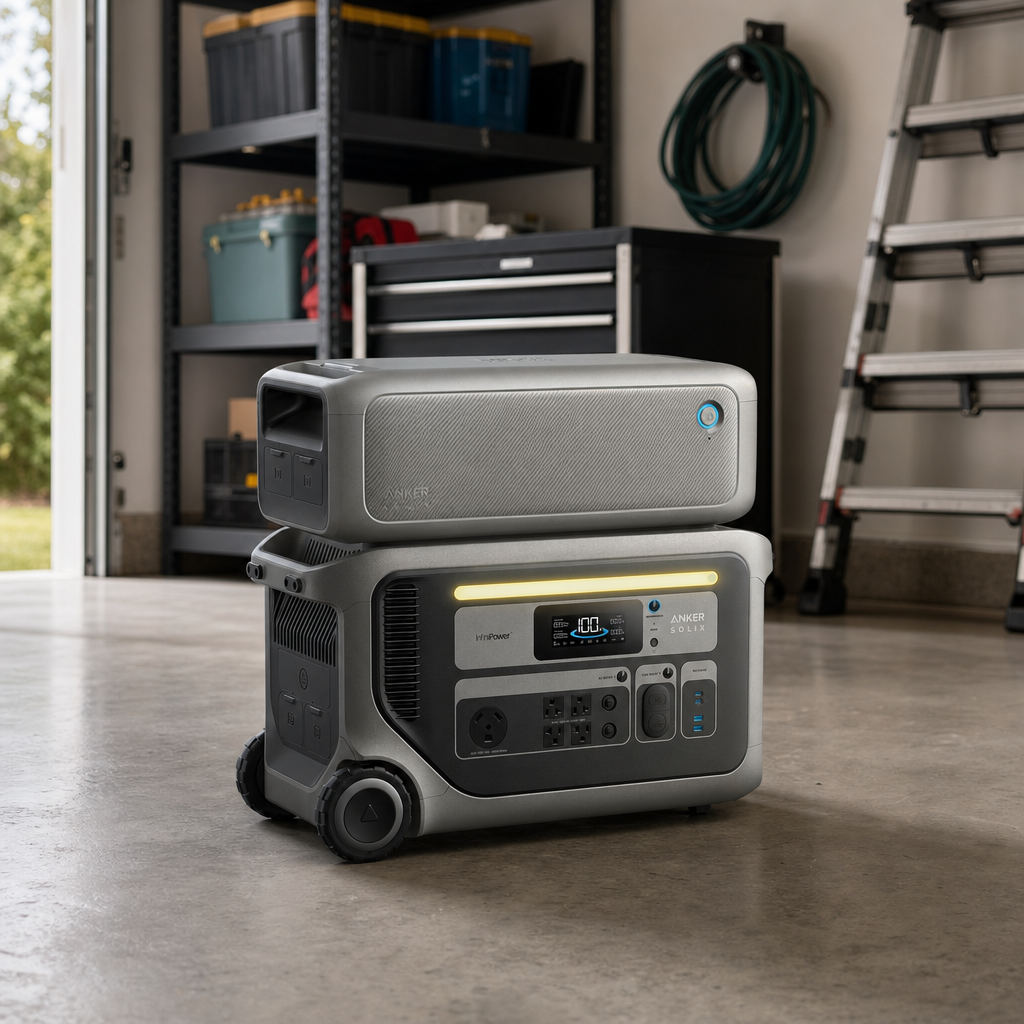

Anker SOLIX F3000 Portable Power Station + BP3000 Expansion Battery
Equipment Type and Primary Applications
High-capacity stationary energy storage systems engineered for multi-day residential backups, off-grid solar integration, RV travel power, and remote field operations requiring sustained appliance loads.
Performance Specifications
- Combined storage: 6,144 Wh (3,072 Wh base + 3,072 Wh expansion)
- Rated AC output: 3,600W continuous at 120V; 240V available via parallel pairing
- SurgePad™ transient rating: 5,400W
- Max input capacity: 6,000W split across 3,600W AC and dual DC solar channels (1,600W high-PV, 800W low-PV)
- Cycle life: 4,000+ cycles to 80% usable capacity
Safety Features and Certifications
Integrated BMS monitors cell temperature, voltage balance, and current draw. The LFP cell chemistry inherently resists thermal runaway, permitting unventilated indoor placement. UPS mode maintains sub-20 ms switchover for protected electronics.
Installation and Maintenance Requirements
Position on level flooring with minimum 10 cm perimeter clearance. Connect the expansion module via the dedicated rear coupling rail; operation is fully automatic with zero tools. Cycle replenishment accepts grid, generator, or PV inputs. Schedule semi-annual connector torque checks and terminal corrosion inspections. Consult the Anker SOLIX F3000 Portable Power Station Manual for advanced routing.
Warranty and Service Information
Covers manufacturing defects and capacity decay below guaranteed thresholds. Base unit carries a three-year term; expansion battery covered for five years. Authorized distributor networks handle RMA processing and board-level replacement.
Branding/References
Manufacturer: Anker SOLIX. Model alignment: F3000 host, BP3000 add-on. Supplement with official installation schematics and electrical compliance certificates.
Differentiators
Tool-free cascade architecture delivers instant capacity doubling up to 12,288 Wh without manual configuration, while native bi-directional inverter linkage automates peak-shaving tariff optimization.
| Specification | Details |
| F3000 Capacity | 3,072 Wh |
| Expansion Battery Capacity | 3,072 Wh |
| Maximum Scalability | 2× F3000 + 6× Batteries (Total: 24.576 kWh) |
| Specification | Details |
| AC Rated Power | 3,600W Max |
| SurgePad™ Power | 5,400W |
| AC Voltage | 120V (Single F3000), 240V (Two F3000s in Parallel) |
| AC Sockets | 1× NEMA TT-30R | 4× NEMA 5-20R |
| Output Ports | 11× |
| Specification | Details |
| Maximum Input Power | 6,000W |
| AC Input Power | 3,600W Max |
| DC Input Ports | 2 |
| Solar Input Power | High-PV: 1,600W, 11–165V | Low-PV: 800W, 11–60V |
| Specification | Details |
| Battery Type | LFP (Lithium Iron Phosphate) |
| Battery Life Cycle | 80% Efficiency After 4,000 Cycles |
| Net Weight | 41.5 kg / 91.5 lb |
| Dimensions | 651 × 300 × 377 mm / 25.6 × 11.8 × 14.8 in |
| 120V Fuel Generator Bypass | Yes |
| Light Bar | Yes |
| Smart App Control | Yes |
| UPS | 20 ms |
| Specification | Details |
| Capacity | 3,072Wh |
| Battery Type | LiFePO4 |
| Cycle Life | 4,000 cycles |
| Compatibility | Anker SOLIX F3000 |
| Max Expansion | Up to 3 units (12,288Wh total) |
| Connection Type | Plug-in, tool-free |
