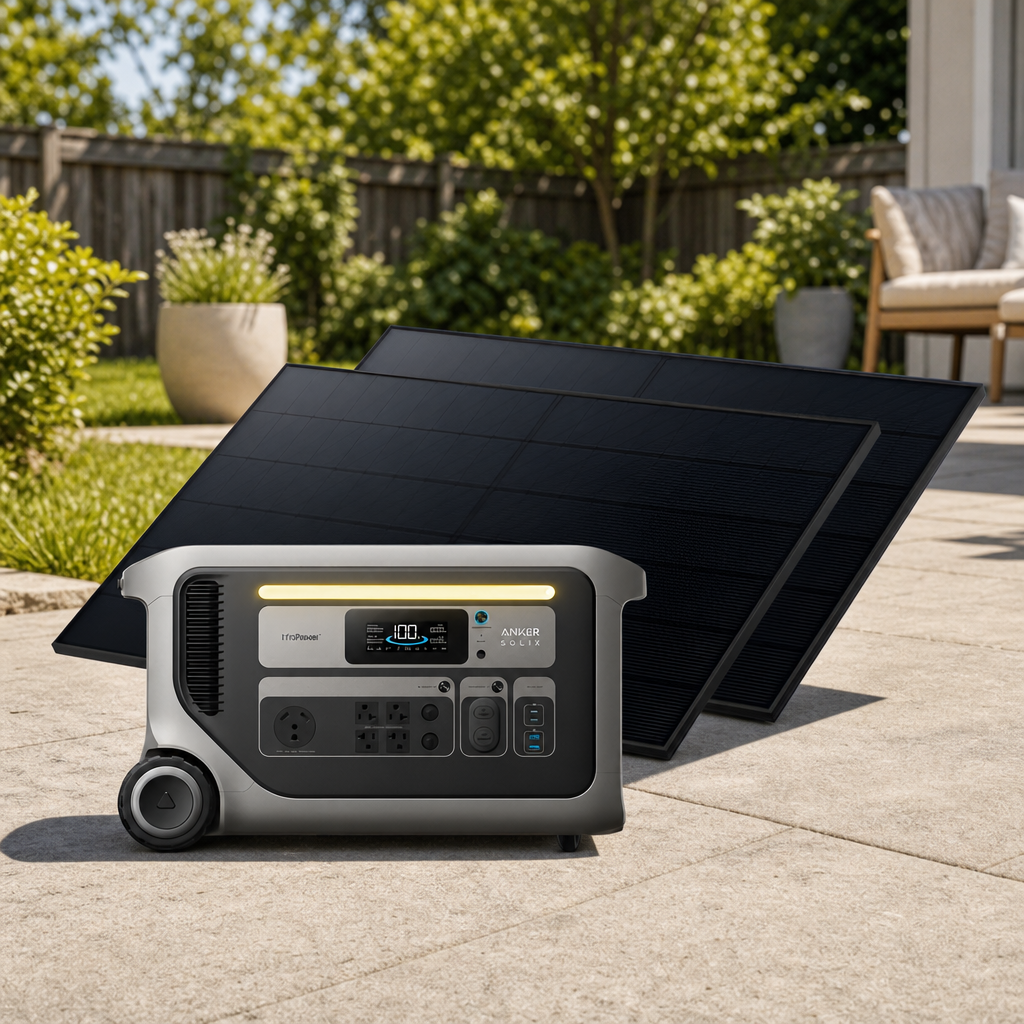

Anker SOLIX F3000 Portable Power Station + 2× 440W Rigid Solar Panels
Equipment Type and Primary Applications
The Anker SOLIX F3000 paired with two 440W rigid solar panels supplies structured off-grid energy for home backups, remote cabins, recreational vehicles, and emergency continuity deployments.
Performance Specifications
- Storage: LFP module, 51.2V / 60Ah, 3,072Wh rated capacity
- Endurance: 4,000 full cycles maintaining ≥80% state of charge
- Power Delivery: 120V~ 20A continuous (2,400W), 7,200W surge
- Solar Intake: High-PV 11–165V⎓17A (1,600W); Low-PV 11–60V⎓17A (800W)
- Array Profile: Dual 440W units, Vmp 33.21V, operating range −40°C to +85°C, IP65 sealed
- Transfer Speed: ≤20 ms uninterrupted power supply switching
- Form Factor: 25.6×11.8×14.8 inches, 91.5 lbs
Safety Features and Certifications
- Inherently stable lithium iron phosphate chemistry eliminates thermal runaway conditions
- IP65 panel encapsulation withstands continuous dust and water spray exposure
- Pass-through circuit management prevents overload during concurrent charge/discharge operations
Installation and Maintenance Requirements
- Electrical Utilities: 120V (≤1,800W) or 240V (≤3,600W) AC inlet options
- Deployment: Flat or angled panel layout secured via MC4 connectors and XT-60 harnesses
- Commissioning: Update firmware through companion software, verify PV string alignment, set load limits
- Maintenance Protocol: Clean optical surfaces monthly; inspect electrical terminals quarterly; prohibit sustained charging above 40°C
Warranty and Service Information
- Terms: 3-year coverage resolving manufacturing defects and capacity loss beyond specified parameters
- Support: Centered logistics exchange following functional assessment
Branding/References
Manufacturer: Anker | Model: SOLIX F3000 | Reference Document: Anker SOLIX F3000 Portable Power Station Manual
Differentiators
Native 20ms UPS infrastructure guarantees zero-latency handoff for sensitive circuits, while bi-directional dual-voltage inputs accept direct EV charger plugging for rapid grid-sync replenishment and modular external battery staging.
| Specification | Details |
| Battery Type | LFP |
| Cell Capacity | 51.2V / 60Ah / 3,072Wh |
| Cycle Life | 4000 Cycles |
| Specification | Details |
| AC Input (AC Charging Cable) | 120V~ 15A Max (< 3 Hr), 1800W Max, 12A (Continuous), 60Hz, L+N+PE |
| AC Input (Bi-Directional Inlet box) | 120 V~15 A Max, 1800W Max, 60Hz (< 3 Hr when current exceeds 12A), L+N+PE |
| AC Input (TT-30 Charging Cable + EV Charging Adapter) | 120V~ 30A Max (< 3 Hr), 3600W Max, 24A (Continuous), 60Hz, L+N+PE |
| AC Input (EV Charging Adapter) | 240V~ 15A Max, 3600W Max, 60Hz, L+N+PE |
| High-PV Input | 11-165V⎓17A Max, 1,600W |
| Low-PV Input | 11-60V⎓17A Max, 800W |
| DC Input Port | 60V⎓120A Max |
| Specification | Details |
| AC Output (NEMA 5-20R) | 120V~ 20A Max, 60Hz, 2400W Max |
| SurgePad Power | 4860W |
| AC Surge Power | 7200W |
| AC Output (Bi-Directional Inlet box) | 120V~ 15A Max, 1,800W Max, 60Hz, L+N+PE |
| AC Output (Double Voltage Hub) | 120V~ 30A Max, 3,600W Max, 60Hz, L+N+PE |
| AC Output (TT-30R) | 120V~ 30A Max, 60Hz, 3600W Max |
| Car Charger Output | 12V~10A |
| Anderson DC Output | 13.4V⎓30A |
| USB-A Output | 5V⎓2.4A, 12W Max (per Port) |
| USB-C Output | 5V⎓3A / 9V⎓3A / 15V⎓3A / 20V⎓3A / 20V⎓5A, 100W (per Port) |
| Specification | Details |
| UPS | 20 ms |
| Specification | Details |
| Discharging Temperature | -4°F-104°F / -20°C-40°C |
| Charging Temperature | 32°F-104°F / 0°C-40°C |
| Specification | Details |
| Dimensions | 25.6×11.8×14.8 in / 651×300×377 mm |
| Net Weight | 91.5 lb / 41.5 kg |
| Specification | Details |
| Rated Maximum Power (Pmax) | 440W |
| Power Sorting | 0~5W |
| Voltage at Pmax (Vmp) | 33.21V |
| Current at Pmax (Imp) | 13.25A |
| Open-Circuit (Voc) | 39.16V |
| Short-Circuit Current (Isc) | 13.88A |
| Max System Voltage | 1500V |
| Max Series Fuse Rating | 30A |
| Operating Temperature | -40°C~85°C |
| Dimensions | 1,722×1,134×35mm |
| Net Weight | 46.3 lbs |
