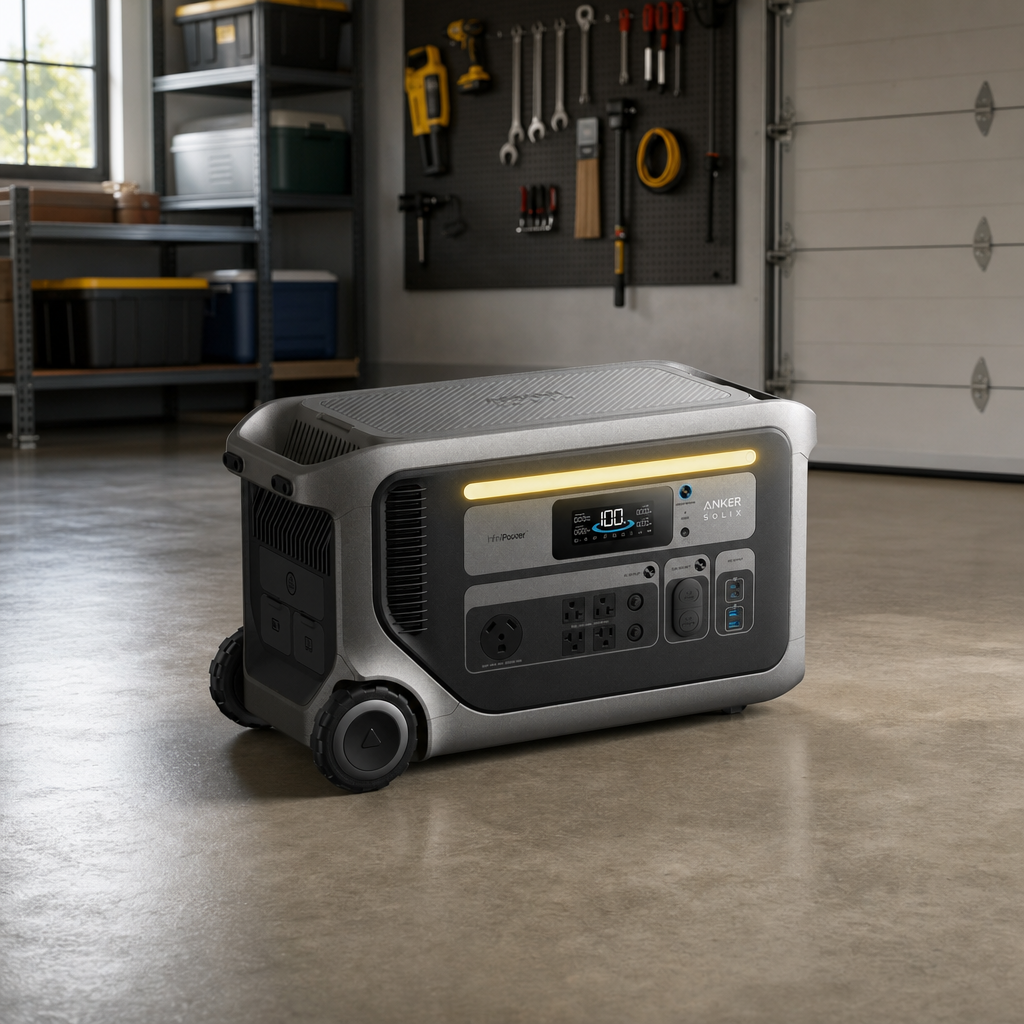

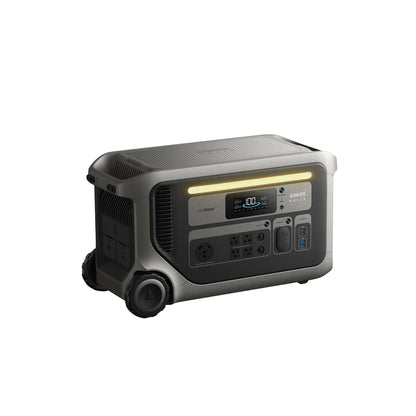

The Anker SOLIX F3000 Portable Power Station
Equipment Type: High-density LiFePO4 energy asset
Primary Applications: Residential blackout backup, remote cabin off-grid operation, disaster response logistics, commercial RV deployments, and temporary industrial worksites.
Performance Specifications
- Capacity: 3,072 Wh base; expands to 24.576 kWh using two main units plus six expansion modules
- Output: 3,600W continuous AC; 5,400W SurgePad™ peak; configurable 120V (standalone) or 240V (dual-linked)
- Interface: 1× NEMA TT-30R, 4× NEMA 5-20R, 11 supplementary DC/data ports
- Charging: 6,000W max aggregated input (AC capped at 3,600W); completes full cycle in 1.5 hours
- Solar: High-PV 1,600W (11–165V) / Low-PV 800W (11–60V) dual MPPT tracks
- Physical: 20 ms UPS transfer; 651×300×377 mm profile; 41.5 kg mass; 4,000-cycle rating maintaining 80% density
Safety Features and Certifications
- Chemistry: Non-flammable LFP cell pack verifies safe unvented indoor deployment
- Management Logic: Hard-coded BMS thresholds enforce immediate cutoff for over-temperature, reverse polarity, and fault isolation
- Continuity: Zero-sag pass-through routing sustains connected loads during active mains or fuel generator feed
Installation and Maintenance Requirements
- Deployment: Level floor zone requiring 10 cm lateral vent clearance; fully freestanding
- Utilities: Standard domestic breaker drop, certified PV arrays, or 120V alternator sources via attached bypass cable
- Commissioning: Confirm LED readiness metrics, secure primary charging conduit, and sync automatic dispatch algorithms via companion software
- Upkeep: Sealed electronics eliminate scheduled service; quarterly contact terminal wiping sufficient to maintain low resistance
Warranty and Service Information
- Term: Thirty-six-month limited coverage against component failure and accelerated capacity decay
- Support: Direct RMA channel with regional logistics nodes; predictive health reporting delivered through encrypted cloud telemetry
Branding/References
- Manufacturer: Anker Corp. | Designation: SOLIX F3000
- Technical Alignment: Verified mapping documents exist for Bi-Directional Inverter Boxes and Smart Wall gateway integration
Differentiators
- Aggregated 6,000W intake bandwidth collapses refill windows to under ninety minutes versus legacy 2 kW architectures
- Native dual-unit 240V parallel staging delivers split-phase utility-grade output without external phase converters
| Specification | Details |
| F3000 Capacity | 3,072 Wh |
| Expansion Battery Capacity | 3,072 Wh |
| Maximum Scalability | 2× F3000 + 6× Batteries (Total: 24.576 kWh) |
| Specification | Details |
| AC Rated Power | 3,600W Max |
| SurgePad™ Power | 5,400W |
| AC Voltage | 120V (Single F3000), 240V (Two F3000s in Parallel) |
| AC Sockets | 1× NEMA TT-30R | 4× NEMA 5-20R |
| Output Ports | 11× |
| Specification | Details |
| Maximum Input Power | 6,000W |
| AC Input Power | 3,600W Max |
| DC Input Ports | 2 |
| Solar Input Power | High-PV: 1,600W, 11–165V | Low-PV: 800W, 11–60V |
| Specification | Details |
| Battery Type | LFP (Lithium Iron Phosphate) |
| Battery Life Cycle | 80% Efficiency After 4,000 Cycles |
| Net Weight | 41.5 kg / 91.5 lb |
| Dimensions | 651 × 300 × 377 mm / 25.6 × 11.8 × 14.8 in |
| 120V Fuel Generator Bypass | Yes |
| Light Bar | Yes |
| Smart App Control | Yes |
| UPS | 20 ms |
