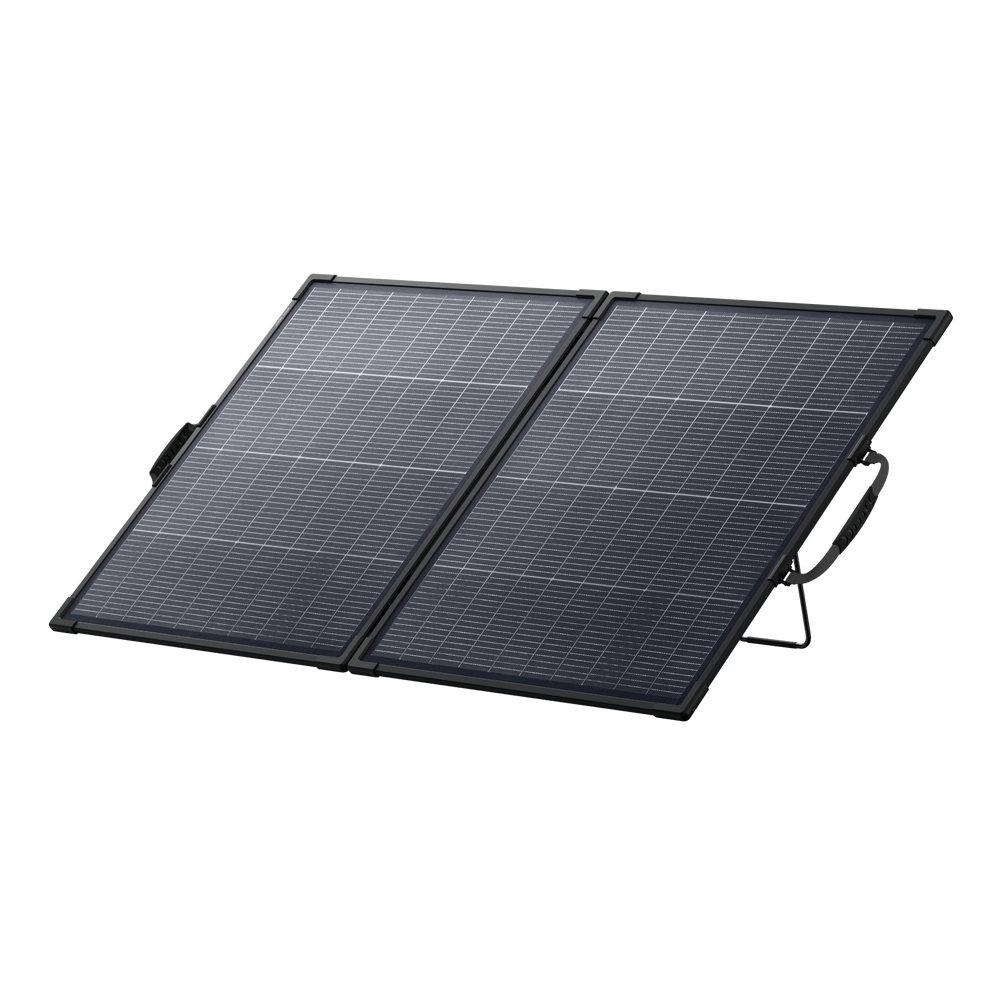

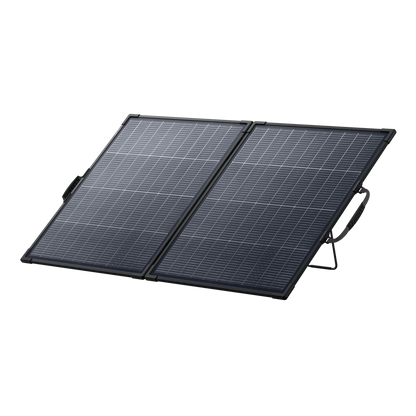

Anker SOLIX 200W Foldable Solar Panel
Equipment Type: Portable foldable photovoltaic array | Primary Applications: Off-grid camping, RV travel, mobile workshops, and emergency backup power replenishment for lithium-based energy storage systems.
Performance Specifications
- Rated Output: 200W under standard test conditions
- Photovoltaic Cells: Monocrystalline, 23% module conversion efficiency
- Input Interface: Single XT-60 DC connector for downstream equipment
- Cable Assembly: 9.84 ft (3 m) solar charging cable included
- Operating Voltage Range: Supports companion power stations accepting up to 60V DC input
Safety Features and Certifications
- IP67 ingress protection rating for dust resistance and temporary water exposure
- Terminal protection requires secure rubber sealing of the output port during precipitation or high-humidity operation
Installation and Maintenance Requirements
- Deploy on a flat, stable surface, orient toward direct sunlight, and engage kickstand to lock tilt angle
- Preventive maintenance includes periodic cleaning with mild detergent and dry cloth, plus inspection of cable sheathing and connector seals before each deployment
- Store unfolded or loosely rolled in dry environment; maintain terminal coverage when inactive
Warranty and Service Information
- Twenty-four-month limited warranty covering manufacturing defects from authorized purchase date
- Service protocol validates claims via visual documentation, initiates prepaid return logistics, and ships factory-verified replacements within three to five business days
- Exclusions apply for external impact, unauthorized modification, or operational misuse beyond specified electrical ratings
Branding/References
- Manufacturer: Anker SOLIX Series
- Model Designation: 531 Solar Panel (A2432)
- Compatible Ecosystem: Paired with Anker PowerHouse stations rated at 60V DC maximum input
Differentiators
- Integrated three-position mechanical tilt mechanism (40°, 50°, 60°) eliminates tripod dependency and maintains fixed optimal incidence angles for seasonal latitude adjustments
| Item | Warranty Period (Months) | Note |
|
Anker 531 Portable Power Station (PowerHouse 434Wh)-A1701 Anker 521 Portable Power Station (PowerHouse 213Wh)-A1702
Anker 511 Portable Power Station (PowerHouse 97Wh)-A1710
Anker 523 Portable Power Station (PowerHouse 288Wh)-A1731
Anker 533 Portable Power Station (PowerHouse 389Wh)-A1730
Anker 534 Portable Power Station (PowerHouse 389Wh)-A1732
Anker 545 Portable Power Station (PowerHouse 778Wh)-A1750
Anker 513 Solar Panel (21W)-A2421
Anker 515 Solar Panel (24W)-A2424
Anker 515 Solar Panel (24W Flexible)-A2425
|
18 | The warranty time differs from different battery cells. Specifically, the 5-year warranty is for models built with LifePO4 batteries, and the 1.5-year warranty is for models built with MCN (Nickel Manganese Cobalt) batteries. |
|
Anker 625 Solar Panel (100W)-A2431 |
24 | |
|
Anker 521 Portable Power Station (PowerHouse 256Wh)-A1720 |
60 |
