AmenSolar N3H-X12US 12KW Split Phase Hybrid Solar Inverter

AmenSolar N3H-X12US 12KW Split Phase Hybrid Solar Inverter

$3,350.00 USD
$3,699.00 USD $3,350.00 USD
Sale Sold out
Shipping calculated at checkout.

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

Package contents: Teison Portable Pro charger, TPU cable, user manual
Package weight: Please confirm with Ampere Authority


View full details

AmenSolar N3H-X12US 12KW Split Phase Hybrid Solar Inverter

Designed for hybrid solar installations, the AmenSolar N3H-X12US delivers 12 kW of reliable on-grid power with integrated battery charging and backup capabilities. It supports split-phase operation across 110/120V, 208V, and 230V configurations, making it suitable for residential, commercial, and light industrial applications that require seamless grid interaction and energy arbitrage opportunities.

Key specifications

  • Inverter power: 12 kW; maximum parallel inverters: 4
  • PV input: max DC input power 18 kW; 4 MPPT trackers; MPPT voltage range 120–430 V; max DC input 500 V; per-MPPT input current 16 A; max short current per MPPT 22 A
  • Battery input: nominal 48 V; max charging/discharging currents 250/260 A; battery voltage range 40–58 V; battery type Lithium/Lead-acid; charging controller 3-stage with equalization
  • AC output (on-grid): nominal 12 kW; max apparent 13.2 kVA; nominal voltage 110–120/220–240 V split phase, 208 V (2/3 phase), 230 V (1 phase); nominal frequency 50/60 Hz; nominal current 50 A; max 55 A; grid passthrough 200 A
  • Efficiencies: MPPT 99.9%; Europe PV 96.2%; max PV to grid 96.5%; max battery to load 94.6%; max PV to battery charging 95.8%; max grid to battery charging 94.5%
  • Safety & protections: ground detection, arc fault, island protection, insulation resistance detection, residual current monitoring; output over/under voltage and current protections; backup output short protection
  • Certifications & standards: UL1741, UL1699B, CSA, IEEE; Hawaii; FCC Part 15 Class B; IEEE 1547, IEEE 2030.5, HECO Rule 14H, CA Rule 21, CSIP, SRD2.0, NOM
  • Environment & enclosure: IP65/NEMA 3R; operating -25 to +60°C; 0–95% RH; altitude up to 4,000 m; weight 53 kg (56 kg with breaker); dimensions 495 × 900 × 260 mm; air cooling; 38 dB noise
  • Interfaces & installation: CAN and RS485 communication; optional 4G and Wi‑Fi; parallel and generator function; peak shifting to utilize external electricity; OEM branding and UL listing options
  • Conduit and connection specifics: backup 2", grid 2", AC solar 2", PV input 2", battery input 2"

AmenSolar N3H-X12US 12KW Split Phase Hybrid Solar Inverter

1) Certificate: UL1741 UL1699B CSA IEEE Hawaii
2) Inverter power: 12KW
3) Maximum number of parallel inverters: 4
4) Communication: Can,Rs485
5) Support split phase 110/220V, 208V and 230V voltage.
6) Support OEM for customers with their own brand.
7) Support customer to do UL multiple listing.
8) Support parallel and generator function.
9) Support peak shifting function for customer to use external electricity to earn money.
10) Max grid pass though current(A): 200
11) Mainly recommended models: N3H-X12US

AmenSolar N3H-X12US 12KW Split Phase Hybrid Solar Inverter - Green Vista Living
AmenSolar N3H-X12US 12KW Split Phase Hybrid Solar Inverter - Green Vista Living

Model

N3H-X12US
PV input
Max.DC input power (kW) 18
No. of MPPT trackers 4
MPPT voltage range (V) 120~430
MAX. DC input voltage (V) 500
MAX. input current per MPPT (A) 16/16/16/16
MAX. short current per MPPT (A) 22

Battery input
Nominal voltage (V) 48
MAX.charging/discharging current (A) 250/260
Battery voltage range (V) 40-58
Battery type Lithium /Lead-acid
Charging controller 3-Stage with equalization

AC output(on-grid)
Nominal output power output to grid (kVA) 12
MAX. apparent power output to grid (kVA) 13.2
Nominal AC voltage(L-N/L1-L2) (V) 110 -120V/220-240V split phase, 208V(2/3 phase), 230V(1phase)
Nominal AC frequency(Hz) 50/60
Nominal AC current (A) 50
Max. AC current (A) 55
Max. grid passthrough current (A) 200
Output THDi <3%

AC output(back-up)
Nominal. apparent power (kVA) 12
Max. apparent power（no PV) (kVA) 12
Max. apparent power（wtih PV) (kVA) 13.2
Nominal output voltage(V) 120/240
Nominal output frequency (Hz) 60
Output power factor 0.8leading~0.8lagging
Output THDu <2%
Protection
Ground detection Yes
Arc fault protection Yes
Island protection Yes
Insulation resistor detection Yes
Residual current monitoring unit Yes
Output over current protection Yes
Back-up output short protection Yes
Output over voltage protection Yes
Output under voltage protection Yes

General data
Mppt efficency 99.9%
Europe efficiency(PV) 96.2%
Max. PV to grid efficiency(PV) 96.5%
Max. battery to load efficiency 94.6%
Max. PV to battery charing efficiency 95.8%
Max. grid to battery charing efficiency 94.5%
Operating temperature range (℃) -25~+60
Relative humidity 0-95%
Operating altitude 0~4,000m(Derating above 2,000m altitude)
Ingress protection IP65/NEMA 3R
Weight (kg) 53
Weight (with breaker) (kg) 56

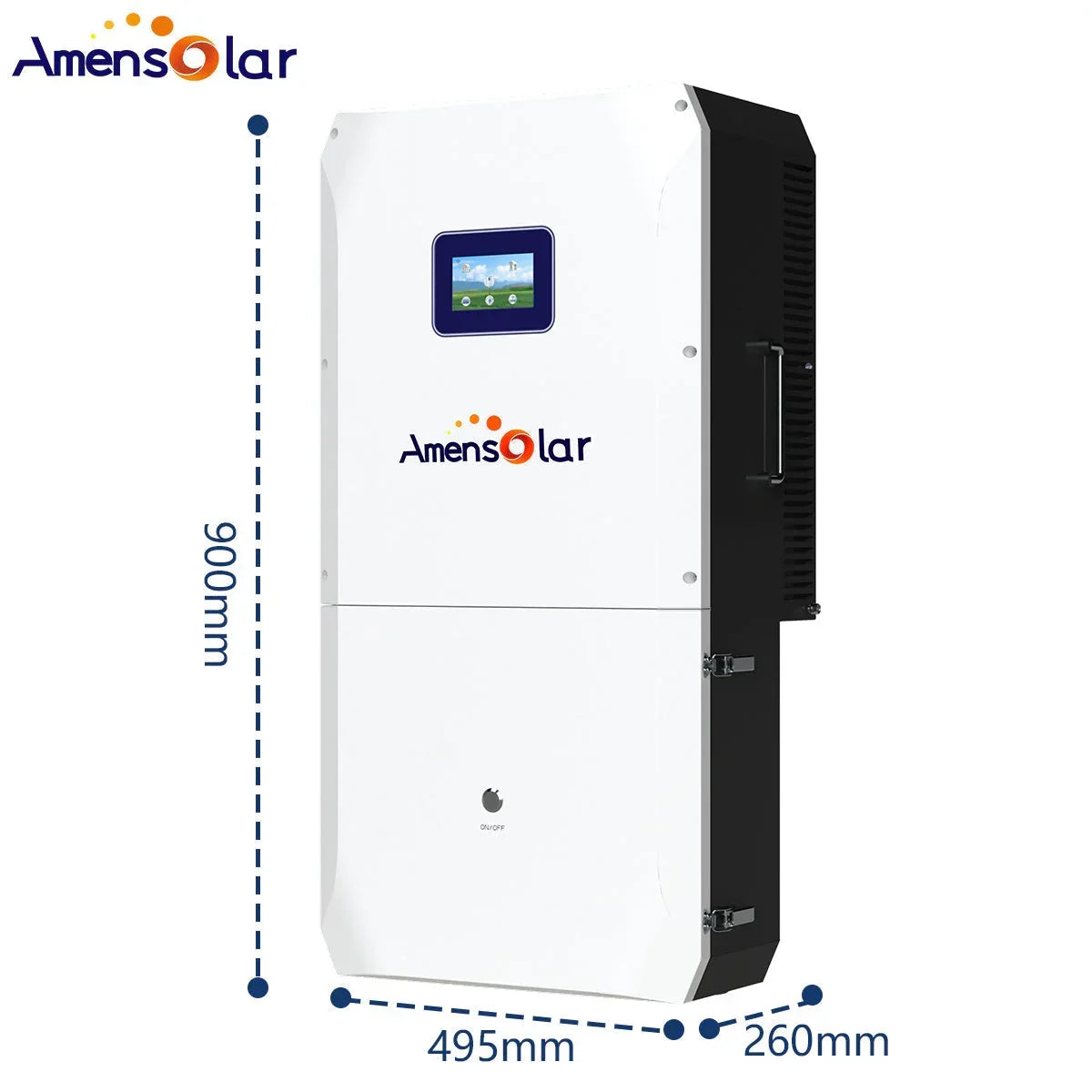

Dimensions W*H*D (mm) 495 x 900 x 260
Cooling Air Cooling
Noise emission (dB) 38
Display LCD
Communication with BMS/Meter/EMS RS485, CAN
Supported communication interface RS485, 4G (optional), Wi-Fi
Self-consumption <25W
Safety UL1741, UL1741SA&SB all options, UL1699B, CSA -C22.2 NO.107.1-01,RSD(NEC690.5,11,12),
EMC FCC part 15 classB
Grid connection standards IEEE 1547, IEEE 2030.5, HECO Rule 14H, CA Rule 21 Phase I,II,III,CEC,CSIP,SRD2.0,SGIP,OGPe,NOM,California Prob65

Other data

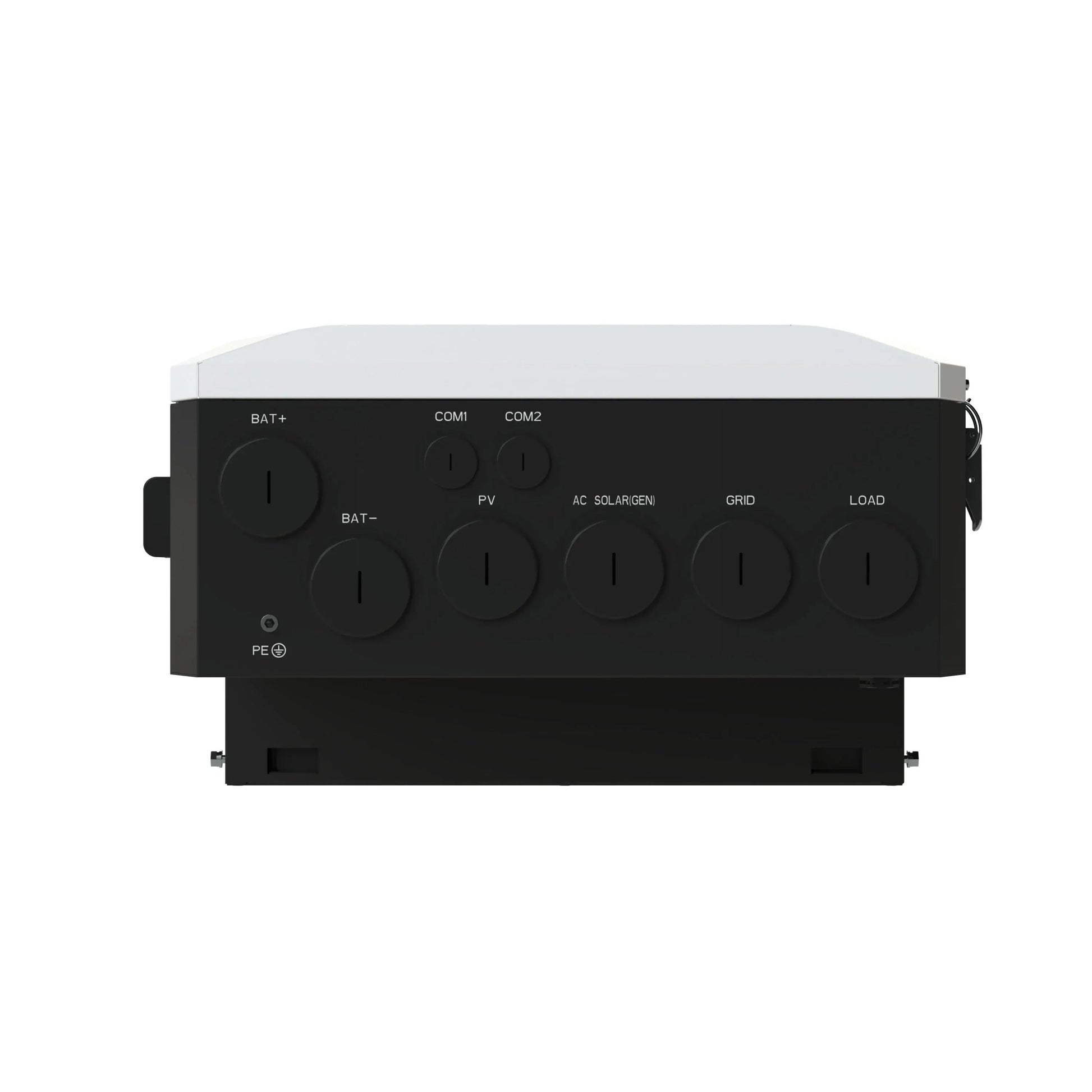

Backup conduit 2″
Grid conduit 2″
AC solar conduit 2″
PV input conduit 2″
Bat input conduit 2″

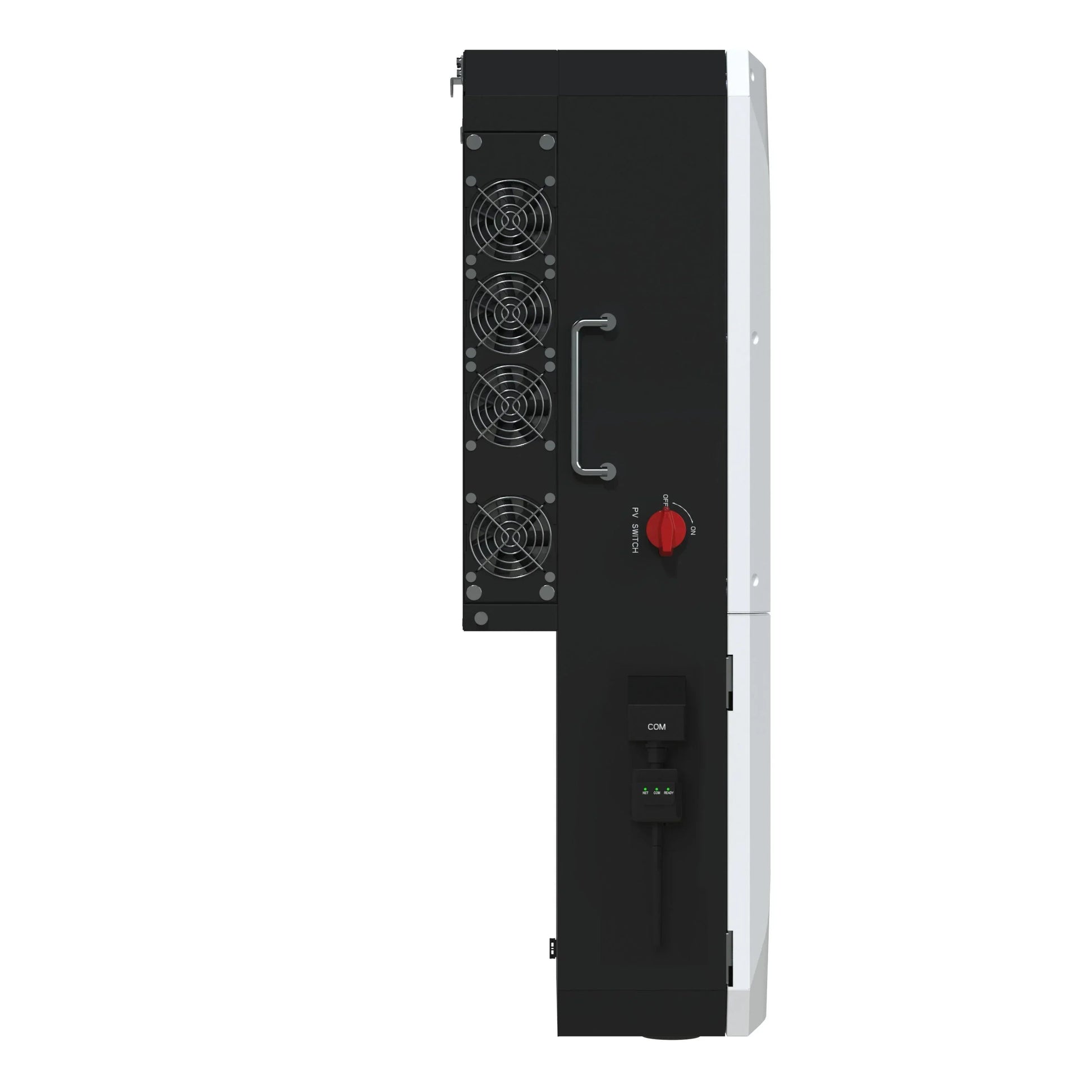

PV switch Integrated
