AmenSolar AMF16000 Floor-Mounted LiFePO4 Energy Storage System for Solar Backup
The AmenSolar AMF16000 is a floor-mounted lithium energy storage module using LiFePO4 chemistry, designed for residential and light commercial solar storage, backup power, and grid-tied applications. Each module delivers 16 kWh and can be paralleled up to 16 units for a total of 256 kWh, preserving a compact 2U footprint that supports floor- or wall-mounted installations.
Key specifications
- Module Type: LFP 16kWh / LV
- Nominal Voltage: 51.2 V
- Operating Voltage Range: 44.8–58.4 V
- Nominal Capacity: 300 Ah
- Nominal Energy (25°C): 16 kWh
- DOD: 90%
- Charge/Discharge Current: 100 A
- Max Charge/Discharge Current: 200 A
- Charge Temperature: 0–55°C
- Discharge Temperature: -10–50°C
- Relative Humidity: 5%–95%
- Parallel Capability: Up to 16 modules (16 kWh – 256 kWh)
- Dimensions / Weight: 277 × 400 × 858 mm; 125 ± 1 kg
- Enclosure / Cooling: IP52; Natural cooling
- Communication: CAN / RS485
- Certifications: UL1973 / IEC61000 / CE / UN38.3 / MSDS
- Warranty: 10 years; Life Span: 20+ years (25°C)
Advanced features
- Active balance: 3 A cell balancing
- Settable charging voltage
- Auto-heating function for operation below 0°C
- BMS automatic management with DIP settings
- Touch screen for real-time battery information
- Intelligent BMS with wider compatibility and automatic DIP setting
- Scalability: parallel up to 16 sets (16 kWh – 256 kWh)
Installation and maintenance
- 2U design enables compact floor mounting; wall-mount option available
- Natural cooling; IP52 enclosure suitable for controlled environments
- Operating ranges: charging 0–55°C, discharging -10–50°C; 5%–95% RH
- Communications via CAN/RS485; follow manual for DIP and configuration
Warranty and service information
Warranty: 10 years. For long-term reliability, the life expectancy is 20+ years at 25°C. Certifications confirm compliance with safety and performance standards (UL1973, IEC61000, CE, UN38.3, MSDS).

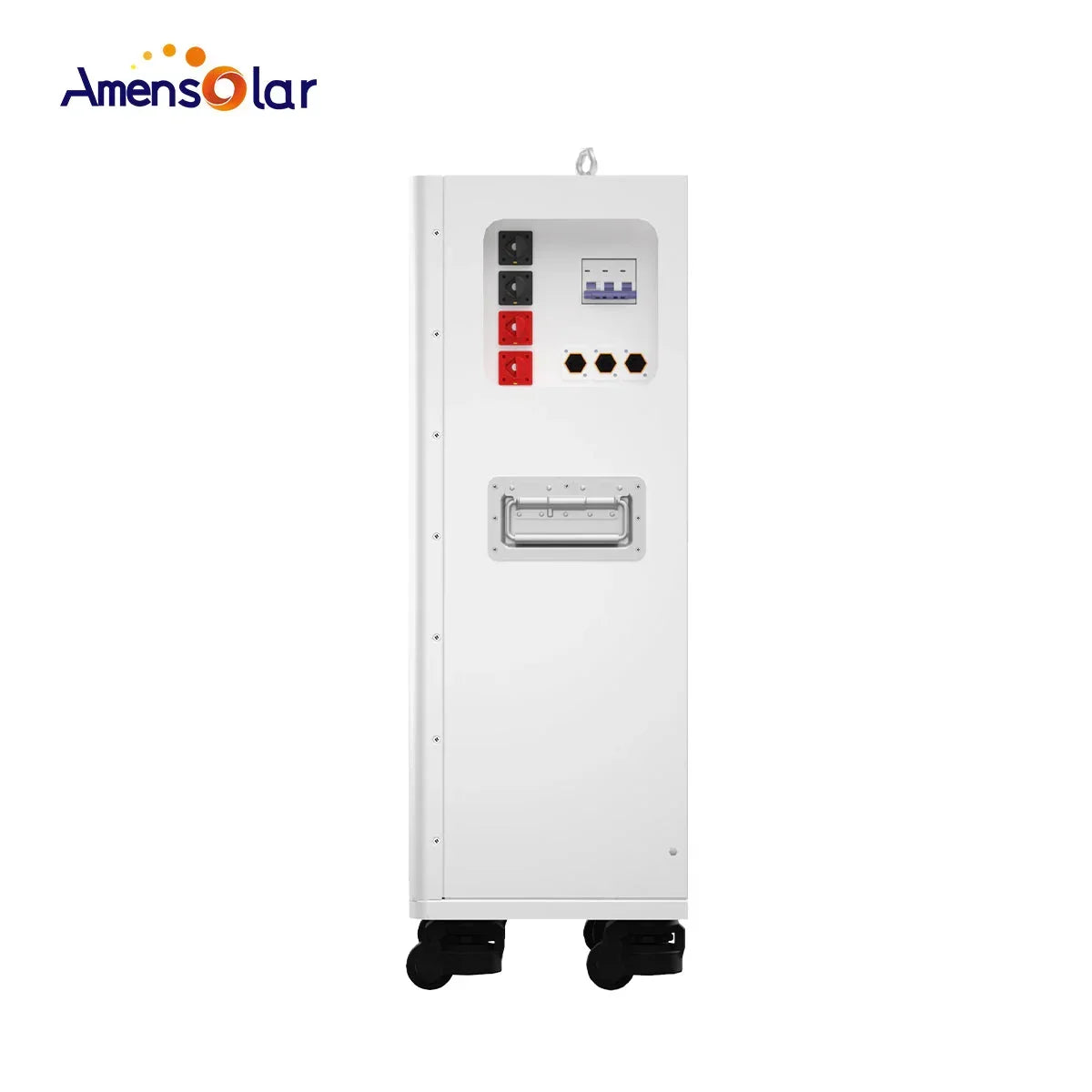

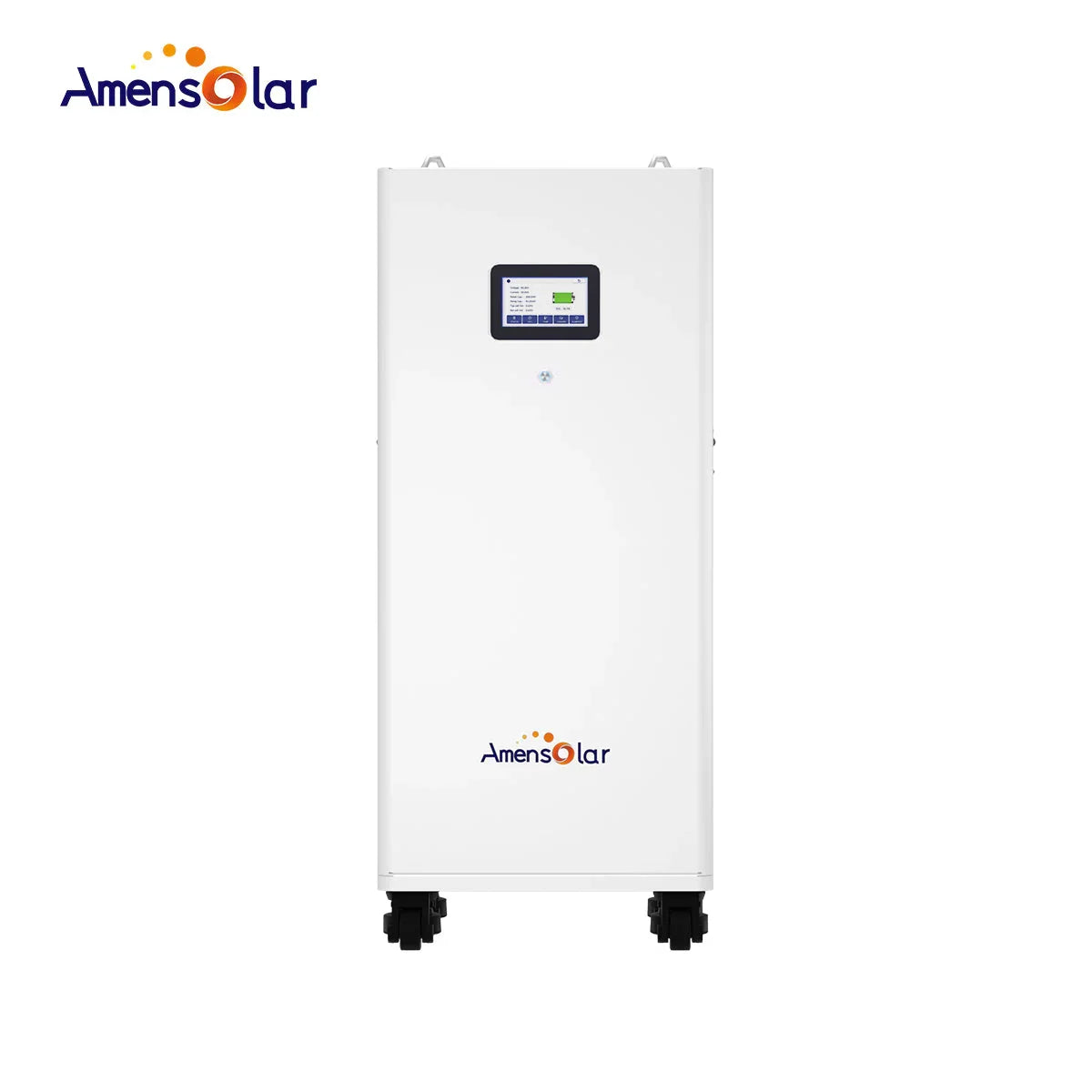

AmenSolar AMF16000 16KWH Floor-Mounted Lithium Battery
- Car-grade LiFePo4 battery: Compact, safe, stable, flexible
- Cycle life：>8,000 Cycles at 90% DOD
- Consistency of battery cells: Active equalization (3A) Settable charging voltage
- Auto-heating function：Heating below 0℃ BMS automatic management

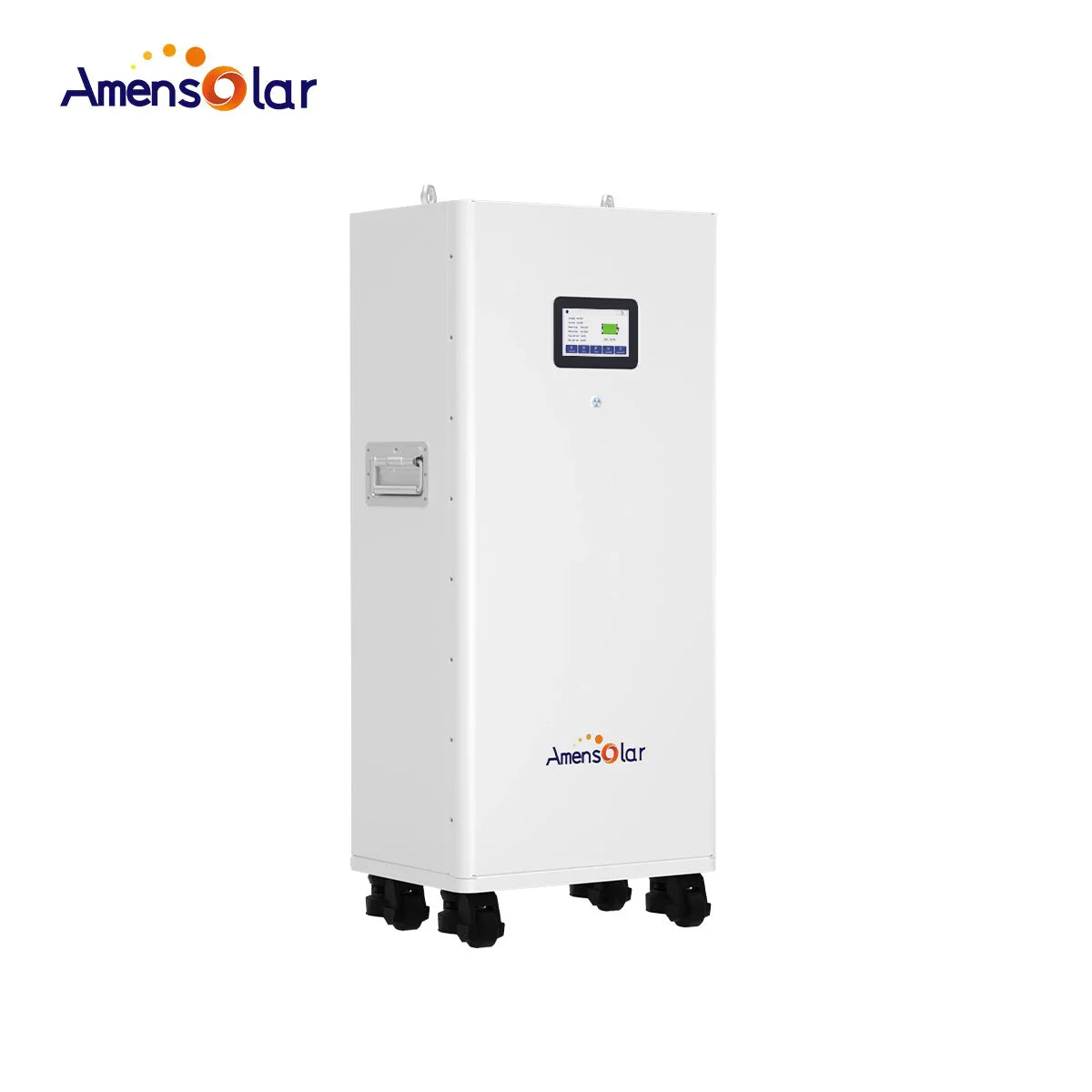

- Touch screen: View battery information Set communication protocol and DIP
- Intelligent BMS：Wider compatibility; Automatic DIP Setting
- Scalable: paralleled 16 sets：Battery:16kWh – 256kWh

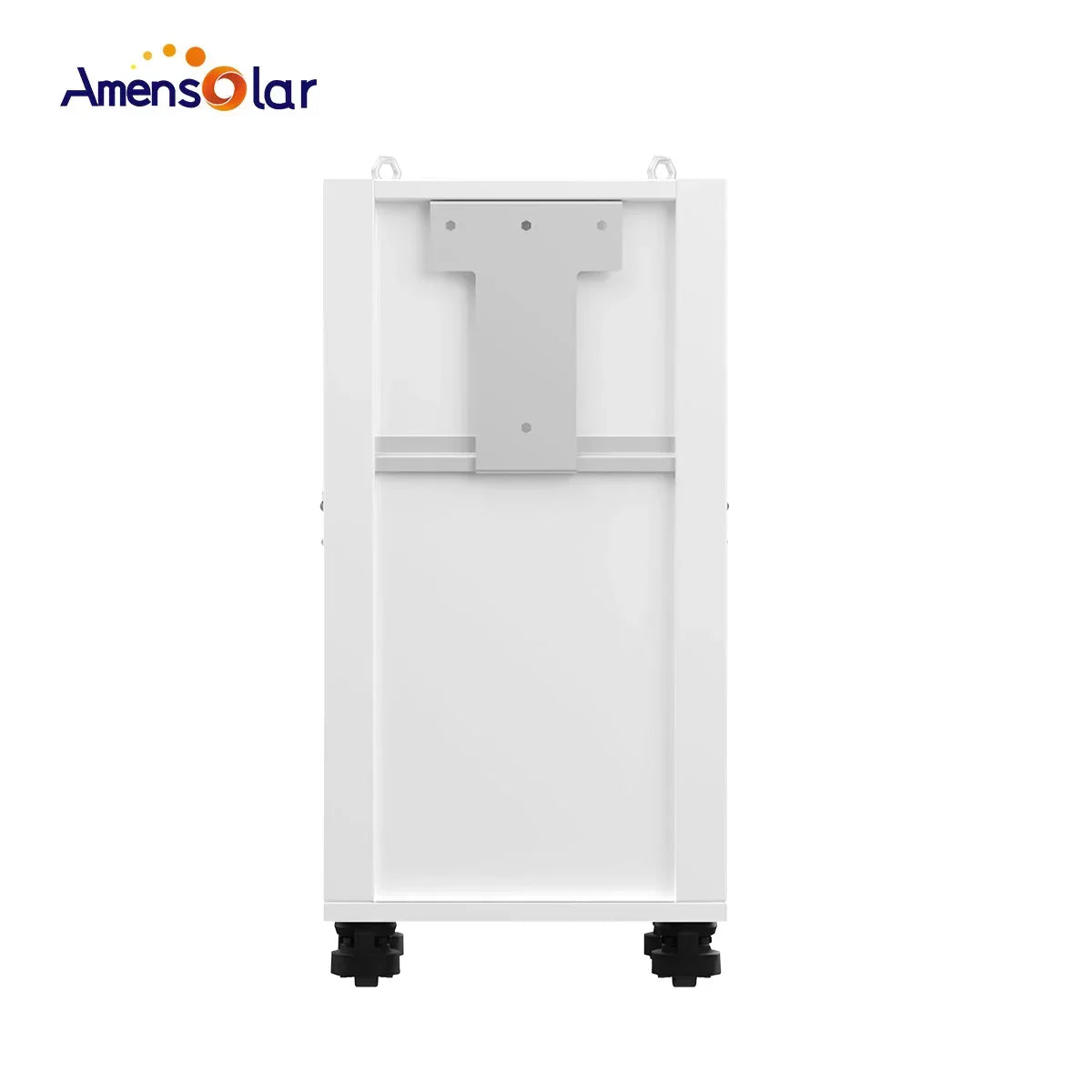

- 2U design; wall mounted：More capacity in limited space
- Certification：UL1973/IEC61000/CE/UN38.3/MSDS
|
Model |
AMF16000 |
| Module Type | LFP 16kWh / LV |
|
Nominal Voltage
|
51.2V |
|
Operating Voltage Range
|
44.8~58.4V
|
|
Nominal Capacity
|
300Ah |
|
Nominal Energy (at25°C)
|
16kWh |
|
DOD
|
90%
|
|
Charge/Discharge Current
|
100A
|
|
Max Charge/Discharge Current
|
200A
|
|
Charge Temperature
|
200A |
| Charge Temperature | 0~55℃ |
|
Discharge Temperature
|
-10~50℃
|
|
Relative Humidity
|
5% – 95%
|
| Communication Interface |
CAN / RS485
|
|
Enclosure Protection Rating
|
IP 52
|
|
Cooling Type
|
Natural cooling
|
|
Cycle Life
|
≥8000
|
|
Warranty
|
10 years
|
|
Life Span
|
20+ Years (25°C)
|
|
Max. Pieces of Parallel
|
16
|
|
Dimension (L*W*H)
|
277*400*858mm
|
|
Weight
|
125±1kg
|
|
Certificates
|
IEC61000/CE/UN38.3/MSDS
|
|
