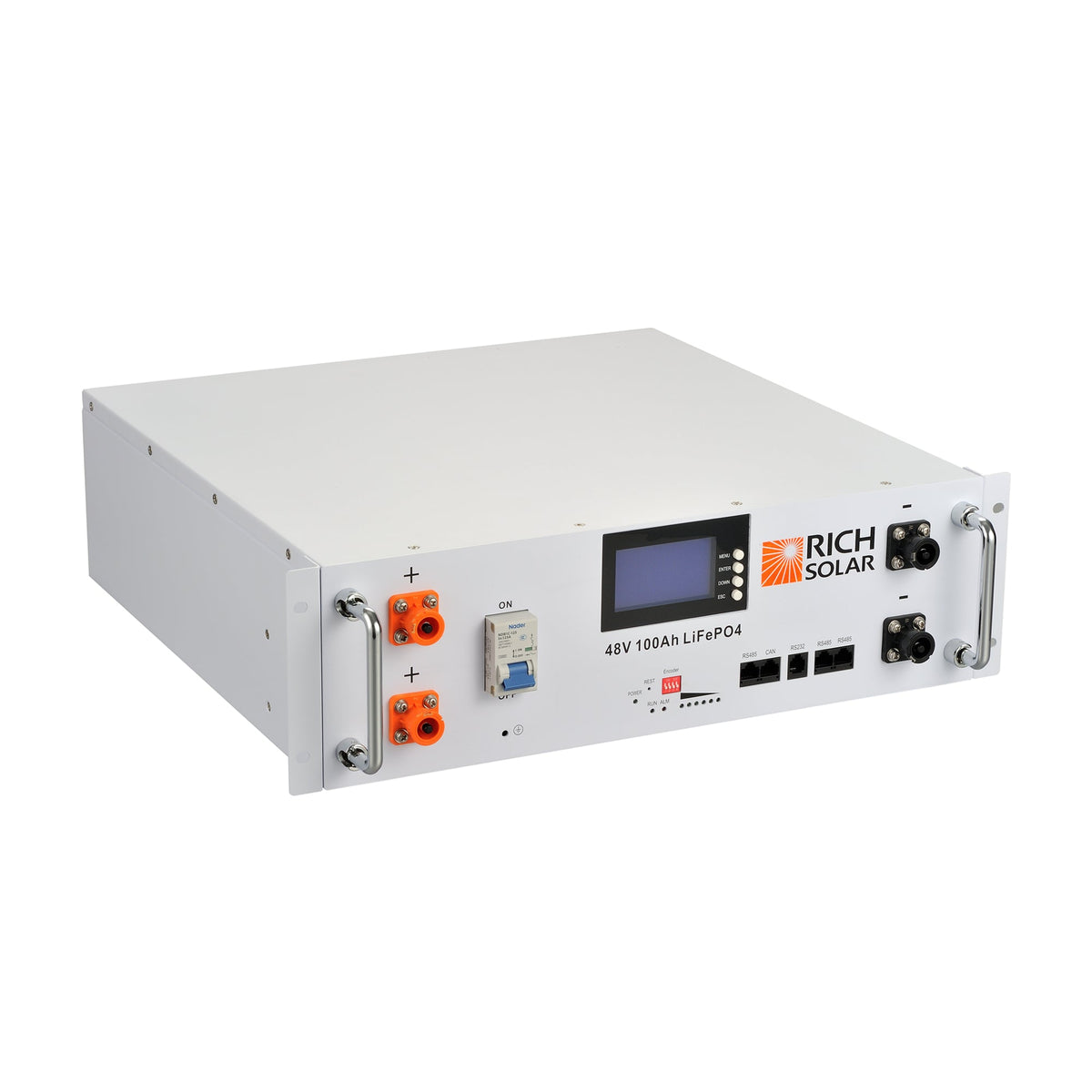

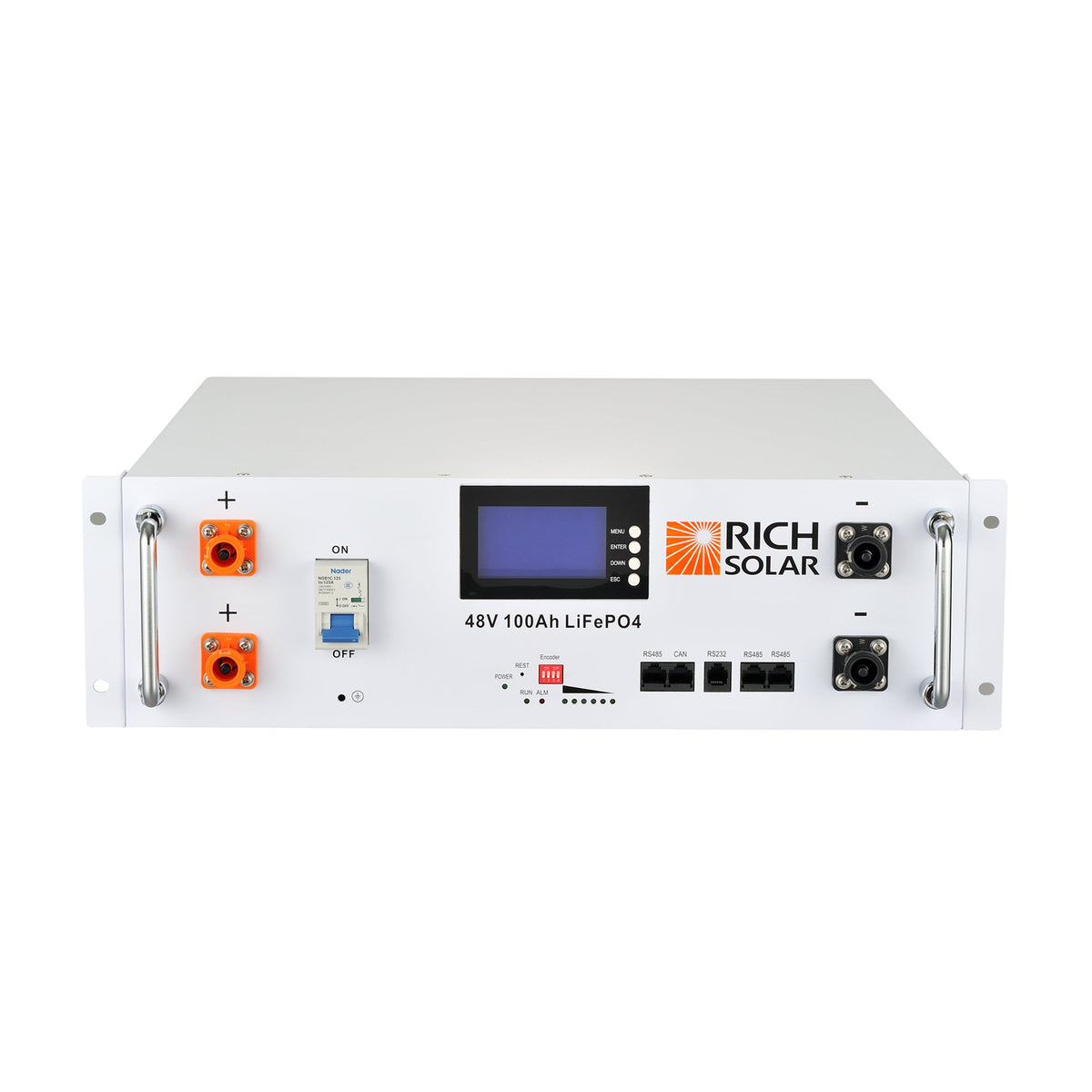

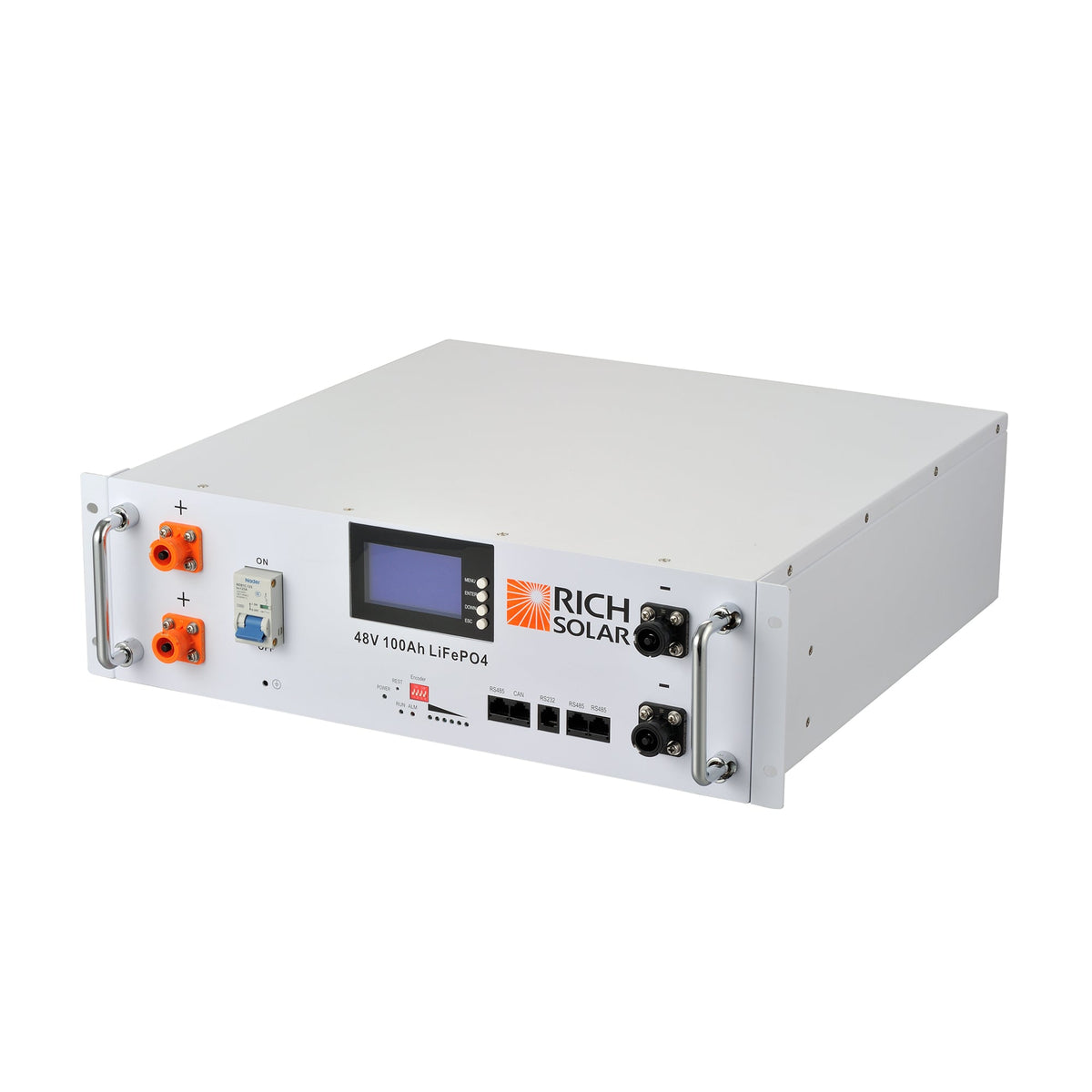

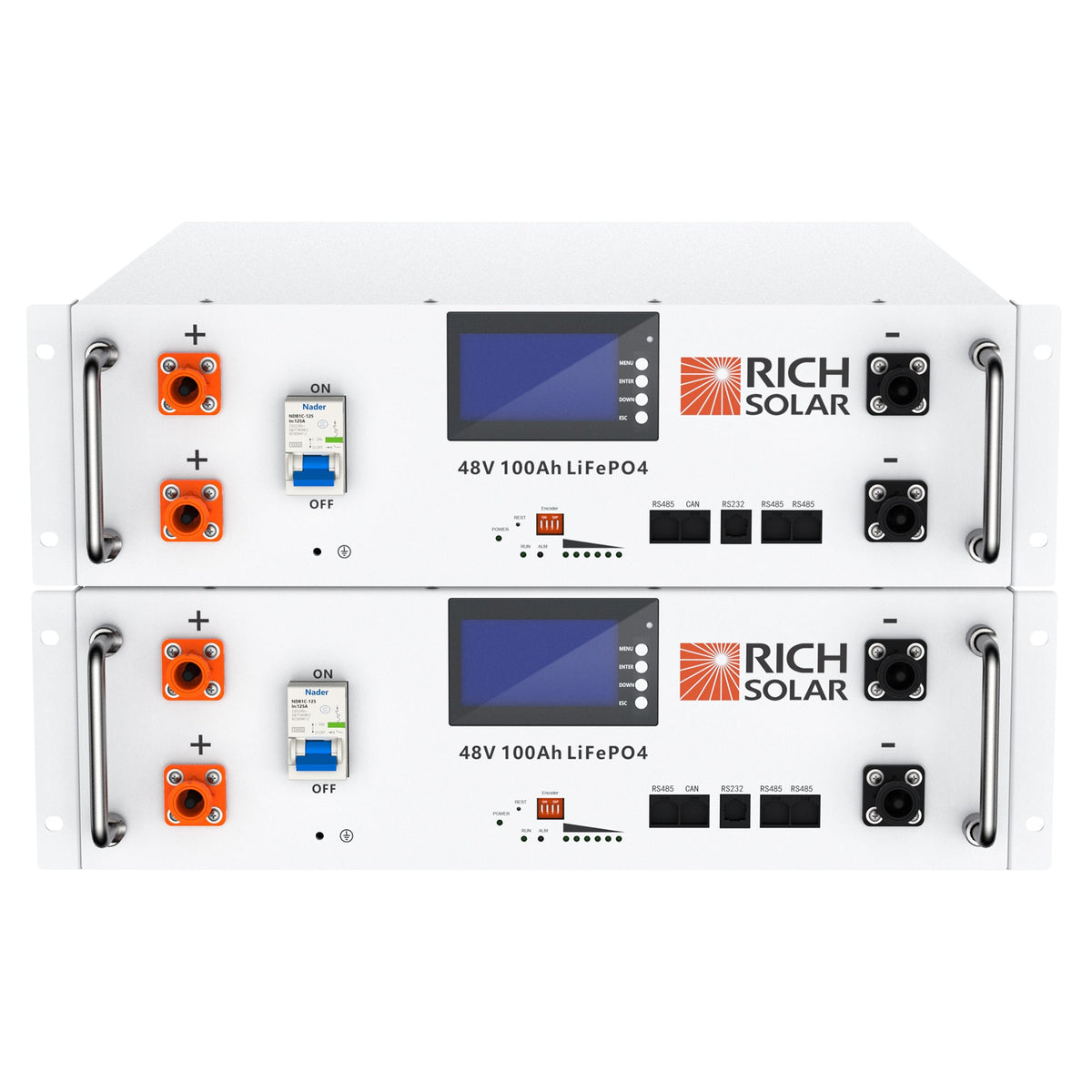

Rich Solar ALPHA 5 | 48V 100Ah LiFePO4 Server Rack Battery
Equipment Type: 48V 100Ah Lithium Iron Phosphate Server Rack Battery providing 4800Wh of maintenance-free energy density.
Primary Applications: Residential backup, commercial load leveling, and off-grid renewable integration.
Performance Specifications
- Nominal Voltage: 48 V | Capacitive Rating: 100 Ah (Minimum: 99.5 Ah @.5C, 77°F)
- Total Energy: 4800 Wh | Continuous Charge/Discharge Current: 100 A
- Charge Voltage Range: 52.0–52.5 V | Over-Voltage Shutdown: 52.5 ±0.2 V
- Discharge Cut-off: 42V ±0.5 V | Expected Cycle Life: >7000 cycles (80% DOD at 1C, 77°F)
- Battery Form Factor: 19 x 17.7 x 5.2 in | Net Weight: 92.6 lb
- Operating Environments: Charge 32°–113°F | Discharge -4°–122°F | Storage -4°–122°F
Safety Features and Certifications

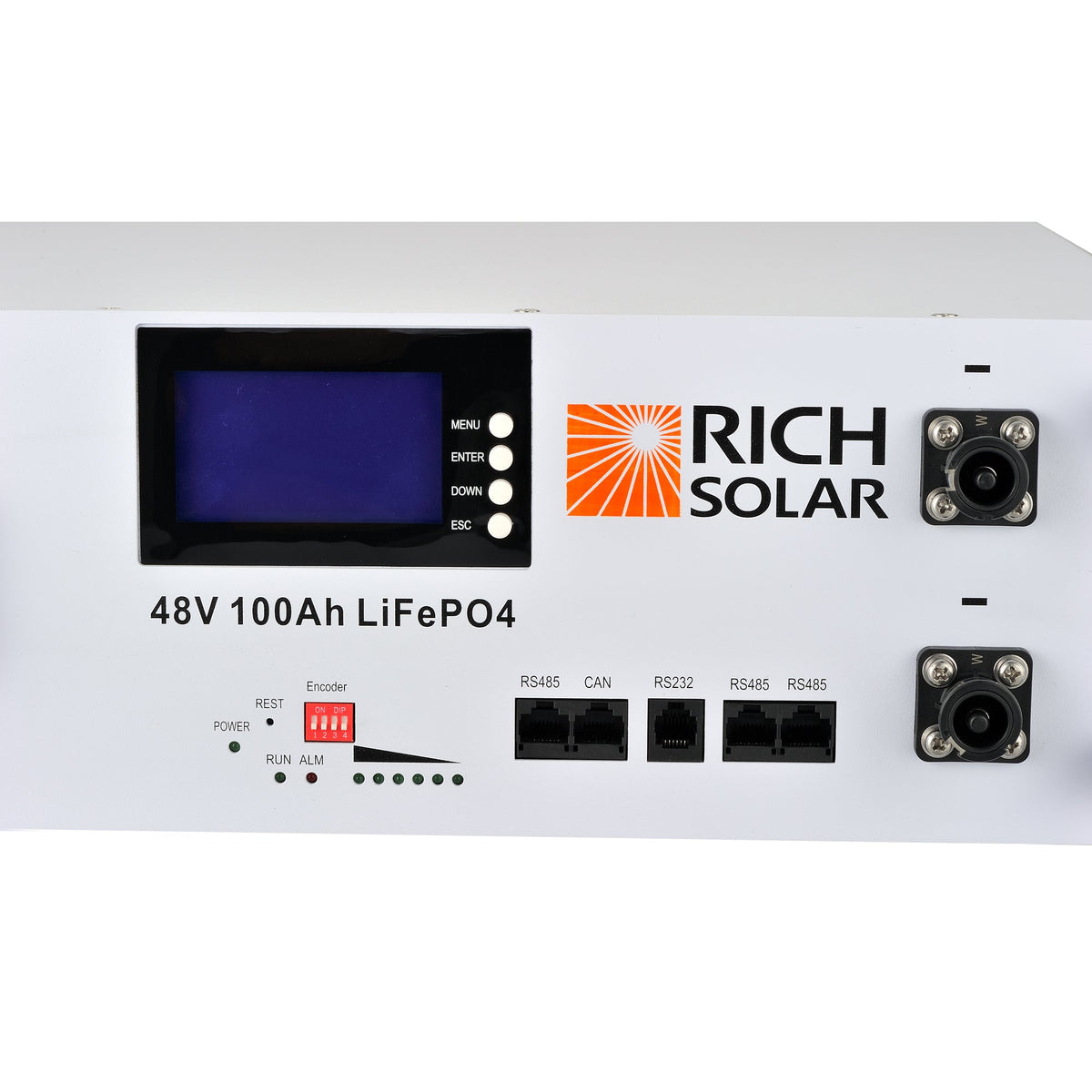

- Integrated Smart Battery Management System with RS485/CAN data ports
- Individual cell fusing isolates degraded modules to prevent cascading failure and maintain system uptime
- Electronic protections: overvoltage (3.9V ±0.05V, 0.96–1.4s delay), undervoltage (2.0V ±0.05V, 115–173ms delay), overcurrent (9±2ms), reverse polarity, and short circuit
- Thermal management cuts off charging at 149°F and below 32°F; chemically resistant to thermal runaway and mechanical impact
- Ingress Protection: IP65 rated electrical enclosure | IP20 rated server rack mounting frame
Installation and Maintenance Requirements

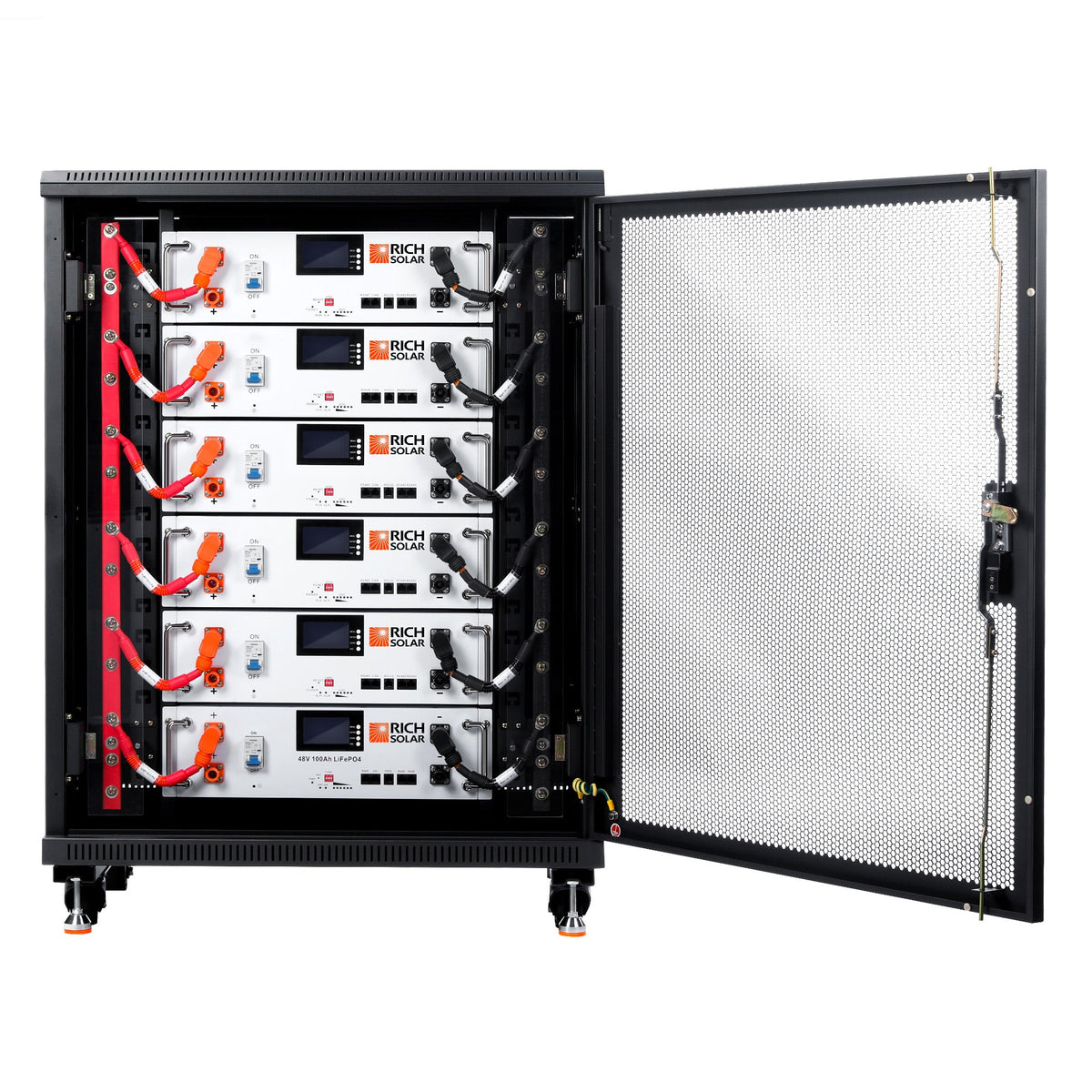

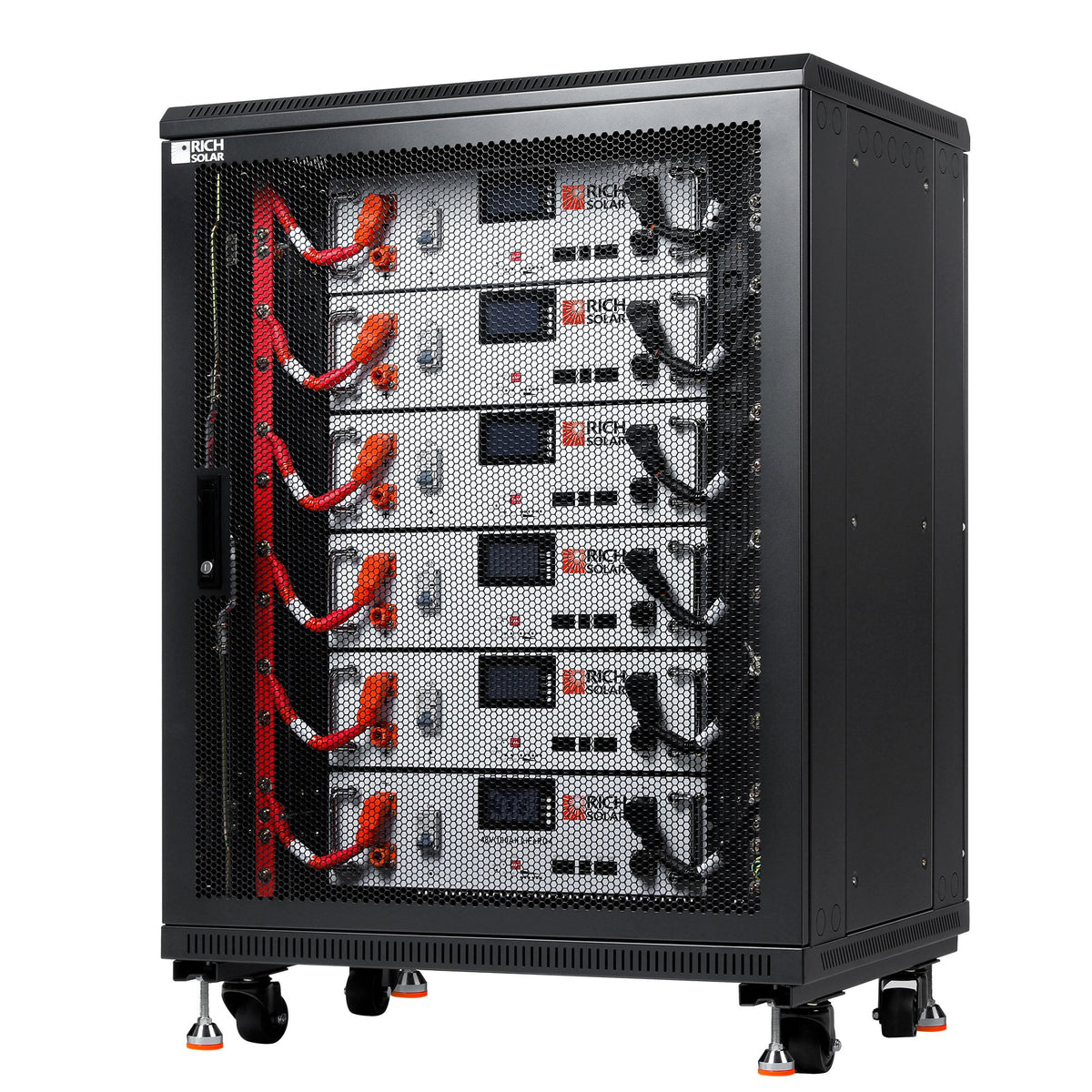

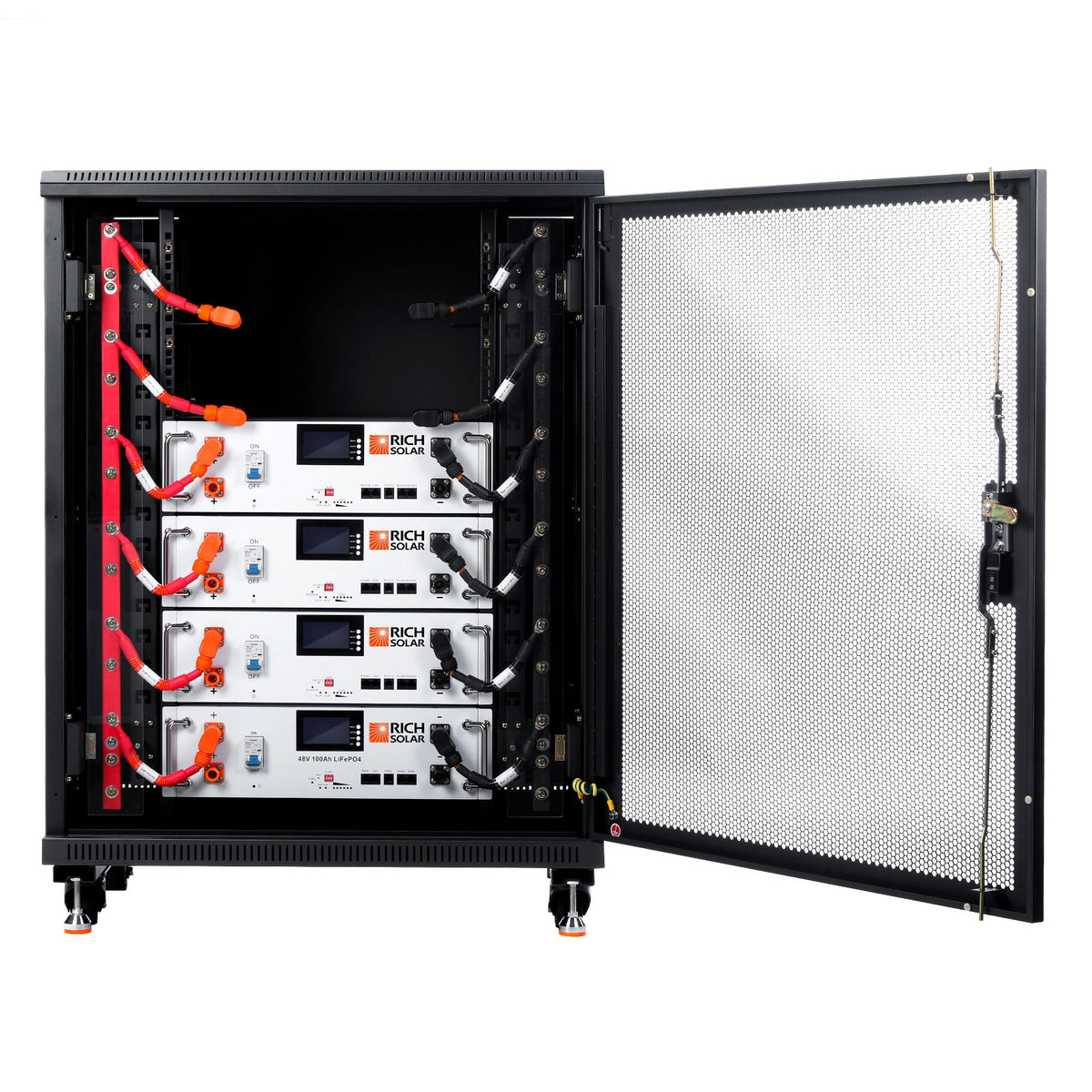

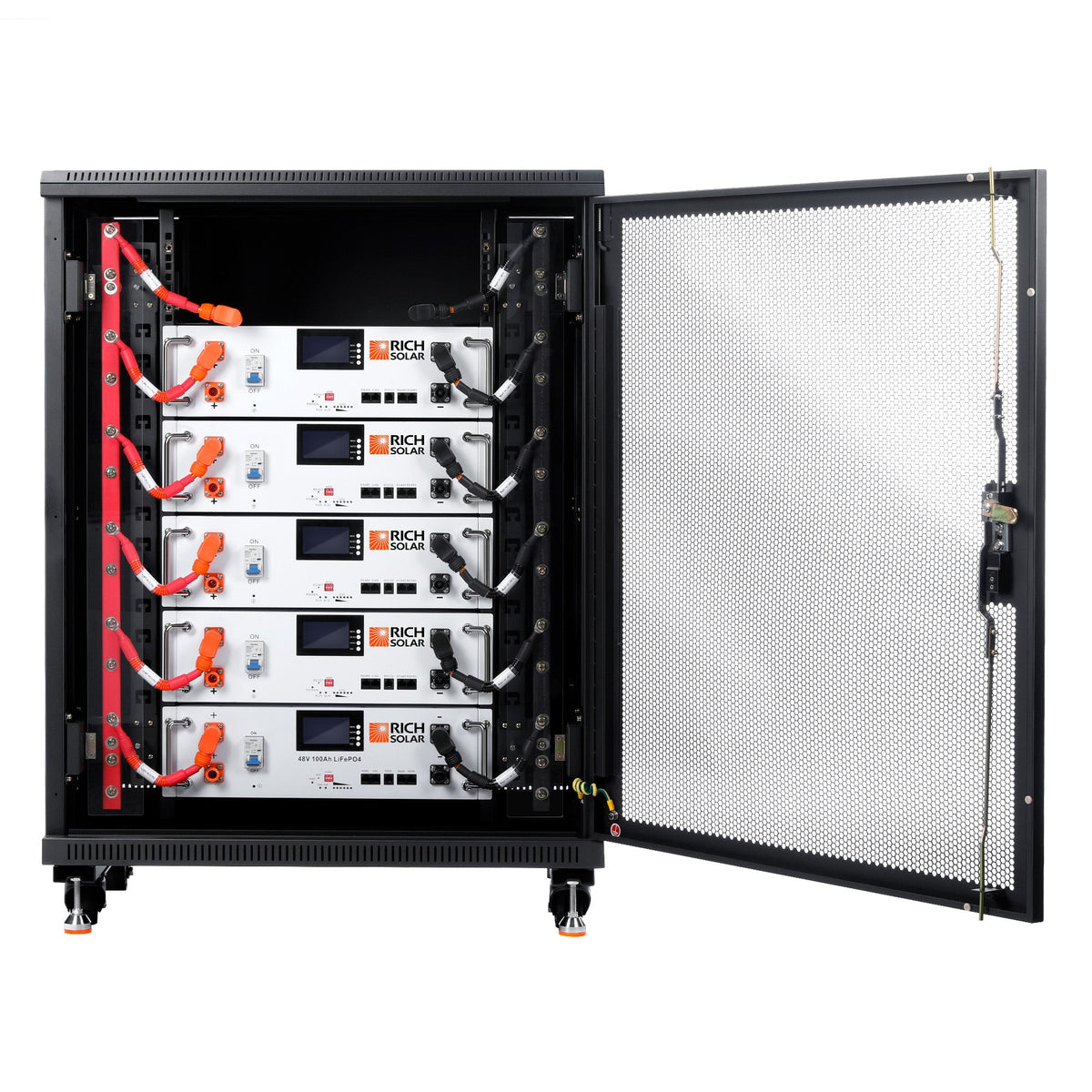

- Mounts to standard equipment racks; pairs directly with CC/CV smart chargers without balancing hardware

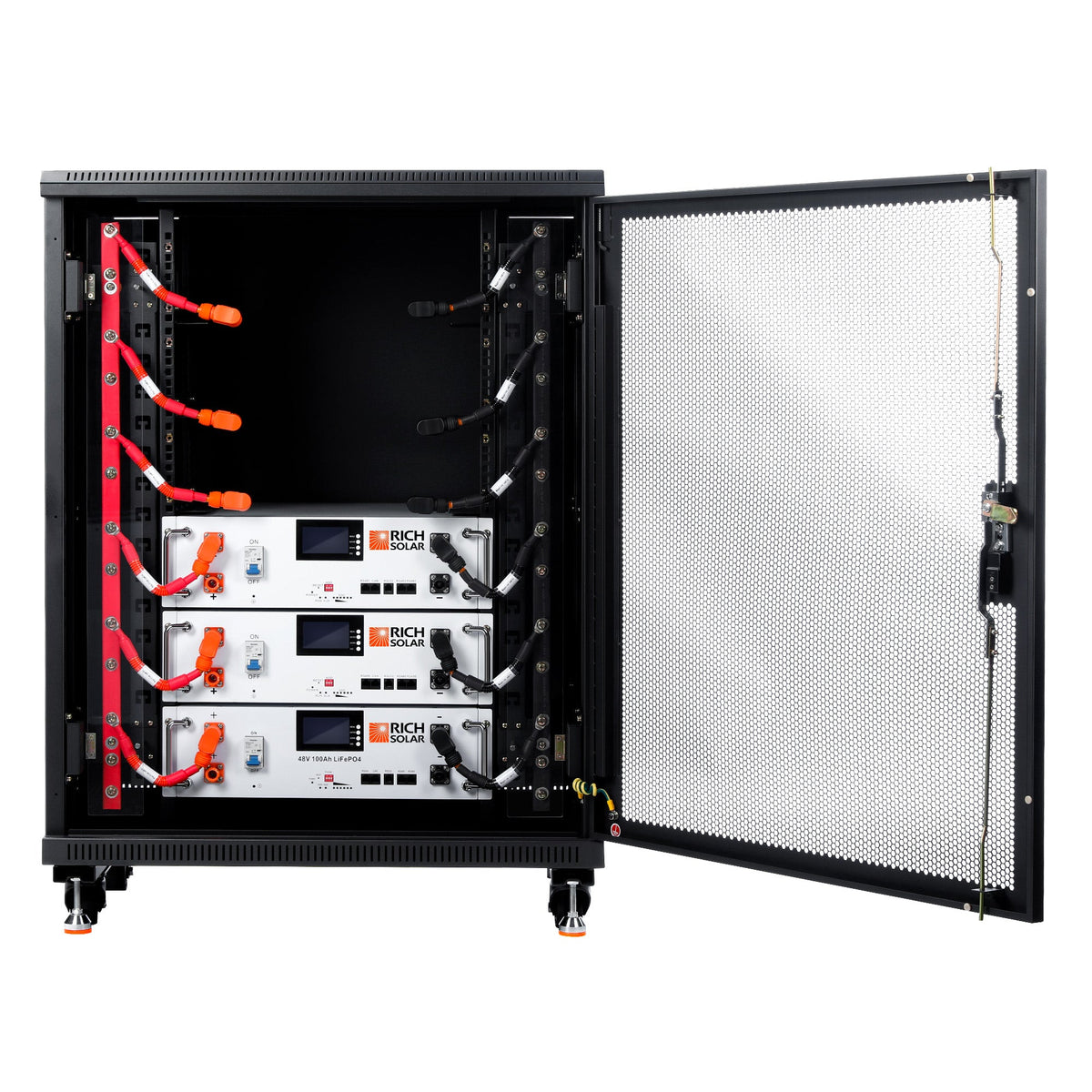

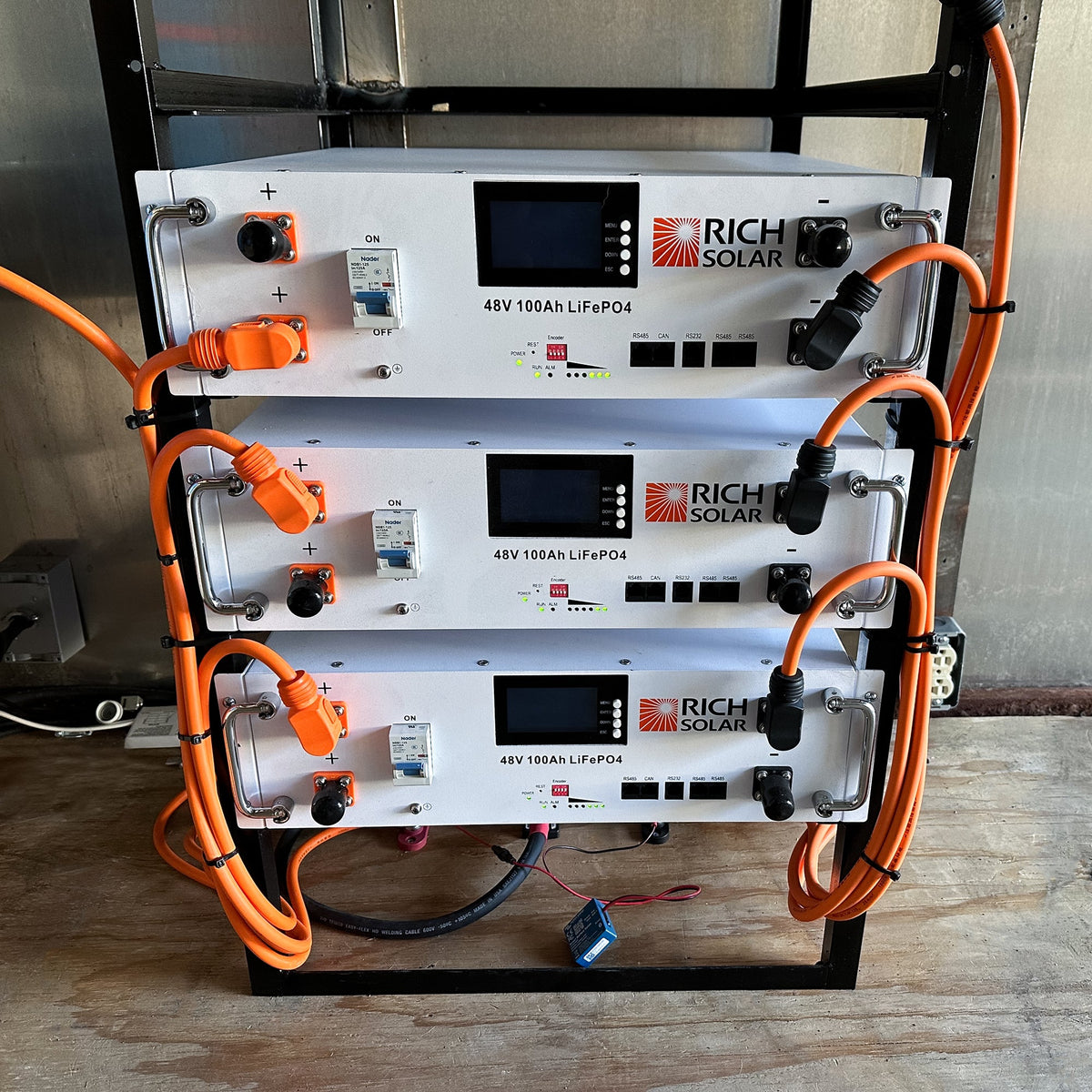

- Included accessories: 1-foot RS485 communication cable and parallel interconnect cabling for expanded capacity arrays
- Structural clearance utilizes 1.0–2.0 mm thick cold-rolled steel rack frames for optimal vibration dampening
- Maintenance protocol: Zero periodic calibration or electrolyte servicing required; annual visual inspection of bus bars and firmware telemetry review via CAN interface recommended
Warranty and Service Information
- Coverage Period: 10-year limited manufacturer defect warranty
- Service Terms: Direct replacement parts distribution and lifetime technical engineering support
Branding/References
- Manufacturer: Rich Solar
- Model Reference: ALPHA 5 Server Series | Data sheet and wiring diagrams available via official product catalog
Differentiators
- Cell-level fuse architecture guarantees functional continuity despite isolated cell faults, outperforming standard module-switched banks during partial degradation events
