ALPHA 3 | 12V 300Ah LiFePO4 Battery

ALPHA 3 | 12V 300Ah LiFePO4 Battery

$1,199.99 USD
$1,499.99 USD $1,199.99 USD
Sale Sold out
Shipping calculated at checkout.
Title

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

View full details

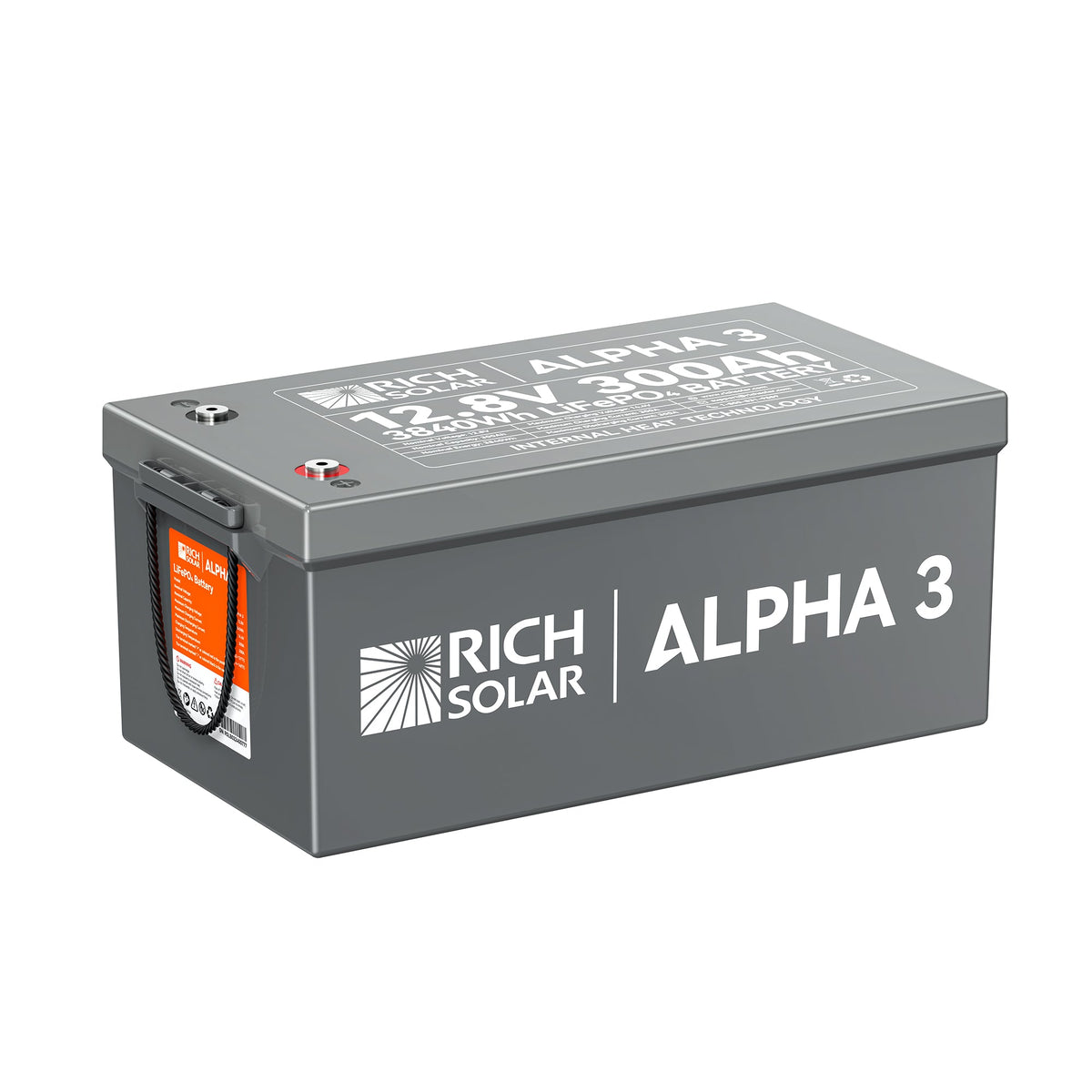

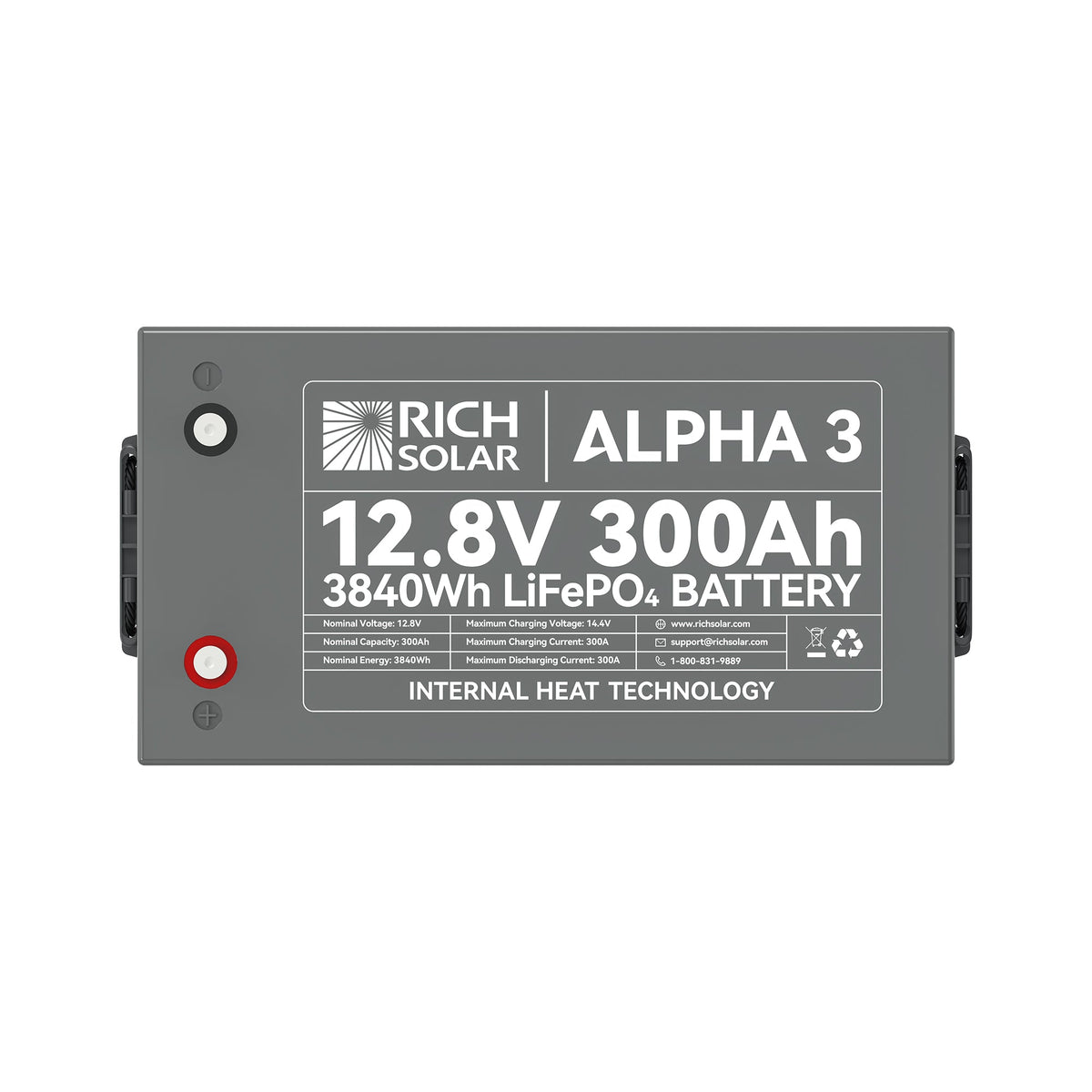

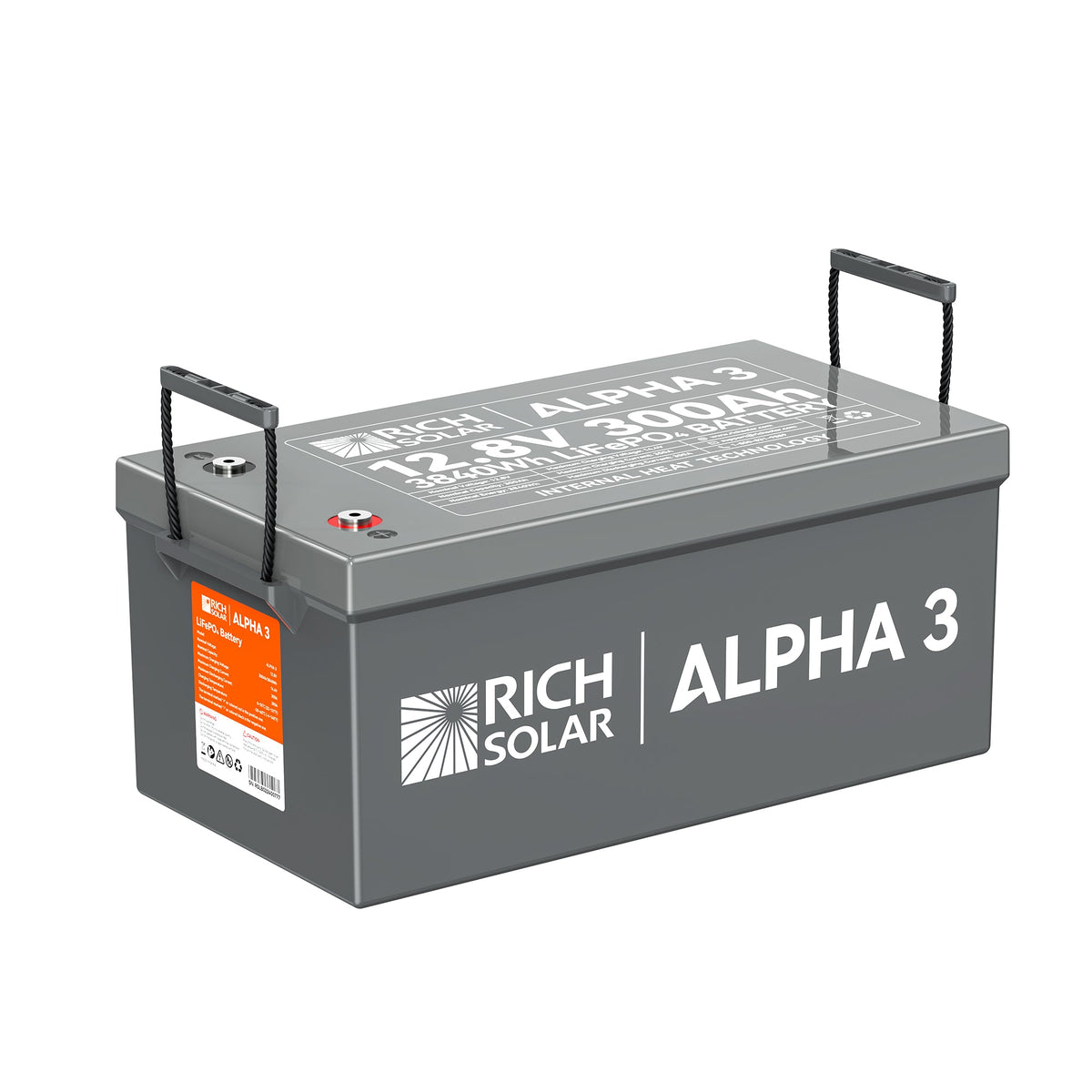

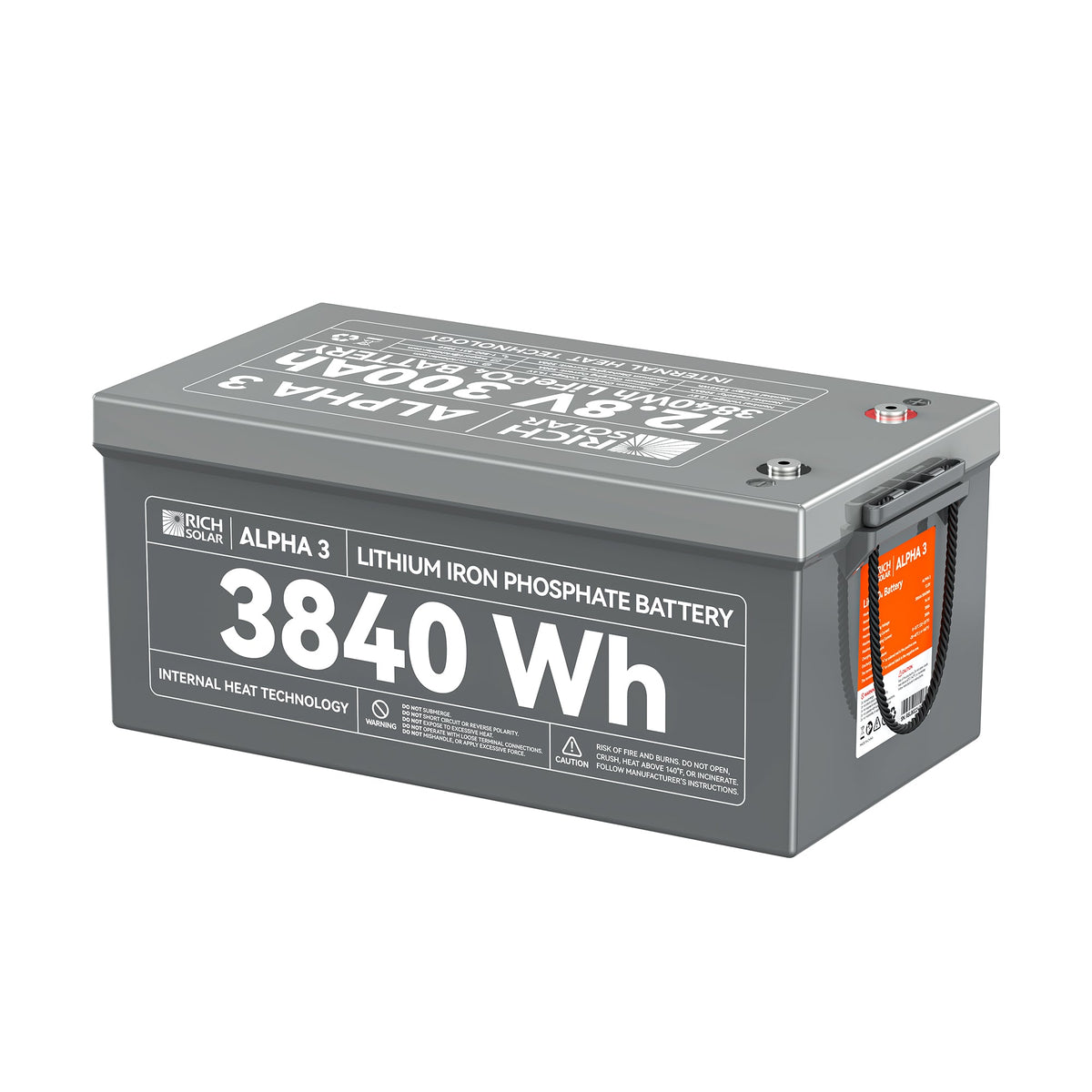

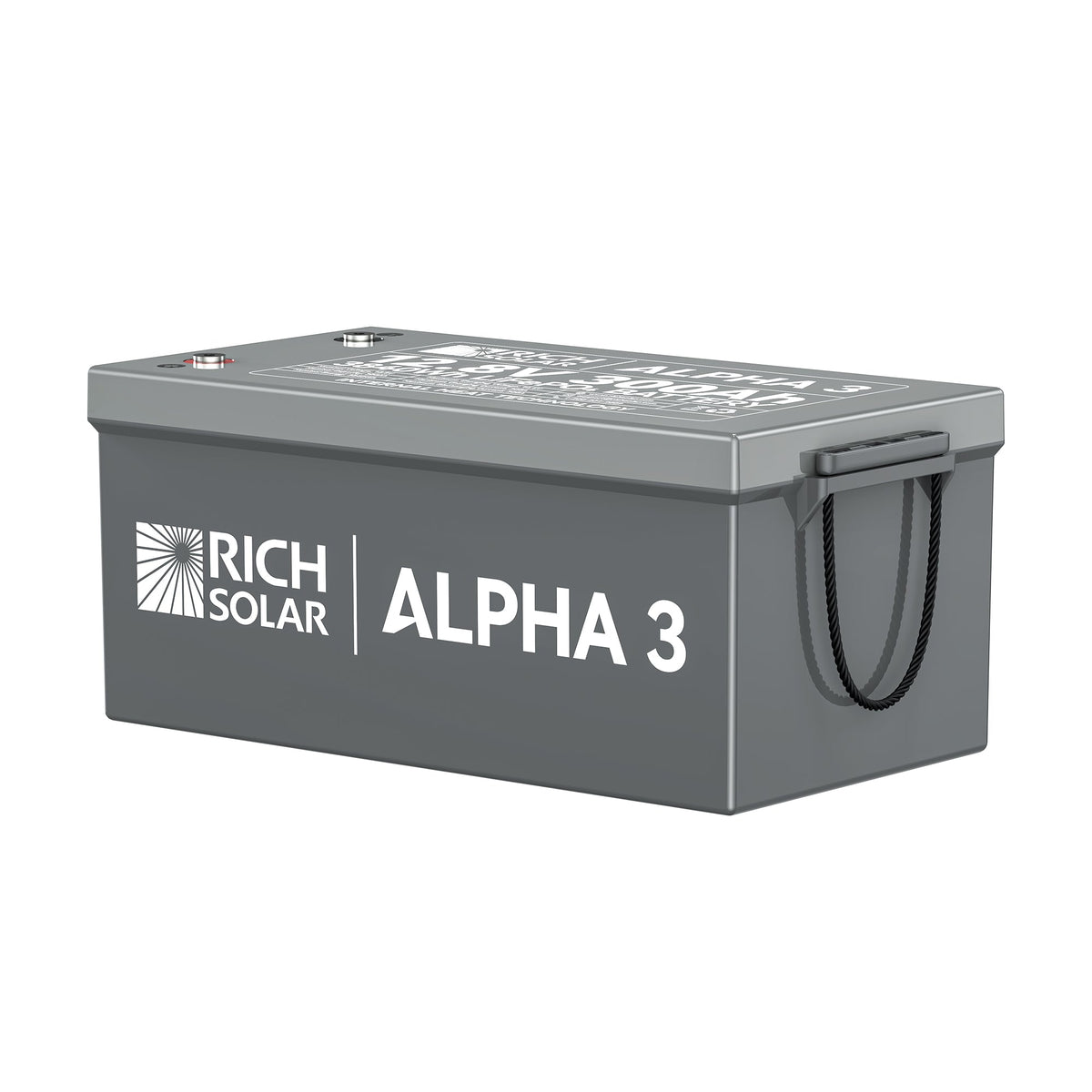

ALPHA 3 | 12V 300Ah LiFePO4 Battery

Equipment Type and Primary Applications

12.8V, 300Ah lithium iron phosphate (LiFePO4) battery with 3,840Wh nominal energy for RV, marine, off-grid, and backup power systems. The ALPHA 3 supports Bluetooth monitoring and expansion to up to four batteries connected in parallel.

Performance Specifications

  • Nominal voltage: 12.8V; rated capacity: 300Ah; nominal energy: 3,840Wh
  • Maximum charge voltage: 14.4V; maximum charge current: 300A
  • Maximum continuous discharge current: 300A
  • Cycle life: 5,000+ cycles; monthly self-discharge: ≤5%
  • Charging operating range: 32–131°F; discharging operating range: -4–140°F
  • Internal heating supports cold-weather charging; low-temperature protection pauses charging and resumes operation when conditions are safe
  • Dimensions: 20.6 × 10.6 × 8.7 inches; net weight: 71.7 lb; enclosure rating: IP65

Safety Features and Certifications

  • Advanced battery management system protects against overcharge, over-discharge, overcurrent, short circuit, and temperature risks
  • Grade A+ LiFePO4 cells and UL94 V-0 flame-retardant housing
  • Certifications and documentation: UN 38.3 and MSDS

Installation and Maintenance Requirements

Plan installation space for the 20.6 × 10.6 × 8.7-inch enclosure and configure charging equipment for 14.4V and up to 300A. Commissioning can include Bluetooth pairing with the RICH SOLAR App and confirmation of battery status. The LiFePO4 design is maintenance-free.

Warranty and Service Information

Includes a 5-year warranty.

Branding/References

Product: ALPHA 3. Monitoring platform: RICH SOLAR App. Reference documentation includes UN 38.3 and MSDS.

Differentiators

Built-in internal heating combines with low-temperature charging protection, enabling controlled charging in cold conditions while preserving the battery’s 5,000+ cycle-life design.
