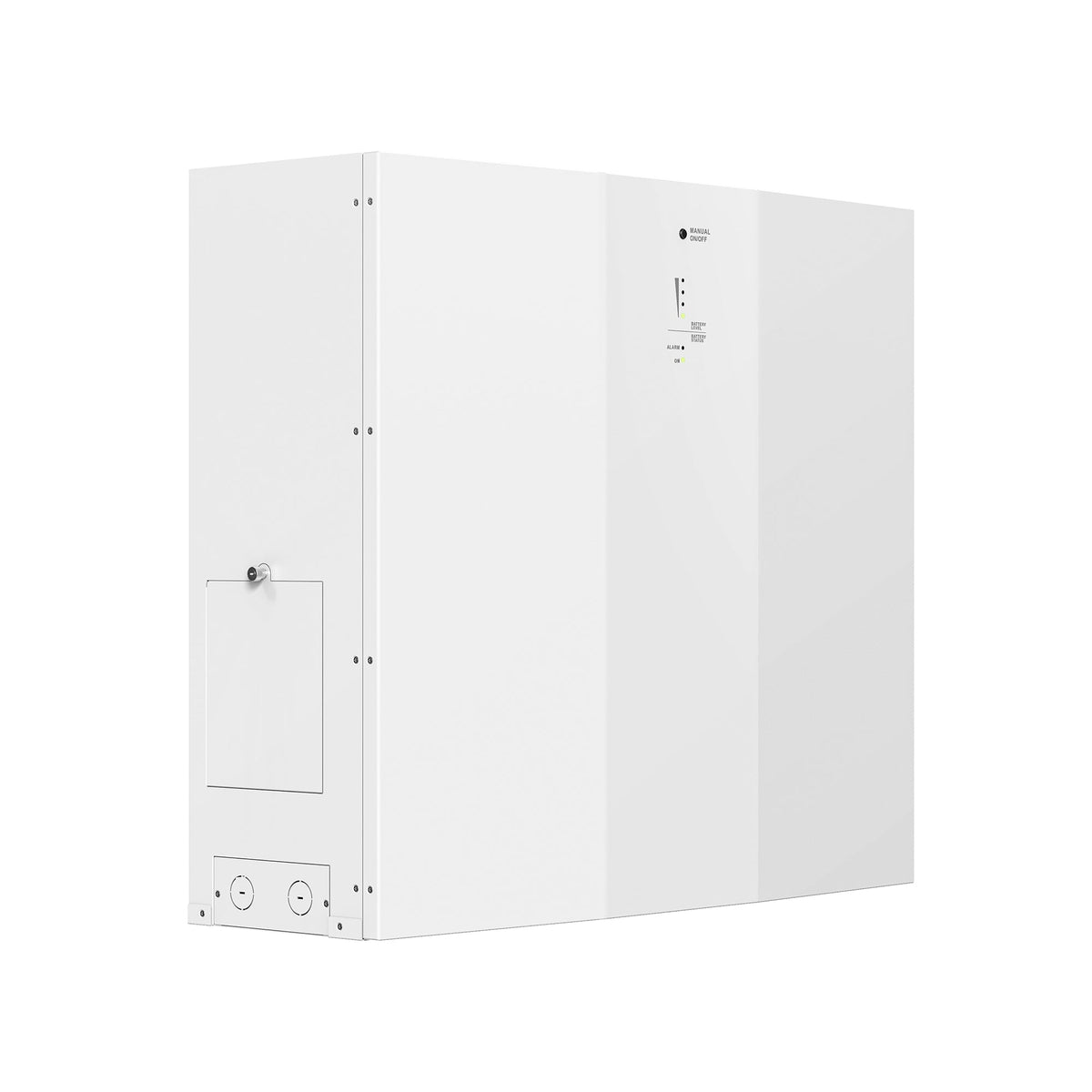

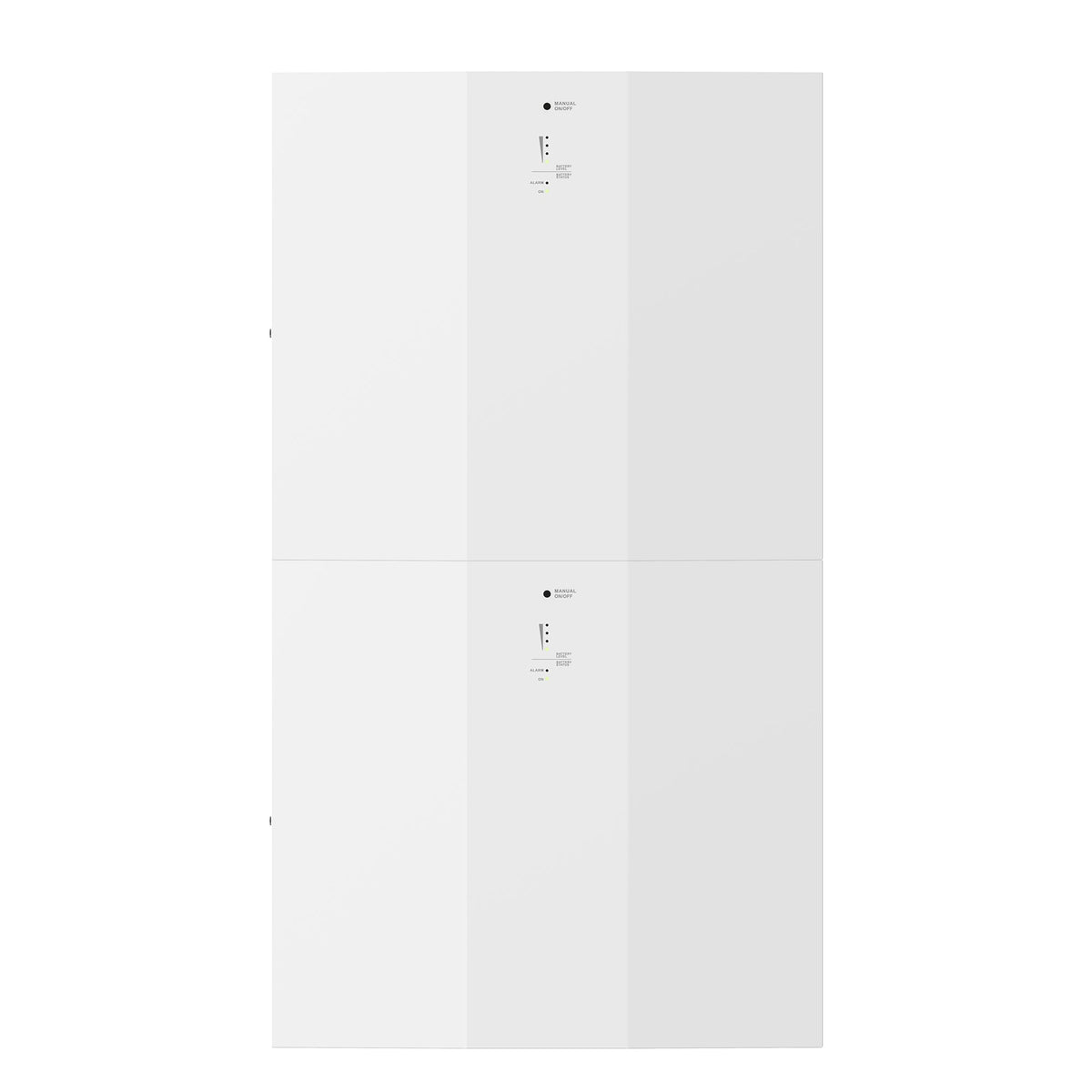

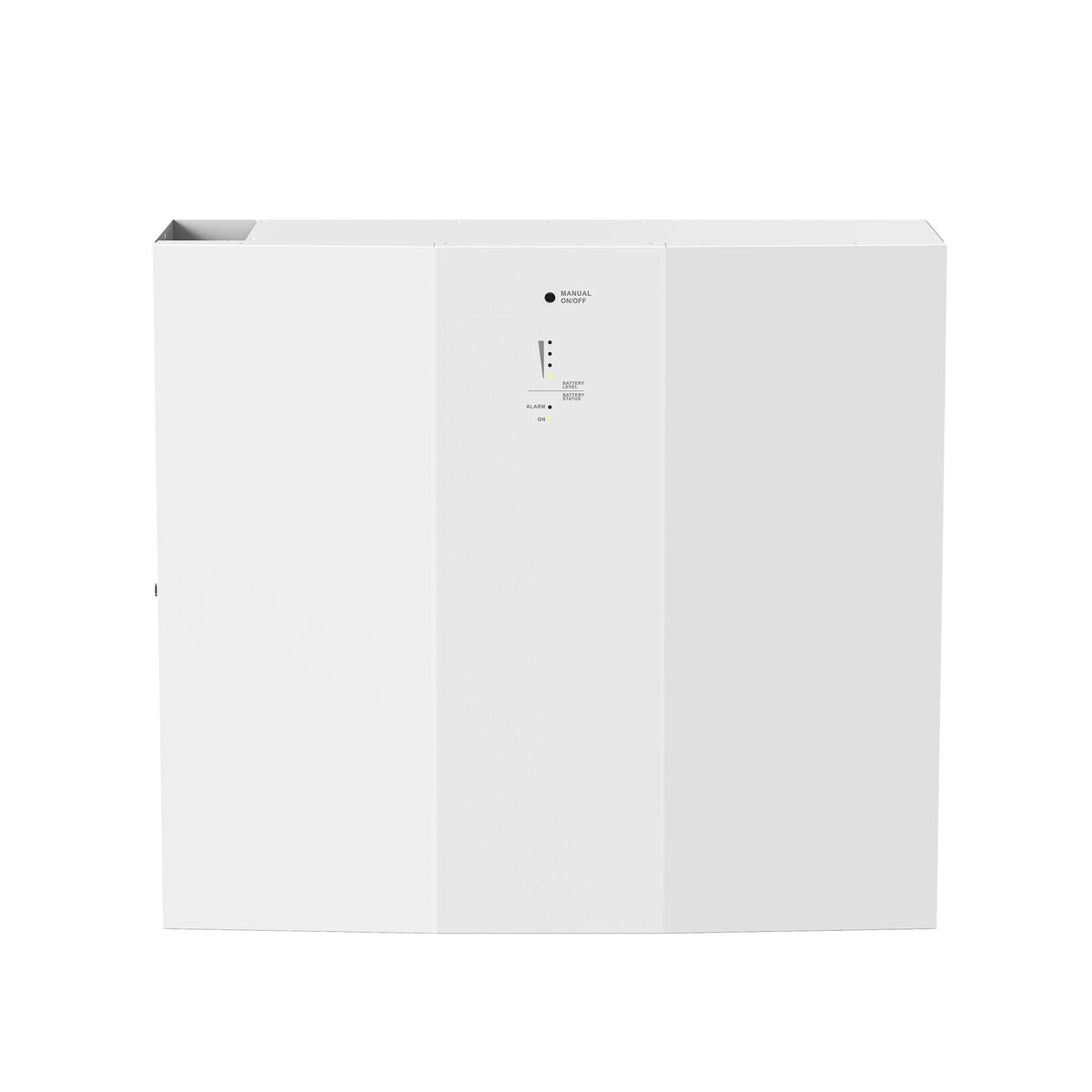

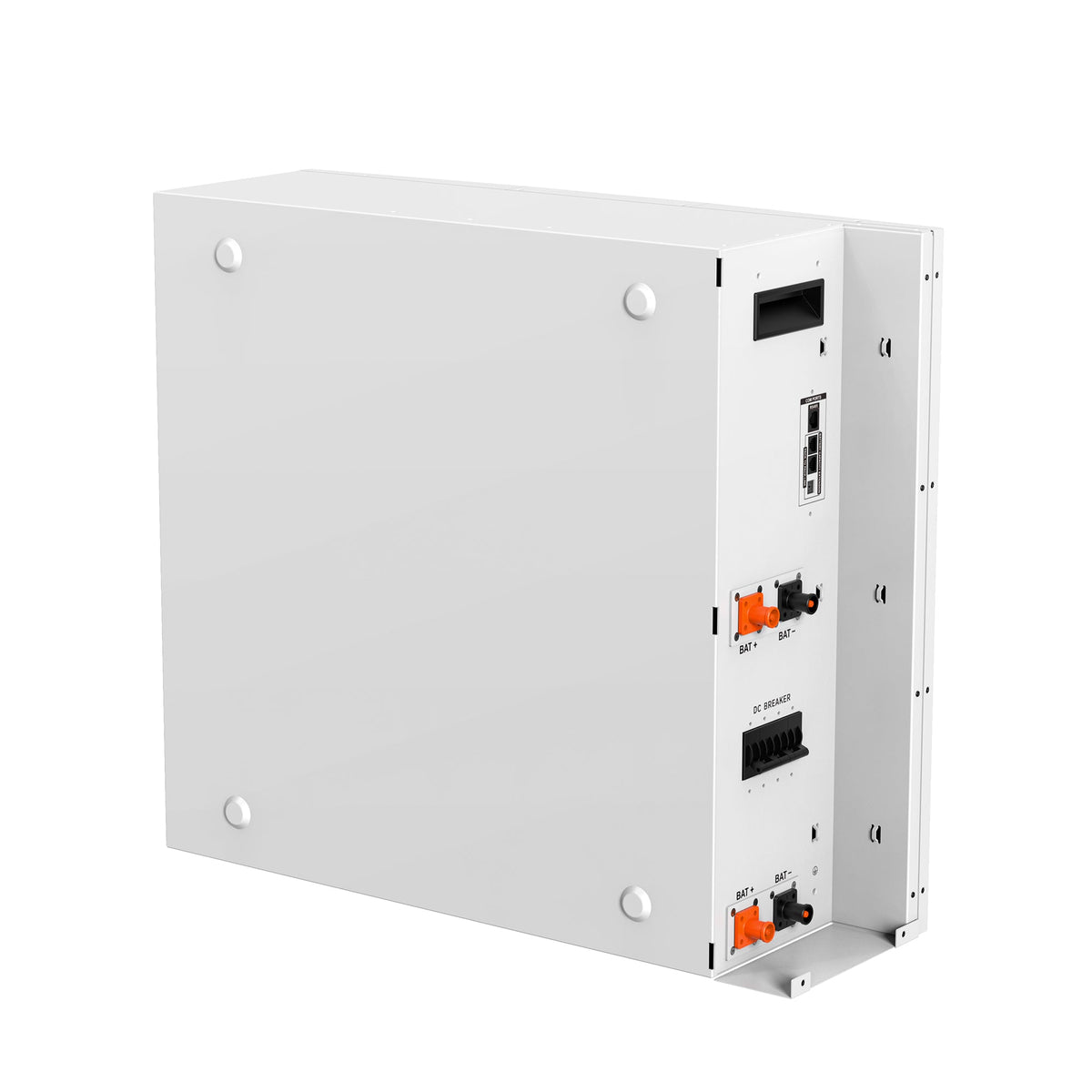

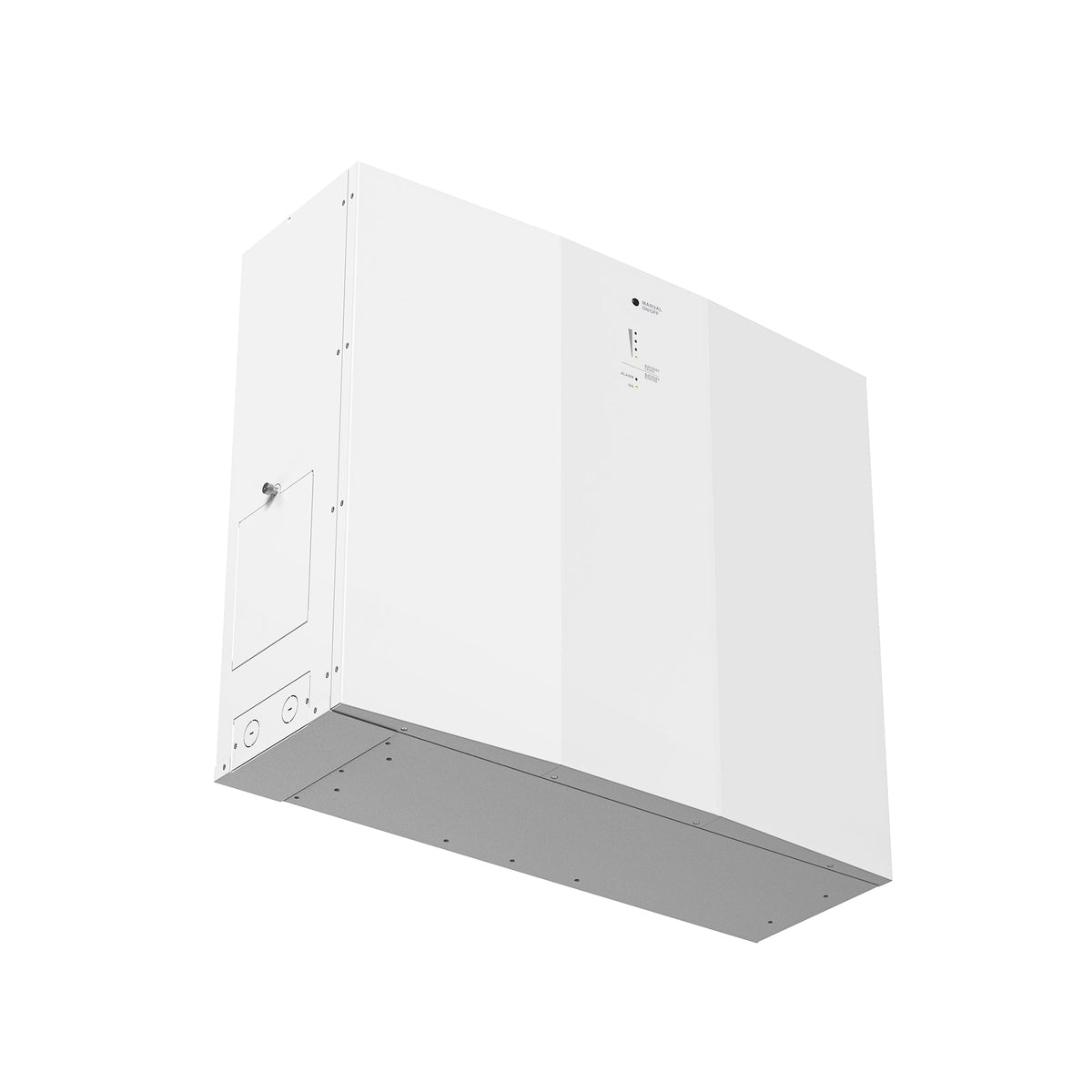

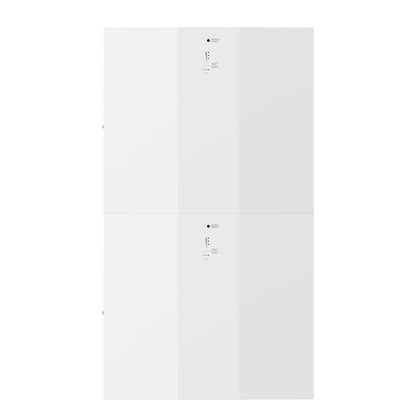

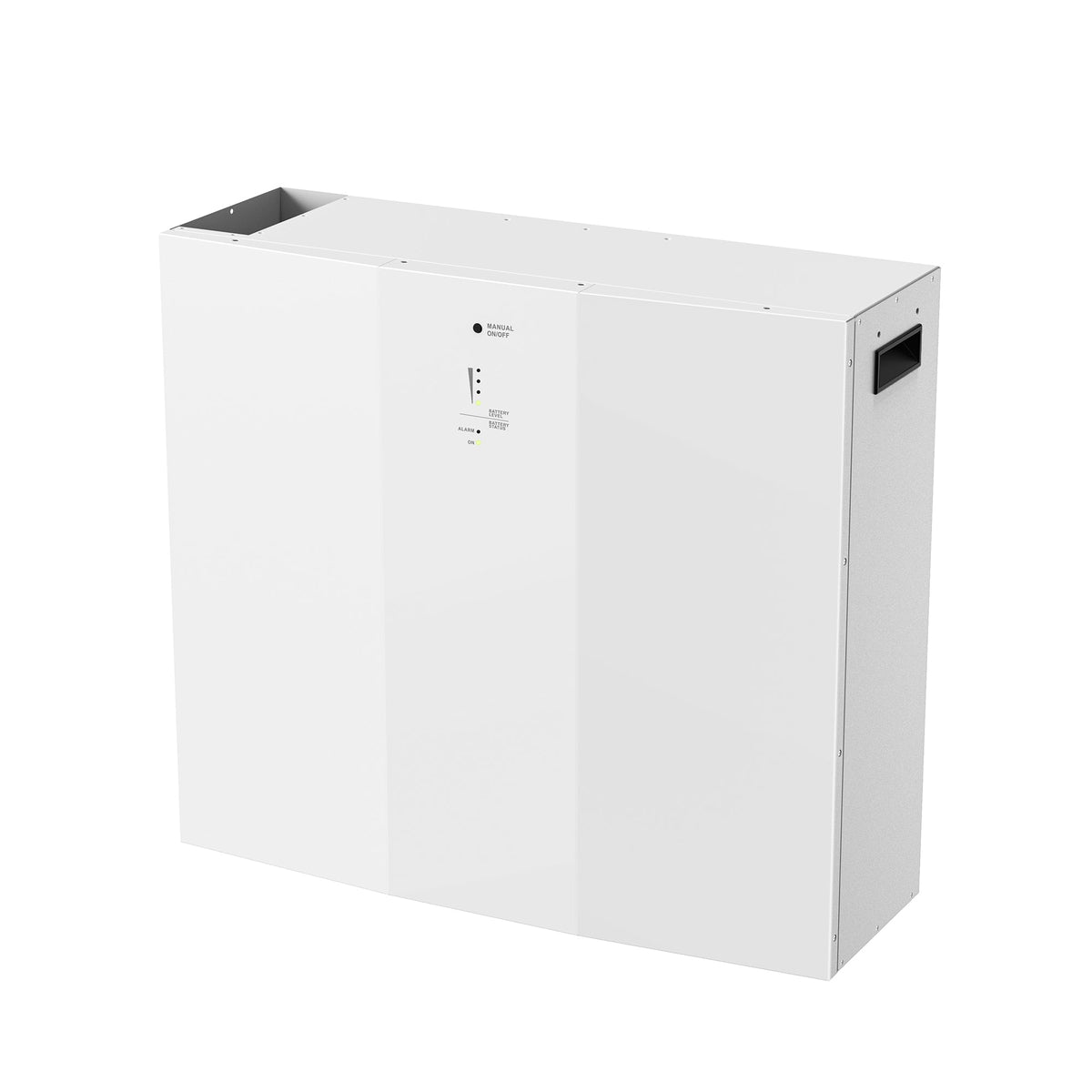

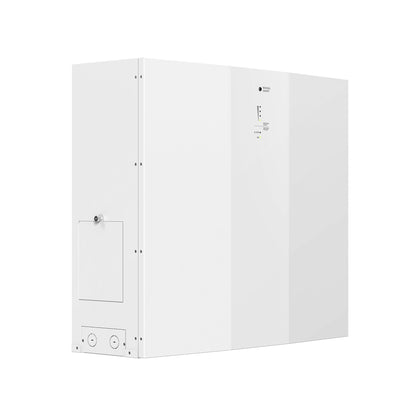

Rich Solar RS-A10 6500W 48V LiFePO4 All In One Energy Storage System

Rich Solar RS-A10 6500W 48V LiFePO4 All In One Energy Storage System

$5,599.99 USD
$6,999.99 USD $5,599.99 USD
Sale Sold out
Shipping calculated at checkout.

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test

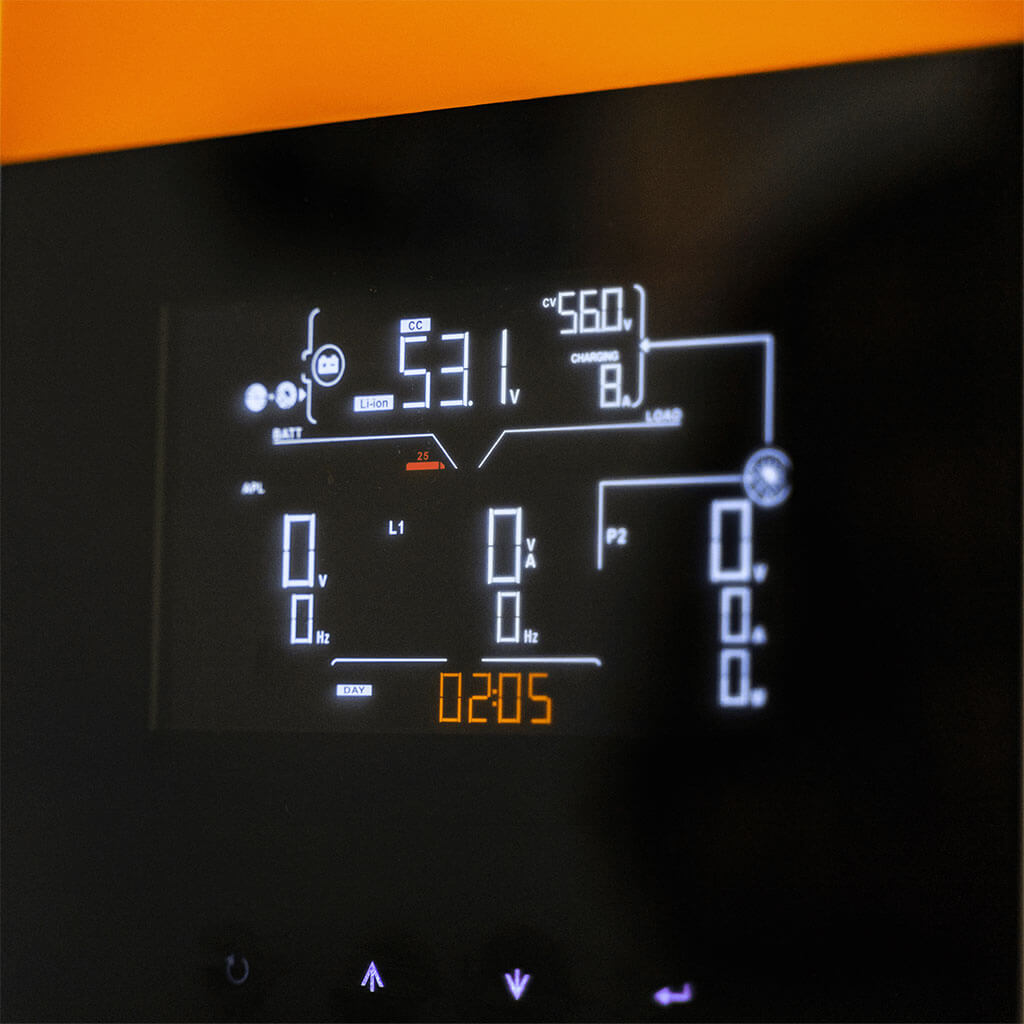

• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

View full details

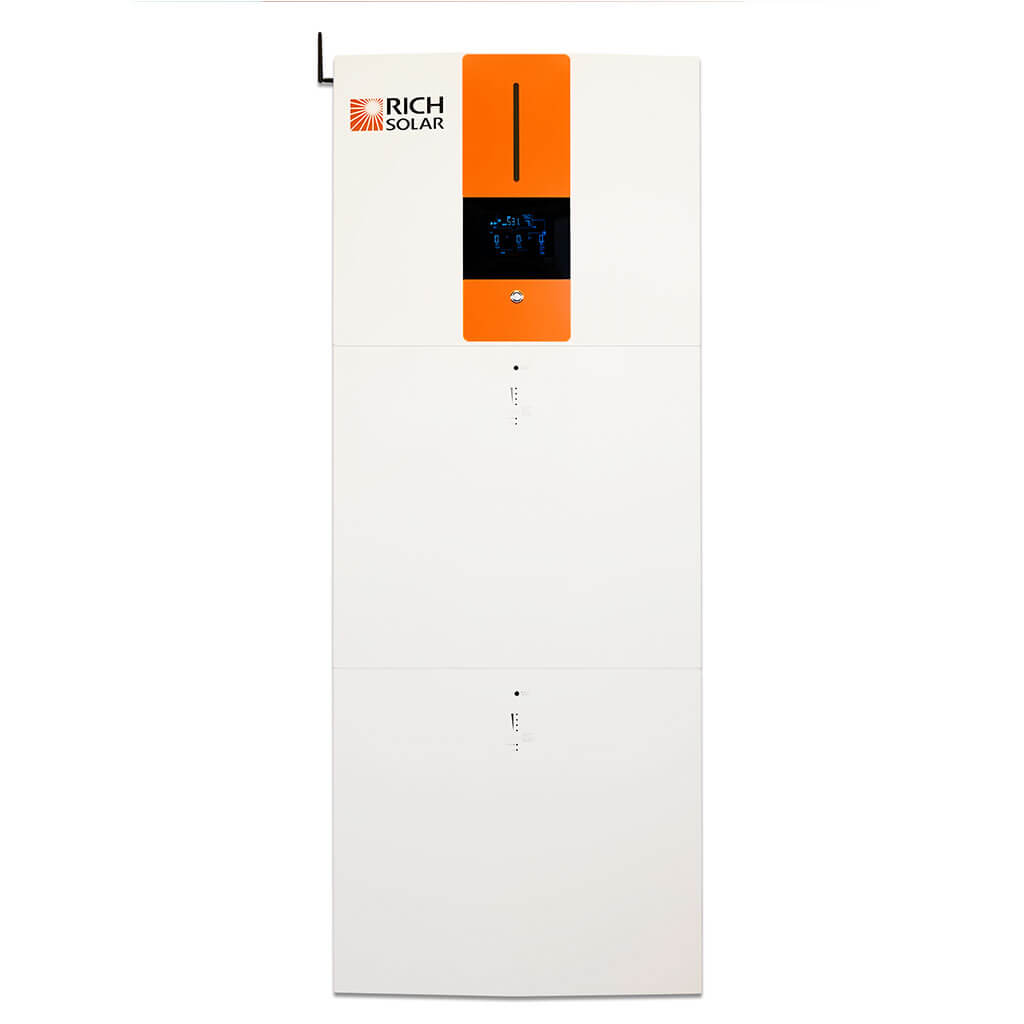

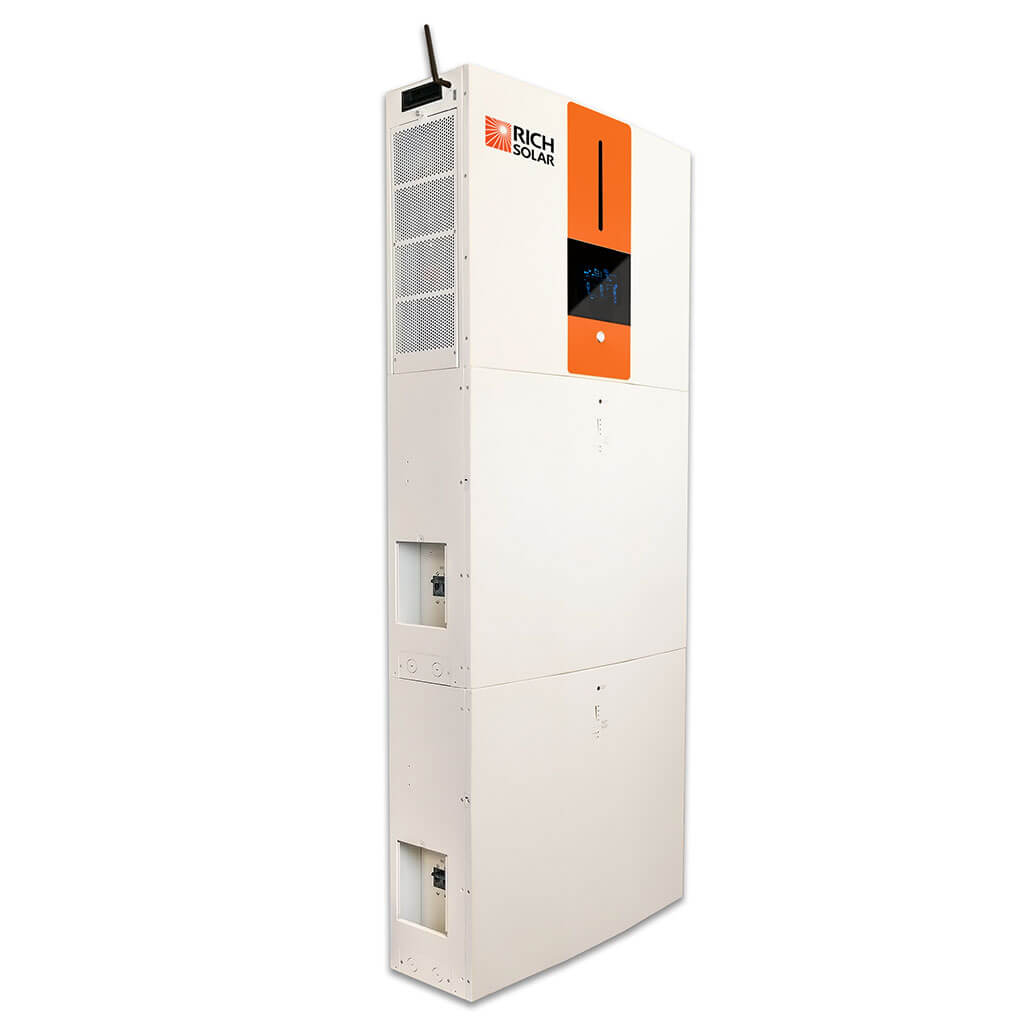

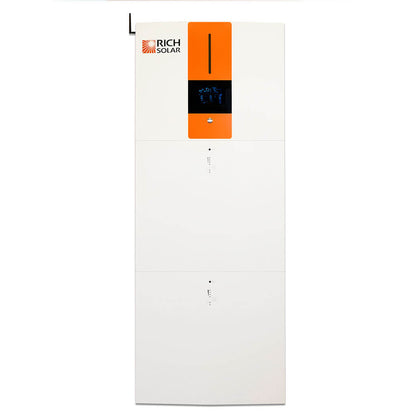

Rich Solar RS-A10 All-in-One Energy Storage System

All-in-One Energy Storage System optimized for off-grid residential power generation and commercial backup applications. Integrates a 6500W inverter, dual MPPT charge controller, and 5120Wh lithium bank into a single vertical cabinet to minimize footprint and simplify site integration.

Performance Specifications

  • Rated output: 6500W continuous, 120 VAC pure sine wave
  • Maximum input: 8000W PV array, 6500W AC charger
  • Battery architecture: 48V nominal (51.2VDC), 5120Wh capacity, 93% DC/AC efficiency
  • Dual MPPT trackers delivering up to 120A solar charge current
  • Acceptable AC input range: 80–140 VAC (appliances), 90–140 VAC (electronics)
  • Operational voltage window: 42V full discharge to 56V full charge
  • Communication interfaces: USB, RS232, SNMP, Modbus, GPRS, Wi-Fi

Safety Features and Certifications

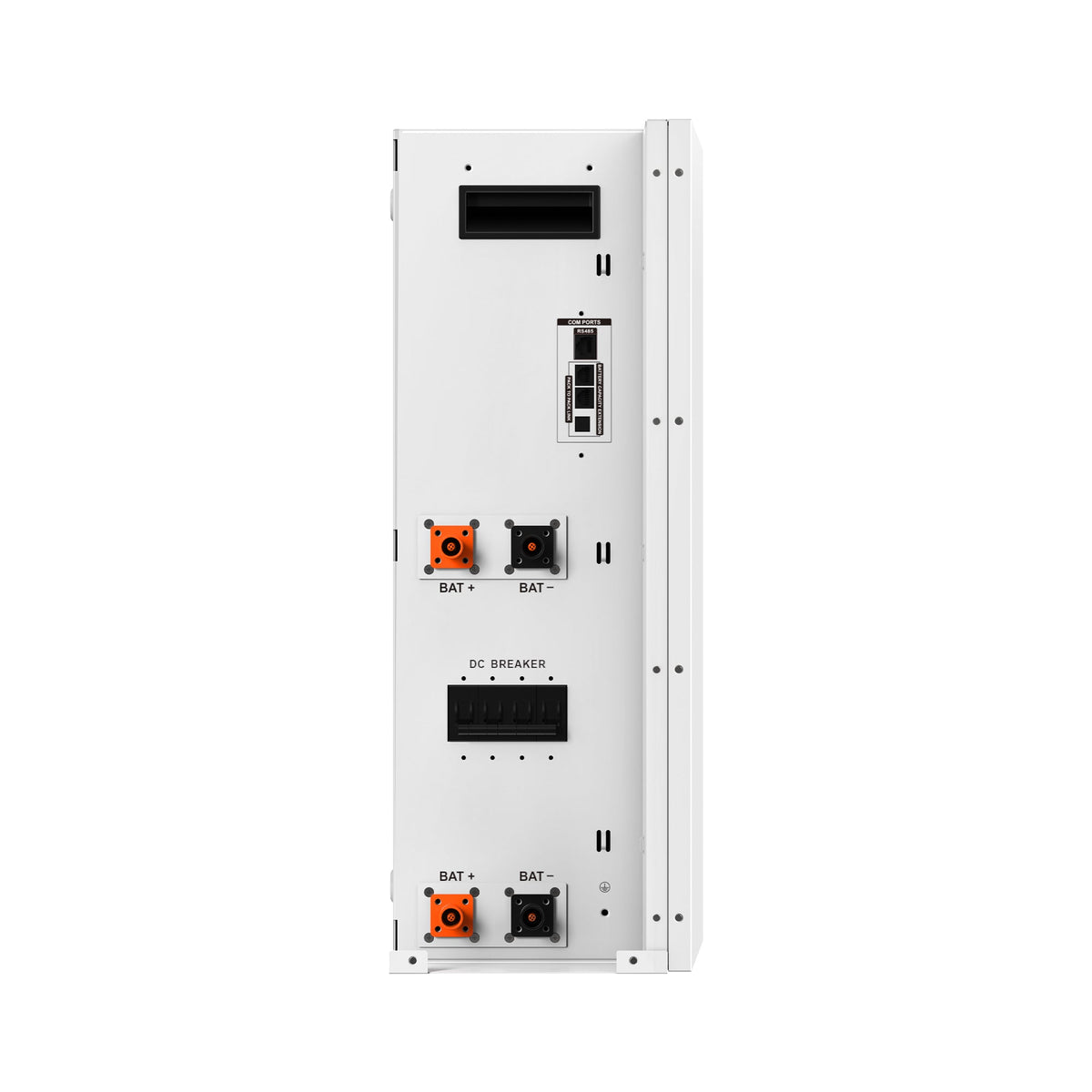

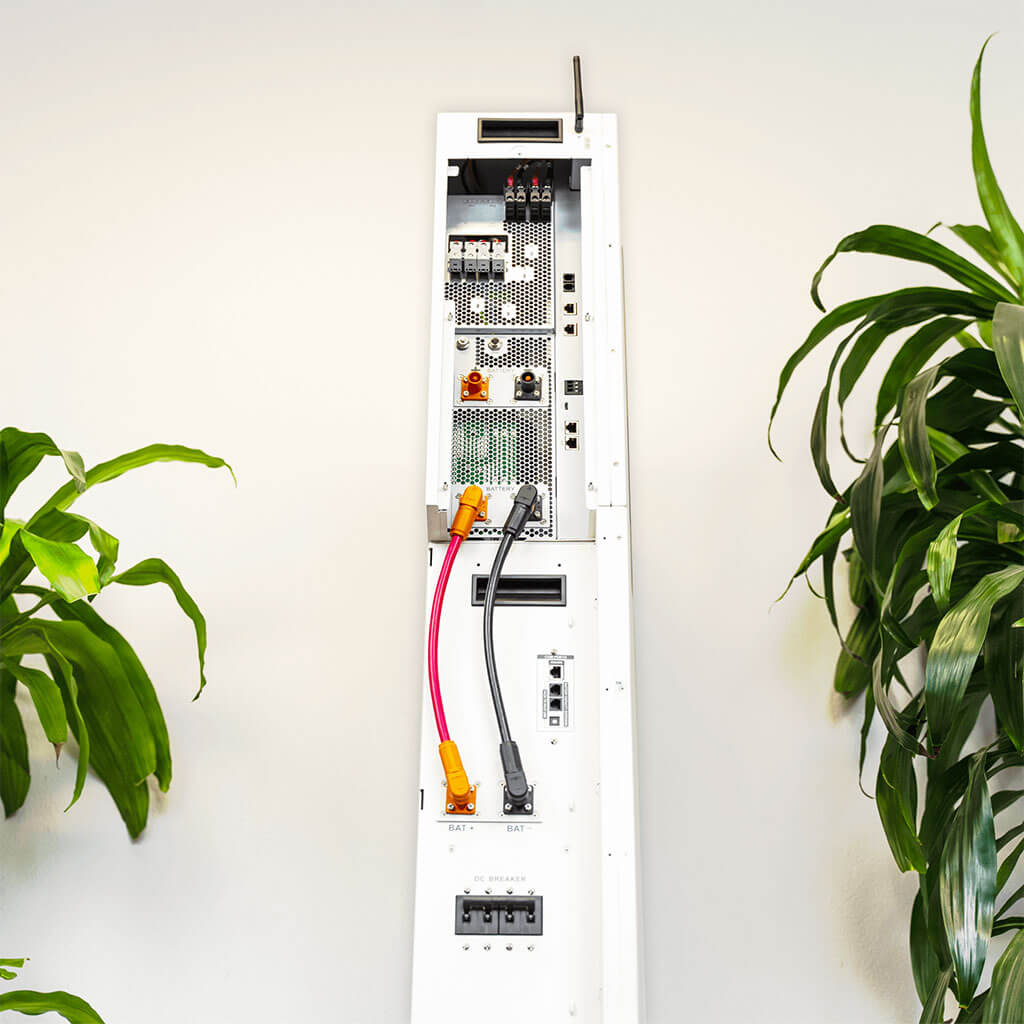

  • Integrated BMS protection with internal overcurrent circuit breaker
  • Certified to UL 1741, CSA C22.2 No.107.1-16, IEC 62619, UN38.3, EN 61000-6-1/3, UKCA, and FCC Part 15B

Installation and Maintenance Requirements

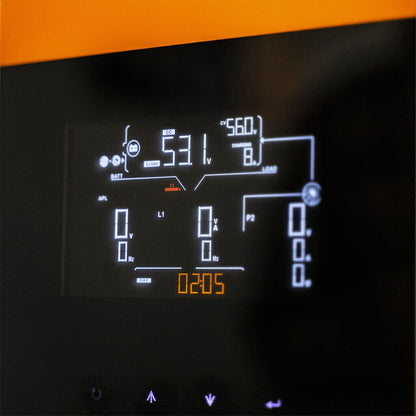

Requires flat surface mounting with 49.2" H × 26" W × 19.7" D clearance. Maintain minimum 2-inch side gap for thermal dissipation. Commissioning involves verifying PV polarity, selecting supply priority (PV/Battery/Grid), and configuring charging thresholds via front-panel or networked interface. Schedule quarterly terminal torque checks and annual capacity validation.

Warranty and Service Information

Includes manufacturer limited warranty covering defective materials and workmanship. Standard technical support dispatch and replacement parts fulfillment processed through authorized repair centers.

Branding/References

Rich Solar | Model RS-A10 | Complete technical documentation: SPECIFICATION / USER MANUAL

Differentiators

Programmable multi-source priority routing automates seamless power transfer between utility, photovoltaic, and generator inputs without external transfer switches or field rewiring.
