ACOPOWER 110W Flexible Solar Panel Kit with PWM Charge Controller
Engineered for off-grid energy needs, the ACOPOWER Flexible Solar Panel Kit with PWM Charge Controller is ideal for mounting on RVs, boats, caravans, cabins, tents, and other mobile applications where flexibility and light weight matter.
Performance specs: The 110W panel uses Sunpower monocrystalline PV cells with module conversion efficiency rated between 21.5% and 24%. The ETFE encapsulation delivers a longer life (up to 15 years) and enhanced weather resistance, with a scratch-protected surface. The panel is ultra-light at 4.85 lb and can flex to a maximum 27-degree curve to conform to curved surfaces such as coach roofs.
The system includes a 20A PWM waterproof charge controller capable of auto-detecting 12V or 24V configurations with continuous charging capacity of up to 360W at 12V and 720W at 24V. It is compatible with eight battery types: Lithium-ion, LiFePO4, LTO, Gel, AGM, Flooded, Crystal, and Calcium.
Complete kit includes: (1) 110W 12V Flexible Solar Panel; (2) 20A PWM Waterproof Charge Controller; (3) 30ft 10AWG Solar Panel Connector Adaptor Kit; (4) 8ft 10AWG Tray Cable; (5) Cable Entry Housing. Packing list adds additional items: 1PC HY-FL-110W Flexible Solar Panel; 1PC HY-PWM20AW Charge Controller; 1PC 8FT 8AWG Tray Cable; 1PC 30ft 12AWG PV Cable; 1PC Cable Entry Housing.
Warranty and service: 25-year transferable power output warranty on the panels and 1-year warranty on the remaining kit components.
Installation and maintenance: designed for off-grid use on coach roofs, RVs, boats, and similar surfaces. The ETFE construction provides weather resistance and minimal maintenance requirements; routine inspection of cable connections is recommended though no specialized maintenance is specified.
With its combination of high-efficiency cells, flexible form factor, waterproof controller, and broad battery compatibility, this kit supports rapid deployment of portable or fixed off-grid solar capacity and scalable charging for 12V and 24V systems.
ACOPOWER Flexible Solar Panel Kit + MPPT / PWM Charge Controller - 110W PWM20A

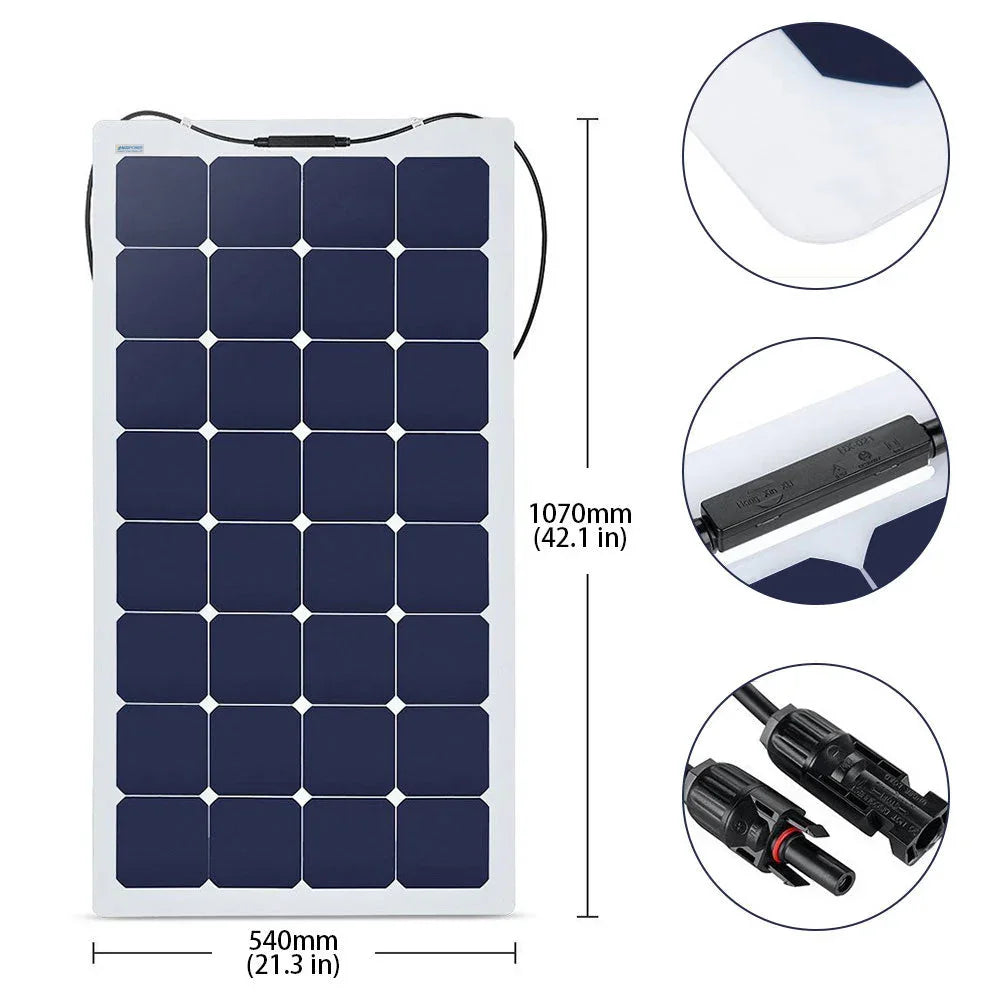

- Flexible And Portable: the thin solar film can be gently flexed to follow a smooth curve of 27 degrees max on a coach roof, RV, boat, caravan, cabin, tent, golf cart etc. Light weight of 4.85 lbs. Designed for off-grid solar panel system, caravan, RV, boat, Green house solar panel system

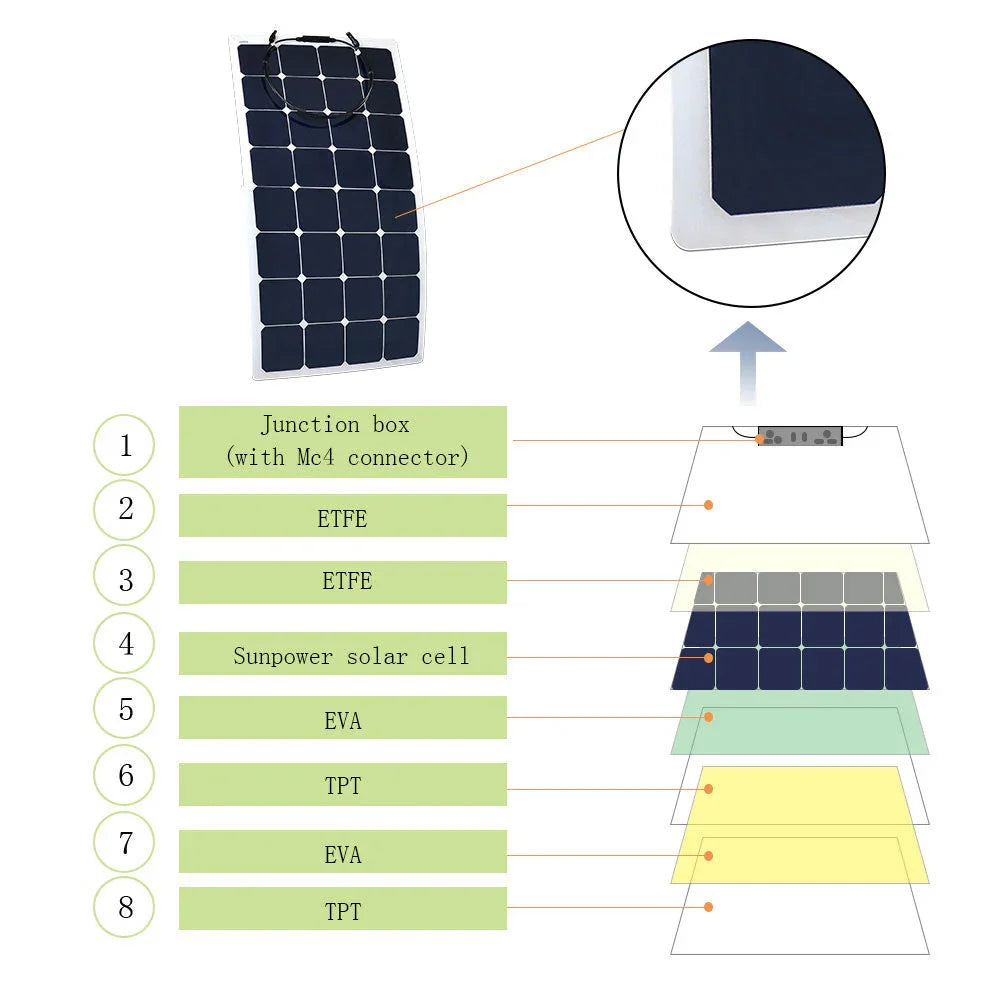

- Powerful And Durable: made from Sunpower monocrystalline PV cells, the most efficient solar cells provider in the world. 21.5%-24% Higher-than-average Module Conversion Efficiency. ETFE Design longer life time of 15 years and is Scratches-protected and weather resistant.

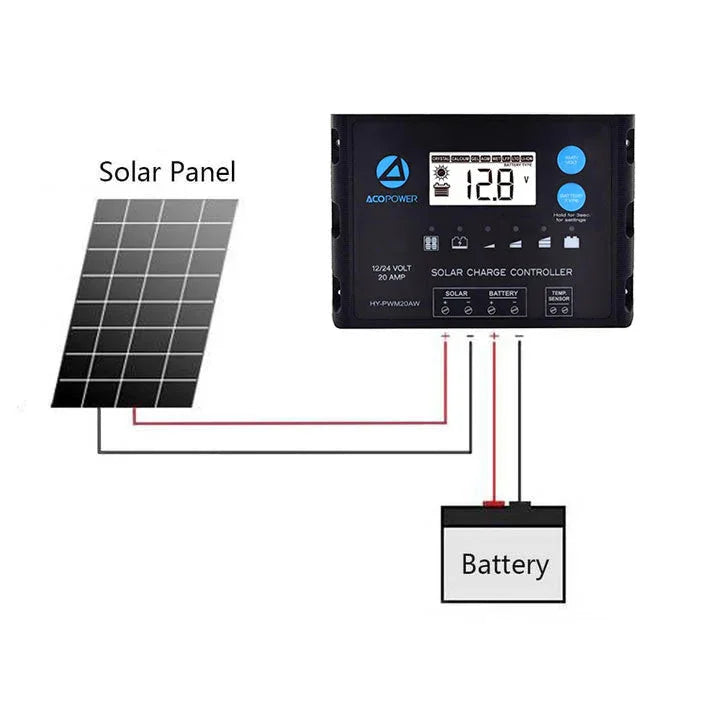

- 20A 12V/ 24V Waterproof PWM charger controller:8 Battery Type Compatible -Lithium-ion, LiFePO4, LTO, Gel, AGM, Flooded, Crystal and Calcium. 20 amps 12V/ 24v auto continuous charging capacity, enables use of up to 12V/360watts, 24V/720watts. Please check the detail with the ASIN: B07S8951WC

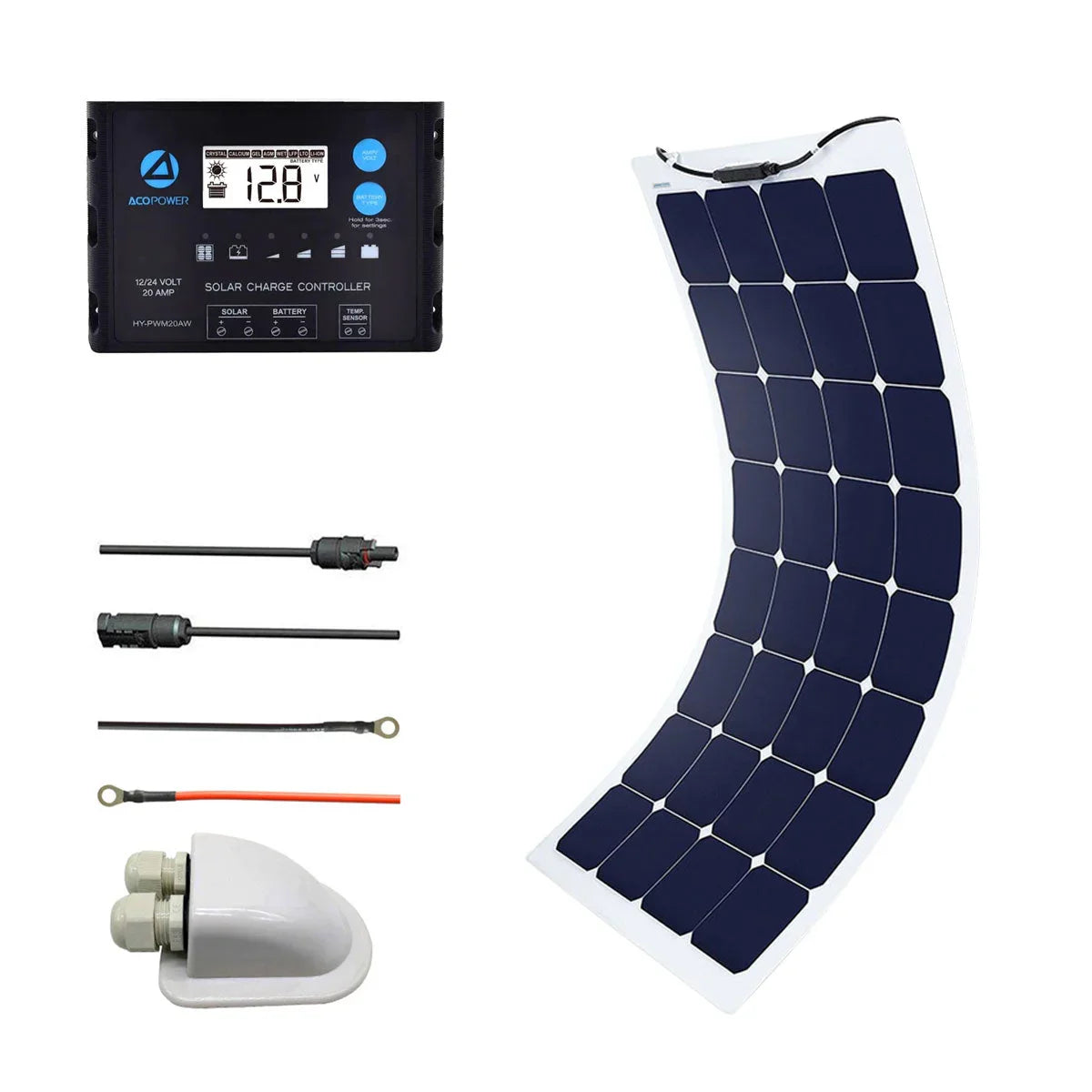

- Complete kit includes: (1)ACOPOWER 110 Watt 12 Volt Flexible Solar Panel (2)20A PWM Waterproof Charge Controller(3)30ft 10AWG solar panel connector Adaptor Kit (4) 8ft 10AWG Tray Cable(5) Cable Entry Housing
- 25-year transferable power output warranty on panels and 1-year warranty on rest of the kit components
Packing list
- 1PC HY-FL-110W Flexible Solar Panel
- 1PC HY-PWM20AW Charge Controller

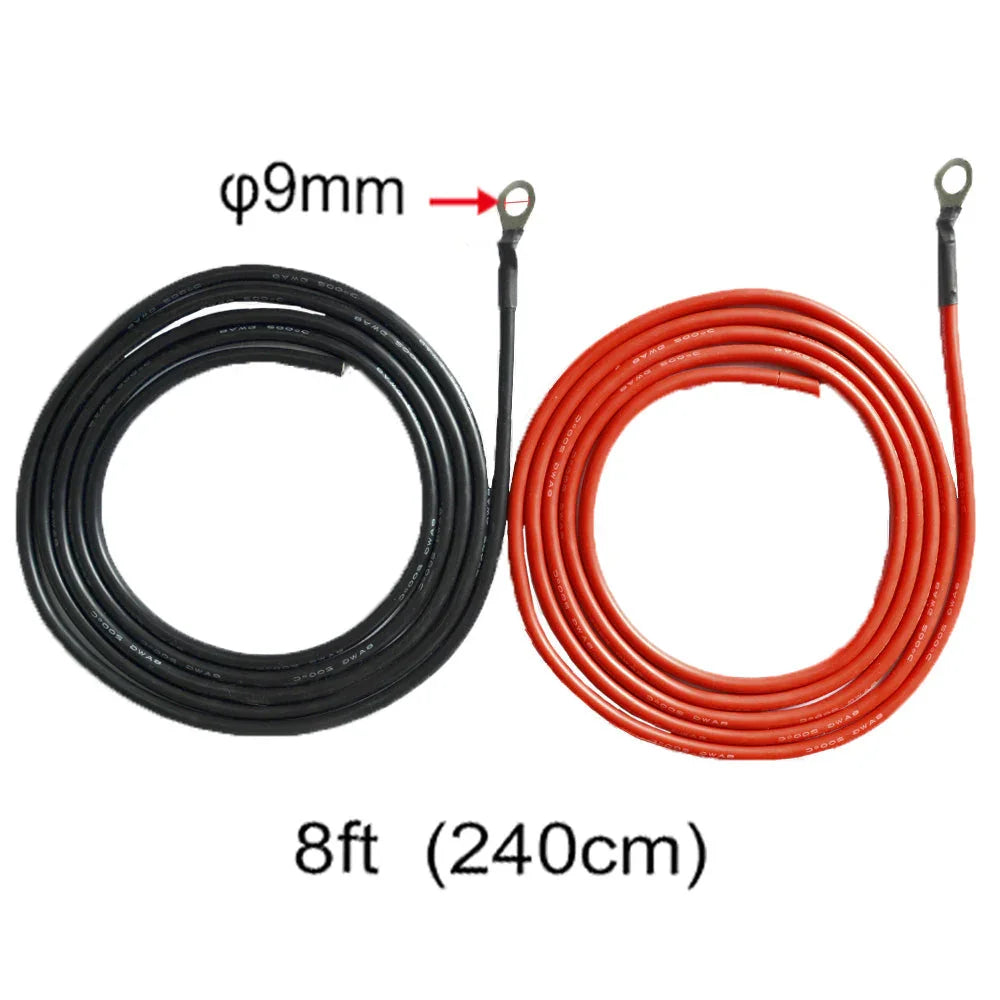

- 1PC 8FT 8AWG Tray Cable

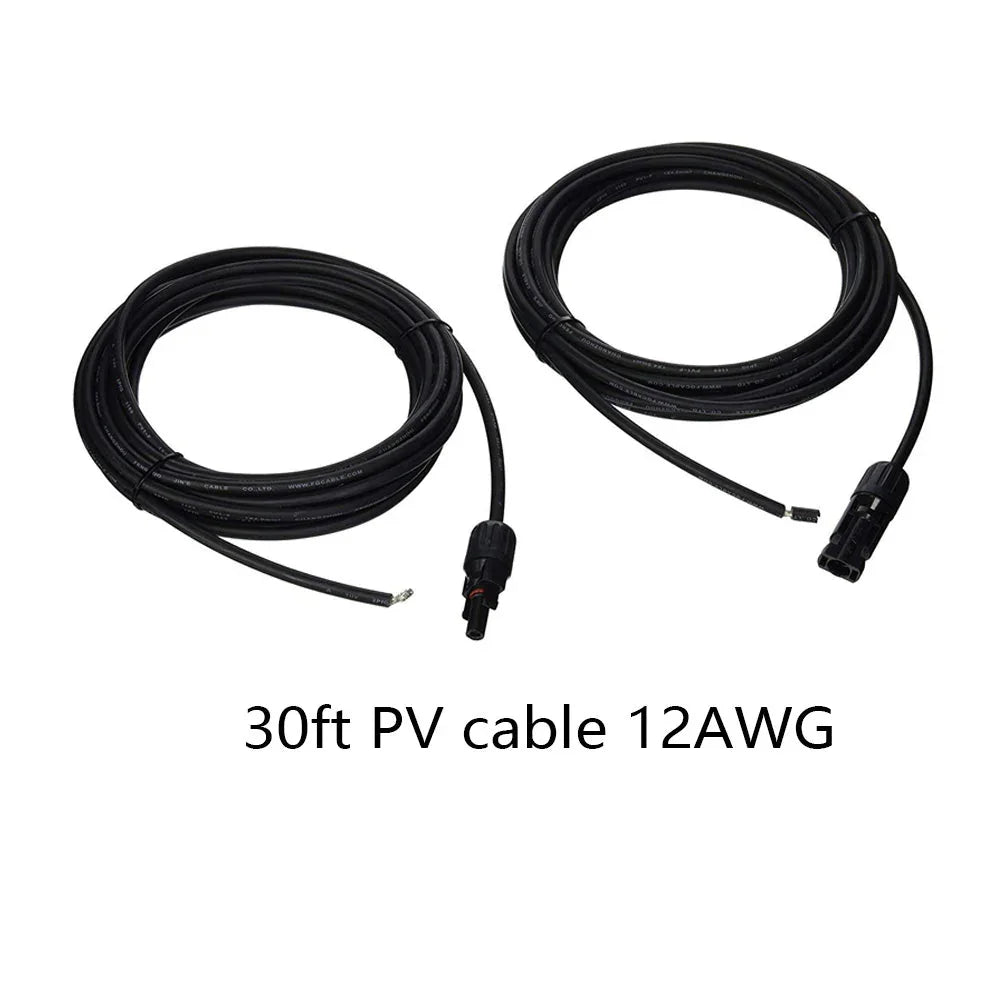

- 1PC 30ft 12AWG PV Cable

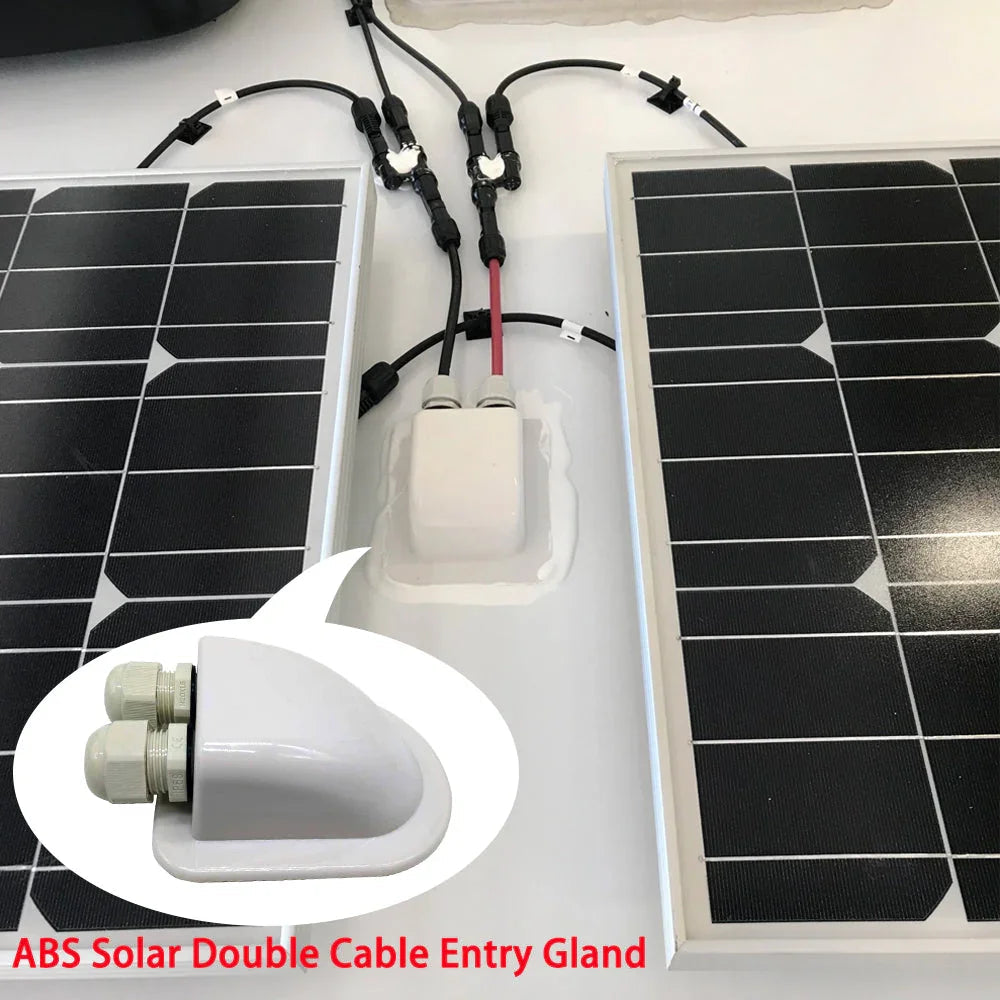

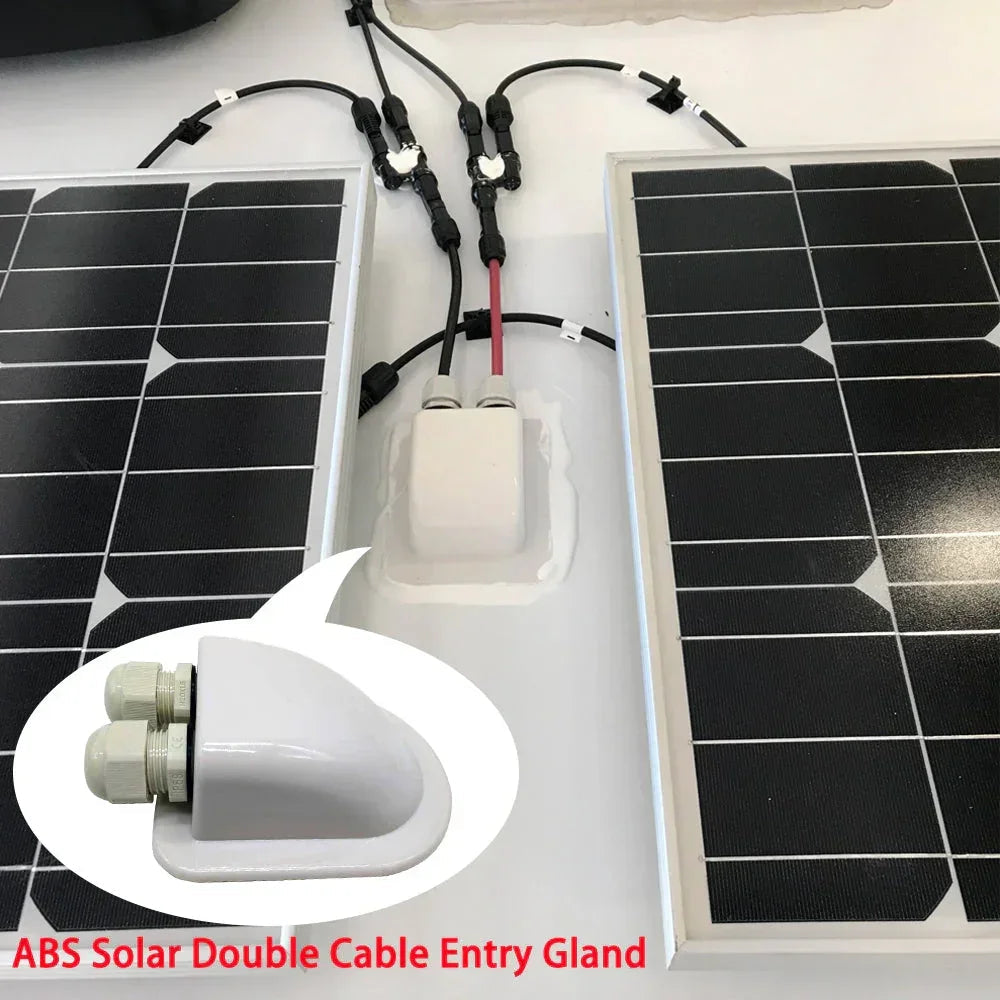

- 1PC Cable Entry Housing
