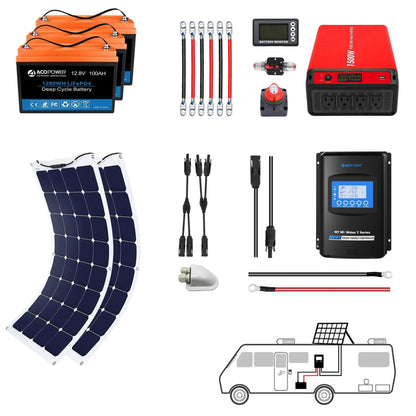

ACOPOWER Flexible RV Solar System

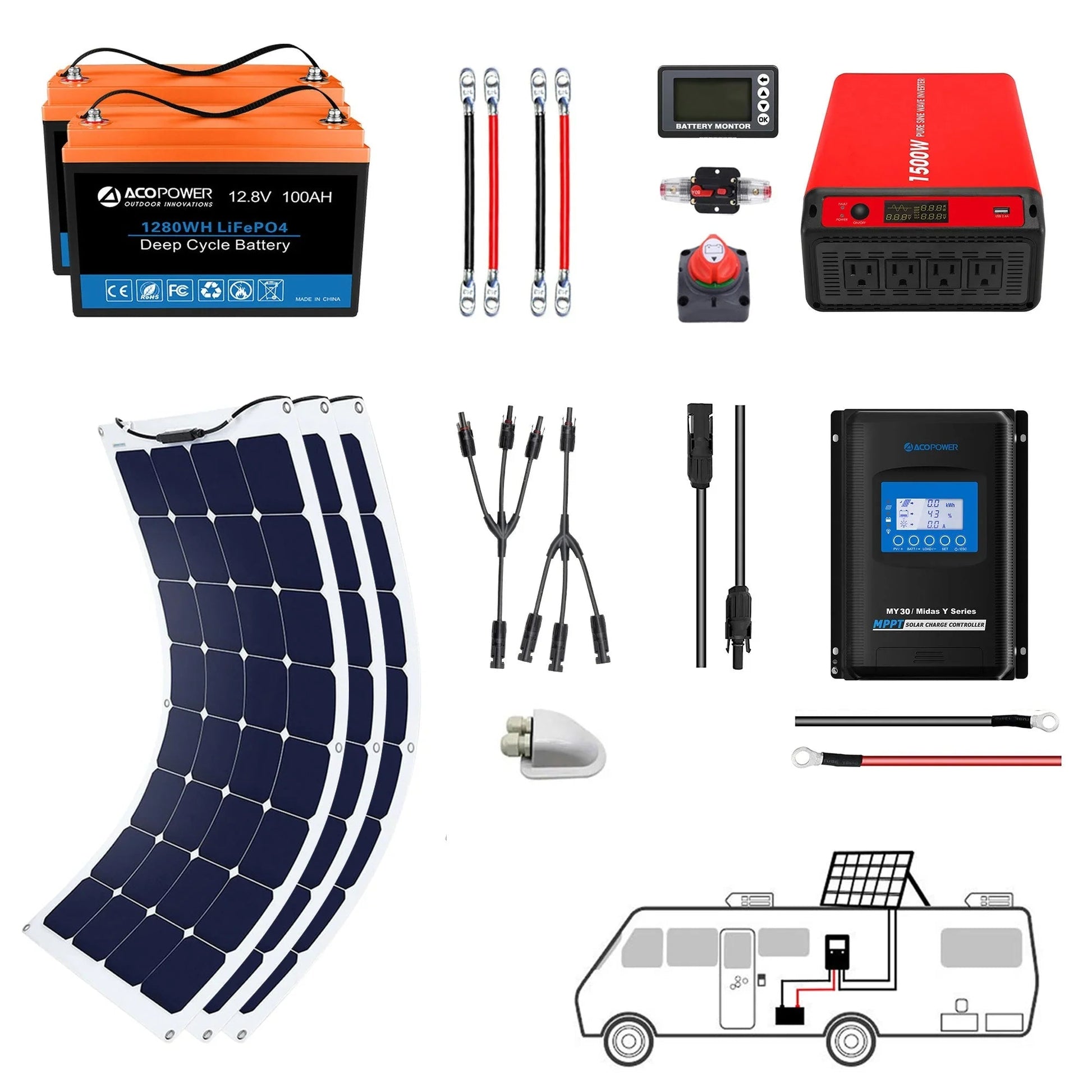

A complete 330W flexible RV solar system designed for off-grid living and mobile power on RV roofs, boats, cabins, and as a reliable backup power source. This kit combines a 330W semi-flexible solar array with LiFePO4 battery capacity, a MPPT charge controller, and a pure sine wave inverter, plus all essential mounting hardware and cables for a streamlined installation.

Key specifications

• Solar panels: 3 × 110W semi-flexible panels; Peak Power 330W; Voc 20.8V; Vmp 17.6V; Isc 6.87A; Imp 6.25A; Weight 4.85 lb each; Dimensions 44.68 × 21.26 × 0.12 in
• Battery bank: 2 × 12.8V LiFePO4 Deep Cycle 100Ah; Battery capacity 1280Wh per unit; DoD 100%; Charge voltage 14.2–14.6V; Standard charge current 20A; Max continuous charge 50A; Max continuous discharge 100A; Dimensions 12.99 × 6.81 × 8.58 in; Weight 23.8 lb each
• Inverter: 1.5kW continuous, 3.0kW surge; Pure Sine Wave; Protection: undervoltage, overvoltage, overload, output short circuit; Dimensions 12.94+1.34 (D) × 7.52 (W) × 3.86 (H) in; Weight 7.79 lb
• Charge controller: MPPT, 30A; Battery voltage range 8–32V; Max PV open circuit voltage 100VDC; Max PV input power 12V/390W or 24V/780W; Compatible with Sealed, Gel, Flooded and LiFePO4 batteries; LiFePO4 and multiple load control methods

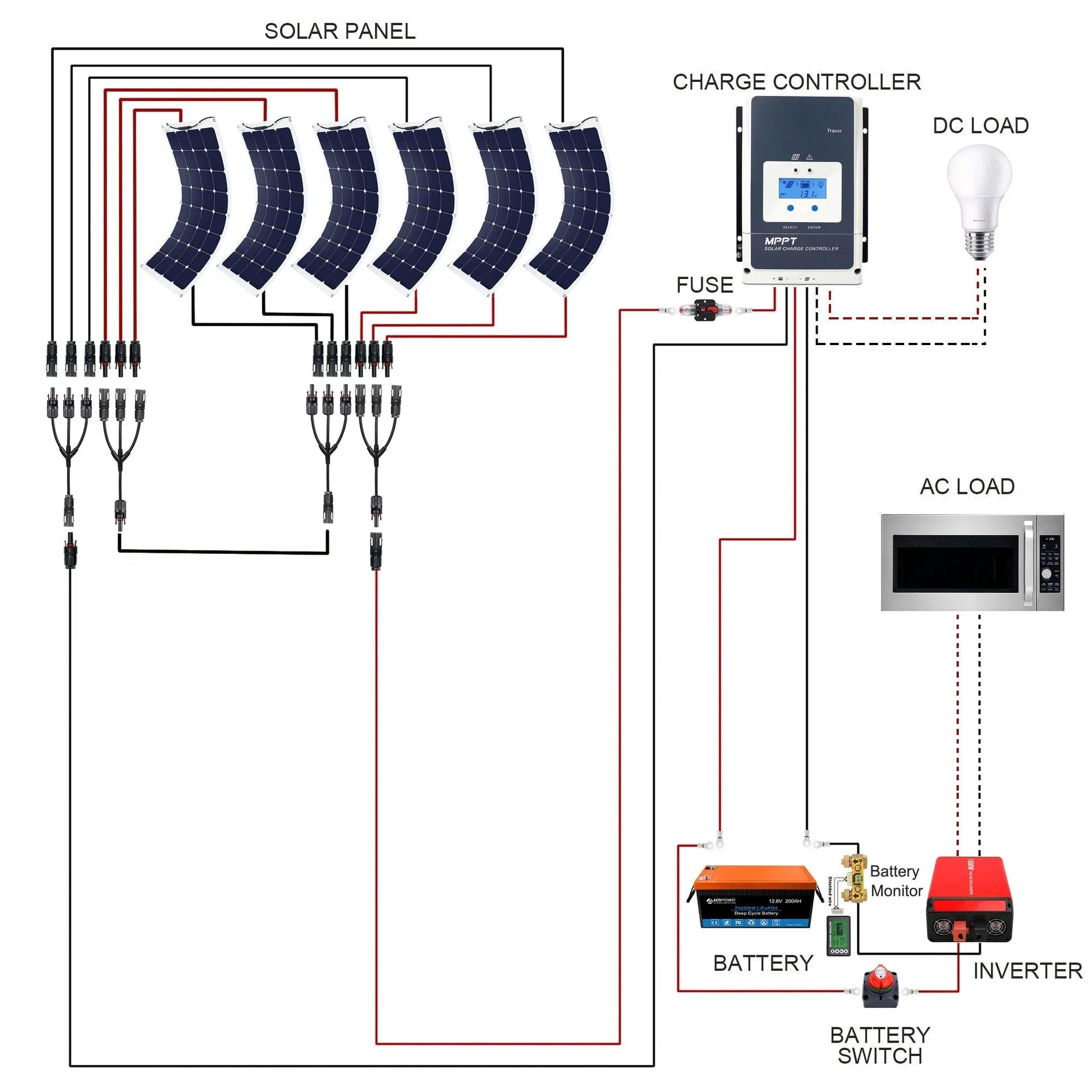

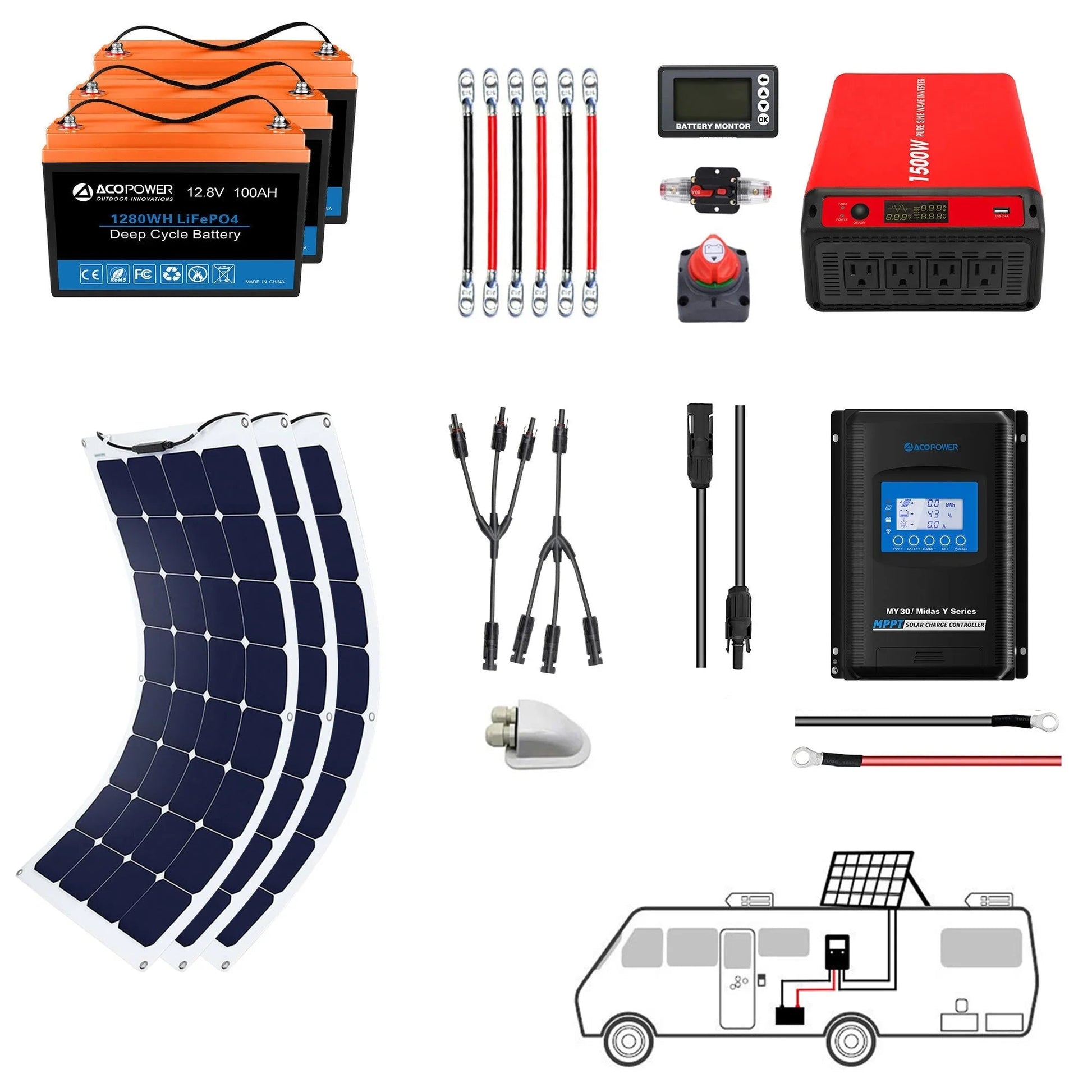

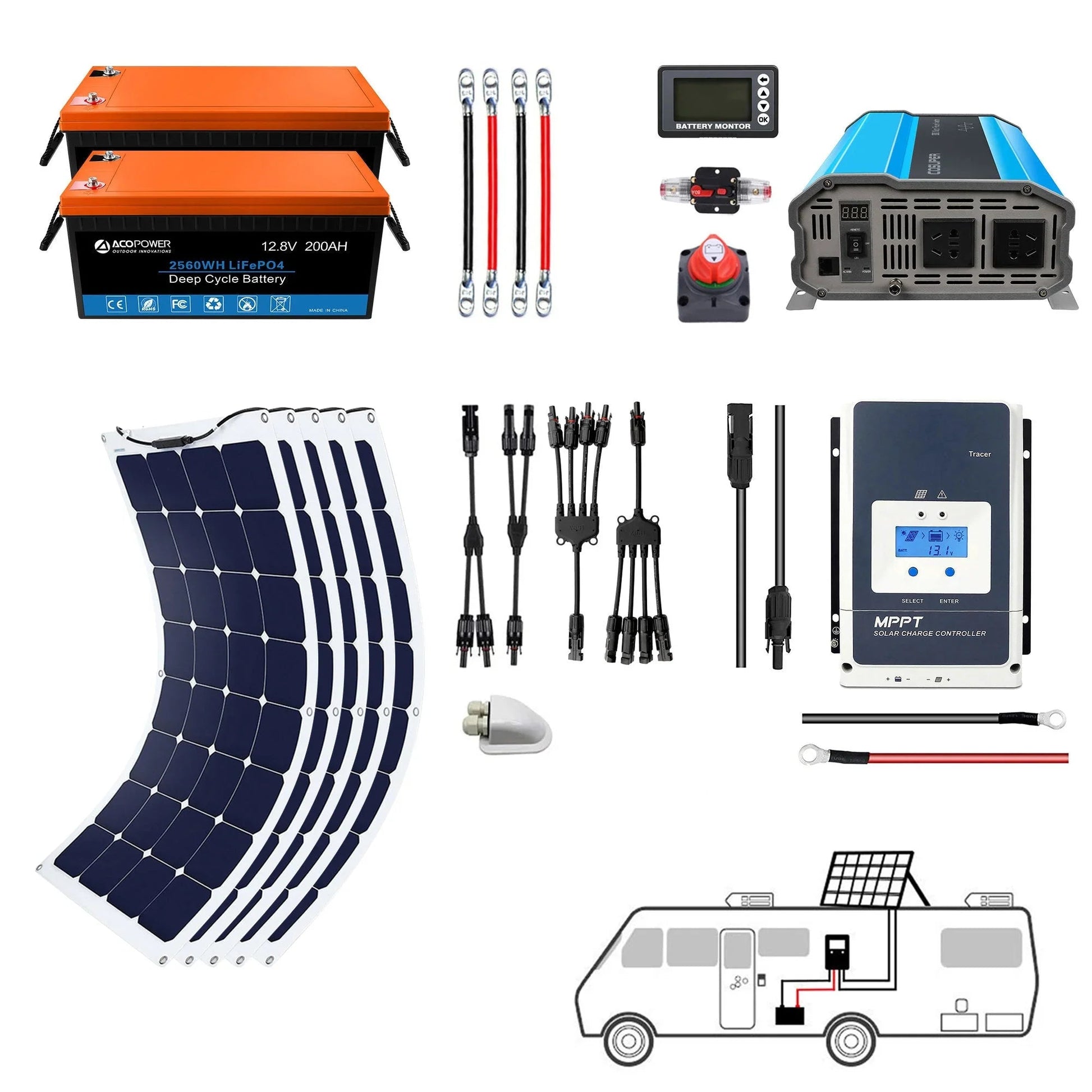

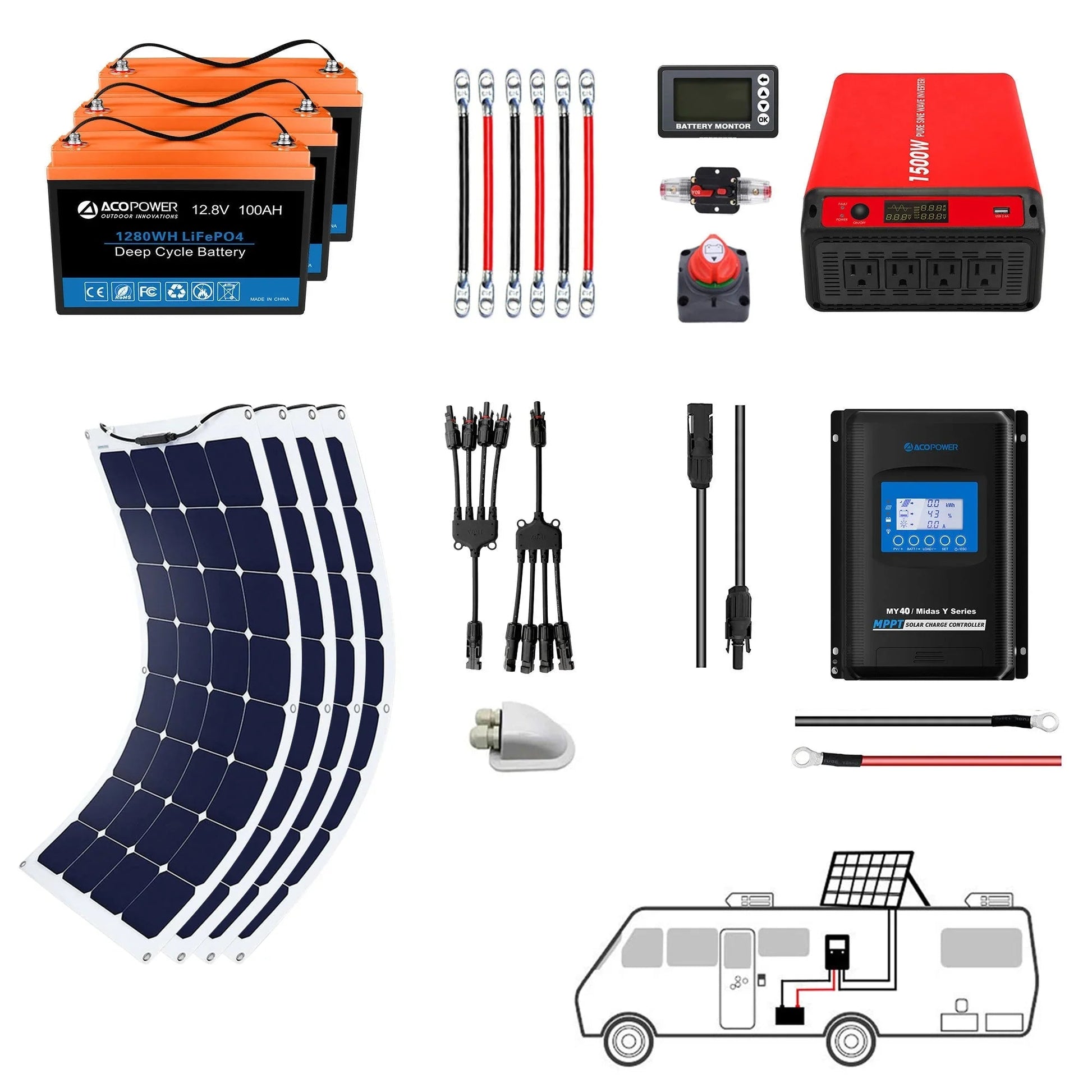

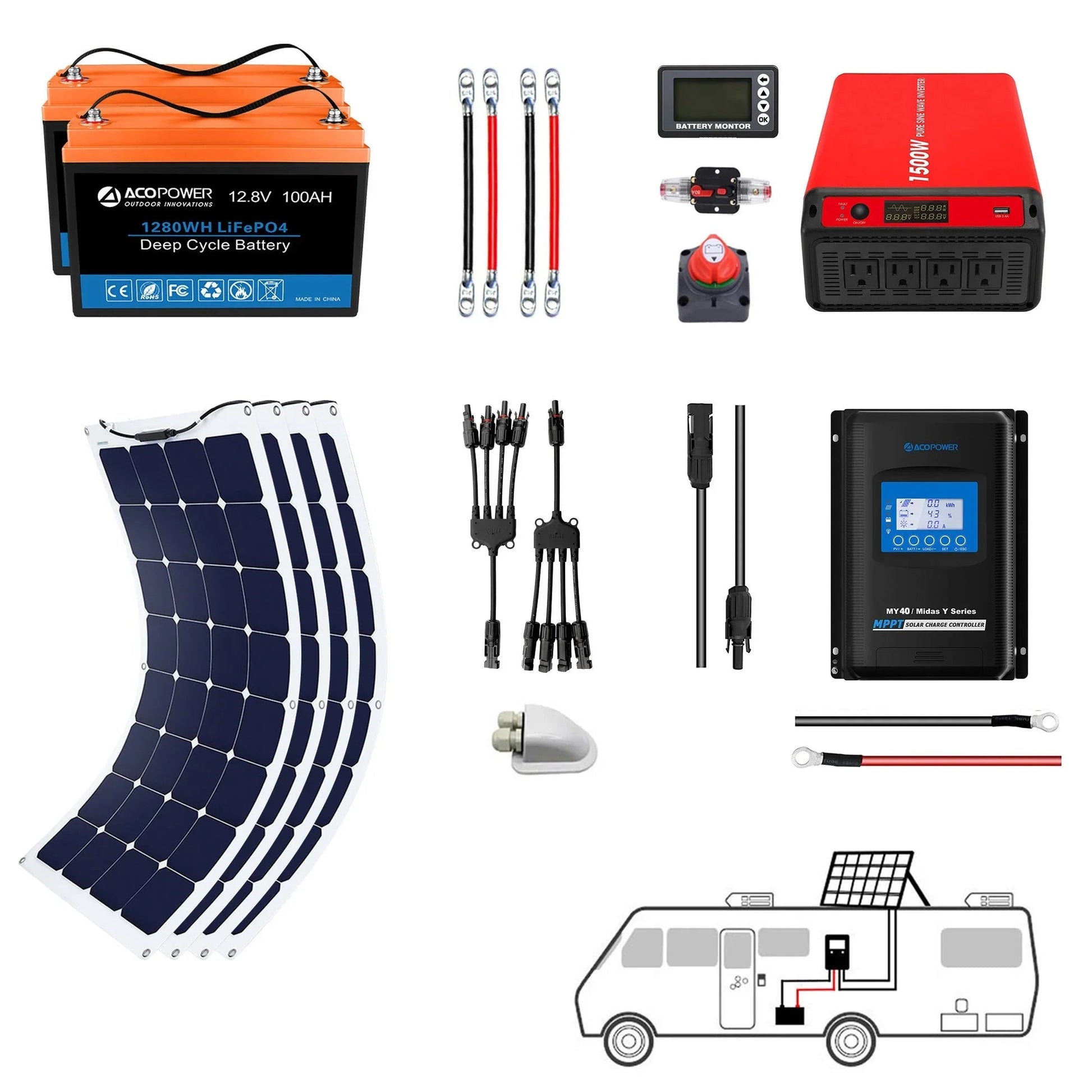

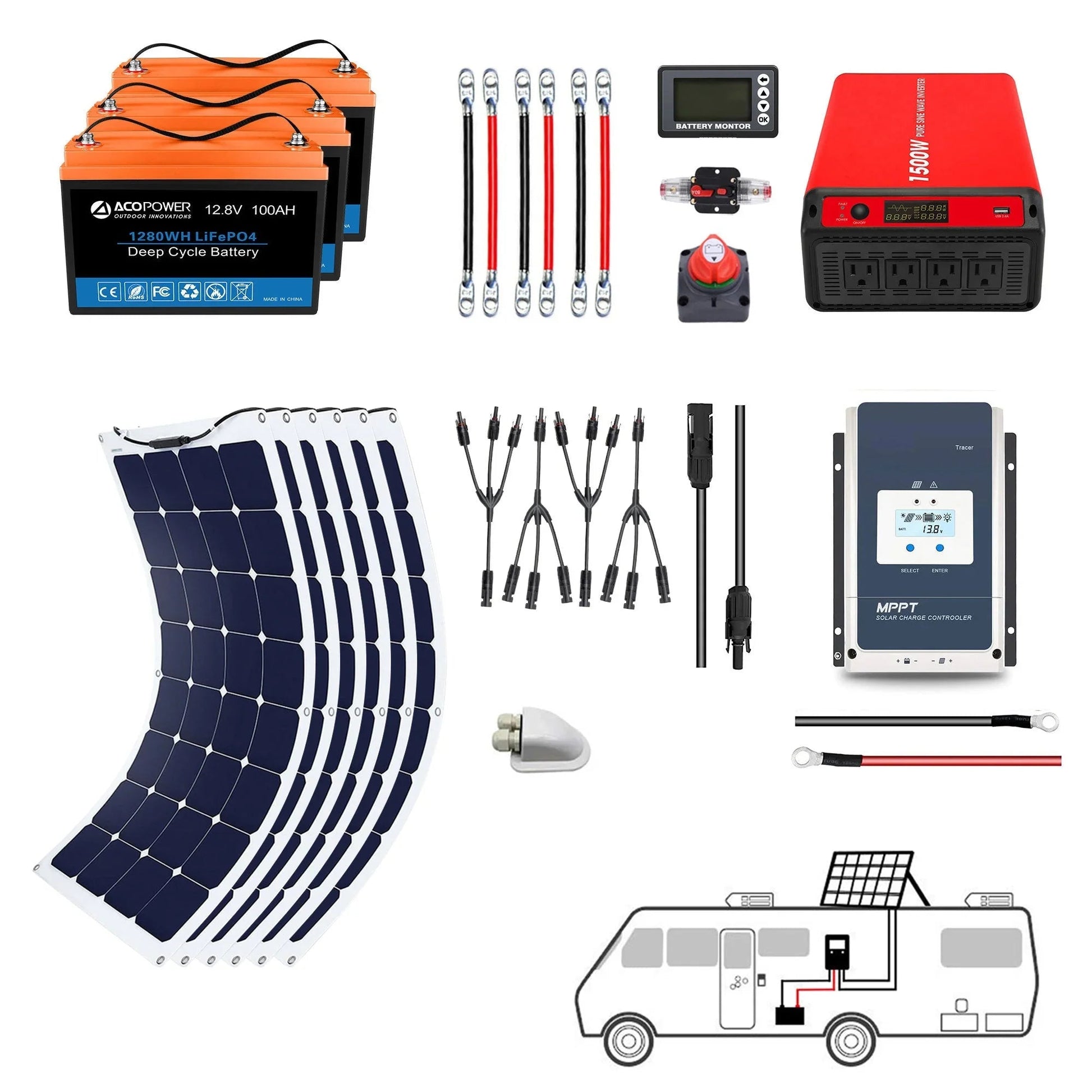

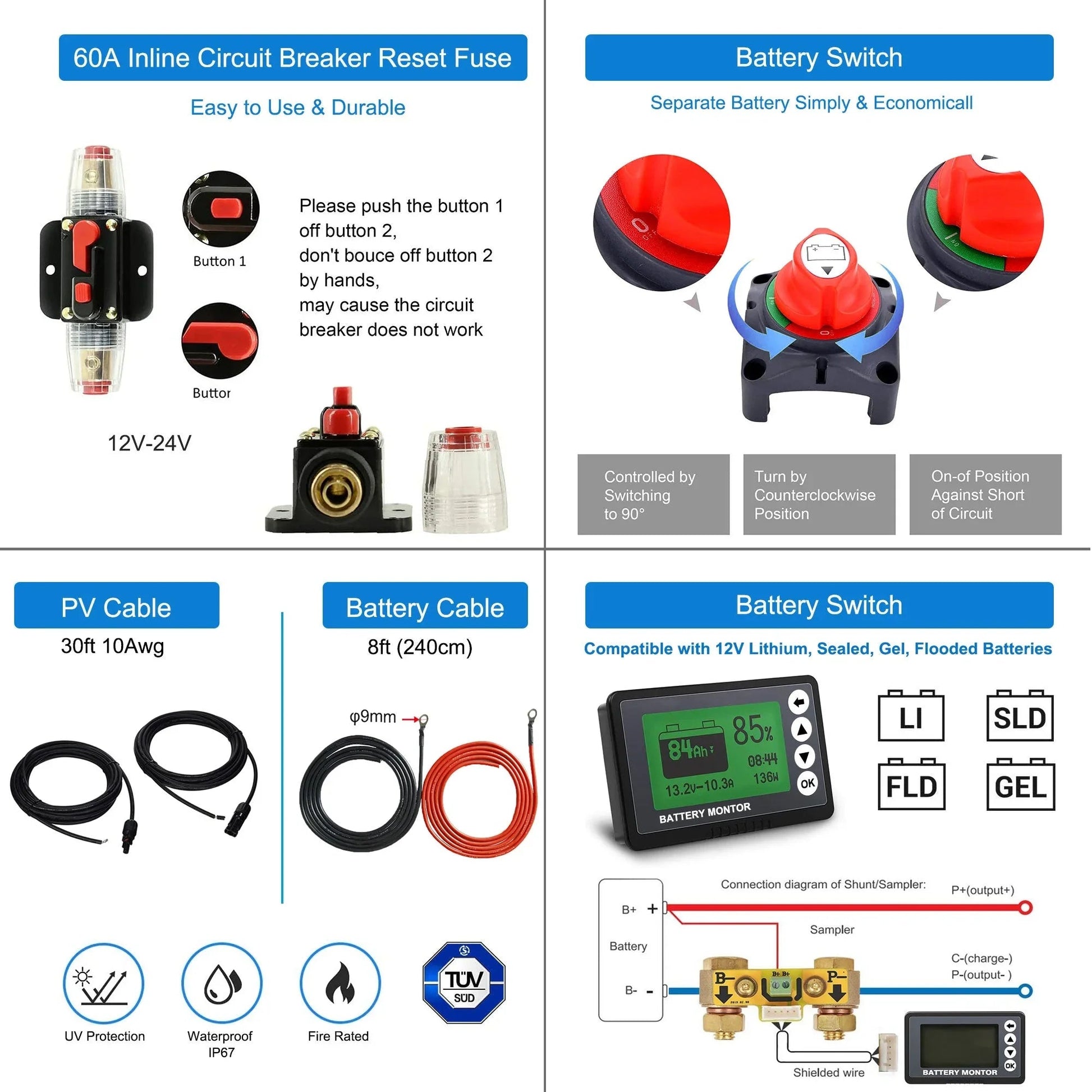

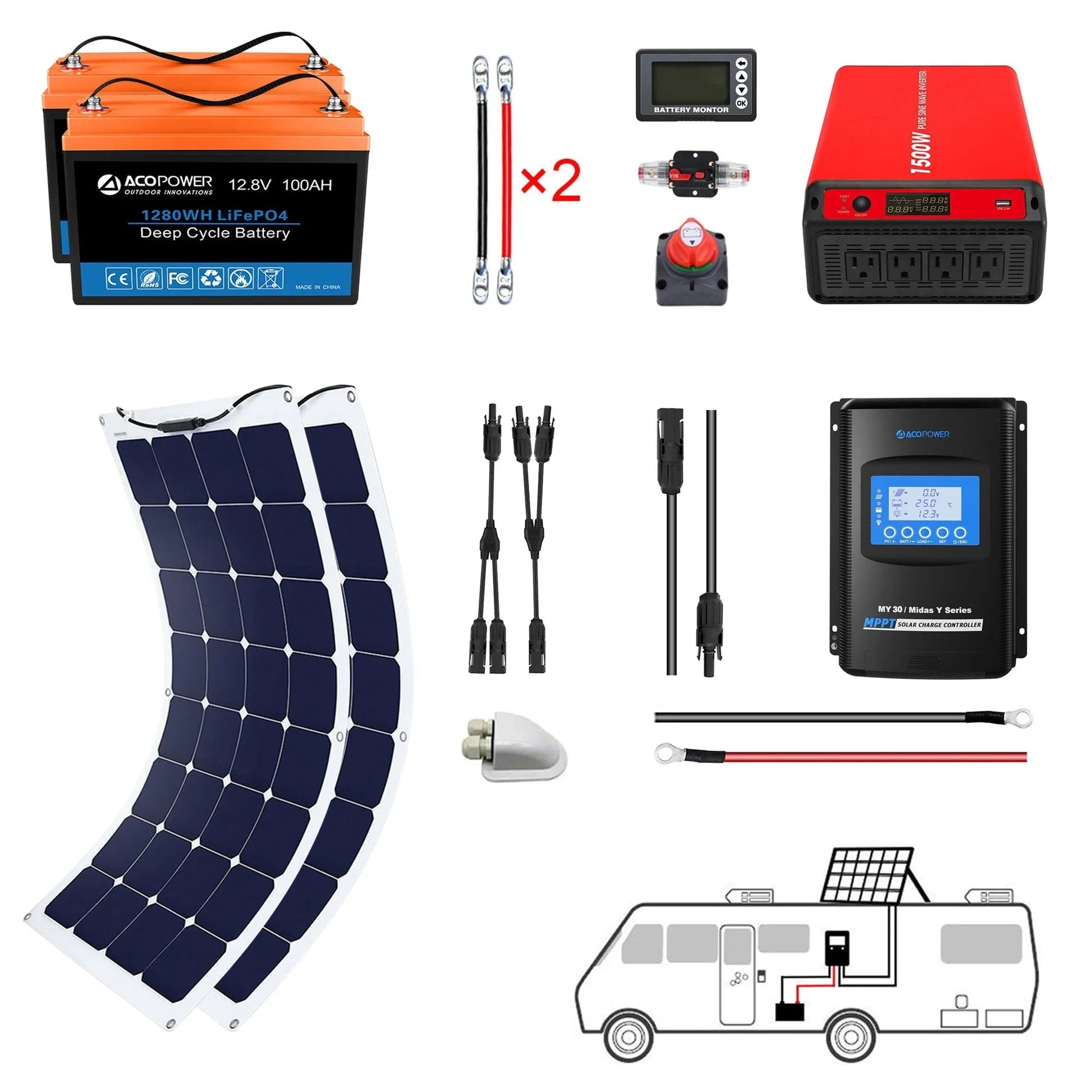

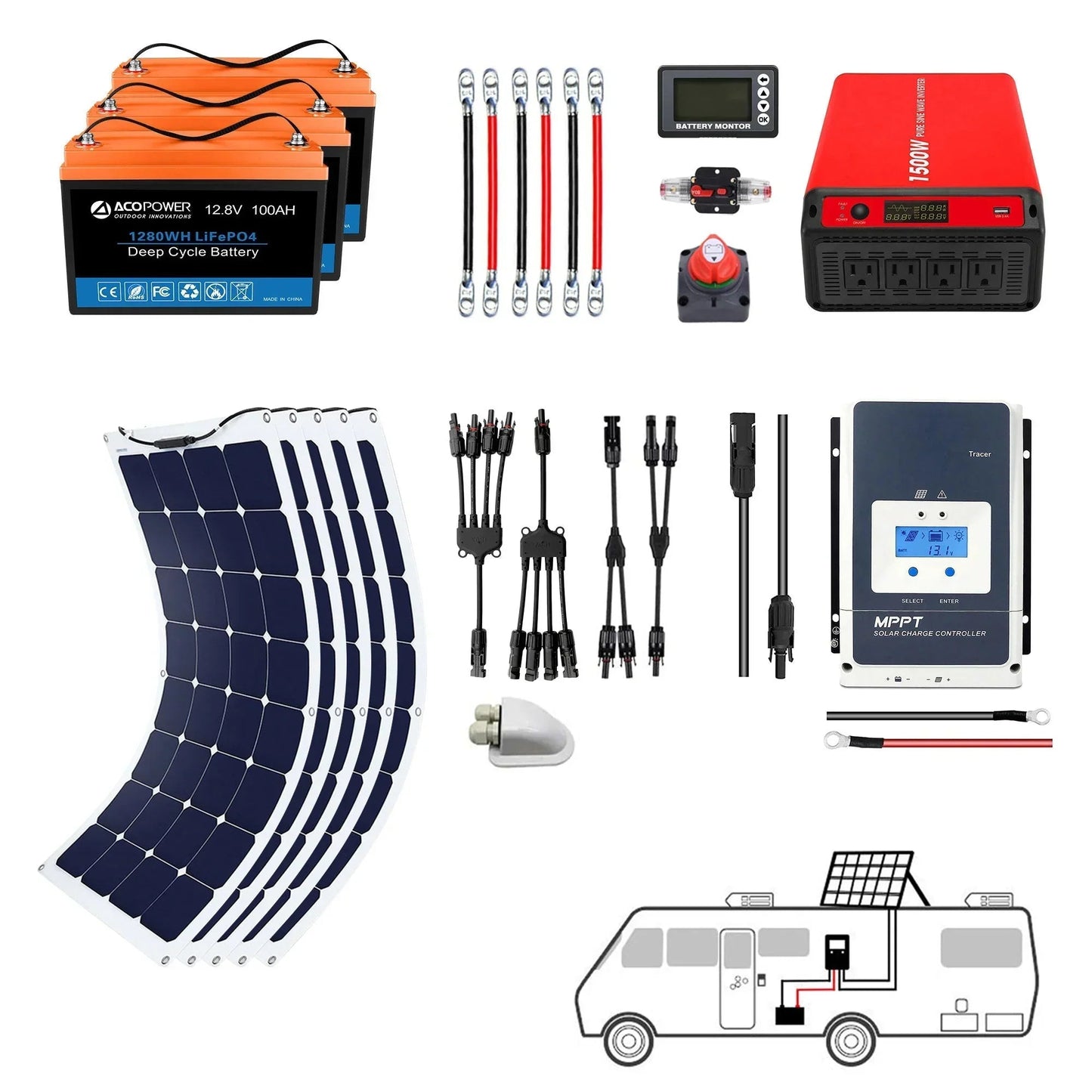

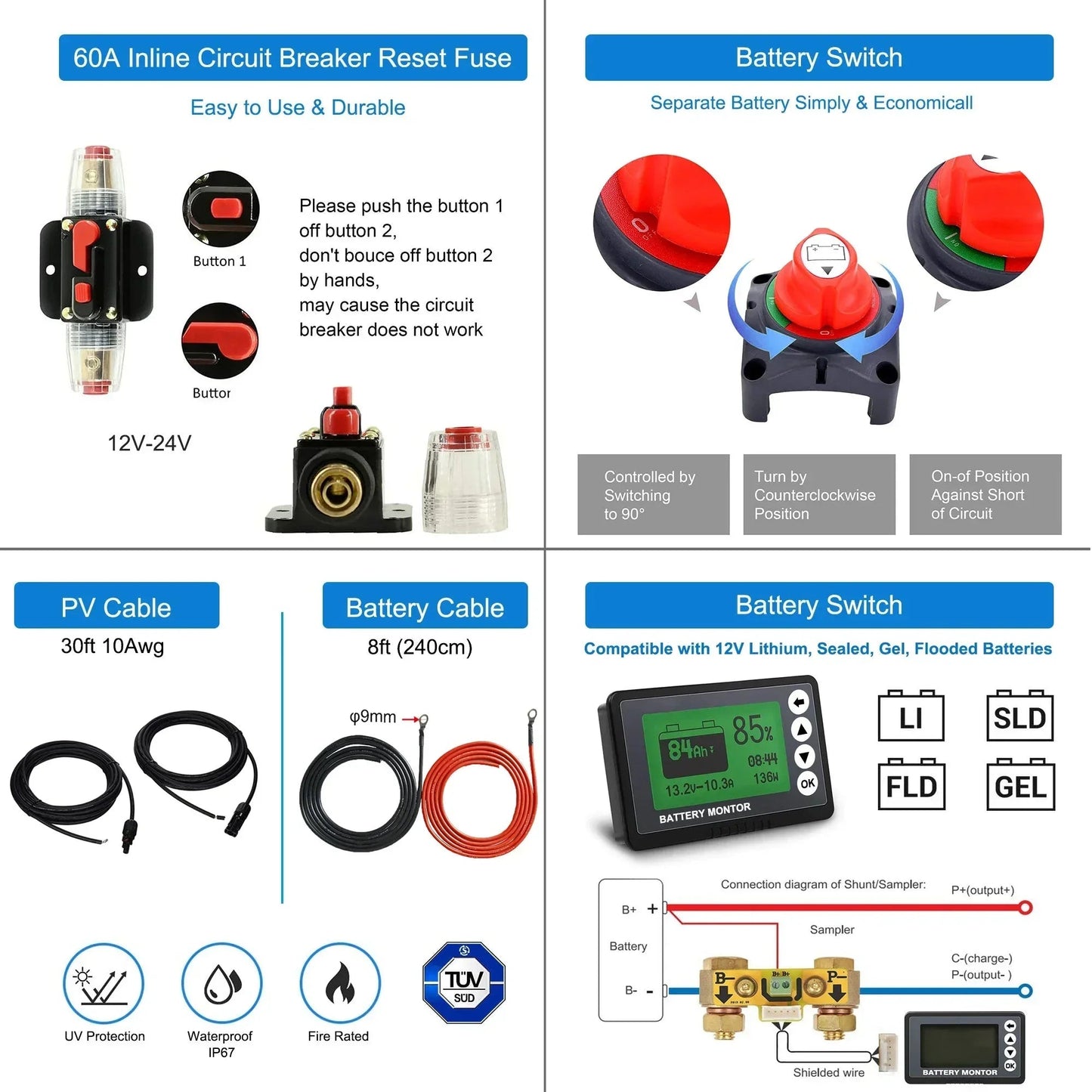

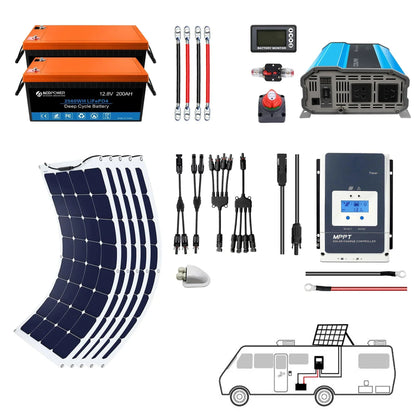

• System components: Monitor, Switch, 60A fuse, Z Brackets (3 sets), Battery Cables (2 Pairs), All necessary cables

Safety features

• Inverter protection includes undervoltage, overvoltage, overload, and short-circuit protection to safeguard connected devices

Installation and maintenance

• All-in-one kit designed for straightforward installation on RV roofs and similar platforms; includes mounting hardware and wiring for a complete setup
• Includes battery cables and cables required to connect panels, batteries, and inverter; monitor provides status visibility for routine checks

ACOPOWER 330 Watt Flexible RV

Solar system comes with everything you need to start Producing Free, Clean Power from the Sun! Perfect for RV's, Boats, Cabins and Back-up Power! Solar Powered

Specification:

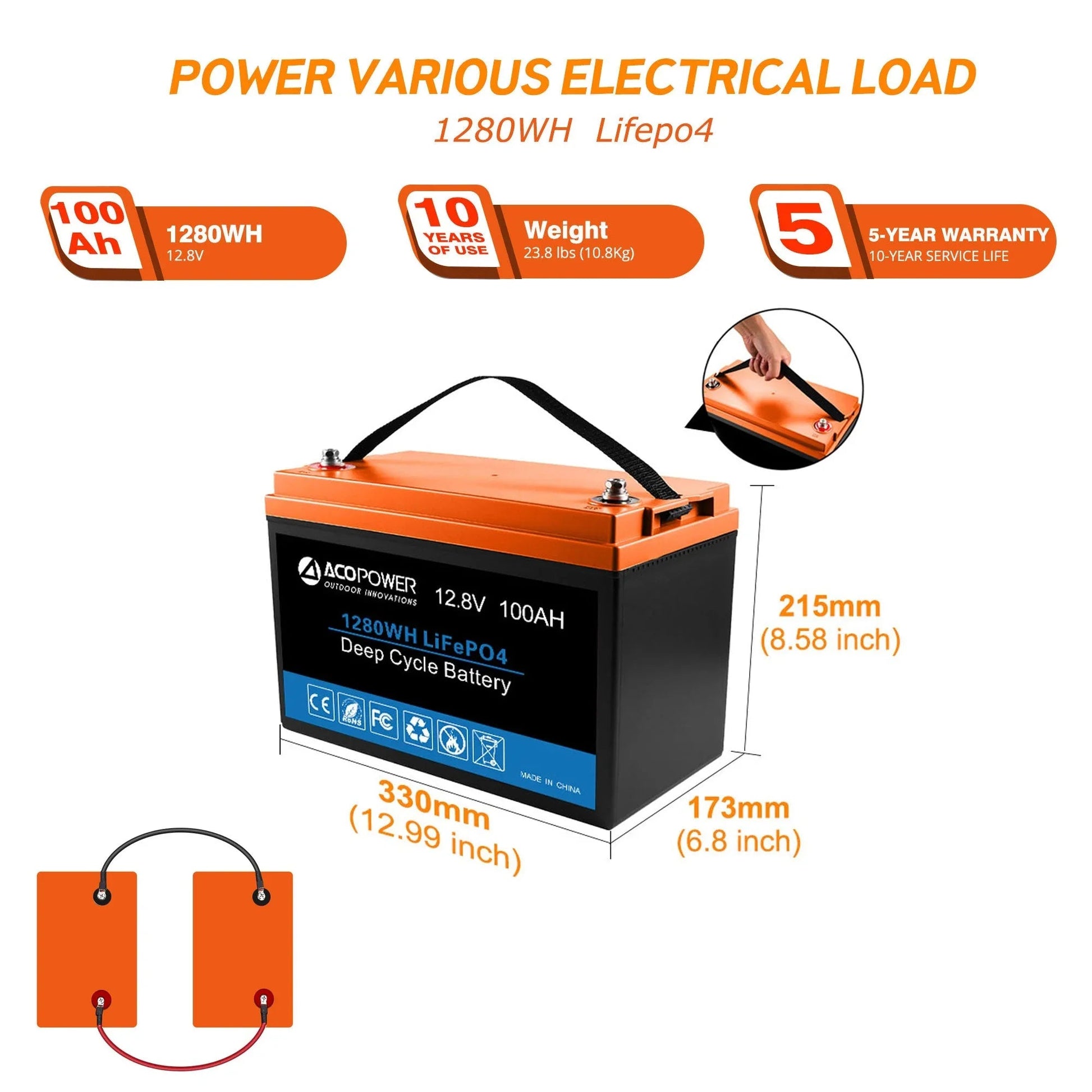

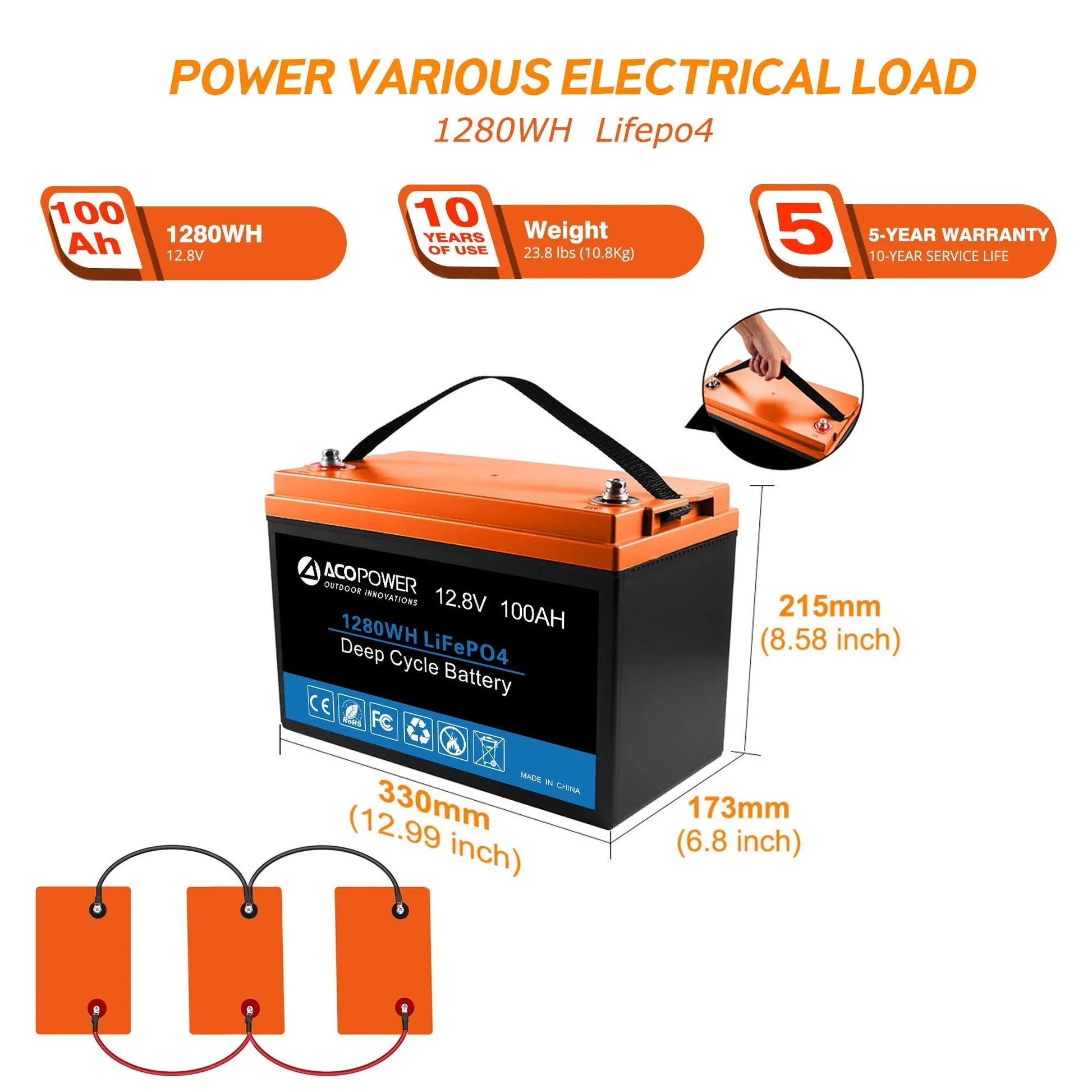

12V 100Ah LiFePO4 Deep Cycle Lithium Battery
Rated voltage 12.8V
Charge voltage: 14.2 - 14.6V
Battery Capacity:1280WH
Depth of Discharge (DoD): 100%
Standard charge current: 20A
Max continuous charge current: 50A
Max continuous discharge current: 100A
dimension(inch):12.99 x 6.81 (W) x 8.58 (H) inch;
Approx. Weight: 23.8lb

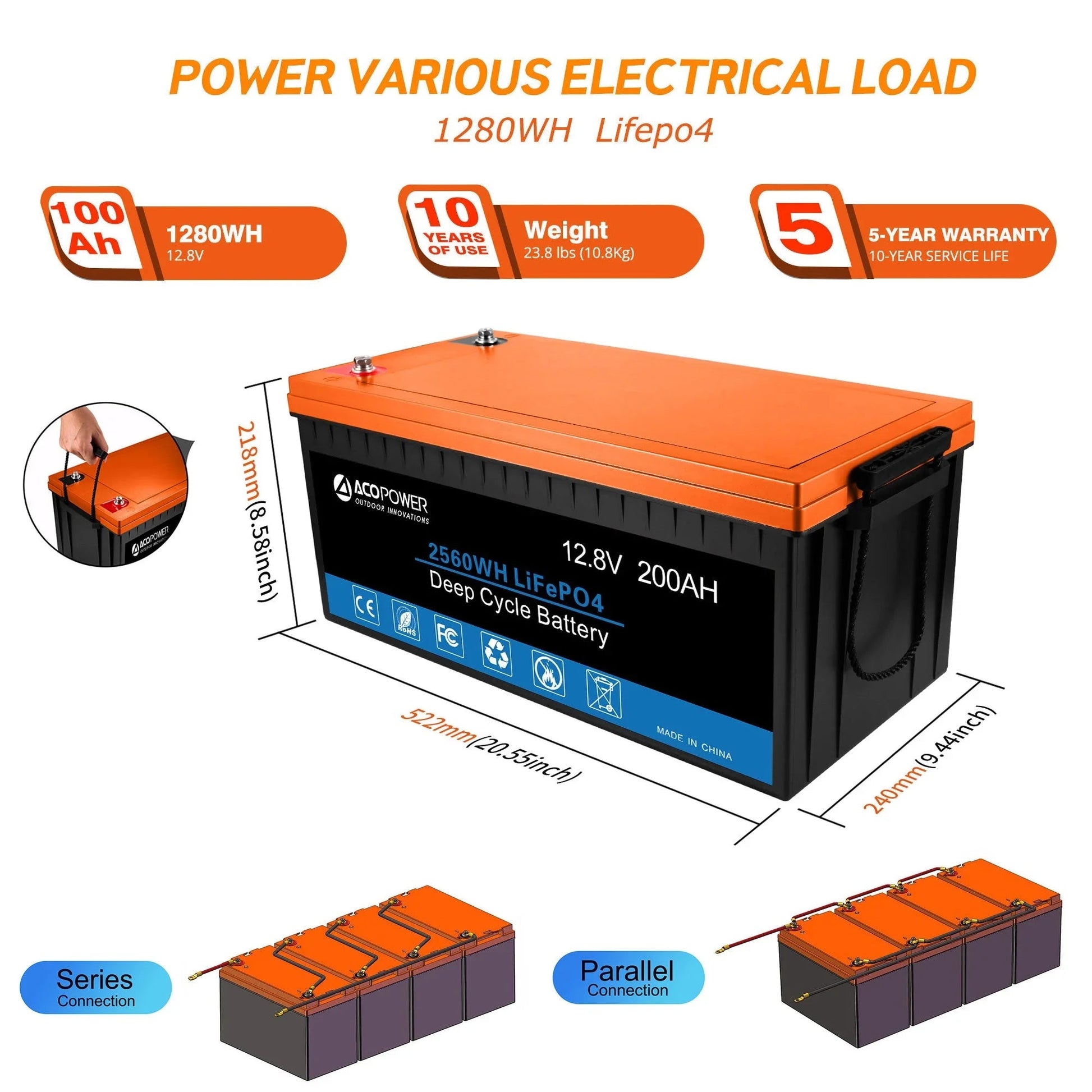

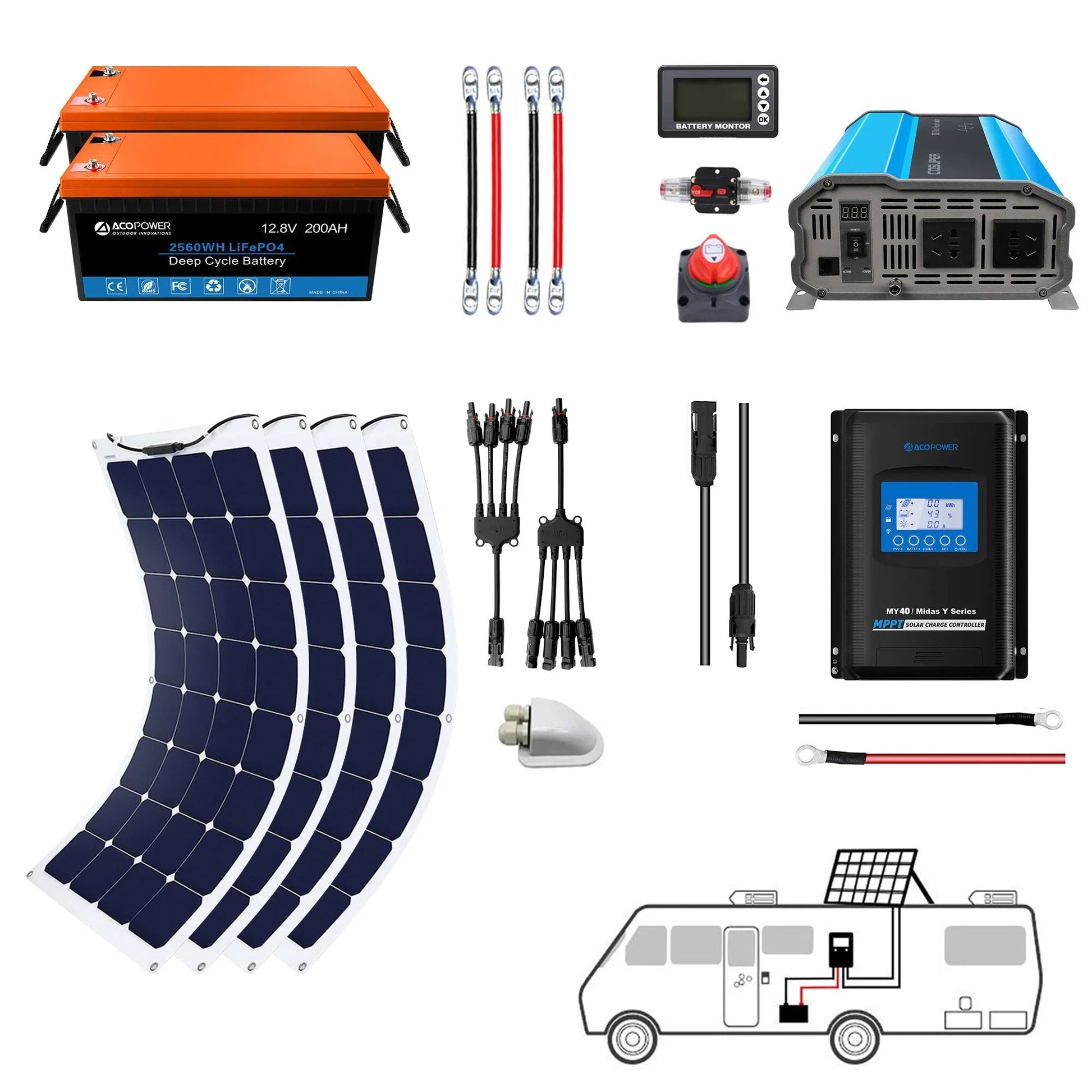

12V 200Ah LiFePO4 Deep Cycle Lithium Battery
Rated voltage 12.8V
Charge voltage: 14.2 - 14.6V
Battery Capacity:2560WH
Depth of Discharge (DoD): 100%
Standard charge current: 50A
Max continuous charge current: 100A
Max continuous discharge current: 200A
dimension(inch):20.55 x 9.44 (W) x 8.58 (H) inch;
Approx. Weight: 48.94lb

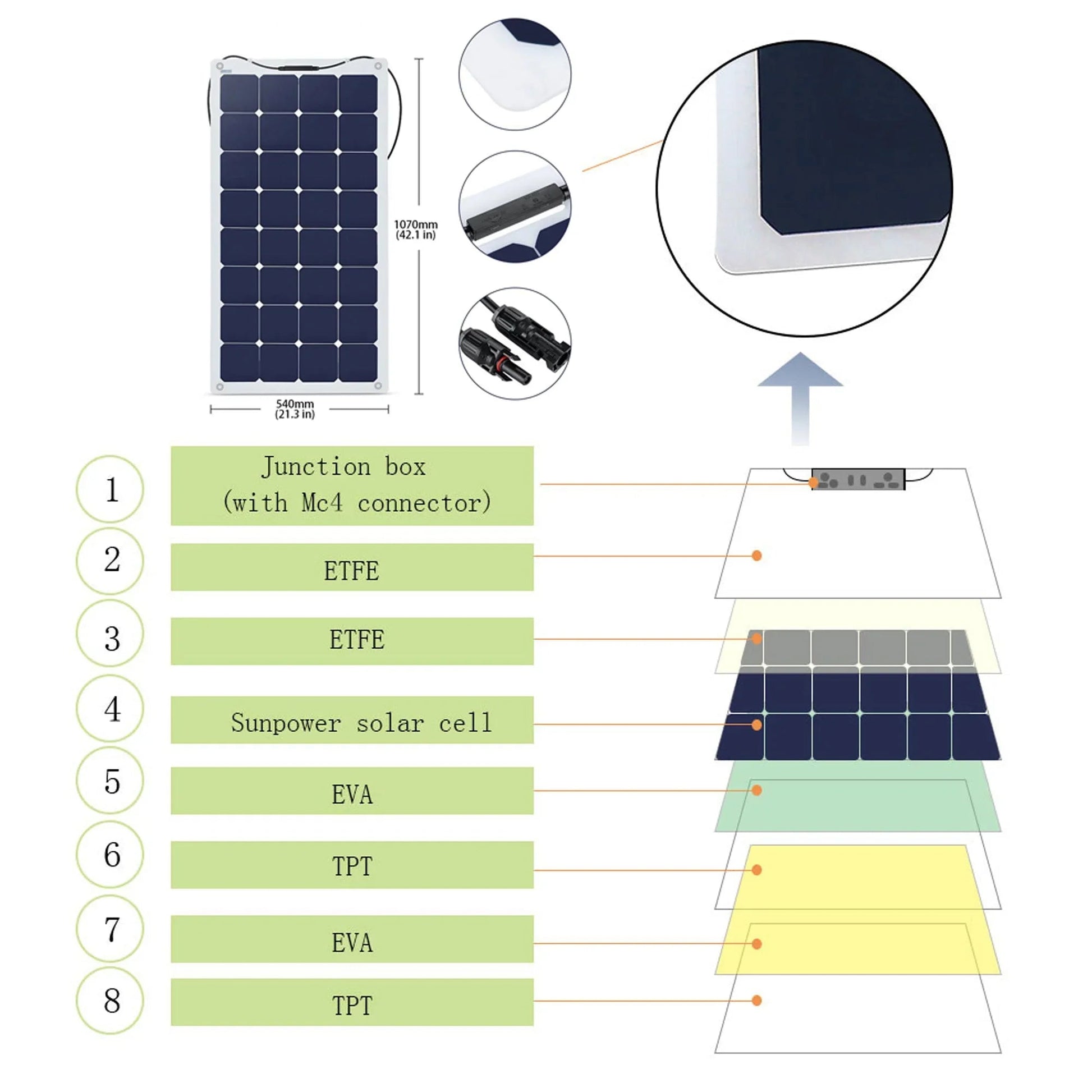

110W Semi-Flexible Solar Panel
Peak Power (Pmax):110W
Peak Circuit Voltage(Voc):20.8V
Max Power Voltage(Vmp):17.6V
Short Circuit Current(Isc):6.87A
Max Power Current(Imp):6.25A
Weight: 4.85 lb
Dimension: 44.68*21.26*0.12 Inch

1500W Pure Sine Wave Inverter
Continuous output 1500W
Surge Power 3000W
Wave Form: Pure Sine Wave
Protection: Under voltage protection, Overvoltage protection, Overload
Protection, Output short circuit protection
Weight: 7.79lb
Dimension(inch): 12.94+1.34 (D) x 7.52(W) x 3.86(H) inch

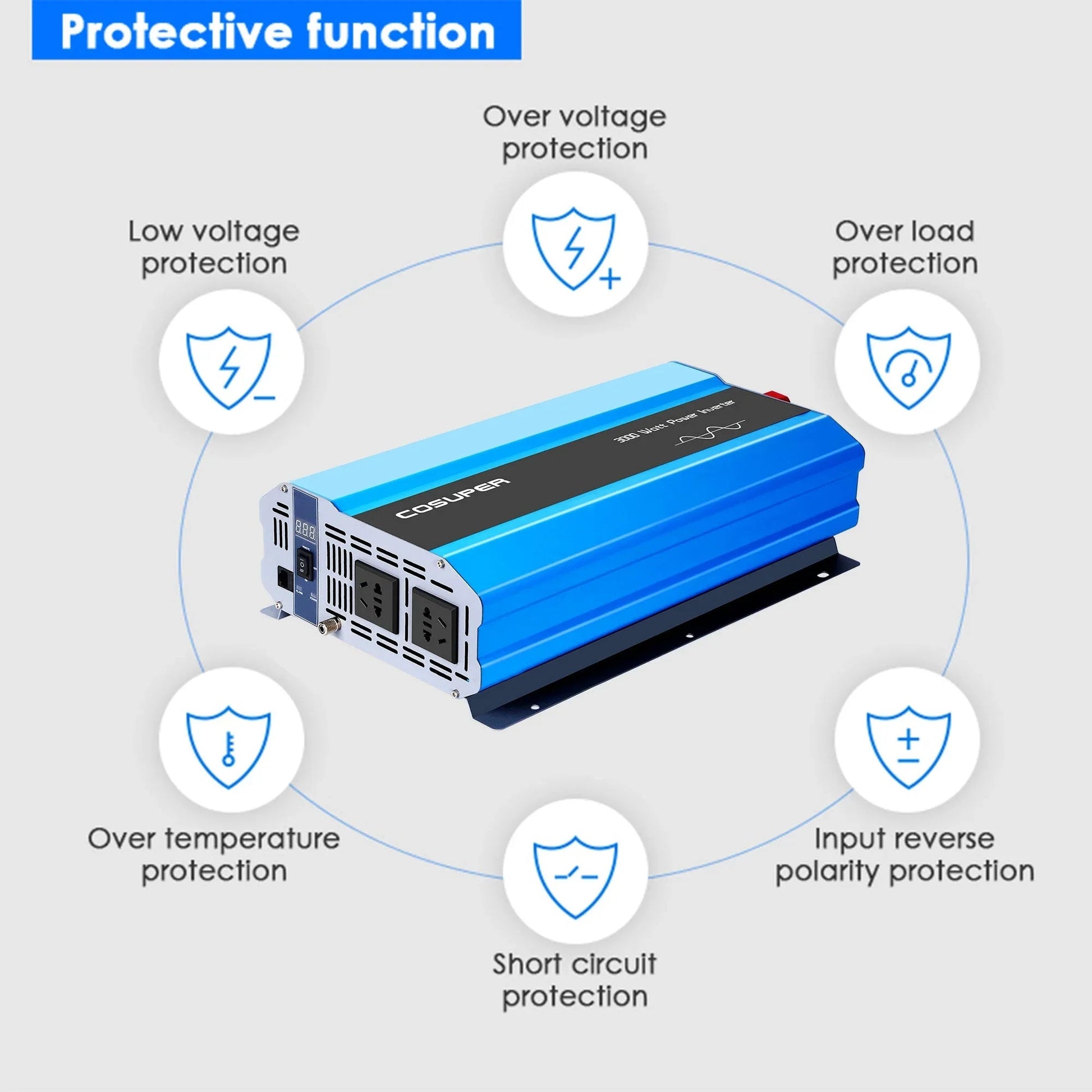

3000W Pure Sine Wave Inverter
Continuous output 3000W
Surge Power 6000W
Wave Form: Pure Sine Wave
Protection: Under voltage protection, Overvoltage protection, Overload
Protection, Output short circuit protection
Weight: 12.1lb
Dimension(inch): 18.23(D) x 9.53(W) x 4.65(H) inch

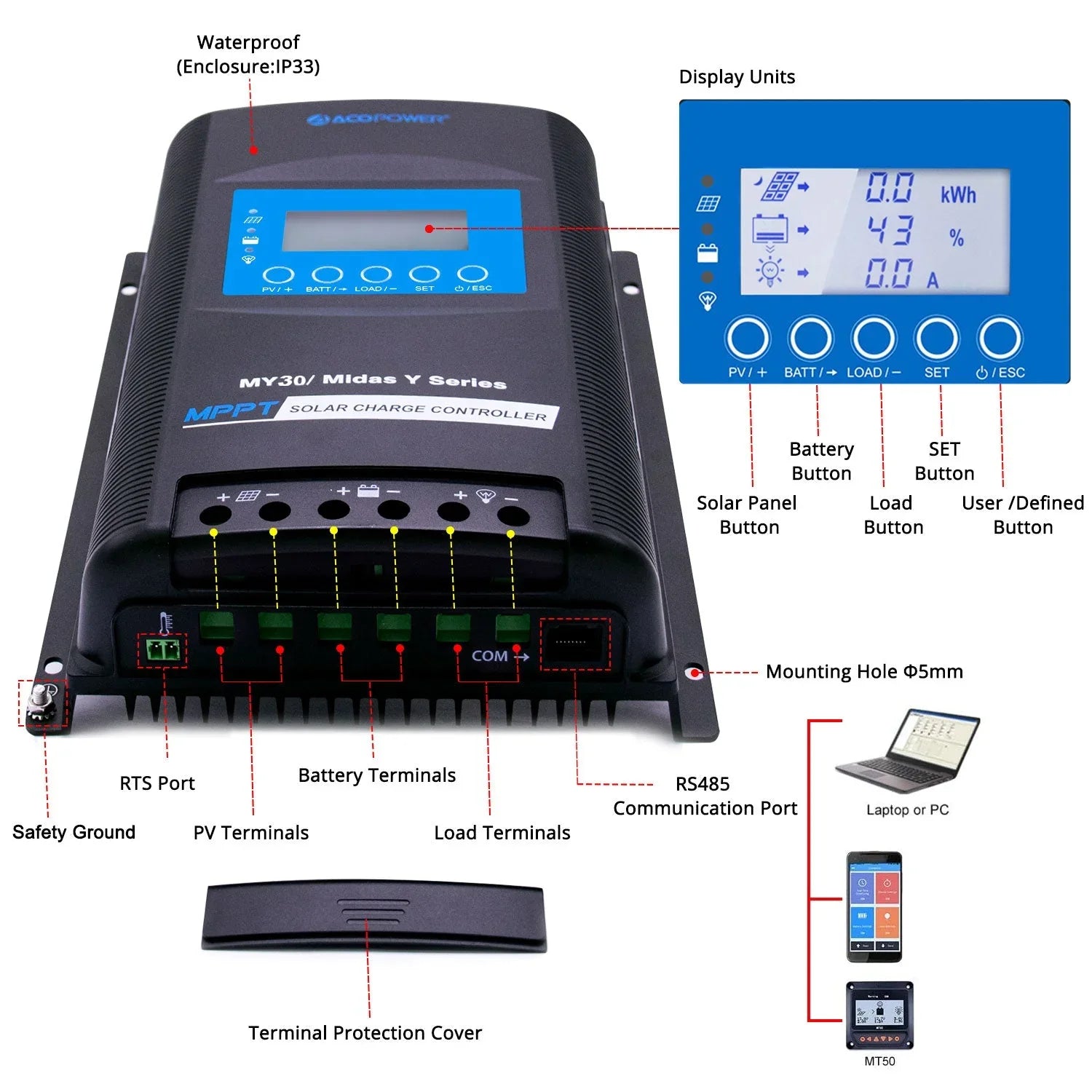

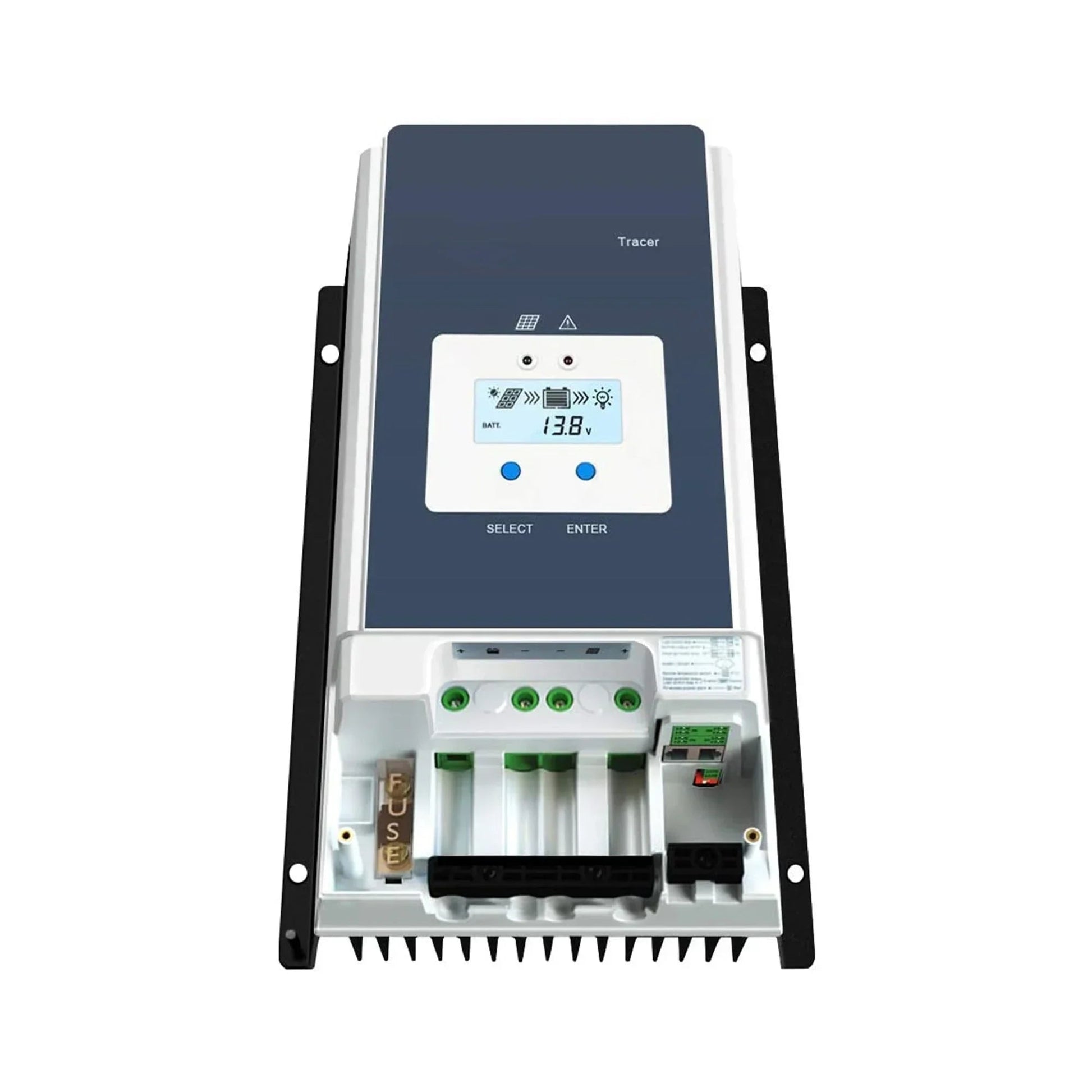

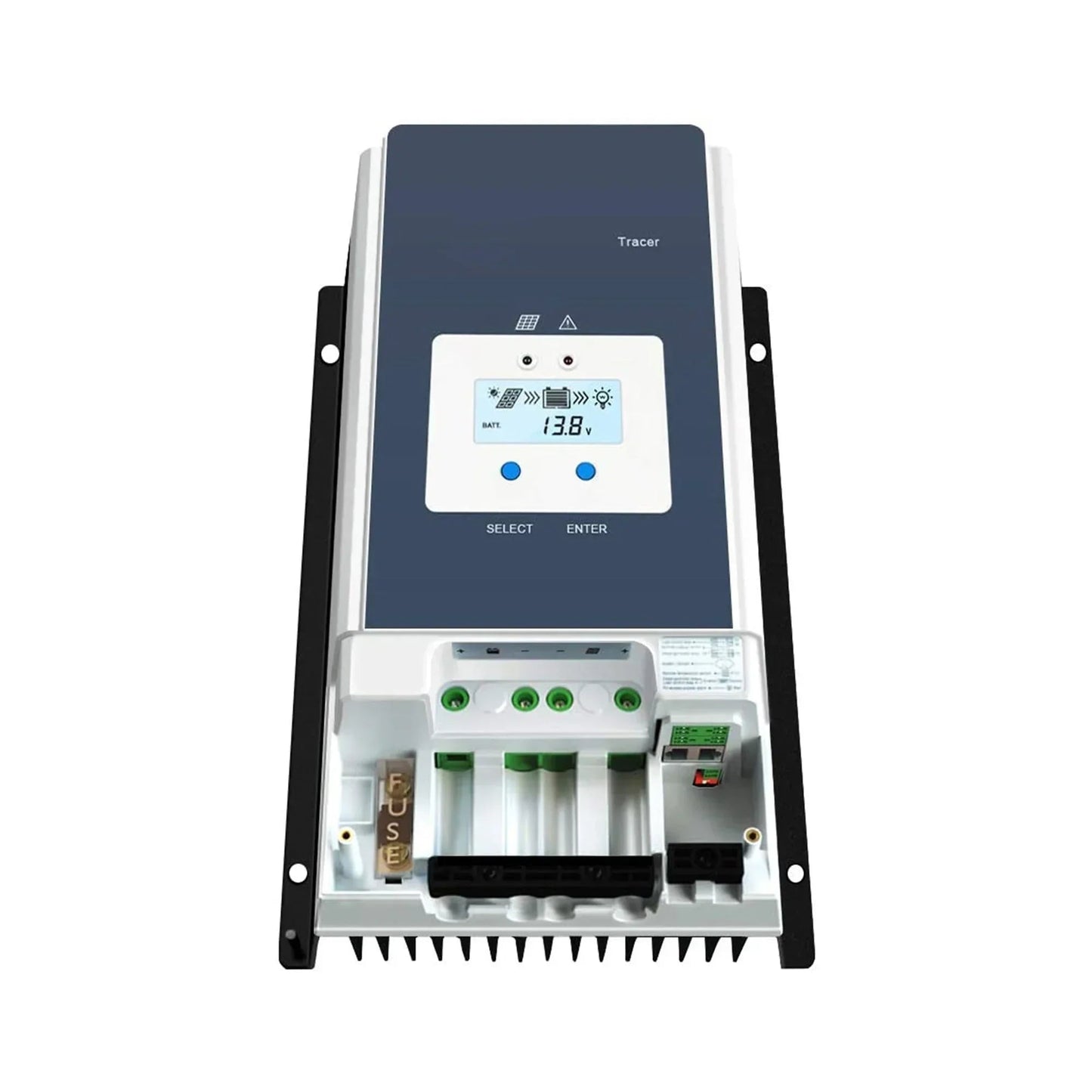

MPPT Solar Charge Controller 30A
Rated charge current: 30A
Battery voltage range: 8V~32V
Max.PV open circuit voltage: 100VDC
Max.PV input power: 12V/390W,24V/780W
Compatible with Various Deep Cycle Battery options: Sealed, Gel, Flooded and Lithium-ion. LiFePO4 Multiple Load Control Method.

MPPT Solar Charge Controller 40A
Rated charge current: 40A
Battery voltage range: 8V~32V
Max.PV open circuit voltage: 100VDC
Max.PV input power: 12V/520W,24V/1040W
Compatible with Various Deep Cycle Battery options: Sealed, Gel, Flooded and Lithium-ion. LiFePO4 Multiple Load Control Method.

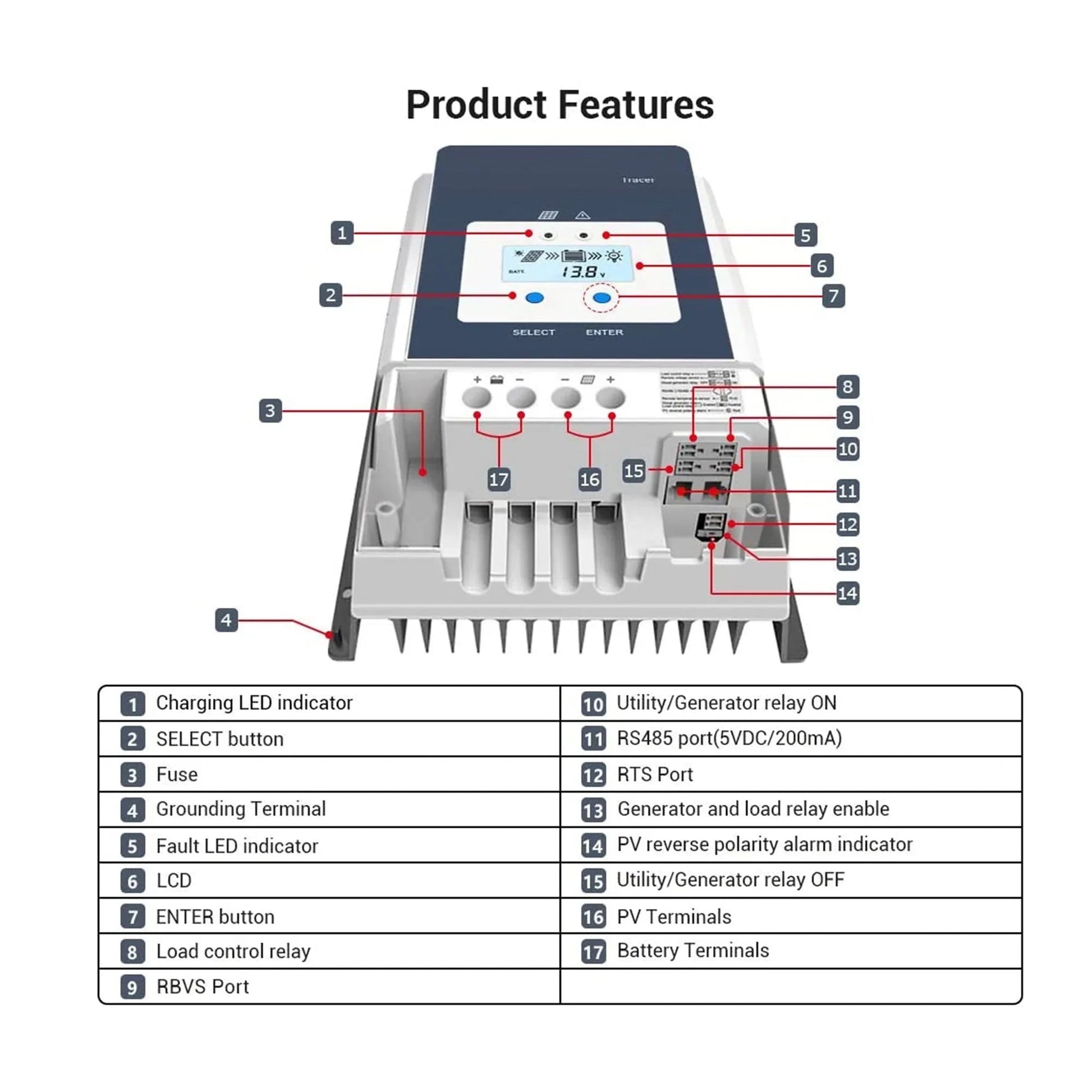

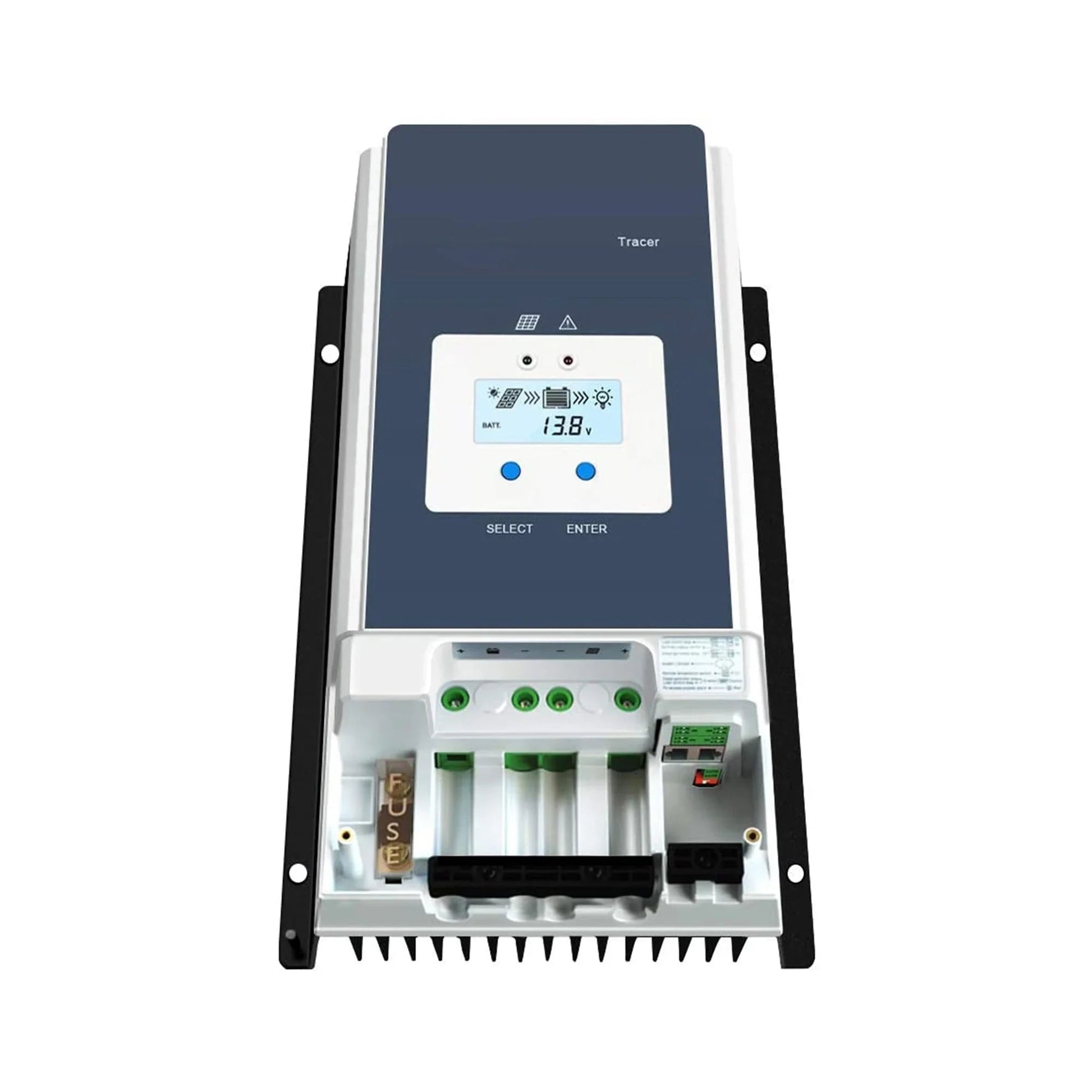

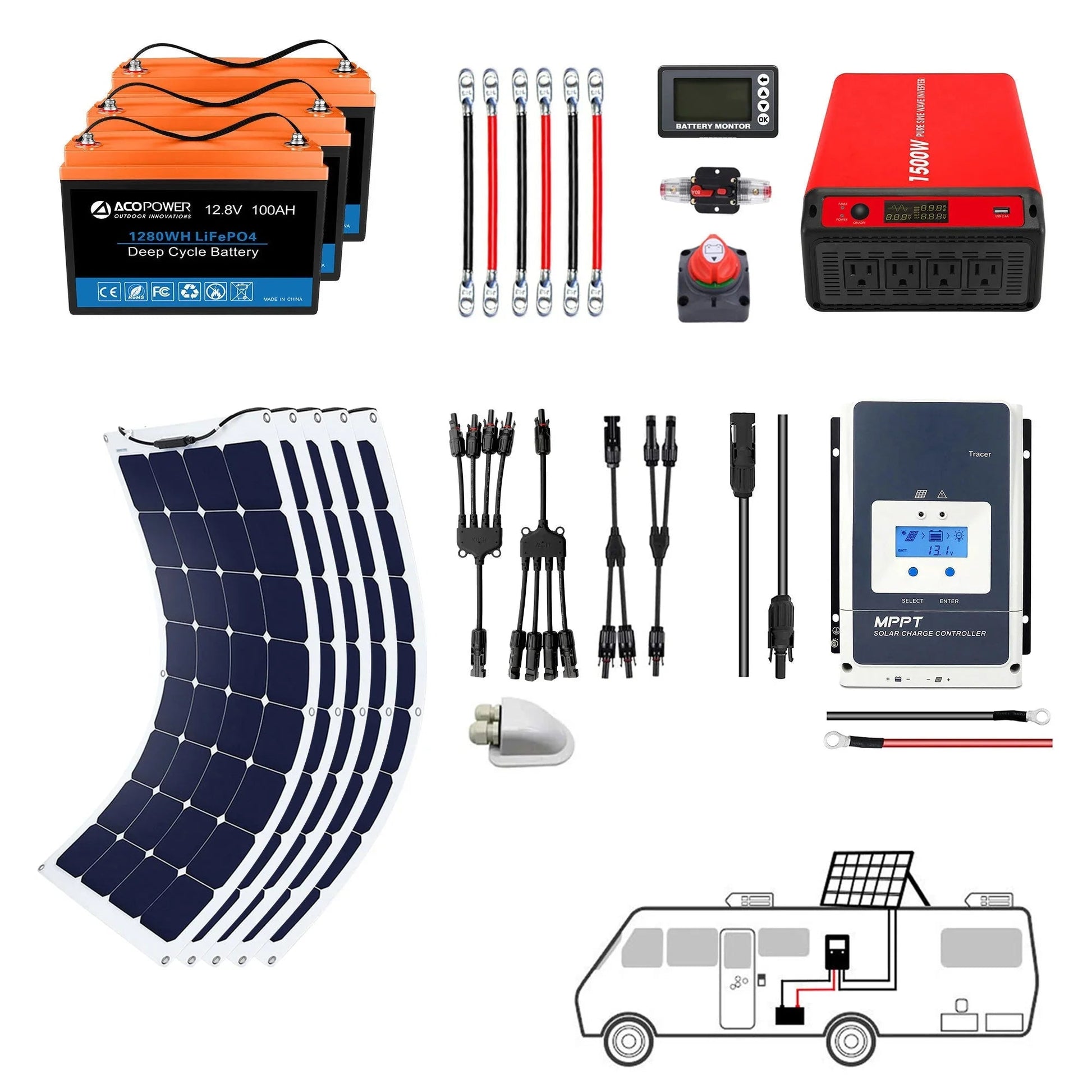

MPPT Solar Charge Controller 50A
Rated charge current: 50A
Battery voltage range: 8V~68V
Max.PV open circuit voltage: 150V
Max.PV input power: 12V/625W,24V/1250W,36V/1875W,48V/2500W
Compatible with Various Deep Cycle Battery options: Sealed(Defalut)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries

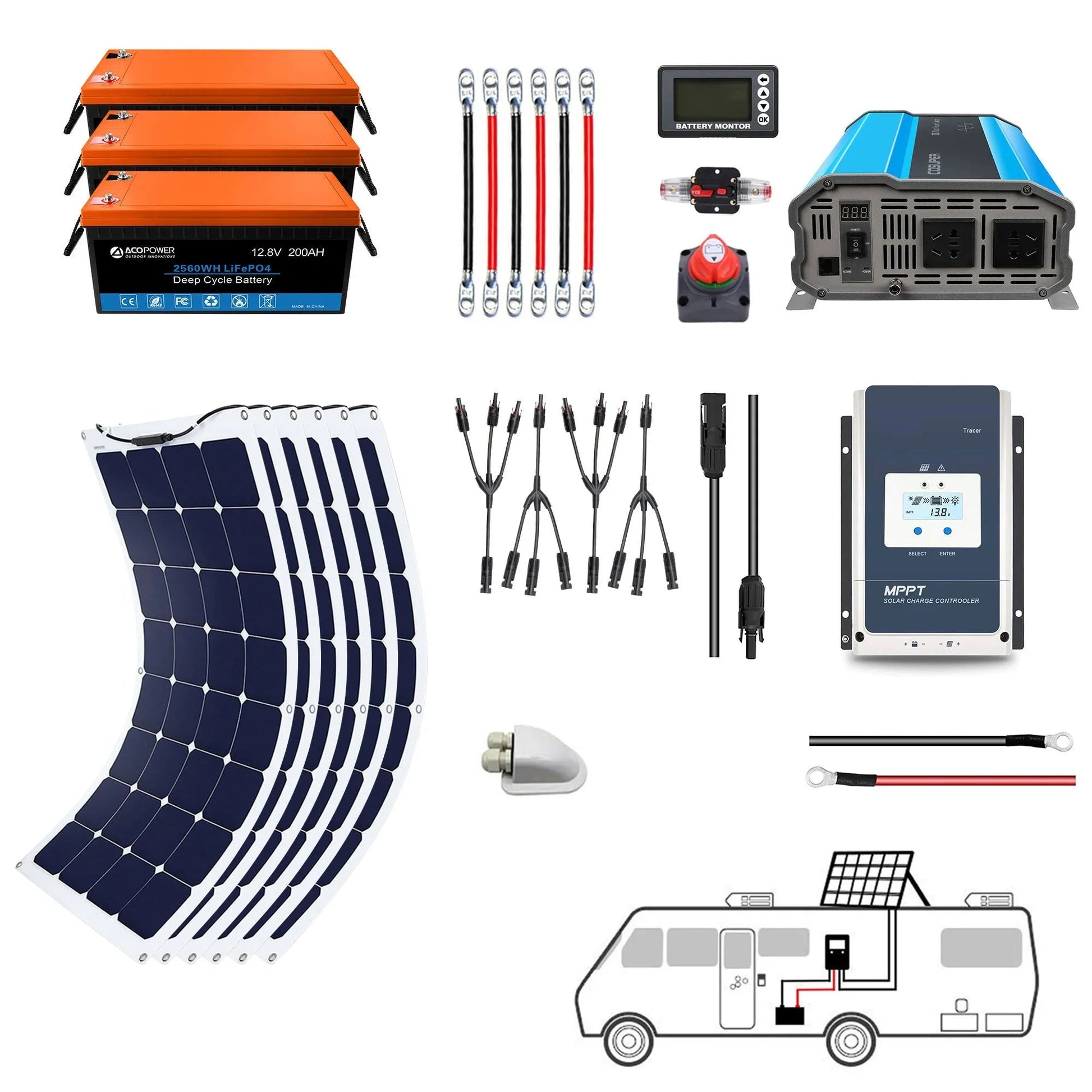

MPPT Solar Charge Controller 60A
Rated charge current: 60A
Battery voltage range: 8V~68V
Max.PV open circuit voltage: 150V
Max.PV input power: 12V/750W,24V/1500W,36V/2250W,48V/3000W
Compatible with Various Deep Cycle Battery options:Sealed(Defalut)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries
