ACPOWER 12V Off-Grid Gel Deep Cycle Solar Power System for RVs, Boats, and Cabins
The ACOPOWER Deep Cycle GEL Battery Mono Solar Power Complete System delivers reliable 12V off-grid power for RVs, boats, cabins, and remote installations. This all-in-one kit includes two 100W monocrystalline solar panels, a 100Ah maintenance-free GEL deep-cycle battery, a 1500W DC-to-AC inverter, and a 30A MPPT solar charge controller with LCD. Ideal for off-grid living, backup power, or mobile applications where fast solar charging is essential.
Performance & specifications
- Solar panels: 2 × 100W, Monocrystalline; Voc 22V; Vmp 17.48V; Isc 6.14A; Imp 5.71A; weight 12.8 lb each; dimensions 40.2 × 20.1 × 1.4 in.
- Battery: 12V nominal, 100Ah (10 h rate); Gel Deep Cycle, maintenance-free; dimensions 12.99 × 6.73 × 8.66 in; approx. weight 67.2 lb.

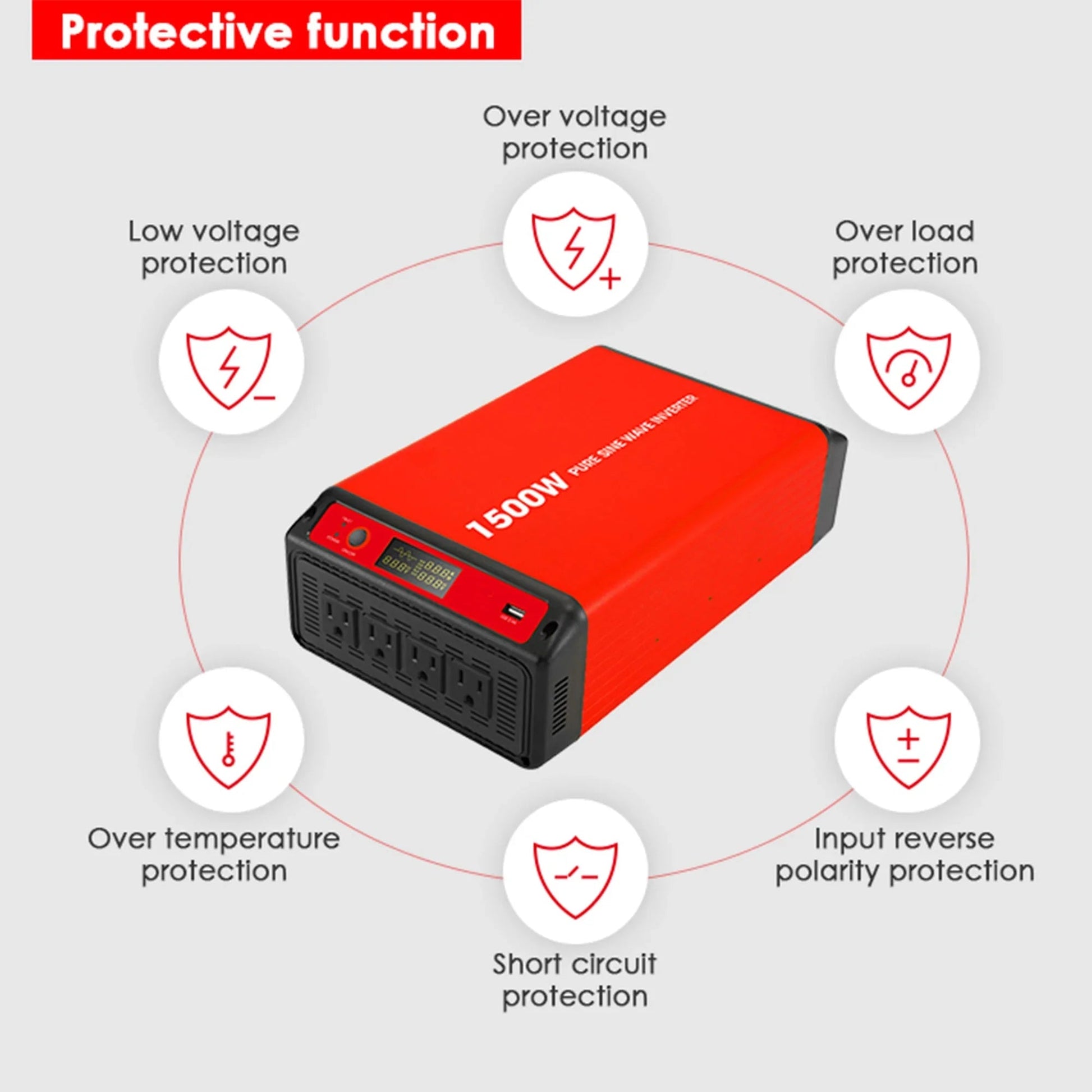

- Inverter: 1500W continuous, 3000W surge; Pure Sine Wave; protections including under-voltage, over-voltage, overload, and short-circuit; weight 7.79 lb; dimensions 12.94 × 7.52 × 3.86 in.
- Charge controller: MPPT 30A; battery voltage range 8–32V; max PV open circuit 100V; max PV input power 12V/390W, 24V/780W; common positive grounding; supports sealed, gel, flooded, and Li-ion chemistries.
- Energy estimate: ~960 Wh (about 80 Ah at 12V) per day under favorable sun; depends on sunlight availability.
Safety features & certifications
- Inverter protections: under-voltage, over-voltage, overload, and short-circuit.
- Includes a 50A fuse and battery switch for circuit isolation and protection.
Installation & maintenance

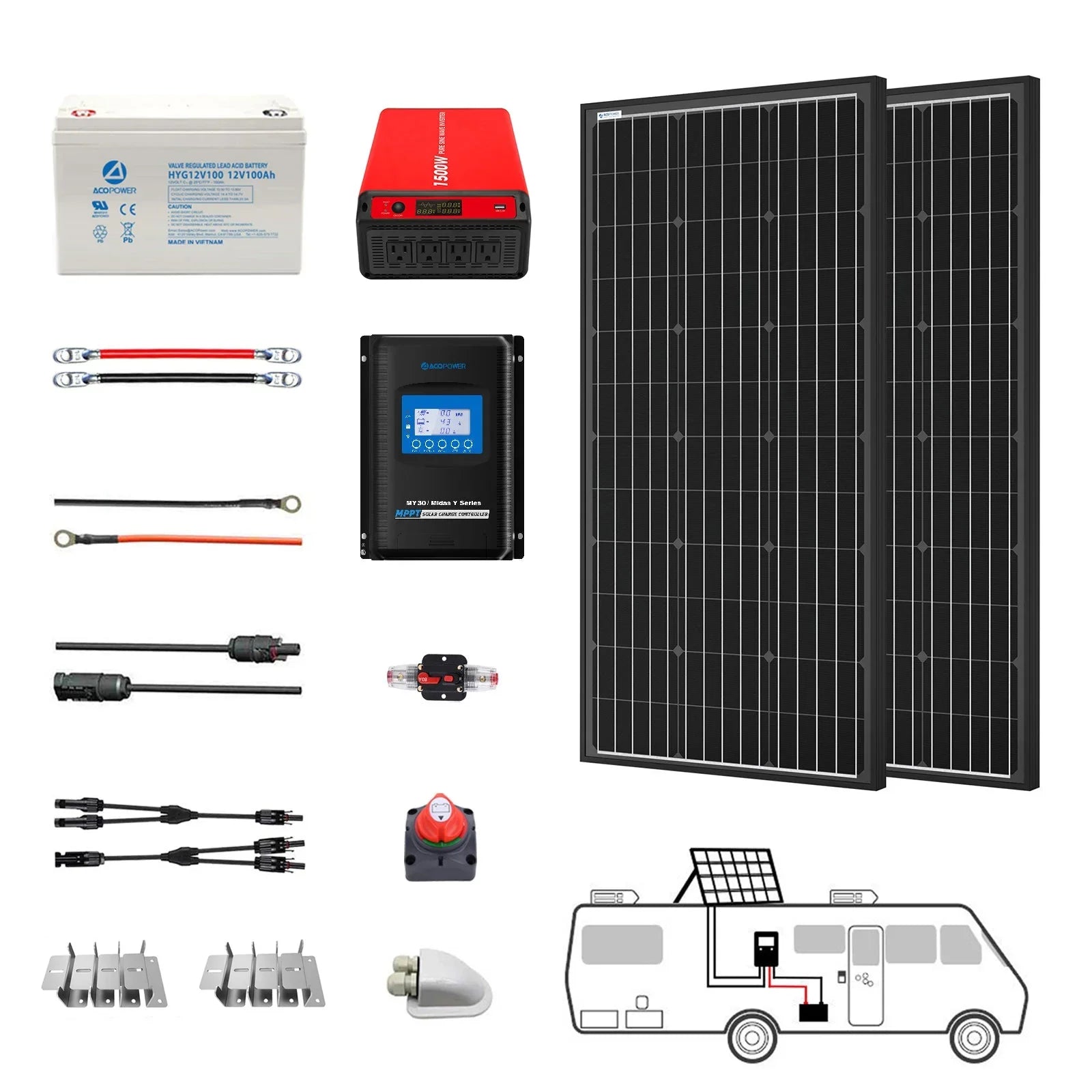

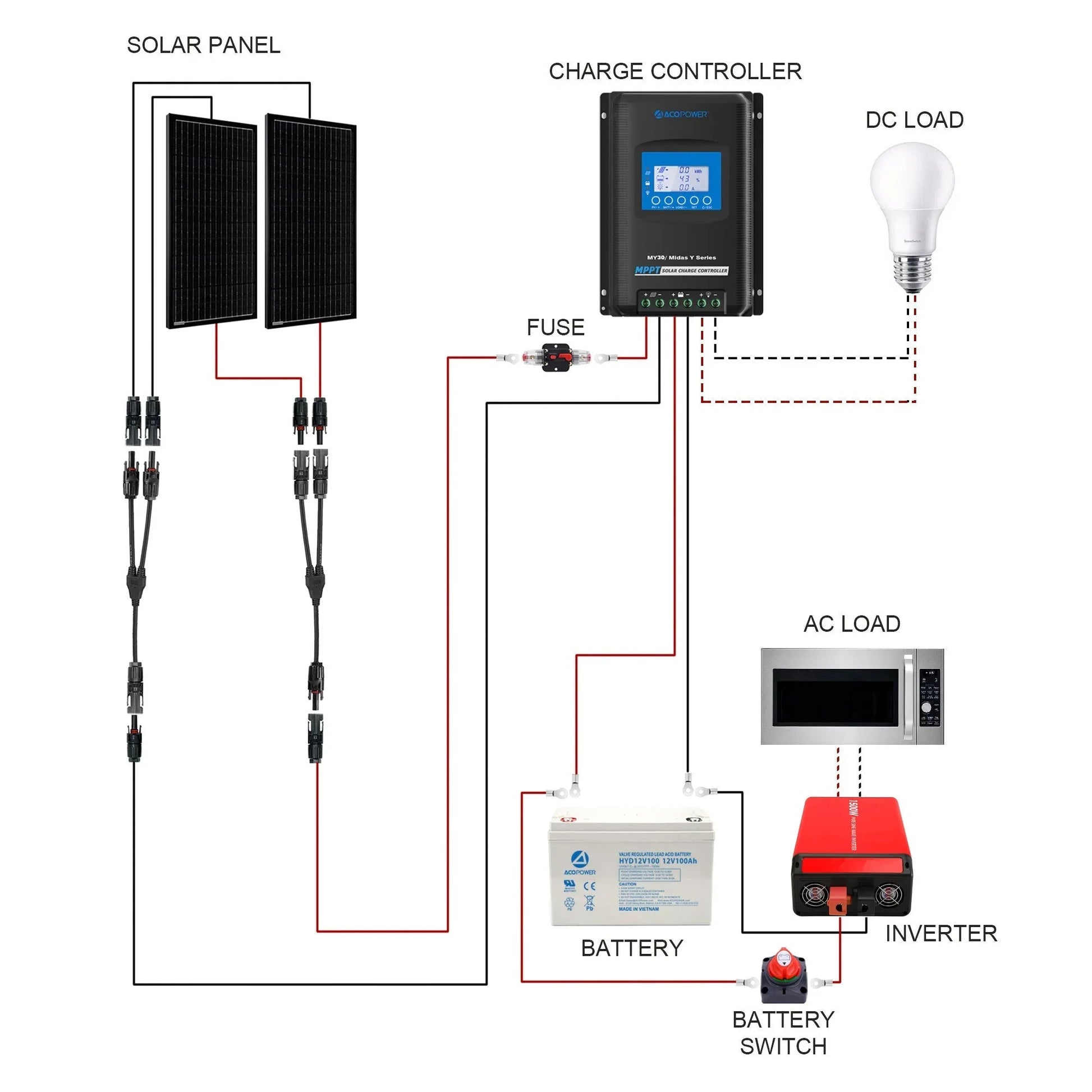

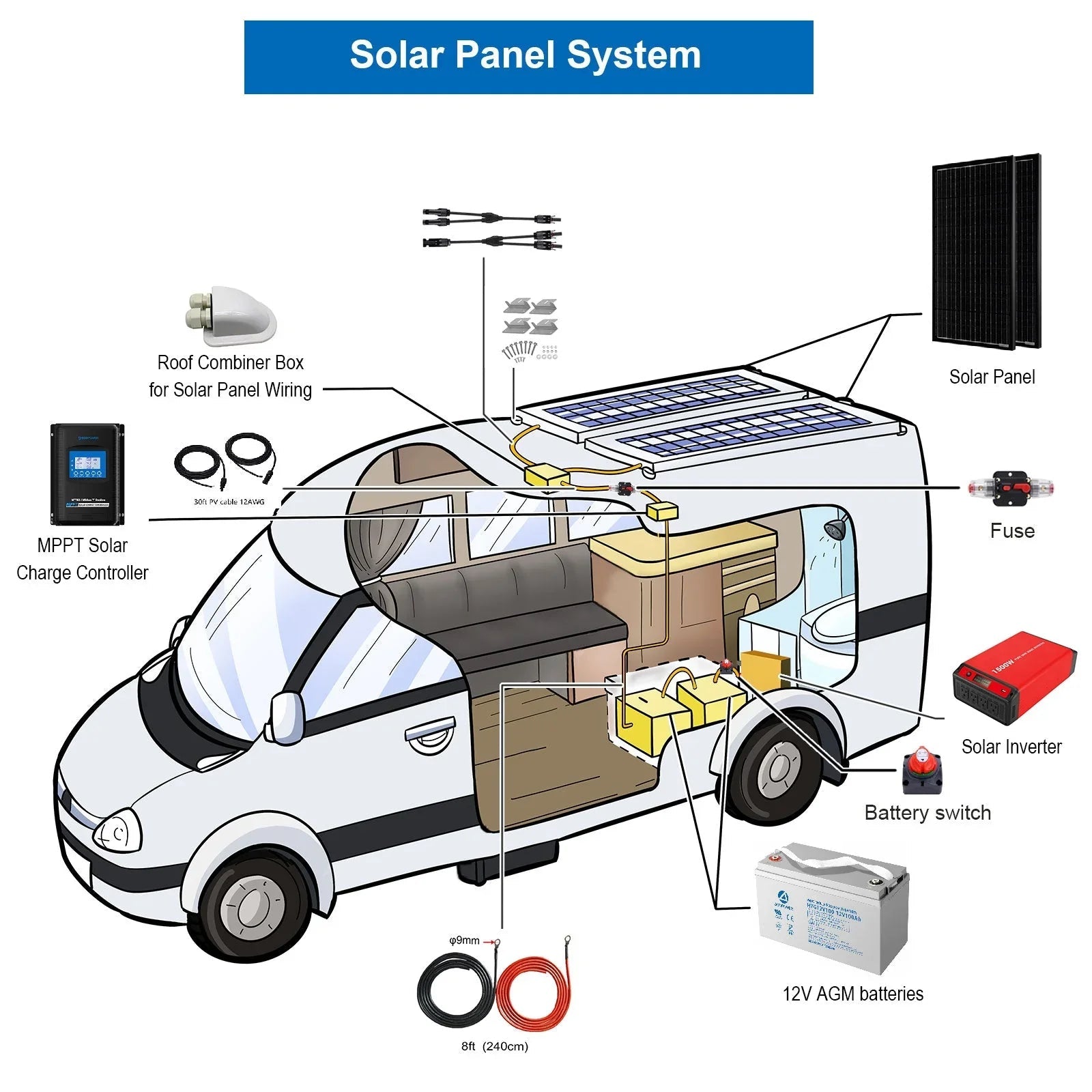

The complete kit provides all necessary hardware: 2 × 100W panels, 1 × 100Ah Gel battery, 1 × 1500W inverter, 1 × 30A MPPT controller, 1 × 50A fuse, a battery switch, cables, and mounting Z brackets. Designed for straightforward setup on RVs, boats, cabins, or off-grid applications. The Gel battery is maintenance-free.
Warranty & service
Supported by a California-based company with 11+ years in the solar industry, offering technical support, customer service, and warranty coverage for this complete kit.
ACOPOWER Deep Cycle GEL Battery Mono Solar Power Complete System with Battery and Inverter for RV Boat 12V Off Grid Kit - 100Ah 1.5Kw 200W
- Solar charging will provide about 960 Watt Hours (Wh) or 80 Amp hours of charge per day (depends on sunlight availability)
- Perfect kit for having an off-grid 12 volt battery system. 1500 Watt Inverter provides plenty of AC power to run your household appliances and the battery bank will supply plenty of energy for moderate use; Designed for RVs, cabins, homes, boats, back-up and remote power use
- Bundle and save! Purchase all the components together and save time and money!
- Complete kit includes: 2pcs 100 Watt Monocrystalline Solar Panel, 1pc 100Ah Gel(Maintenance Free) Deep Cycle Battery,1500W 1500 Watt DC to AC Power Inverter, 30-amp MPPT Solar Charge Controller (w/ LCD Display), a 50A fuse, a battery switch, all necessary Cables, all necessary solar mounting Z brackets;
- California, USA based company in 11+ years solar industry supplies technical support, customer service and warranty; Reliable & trustable local business.
ACOPOWER 200 Watt Mono RV solar system comes with everything you need to start producing free, clean power from the sun! Perfect for RV's, boats, cabins and back-up power! ACOPOWER’s 200 Watt Solar Kit with Inverter includes EVERYTHING you need to get started: 2pcs 100 Watt Monocrystalline Solar Panels, 1500W 12VDC to 120AC Modified Sine Wave Power Inverter (inverter cables are included), 1pc 100Ah Gel Deep Cycle Battery, 30-Amp MPPT Solar Charge Controller, a 50A fuse, a battery switch, all necessary Cables, all necessary solar mounting Z brackets; Product photos above show pictures of all the included items and additional technical information.
Specification:

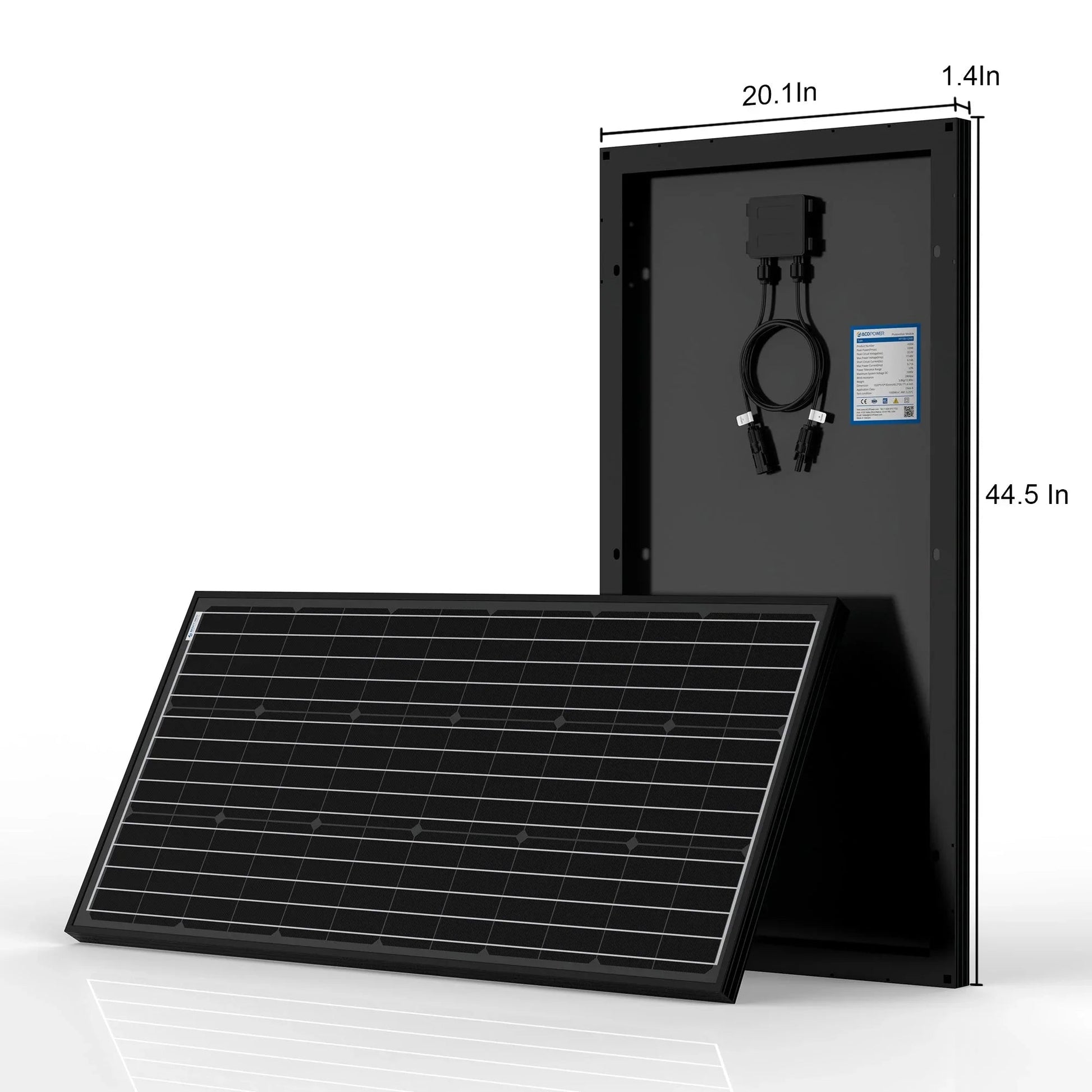

100W Monocrystalline Solar Panel
• Nominal for 12V battery charger
• Peak Power (Pmax):100W
• Peak Circuit Voltage(Voc):22V
• Max Power Voltage(Vmp):17.48V
• Short Circuit Current(Isc):6.14A
• Max Power Current(Imp):5.71A
• Weight:12.8 lb
• Dimension:40.2*20.1*1.4 Inch
• Application Class: Class A
1500W Inverter 12VDC to 120VAC
• Continuous output 1500W
• Surge Power 3000W
• Wave Form: Pure Sine Wave
• Protection: Under voltage protection, Overvoltage protection, Overload Protection, Output short circuit protection
• Weight: 7.79lb
• dimension(inch): 12.94+1.34 (D) x 7.52(W) x 3.86(H) inch

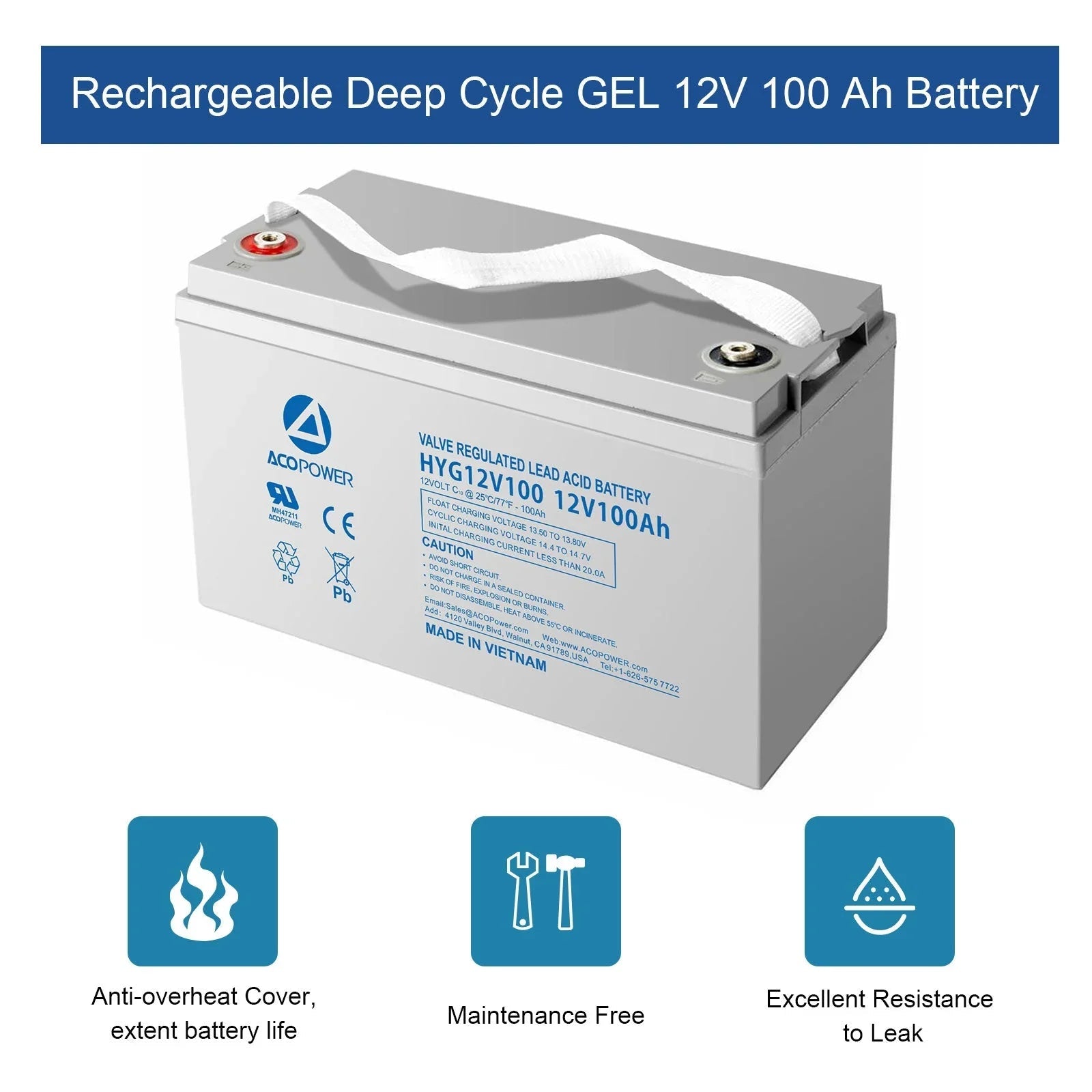

12V 100 Ah Rechargeable Deep Cycle GEL Battery
• Nominal Voltage 12V
• Rated capacity (10 hour rate): 100Ah
• dimension(inch):12.99 x 6.73 (W) x 8.43 (H) inch; Total Height: 8.66inch
• Approx. Weight: 30.5kg(67.2lbs)±3%

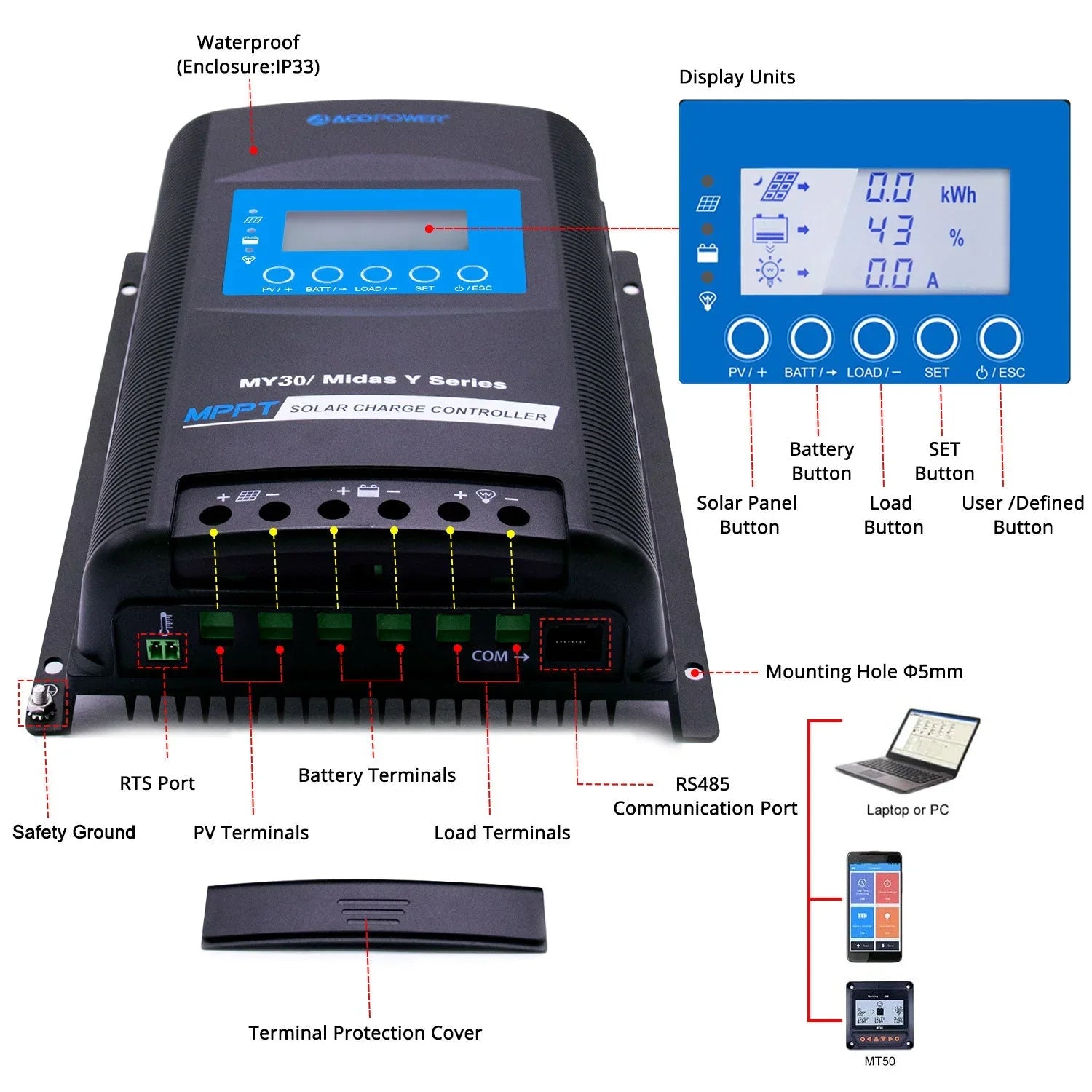

MPPT 30A Charge Controller
• Rated charge current: 30A
• Battery voltage range: 8V~32V
• Max.PV open circuit voltage: 100VDC
• Max.PV input power: 12V/390W,24V/780W
• Common positive grounding design
• Compatible with Various Deep Cycle Battery options: Sealed, Gel, Flooded and Lithium-ion. LiFePO4 Multiple Load Control Method.
Package List:
• 2PCS 100W Mono Solar Panel
• 1PC 1500W Inverter
• 1PC 100Ah Gel Battery
• 1PC 30A MPPT Charge Controller
• 1PC 50A Fuse
• 1PC Battery Switch
• 2 Sets Mounting Z Bracket
• 1Pair 30ft 12AWG PV Cable
• 1 Pair 1Ft 4AWG Battery Cable
• 1 Pair 8FT 8AWG Tray Cable
• 1PC Cable Entry Housing
• 1 Pair y branch solar panel connectors
