ACOPOWER 800W Mono Black RV Solar System
Designed as a complete off-grid power solution for RVs, boats, cabins, homes, and remote power use, the ACOPOWER 800W Mono Black RV Solar System combines a modular solar array, a 3000W inverter, four 200Ah Gel deep-cycle batteries, and a 60A MPPT charge controller into a single, ready-to-install kit. This bundle enables a 12V battery system with reliable AC power when sun is available.
Performance and specifications
- Solar array: 8 × 100W Monocrystalline panels; Pmax 100W; Voc 22V; Vmp 17.48V; Isc 6.14A; Imp 5.71A; panel weight 12.8 lb; dims 40.2" × 20.1" × 1.4".
- Daily energy: approximately 3,840 Wh (≈320 Ah at 12V) under favorable sun; actual output depends on sunlight availability.
- Inverter: 3000W continuous, 6000W surge; 12VDC input to 120VAC output; Pure Sine Wave; protections: under-voltage, overvoltage, overload, and short circuit; weight 12.1 lb; dims 18.23" × 9.53" × 4.65".
- Battery bank: 12V, 200Ah Gel Deep Cycle (maintenance-free); dims 20.55" × 9.37" × 8.58"; total height 8.74"; weight ≈137.5 lb.
- Charge controller: MPPT 60A; battery voltage range 8–68V; max PV input power 750W (12V), 1500W (24V), 2250W (36V), 3000W (48V); common positive grounding; compatible with sealed/gel/flooded batteries.
Safety, installation, and maintenance
- Includes: 8 × 100W panels, 1 × 3000W inverter, 4 × 200Ah Gel batteries, 60A MPPT controller, 50A fuse, battery switch, cables, and mounting Z brackets.

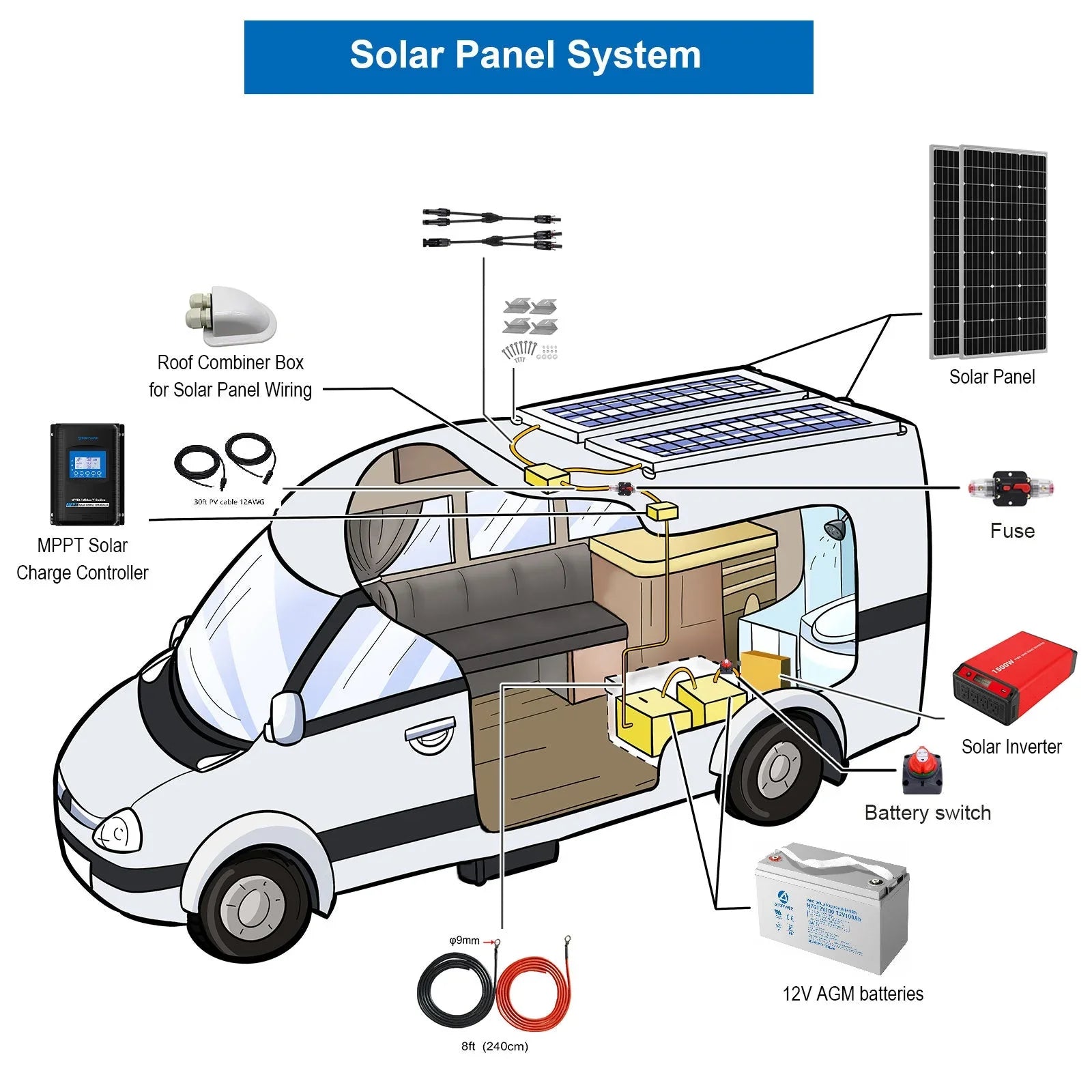

- Designed for RV roofs, cabins, boats, and backup power; maintenance-free gel batteries reduce ongoing servicing; built-in protections on inverter and controller help safeguard connections and equipment.
Warranty and service
Backed by a California-based company with 11+ years in the solar industry, offering technical support, customer service, and a warranty on this complete kit.
ACOPOWER 800W Mono Black RV Solar System
- Solar charging will provide about 3840 Watt Hours (Wh) or 320 Amp hours of charge per day (depends on sunlight availability)
- Perfect kit for having an off-grid 12 volt battery system. 3000 Watt Inverter provides plenty of AC power to run your household appliances and the battery bank will supply plenty of energy for moderate use；Designed for RVs, cabins, homes, boats, back-up and remote power use
- Bundle and save! Purchase all the components together and save time and money!
- Complete kit includes: 8pcs 100 Watt Monocrystalline Solar Panel, 4pcs 200Ah Gel(Maintenance Free) Deep Cycle Battery,3000W 3000 Watt DC to AC Power Inverter, 60-amp MPPT Solar Charge Controller (w/ LCD Display), a 50A fuse, a battery switch, all necessary Cables, all necessary solar mounting Z brackets;
- California, USA based company in 11+ years solar industry supplies technical support, customer service and warranty; Reliable & trustable local business.

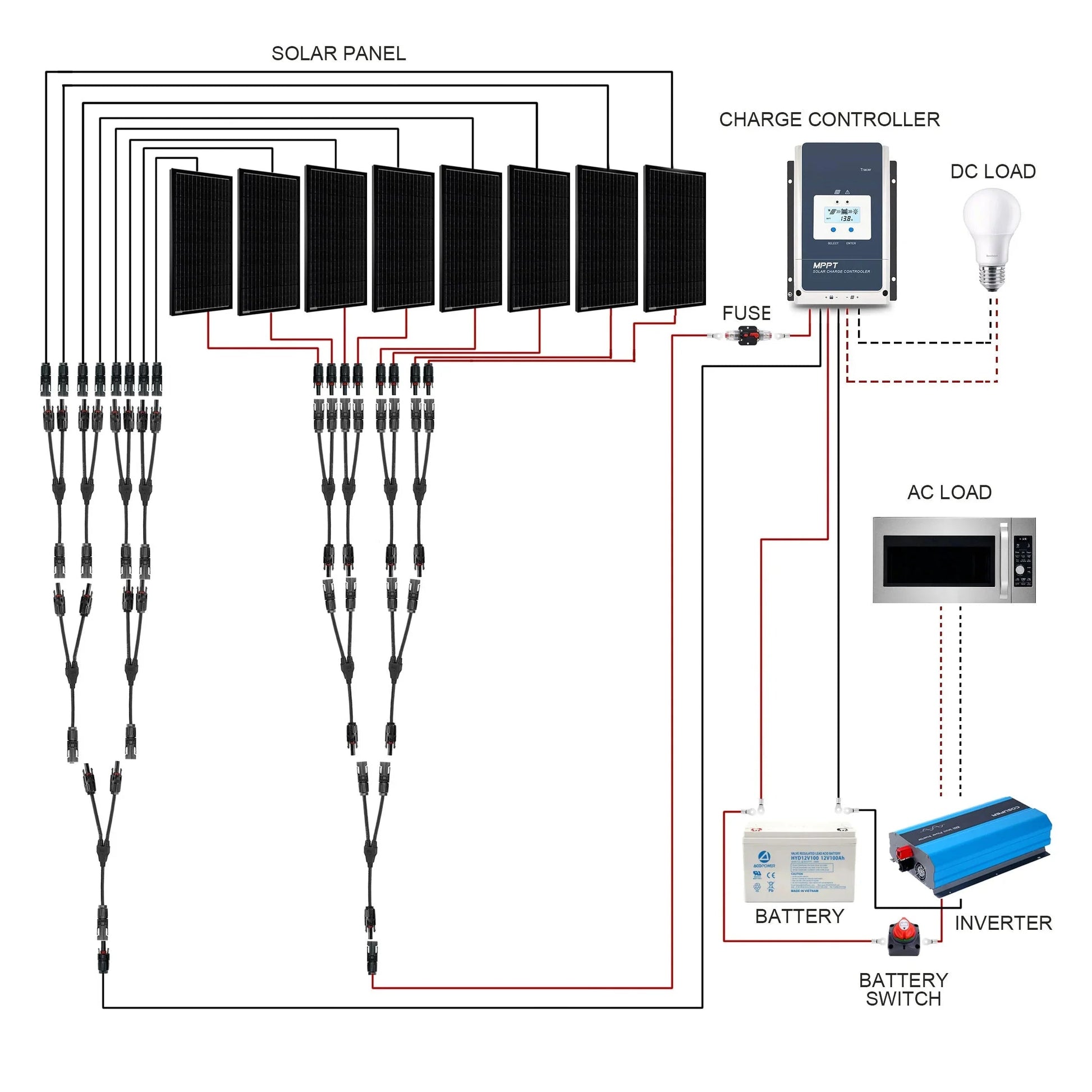

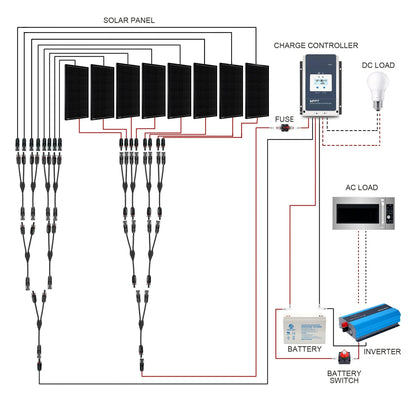

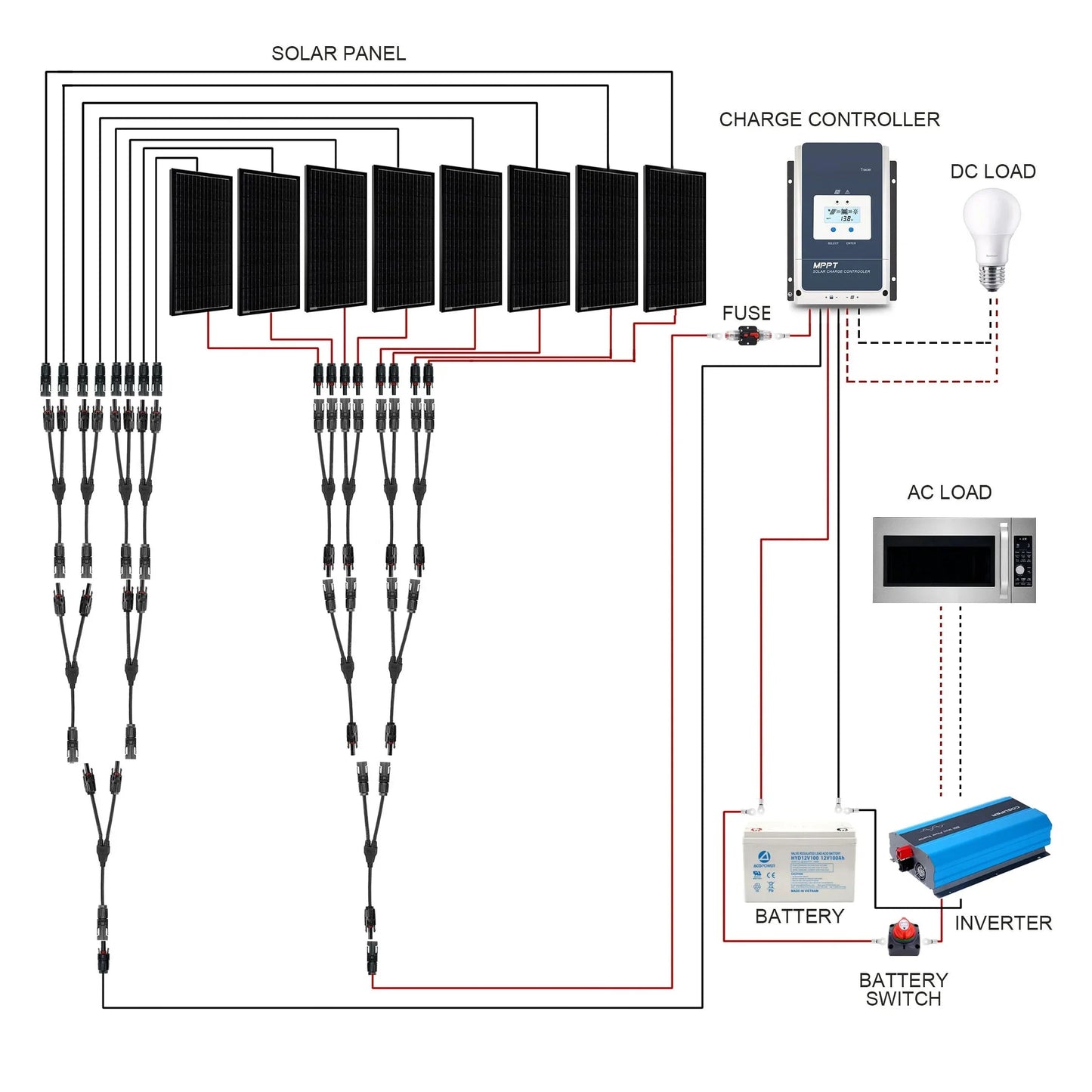

ACOPOWER 800 Watt Mono RV solar system comes with everything you need to start producing free, clean power from the sun! Perfect for RV's, boats, cabins and back-up power! ACOPOWER’s 800 Watt Solar Kit with Inverter includes EVERYTHING you need to get started: 8pcs 100 Watt Monocrystalline Solar Panels, 3000W 12VDC to 120AC Modified Sine Wave Power Inverter (inverter cables are included), 4pcs 200Ah Gel Deep Cycle Battery, 60-Amp MPPT Solar Charge Controller, a 50A fuse, a battery switch, all necessary Cables, all necessary solar mounting Z brackets; Product photos above show pictures of all the included items and additional technical information.
Specification:
100W Monocrystalline Black Solar Panel
• Nominal for 12V battery charger
• Peak Power (Pmax):100W
• Peak Circuit Voltage(Voc):22V
• Max Power Voltage(Vmp):17.48V
• Short Circuit Current(Isc):6.14A
• Max Power Current(Imp):5.71A
• Weight:12.8 lb
• Dimension:40.2*20.1*1.4 Inch
• Application Class: Class A

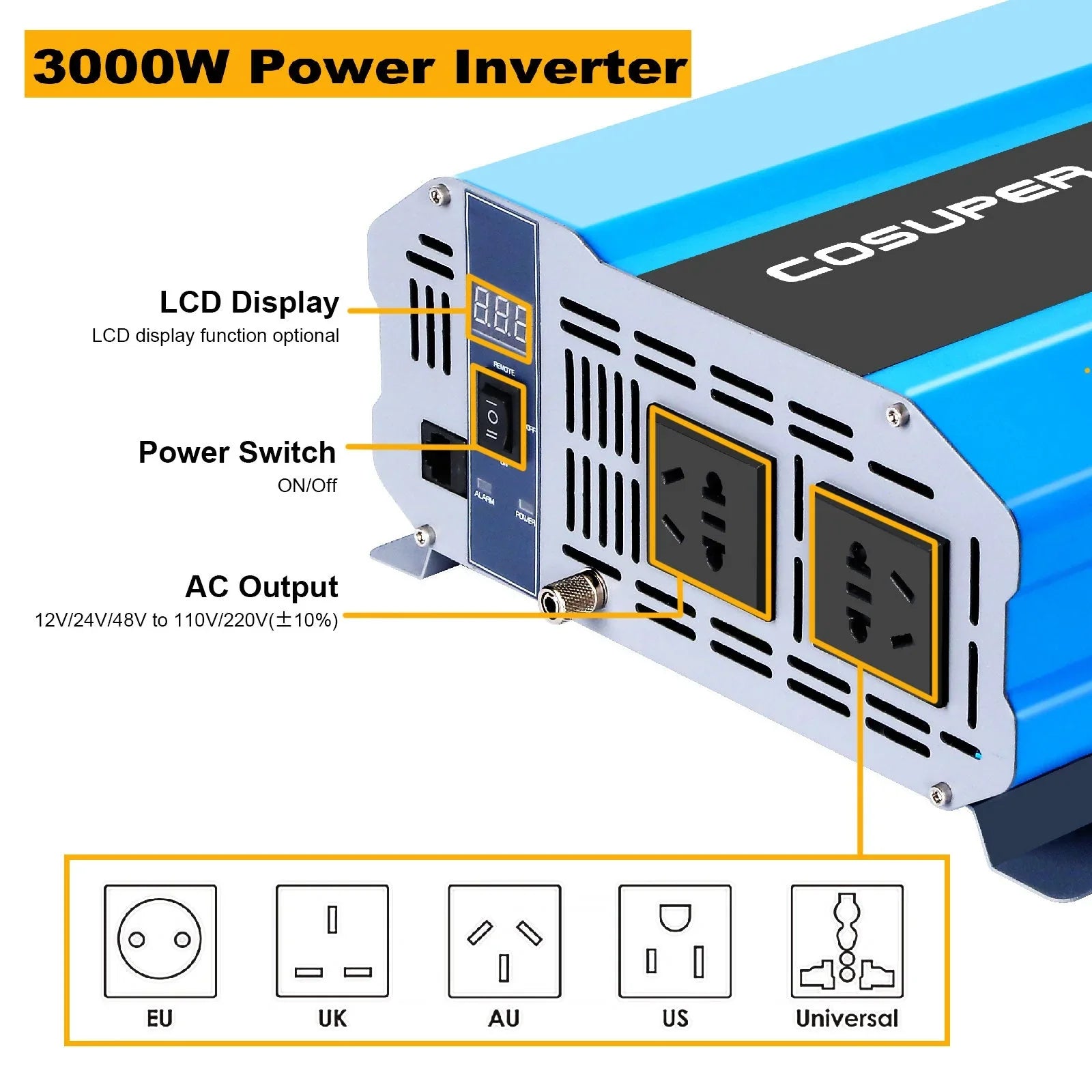

3000W Inverter 12VDC to 120VAC
• Continuous output 3000W
• Surge Power 6000W
• Wave Form: Pure Sine Wave
• Protection: Under voltage protection, Overvoltage protection, Overload Protection, Output short circuit protection
• Weight: 12.1lb
• dimension(inch): 18.23(D) x 9.53(W) x 4.65(H) inch

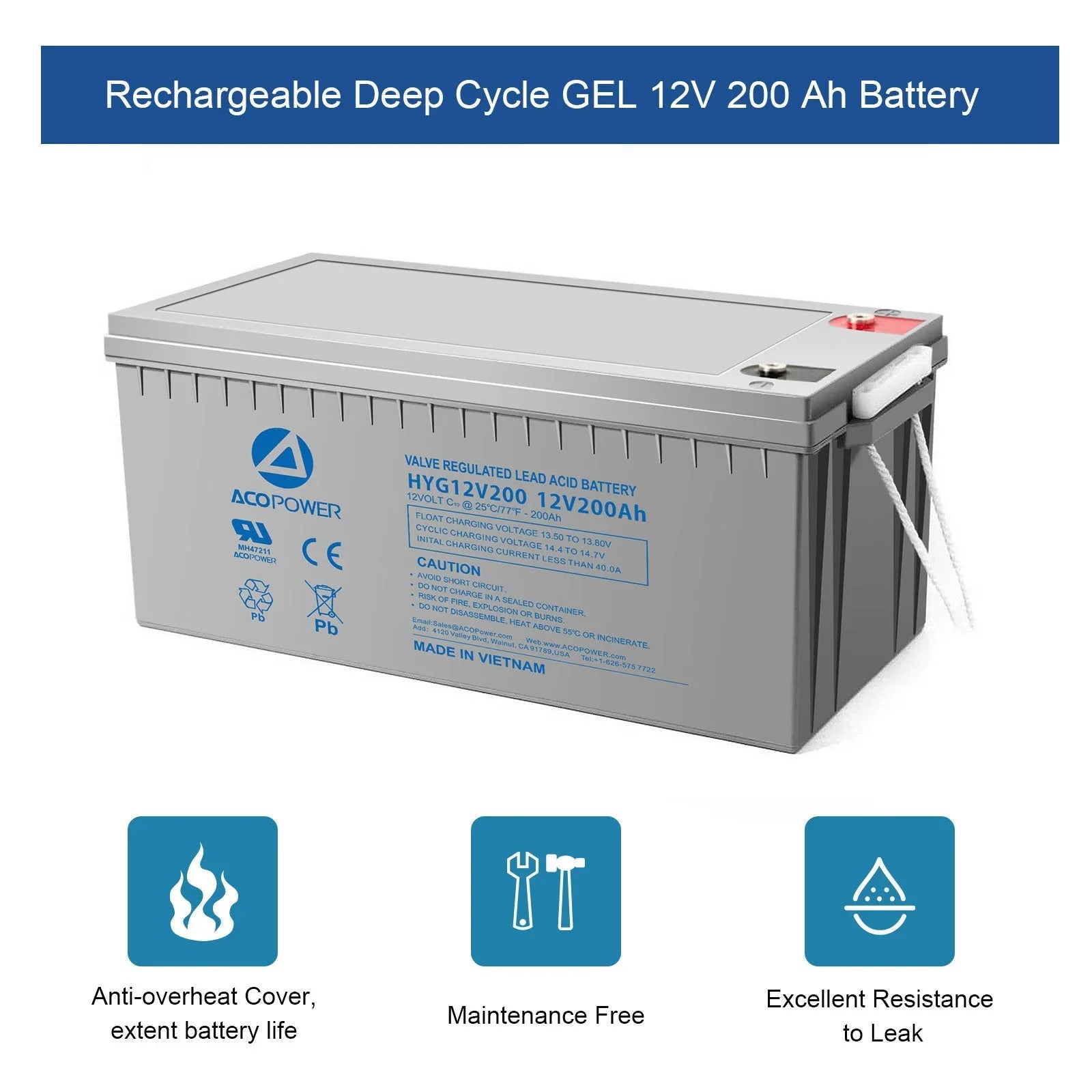

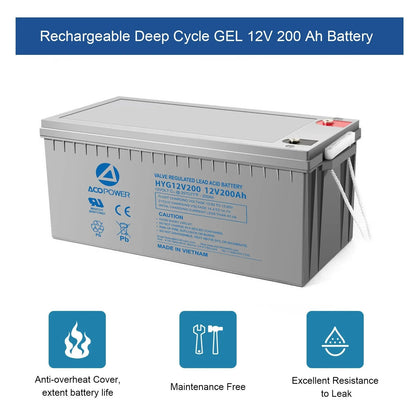

12V 200 Ah Rechargeable Deep Cycle GEL Battery
• Nominal Voltage 12V
• Rated capacity (10 hour rate): 200Ah
• dimension(inch):20.55x 9.37 (W) x 8.58 (H) inch; Total Height: 8.74inch
• Approx. Weight: 62.5kg(137.5lbs)±3%

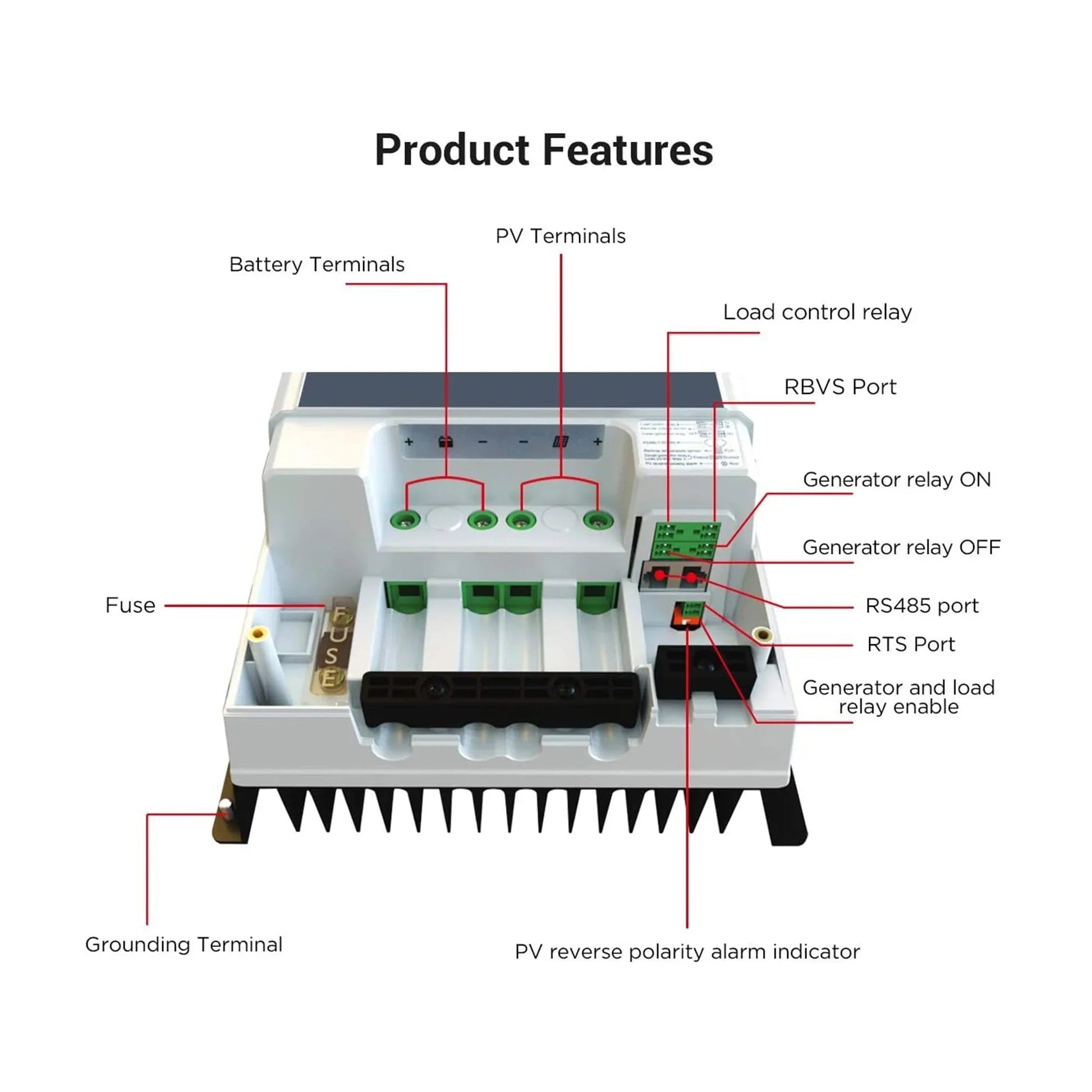

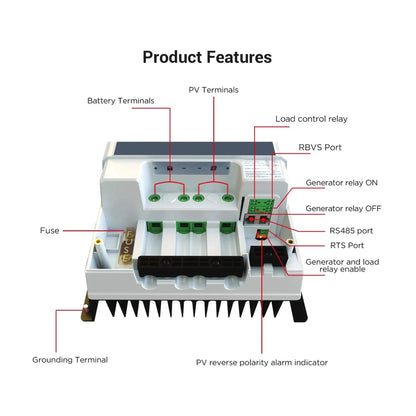

MPPT 60A Charge Controller
• Rated charge current: 60A
• Battery voltage range: 8V~68V
• Max.PV open circuit voltage: 150V
• Max.PV input power: 12V/750W,24V/1500W,36V/2250W,48V/3000W
• Common positive grounding design
• Compatible with Various Deep Cycle Battery options: Sealed(Defalut)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries.

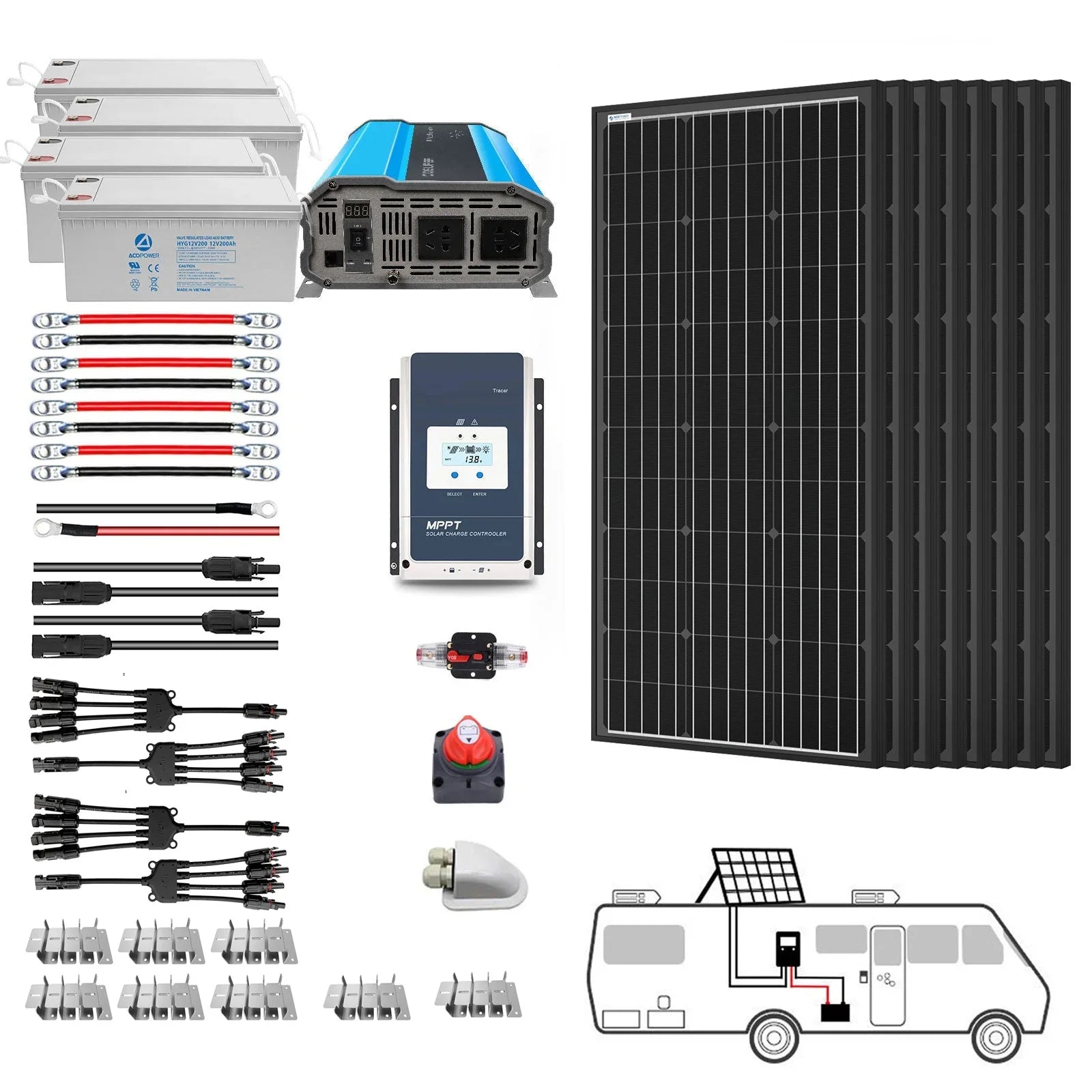

Package List:
• 8PCS 100W Mono Solar Panel
• 1PC 3000W Inverter
• 4PC 200Ah Gel Battery
• 1PC 60A MPPT Charge Controller
• 1PC 50A Fuse
• 1PC Battery Switch
• 8 Sets Mounting Z Bracket
• 1 Pairs 30ft 12AWG PV Cable
• 4 Pairs 1Ft 2AWG Battery Cable
• 1 Pair 8FT 8AWG Tray Cable
• 1PC Cable Entry Housing
• 7 Pairs y branch solar panel connectors
