ACOPOWER 600W Mono Black RV Solar System
Engineered as a turnkey off-grid power solution, this complete kit powers 12V battery systems for RVs, cabins, boats, homes, back-up, and remote power applications. It combines six 100W mono-crystalline panels, four 200Ah Gel deep-cycle batteries, a 3000W DC-AC inverter, and a 50A MPPT charge controller into one package that’s ready to install and operate.
Performance & Key Specifications
- Solar array: 6 x 100W Monocrystalline panels (Nominal 12V charging, Pmax 100W, Voc 22V, Vmp 17.48V, Isc 6.14A; Imp 5.71A; weight 12.8 lb; dims 40.2 x 20.1 x 1.4 in; Class A)
- Battery bank: 4 x 200Ah Gel Deep Cycle (12V nominal; 200Ah at 10h rate; dim 20.55 x 9.37 x 8.58 in; total height 8.74 in; approx. 137.5 lb each)
- Inverter: 3000W continuous, 6000W surge; 12VDC to 120VAC; Pure Sine Wave; protections for under/over voltage, overload, and short circuit; weight 12.1 lb; dims 18.23 x 9.53 x 4.65 in
- Charge controller: MPPT 50A; battery voltage range 8–68V; max PV open circuit 150V/138V; max PV input power 625W/12V, 1250W/24V, 1875W/36V, 2500W/48V; common positive grounding; compatible with Sealed/Gel/Flooded/Lithium options
- Daily energy yield: ~2880 Wh or 240 Ah of charge per day (depends on sunlight availability)
- Included hardware: 50A fuse, battery switch, cables, and mounting Z brackets
Safety Features & Certifications
The inverter provides under-voltage, over-voltage, overload, and output short-circuit protection. The system uses maintenance-free Gel deep-cycle batteries. Specific third-party safety certifications are not listed in the provided specifications.
Installation & Maintenance
- Complete kit includes all necessary components to start producing power: six 100W panels, four 200Ah gel batteries, 3000W inverter, 50A MPPT controller, fuse, battery switch, cables, and mounting hardware
- Maintenance: Gel batteries are maintenance-free; monitor connections and fuses; follow standard electrical safety and local codes during installation
Warranty & Service
Backed by a California-based company with 11+ years in the solar industry, providing technical support, customer service, and warranty coverage for the kit.
ACOPOWER 600W Mono Black RV Solar System
- Solar charging will provide about 2880 Watt Hours (Wh) or 240 Amp hours of charge per day (depends on sunlight availability)
- Perfect kit for having an off-grid 12 volt battery system. 3000 Watt Inverter provides plenty of AC power to run your household appliances and the battery bank will supply plenty of energy for moderate use；Designed for RVs, cabins, homes, boats, back-up and remote power use
- Bundle and save! Purchase all the components together and save time and money!
- Complete kit includes: 6pcs 100 Watt Monocrystalline Solar Panel, 4pcs 200Ah Gel(Maintenance Free) Deep Cycle Battery,3000W 3000 Watt DC to AC Power Inverter, 40-amp MPPT Solar Charge Controller (w/ LCD Display), a 50A fuse, a battery switch, all necessary Cables, all necessary solar mounting Z brackets;
- California, USA based company in 11+ years solar industry supplies technical support, customer service and warranty; Reliable & trustable local business.

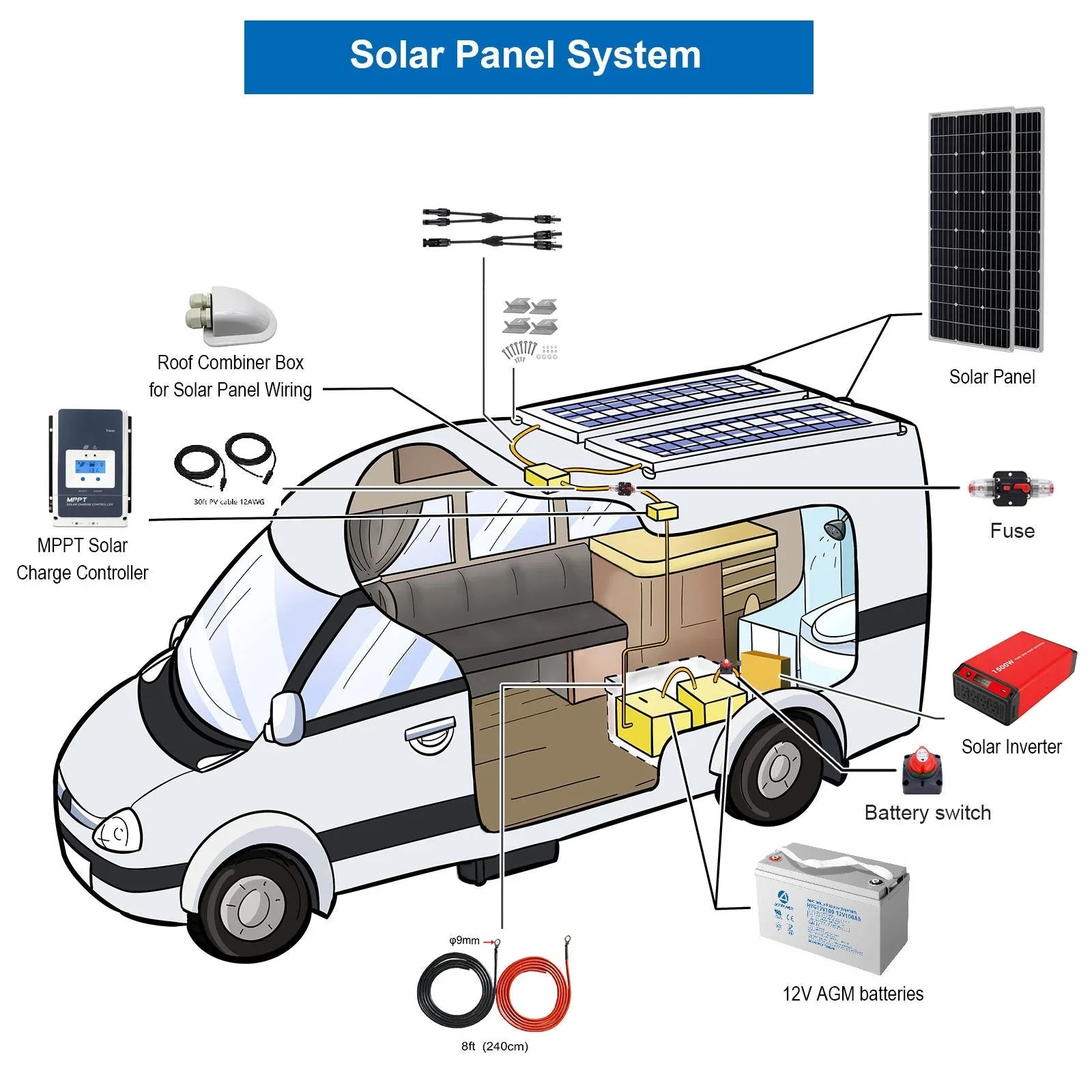

ACOPOWER 600 Watt Mono RV solar system comes with everything you need to start producing free, clean power from the sun! Perfect for RV's, boats, cabins and back-up power! ACOPOWER’s 600 Watt Solar Kit with Inverter includes EVERYTHING you need to get started: 6pcs 100 Watt Monocrystalline Solar Panels, 3000W 12VDC to 120AC Modified Sine Wave Power Inverter (inverter cables are included), 4pcs 200Ah Gel Deep Cycle Battery, 40-Amp MPPT Solar Charge Controller, a 50A fuse, a battery switch, all necessary Cables, all necessary solar mounting Z brackets; Product photos above show pictures of all the included items and additional technical information.
Specification:
100W Monocrystalline Solar Panel
• Nominal for 12V battery charger
• Peak Power (Pmax):100W
• Peak Circuit Voltage(Voc):22V
• Max Power Voltage(Vmp):17.48V
• Short Circuit Current(Isc):6.14A
• Max Power Current(Imp):5.71A
• Weight:12.8 lb
• Dimension:40.2*20.1*1.4 Inch
• Application Class: Class A

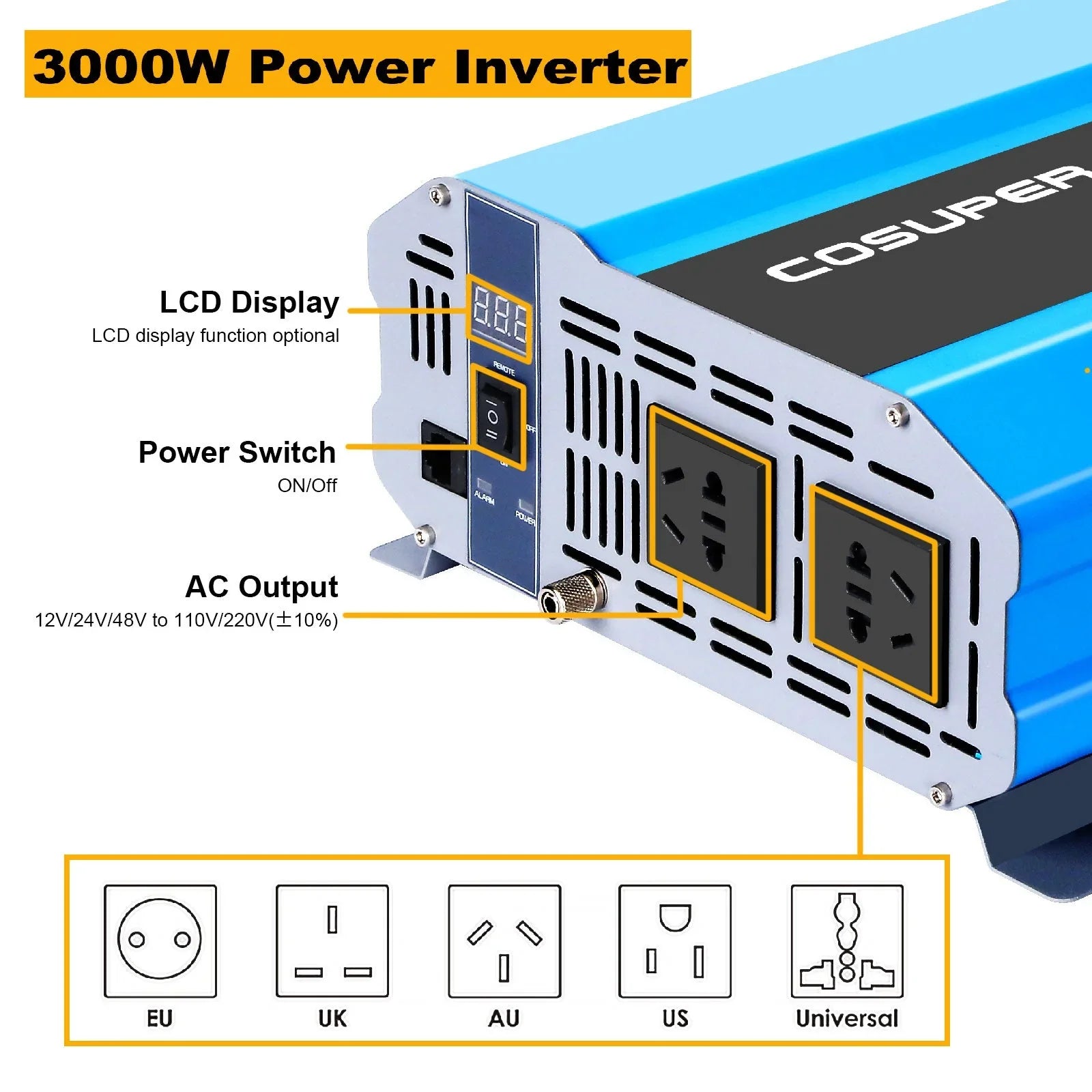

3000W Inverter 12VDC to 120VAC
• Continuous output 3000W
• Surge Power 6000W
• Wave Form: Pure Sine Wave
• Protection: Under voltage protection, Overvoltage protection, Overload Protection, Output short circuit protection
• Weight: 12.1lb
• dimension(inch): 18.23(D) x 9.53(W) x 4.65(H) inch

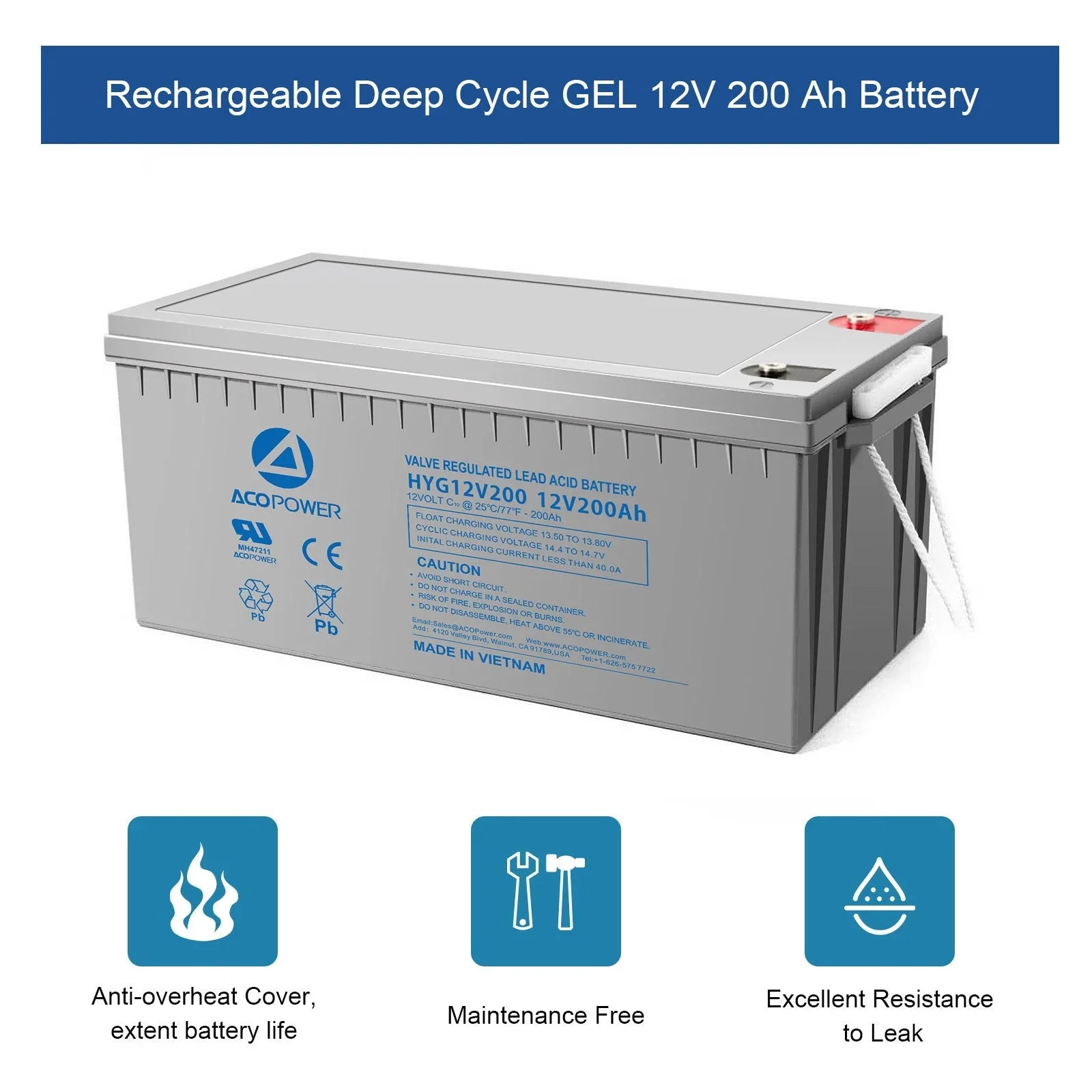

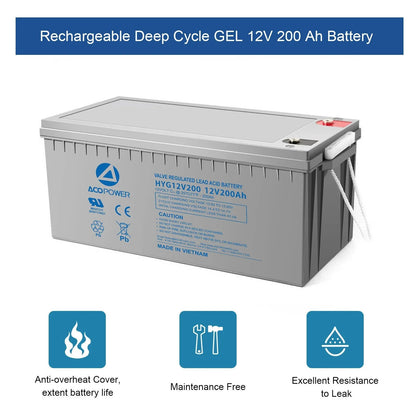

12V 200 Ah Rechargeable Deep Cycle GEL Battery
• Nominal Voltage 12V
• Rated capacity (10 hour rate): 200Ah
• dimension(inch):20.55x 9.37 (W) x 8.58 (H) inch; Total Height: 8.74inch
• Approx. Weight: 62.5kg(137.5lbs)±3%

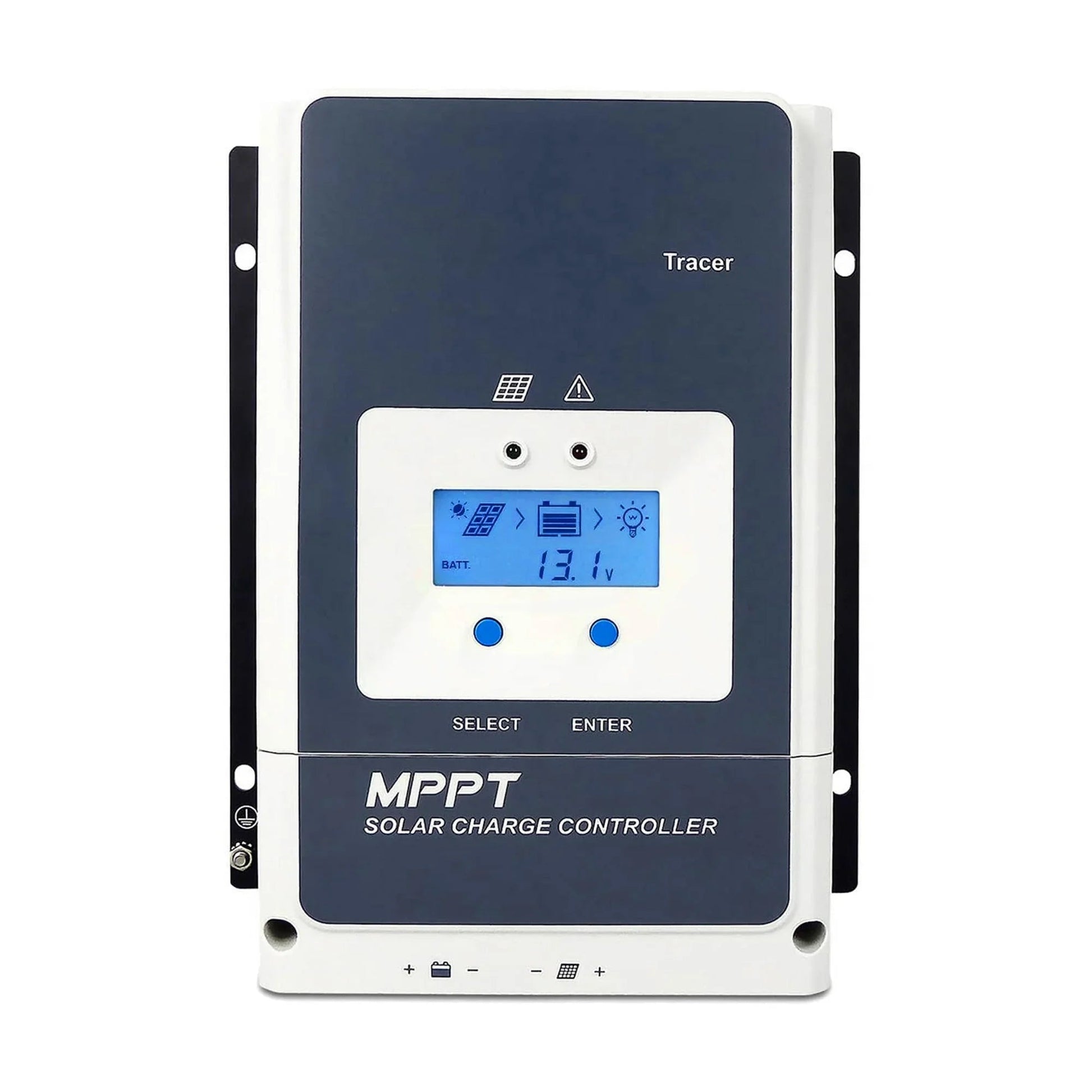

MPPT 50A Charge Controller
• Rated charge current: 50A
• Battery voltage range: 8V～68V
• Max.PV open circuit voltage: 150V/138V
• Max.PV input power: 625W/12V, 1250W/24V, 1875W/36V,2500W/48V
• Common positive grounding design
• Compatible with Various Deep Cycle Battery options: Sealed(Defalut)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries

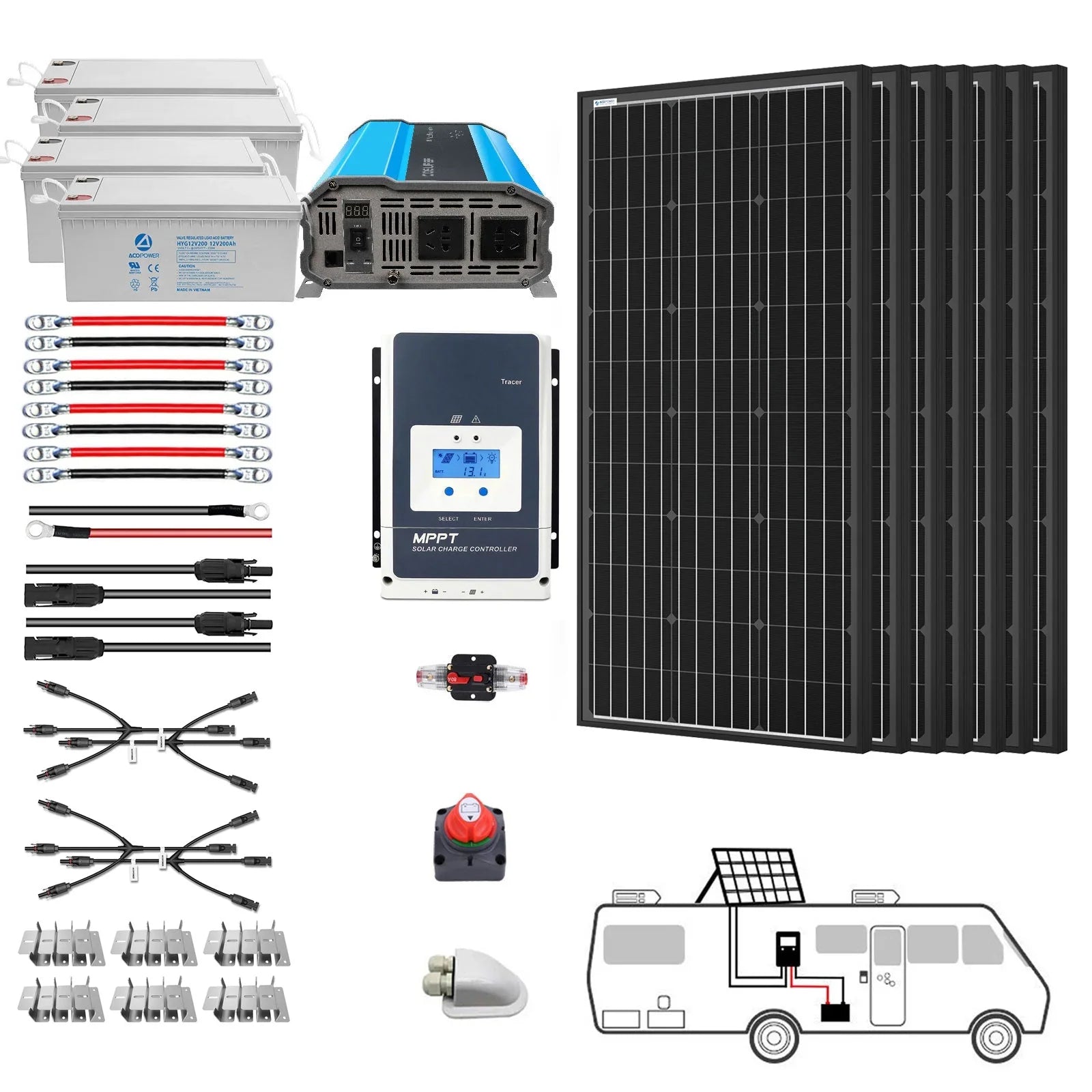

Package List:
• 6PCS 100W Mono Solar Panel
• 1PC 3000W Inverter
• 4PC 200Ah Gel Battery
• 1PC 50A MPPT Charge Controller
• 1PC 50A Fuse
• 1PC Battery Switch
• 6 Sets Mounting Z Bracket
• 2 Pairs 30ft 12AWG PV Cable
• 4 Pair 1Ft 2AWG Battery Cable
• 1 Pair 8FT 8AWG Tray Cable
• 1PC Cable Entry Housing
• 2 Pairs 1y3 branch solar panel connectors
