ACOPOWER 400W Mono RV Solar System
The ACOPOWER 400W Mono RV Solar System is a complete off-grid power solution optimized for RVs, cabins, boats, and backup power needs. It delivers solar charging that can provide about 1,920 Watt Hours (Wh) or 160 Amp hours (Ah) per day under favorable sunlight, enabling a 12V battery bank to support moderate daytime and evening loads. This bundle combines four 100W monocrystalline panels, a 3000W inverter, two 200Ah Gel deep-cycle batteries, and a 40A MPPT charge controller, plus all required cables, fusing, mounting hardware, and a battery switch for a turnkey installation.
System Specifications and Performance
- 4 x 100W Monocrystalline Solar Panels: Pmax 100W, Voc 22V, Vmp 17.48V, Isc 6.14A, Imp 5.71A; weight 12.8 lb; dimensions 40.2 x 20.1 x 1.4 in; Class A application
- 3000W Inverter (12VDC to 120VAC): Continuous 3000W, Surge 6000W; Pure Sine Wave; protections include undervoltage, overvoltage, overload, and short-circuit; weight 12.1 lb; dimensions 18.23 x 9.53 x 4.65 in
- 12V 200Ah Gel Deep Cycle Battery: Nominal 12V; 200Ah (10h rate); dimensions 20.55 x 9.37 x 8.58 in; total height 8.74 in; approx. weight 137.5 lb; maintenance-free
- MPPT Charge Controller: 40A rated current; battery voltage range 8–32V; max PV open-circuit 100V; max PV input power 12V/520W or 24V/1040W; common positive grounding; compatible with Sealed, Gel, Flooded, Li-ion; LiFePO4 supported
- Additional components: 50A fuse, battery switch, all necessary cables, and solar mounting Z brackets
Safety Features, Certifications & Protections
- Inverter includes under/over-voltage, overcurrent/overload, and short-circuit protection
- 40A MPPT controller provides regulated charging with a safe voltage range and grounding design
- Maintenance-free Gel batteries reduce routine service needs
Installation and Maintenance
The kit is designed for a straightforward setup, including all necessary cables, mounting brackets, and a battery switch to support rapid deployment. The system is configured for 12V operation and supports a durable, off-grid power presence in RVs, cabins, homes, boats, and remote sites. For optimal performance, observe sun exposure and proper wiring as provided with the kit.
Warranty, Support & Availability
ACOPOWER is a California-based company with 11+ years in the solar industry, offering technical support, customer service, and warranty coverage for this system. Contact the supplier for full warranty terms and service options.
What’s Included
- 4 x 100W Monocrystalline Solar Panels
- 1 x 3000W Inverter
- 2 x 200Ah Gel Deep Cycle Batteries
- 1 x 40A MPPT Charge Controller
- 1 x 50A Fuse
- 1 x Battery Switch
- All necessary cables and solar mounting Z brackets
- Pair of 30 ft 12AWG PV cables
ACOPOWER 400W Mono RV Solar System
- Solar charging will provide about 1920 Watt Hours (Wh) or 160 Amp hours of charge per day (depends on sunlight availability)
- Perfect kit for having an off-grid 12 volt battery system. 3000 Watt Inverter provides plenty of AC power to run your household appliances and the battery bank will supply plenty of energy for moderate use；Designed for RVs, cabins, homes, boats, back-up and remote power use
- Bundle and save! Purchase all the components together and save time and money!
- Complete kit includes: 4pcs 100 Watt Monocrystalline Solar Panel, 2pcs 200Ah Gel(Maintenance Free) Deep Cycle Battery,3000W 3000 Watt DC to AC Power Inverter, 40-amp MPPT Solar Charge Controller (w/ LCD Display), a 50A fuse, a battery switch, all necessary Cables, all necessary solar mounting Z brackets;
- California, USA based company in 11+ years solar industry supplies technical support, customer service and warranty; Reliable & trustable local business.
ACOPOWER 400 Watt Mono RV solar system comes with everything you need to start producing free, clean power from the sun! Perfect for RV's, boats, cabins and back-up power! ACOPOWER’s 400 Watt Solar Kit with Inverter includes EVERYTHING you need to get started: 4pcs 100 Watt Monocrystalline Solar Panels, 3000W 12VDC to 120AC Modified Sine Wave Power Inverter (inverter cables are included), 2pcs 200Ah Gel Deep Cycle Battery, 40-Amp MPPT Solar Charge Controller, a 50A fuse, a battery switch, all necessary Cables, all necessary solar mounting Z brackets; Product photos above show pictures of all the included items and additional technical information.
Specification:
100W Monocrystalline Solar Panel
• Nominal for 12V battery charger
• Peak Power (Pmax):100W
• Peak Circuit Voltage(Voc):22V
• Max Power Voltage(Vmp):17.48V
• Short Circuit Current(Isc):6.14A
• Max Power Current(Imp):5.71A
• Weight:12.8 lb
• Dimension:40.2*20.1*1.4 Inch
• Application Class: Class A

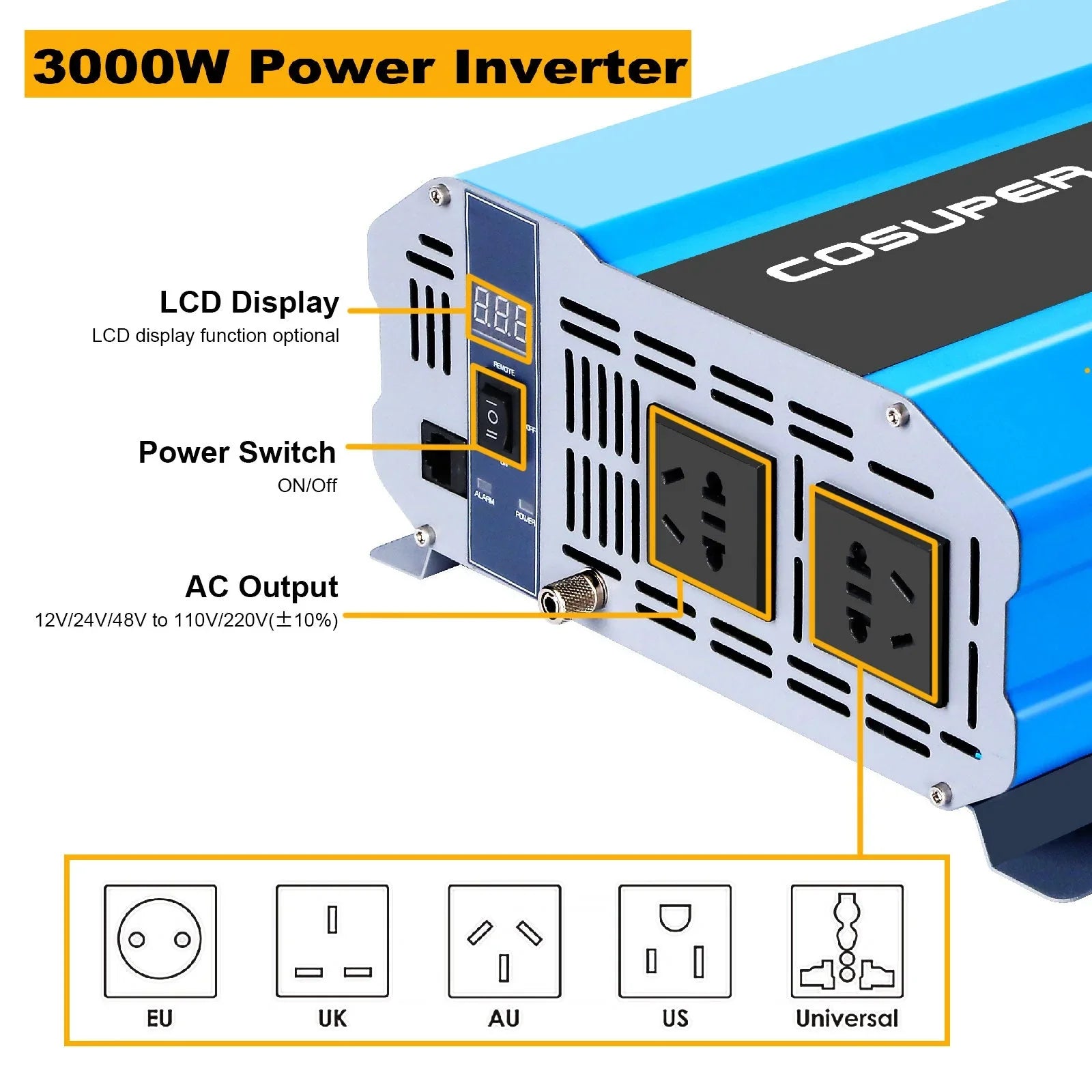

3000W Inverter 12VDC to 120VAC
• Continuous output 3000W
• Surge Power 6000W
• Wave Form: Pure Sine Wave
• Protection: Under voltage protection, Overvoltage protection, Overload Protection, Output short circuit protection
• Weight: 12.1lb
• dimension(inch): 18.23(D) x 9.53(W) x 4.65(H) inch

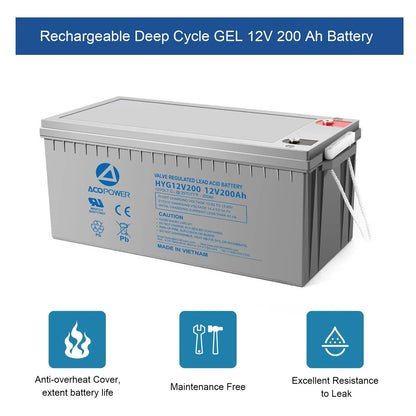

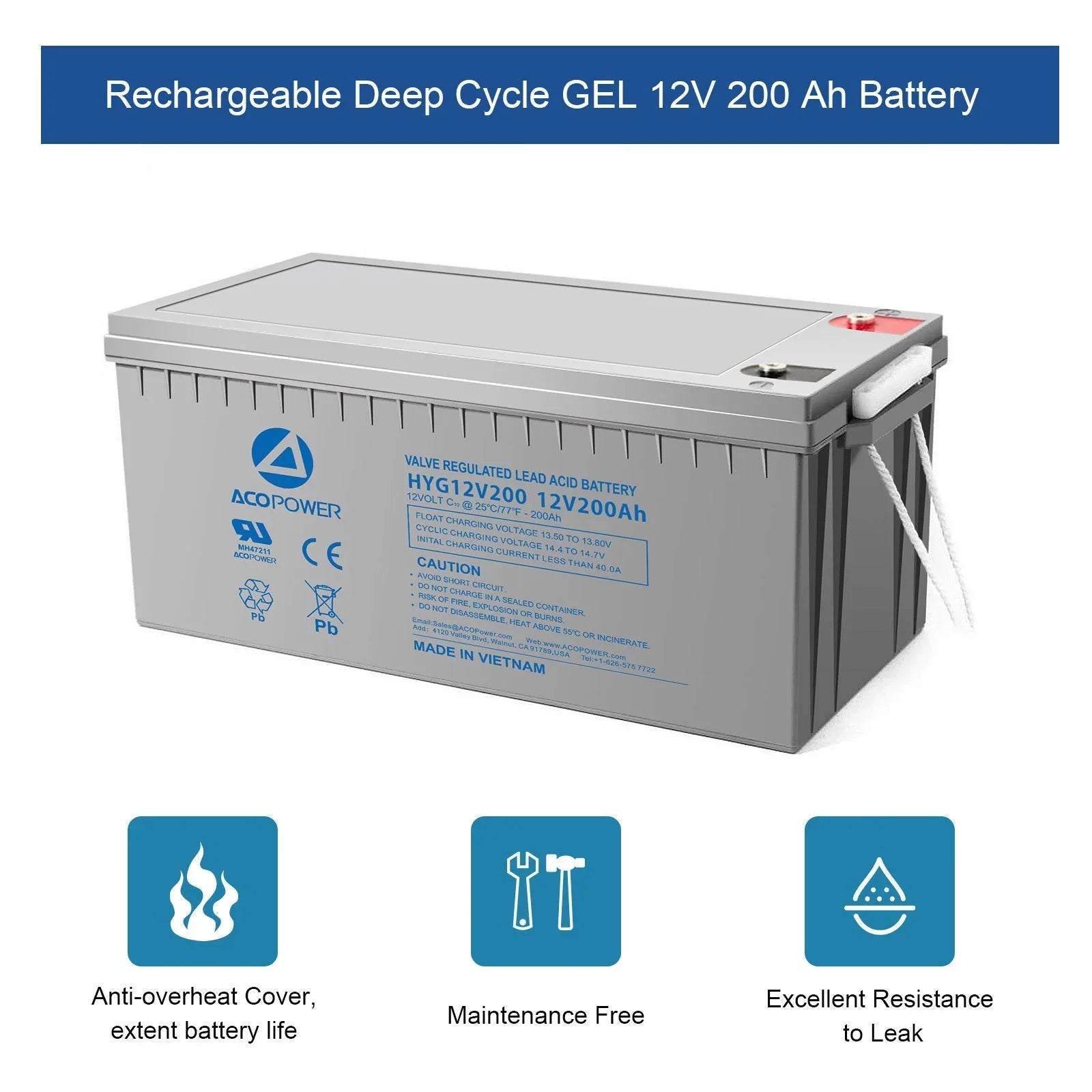

12V 200 Ah Rechargeable Deep Cycle GEL Battery
• Nominal Voltage 12V
• Rated capacity (10 hour rate): 200Ah
• dimension(inch):20.55x 9.37 (W) x 8.58 (H) inch; Total Height: 8.74inch
• Approx. Weight: 62.5kg(137.5lbs)±3%

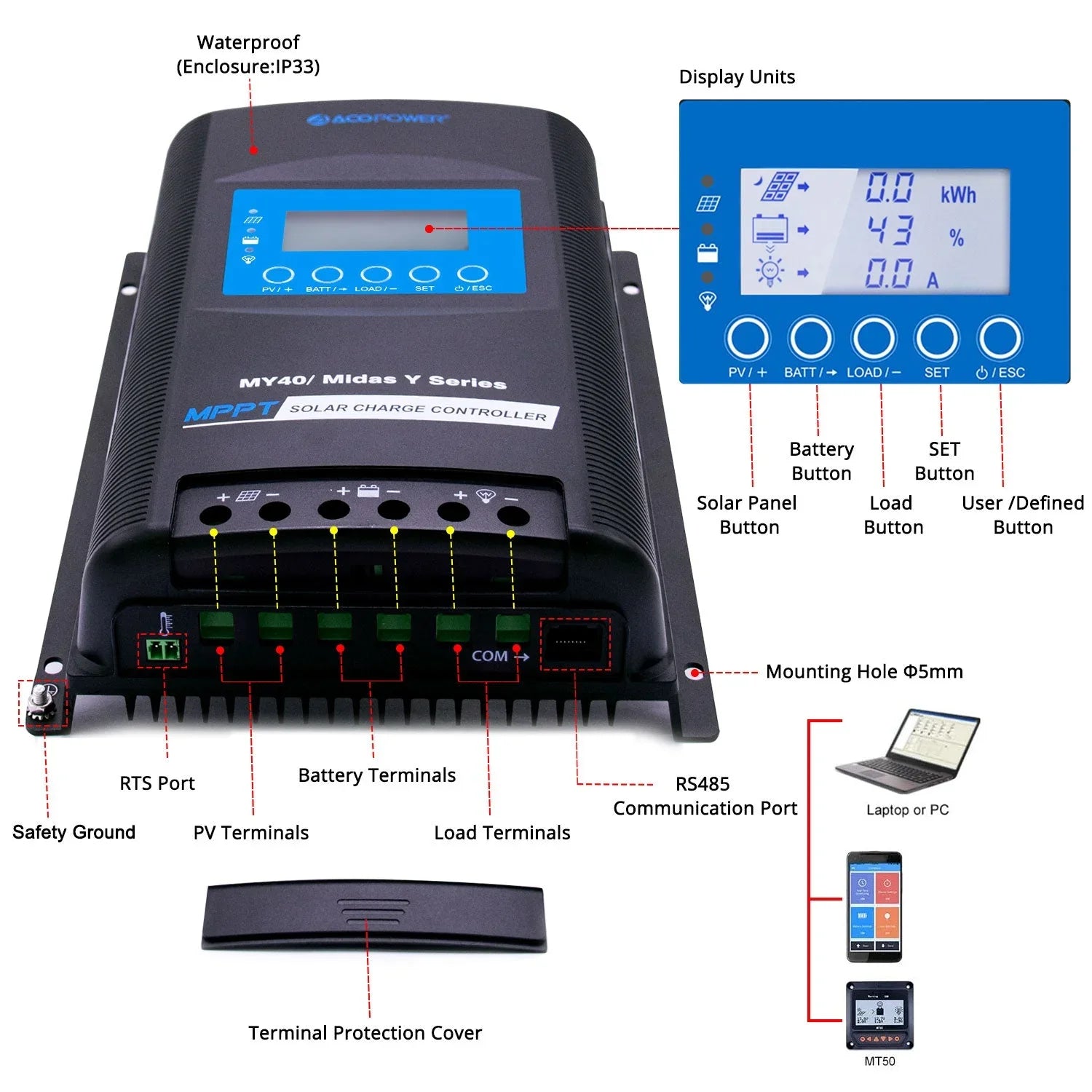

MPPT 40A Charge Controller
• Rated charge current: 40A
• Battery voltage range: 8V~32V
• Max.PV open circuit voltage: 100VDC
• Max.PV input power: 12V/520W,24V/1040W
• Common positive grounding design
• Compatible with Various Deep Cycle Battery options: Sealed, Gel, Flooded and Lithium-ion. LiFePO4 Multiple Load Control Method.

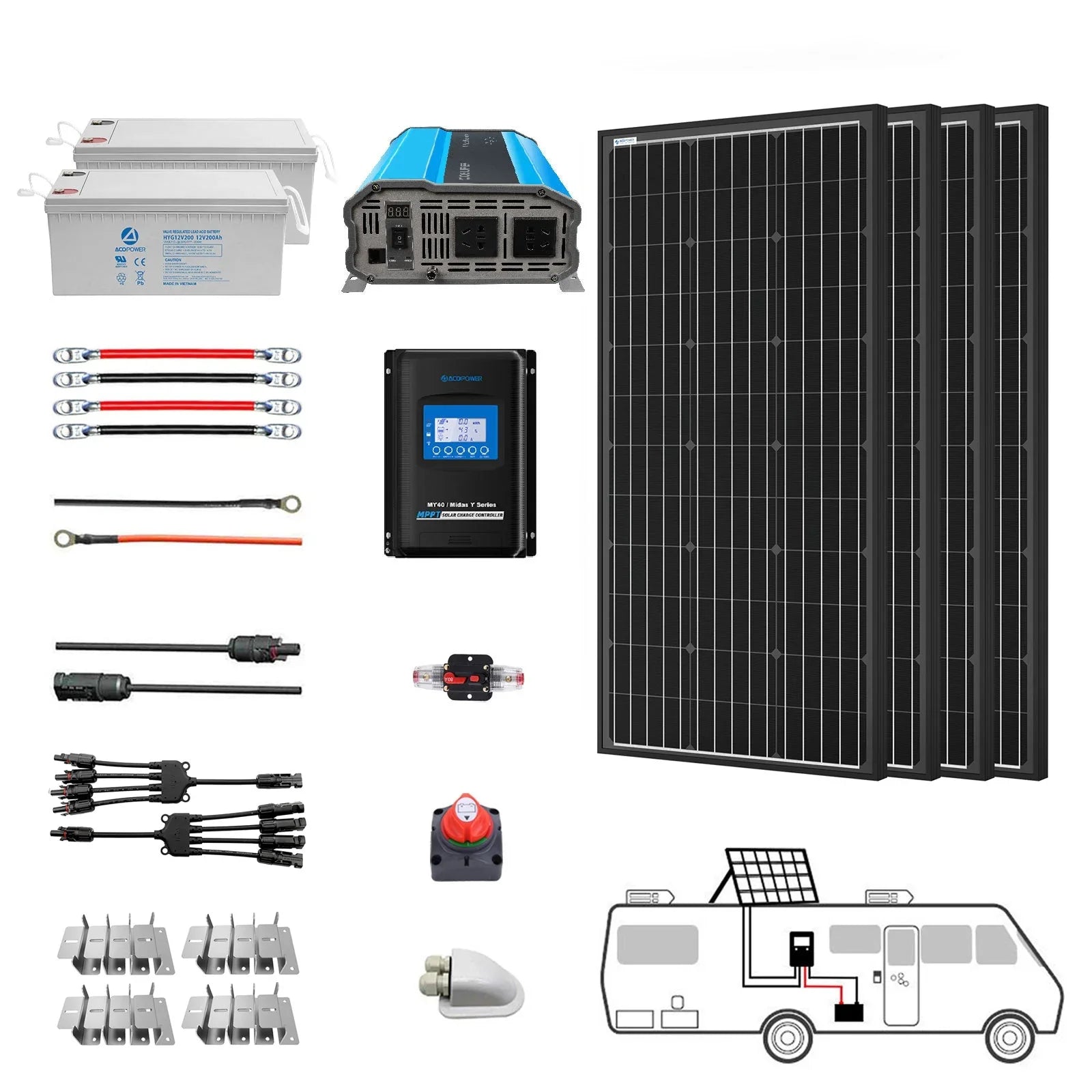

Package List:
• 4PCS 100W Mono Solar Panel
• 1PC 3000W Inverter
• 2PC 200Ah Gel Battery
• 1PC 40A MPPT Charge Controller
• 1PC 50A Fuse
• 1PC Battery Switch
• 4 Sets Mounting Z Bracket
• 1Pair 30ft 12AWG PV Cable
• 2 Pair 1Ft 2AWG Battery Cable
• 1 Pair 8FT 8AWG Tray Cable
• 1PC Cable Entry Housing
• 1Pair y branch solar panel connectors
