ACOPOWER 300W Mono RV Solar System
All‑in‑one off‑grid solar kit designed for RVs, cabins, boats, back‑up power, and remote living. This complete package delivers reliable 12V charging from the sun, with an integrated 1500W inverter to supply household AC loads and a gel deep‑cycle battery bank for storage and standby power. Daily energy production is approximately 1440 Wh (about 120 Ah at 12V) under optimal sun conditions, with output varying by irradiance, angle, and shading.
- 3 x 100W Monocrystalline Solar Panels
- 2 x 100Ah Gel Deep Cycle Batteries
- 1500W Pure Sine Wave Inverter (12V DC to 120V AC) with 3000W surge
- 30A MPPT Solar Charge Controller with LCD Display
- 50A fuse, battery switch, required cables, and solar mounting Z brackets
Performance specifications
- Solar Panels: Nominal 12V charger, Pmax 100W, Voc 22V, Vmp 17.48V, Isc 6.14A, Imp 5.71A; Weight 12.8 lb; Dimensions 40.2 × 20.1 × 1.4 in; Class A application
- Inverter: 1500W continuous, 3000W surge; Pure Sine Wave; protections include undervoltage, overvoltage, overload, and short‑circuit; Weight 7.79 lb; Dimensions 12.94 × 7.52 × 3.86 in
- Battery: 12V, 100Ah Gel Deep Cycle; Dim. 12.99 × 6.73 × 8.43 in; Total height 8.66 in; Weight ≈ 67.2 lb
- MPPT Controller: 30A rated current; Battery voltage range 8–32V; Max PV input power 12V/390W or 24V/780W; Common positive grounding
Safety, installation, and maintenance
System includes essential protection features (fuse, battery switch, and wiring with proper fusing and shutdown capabilities). The gel batteries are maintenance‑free, with recommended enclosure ventilation and avoidance of extreme temperatures. Install with the included mounting brackets and route all cables per local electrical codes; ensure proper ventilation and secure mounting for mobile use. Regular inspections should verify connections, fuse integrity, and exposure to shading or damage to panels and wiring.
Warranty and service
Backed by a California‑based company with 11+ years in the solar industry, the ACOPOWER kit includes technical support and warranty coverage. Comprehensive customer service is available to assist with installation, operation, and post‑sale maintenance.
ACOPOWER 300W Mono RV Solar System
- Solar charging will provide about 1440 Watt Hours (Wh) or 120 Amp hours of charge per day (depends on sunlight availability)
- Perfect kit for having an off-grid 12 volt battery system. 1500 Watt Inverter provides plenty of AC power to run your household appliances and the battery bank will supply plenty of energy for moderate use；Designed for RVs, cabins, homes, boats, back-up and remote power use
- Bundle and save! Purchase all the components together and save time and money!
- Complete kit includes: 3pcs 100 Watt Monocrystalline Solar Panel, 2pcs 100Ah Gel(Maintenance Free) Deep Cycle Battery,1500W 1500 Watt DC to AC Power Inverter, 30-amp MPPT Solar Charge Controller (w/ LCD Display), a 50A fuse, a battery switch, all necessary Cables, all necessary solar mounting Z brackets;
- California, USA based company in 11+ years solar industry supplies technical support, customer service and warranty; Reliable & trustable local business.
ACOPOWER 300 Watt Mono RV solar system comes with everything you need to start producing free, clean power from the sun! Perfect for RV's, boats, cabins and back-up power! ACOPOWER’s 300 Watt Solar Kit with Inverter includes EVERYTHING you need to get started: 3pcs 100 Watt Monocrystalline Solar Panels, 1500W 12VDC to 120AC Modified Sine Wave Power Inverter (inverter cables are included), 2pcs 100Ah Gel Deep Cycle Battery, 30-Amp MPPT Solar Charge Controller, a 50A fuse, a battery switch, all necessary Cables, all necessary solar mounting Z brackets; Product photos above show pictures of all the included items and additional technical information.
Specification:
100W Monocrystalline Solar Panel
• Nominal for 12V battery charger
• Peak Power (Pmax):100W
• Peak Circuit Voltage(Voc):22V
• Max Power Voltage(Vmp):17.48V
• Short Circuit Current(Isc):6.14A
• Max Power Current(Imp):5.71A
• Weight:12.8 lb
• Dimension:40.2*20.1*1.4 Inch
• Application Class: Class A

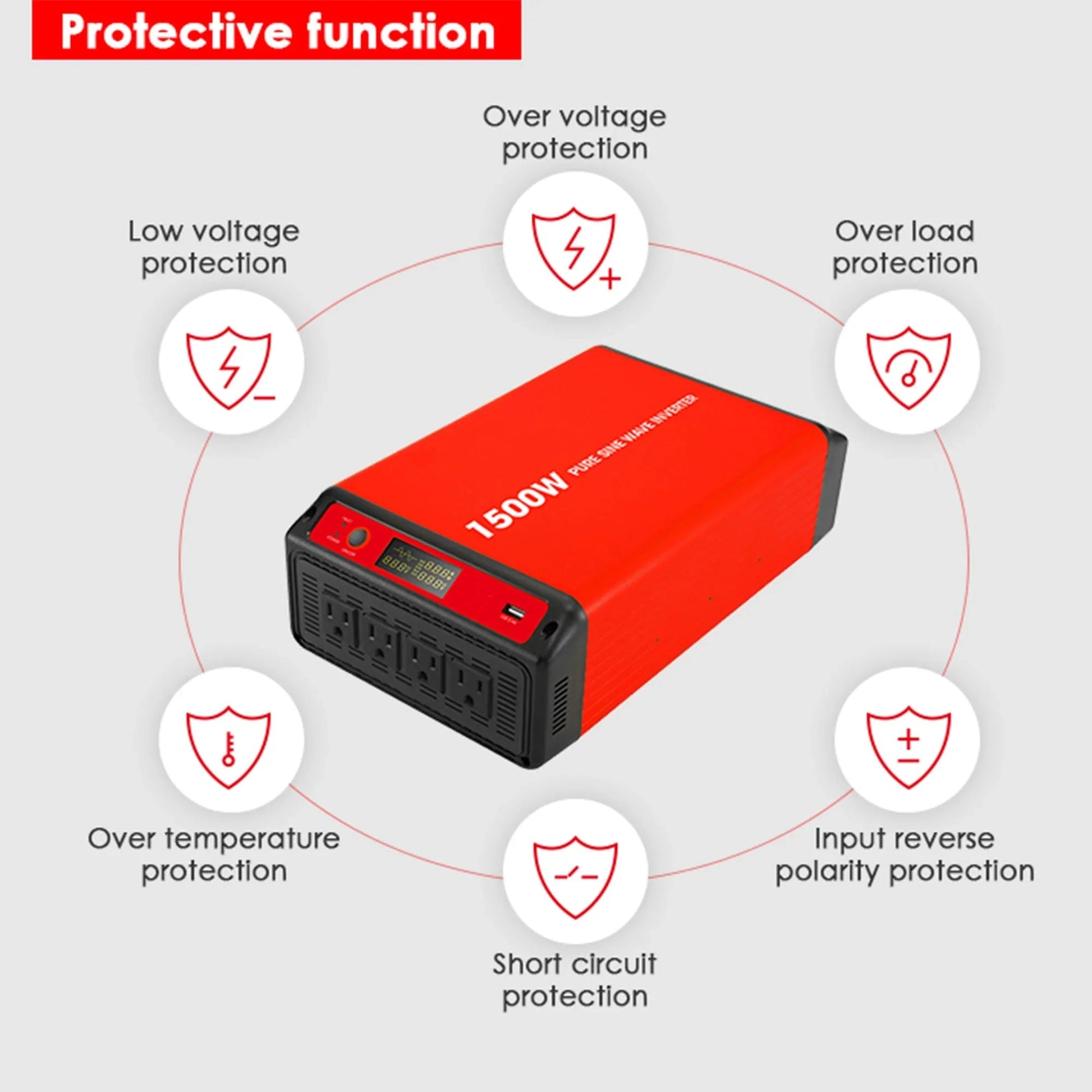

1500W Inverter 12VDC to 120VAC
• Continuous output 1500W
• Surge Power 3000W
• Wave Form: Pure Sine Wave
• Protection: Under voltage protection, Overvoltage protection, Overload Protection, Output short circuit protection
• Weight: 7.79lb
• dimension(inch): 12.94+1.34 (D) x 7.52(W) x 3.86(H) inch

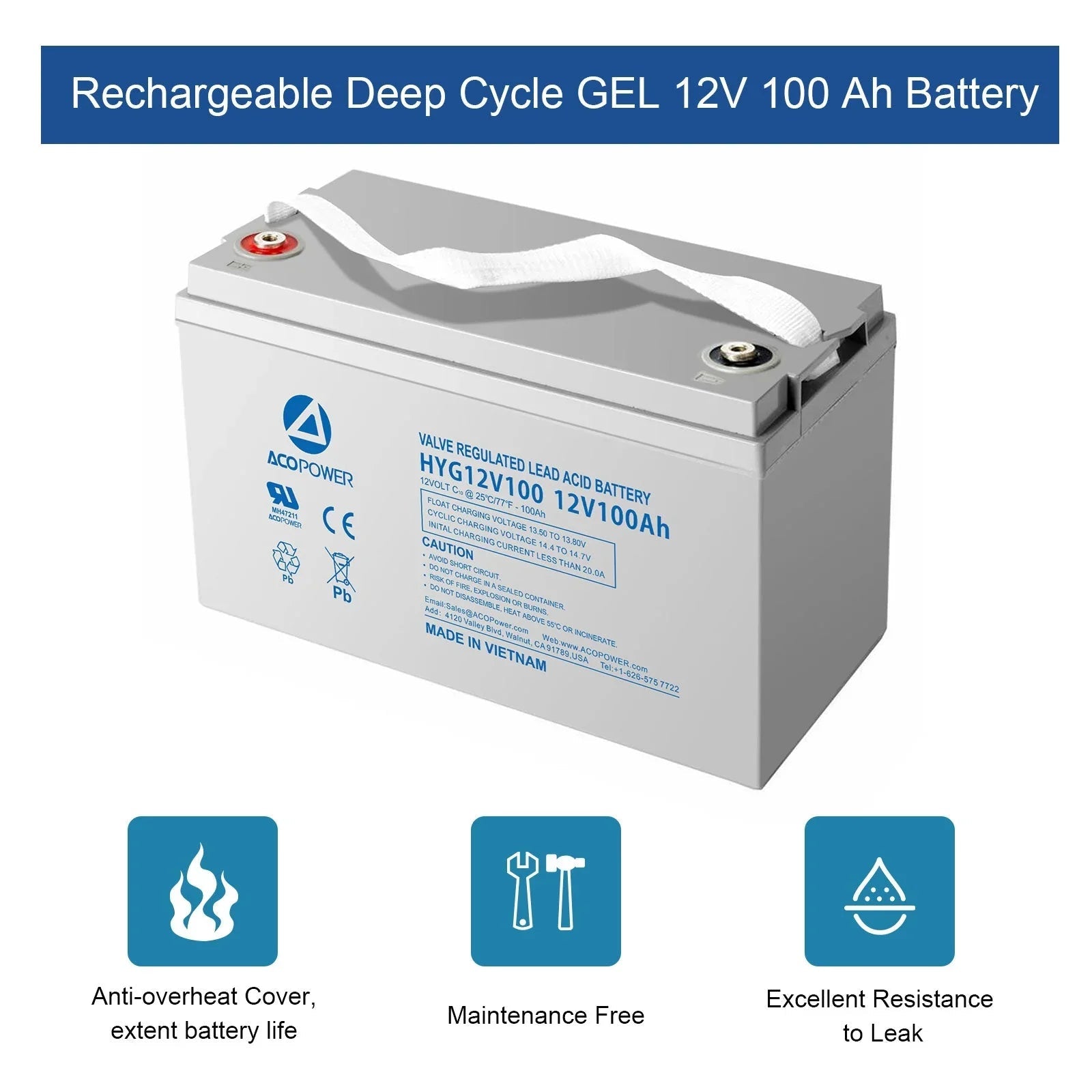

12V 100 Ah Rechargeable Deep Cycle GEL Battery
• Nominal Voltage 12V
• Rated capacity (10 hour rate): 100Ah
• dimension(inch):12.99 x 6.73 (W) x 8.43 (H) inch; Total Height: 8.66inch
• Approx. Weight: 30.5kg(67.2lbs)±3%

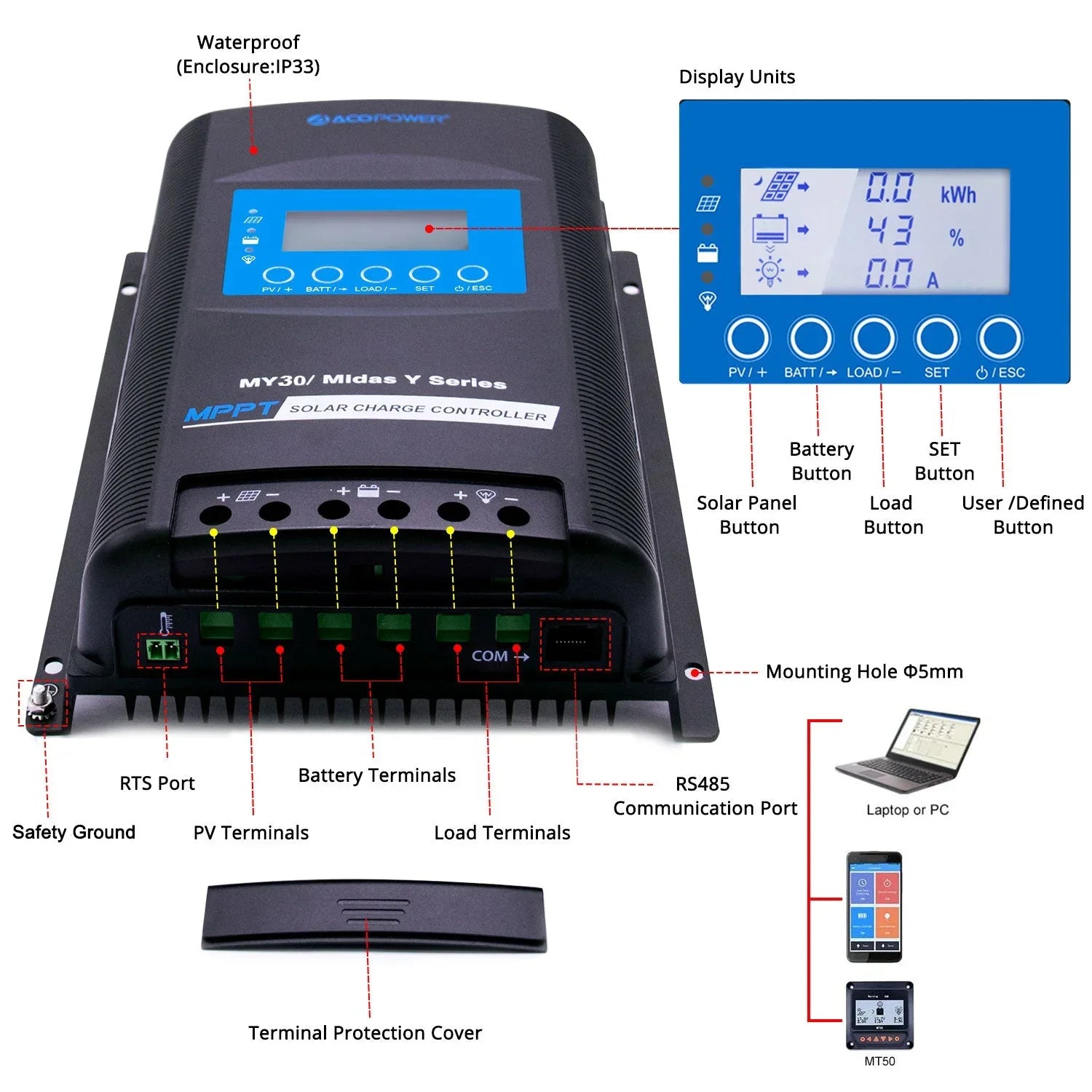

MPPT 30A Charge Controller
• Rated charge current: 30A
• Battery voltage range: 8V~32V
• Max.PV open circuit voltage: 100VDC
• Max.PV input power: 12V/390W,24V/780W
• Common positive grounding design
• Compatible with Various Deep Cycle Battery options: Sealed, Gel, Flooded and Lithium-ion. LiFePO4 Multiple Load Control Method.

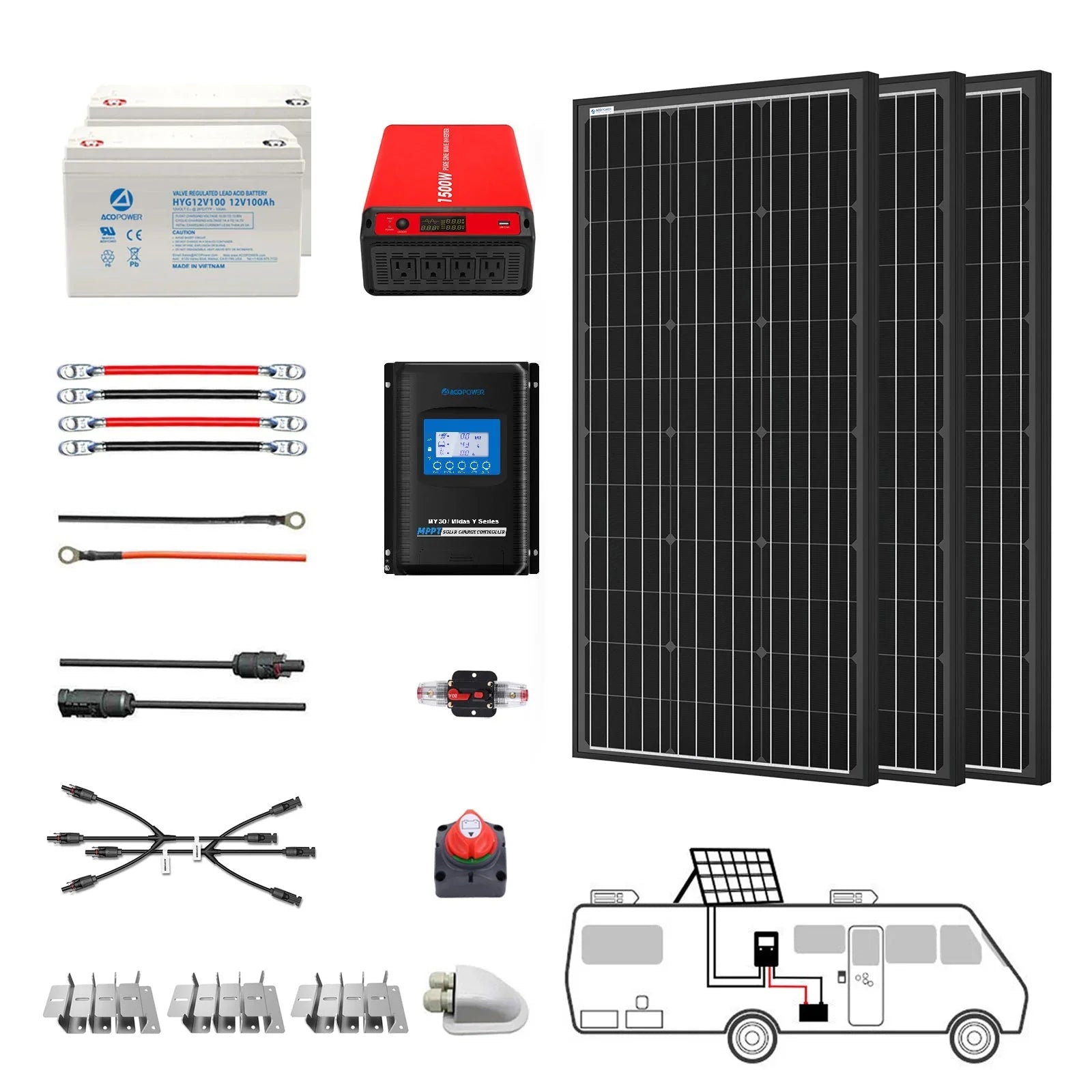

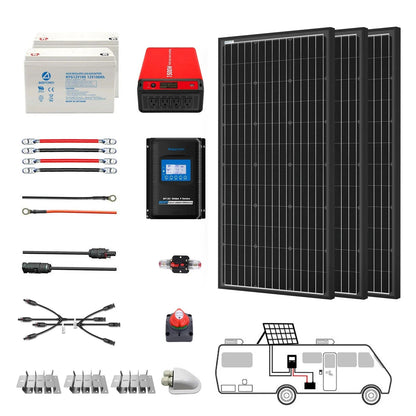

Package List:
• 3PCS 100W Mono Solar Panel
• 1PC 1500W Inverter
• 2PC 100Ah Gel Battery
• 1PC 30A MPPT Charge Controller
• 1PC 50A Fuse
• 1PC Battery Switch
• 3 Sets Mounting Z Bracket
• 1Pair 30ft 12AWG PV Cable
• 2 Pair 1Ft 4AWG Battery Cable
• 1 Pair 8FT 8AWG Tray Cable
• 1PC Cable Entry Housing
• 1 Pairs 1y3 branch solar panel connectors
