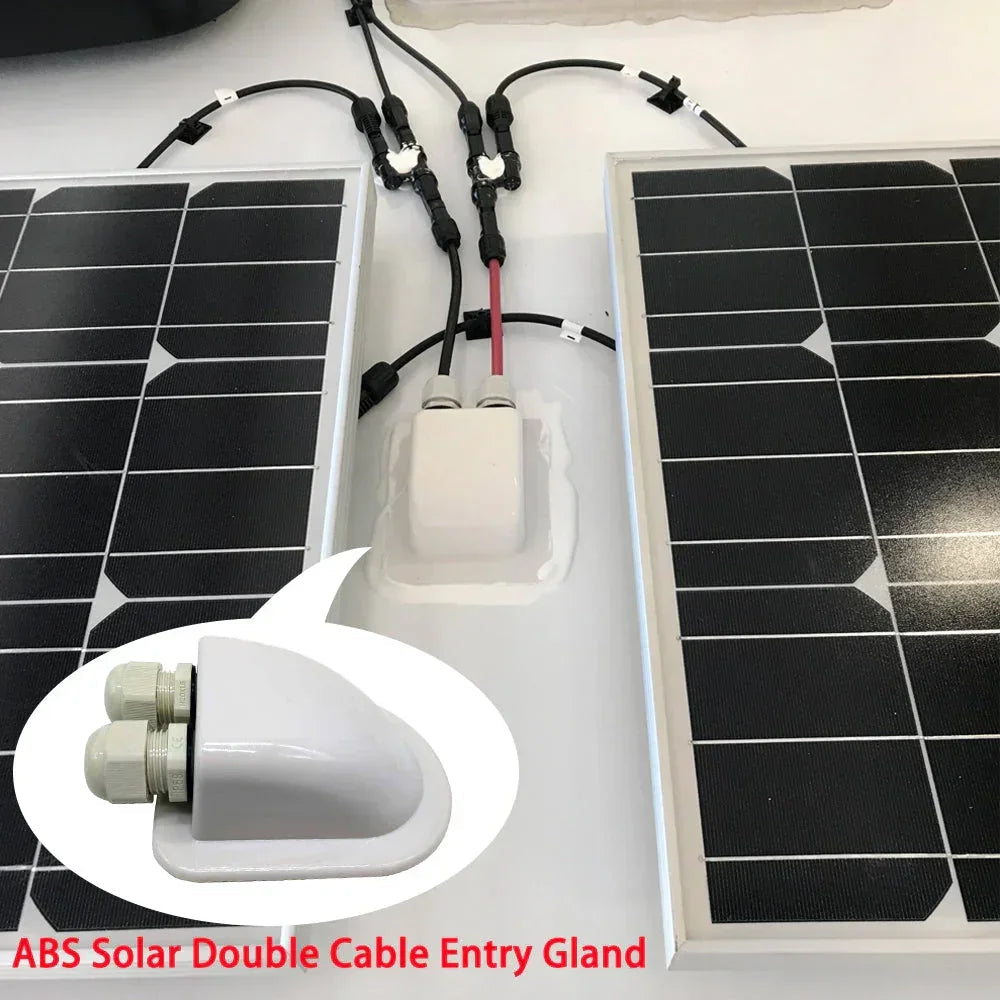

ACOPower 200W Mono Solar RV Kit with MPPT/PWM Charge Controller

Engineered for recreational vehicles and off‑grid operation, this kit delivers silent, reliable battery recharging by converting sunlight into usable DC energy. The 200W mono-crystalline solar panel combines high efficiency with rugged outdoor durability, while the MPPT/PWM charge controller optimizes charging performance across multi‑voltage battery systems to sustain essential loads and extend battery life.

• Solar panel performance Peak Power (Pmax): 200W; Max Power Voltage (Vmp): 20.4V; Max Power Current (Imp): 9.8A; Open-Circuit Voltage (Voc): 22V; Short-Circuit Current (Isc): 10.2A. Dimensional footprint: 54.72 x 27.56 x 1.3 inches; weight: 12 kg (26.5 lb). Wind resistance rated at 2400 Pa. Corrosion‑resistant aluminum frame designed for extended outdoor service (up to ~25 years).
• Charge controller capabilities Nominal system voltage selectable for 12/24/36/48V DC (auto detect); rated charge current up to 60A. Max PV Open Circuit Voltage: 150V/138V. Max input power aligns to system voltage: 1125W/12V, 2250W/24V, 2812.5W/36V, 4500W/48V. MPP voltage range: (Battery Voltage + 2V) to 108V; RS485 interface available. Controller enclosure supports common negative grounding.
• Control, monitoring, and protection Three‑stage charging (bulk, absorption, float) to optimize battery health and longevity; high‑efficiency MPPT tracking (80–90% typical) with rapid point‑of‑power optimization; protective features include reverse current, overcharging, short‑circuit, and reversed polarity safeguards.
• Installation and maintenance Simple installation sequence: first connect the battery, then the load, and finally the solar panel. Regular inspection of connections and panel cleanliness recommended; keep wiring within rated voltage and current specifications and verify proper grounding.
• Monitoring and integration Smart APP control with Bluetooth for remote monitoring, plus an LCD interface on the controller to display system information and real‑time recognition and tracking status.

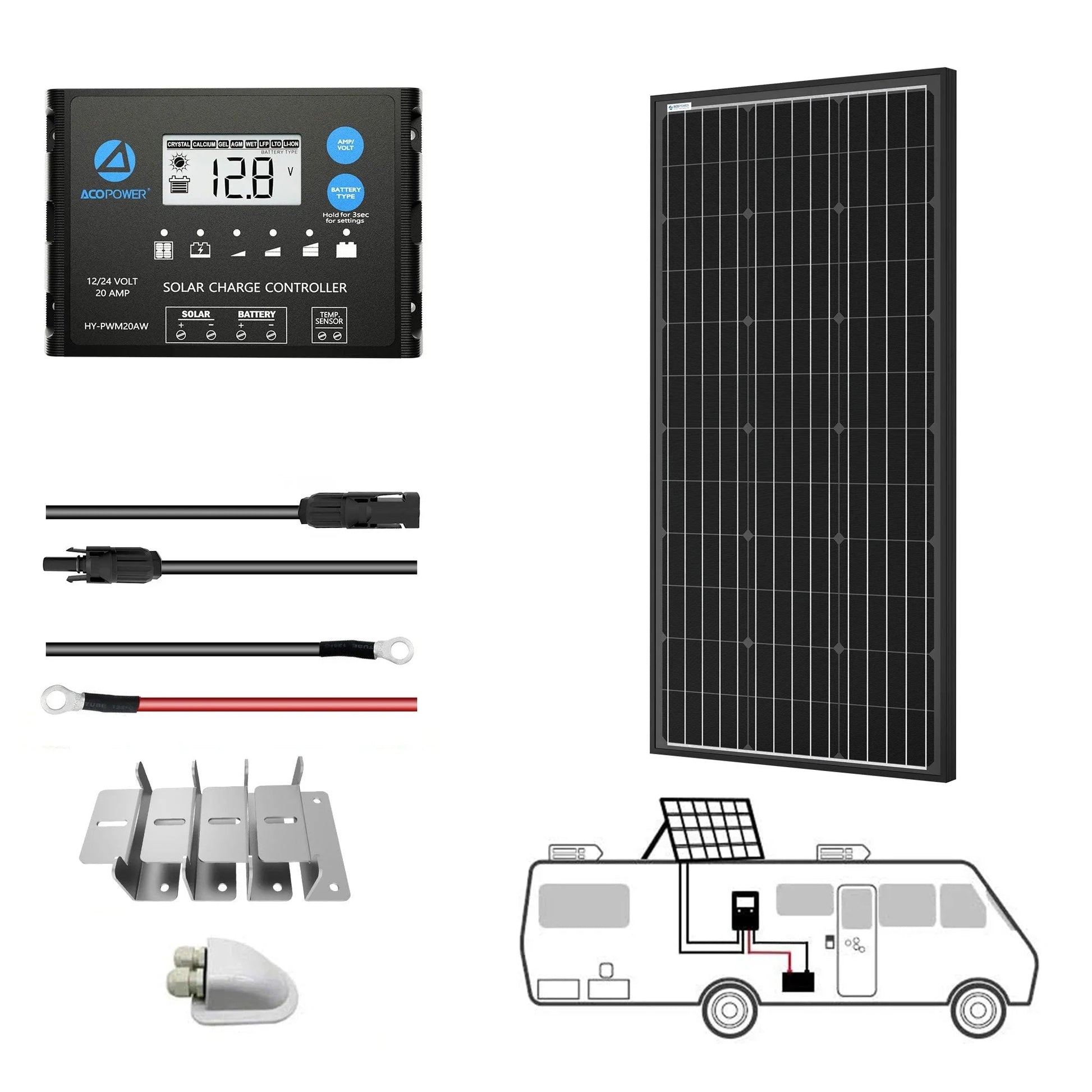

ACOPOWER 100W Mono Solar RV Kits + MPPT / PWM Charge Controller - 100W PWM20A

Taking a trip in your RV can create lifetime memories. Don't let traditional gas-powered generators or power hookups slow you down. ACOPower 100Watt 20A Mono Solar RV Kit silently recharges your batteries so you can enjoy the great outdoors without the extra noise. Solar panels also allow you to run limited low-watt electrical equipment without a power hookup.

High solar cell efficiency

Charge controllers efficiency reaches 80-90%, enable the solar panel to operate at its maximum power point, or more precisely, the optimum voltage and current for maximum power output

Ultra-fast tracking speed

Manages the charging process of your RV's batteries in three distinct stages: bulk charging, absorption charging, and float charging, ensuring that your batteries are charged optimally, maximizing their lifespan and performance while preventing overcharging.

Reliable & Safe

Electronic protections: reverse current, overcharging, short-circuit and reversed polarity. Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for 25 years.

Smart APP Control

Remote monitoring and Bluetooth control, a programmable interface with a multi-function LCD for displaying system information, and accurate recognition and tracking capabilitie

• Peak Power (Pmax):200W
• Max Power Voltage(Vmp):20.4V
• Max Power Current(Imp):9.8A
• Weight:26.5 lb/12kg

• Peak Circuit Voltage(Voc):24.3V
• Short Circuit Current(Isc): 10.2A
• Wind resistance:2400pa
• Dimension: 54.72 x 27.56x 1.3 Inch

• Maximum Power at STC (Pmax): 100W
• Maximum Operating Voltage (Vmp): 17.48V
• Maximum Operating Current (Imp): 5.71A
• Dimension: 1130x510x35mm / 44.5x20.1x1.4 in

• Open-Circuit Voltage (Voc): 22V
• Short-Circuit Current (Isc): 6.14A
• Operating Temperature: -40ºC to 85ºC
• Weight: 9.5kg / 20.9 lbs

• Nominal System Voltage: 12v/24v/36v/48v DC auto work
• Rated Charge Current: 60A
• Max. PV Open Circuit Voltage: 150V/138V
• Max. PV input power: 1125W/12V, 2250W/24V, 2812.5W/36V,4500W/48V
• MPPT Voltage Range: (Battery Voltage+2V) ~72V
• Dimension:261*216*119mm

• Grounding: Common negative
• Battery Input Voltage Range: 8V～32V
• MPP voltage range:V(BAT)+2V～108V
• Rated Charge Power: 750W/12V, 1500W/24V, 2250W/36V,3000W/48V
• RS485 Interface: 5VDC/200mA(RJ45)

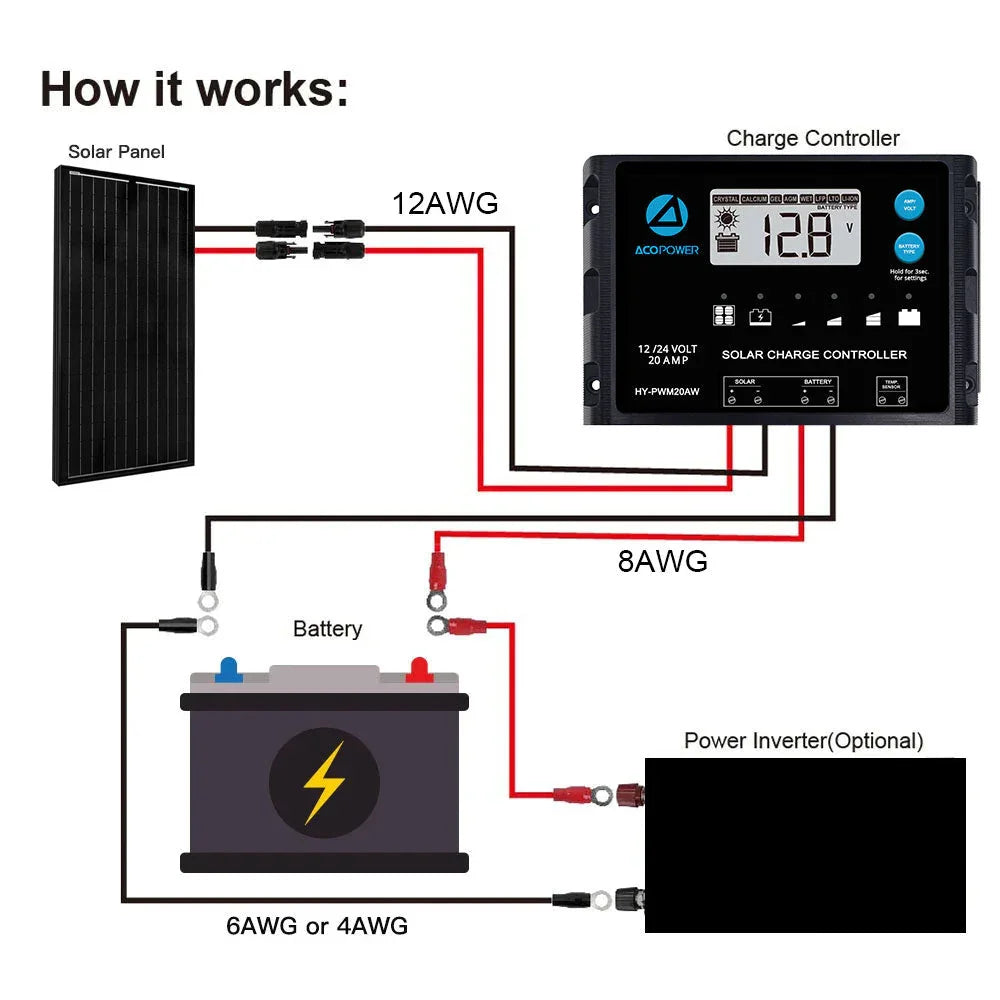

• Installion Notes：First connect the battery；Then connect the load; Finally connect the solar panel.

• ACOPOWER 50A MPPT SOLAR CHARGE CONTROLLER

• Nominal System Voltage: 12v/24v/36v/48v DC Auto
• Rated Charge Current: 50A
• Max. PV Open Circuit Voltage: 150V/138V
• MPP Voltage Range: V(BAT)+2V～108V
• Working temperature: -25℃～+50℃
• RS485 Interface: RS485(RJ45)
• Dimension: 261*216*119mm

• Grounding: Common negative Design
• Battery Input Voltage Range: 8V～68V
• Rated charge Power: 625W/12V 1250W/24V 1875W/36V 2500W/48V
• Battery type:Sealed(Defalut)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries
• Storage temperature: -20℃～+70℃
• Enclosure: IP33
• Terminals: 16mm2/6AWG

• ACOPOWER MIDAS 40A MPPT SOLAR CHARGE CONTROLLER

• Nominal System Voltage: 12/24VDC Auto
• Rated Charge Current: 40A
• Max. PV Open Circuit Voltage: 100V (1) 92V (2)
• MPPT Voltage Range: (Battery Voltage+2V) ~72V
• Working temperature: -25℃～+50℃
• Terminals: Up to 6 AWG
• Dimension: 10x7.28x2.67 in / 255×185×67.8mm

• Grounding: Common negative
• Battery Input Voltage Range: 8V～32V
• Rated charge Power: 520W/12V 1040W/24V
• RS485 Interface: 5VDC/200mA(RJ45)
• Storage temperature: -20℃～+70℃
• Enclosure: IP33
• Weight: 3.75lbs / 1.7kg

• ACOPOWER 30A MPPT SOLAR CHARGE CONTROLLER

• Nominal system voltage: 12/24VDC Auto
• Battery input voltage range: 8V～32V
• Max.PV input power: 12V/390W, 24V/780W
• Working environment temperature: -25℃～+50℃
• Grounding: Common negative
• Power Terminals: 6AWG(16mm2)
• Dimensions: 228x164x55mm

• Rated charge current: 30A
• Max.PV open circuit voltage: 100VDC
• MPP voltage range: V(BAT+2V)～72V
• Storage temperature range: -35℃～+80℃
• Communication: RS485
• Enclosure: IP30
• Weight: 1.2kg

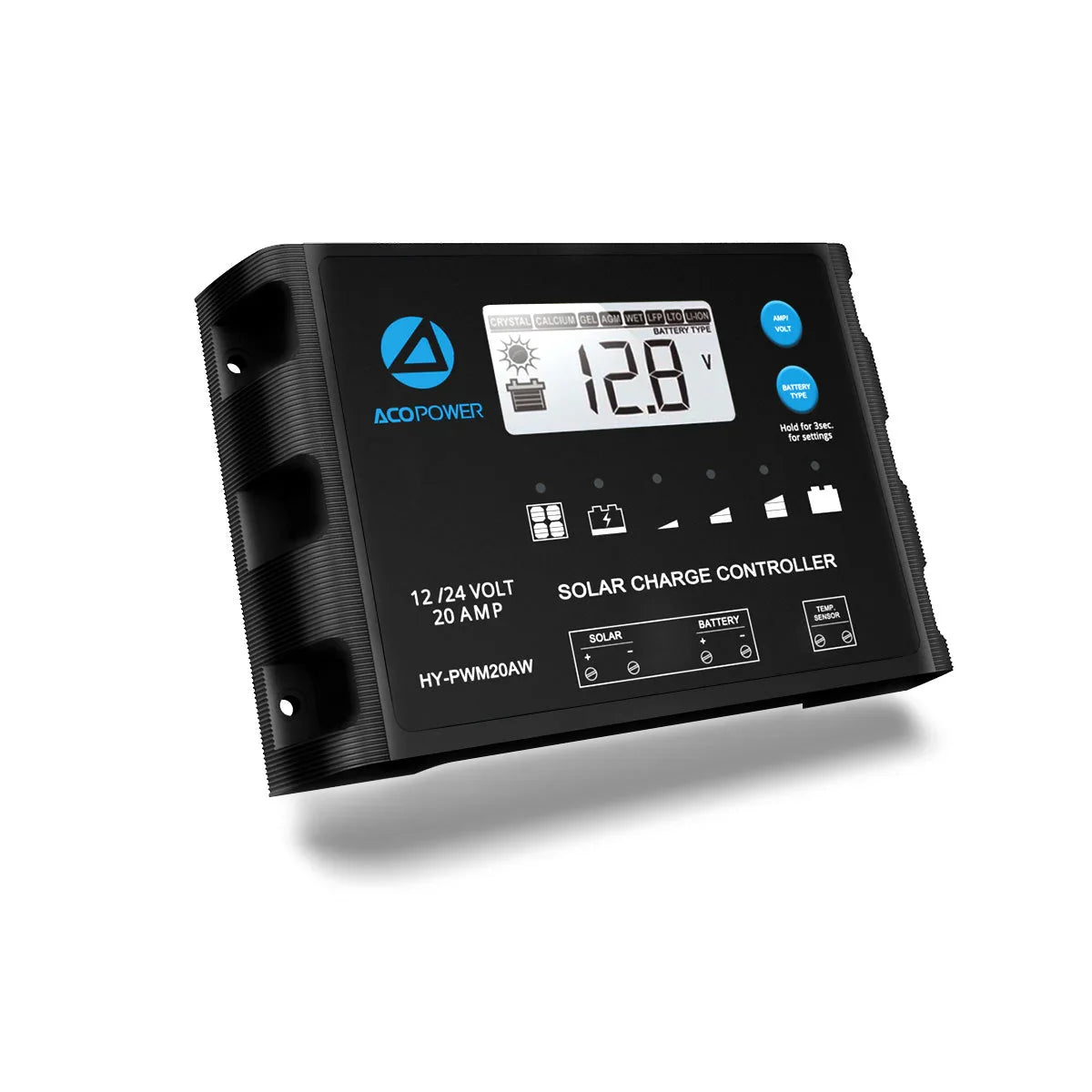

• Nominal Voltage: 12V/24V DC
• Rated Charge Current: 20A
• Battery Start Charging Voltage: 3V
• Operating Temperature: -40°F to 140°F
• Terminals: Up to 10 AWG

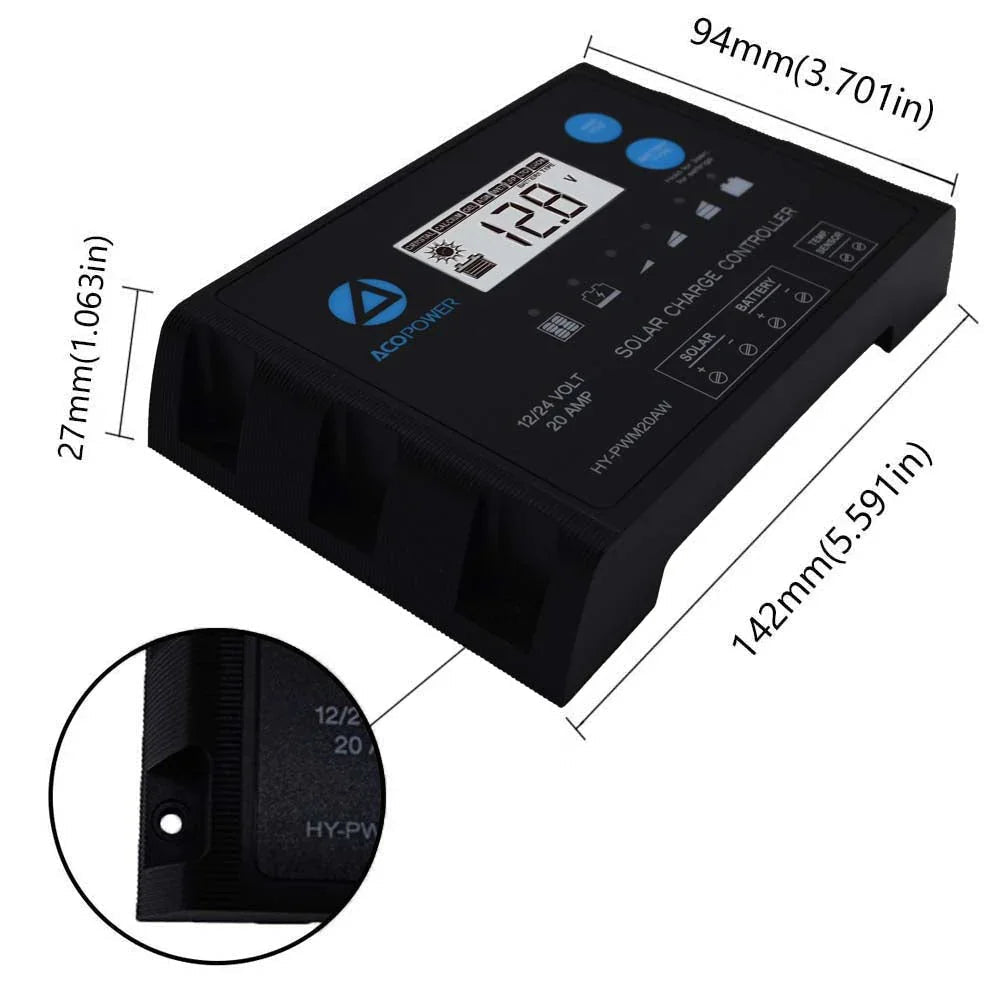

• Dimensions: 5.59x 3.7x 1.06 inches

• Grounding: Common Negative
• Max. PV Input Voltage: 50V
• Temperature Compensation Coefficient: -24mV/°C
• Storage Temperature: -40°F to 185°F
• Enclosure: IP65
• Weight: 1.1 lbs
