ACOPower 200Ah Battery 200W Solar Power System

This all‑in‑one off‑grid solar power kit is designed for RVs, boats, cabins and backup power. It combines two LiFePO4 12V 100Ah batteries (total 200Ah) with a 1500W pure sine wave inverter, a 30A MPPT solar charge controller, and a 200W solar array built from two 100W Poly Solar Panels. The system arrives ready for quick installation and reliable operation in demanding environments.

Key specifications

• Battery: two 12V LiFePO4 modules, 100Ah each; rated voltage 12.8V; charge voltage 14.2–14.6V; capacity 1280Wh per module; DoD 100%; standard charge current 20A; max continuous charge 50A; max continuous discharge 100A; dimensions 12.99 x 6.81 x 8.58 in; weight 23.8 lb each.
• Solar panels: two 100W Poly Solar Panels; combined peak output 200W; panel dimensions 58.7 x 26.8 x 1.4 in; weight 26.5 lb each; Voc 24.3V; Vmp 20.4V; Isc 10.2A; Imp 9.8A.
• Inverter: 1500W continuous output, 3000W surge; pure sine wave; protections include under/over voltage, overload and short circuit; weight 7.79 lb; dimensions 12.94 x 7.52 x 3.86 in.
• MPPT Charge Controller: 30A rated current; battery voltage range 8–32V; max PV open circuit voltage 100V; max PV input power 12V/390W, 24V/780W; compatible with Sealed, Gel, Flooded and Lithium‑ion chemistries.

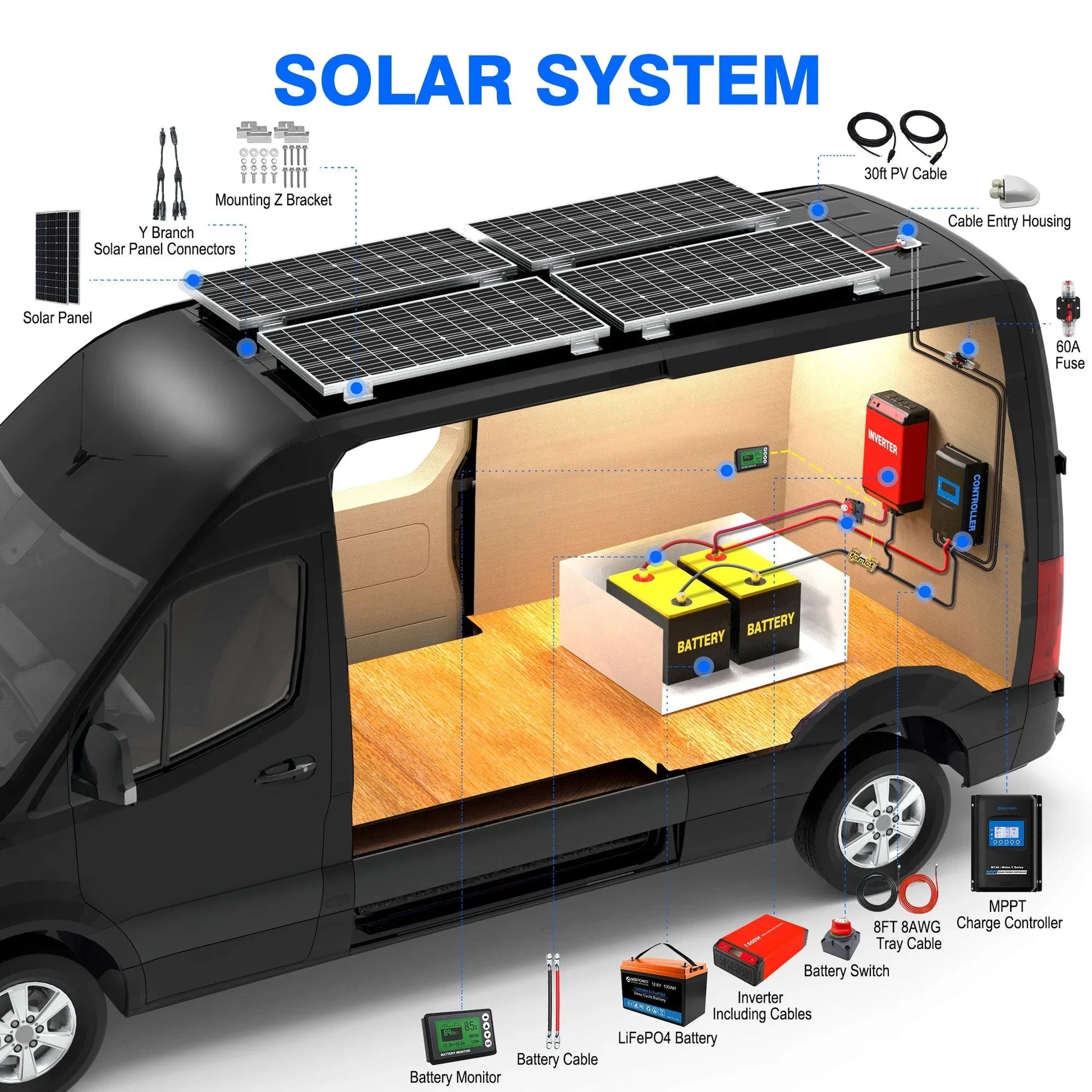

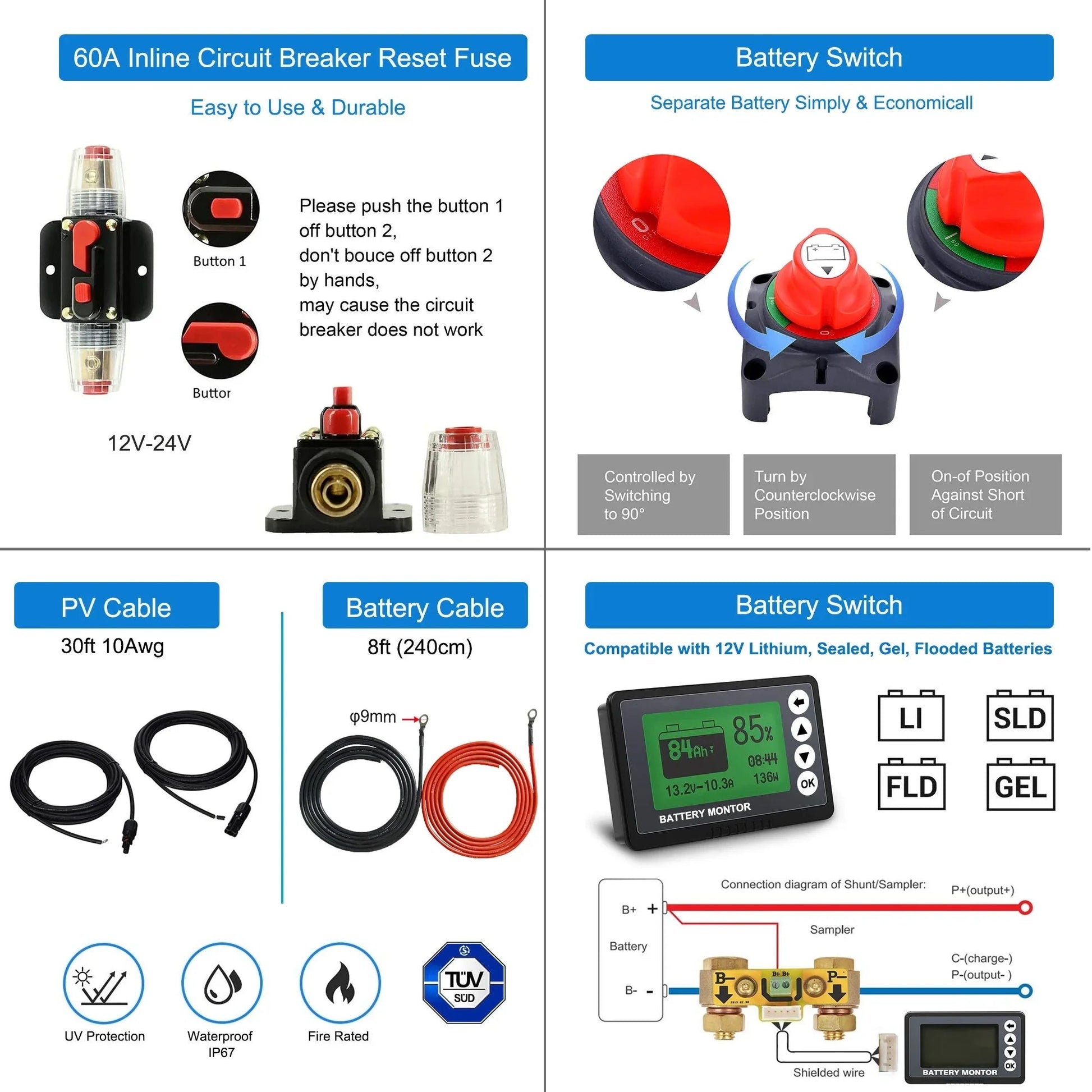

• Package accessories: 60A fuse, battery switch, battery monitor, mounting brackets, 30 ft PV cable, 1 ft 4AWG battery cables, 8 ft 8AWG tray cable, and cable entry housing.

Installation and maintenance

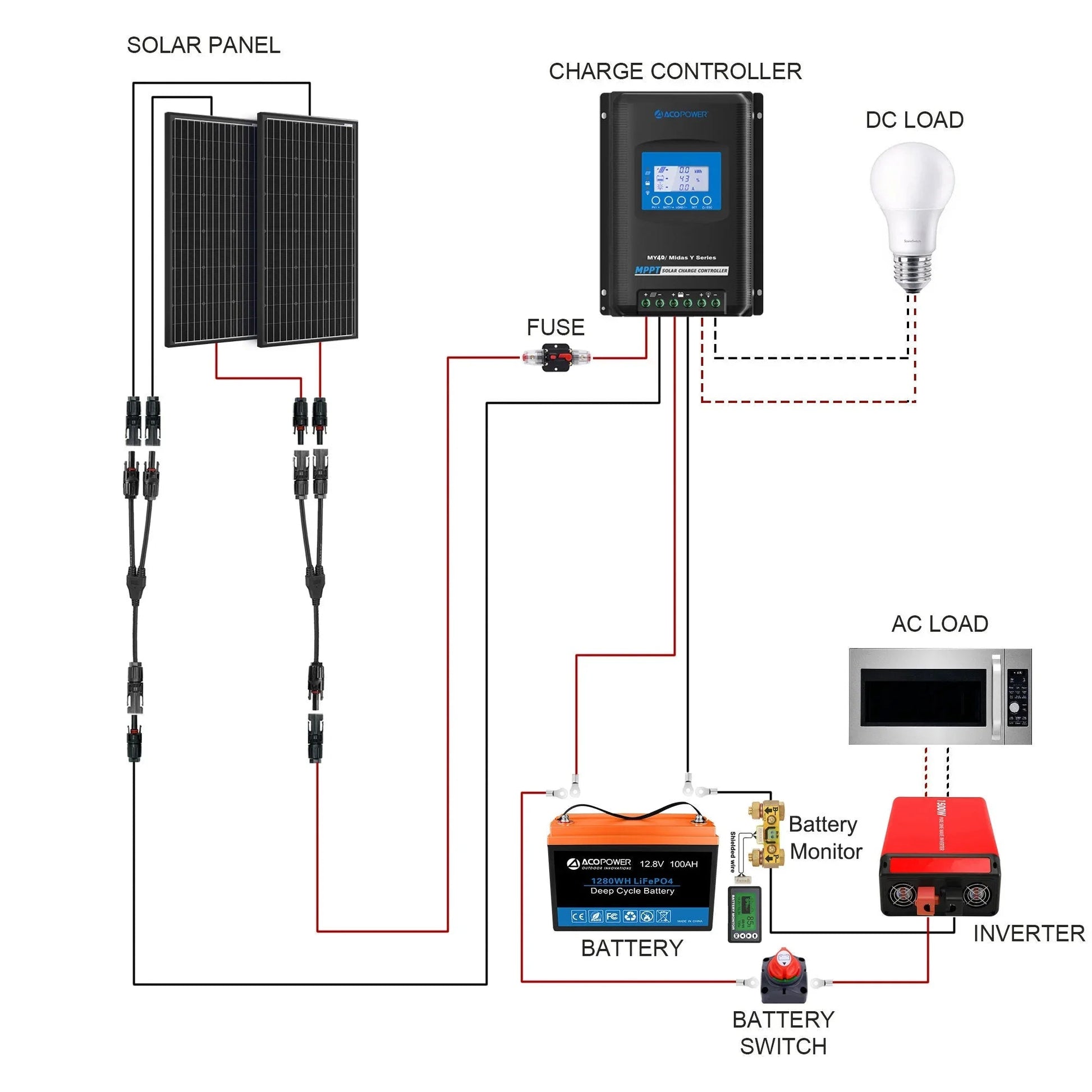

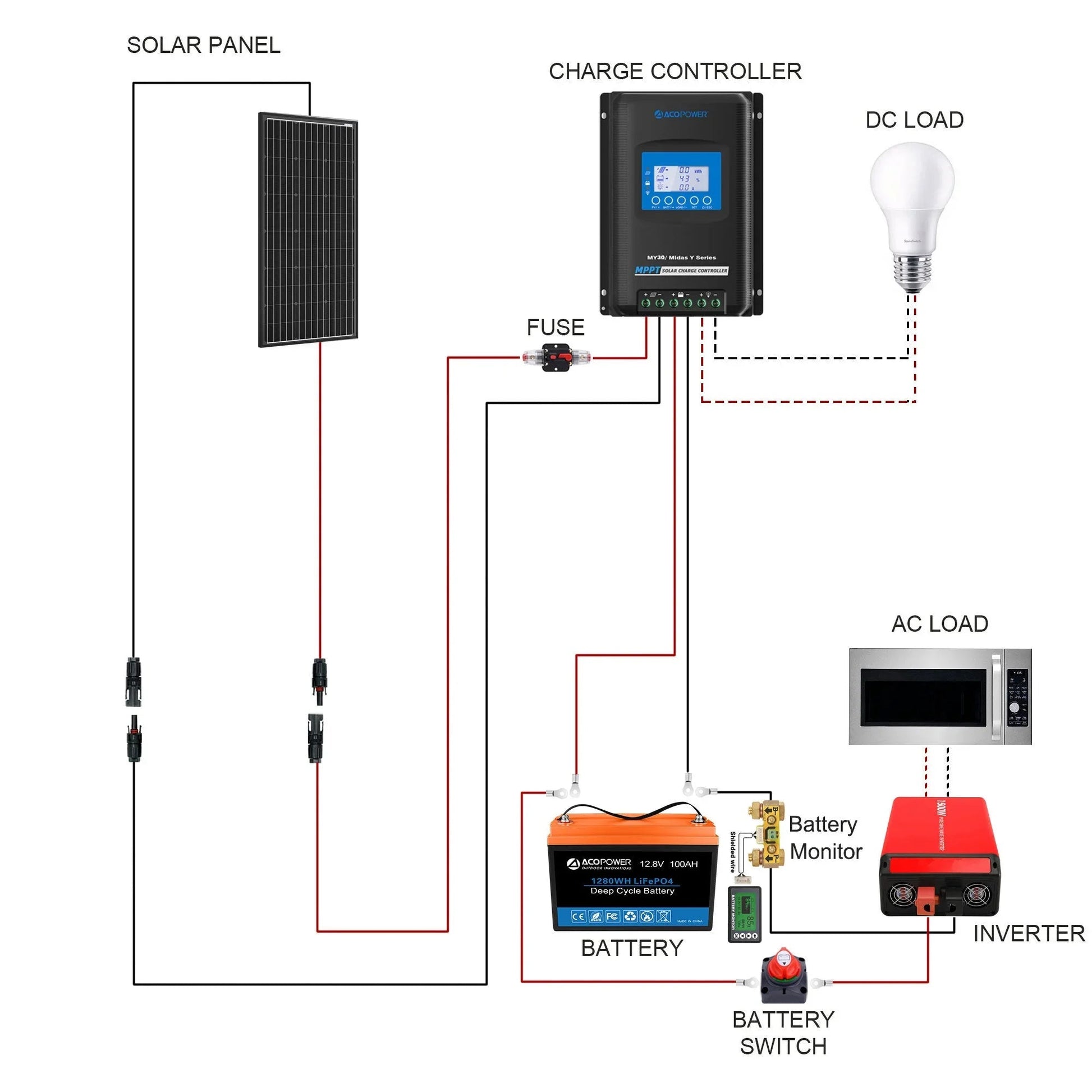

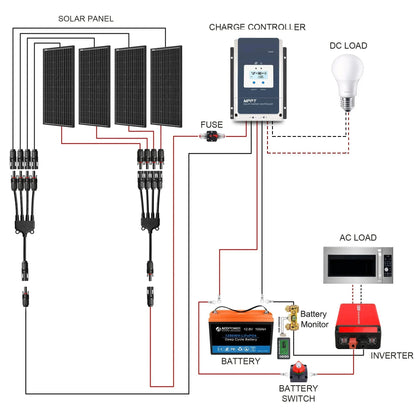

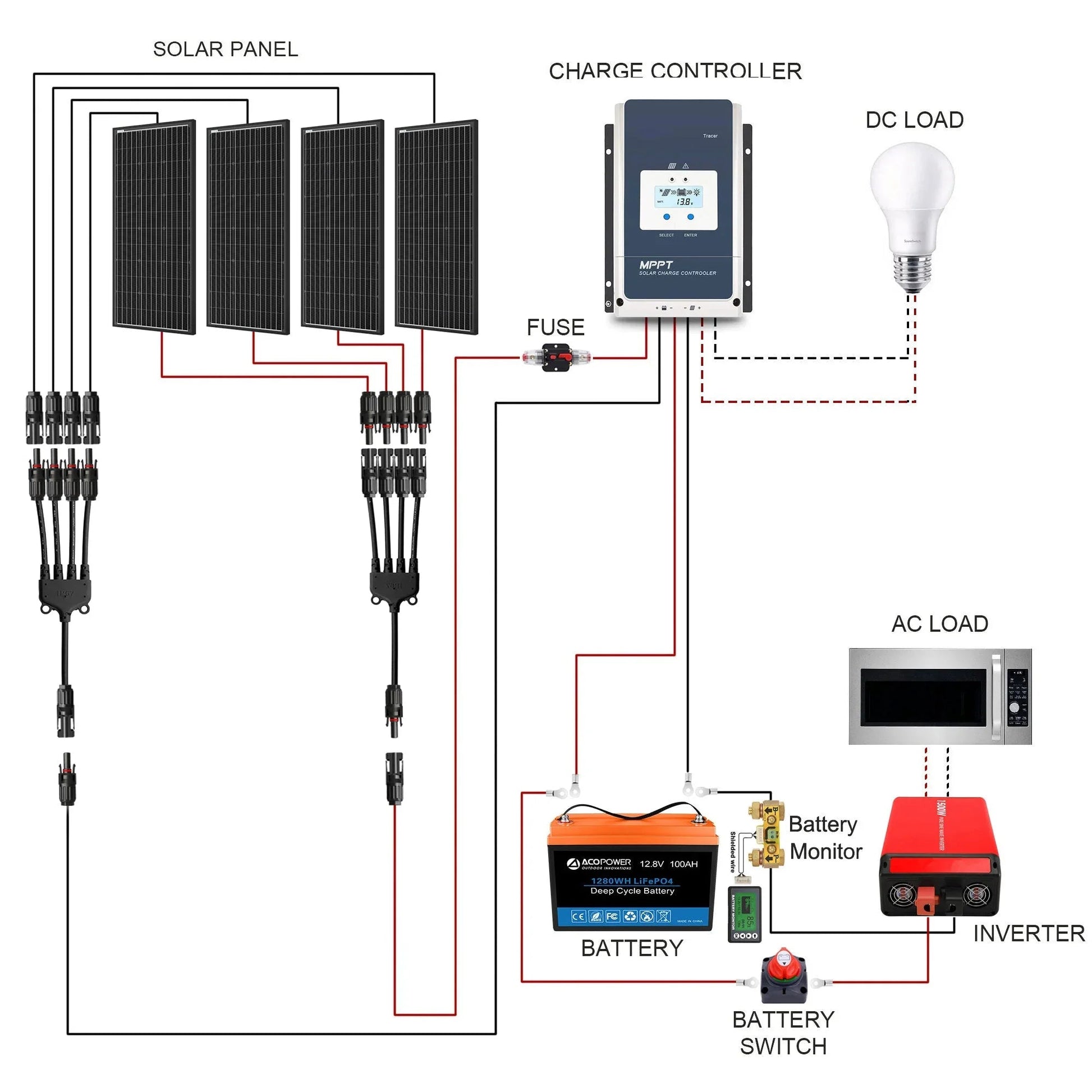

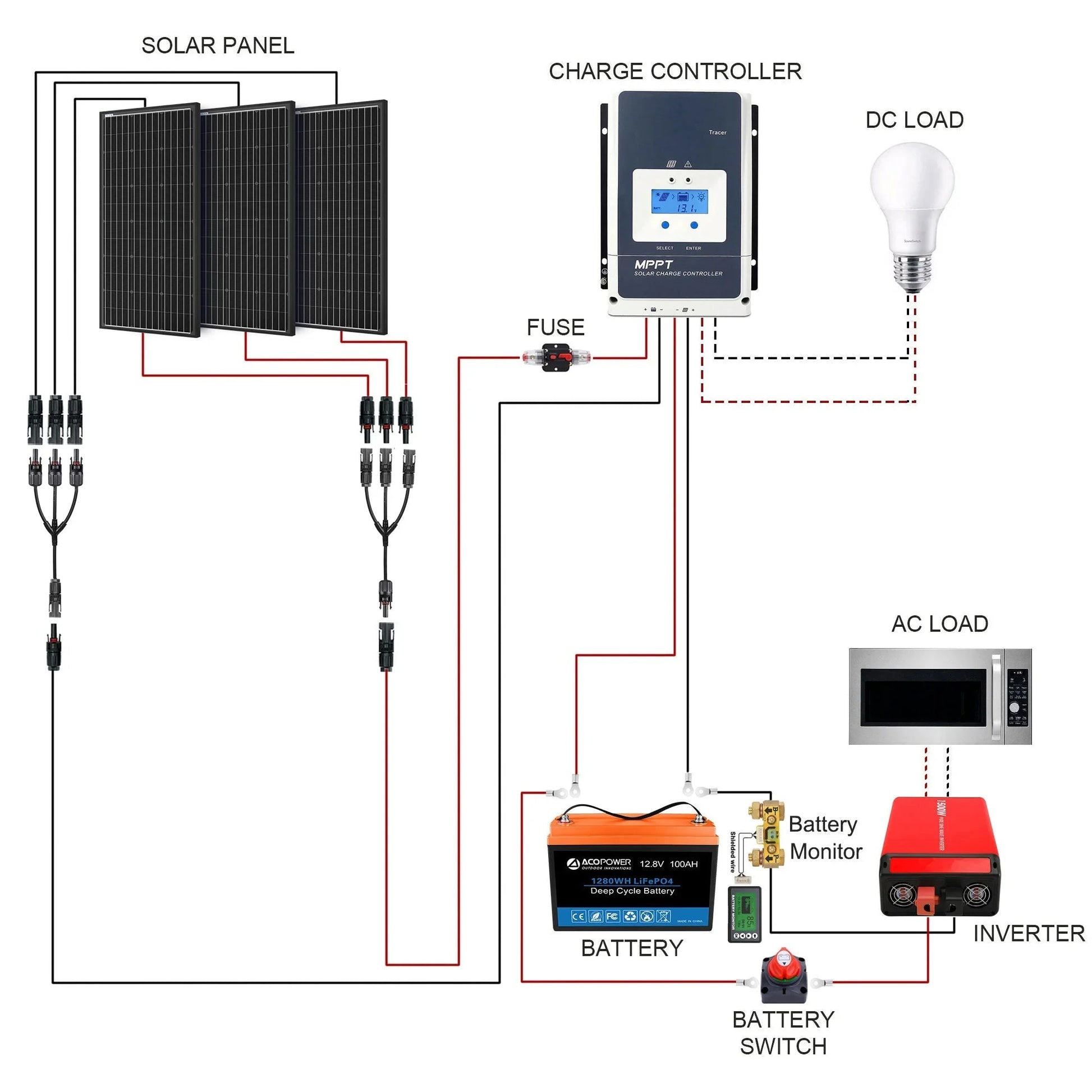

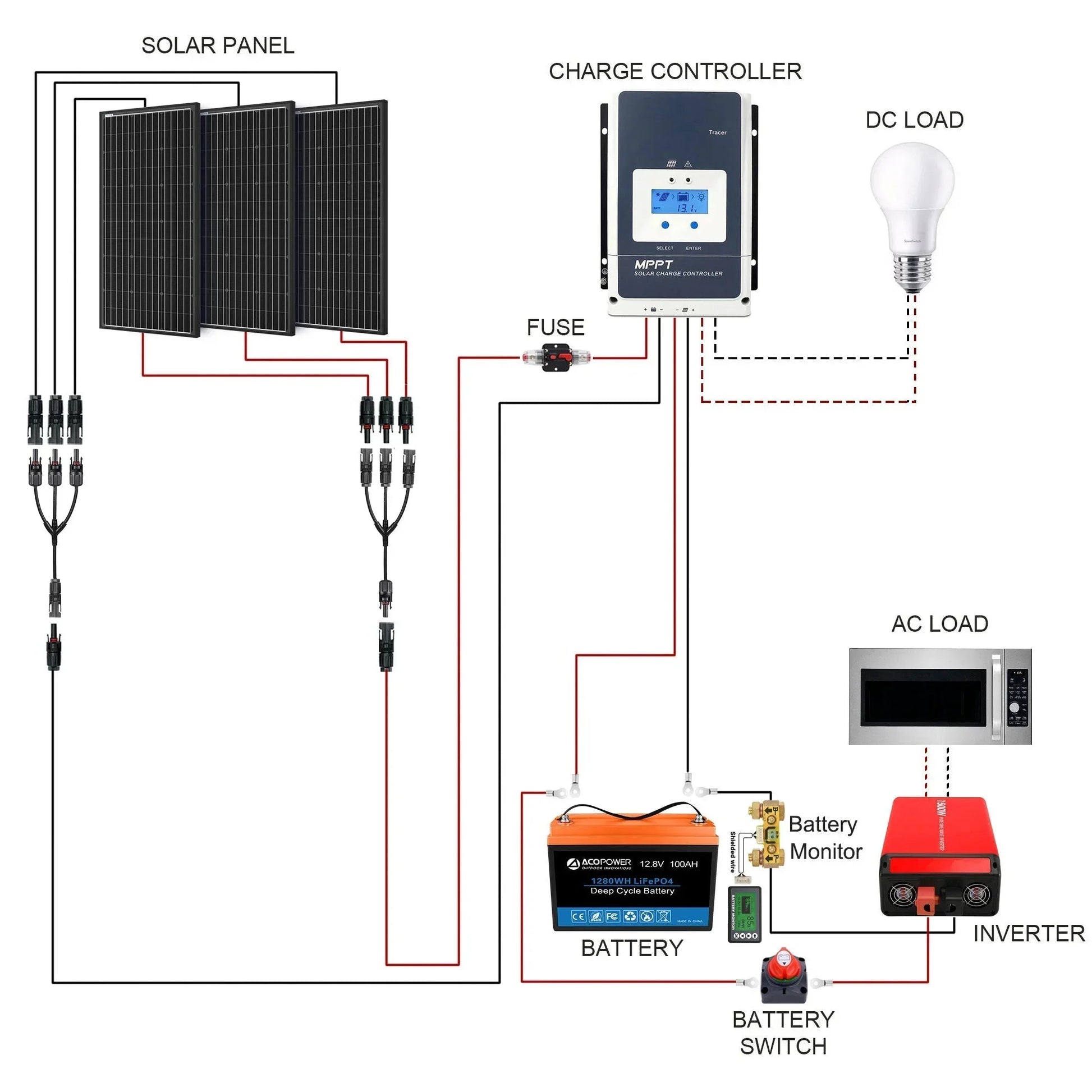

Install with the provided mounting Z brackets and cable harnesses. Route PV cables to the MPPT controller, connect to the battery bank through the included fuse and switch, and place the inverter in a ventilated, dry area. LiFePO4 batteries are maintenance‑free; perform periodic checks of connections, fuses and overall system wiring after installation or reconfiguration.

Safety and performance

Built‑in protections guard against common faults, delivering dependable power for demanding applications in mobile or remote settings. The modular design supports scalable expansion with additional panels, batteries or loads as needs grow.

ACOPOWER 200Watt Poly RV Solar system comes with everything you need to start Producing Free, Clean Power from the Sun! Perfect for RV's, Boats, Cabins and Back-up Power! Solar Powered

Specification:

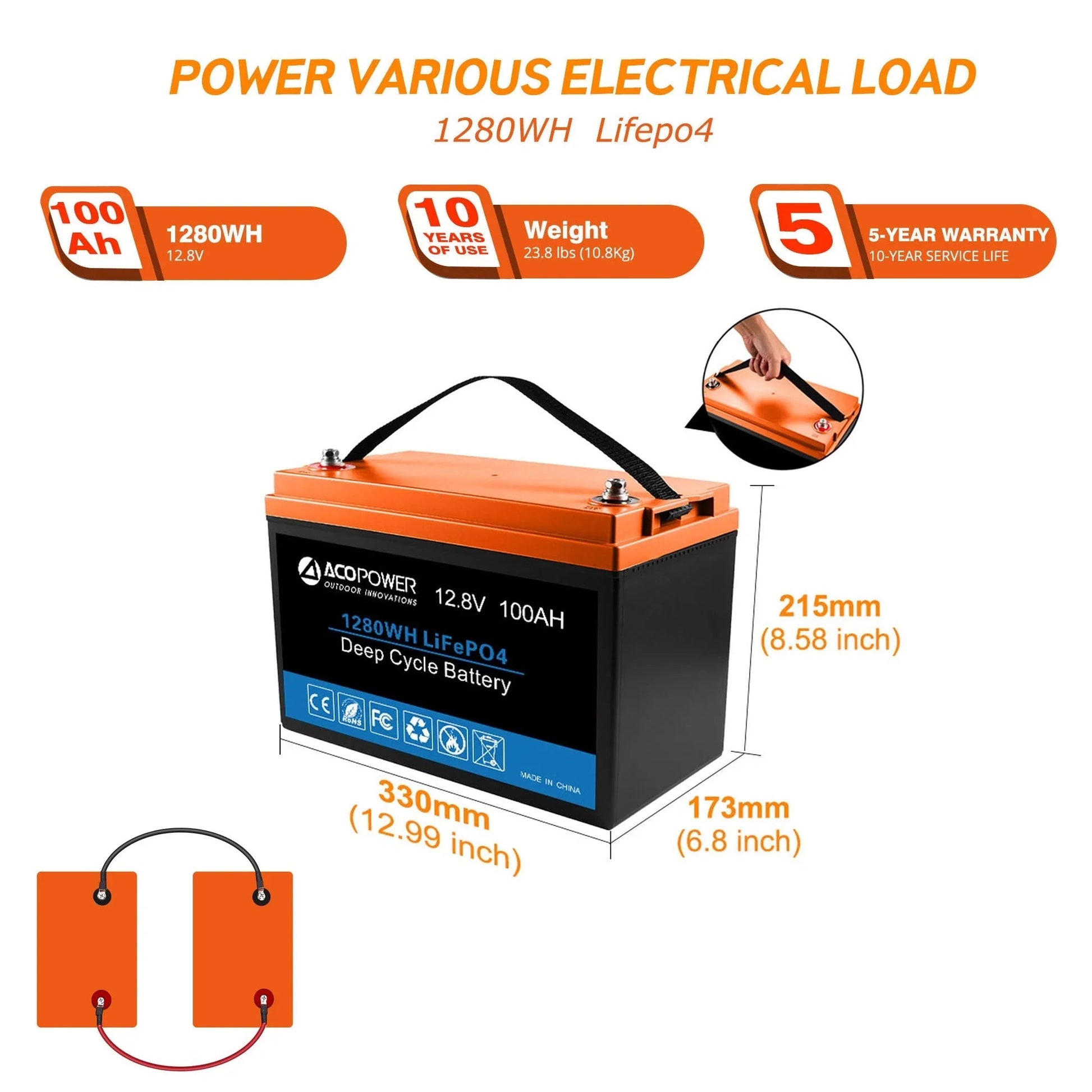

12V 100Ah LiFePO4 Deep Cycle Lithium Battery
Rated voltage 12.8V
Charge voltage: 14.2 - 14.6V
Battery Capacity:1280WH
Depth of Discharge (DoD): 100%
Standard charge current: 20A
Max continuous charge current: 50A
Max continuous discharge current: 100A
dimension(inch):12.99 x 6.81 (W) x 8.58 (H) inch;
Approx. Weight: 23.8lb

200W Mono Solar Panel
Nominal for 12V battery charger
Peak Power (Pmax):200W
Peak Circuit Voltage(Voc):24.3V
Max Power Voltage(Vmp):20.4V
Short Circuit Current(Isc):10.2A
Max Power Current(Imp):9.8A
Weight:26.5lb

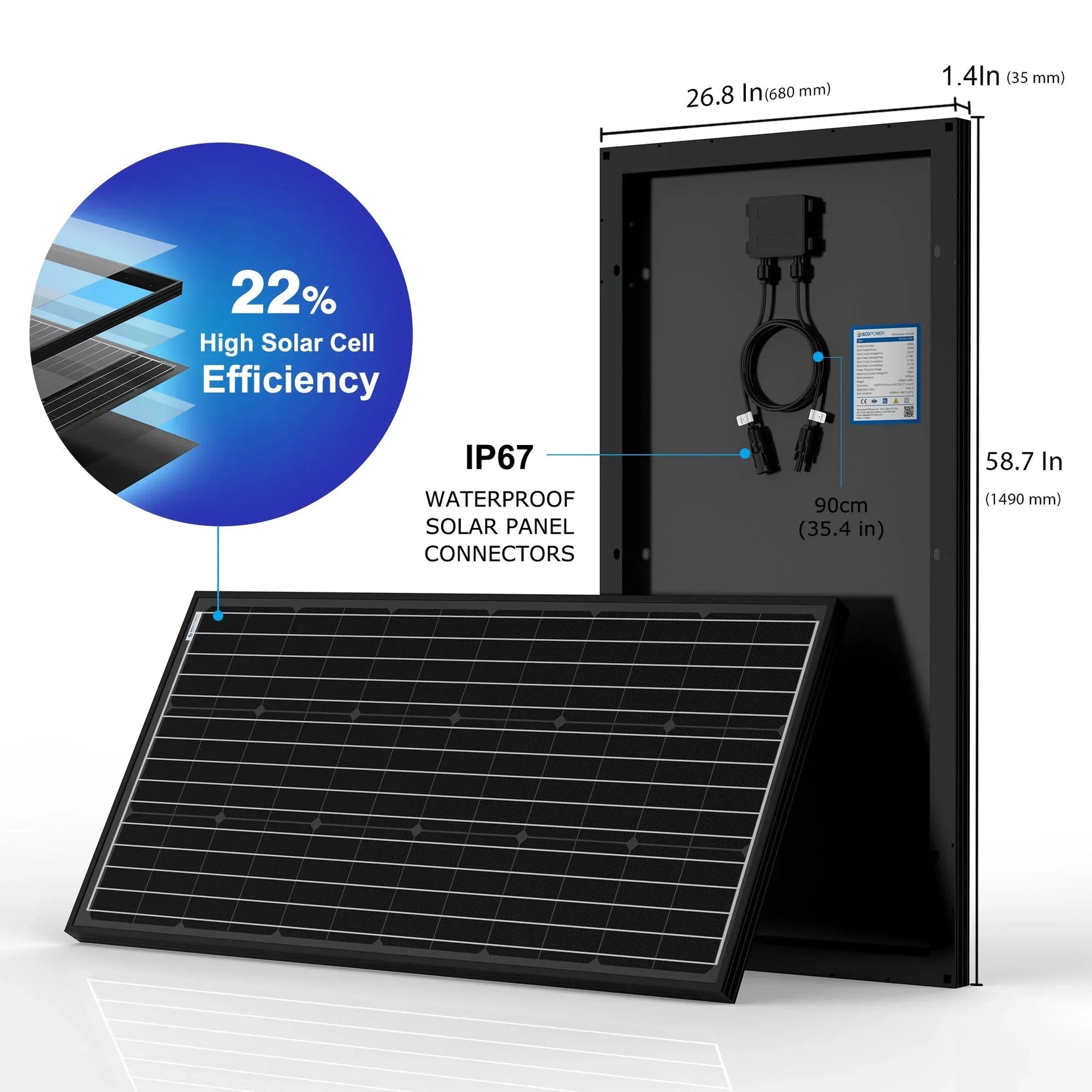

Dimension:58.7*26.8*1.4 Inch

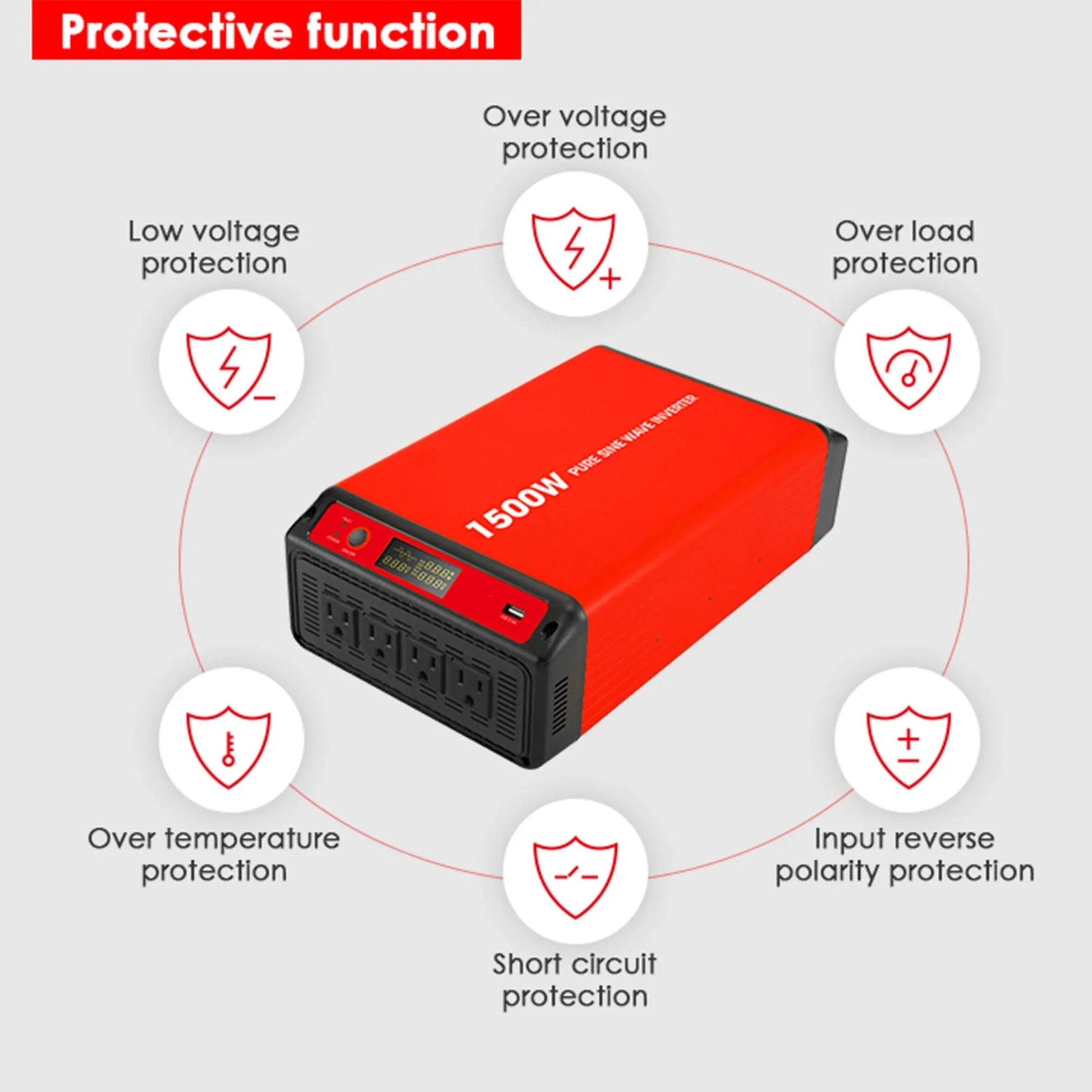

1500W Pure Sine Wave Inverter
Continuous output 1500W
Surge Power 3000W
Wave Form: Pure Sine Wave

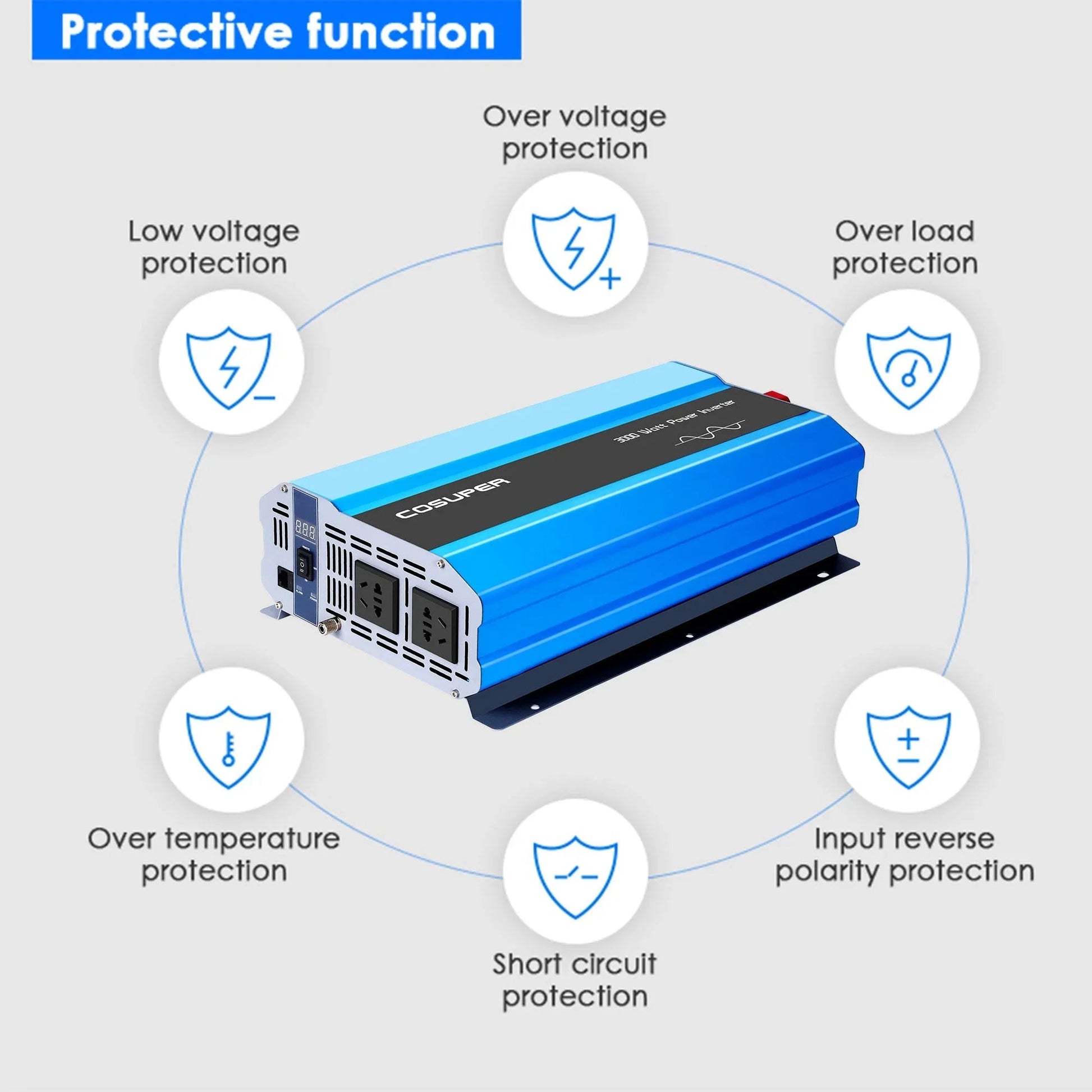

Protection: Under voltage protection, Overvoltage protection, Overload
Protection, Output short circuit protection
Weight: 7.79lb
Dimension(inch): 12.94+1.34 (D) x 7.52(W) x 3.86(H) inch

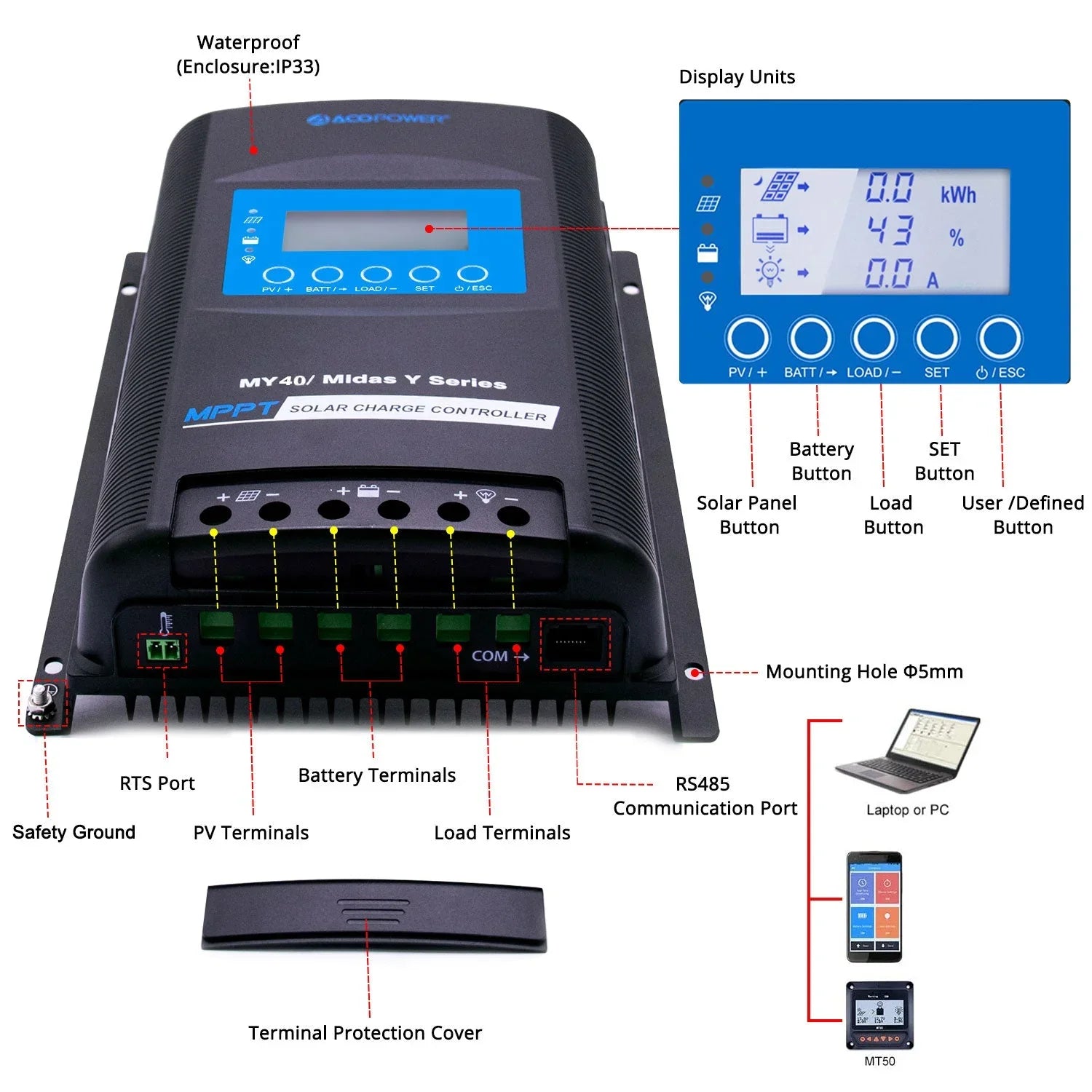

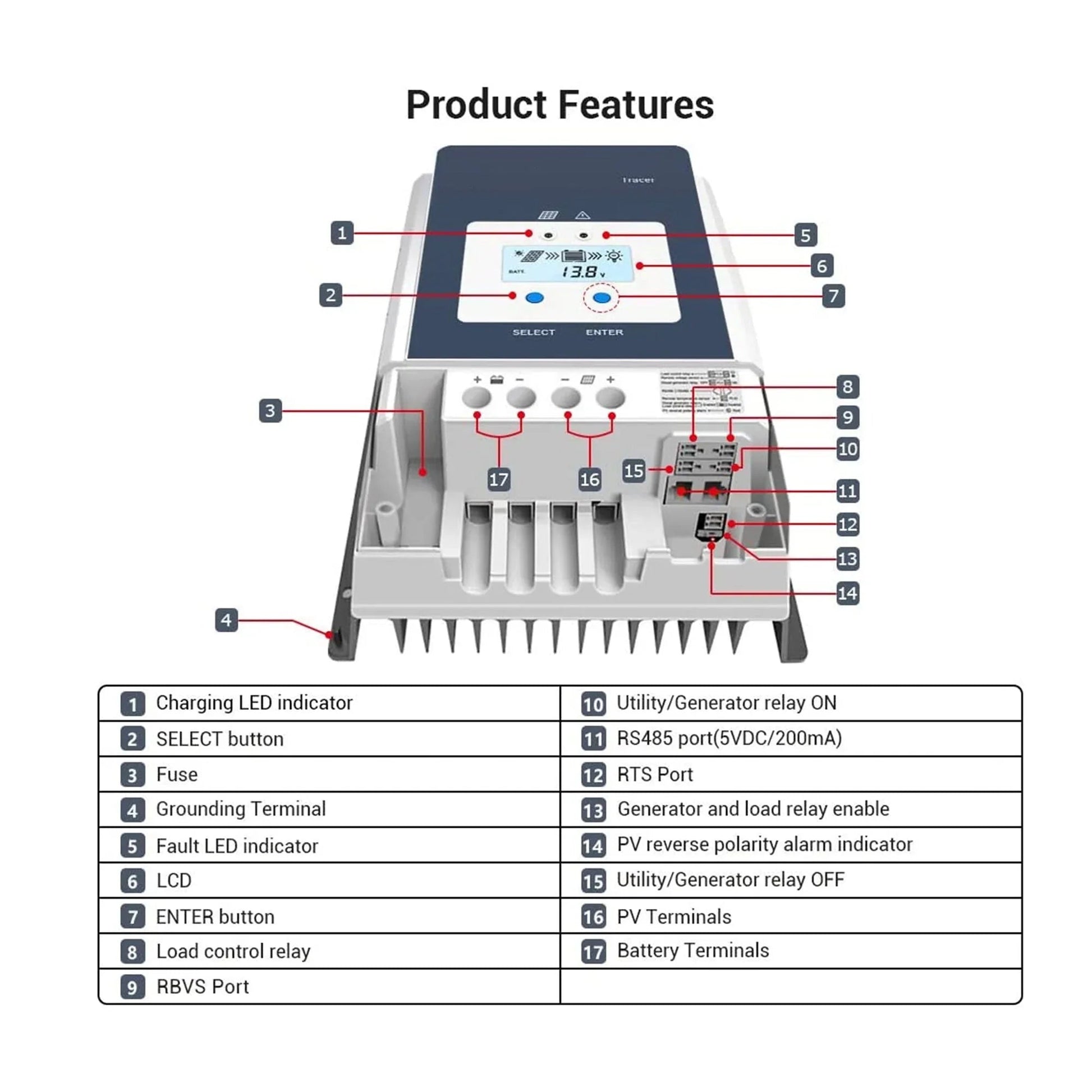

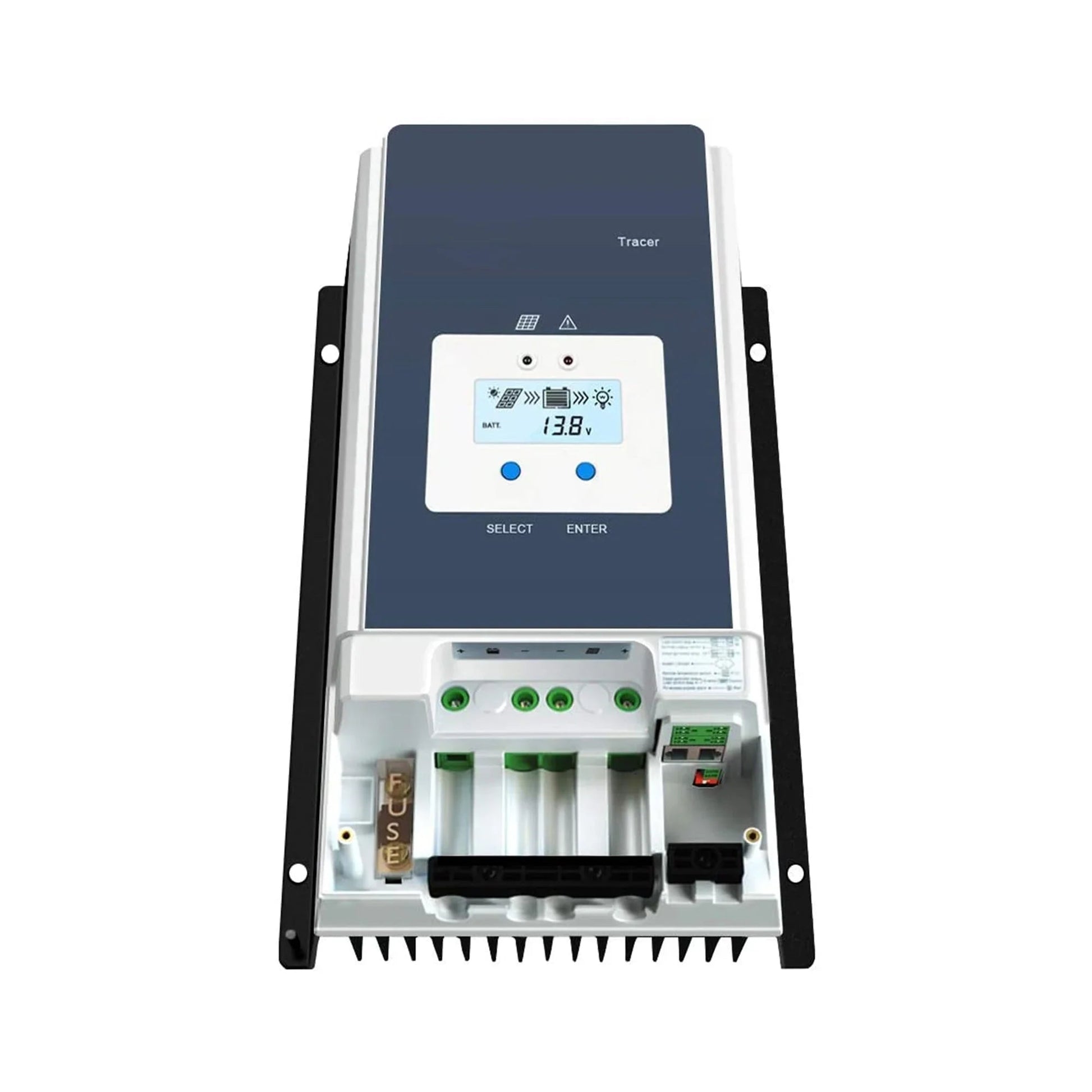

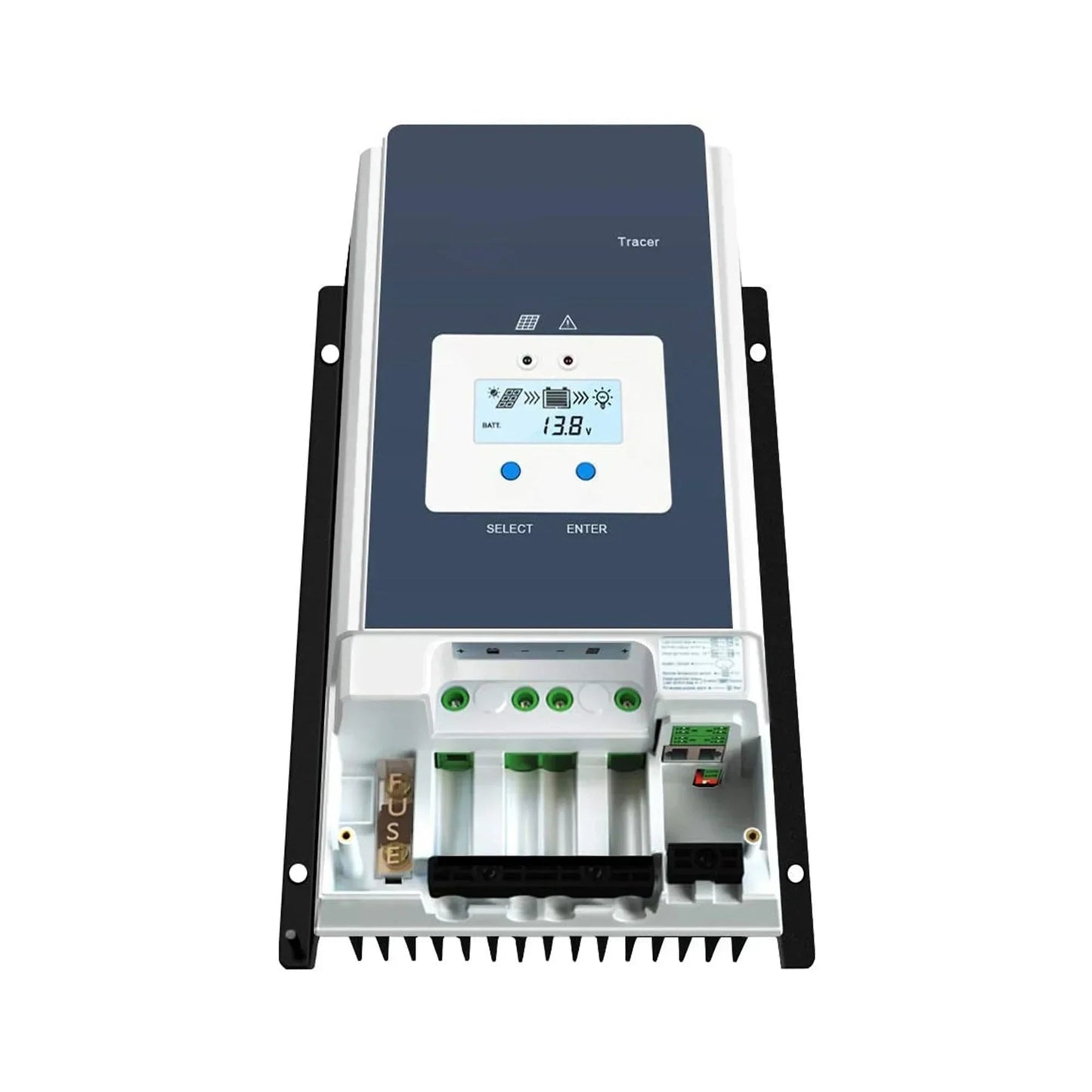

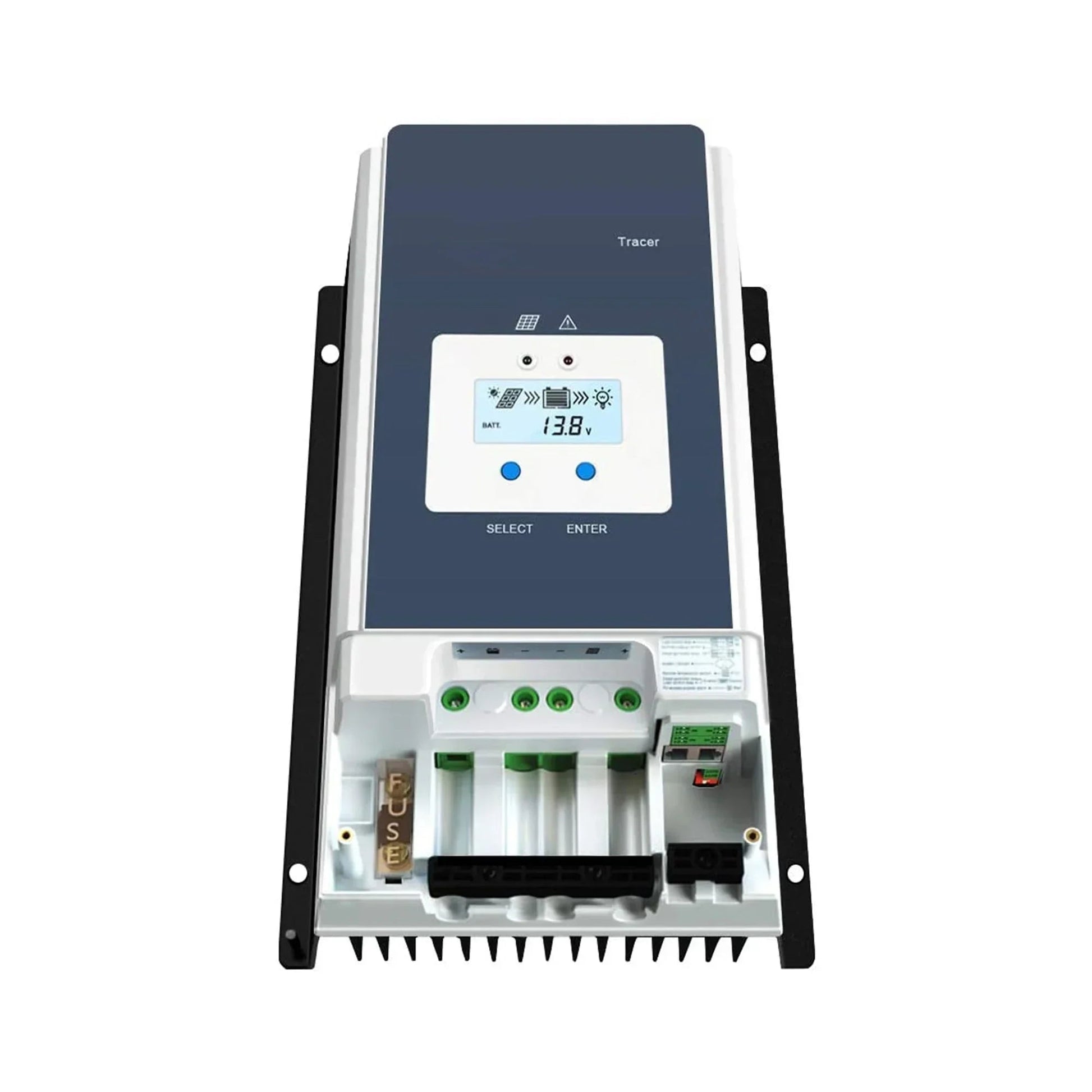

MPPT Solar Charge Controller 30A
Rated charge current: 30A
Battery voltage range: 8V~32V
Max.PV open circuit voltage: 100VDC
Max.PV input power: 12V/390W,24V/780W
Compatible with Various Deep Cycle Battery options: Sealed, Gel, Flooded and Lithium-ion. LiFePO4 Multiple Load Control Method.

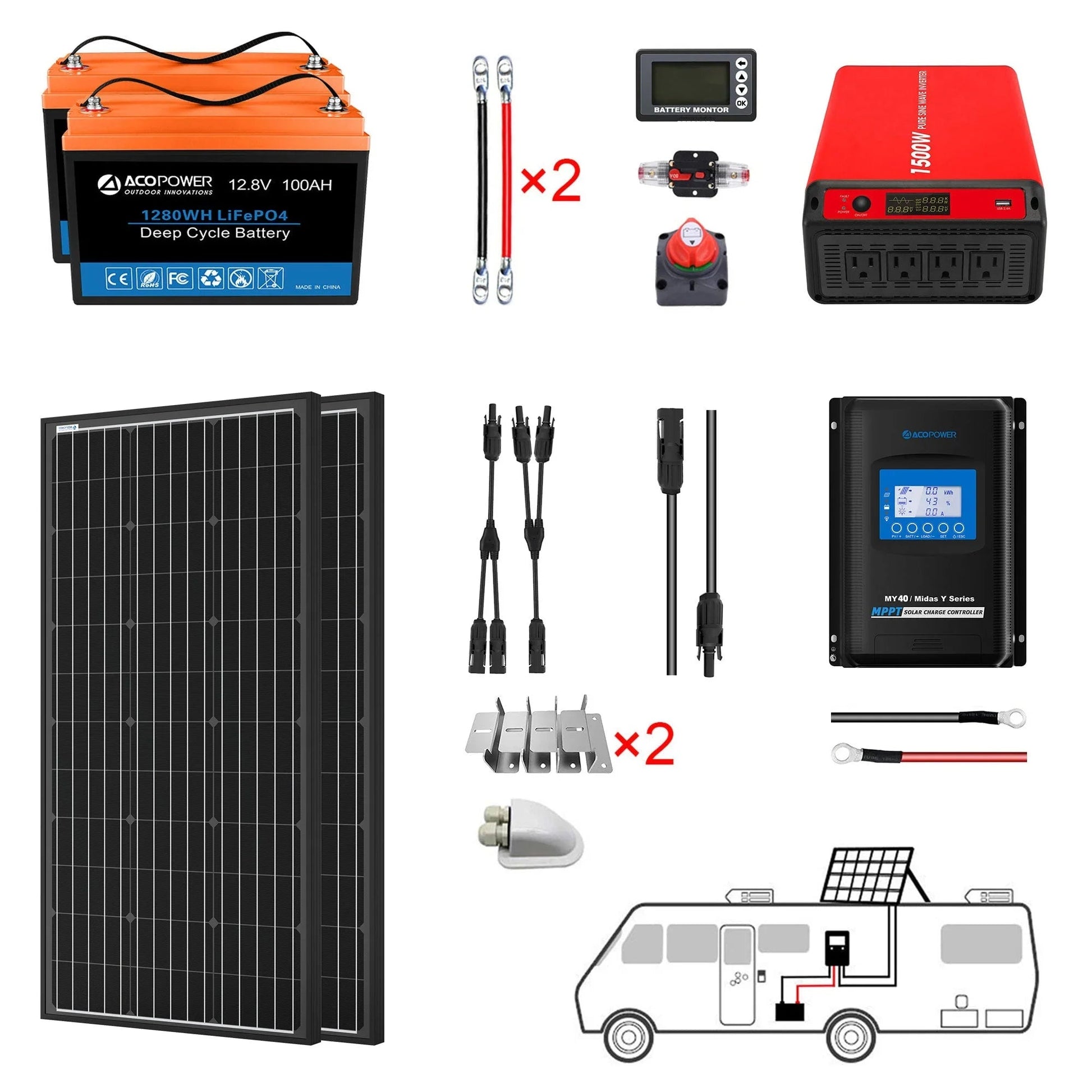

Package List:
2PCS 100W Poly Solar Panel
1PC 1500W Inverter including cables
2PCS 100Ah LiFePO4 Battery
1PC 30A MPPT Charge Controller
1PC 60A Fuse
1PC Battery Switch
1PC Battery Monitor
2 Sets Mounting Z Bracket
1Pair 30ft PV Cable
2 Pair 1Ft 4AWG Battery Cable
1 Pair 8FT 8AWG Tray Cable
1PC Cable Entry Housing
