- Wide range Input Voltage:DC 16V-58V
- Output Voltage：DC 12V (Output Current: 10A max), (Output Power: 120W max)High Conversion Efficiency: up to 95%
- Built-in intelligent protection with undervoltage/overload/low load/short circuit/overheating function
- Aluminum shell with silicone potting, with IP68 waterproof grade, can work in the rain, shockproof, moisture-proof, dust-proof, good heat dissipation, more durable.
- Widely used in automotive, surveillance systems, railway signals, medical equipment, instruments and meters, LED products, LED strips, cable TV and other low power test systems

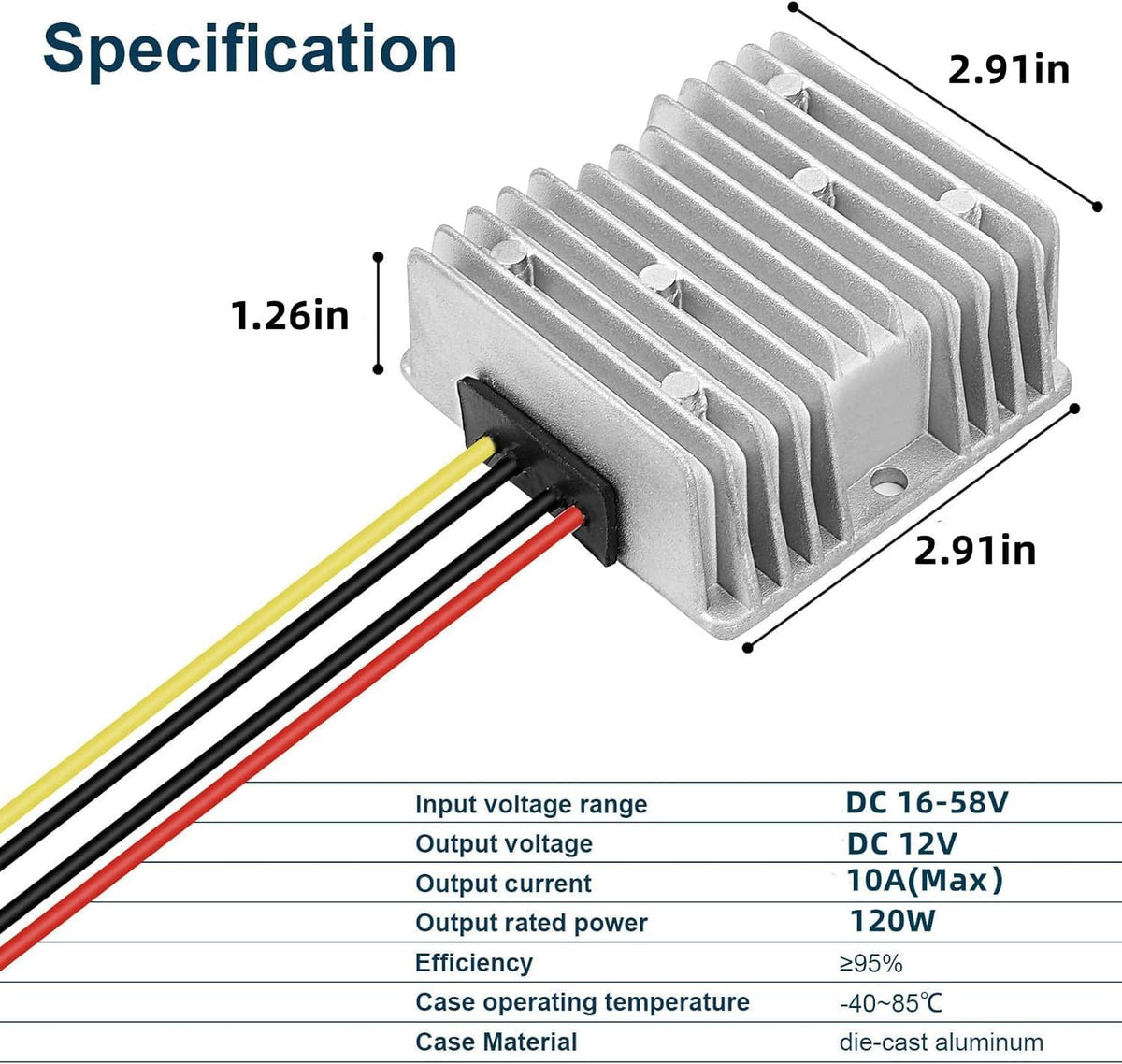

Parameters:
- Wide range Input Support:DC 16-58V
- Output voltage：DC 12V (fixed output)
- Output current: 10Amp (Max)
- Output Rated Power: 120W
- Conversion efficiency: 95%
- Enclosure: IP68
- Case operating temperature: -40~85°C
- Weight: 280 grams
Intelligent protection:
- Overcurrent protection
- Overload protection
- Low load protection
- Short circuit protection
- Intelligent overheating protection
- When the equipment returns to normal, operation resumes automatically
Package Included

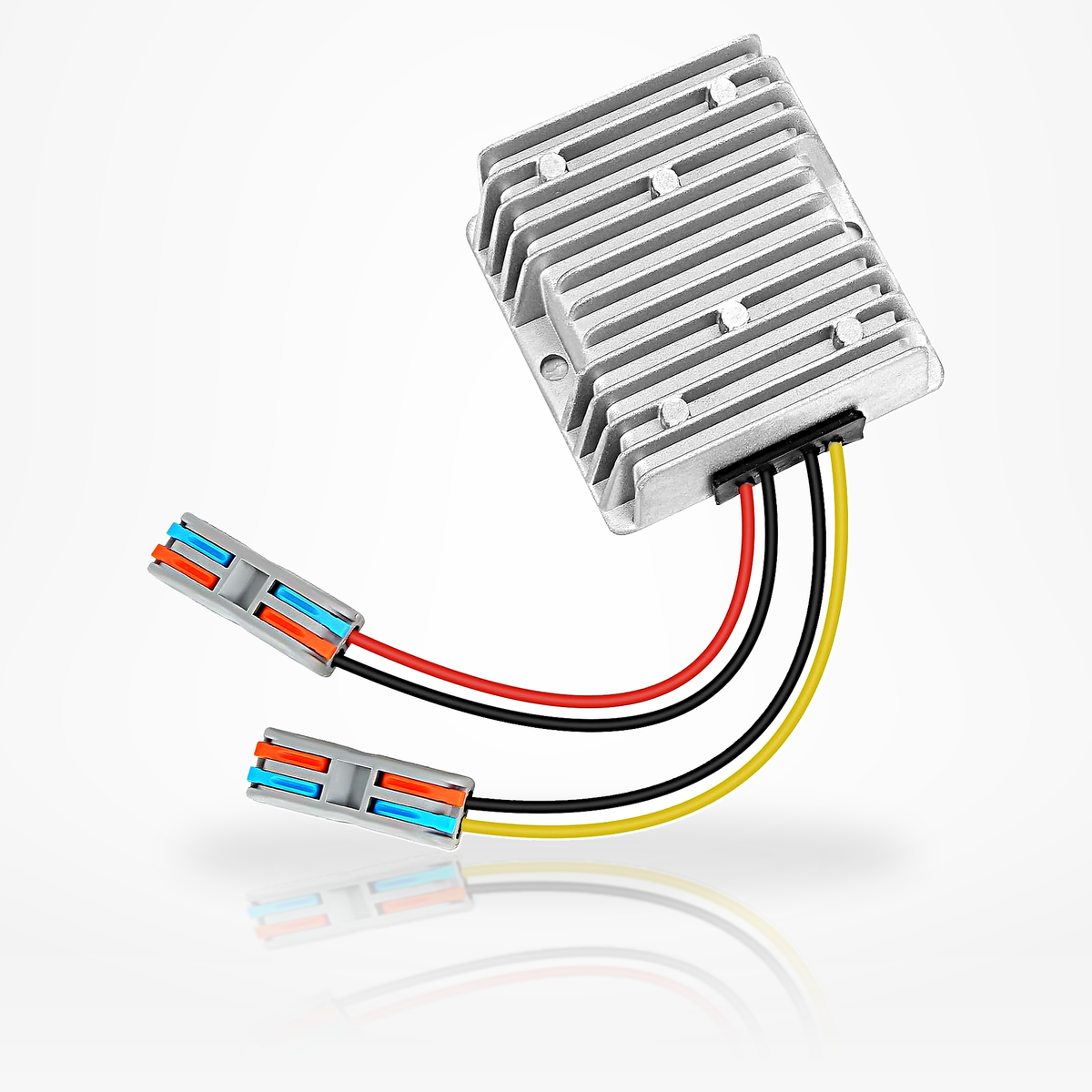

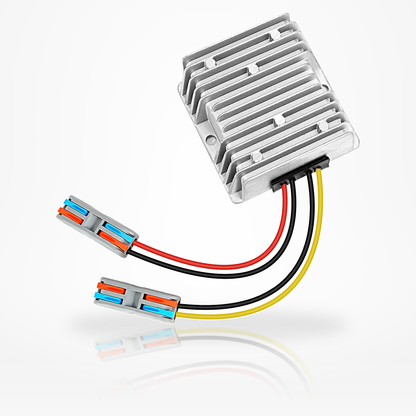

- 1 * DC 36V/48V to 12V 10A120W Converter
- 2 quick connect terminals as a gift. Note: strip 0.4 inch (10 mm) of wire and insert it into the connector
