Charge Tronix

30 kW DC Fast Wall Charger

30 kW DC Fast Wall Charger

$15,800.00 USD
$15,800.00 USD
Sale Sold out
Shipping calculated at checkout.

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

Package contents: Teison Portable Pro charger, TPU cable, user manual
Package weight: Please confirm with Ampere Authority


View full details

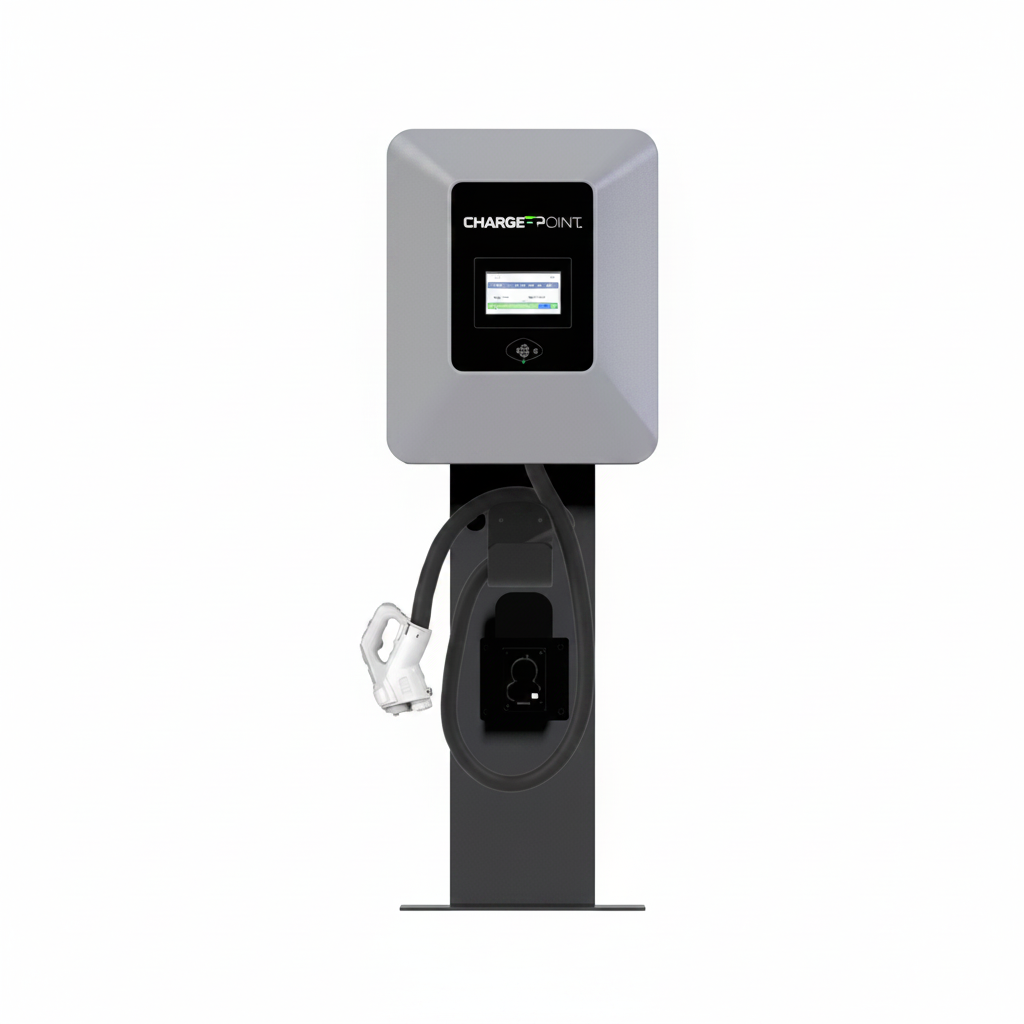

30 kW DC Fast Wall Charger

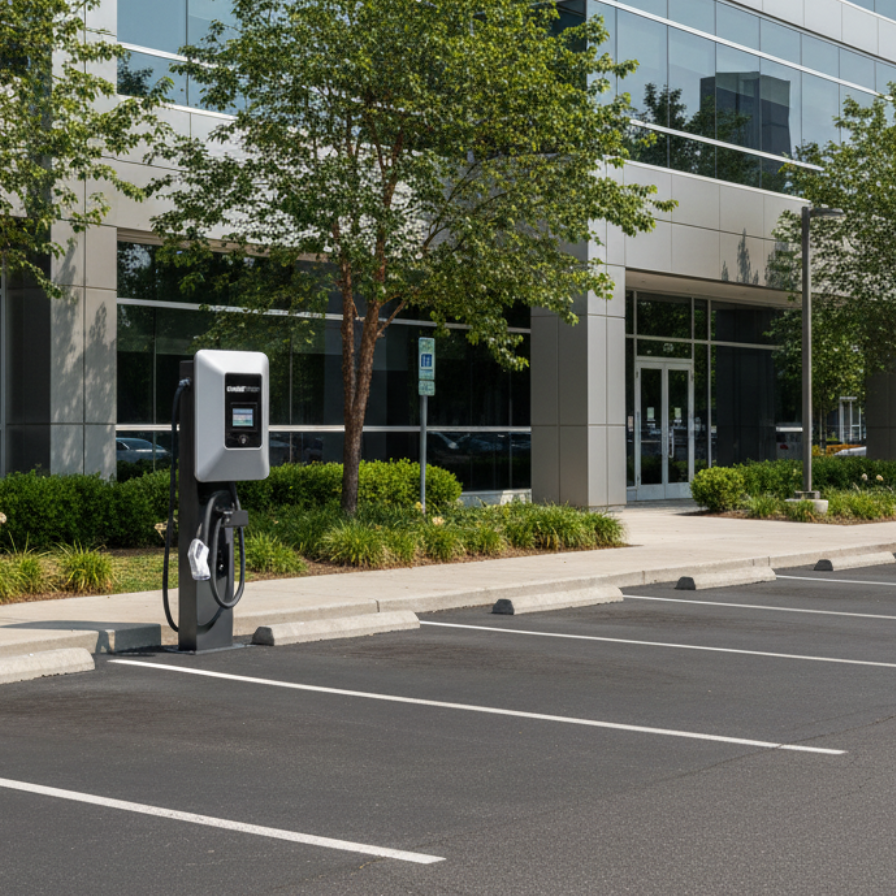

Powerful 30 kW DC fast charger for fleets and commercial sites.

  • Power & Ports: 30 kW DC output, 100 A, 1000 V, CCS1 or NACS, 16 ft cord
  • Display & Interface: 7" LCD screen, intuitive navigation
  • Connectivity & Payments: OCPP, RFID, QR code, WiFi, 4G LTE
  • Durability & Compliance: IP54, Emergency Stop, UL/ETL/CE/CTEP, 2-year warranty
  • Installation & Security: Type 1 single port, wall or pole mount, hardwired

Enables fast charging with secure payments and remote management, reducing downtime for fleets and operators.
