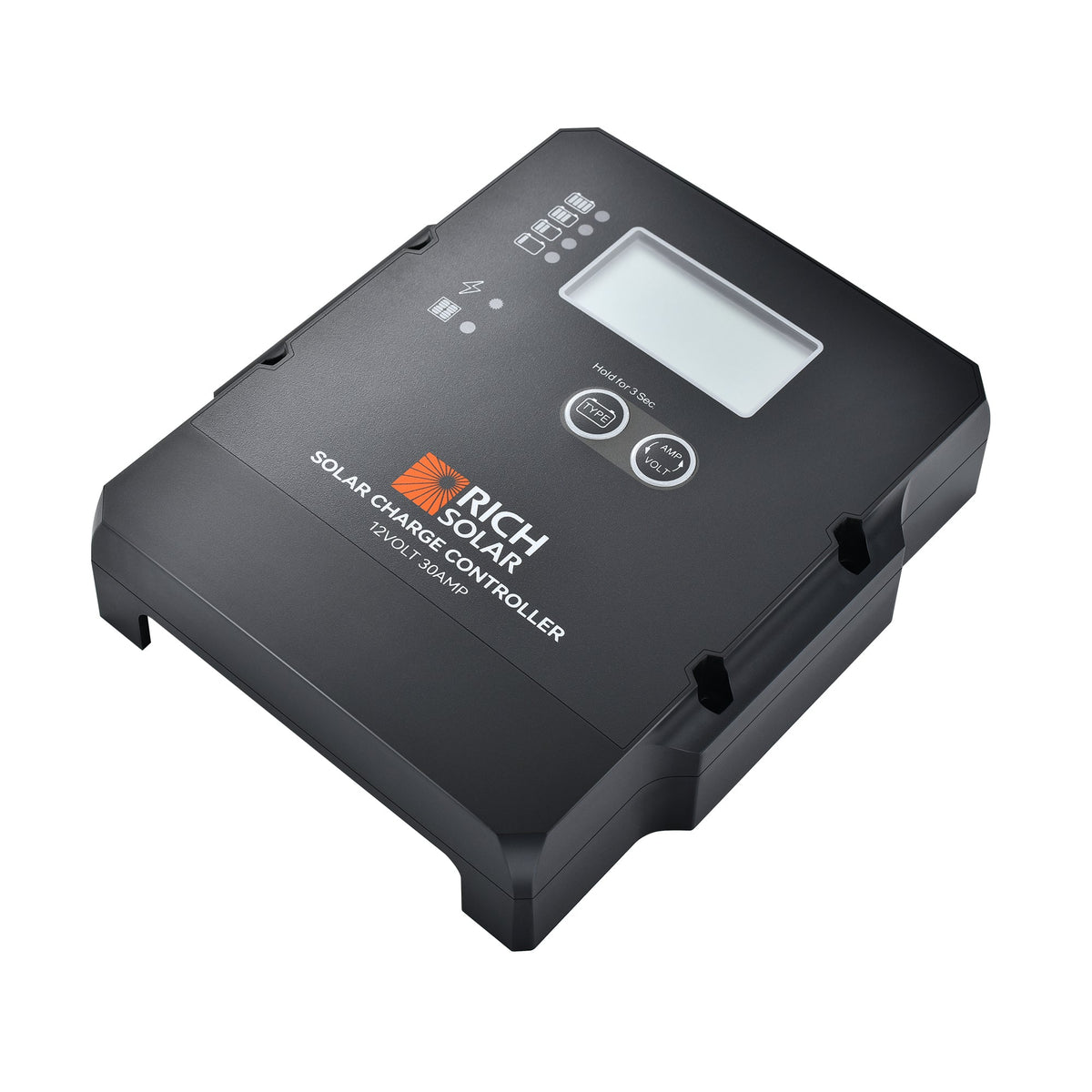

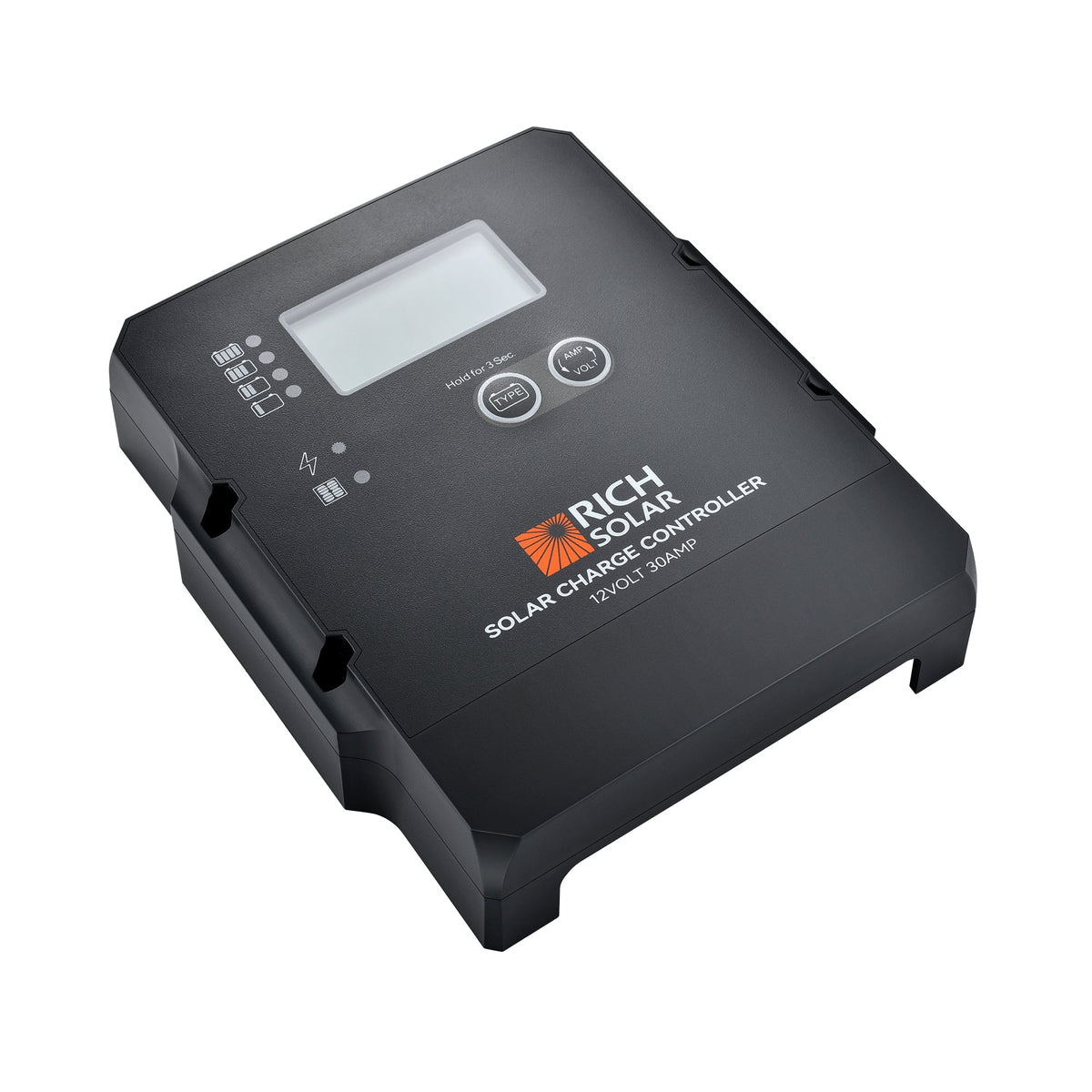

30 Amp PWM Solar Charge Controller
Equipment Type and Primary Applications
12V, 30A PWM solar charge controller for RVs, trailers, campers, vans, boats, and off-grid power systems. The flush-mount controller manages charging from solar panels to 12V battery banks and supports common positive-grounding installations.
Performance Specifications
- Rated solar charging current: maximum 30A.
- Normal solar array input: 15–22 VDC.
- Maximum solar array voltage with no-load output: 25 VDC.
- Lowest operating voltage at the solar or battery side: 8 VDC minimum.
- Maximum solar-to-battery voltage drop: 0.25 VDC.
- Night standby consumption: 5 mA maximum.
- Compatible batteries: flooded, AGM, GEL, calcium, and lithium.
- Operating design: intelligent multi-stage PWM and MOSFET charging.
- Ingress protection: IP22. Enclosure material: ABS plastic.
- Net weight: approximately 300g (10.6 oz).
Safety Features and Certifications
- Protection against over-voltage, short circuit, reverse polarity, overheating, and battery-connection sparks.
- Conformal-coated circuit board helps protect electronics from moisture and corrosion.
- UL 1741 certified.
Installation and Maintenance Requirements

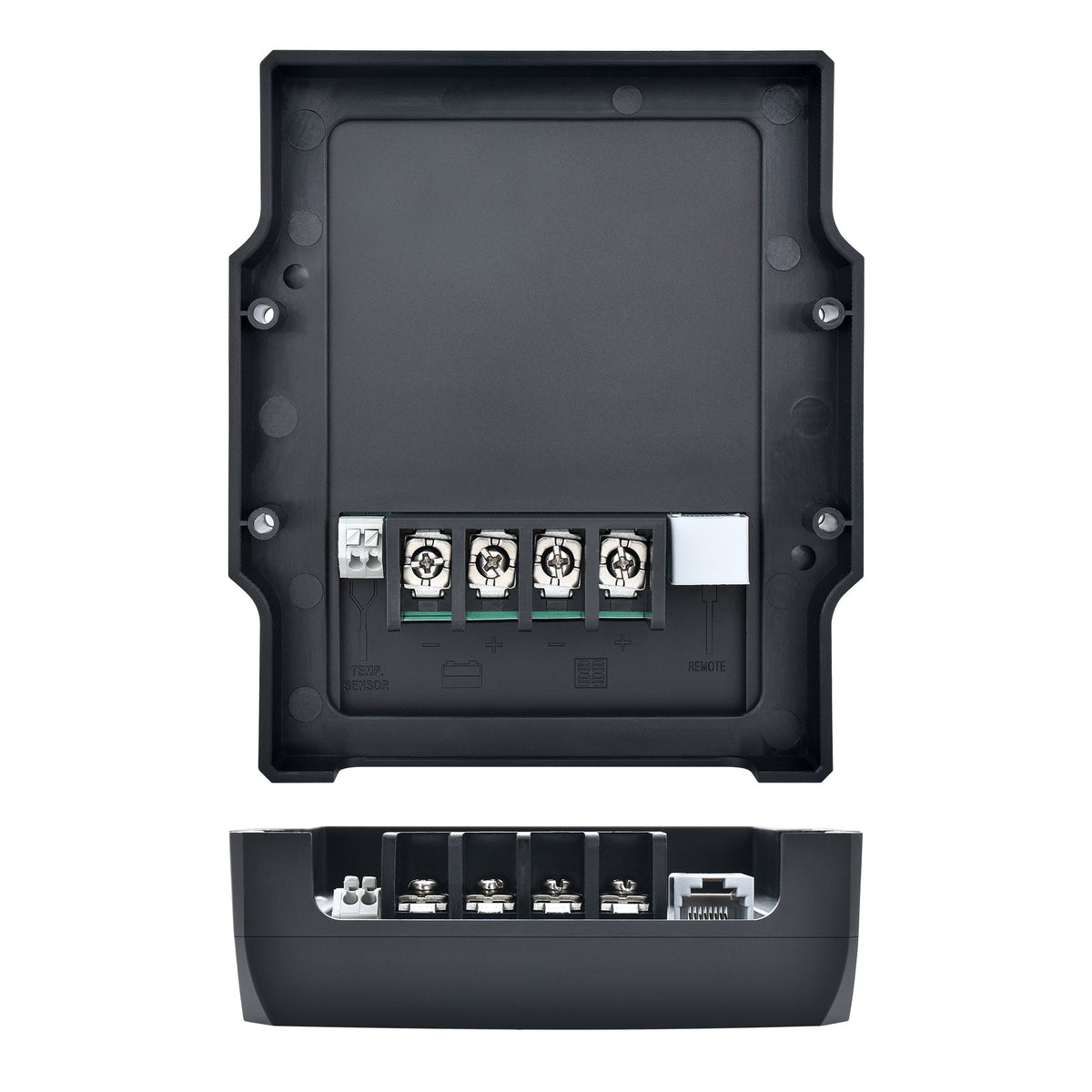

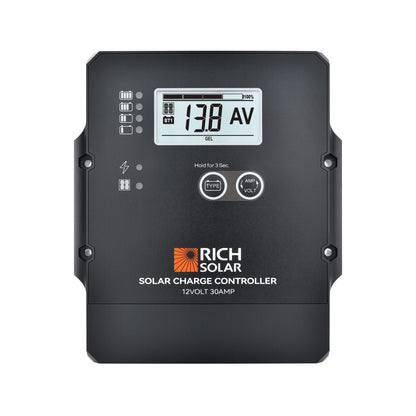

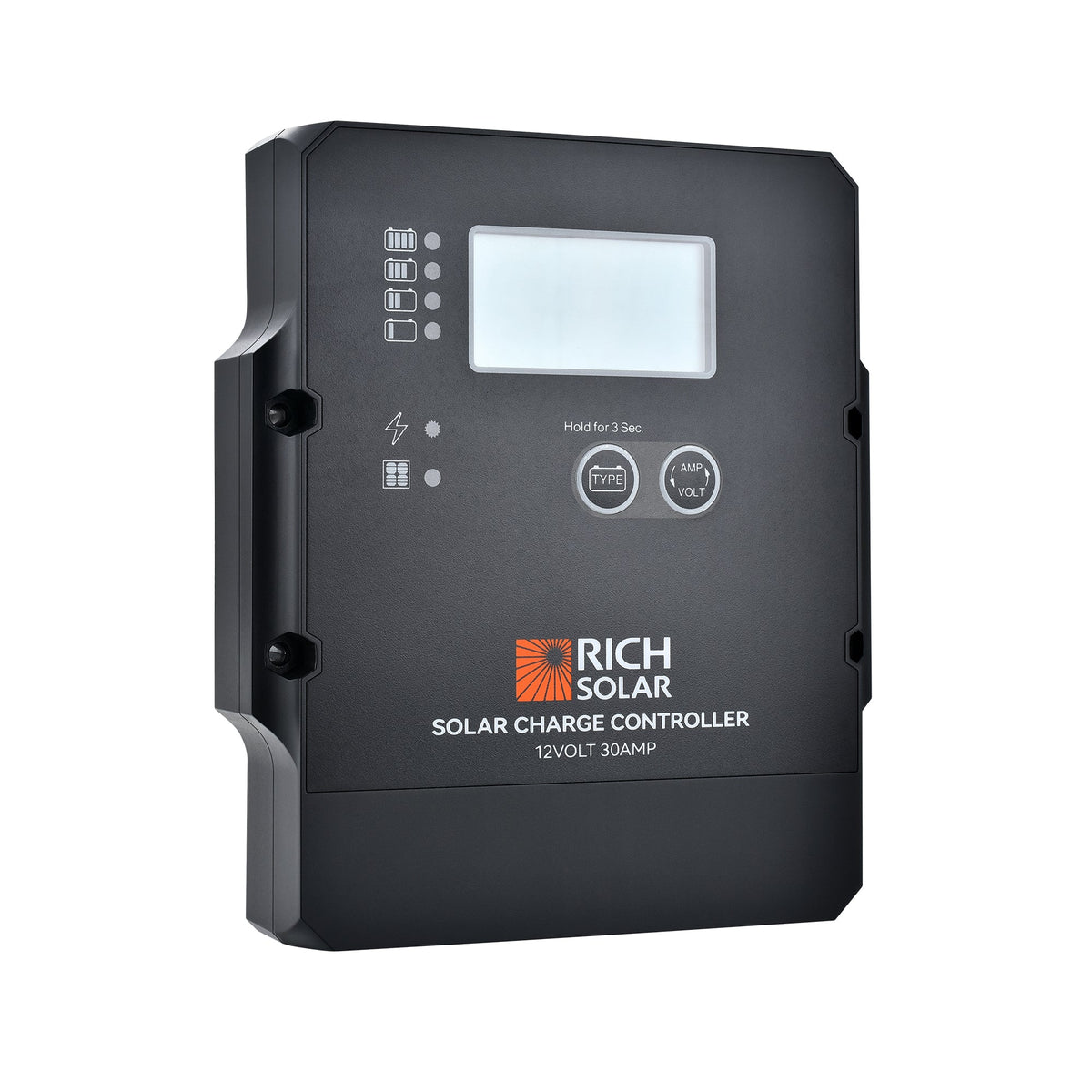

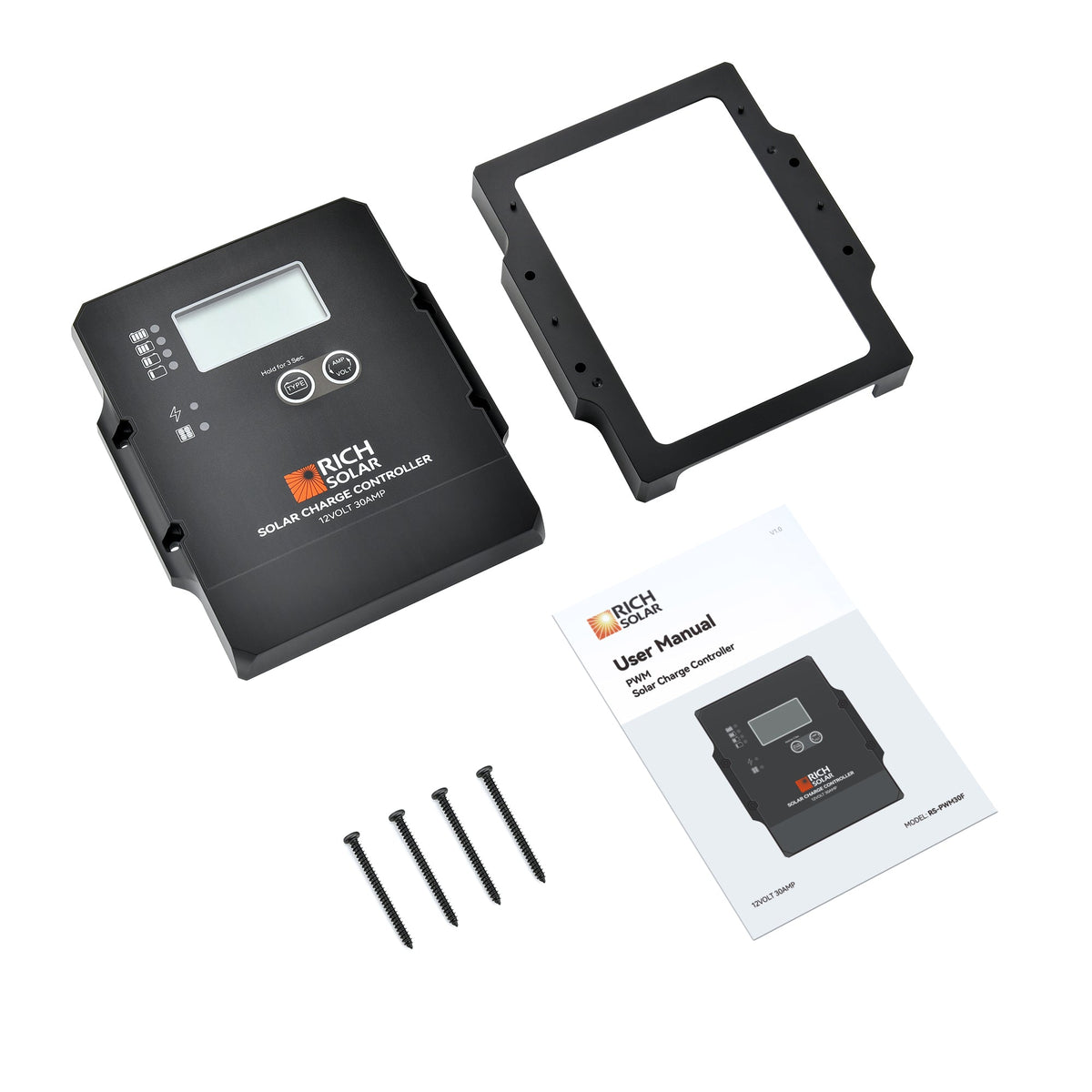

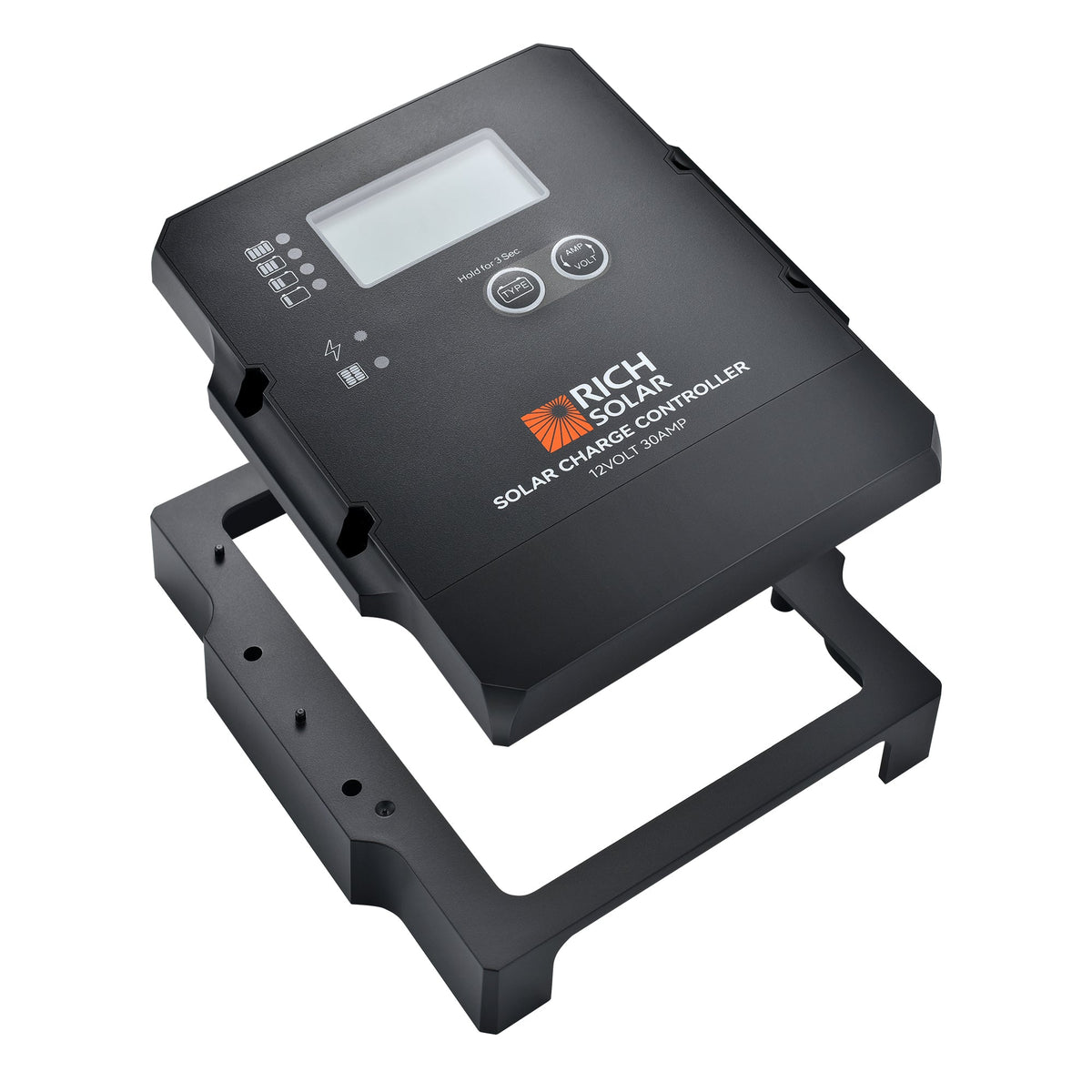

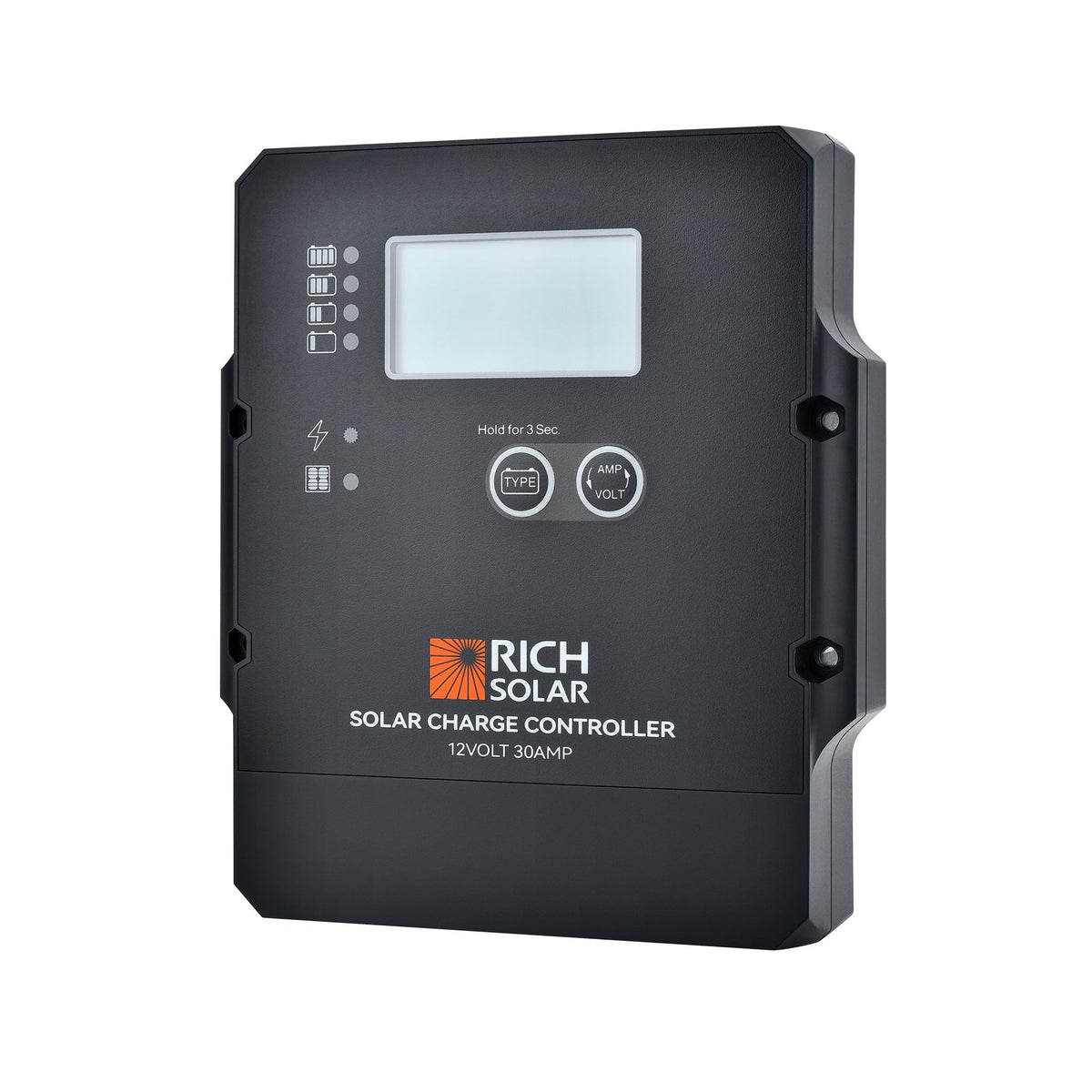

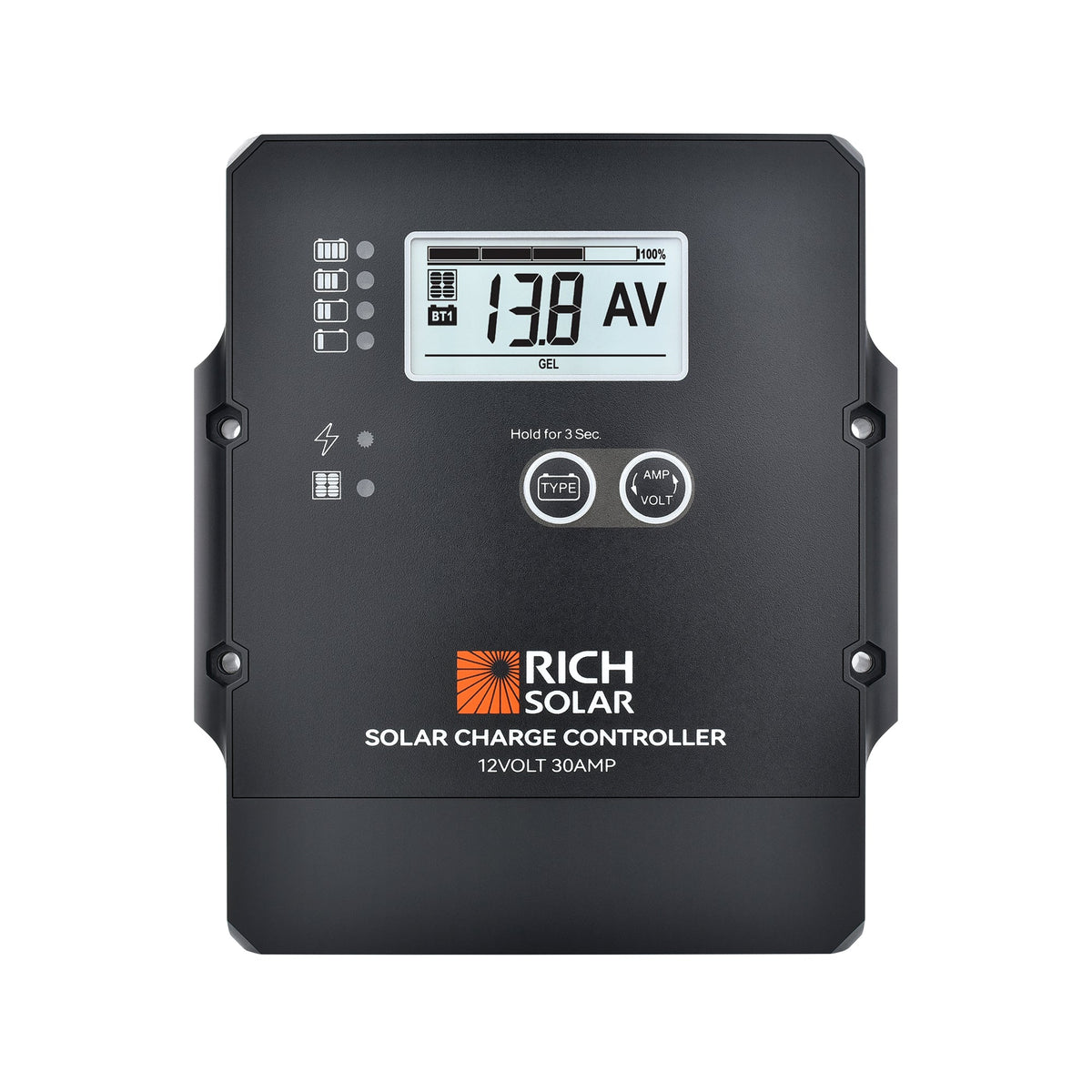

Install vertically on a wall using the flush-mount design. Use stranded wire up to #8 AWG (0.2 in²) at the power terminals and tighten terminals to a maximum of 17 in-lb (1.92 N·m). Connect the battery and solar array according to the controller’s positive-ground configuration. The digital display and LED indicators show charging parameters, battery settings, system status, battery condition, and charging status. An optional external battery temperature sensor supports automatic temperature compensation.
Warranty and Service Information
Branding/References
Product reference: 30 Amp PWM Solar Charge Controller; 12V 30A PWM Controller. Certification reference: UL 1741.
Differentiators
Automatic BMS activation can reactivate protected lithium batteries, while the controller also supports optional temperature-sensor compensation and spark-free battery connection.
