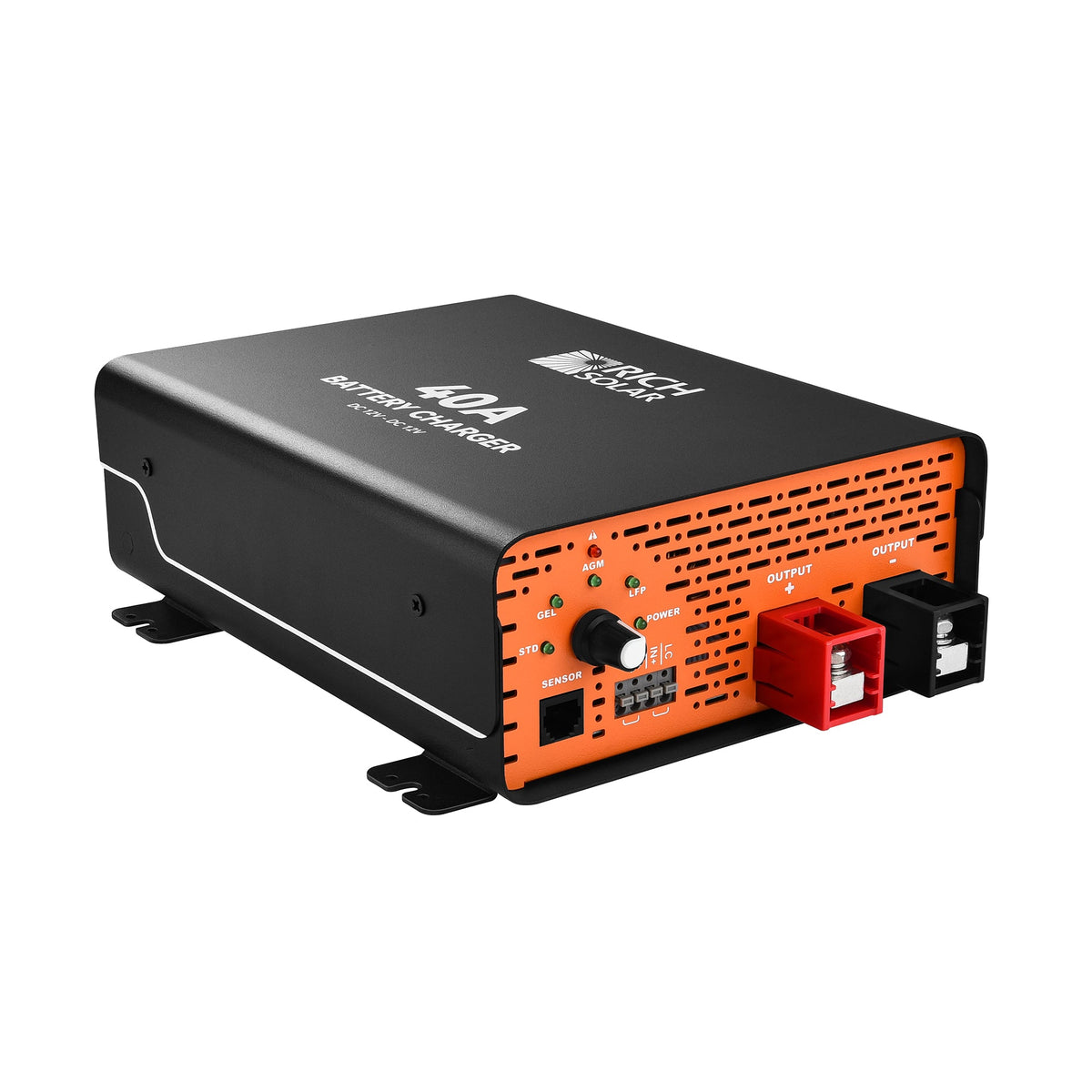

12V 40A DC-DC Battery Charger for RVs, Vans, Boats and Off-Grid Systems
Equipment Type and Primary Applications
12V DC-to-DC battery charger delivering up to 40A from a vehicle electrical system to an auxiliary battery. Designed for RV, camper van, boat, and off-grid power installations using AGM, flooded, gel, sealed, LiFePO₄ (LFP), or lithium-ion batteries.
Performance Specifications
- Input: 12V DC nominal; 10–16V DC operating range.
- Output: 500W rated power; 40A rated current; 37–43A operating current range.
- Input current limiting: ≤68A.
- Charging modes: 2-stage for lithium batteries and 3-stage for lead-acid batteries.
- Peak efficiency: >85% at 14V DC and 30% load.
- Alternator compatibility: smart and conventional 12V alternators.

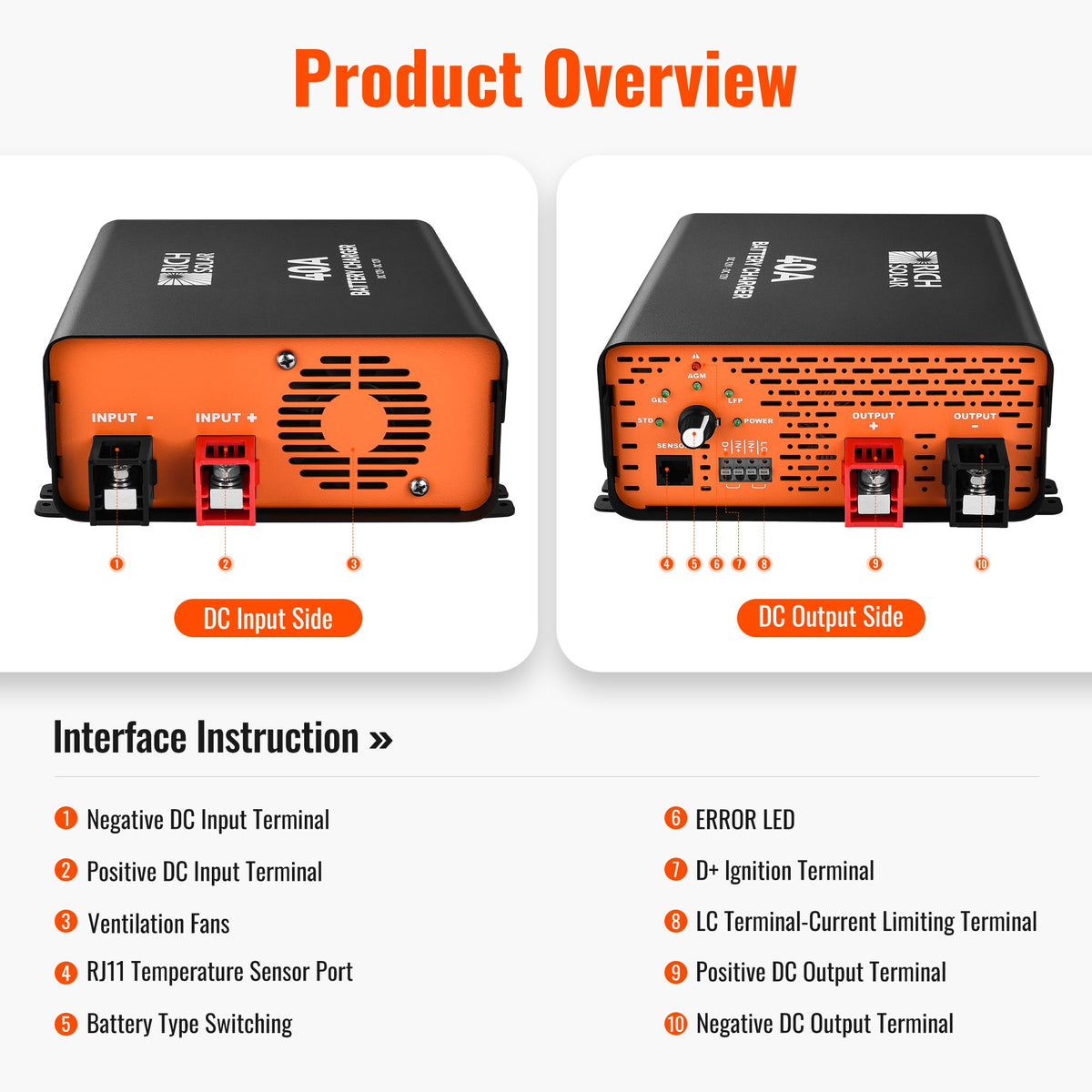

- Temperature-adaptive charging is supported through an optional RJ11 temperature sensor for lead-acid batteries.

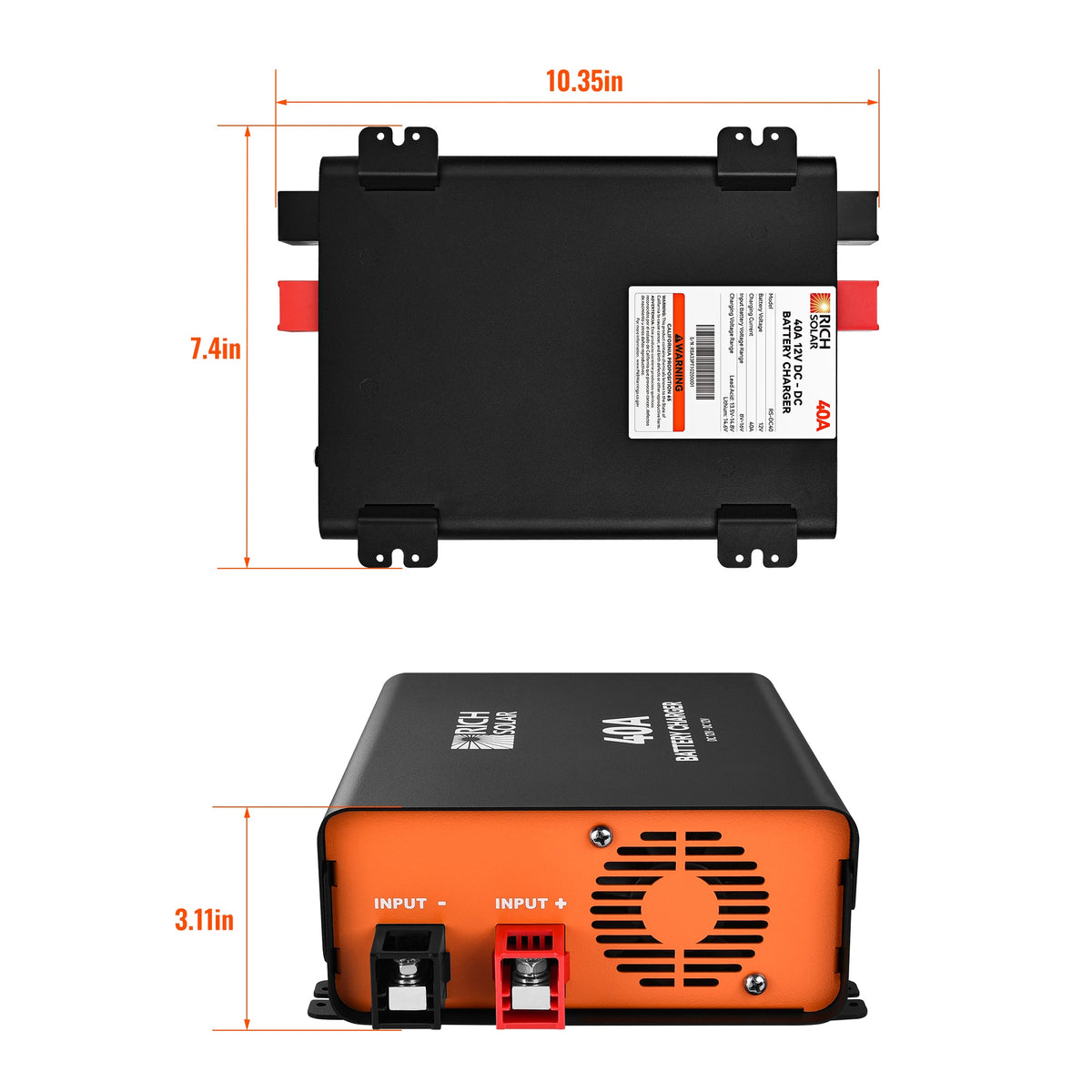

- Dimensions: 10.3 × 7.4 × 3.1 in; net weight: 4.9 lb.
Safety Features and Certifications
- Battery isolation prevents reverse current between starter and auxiliary batteries.
- Over-voltage, over-temperature, and reverse-polarity protection.
- D+ ignition control enables charging only while the engine is running.
- Certifications: CE and RoHS.
Installation and Maintenance Requirements
Installation uses a 12V DC vehicle electrical system and D+ ignition control. Select the charging mode matching the connected battery chemistry, then connect the optional RJ11 temperature sensor when temperature compensation is required for lead-acid charging. Charger dimensions are 10.3 × 7.4 × 3.1 in; package dimensions are 13 × 9 × 5 in.
Warranty and Service Information
Branding/References
Reference product: 12V 40A DC-DC Battery Charger for RVs, Vans, Boats & Off-Grid Systems | Lithium & Lead-Acid.
Differentiators
Selectable 2-stage lithium and 3-stage lead-acid charging, combined with smart-alternator compatibility and D+ ignition control, supports mixed vehicle and auxiliary-battery configurations in one charger.
