12V 20A LiFePO4 Battery Charger, 100–240VAC
Equipment Type and Primary Applications
20A AC-to-DC battery charger for 12V LiFePO4 batteries. It is designed for home, vehicle, and other indoor or outdoor charging applications where a 100–240V AC power source is available.
Performance Specifications
- AC input: 100–240V AC, 47–63Hz
- Maximum input current: 4A
- DC output: 14.4V ±0.2V
- Charging current: up to 20A
- Charging method: three-stage Pre-Charge, Constant Current, and Constant Voltage
- Operating temperature: -4°F to 104°F
- Storage temperature: -40°F to 158°F
- Protection rating: IP65

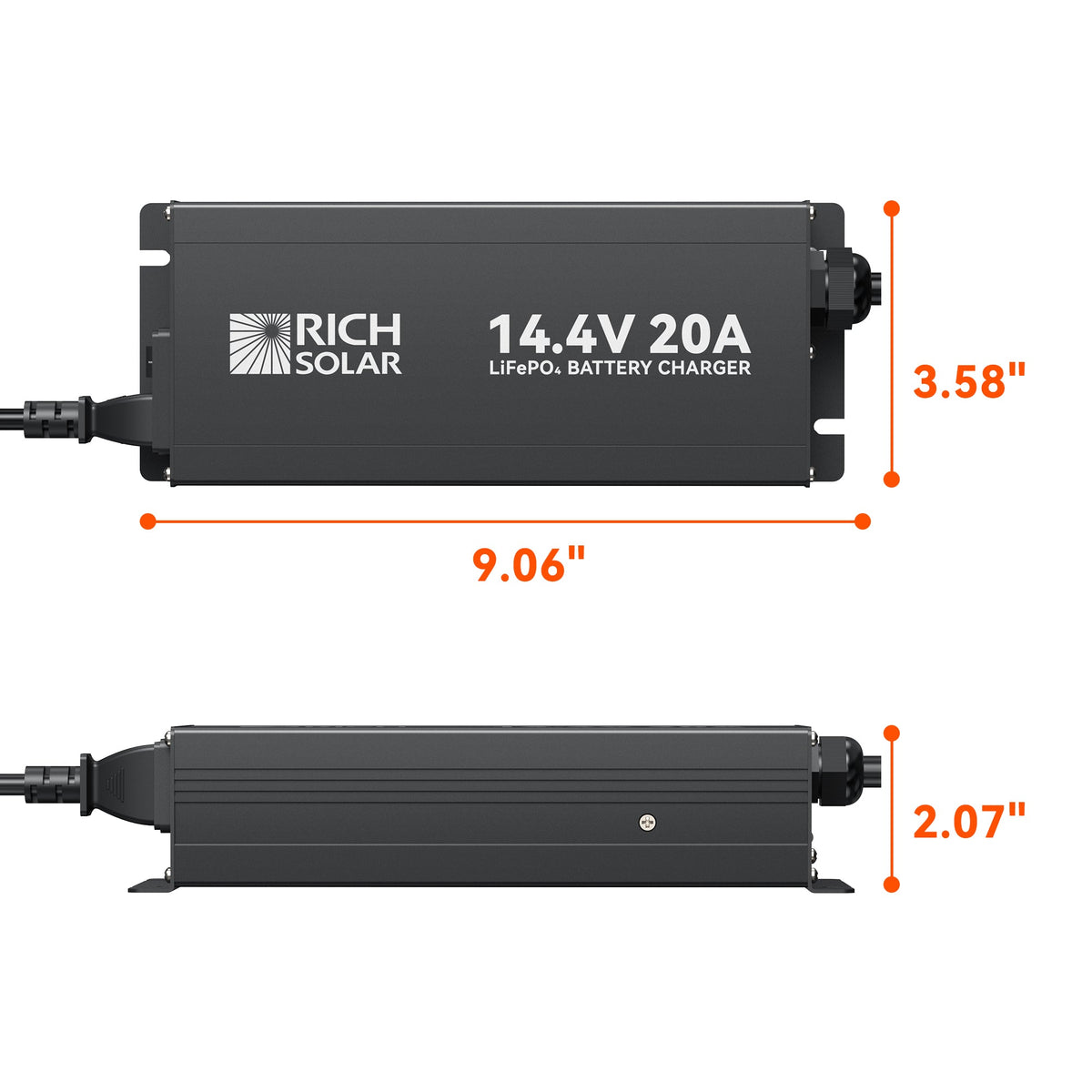

- Dimensions: 9.06 × 3.58 × 2.07 inches
- Net weight: 3.75 lb
Safety Features and Certifications
- Automatic BMS activation for BMS-protected LiFePO4 batteries
- Over-temperature, reverse-polarity, short-circuit, and over-voltage protection
- IP65 weather-resistant enclosure for indoor and outdoor operation
- LED indicators display charging status and operating conditions
Installation and Maintenance Requirements

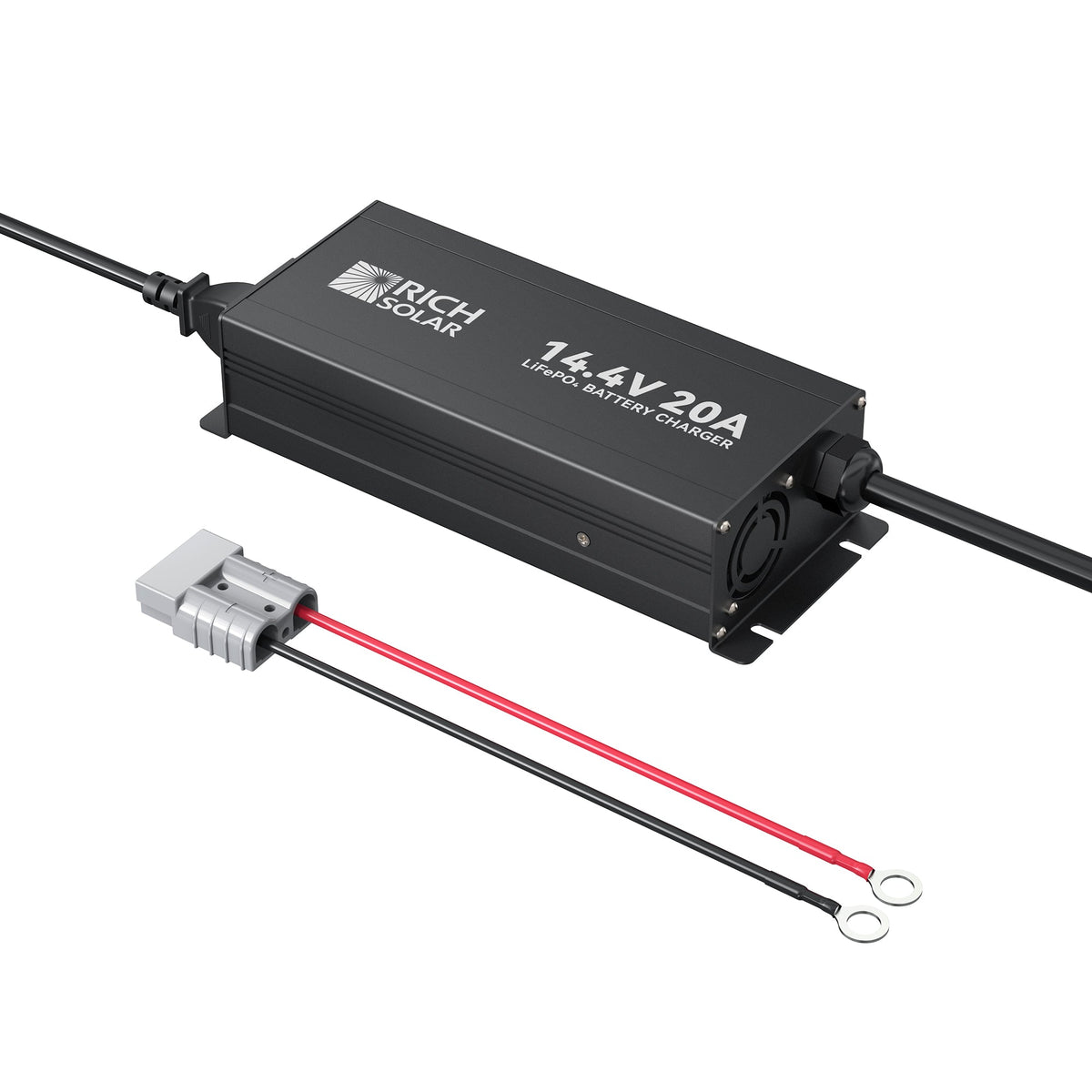

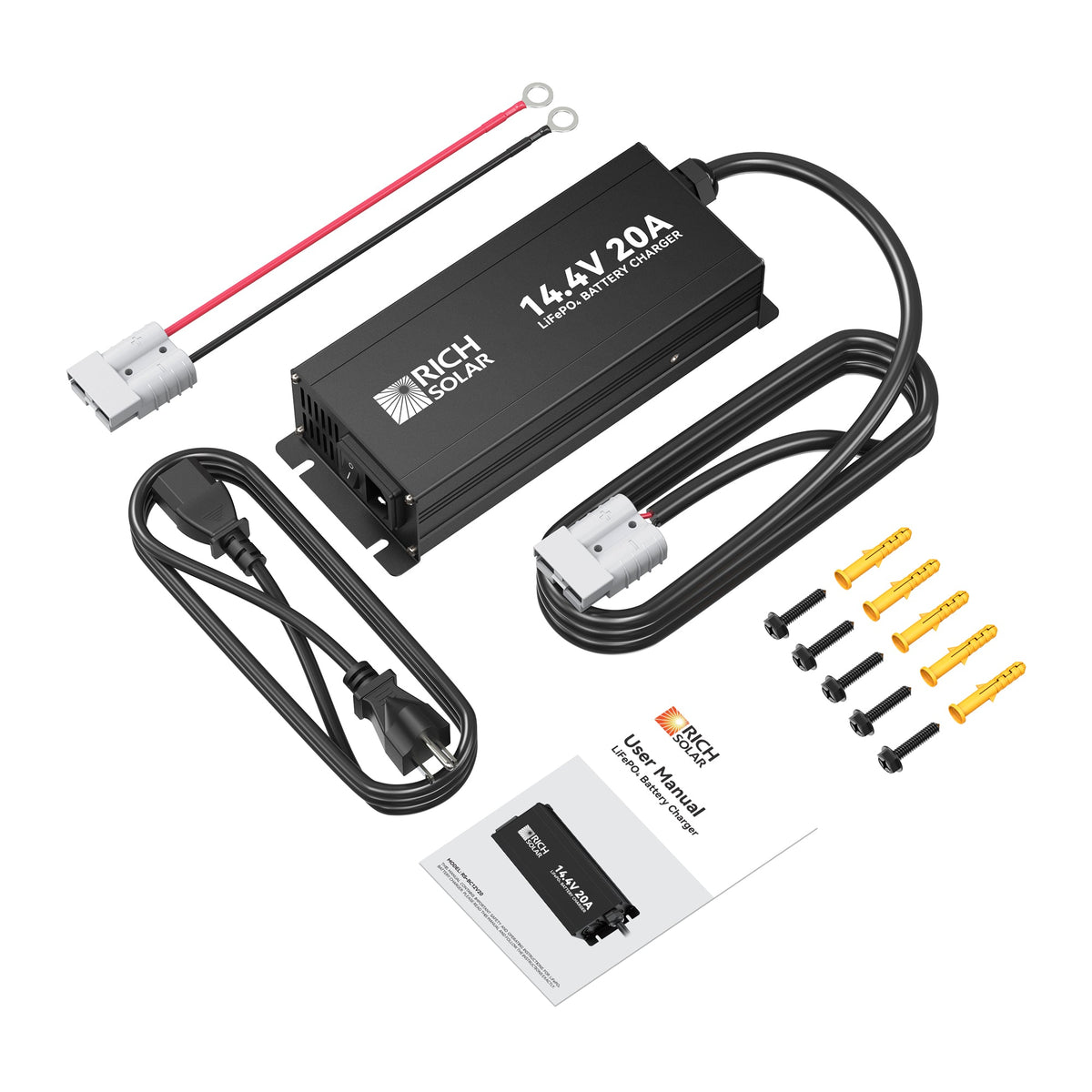

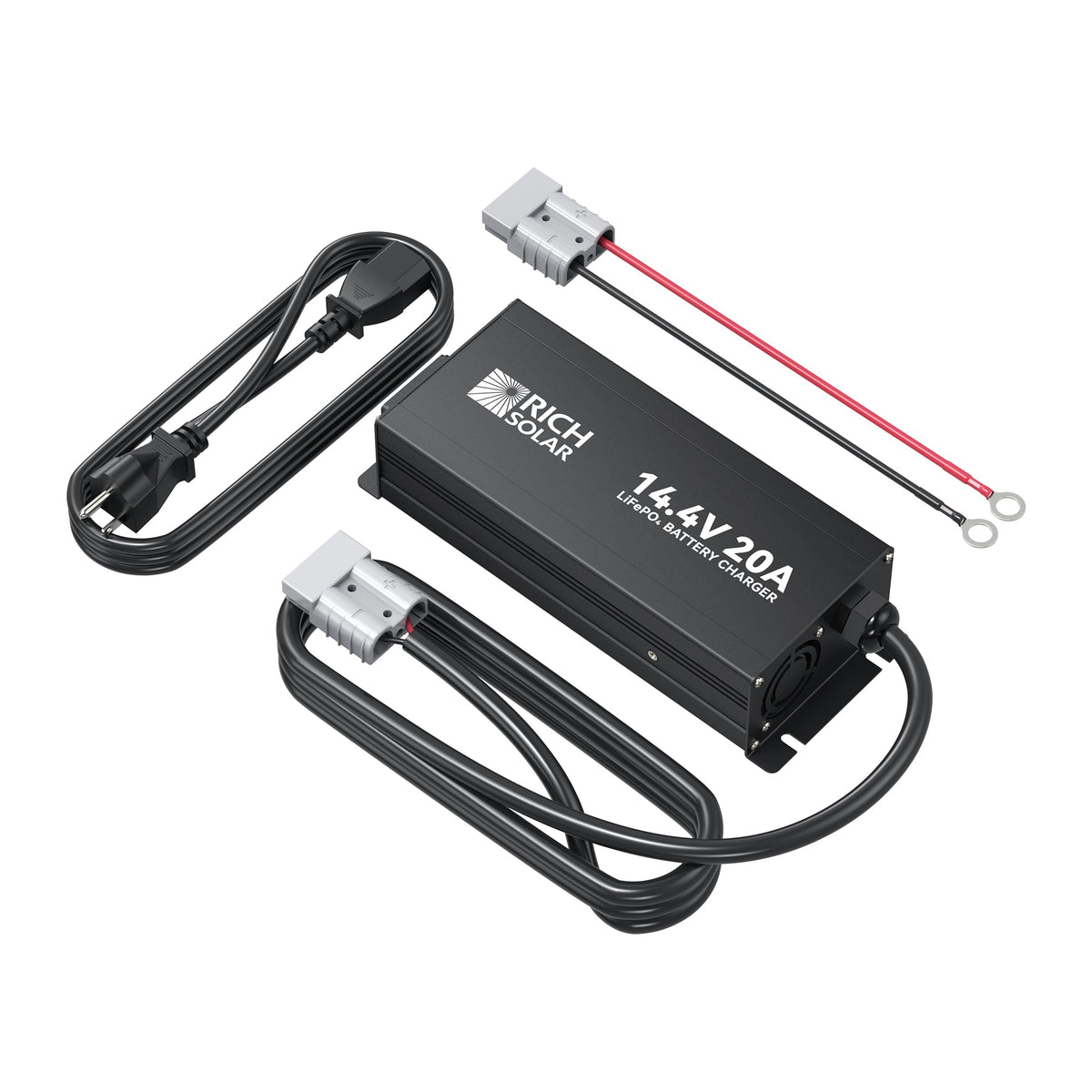

Connect the charger to a 100–240V AC supply, then connect the battery using the included M10 ring terminals or 50A Anderson connector. Keep the unit within its specified operating temperature range and use the supplied connection options for battery installation.
Warranty and Service Information
Branding/References
Product reference: 12V(14.6V) 20A | 100-240VAC | 12V LiFePO4 Battery Charger.
Differentiators
The charger combines 20A fast charging, automatic BMS wake-up, worldwide 100–240V AC input, three-stage charging control, and dual battery connection options in one IP65-rated unit.
