12V 10A LiFePO4 Battery Charger, 14.4V DC Output
Equipment Type and Primary Applications
This 10A smart battery charger provides three-stage charging for 12V LiFePO4 batteries, with automatic BMS activation for batteries protected by a battery management system. It is designed for indoor and outdoor charging where 100–240V AC power is available, including home and mobile charging applications.
Performance Specifications
- AC input: 100–240V AC, 47–63Hz; maximum input current: 2A
- DC output: 14.4V ±0.2V DC; charging current: up to 10A
- Charging method: Pre-Charge, Constant Current, and Constant Voltage stages
- Battery compatibility: 12V LiFePO4 batteries
- Operating temperature: -4°F to 104°F; storage temperature: -40°F to 158°F
- Environmental protection: IP65

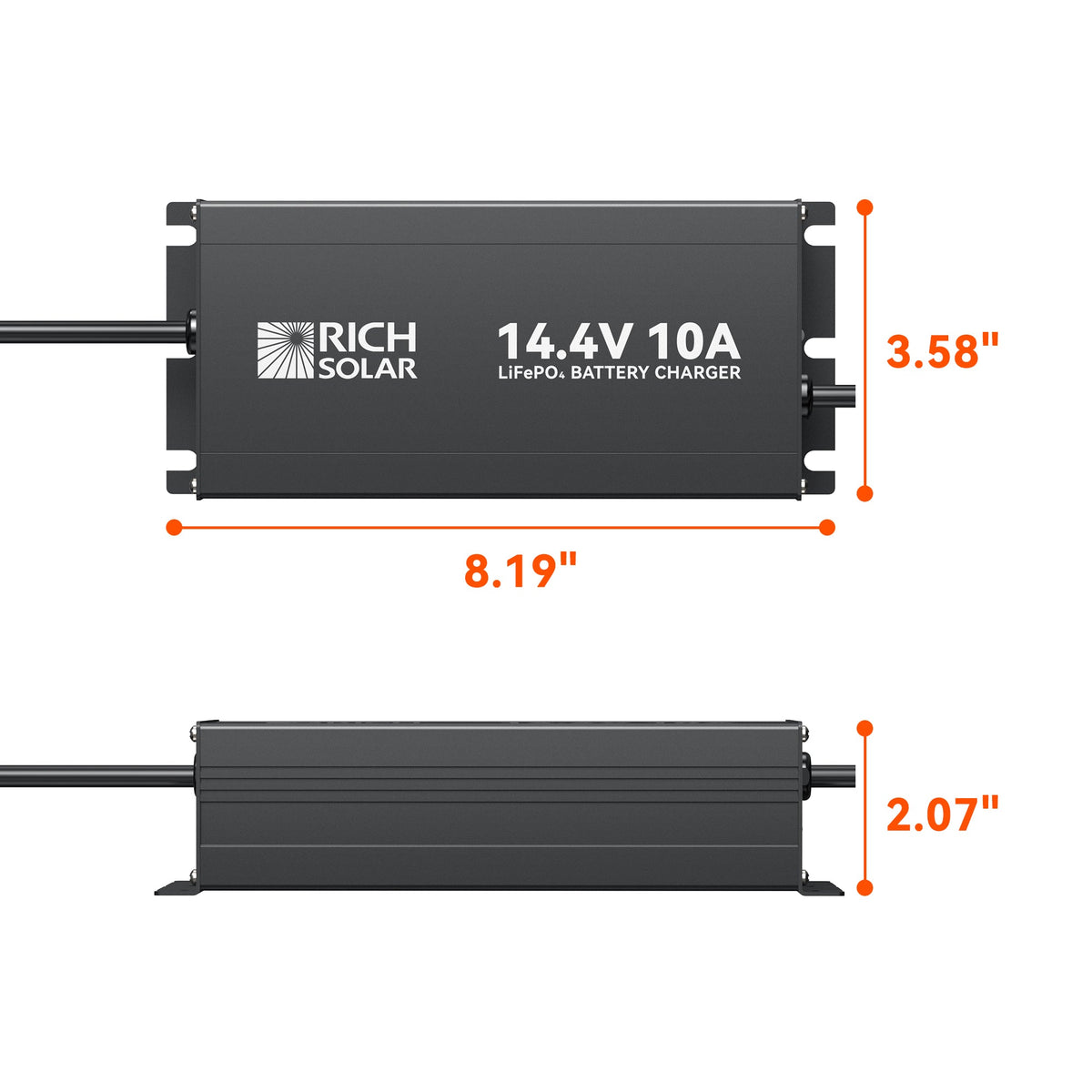

- Dimensions: 8.19 × 3.58 × 2.07 in; net weight: 3.86 lb
Safety Features and Certifications
- Over-temperature, reverse-polarity, short-circuit, and over-voltage protection
- IP65 weather-resistant enclosure for indoor and outdoor operation

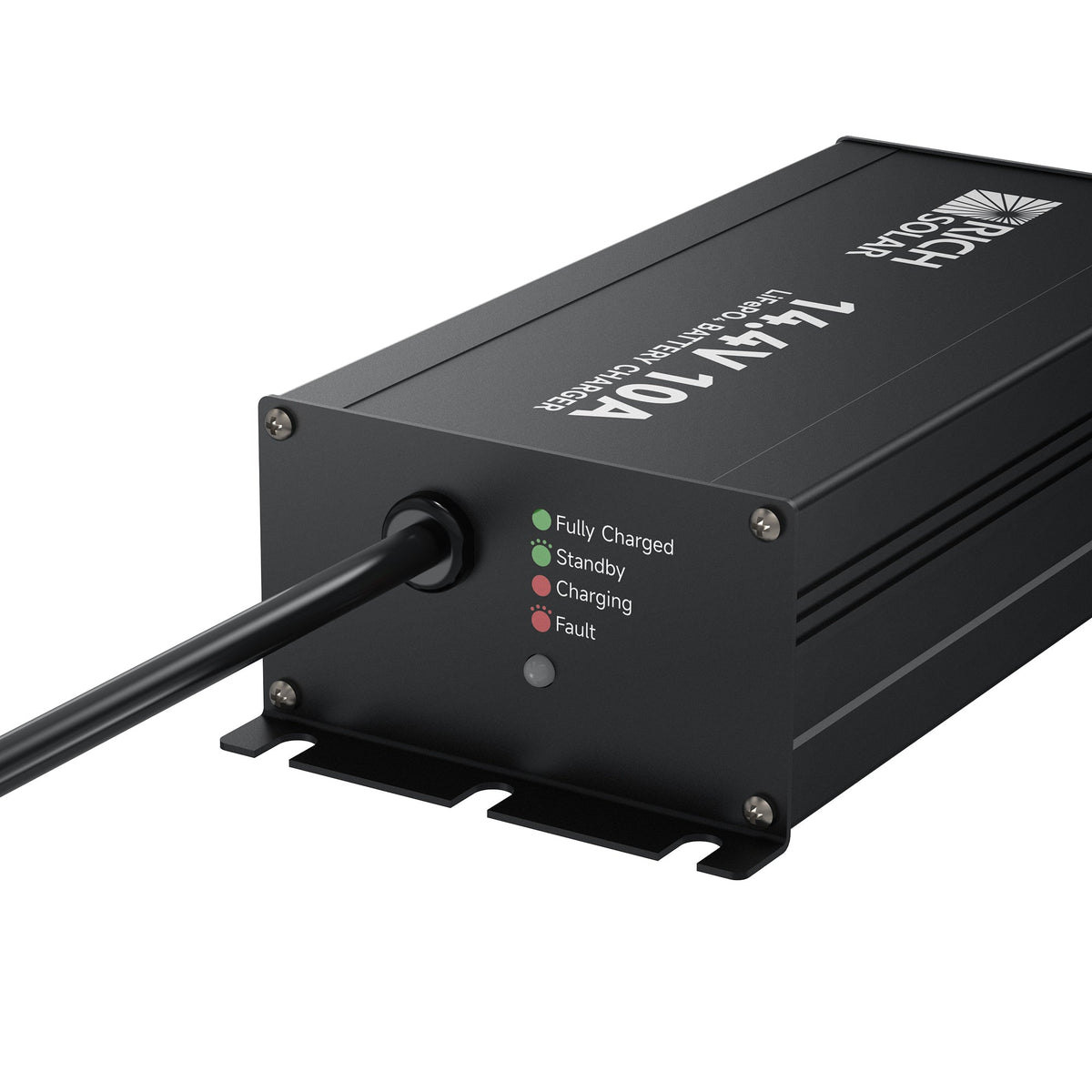

- LED indicators display charging status and operating conditions
Installation and Maintenance Requirements

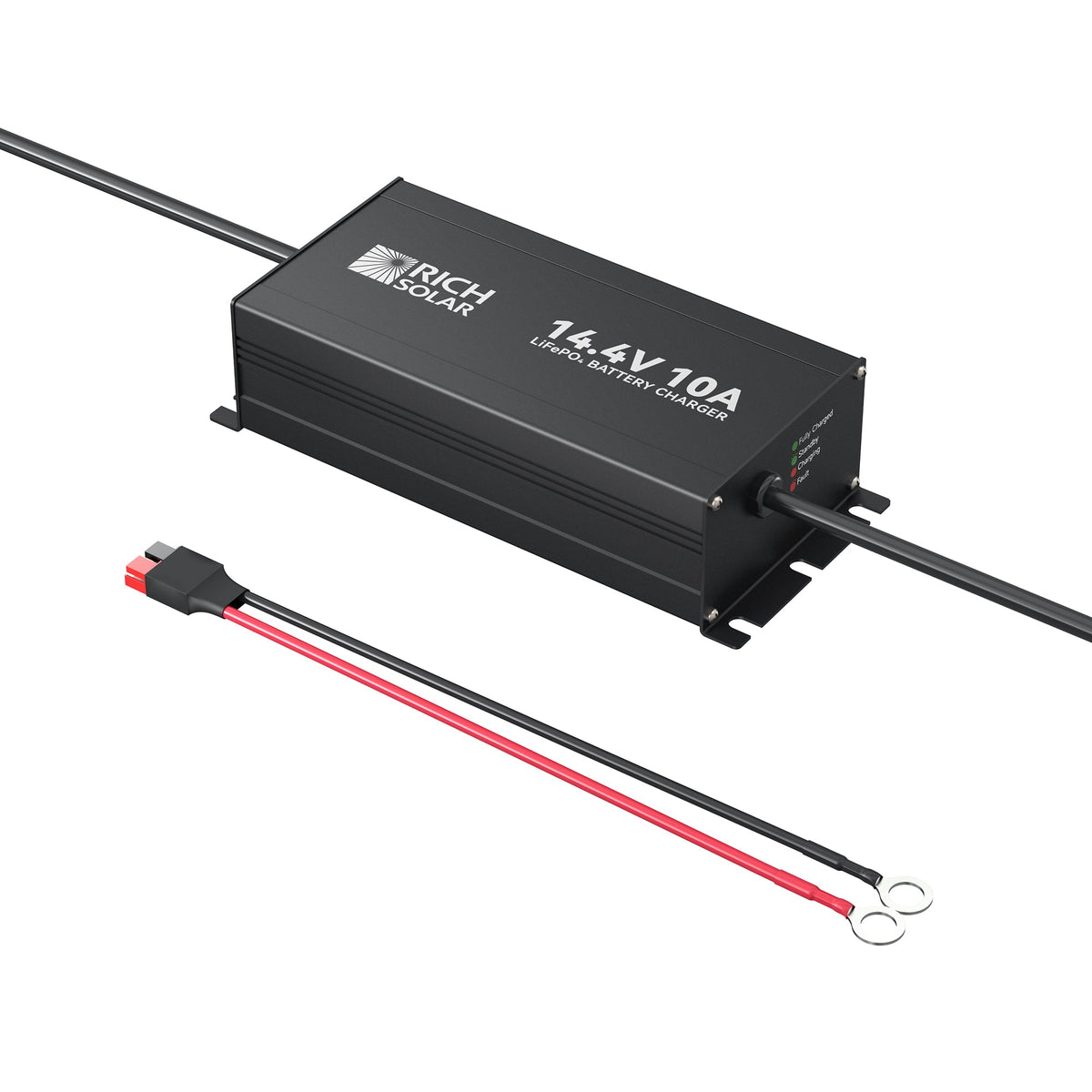

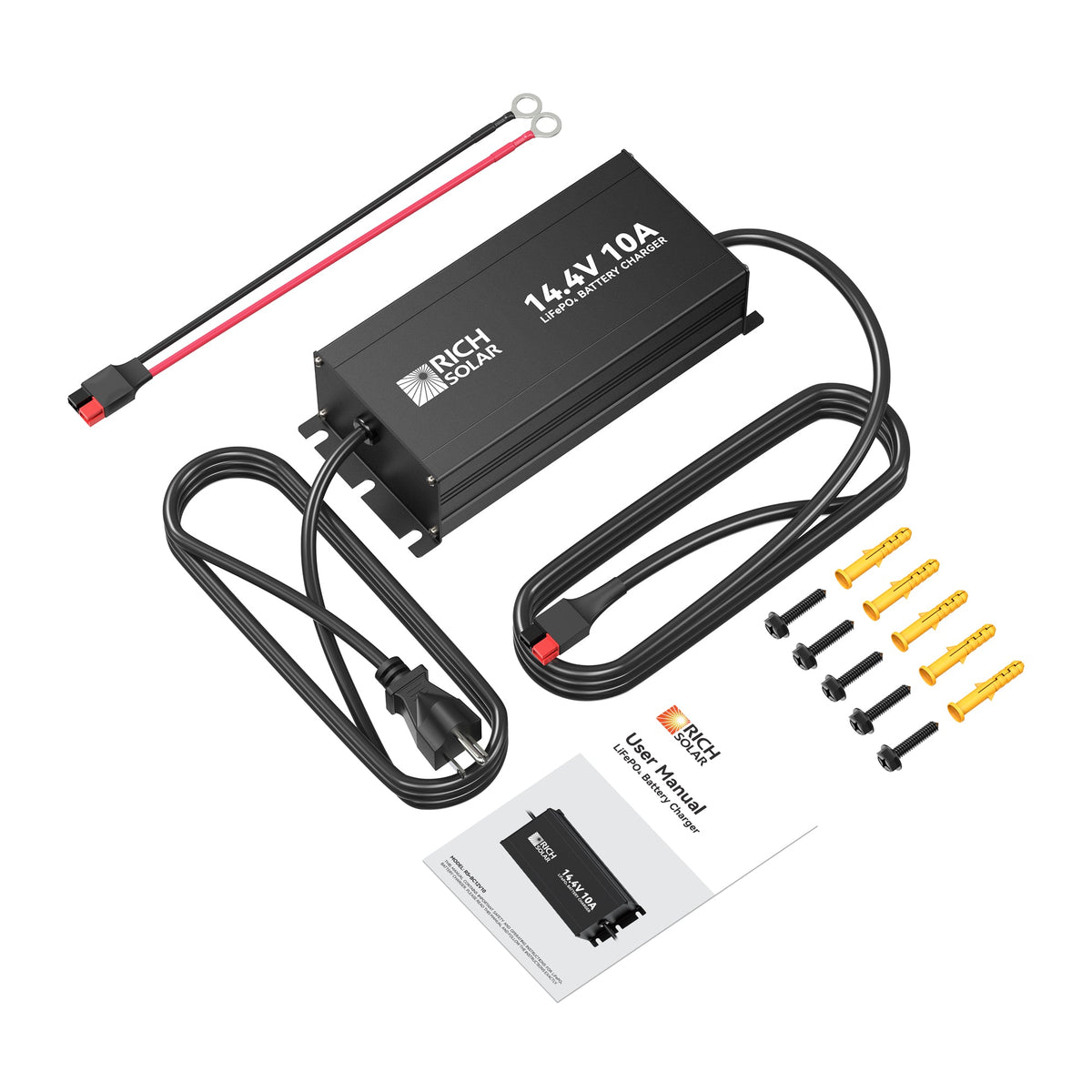

- Connect to a 100–240V AC supply and attach the battery using the included M10 ring terminals or 35A Anderson connector.
- Allow sufficient clearance around the charger for ventilation and keep connection points clean and secure.
- Inspect terminals, connectors, enclosure, and cables regularly for contamination, damage, or loose connections.
Warranty and Service Information
Branding/References
Differentiators
The charger combines 10A output, automatic BMS activation, universal 100–240V AC input, and IP65 protection in one LiFePO4-specific charging unit. Multiple battery connection options support both ring-terminal and Anderson-compatible installations.
