Victron GX-IO Extender 150 [BPP900800150]

Victron GX-IO Extender 150 [BPP900800150]

$124.95 USD
$147.00 USD $124.95 USD
Sale Sold out
Shipping calculated at checkout.

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

Package contents: Teison Portable Pro charger, TPU cable, user manual
Package weight: Please confirm with Ampere Authority


View full details

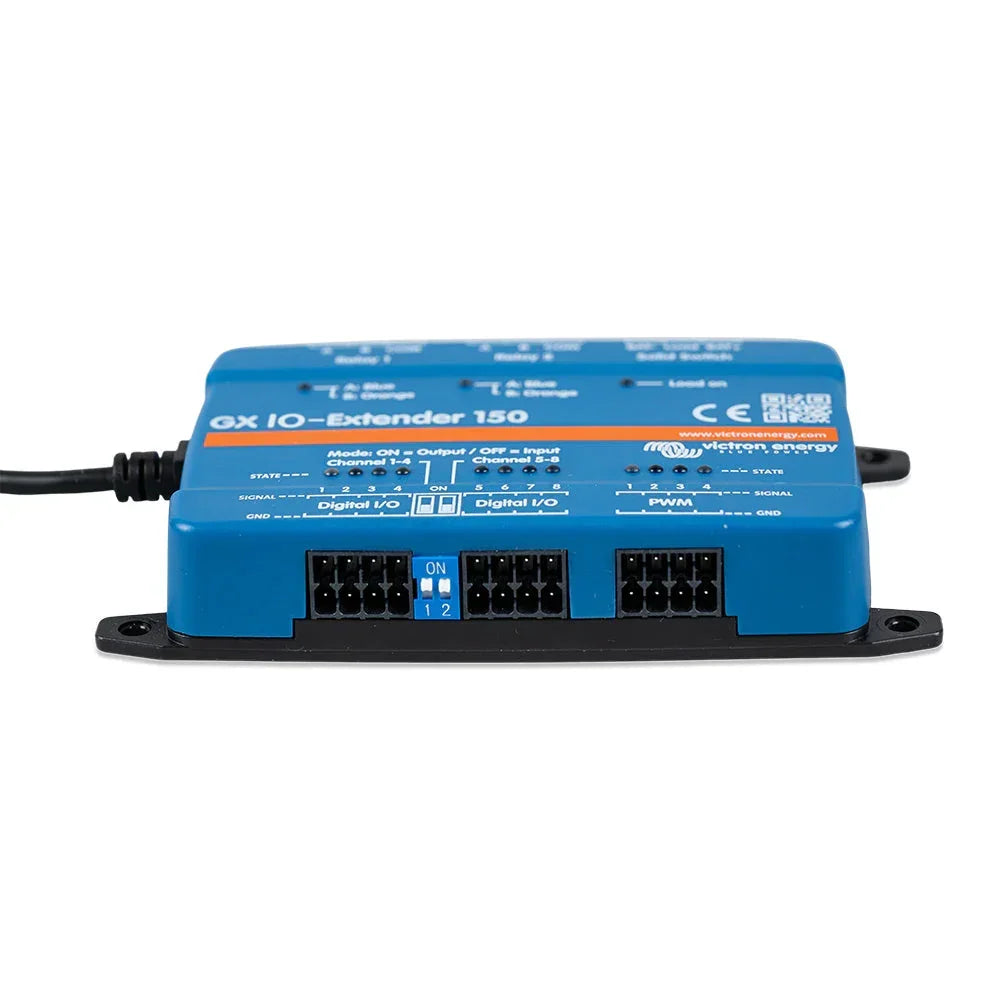

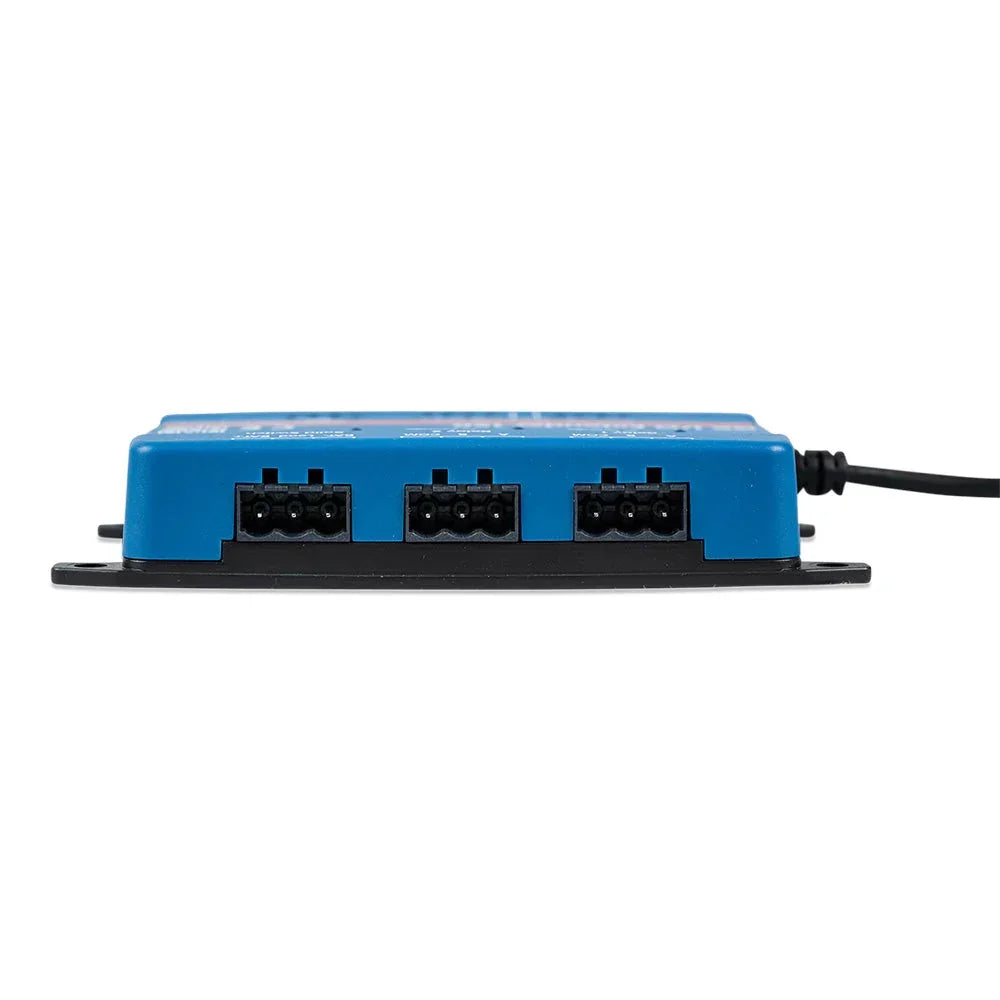

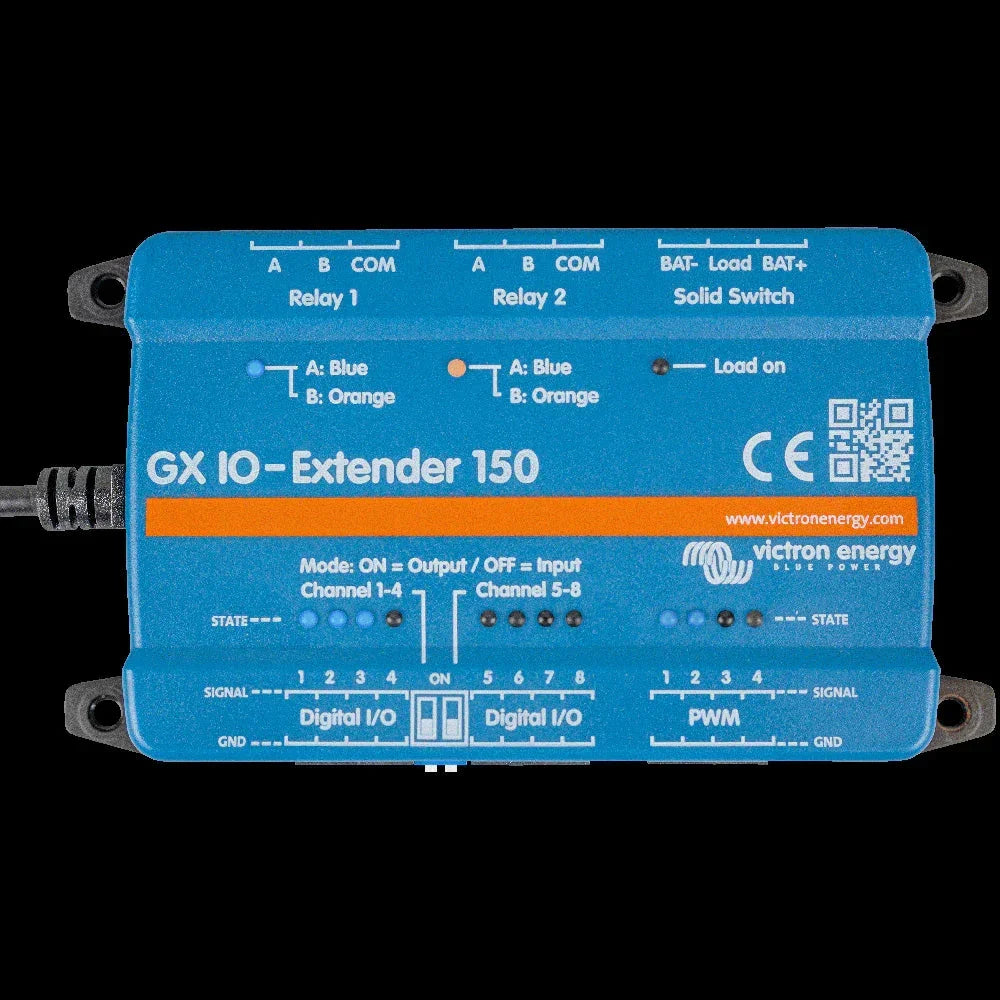

GX-IO Extender 150

The GX IO-Extender 150 enhances the input and output (I/O) capabilities of a GX device, enabling seamless integration with additional sensors, controls, and external devices. It connects via USB, which also serves as its power source, providing a simple and efficient expansion solution. The device can be controlled using Node-RED on the GX device as well as the Switch pane in the user interface.

Features:

  • 8 digital I/Os, configurable as 8 inputs, 8 outputs, or 4 inputs + 4 outputs
  • PWM output for precise control applications
  • Two latching relays for low-power switching
  • A solid switch for controlling DC loads that can be resistive, capacitive, or inductive (such as the coil of a high-power contactor)
  • Pluggable spring terminals for fast and secure connections
  • Configurable via Node-RED for easy automation and custom logic
Please contact your dealer for any returns, repairs or support issues related to this product.
Quick Guide (pdf)
Owner's Manual (pdf)
