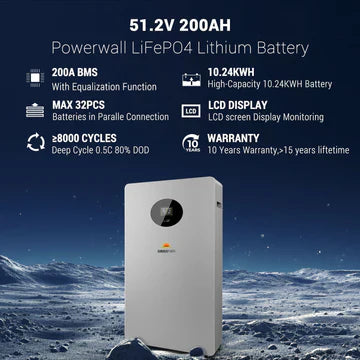

SunGold Powerwall X Lithium Battery 51.2V 200Ah SG48200T
Equipment Type: Lithium Iron Phosphate (LFP) energy storage battery assembly.
Primary Applications: Residential and commercial energy storage; backup power for homes, microgrids, and integrated solar systems; compatible with a broad range of inverters and energy storage configurations.
Performance Specifications
- Nominal voltage: 51.2 V
- Rated capacity: 200 Ah
- Nominal energy per unit: ~10.24 kWh
- Max parallel connections: up to 32 units
- System energy (32 in parallel): up to ~327.68 kWh

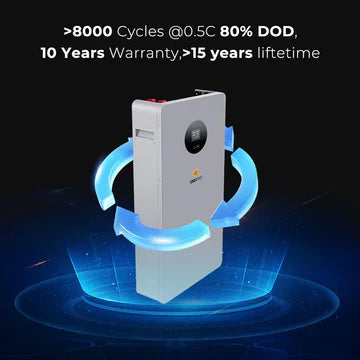

- Cycle life: >8000 deep cycles

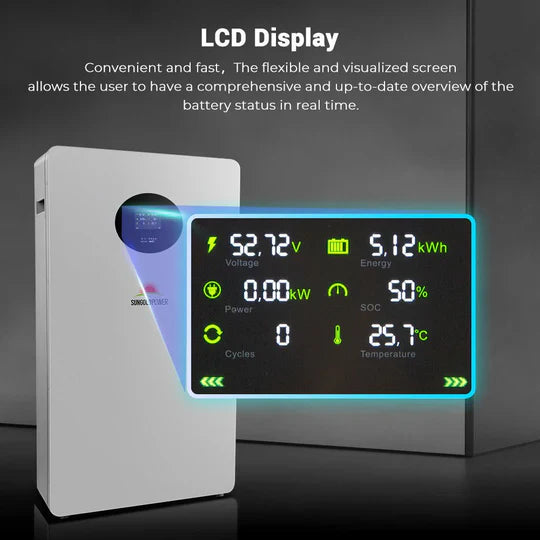

- Monitoring: touch-screen panel displaying state of charge, current, and voltage
- Protection: intelligent BMS guards against overcharge, deep discharge, overcurrent, overheating, and short circuits
- Communications: CAN/RS485 interface for inverter integration
Safety Features and Certifications
- Intelligent BMS protection as described
- Certifications: not specified in the provided data
Installation and Maintenance Requirements
- Installation details such as required utilities, space, commissioning steps, and preventive maintenance intervals are not specified in the provided data
- General guidance: ensure compatibility with inverters and proper enclosure mounting; follow installer recommendations for ventilation and thermal management
Warranty and Service Information
- Warranty: 10 years
- Expected lifespan: up to 15 years
- Support: technical support offered
- Response times and specific service terms: not specified in the provided data
Branding/References
- Manufacturer: SunGold Power
- Model: SG48200T
- Product family: Powerwall X; Manuals/Datasheets: Download
Differentiators
- Expandable architecture supporting up to 32 units in parallel for a total system capacity of about 328 kWh
- Integrated touch-screen monitoring with real-time state of charge, current, and voltage
