SunGold Power 8kW 48V Split Phase Solar Inverter With Inbuilt 2 MPPT WiFi Module

SunGold Power 8kW 48V Split Phase Solar Inverter With Inbuilt 2 MPPT WiFi Module

$1,550.00 USD
$1,790.00 USD $1,550.00 USD
Sale Sold out
Shipping calculated at checkout.

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

Package contents: Teison Portable Pro charger, TPU cable, user manual
Package weight: Please confirm with Ampere Authority


View full details

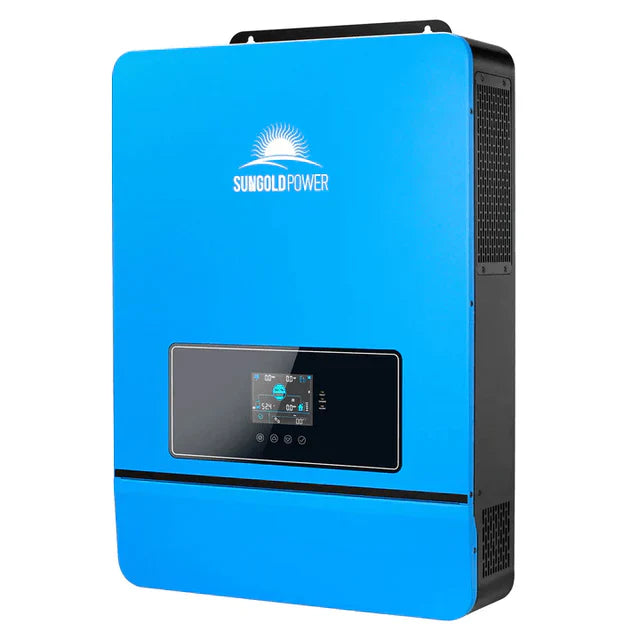

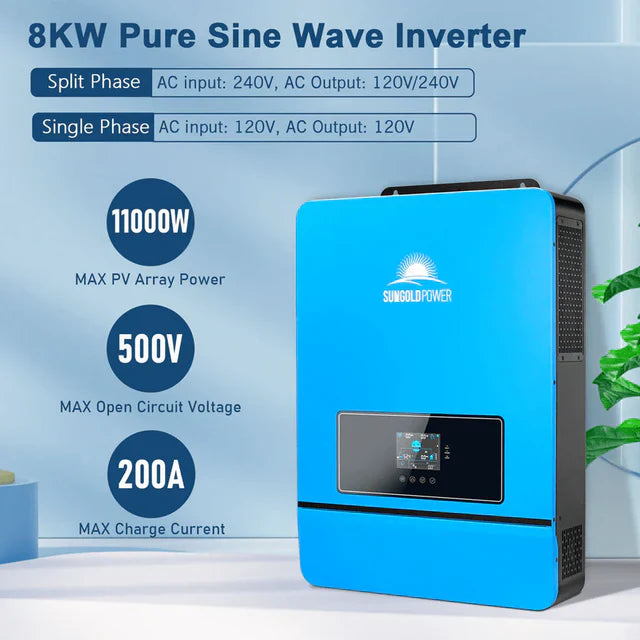

SunGold Power 8KW 48V Split Phase Solar Inverter

Equipment Type and Primary Applications

  • Equipment Type: 8 kW Pure Sine Wave Solar Inverter with integrated battery charging

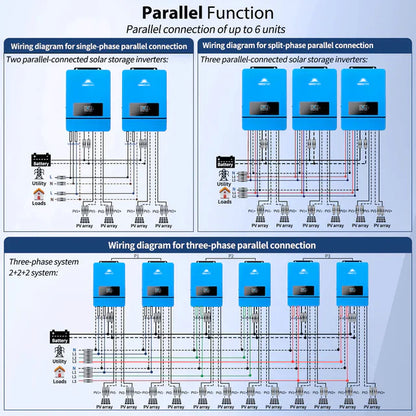

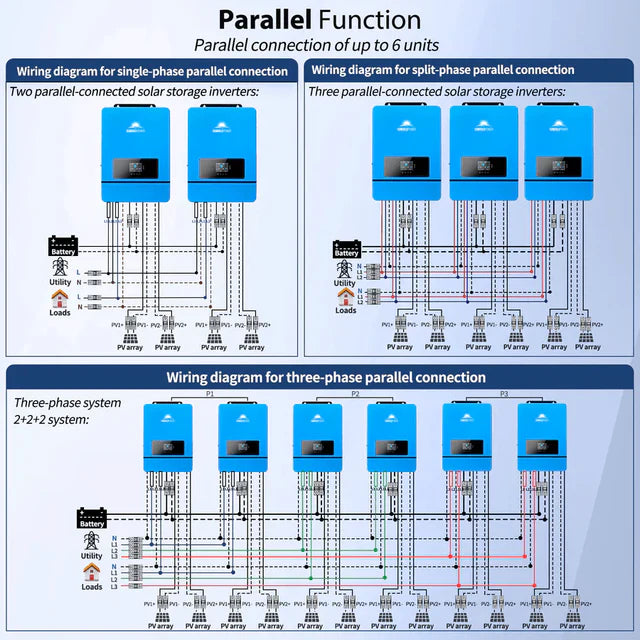

  • Primary Applications: Hybrid solar systems for residential or light commercial use; supports battery charging up to 200 A; parallel operation of up to six units (up to 48 kW) to achieve 120V single phase, 120/240V split-phase, or 208V three-phase in larger installations.

Performance Specifications

  • Rated Output Power: 8000 W (continuous)
  • Max Peak Power: 16000 W
  • Battery Charging: 200 A maximum
  • Inbuilt MPPT: 2 maximum power point tracking controllers
  • PV Input: Max Open-Circuit Voltage 500 VDC
  • Output Voltage Configurations: 120V single-phase; 120/240V split-phase; 208V three-phase when paralleled beyond three units

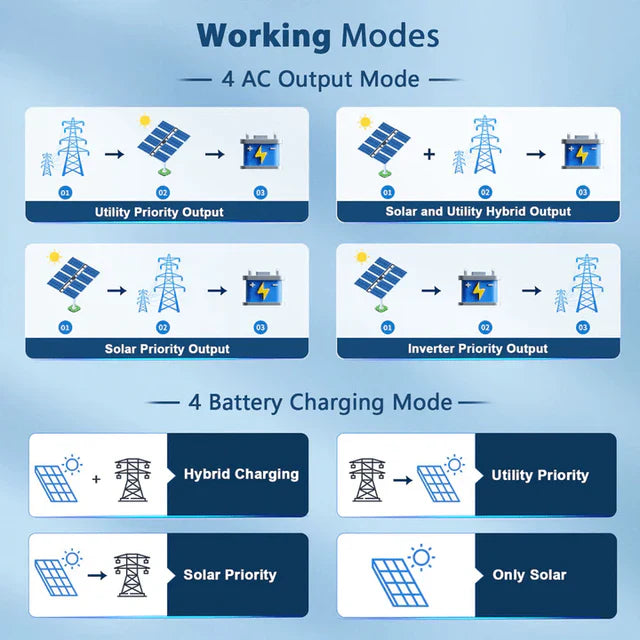

  • Power Management Features: Time-slot charging/discharging; four charging/output modes (Hybrid, Utility Priority, Solar Priority, Inverter Priority)

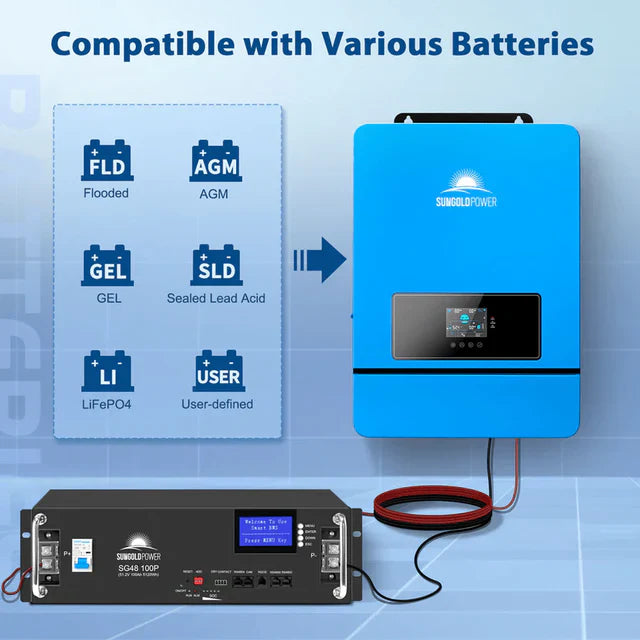

  • Battery Compatibility: 48 V AGM/Sealed, Gel, Flooded, Lithium; User Mode for all battery types; supports battery-free operation with active mains/PV to start a dormant lithium battery
  • Interfaces: WiFi module included; USB and RS485 communication with SunGoldPower batteries
  • Documentation: Manual available for download

Safety Features and Certifications

  • Protection and Safety: PV input over-voltage and over-current protection; AC input over-voltage protection; Battery over-voltage protection; Over-load protection
  • Certifications: UL1741 Listed by ETL

Installation and Maintenance Requirements

  • Utilities: Connect PV array (two MPPTs) up to 500 VDC open-circuit; 48 V battery bank; AC output to loads or utility with appropriate disconnects
  • Space and Mounting: Refer to installation manual for enclosure size and mounting clearance
  • Commissioning: Follow the downloaded manual to configure battery type, parallel units, and charging modes; validate CAN/USB/RS485 communications
  • Preventive Maintenance: Periodic visual inspections, verify connection torque, clear dust intake, and apply firmware updates per the manual

Warranty and Service Information

  • Warranty: not specified
  • Service Terms: not specified

Branding/References

  • Manufacturer: SunGold Power
  • Model/Reference: 8KW 48V Split Phase Solar Inverter
  • Manual: Download

Differentiators

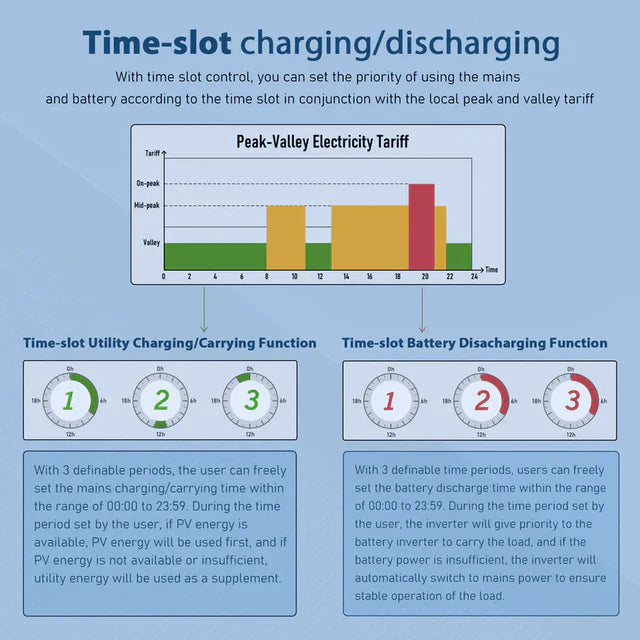

  • Time-slot charging/discharging enables tariff-optimized energy use by scheduling charging when PV or grid power is cheapest
  • Battery-free operation option and seamless activation of dormant lithium batteries via mains/PV power
  • Inbuilt 2 MPPT with parallel scalability up to 48 kW and 208V three-phase availability
