SunGold Off-Grid Solar Kit 6500W to 8000W 48V DC 120V to 240V LiFePO4 10.24kWh Battery

SunGold Off-Grid Solar Kit 6500W to 8000W 48V DC 120V to 240V LiFePO4 10.24kWh Battery

$5,802.00 USD
$6,999.99 USD $5,802.00 USD
Sale Sold out
Shipping calculated at checkout.
System Size;

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

Package contents: Teison Portable Pro charger, TPU cable, user manual
Package weight: Please confirm with Ampere Authority


View full details

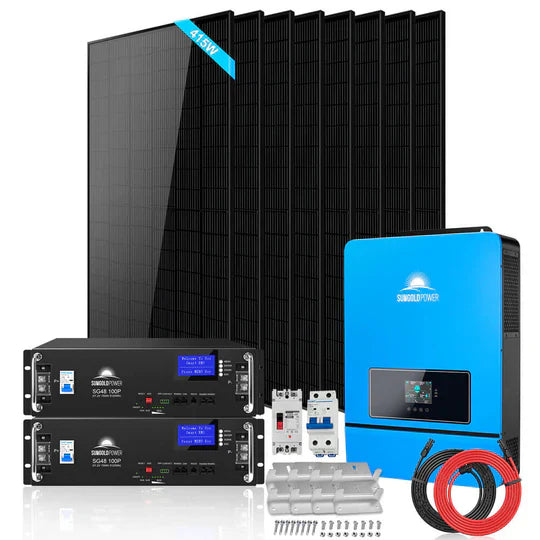

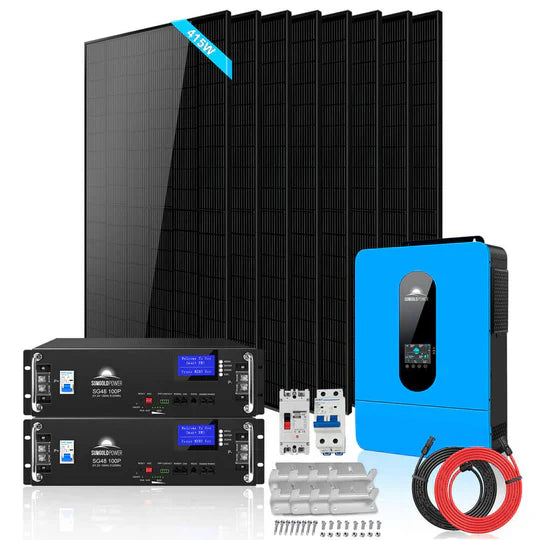

SunGold Off-Grid Solar Kit

Equipment Type and Primary Applications

  • Equipment Type: All-in-one off-grid solar kit
  • Primary Applications: remote cabins, tiny homes, RVs requiring 120V/240V split-phase power

Performance Specifications

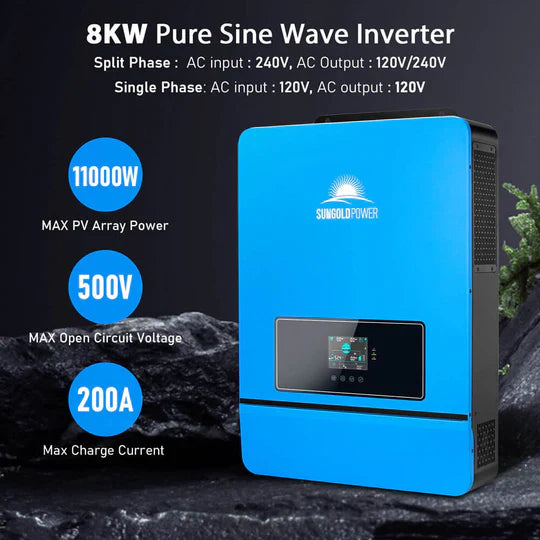

  • Inverter/charger options: 6,500W 48V split-phase inverter/charger; 8,000W 48V split-phase pure-sine inverter
  • AC output: 120V/240V split-phase
  • PV input (kit variants): 3.32 kW PV (8 × 415W) for SGR-6510E/SGR-8K10E; 4.98 kW PV (12 × 415W) for SGM-8K20

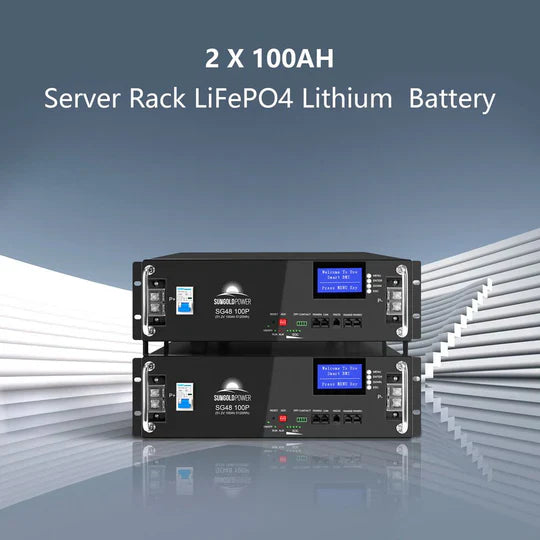

  • Storage capacity: 10.24 kWh with two 100Ah 51.2V LiFePO4 batteries; 20.48 kWh with four 100Ah 51.2V LiFePO4 batteries
  • Battery details: 100Ah 51.2V LiFePO4 batteries
  • Solar panels: 415W monocrystalline
  • Monitoring: Wi‑Fi connectivity with real-time app monitoring (iOS/Android)
  • Connectivity and protection: pre-terminated MC4 connectors, Z-bracket mounting hardware, integrated breaker protection (200A DC breaker, 25A PV breaker)
  • Scalability: modular architecture supports parallel expansion up to six inverter units

Safety Features and Certifications

  • Integrated breaker protection and standard DC/PV breakers (200A DC, 25A PV)
  • Pre-terminated MC4 connectors and included mounting hardware
  • Standards/certifications: not specified in the provided data

Installation and Maintenance Requirements

  • Utilities: requires 120V/240V AC loads, 48V DC battery bank, and PV input aligned with kit configuration
  • Space and mounting: includes Z-bracket hardware for mounting; installation supports safe outdoor or enclosure layouts
  • Commissioning steps: connect PV array to MPPT, connect LiFePO4 batteries, connect AC loads, configure Wi‑Fi monitoring, run system self-check
  • Maintenance tasks: visually inspect connections and breakers; clean panels; monitor battery and system status via app

Warranty and Service Information

  • Warranty period and coverage: not specified
  • Service terms and response times: not specified
  • Notes: refer to supplier documentation for detailed warranty and service information

Branding/References

  • Manufacturer: SunGold
  • Models: SGR-6510E, SGR-8K10E, SGM-8K20
  • References/datasheets: not provided in the current data

Differentiators

  • Parallel expansion up to six inverter units for scalable power
  • Wi‑Fi real-time monitoring via mobile apps
  • Pre-terminated connectors and integrated breakers to simplify and speed up installation
