SunGold 6.5 kW 48V Split Phase Solar Inverter Dual Solar Controller Max 10000W PV Input 120V/240V Output

SunGold 6.5 kW 48V Split Phase Solar Inverter Dual Solar Controller Max 10000W PV Input 120V/240V Output

$1,250.00 USD
$1,399.00 USD $1,250.00 USD
Sale Sold out
Shipping calculated at checkout.

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test

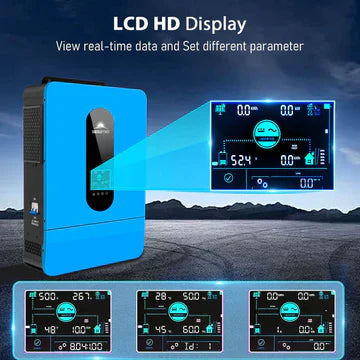

• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

Package contents: Teison Portable Pro charger, TPU cable, user manual
Package weight: Please confirm with Ampere Authority


View full details

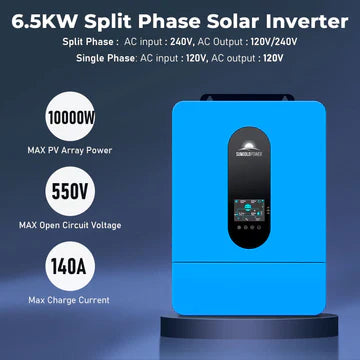

SunGold 6.5KW 48V Split Phase Solar Inverter

Equipment Type: Solar inverter

Primary Applications: Off-grid and grid-tied solar power systems for residential and light commercial installations

Performance Specifications

  • Rated output: 6.5 kW (continuous)
  • Output waveform: Pure sine wave
  • Voltage configurations: Supports split-phase (L-N 120 V, L-L 240 V) and single-phase (L-N 120 V)

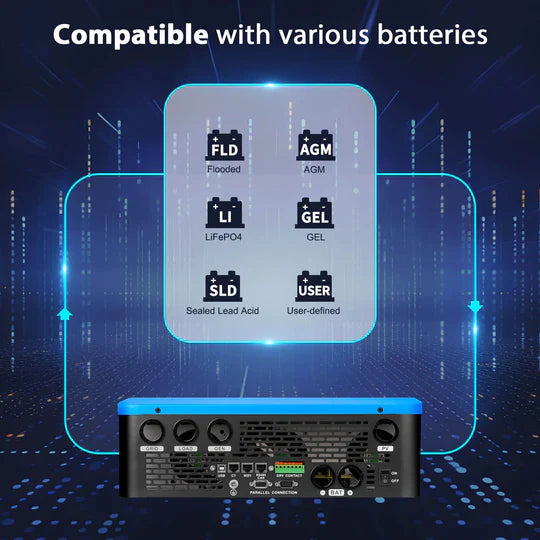

  • Battery compatibility: Works with various battery chemistries, including Li-ion
  • PV input: Up to 10,000 W total (two solar inputs)
  • Maximum PV input voltage: 550 V
  • MPPT: Dual MPPT with up to 99.9% efficiency
  • PV input current per circuit: Up to 18 A

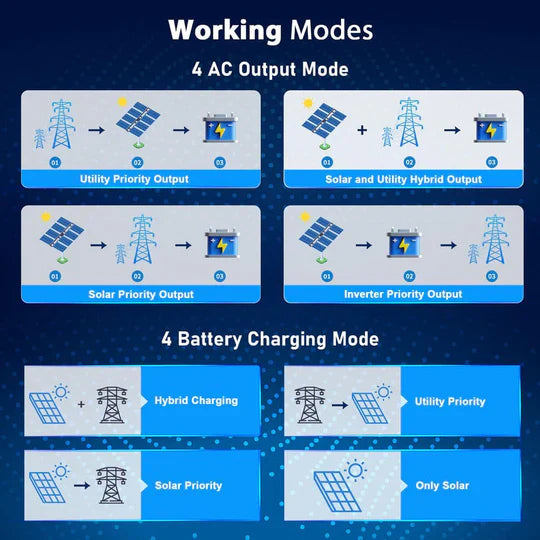

  • Charging modes: Solar only; mains priority; solar priority; mixed mains/PV charging

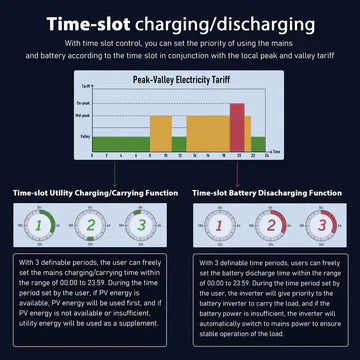

  • Energy management: Time-slot charging/discharging aligned to local tariffs; energy saving mode to reduce no-load losses
  • Communications: CAN, USB and RS485 interfaces
  • Mains/PV activation: Mains or PV supply can trigger Li-ion battery activation when dormant

Safety Features and Certifications

  • Safety features: Not specified in the provided product details
  • Certifications: Not specified in the provided product details

Installation and Maintenance Requirements

  • Utilities: Not specified in the provided product details
  • Required space: Not specified
  • Commissioning steps: Not specified
  • Preventive maintenance tasks/intervals: Not specified

Warranty and Service Information

  • Warranty period: Not specified
  • Coverage details: Not specified
  • Service terms and response times: Not specified

Branding/References

  • Manufacturer: SunGold
  • Model: 6.5KW 48V Split Phase Solar Inverter
  • Datasheets/References: Download

Differentiators

  • Dual MPPT architecture with two independent solar inputs delivering up to 18 A per circuit for high-power modules
  • Flexible output configuration that supports both split-phase (L-N 120 V, L-L 240 V) and single-phase operation
  • Multiple charging strategies (solar only, mains priority, solar priority, and mixed PV/mains) with time-slot tariff aware charging
  • Battery activation triggered by either mains or PV input to efficiently manage Li-ion storage
