Portable Sun LLC

SunGold SGN11.4KHB-48 Split Phase Hybrid Inverter for Solar Grid-Tie and Battery Storage

SunGold SGN11.4KHB-48 Split Phase Hybrid Inverter for Solar Grid-Tie and Battery Storage

$3,100.00 USD
$3,500.00 USD $3,100.00 USD
Sale Sold out
Shipping calculated at checkout.

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

Package contents: Teison Portable Pro charger, TPU cable, user manual
Package weight: Please confirm with Ampere Authority


View full details

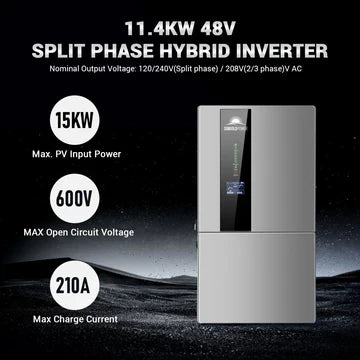

SunGold 11.4KW Split Phase Hybrid Inverter

Equipment Type and Primary Applications

  • Type: Hybrid inverter with grid-tie, off-grid, and battery storage
  • Applications: Residential and light commercial power backup
  • Output: 11,400 W continuous; up to 20 kVA peak
  • PV input: up to 15 kW across 3 MPPT trackers

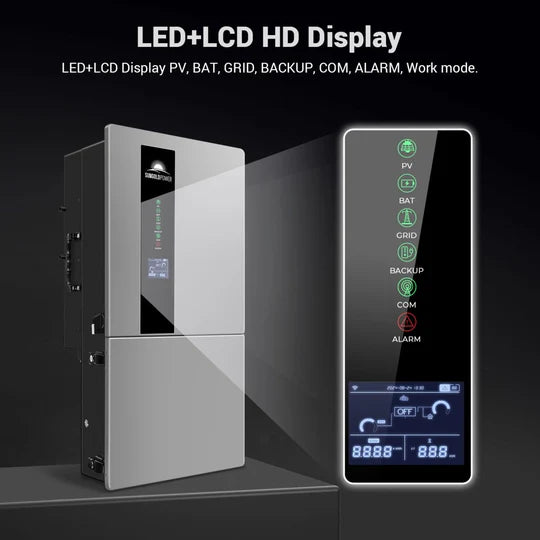

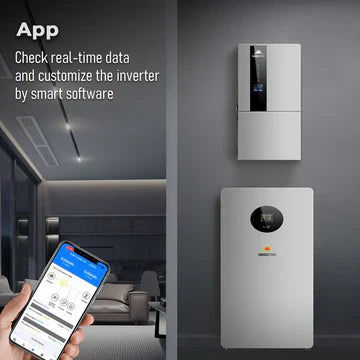

  • Monitoring: optional Wi-Fi/LAN and mobile app for remote access

Performance Specifications

  • DC input: 70–540 V; startup at 90 V; max 600 V
  • AC output: 120/240 V split-phase or 208 V (2/3 phase)
  • Battery support: Lithium-ion or Lead-acid (40–64 V; 210 A)
  • Protections: UL 1741 SB; IEEE 1547:2018; surge, overcurrent, anti-islanding
  • Operating range: -13°F to 140°F; IP65/NEMA 3R; wall-mount

Safety Features and Certifications

  • UL 1741 SB certification; IEEE 1547:2018 compliance
  • DC Type II/AC Type III surge protection; anti-islanding
  • Weatherproof enclosure for outdoor installations

Installation and Maintenance Requirements

  • PV input: 70–540 V; 15 kW max PV capacity
  • Electrical: 120/240 V or 208 V service connections
  • Commissioning: connect PV, battery, and loads; verify MPPT operation
  • Maintenance: inspect enclosure and cabling; monitor via app (optional)

Warranty and Service Information

  • Warranty: 5 years
  • Service: manufacturer terms; authorized service channels

Branding/References

  • Manufacturer: SunGold
  • Model: SGN11.4KHB-48
  • Datasheet: SGN11.4KHB-48 (downloadable)

Differentiators

  • Three independent MPPT trackers maximize harvest

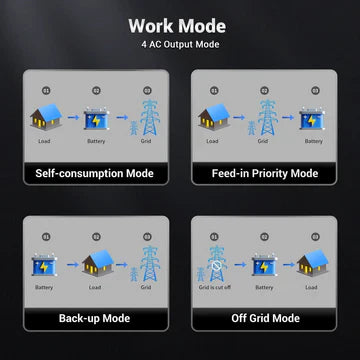

  • Less than 10 ms transfer between grid-tie, off-grid, and backup modes

Type

Hybrid

AC Output Power

11,400W (max)

Phases

Split-phase

DC Input Voltage

70-540V MPPT range / 90V startup / 600V max

MPPT Trackers

3

AC Output Voltage

120/240V split-phase or 208V (2/3 phase)

Battery Support

Lithium-ion/Lead-acid (40-64V / 210A charge/discharge)

Protections

UL 1741 SB, IEEE 1547:2018, DC Type II/AC Type III surge, overcurrent, anti-islanding

Operating Conditions

-13°F to 140°F (>113°F derating) / IP65/NEMA 3R / Wall-mount

Warranty

5 years
