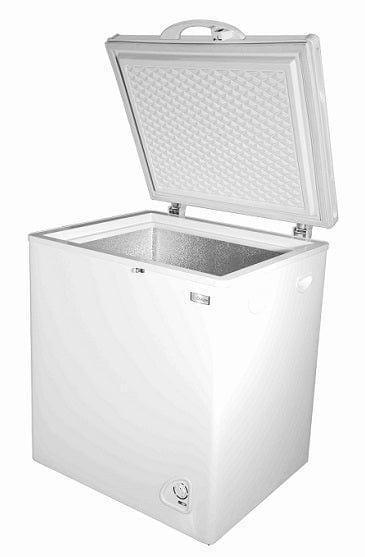

Sundanzer DC100 Solar Chest Refrigerator – 100 Liter (3.5 Cu. Ft.) | 12V/24V DC
The Sundanzer DC100 Solar Chest Refri gerator proves that great things come in compact packages. Designed for off-grid living, solar-powered systems, RVs, boats, cabins, and emergency preparedness, this highly efficient DC refrigerator delivers dependable cooling performance while consuming remarkably little energy.
Equipped with a premium DC compressor, dual thermostat system, and optimized insulation, the DC100 provides reliable refrigeration and freezing capabilities in a compact, lightweight design. Its ability to operate directly from 12V or 24V DC power makes it an excellent solution for renewable energy and battery-based applications.
Features
- 100-liter (3.5 cu. ft.) storage capacity
- Operates directly on 12V or 24V DC systems
- Dual thermostat design for precise temperature management
- Premium high-efficiency DC compressor
- Optimized insulation thickness for maximum energy efficiency
- Lightweight construction for easy transport and installation
- Integrated side handles for convenient handling
- Locking lid handle for added security
- Environmentally friendly R-600a refrigerant
- Ideal for solar, off-grid, marine, RV, and backup power applications
- Low power consumption for extended battery runtime
Performance
Refrigerator Mode
Temperature Range: 48°F to 30°F (9°C to -1°C)
Freezer Mode
Temperature Range: 29°F to -6°F (-2°C to -21°C)
Power Consumption
- Refrigerator Operation: 0.162 kWh/day
- Freezer Operation: 0.405 kWh/day
Electrical Requirements
- Voltage Input: 10–31V DC
- Power Draw: 35–65 Watts
- Current Draw:
- 12V: 15A
- 24V: 7.5A
Recommended Solar System Sizing
Refrigerator Operation
- 110W Solar Panel
- 35Ah Battery Capacity
Freezer Operation
- 220W Solar Panel
- 70Ah Battery Capacity
Note
Minimum solar and battery recommendations are based on 100% battery depth of discharge (DOD). Actual system requirements may vary depending on climate, usage patterns, and installation conditions.
Product Specifications
| Feature | Details |
|---|---|
| Model | DC100 |
| Capacity | 100 Liters (3.5 Cu. Ft.) |
| Type | Solar DC Chest Refrigerator |
| Voltage | 12V / 24V DC |
| Input Range | 10–31V DC |
| Power Consumption | 35–65 Watts |
| Refrigerant | R-600a |
| Insulation Thickness | 60mm (2.4") |
| Refrigerator Temperature Range | 48°F to 30°F (9°C to -1°C) |
| Freezer Temperature Range | 29°F to -6°F (-2°C to -21°C) |
| Daily Energy Use (Refrigerator) | 0.162 kWh/day |
| Daily Energy Use (Freezer) | 0.405 kWh/day |
| Dimensions (W x D x H) | 25.75" x 26.75" x 30.5" |
| Fuse Size | 12V: 15A / 24V: 7.5A |
| Handles | Integrated Side Handles |
| Locking Lid | Yes |
| Defrost | Manual |
| Warranty | 2-Year Limited Warranty |
Ideal Applications
- Off-grid homes and cabins
- Solar-powered refrigeration systems
- RVs and camper vans
- Boats and marine environments
- Remote worksites
- Emergency preparedness
- Sustainable and energy-efficient living
Small Footprint. Powerful Performance.
The Sundanzer DC100 combines generous storage capacity, ultra-efficient operation, and reliable DC-powered performance in a compact design. Whether you're living off-grid or simply looking for dependable solar refrigeration, the DC100 delivers exceptional efficiency and long-lasting reliability.
