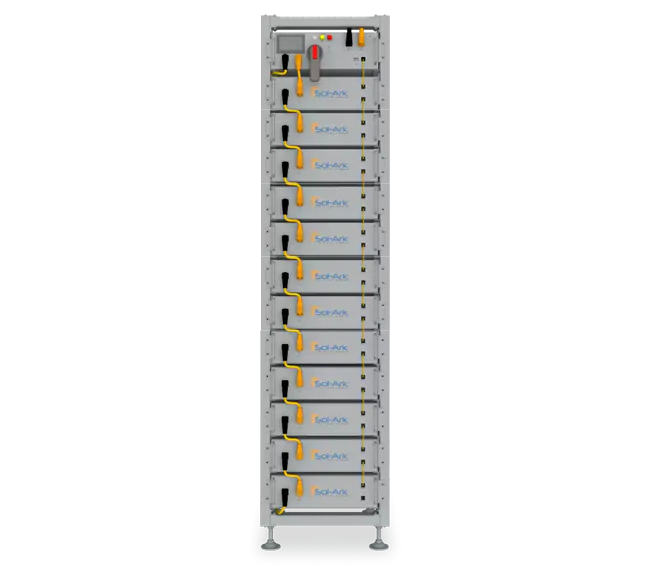

Sol-Ark L3 HV-60KWH-60K Commercial Indoor Energy Storage System
Equipment Type and Primary Applications
- Equipment Type: LiFePO4-based commercial indoor energy storage system.
- Primary Applications: demand-charge reduction, load shifting, peak shaving, facility backup for grid-tied solar.
Performance Specifications
- Energy: 61.44 kWh nameplate / 55.3 kWh usable
- AC Output: 60 kW continuous
- Nominal DC Voltage: 614.4 V; Operating DC Range: 588–672 V
- Battery Modules: 5.12 kWh each; 51.2 V / 100 Ah
- Communication: CAN2.0 / RS485
- Scalability: Up to 16 units per inverter; 10 inverters in parallel
- Charging/Discharging: 50 A nominal charging; 100 A max continuous discharging; 125 A peak
- Environment/Performance: Indoor IP20; 40°F–110°F operation; 94% round-trip DC efficiency
- Expansion: Scales to 9.6 MWh total storage; quiet <40 dBA
Safety Features and Certifications
- Certifications: UL1973, UL9540, UL9540a
- Enclosure/Protection: IP20 (NEMA 1)
Installation and Maintenance Requirements
- Space/Location: Indoor, freestanding cabinet 23"×23", allow service clearance
- Utilities: 480 V indoor energy storage integration
- Commissioning: See installation manual
- Maintenance: See installation manual for tasks and intervals
Warranty and Service Information
- Warranty: 10-year product warranty
- Performance Coverage: Up to 196 MWh throughput
- Service Terms/Response Times: Not specified
Branding/References
- Manufacturer: Sol-Ark
- Model: L3 HV-60KWH-60K
- Datasheets/References: Full specs and installation manual available
Differentiators
- Scalability: One cabinet to 160 units across 10 parallel inverters without hardware replacement
- Indoor-ready LiFePO4 with quiet operation and compact footprint
|
Type |
Lithium Iron Phosphate (LiFePO4) |
|
System Energy |
61.44kWh nameplate / 55.3kWh usable |
|
System Nominal Voltage (DC) |
614.4V |
|
System Operating Voltage (DC) |
588V – 672V DC |
|
Battery Module Nominal Energy Capacity |
5.12kWh |
|
Battery Module Nominal Voltage and Capacity |
51.2V / 100Ah per module |
|
Communication Interfaces |
CAN2.0 / RS485 |
|
Scalable |
Up to 16 units per inverter / 10 inverters in parallel |
|
Nominal Charging Current |
50A recommended |
|
Nominal Discharging Current |
100A max continuous |
|
Max. Discharging Current |
125A peak (60 sec @ 25°C) |
|
Environment |
Indoor |
|
Operating Temperature |
40°F – 110°F (disabled below 32°F) |
|
Storage Temperature |
-4°F – 95°F at SOC 30% |
|
Altitude |
Up to 9,843 ft |
|
IP Rating |
IP20 (NEMA 1) |
|
Dimensions |
23 x 23 x 86 inches |
|
Weight |
1,705 lbs |
|
Installation |
Freestanding Rack Mount |
|
Warranty |
10 Years |
