Portable Sun LLC

Sol-Ark L3 HV-40KWH-30K Commercial Indoor Energy Storage System 208V LiFePO4 Storage Unit

Sol-Ark L3 HV-40KWH-30K Commercial Indoor Energy Storage System 208V LiFePO4 Storage Unit

$19,299.19 USD
$23,999.00 USD $19,299.19 USD
Sale Sold out
Shipping calculated at checkout.

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

Package contents: Teison Portable Pro charger, TPU cable, user manual
Package weight: Please confirm with Ampere Authority


View full details

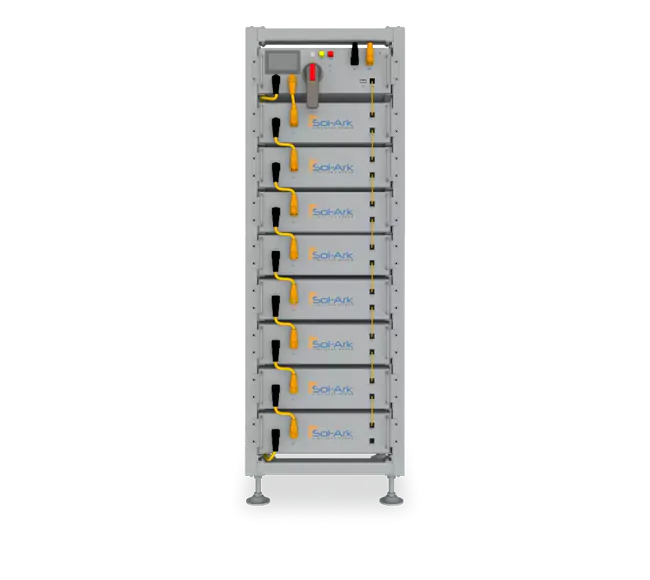

Sol-Ark L3 HV-40KWH-30K Commercial Indoor Energy Storage System

  • Equipment Type: 208V Indoor Energy Storage System, 40 kWh LiFePO4
  • Primary Applications: backup power, peak shaving, and energy management for commercial and industrial facilities; integrates with Sol-Ark 30K-3P-208V inverter; designed for indoor installations in controlled environments

Performance Specifications

  • Storage capacity: 40 kWh LiFePO4
  • Nominal voltage: 208 V
  • Inverter compatibility: Sol-Ark 30K-3P-208V; fully synchronized solar-plus-storage operation
  • BMS capabilities: Advanced Programmable Battery Management System with real-time monitoring, load balancing, thermal management, fault protection
  • Remote monitoring and control: Integrated diagnostics and remote access
  • Enclosure rating: IP20 indoor-rated enclosure suitable for electrical rooms or controlled spaces
  • Performance warranty: 196 MWh guaranteed throughput or 10 years, whichever occurs first
  • Operating environment: Indoor installation; suitable for temperature-controlled spaces with limited dust/humidity

Safety Features and Certifications

  • Safety features: LiFePO4 chemistry with thermal stability; fault protection; sensor-based monitoring; protective circuit design
  • Certifications: not specified in provided product data

Installation and Maintenance Requirements

  • Utilities: 208V AC supply; indoor installation; controlled environment required
  • Space and layout: IP20 enclosure; place in dedicated electrical/mechanical space with adequate service clearance
  • Commissioning: Installation Manual to be consulted; commissioning steps documented in the manual (Installation Manual: Download)
  • Preventive maintenance: follow guidance in the Installation Manual and BMS documentation; perform periodic BMS health checks, firmware updates, and verify remote connectivity

Warranty and Service Information

  • Warranty: 10-Year Product Warranty covering defects in materials and workmanship under normal usage
  • Performance warranty: 196 MWh throughput or 10 years, whichever occurs first
  • Service terms and response times: not specified in provided product data

Branding/References

  • Manufacturer: Sol-Ark
  • Model/Identifiers: L3 HV-40KWH-30K; 208V Indoor Energy Storage System; 40 kWh LiFePO4
  • Inverter integration: Compatible with Sol-Ark 30K-3P-208V
  • Datasheets/References: Spec Sheet: Download; Installation Manual: Download

Differentiators

  • Unique capability: Fully synchronized solar-plus-storage with the Sol-Ark 30K-3P-208V inverter; 40 kWh LiFePO4 in a compact indoor IP20 enclosure; advanced BMS with remote diagnostics and analytics; 196 MWh throughput warranty
