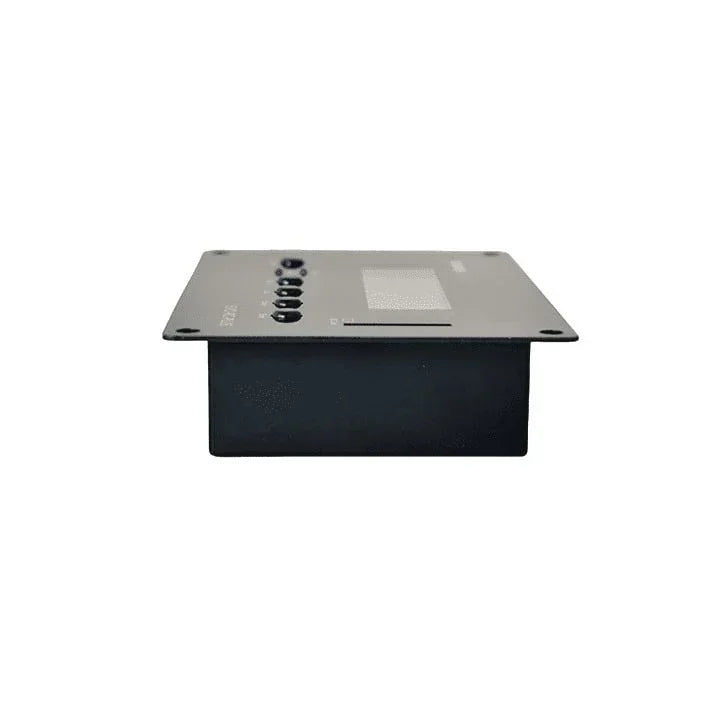

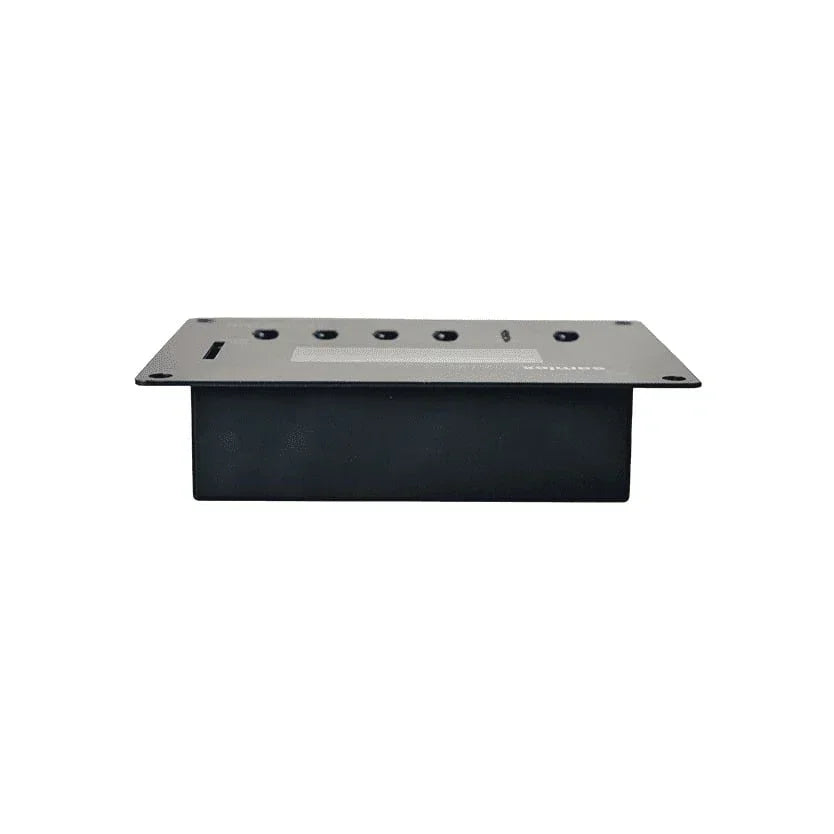

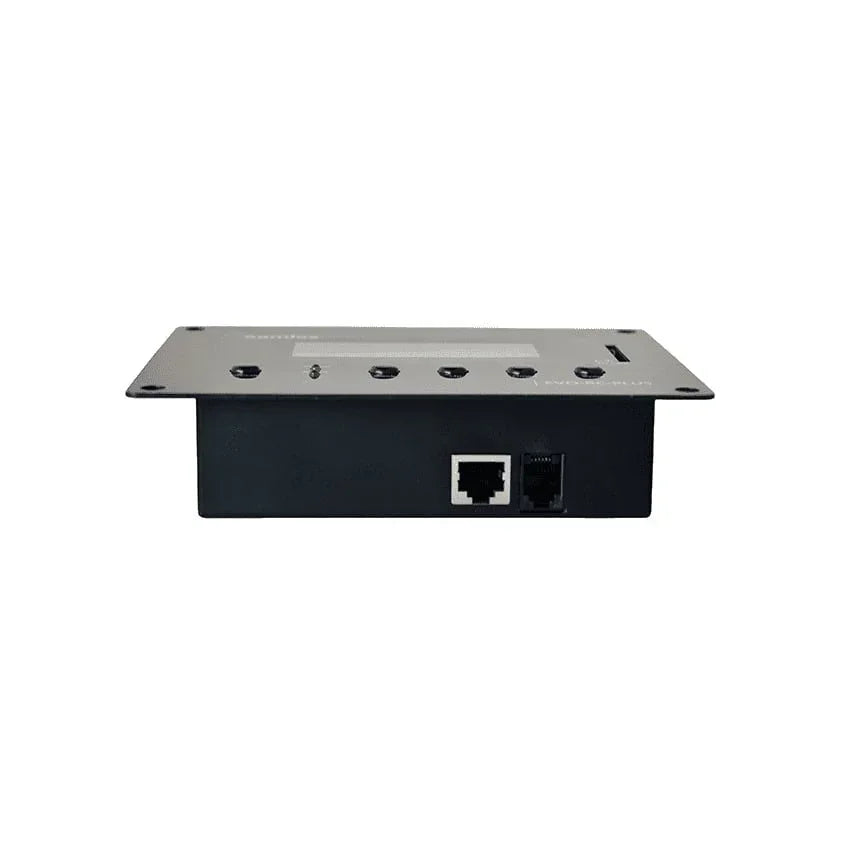

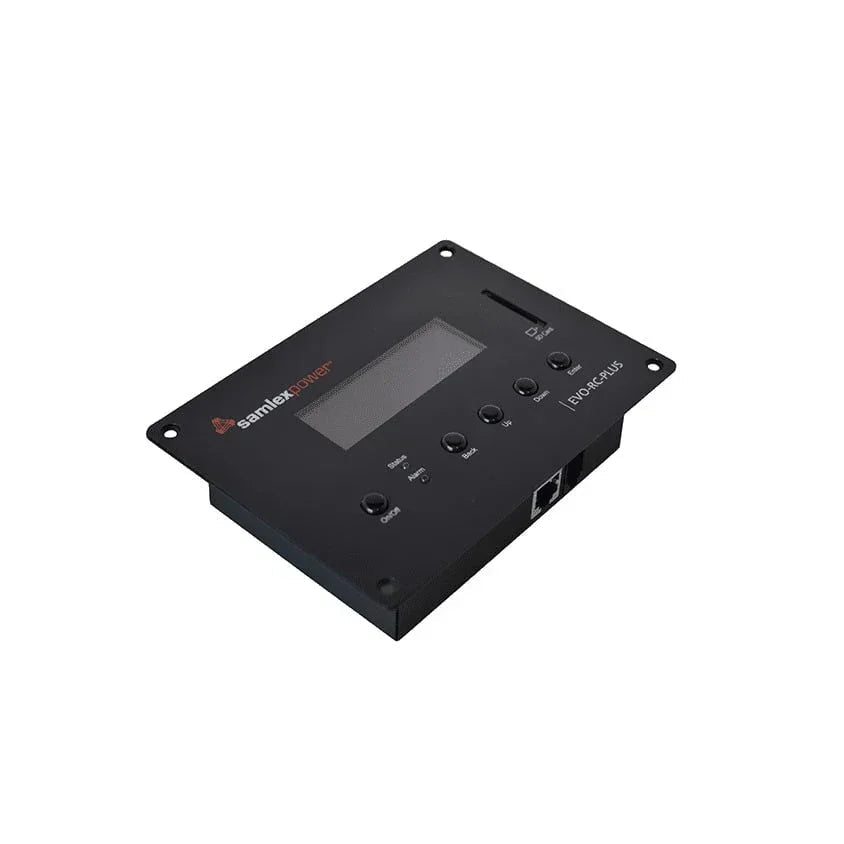

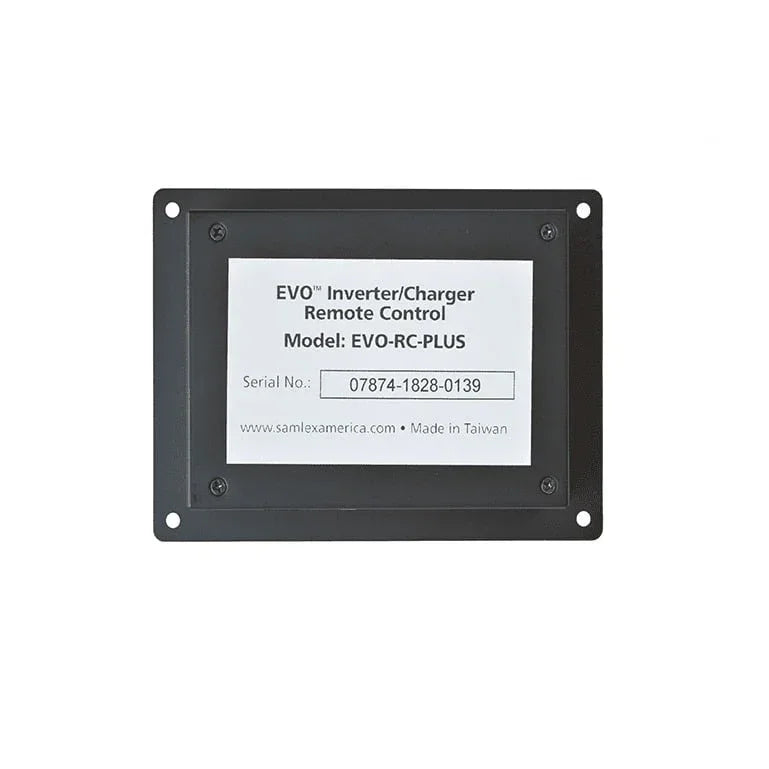

Samlex Evolution F Series Inverter/Charger Remote Control (EVO-RC-PLUS)
The EVO-RC-PLUS remote features a wide LCD screen for displaying real-time activity, including output voltage, frequency, amps, watts, volt-amps, power factor, battery voltage, battery current, solar input current, and more. The Samlex Evolution F Series Inverter/Charger Remote Control (EVO-RC-PLUS) allows access to advanced features for programming of up to 58 different operating parameters to meet desired operating conditions.
The Samlex Evolution F Series Inverter/Charger Remote Control (EVO-RC-PLUS) can capture performance data onto a removable SD card, allowing you to record historic power consumption, inverter functionality, battery charging activity, as well as many other parameters. Additionally, it will identify detected faults and the conditions leading up to them, allowing you to analyze trends for more efficient use of off-grid resources. The EVO-RC-PLUS remote also features an internal Real Time Clock and Super Capacitor Type of battery for clock and timing operations.
The Samlex Evolution F Series Inverter/Charger Remote Control (EVO-RC-PLUS) features a metal enclosure for increased durability, is flush mountable, and includes a 33-foot data cable for easy connection and remote mounting.
Samlex Evolution F Series Inverter/Charger Remote Control (EVO-RC-PLUS) Compatibility:
- Samlex EVO-1212F
- Samlex EVO-1212-HW
- Samlex EVO-1224F
- Samlex EVO-1224-HW
- Samlex EVO-2212
- Samlex EVO-3012
- Samlex EVO-2224
- Samlex EVO-4024
- Samlex EVO-4248SP
Samlex Evolution F Series Inverter/Charger Remote Control (EVO-RC-PLUS) Features:
- Advanced features for programming various parameters and modes of operation

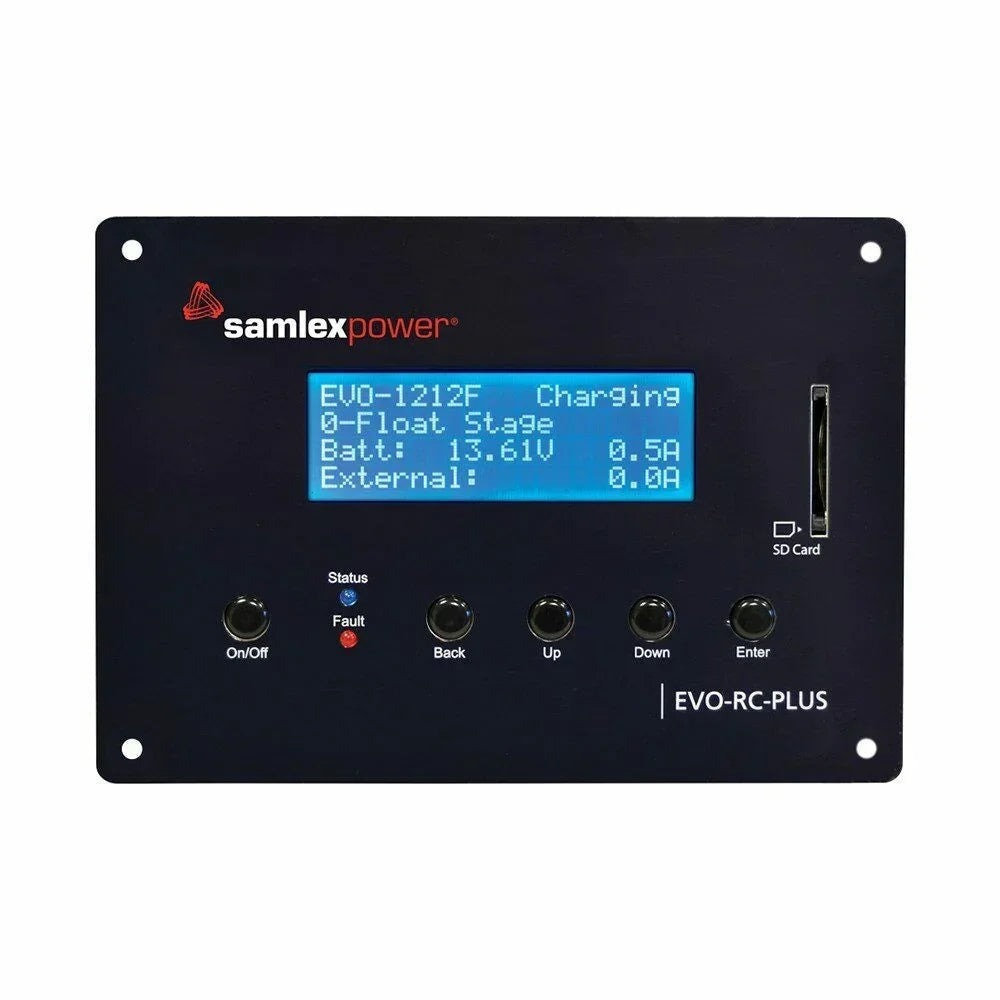

- 4 rows of 20 characters alpha numeric LCD display for messaging
- Robust metal enclosure
- SD card slot can manage a removable SD Card up to 16GB (SD Card not included)
- Program various parameters and modes of operation
- Provides real time and data logged performance details
- SD Card Slot (accepts SD Card up to 16GB) to record data
- Indicates the status of Inverter & Charging Modes
- Power ON/OFF, or switch to Standby Mode
- Metal enclosure for increased durability
- Flush mountable

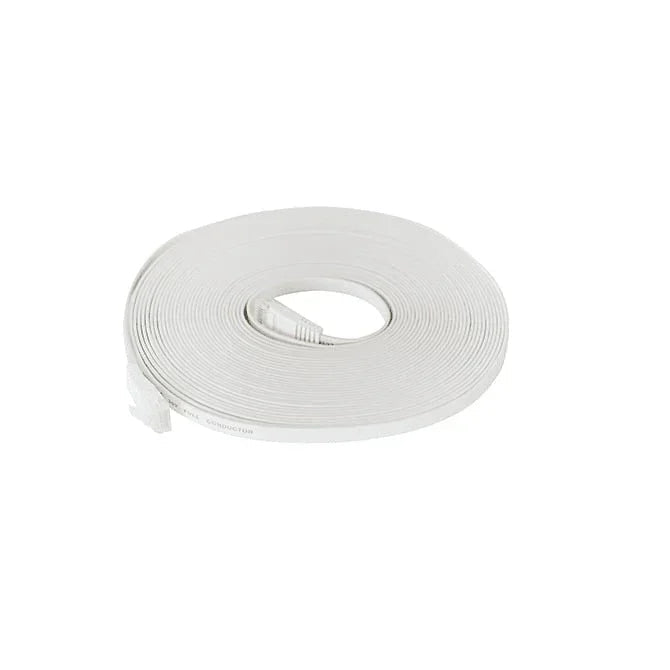

- Includes 33 ft of RJ-45 data cable
Samlex Evolution F Series Inverter/Charger Remote Control (EVO-RC-PLUS) Applications:
- Boats, RVs, trucks, specialty vehicles
- Alternative energy, off-grid, cabins, remote locations, areas with unreliable utility power
- Back-up and emergency power applications
