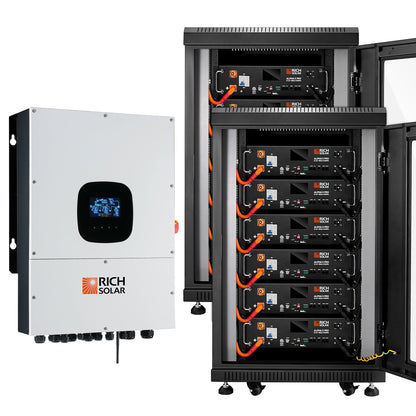

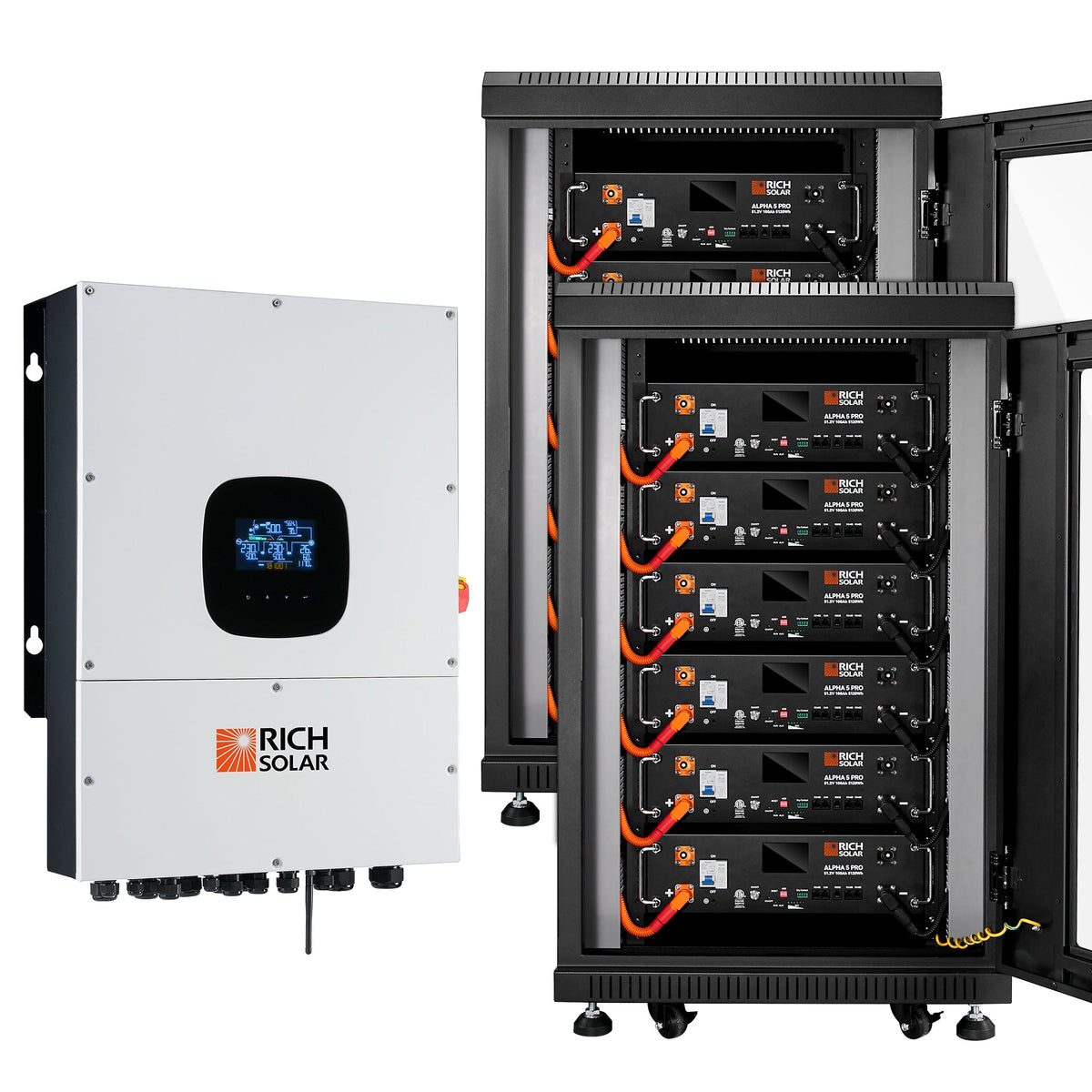

NOVA 12K PV Hybrid Inverter Solar Kit with 61.44kWh Server Lithium Battery

Equipment Type and Primary Applications

Complete 48V hybrid solar energy storage kit combining a NOVA 12K PV hybrid inverter, twelve ALPHA 5 PRO server rack lithium batteries, two battery racks, and essential accessories. The system is configured for residential and commercial hybrid energy applications, including homes, cabins, farms, commercial buildings, and whole-home backup power.

Performance Specifications

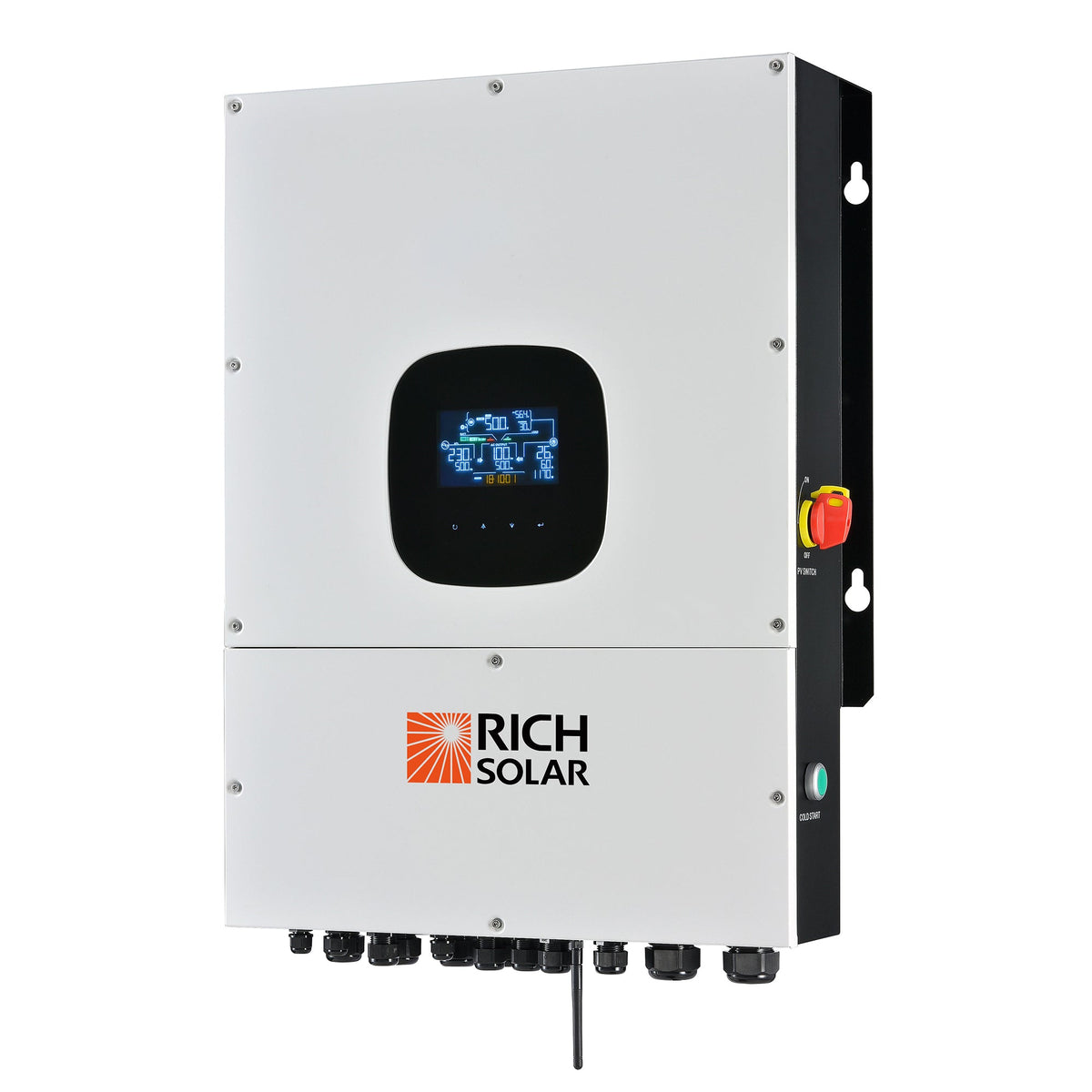

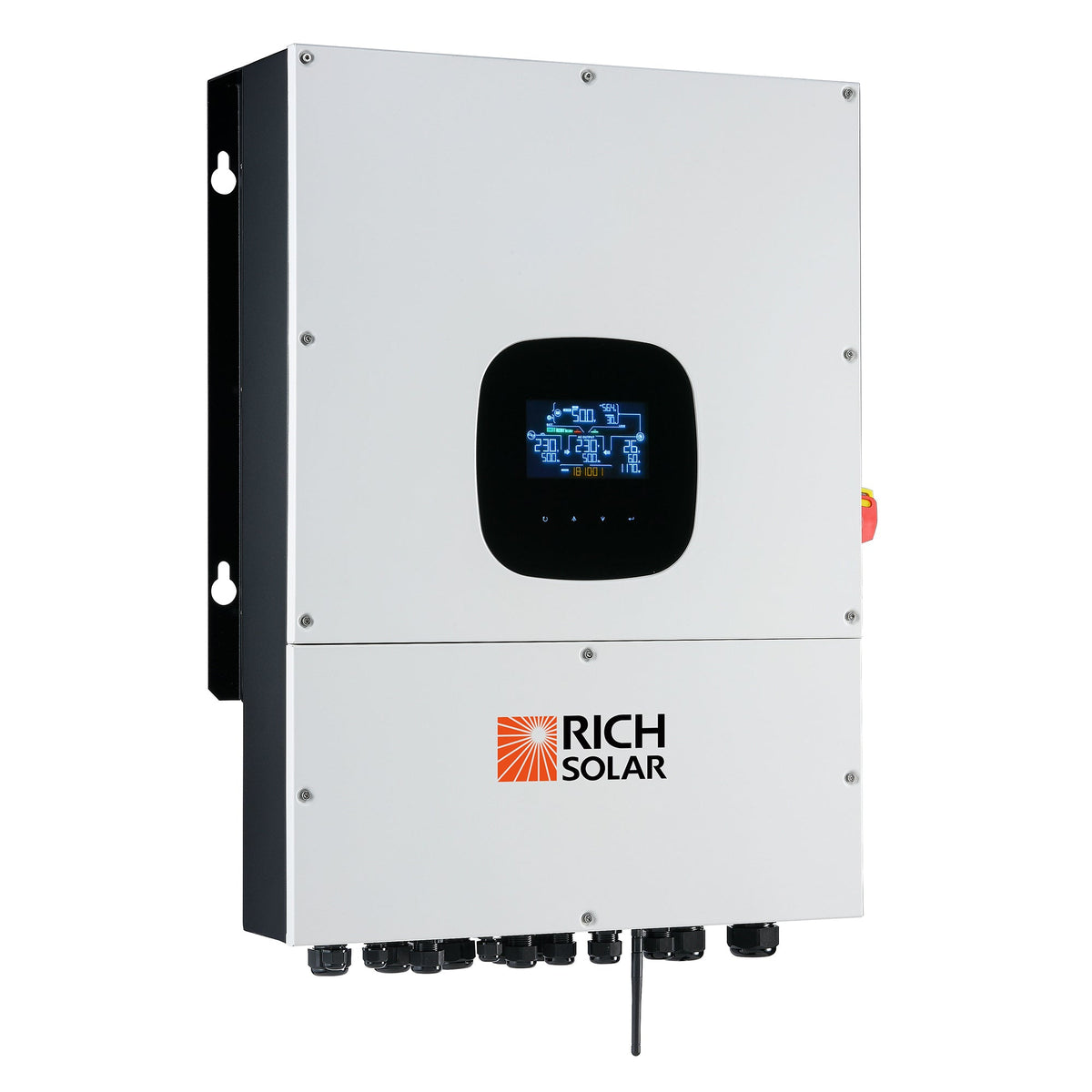

• Hybrid inverter: RS-H12K, listed with 12,000W continuous output and 10,000W output specification.
• PV input: 12,000W.
• AC output: 120/240V split-phase.
• Solar tracking: dual MPPT trackers.
• Supported energy inputs: solar, battery, utility, and generator.
• Battery system: 48V DC architecture.

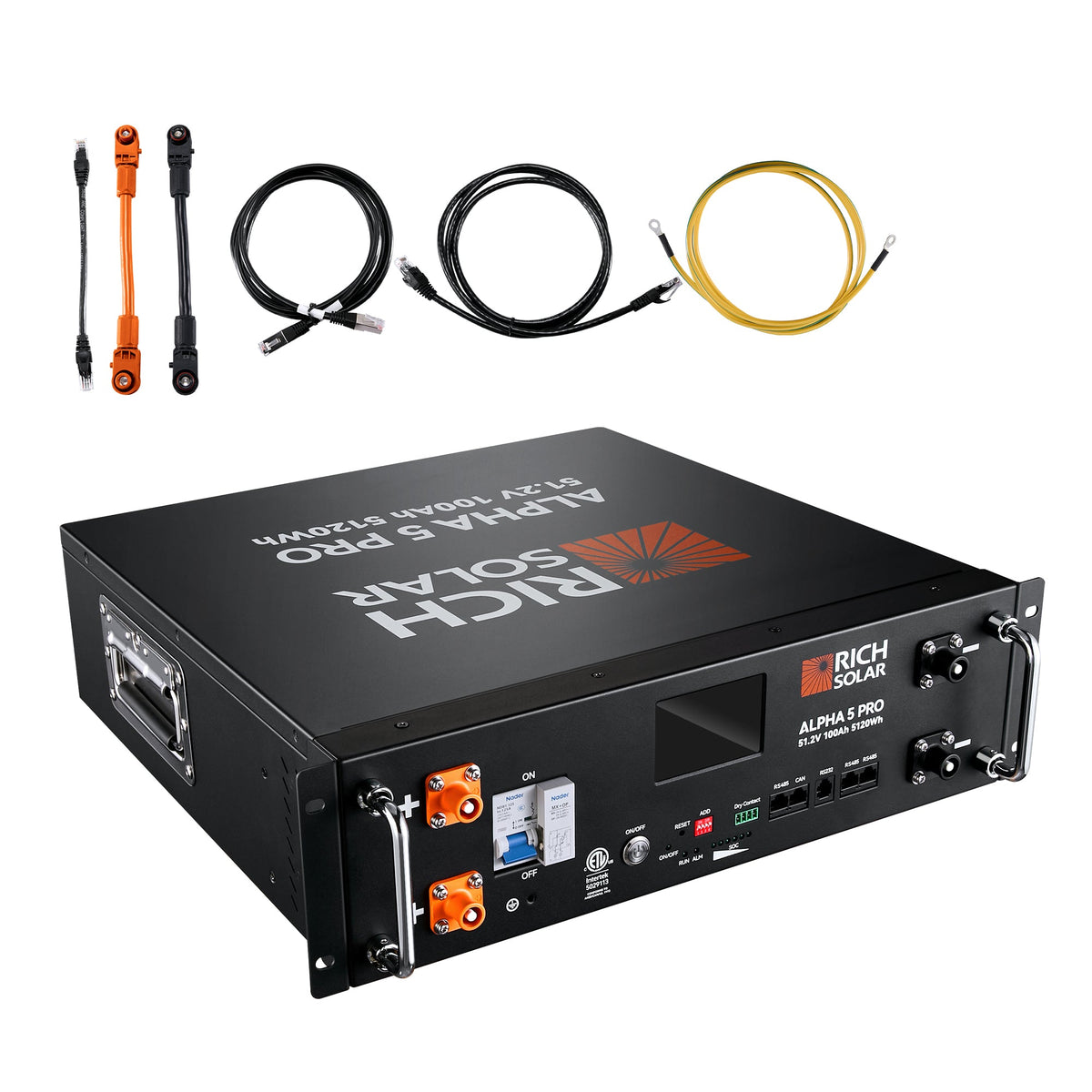

• Battery modules: twelve RS-B5121P ALPHA 5 PRO units, each rated at 51.2V, 100Ah, and 5,120Wh.
• Total battery storage: 61.44kWh.
• Battery chemistry: LiFePO₄.

Safety Features and Certifications

The battery bank uses LiFePO₄ server rack batteries. Certification marks and applicable standards are not included in the supplied product details.

Installation and Maintenance Requirements

Installation uses the included battery racks and matched inverter-battery configuration. The system accepts solar, battery, utility, and generator inputs and is designed around a 48V DC energy storage system. Commissioning and maintenance requirements depend on the final installation configuration.

Warranty and Service Information

Branding/References

Manufacturer and product references: NOVA 12K PV Hybrid Inverter RS-H12K; ALPHA 5 PRO Server Rack Lithium Battery RS-B5121P; kit reference KIT-SR0002.

Differentiators

This kit combines 12,000W-class hybrid inverter capability, dual MPPT solar tracking, 120/240V split-phase output, and 61.44kWh of rack-mounted LiFePO₄ storage in one matched package.
