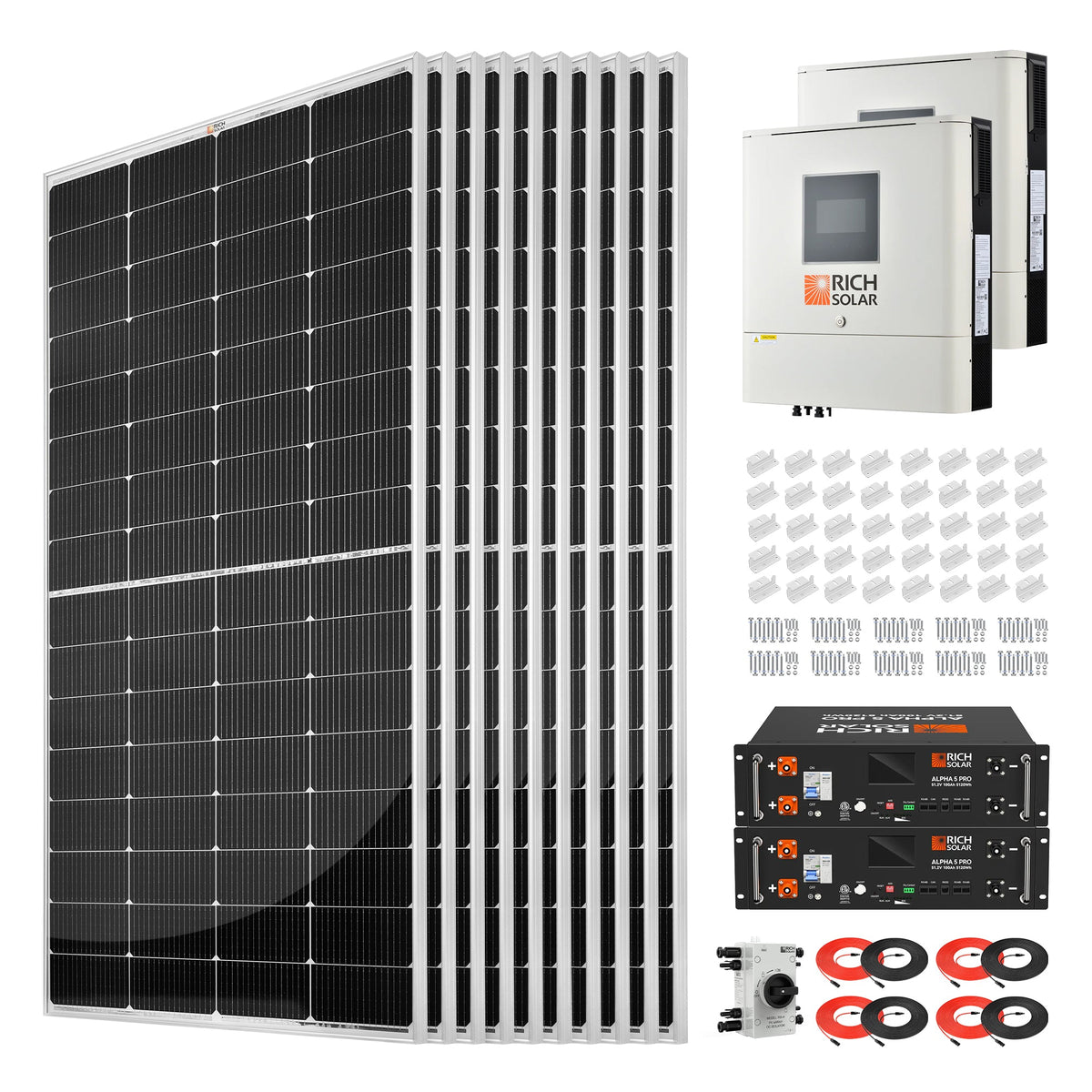

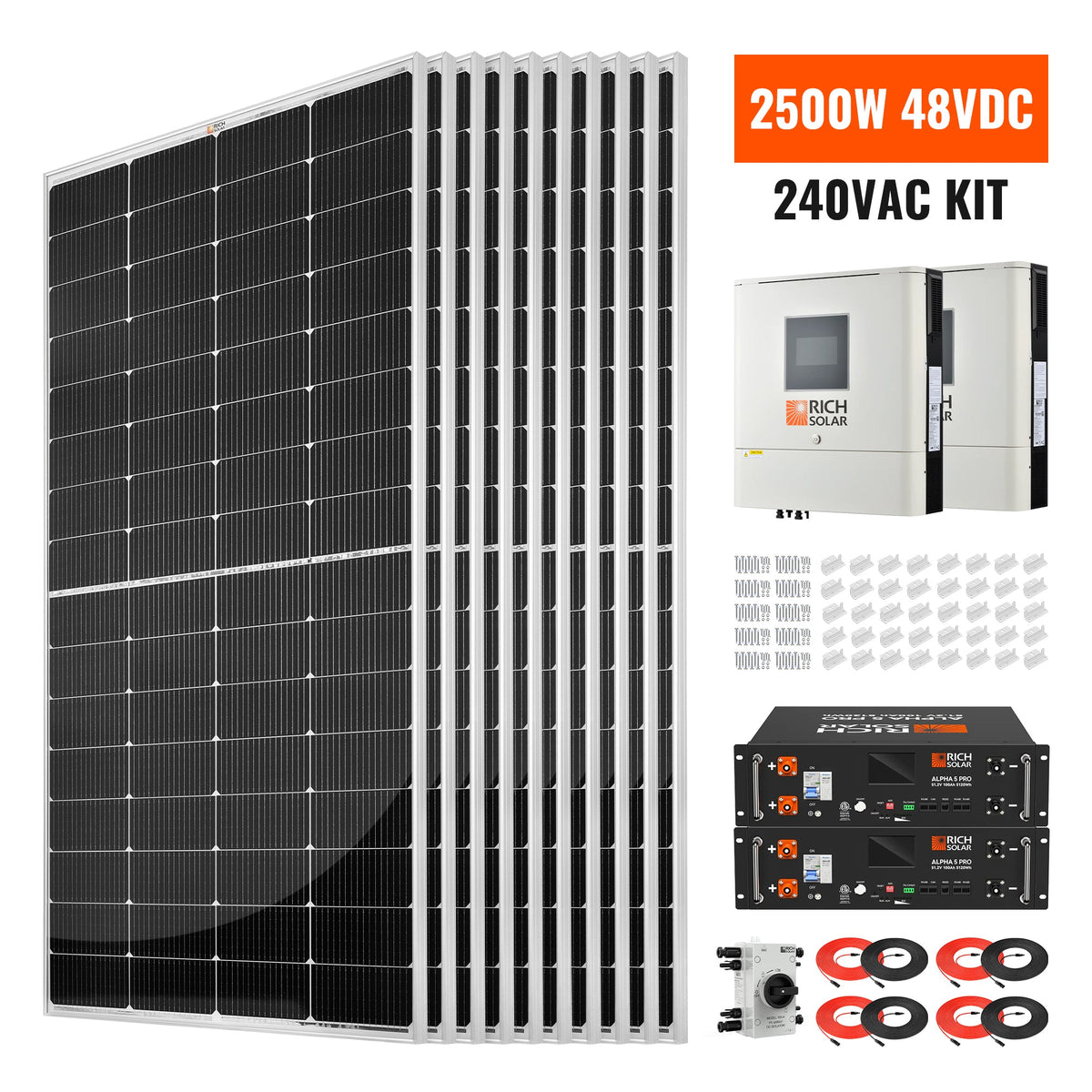

2500W 48VDC-240VAC Solar Kit

2500W 48VDC-240VAC Solar Kit

$7,599.99 USD
$9,499.99 USD $7,599.99 USD
Sale Sold out
Shipping calculated at checkout.

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

  • 2 x 6500W 48V Off-grid Solar Inverters (H6548S)
  • 10 x MEGA 250 12V 250W Solar Panels (RS-M250)
  • 2 x ALPHA 5 PRO 51.2V 100Ah Server Rack Lithium Batteries (RS-B5121P)
  • 2 x 10 AWG 30 ft Extension Cables (RS-30102)
  • 2 x 10 AWG 10 ft Extension Cables (RS-10102)
  • 15 x Z Bracket sets (one set of 4) (RS-ZB4C)
  • 1 x PV DC Quick Disconnect (RS-i4)
View full details

2500W 48VDC-240VAC Solar Kit

Equipment Type and Primary Applications

This 2500W solar power kit combines ten monocrystalline panels, a 10.24kWh LiFePO₄ battery bank, and two hybrid inverters for residential, cabin, workshop, farm, remote-property, and whole-home backup applications.

Performance Specifications

  • Solar array: 2,500W total; ten MEGA 250 12V, 250W monocrystalline panels.
  • Estimated solar production: approximately 9.0kWh per day under 4 peak sun hours.
  • Battery storage: 10.24kWh total; two ALPHA 5 PRO 51.2V 100Ah server-rack LiFePO₄ batteries, rated at 5,120Wh each.
  • Inverter capacity: two H6548S 6,500W 48V off-grid hybrid inverters.
  • Combined output: 13,000W continuous and 26,000W surge, with pure sine wave 120/240V split-phase AC power.
  • Charging: dual 120A MPPT charge controllers; compatible inputs include solar, battery, utility, and generator sources.

Safety Features and Certifications

  • Pure sine wave AC output supports split-phase 120/240V power delivery.
  • PV DC Quick Disconnect included for the solar input circuit.

Installation and Maintenance Requirements

The system uses a 48V DC battery architecture and 120/240V split-phase AC output. The kit includes two 30ft 10 AWG extension cables, two 10ft 10 AWG extension cables, fifteen Z-bracket sets, and one PV DC Quick Disconnect. Installation requires mounting the ten panels, connecting the battery and inverter components, and configuring the available solar, battery, utility, or generator inputs.

Warranty and Service Information

Branding/References

Referenced components include H6548S hybrid inverters, MEGA 250 RS-M250 solar panels, ALPHA 5 PRO RS-B5121P batteries, RS-30102 and RS-10102 extension cables, RS-ZB4C Z-bracket sets, and RS-i4 PV DC Quick Disconnect.

Differentiators

The matched dual-inverter design combines 13,000W continuous split-phase output with dual 120A MPPT charging and support for four energy sources in one integrated kit.
