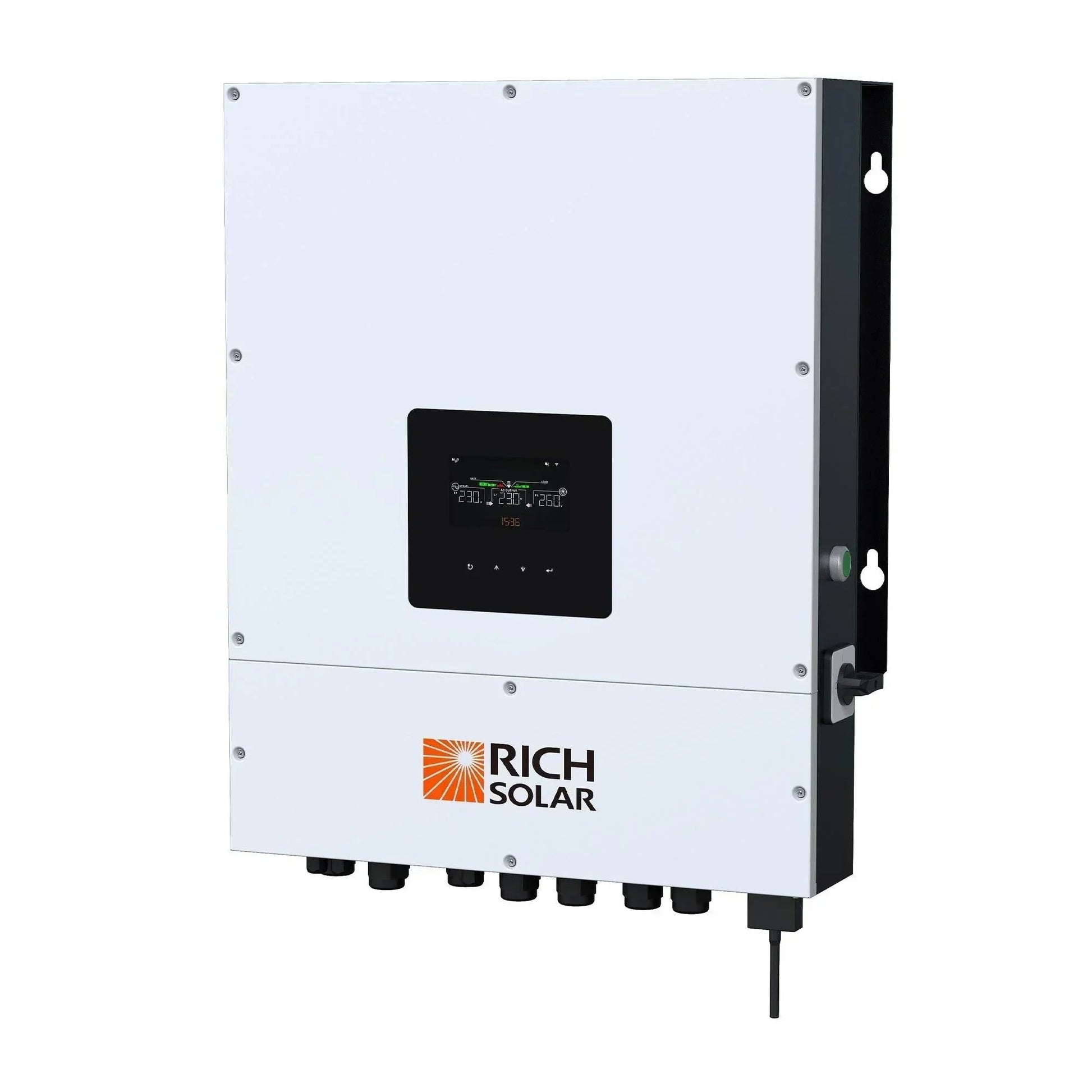

NOVA 8K Watt 48V Split-Phase Hybrid Inverter
Rich Solar NOVA 8K Watt is a versatile hybrid inverter designed for cabins, ADUs, tiny homes, residential estates, off-grid farms, and grid-tied applications. It consolidates PV management, battery charging, and grid interaction in a rugged, IP65-rated enclosure suitable for challenging environments.
Performance and electrical specifications
- Maximum PV Input Power: 7500 W
- Rated Output Power: 6000 VA / 6000 W
- Parallel capability: Yes, up to 6 units
- Maximum DC Voltage: 600 VDC
- Start-up/Feeding Voltage: 120 VDC / 160 VDC
- MPPT Voltage Range: 120–550 VDC
- Frequency Range: 50/60 Hz auto
- Output Waveform: Pure Sine Wave
- Nominal Output Voltage: 120 VAC (P-N) / 208 VAC (P-P) / 240 VAC (P-P)
- Output Voltage Range per Phase: 105.5–132 VAC
- Nominal Output Current per Phase: 25 A
- Battery Voltage Range: 40–62 VDC
- Maximum Charging Current: 120 A
- DC-to-AC Efficiency: 91%
- Operating Temperature: -25°C to 60°C (derating beyond 45°C)
- Dimensions (with extension box): 8.5 x 20.3 x 27.6 in; Weight: 41 kg
- Enclosure IP65: Waterproof and dustproof
Key features and integration
- Configurable color with built-in RGB LED bar
- Built-in Wi-Fi for mobile monitoring (APP required)
- Integrated generator/emergent-load port
- Optional external CT sensor for 100% self-consumption optimization
- Programmable supply priority: PV, Battery, or Grid
- RS485 port for BMS communication
- User-adjustable charging current and voltage
- Parallel operation up to 6 units
Installation and maintenance
- Professional installation recommended; comply with local electrical codes
- Mounting: wall or rack installation; extension box included
- Ensure adequate ventilation and ambient temperature limits
- Wiring: observe 600 VDC maximum; use MPPT range 120–550 VDC
- Firmware updates and monitoring via built-in Wi‑Fi
- Regular inspection of connections and enclosure cleanliness
Documentation: User Manual | Specification
NOVA 8K Watt (8kW) 48V Split Phase Hybrid Inverter Premium Hybrid Inverter for Cabins, ADUs, Tiny Homes, Residential, Agriculture, Off-Grid, On-Grid
FEATURES
- IP65 waterproof and dustproof makes the inverter available for various working conditions.
- Configurable color with the built-in RGB LED bar
- Built-in Wi-Fi for mobile monitoring (APP is required)
- Built-in alternative port for generator and emergent load.
- Optional external CT sensor to guarantee 100% self-consumption.
- Programmable supply priority for PV, Battery or Grid.
- Built-in communication port for BMS (RS485).
- User-adjustable charging current and voltage.
- Parallel operation up to 6 units
Tech Specs
Specifications:
Maximum PV Input Power: 7500W
Rated Output Power: 6000VA/6000W
PARALLEL CAPABILITY: Yes, 6 units
INPUT
- Maximum DC Voltage: 600VDC
- Start-up Voltage/initial Feeding Voltage: 120VDC/160VDC
- MPPT Voltage Range: 120VDC-550VDC
- Frequency Range: 50Hz / 60Hz (Auto detection)
OUTPUT
- Output Voltage Waveform: Pure Sine Wave
- Nominal Output Voltage: 120VAC(P-N)/208VAC(P-P)/240VAC(P-P)
- Output Voltage Range: 105.5-132VAC per phase
- Nominal Output Current: 25A per phase
BATTERY
- Battery Voltage: 40-62 VDC
- Maximum Charging Current: 120A
- Efficient(DC to AC): 91%
OPERATING ENVIRONMENT
- Operating Temperature Range: -25°C to 60°C(>45°C derating)
PHYSICAL
- Dimension: 8.5x20.3x27.6in / 215.5x515x700mm (with extension box)
- Net Weight: 90.4lb / 41kg
User Manual & Specification
