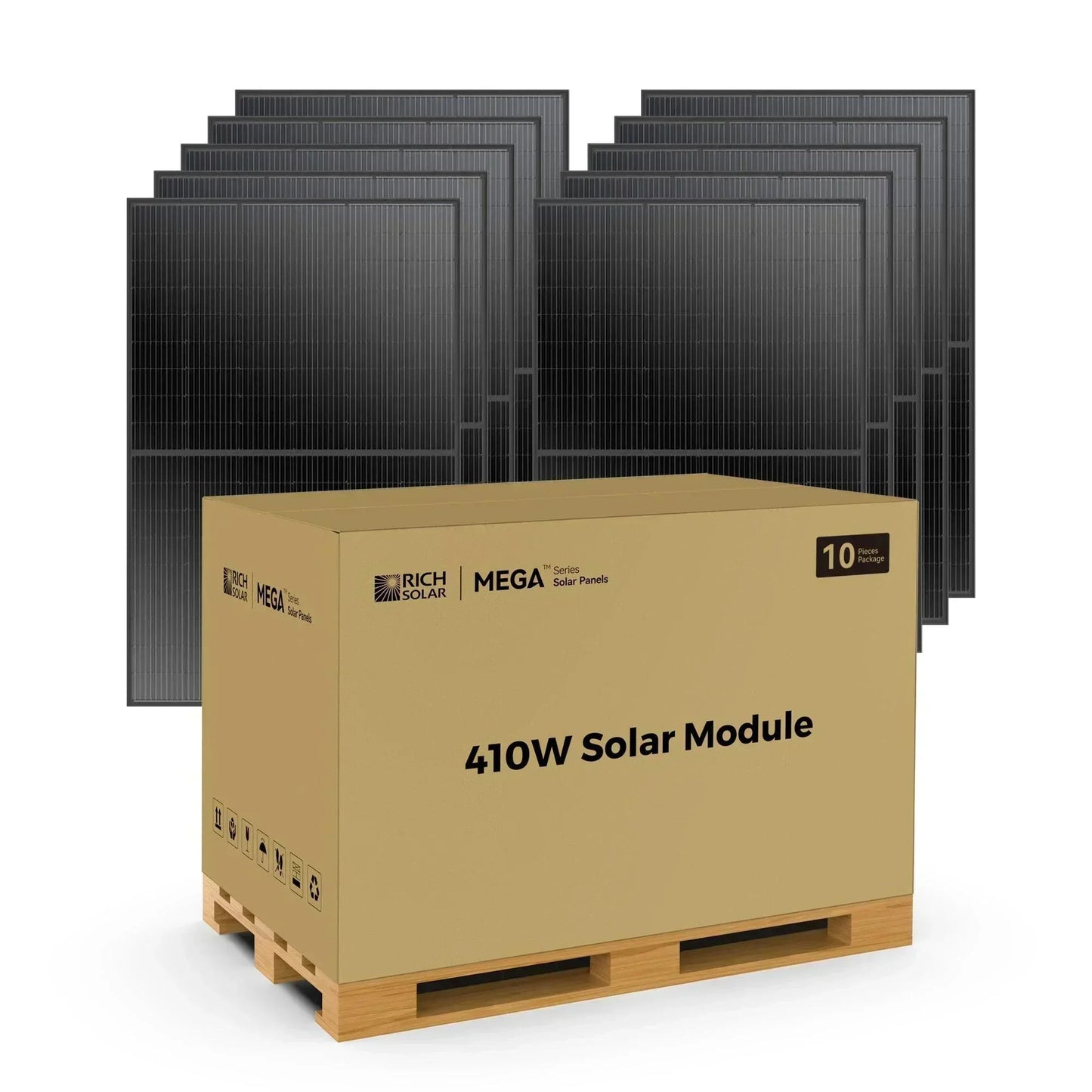

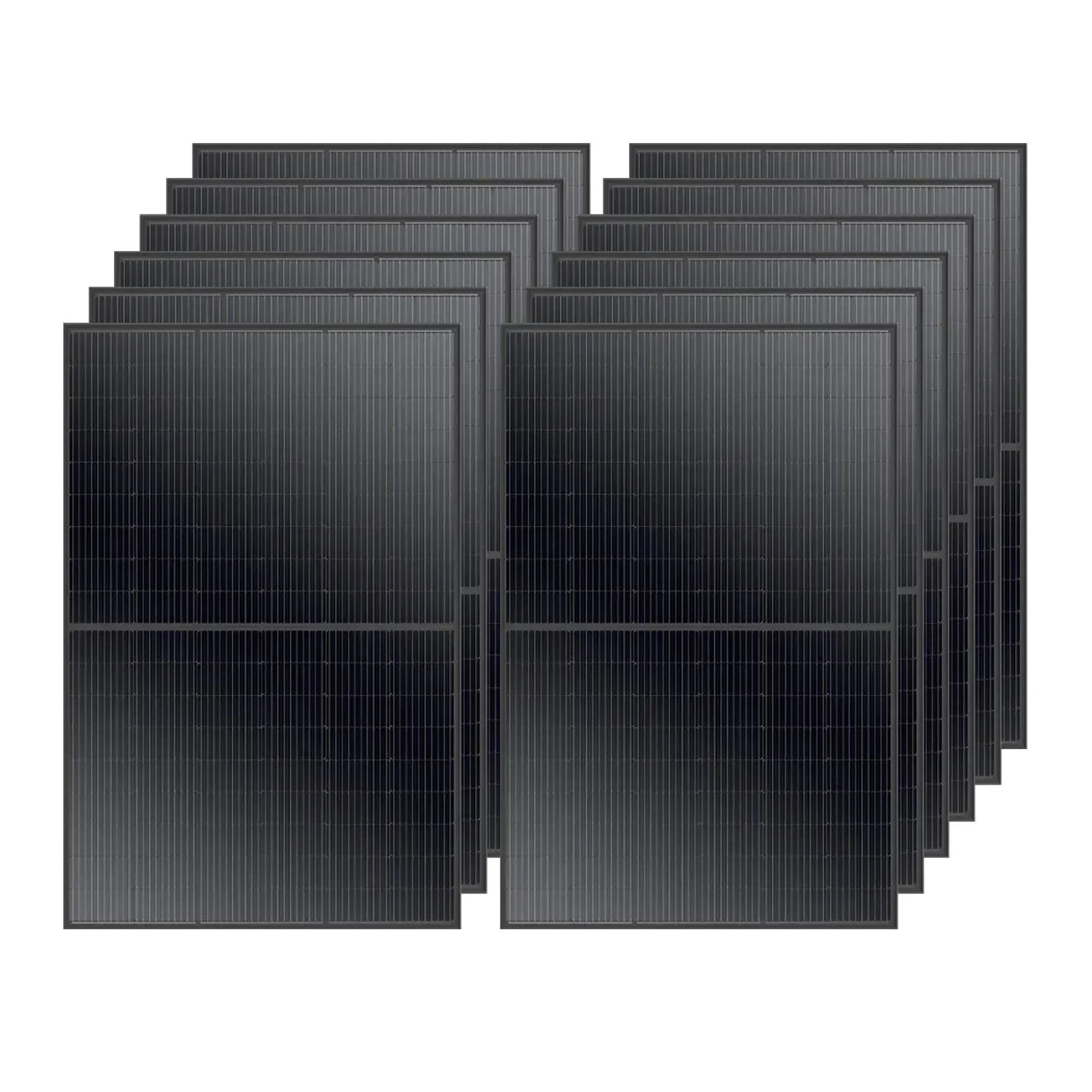

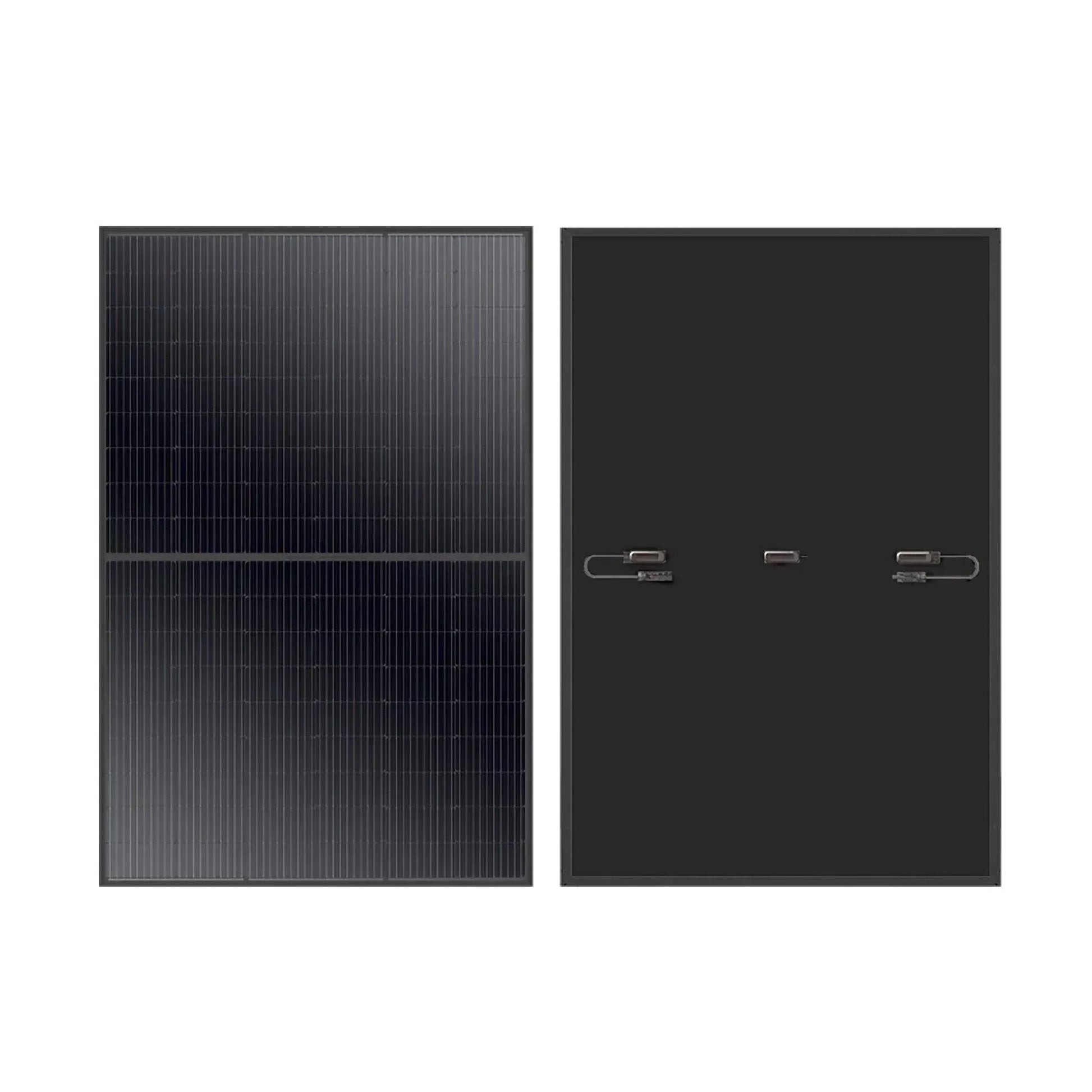

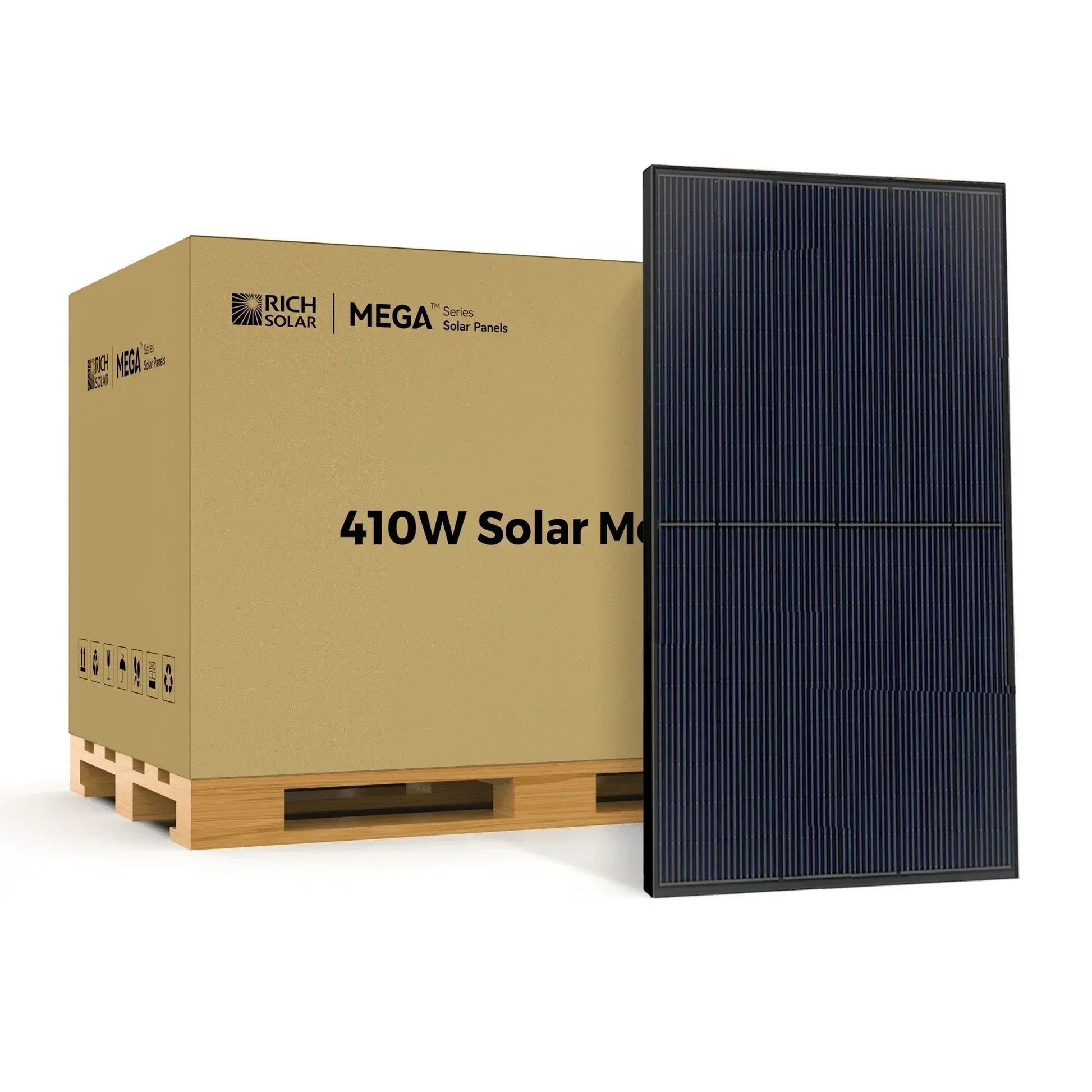

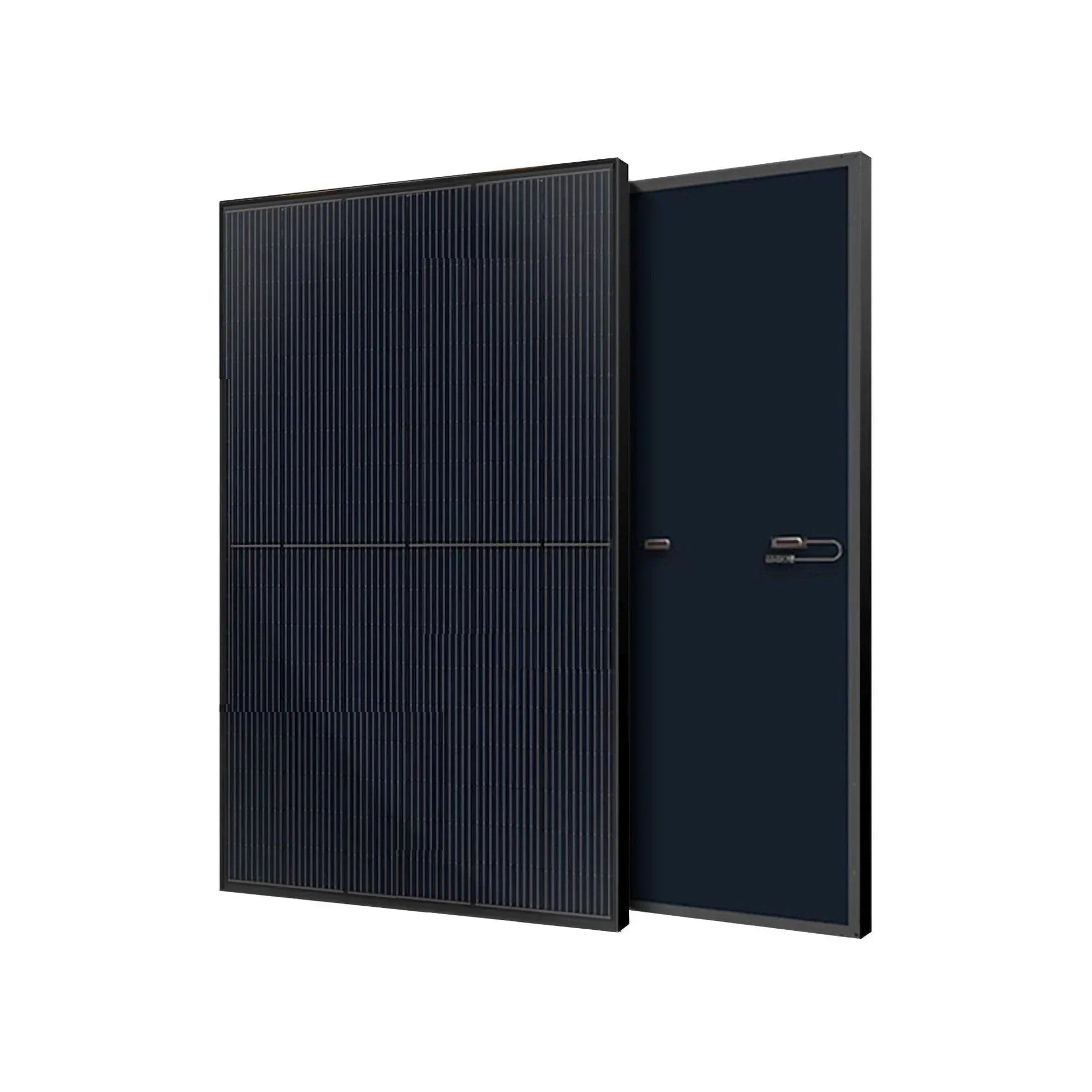

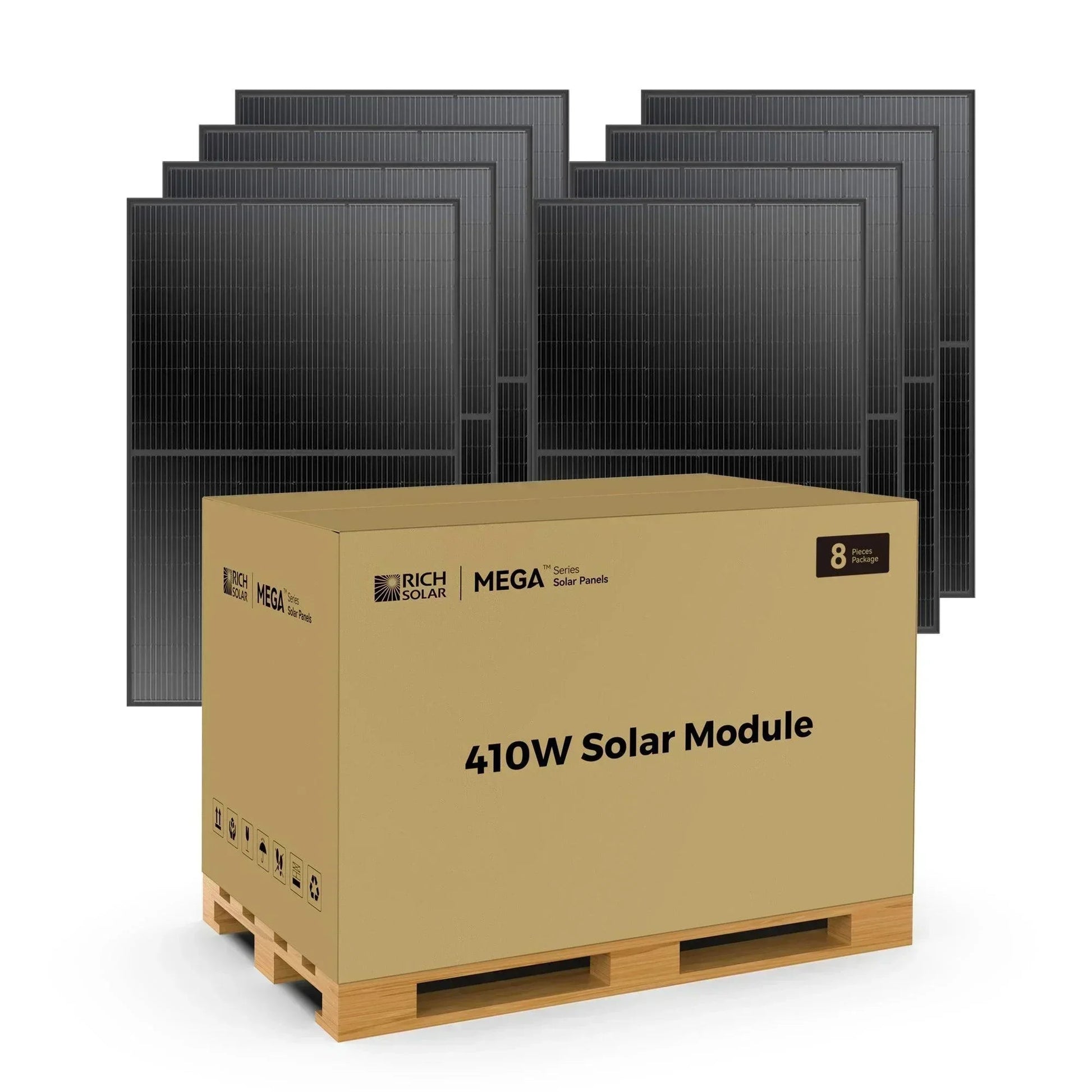

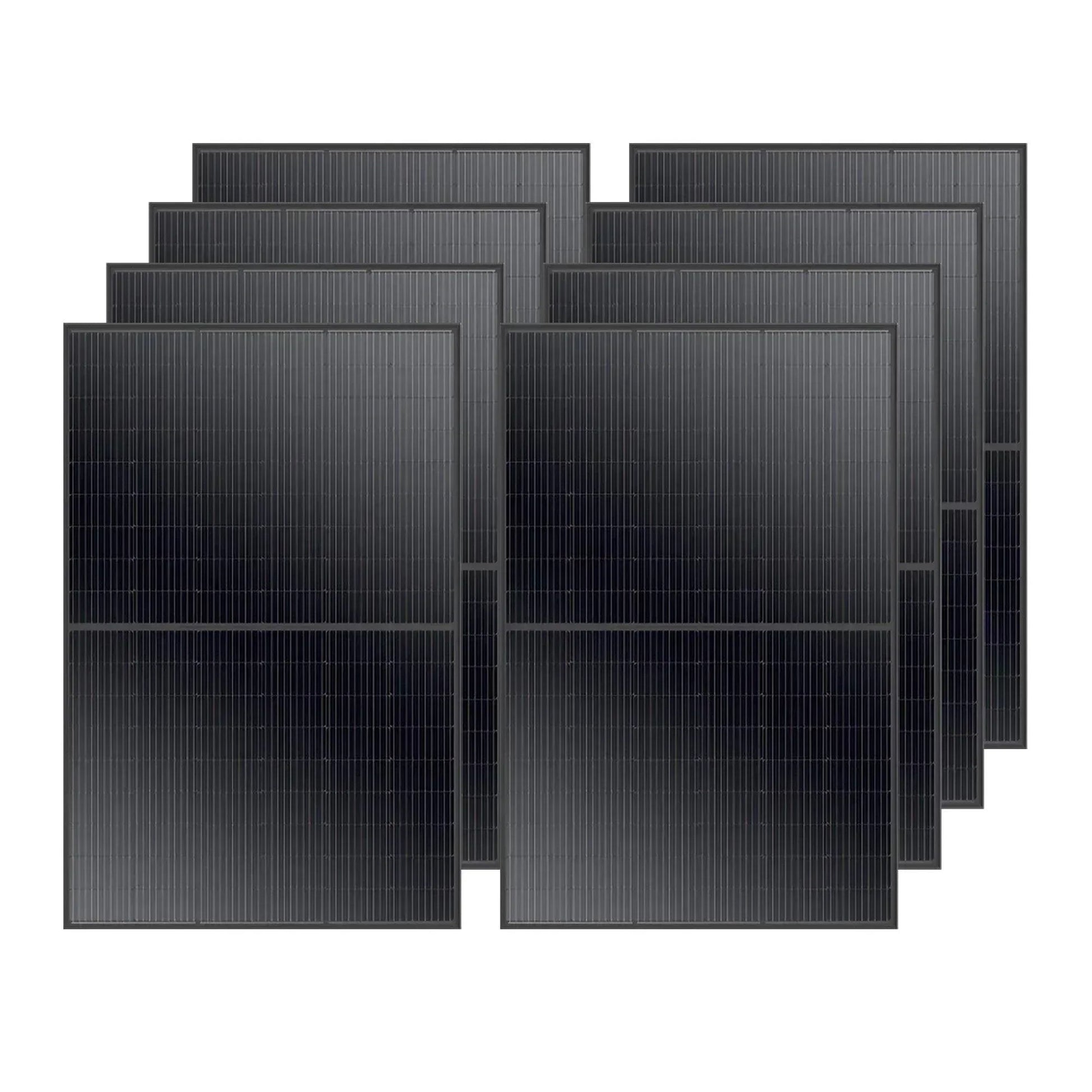

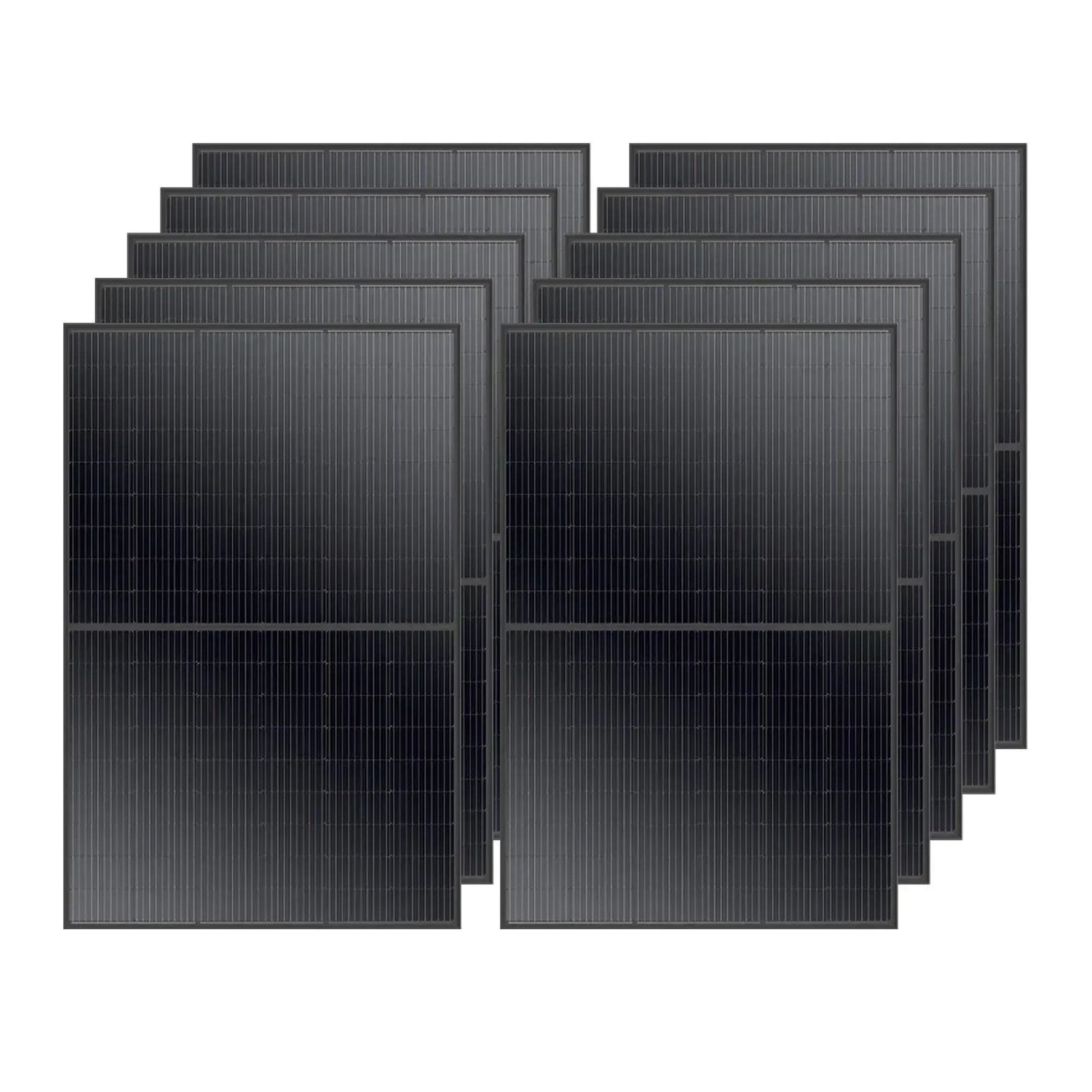

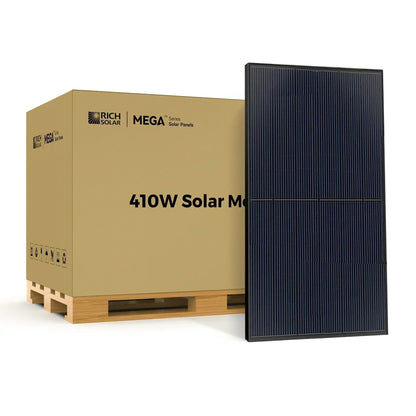

MEGA 410W Solar Panel — Grid-Tie or Off-Grid Solution
The MEGA 410W solar panel is a premium module engineered for grid-tie and off-grid installations, suitable for residential, commercial, and agricultural applications. It maximizes power generation within a compact footprint, reducing space, equipment needs, and overall system cost while delivering reliable, scalable renewable energy.
- Maximum Power (Pmax): 410 W
- Maximum Power Voltage (Vmp): 31.3 V
- Maximum Power Current (Imp): 13.1 A
- Open Circuit Voltage (Voc): 37.5 V
- Short Circuit Current (Isc): 13.8 A
- Maximum System Voltage (Vmax): 1500 VDC
- Temperature Range: -40°F to 185°F
- Max Series Fuse Rating: 25 A
- Weight: 45.2 lb
- Dimensions: 67.9 x 44.6 x 1.2 in
- Cell Configuration: 10-busbar Mono PERC
- Frame: Lightweight anodized aluminum
- Glazing: High Transmission AR-coated tempered glass
- Junction Box: IP65-rated waterproof with bypass diodes
- Connectors: IP67-rated waterproof solar connectors
- Leads: Panel leads (pair) 2 ft each
- Mounting: Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
- Inverter Compatibility: Works with on-grid and off-grid inverters
Safety, Certifications and Performance
Certified to withstand challenging environmental conditions and UL certified, the MEGA 410 delivers excellent low-light performance on cloudy days, mornings, and evenings. The module is designed for safe, versatile installations across harsh environments, with robust insulation and weatherproof components throughout the junction box and connectors.
Installation and Maintenance
Designed for easy handling and quick mounting, the MEGA 410 supports a range of applications including high-end off-grid and mobile systems. Its pre-drilled mounting holes, plug-and-play junction box, and standardized quick-connect cables enable straightforward, scalable configurations in series or parallel.
Warranty and Service
Warranty coverage includes a 25-year output warranty and a 10-year workmanship warranty. UL certification accompanies ongoing service and support to ensure long-term performance and reliability in commercial, agricultural, and residential deployments.
MEGA 410 Watt Solar Panel | Premium Grid-tie or Off-grid Solar Panel for Residential, Commercial, Agriculture | 25-Year Output Warranty | UL Certified
The MEGA 410 maximizes power generation while minimizing space, equipment necessities, and cost by providing premium solar generation for off-grid systems. With the ability to generate 410W with 24V, the MEGA 410 can generate renewable energy and reduce electricity bills for any residential, agricultural, or commercial solar systems. Its anodized aluminum frame and tempered glass make it withstand any environment you put it in.
Features
- 10-busbar solar cell configuration
- Mono PERC Technology
- Lightweight anodized aluminum frame
- High Transmission, AR (anti-reflective) Coated Tempered Glass
- Plug-and-play junction box
- Industry-standard quick-connect cables work in series or parallel
- Certified to withstand challenging environmental conditions
- Excellent low-light performance on cloudy days, mornings, and evenings
Installation
- Easy installation and handling for various applications (high-end off-grid and mobile applications)
- Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
- Compatible with on-grid and off-grid inverters
Warranty
- 25-year output warranty
- 10-year workmanship warranty
SPECIFICATIONS
| ATTRIBUTE | VALUE |
| Maximum Power(Pmax) | 410W |
| Maximum Power Voltage(Vmp | 31.3V |
| Maximum Power Current(Imp) | 13.1A |
| Open Circuit Voltage(Voc) |
37.5V
|
| Short Circuit Current(Isc) | 13.8A |
| Maximum System Voltage(Vmax) | 1500VDC |
| Temperature Range | -40°F ~ 185°F |
| Max Series Fuse Rating | 25A |
| Weight | 45.2 lb |
| Dimensions | 67.9 x 44.6 x 1.2 in |
BUILT-IN COMPONENTS
|
| ATTRIBUTE | VALUE |
| Maximum Power(Pmax) | 410W |
| Maximum Power Voltage(Vmp | 31.3V |
| Maximum Power Current(Imp) | 13.1A |
| Open Circuit Voltage(Voc) |
37.5V
|
| Short Circuit Current(Isc) | 13.8A |
| Maximum System Voltage(Vmax) | 1500VDC |
| Temperature Range | -40°F ~ 185°F |
| Max Series Fuse Rating | 25A |
| Weight | 45.2 lb |
| Dimensions | 67.9 x 44.6 x 1.2 in |
|
