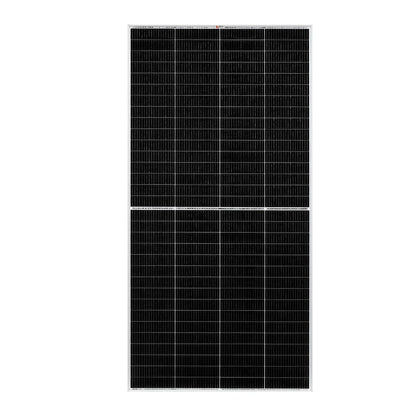

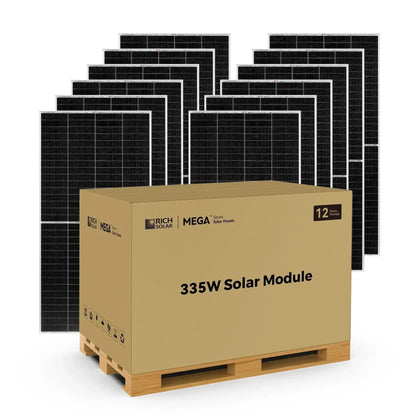

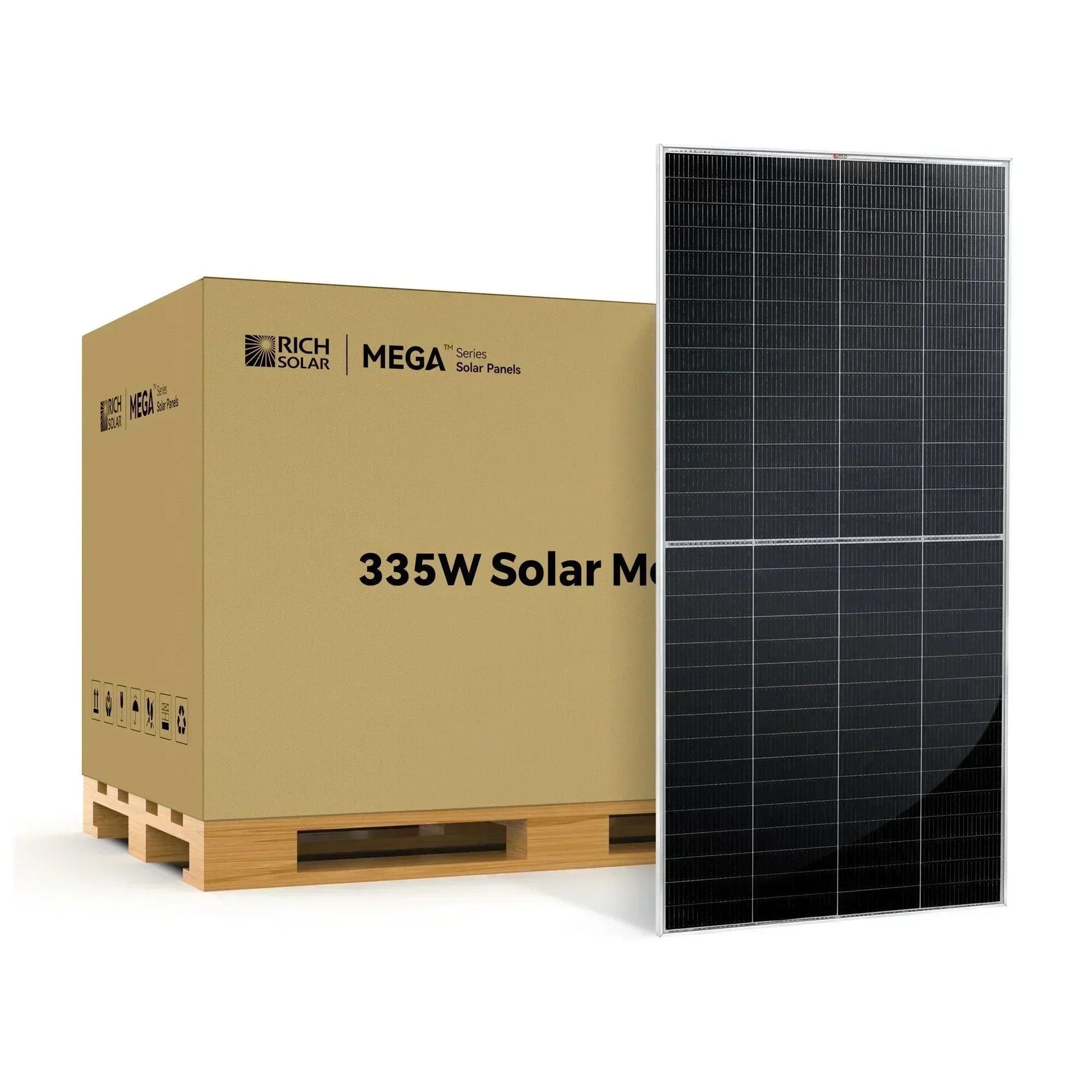

335W Rich Solar MEGA Solar Panel for Grid-Tie and Off-Grid Installations

The Rich Solar MEGA 335W panel is a high-efficiency module designed for premium grid-tie or off-grid systems across residential, commercial, and agricultural applications. It supports series or parallel configurations, charges 12-volt battery banks when integrated into the appropriate array, and ships with 3-foot quick-connect cables and connectors for streamlined wiring.

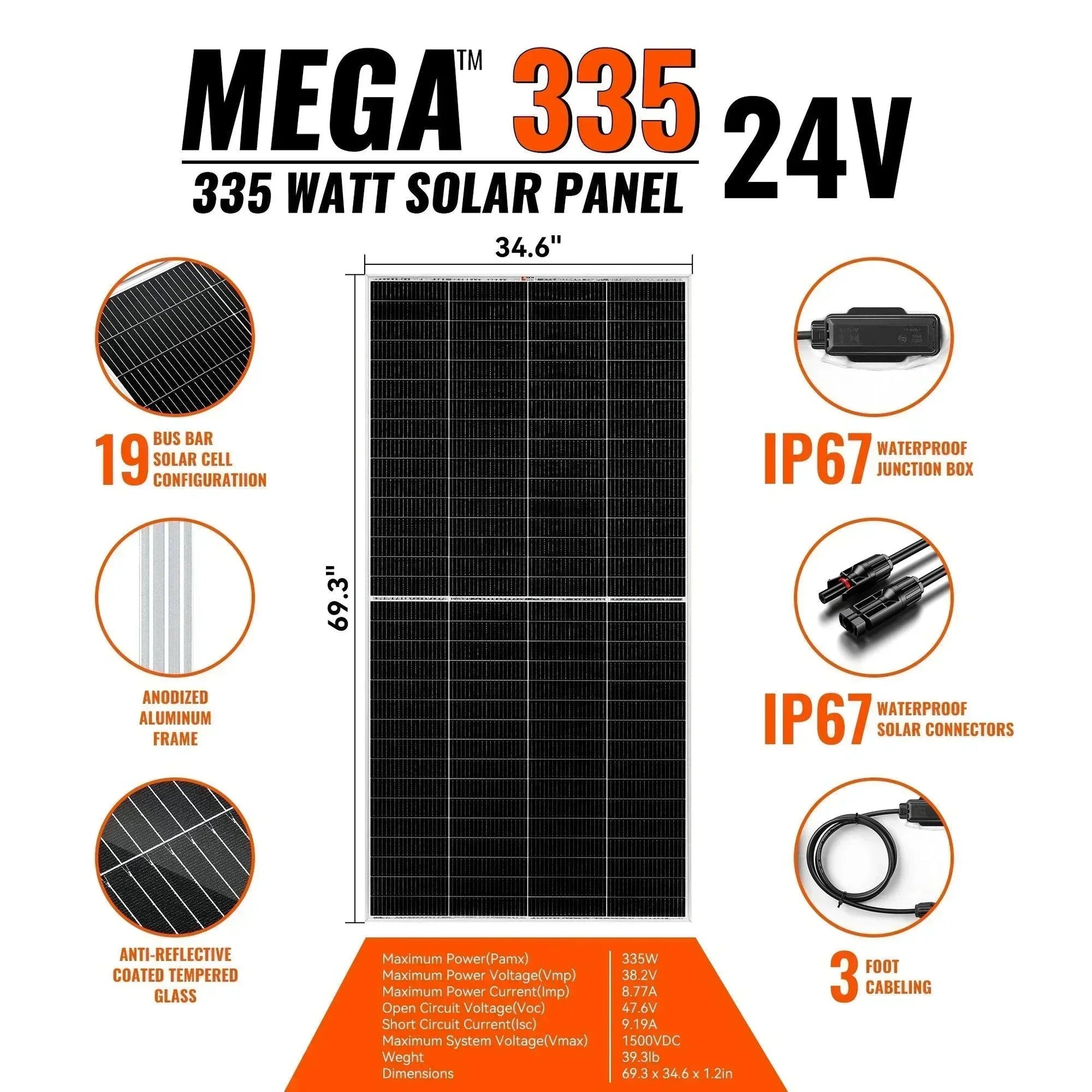

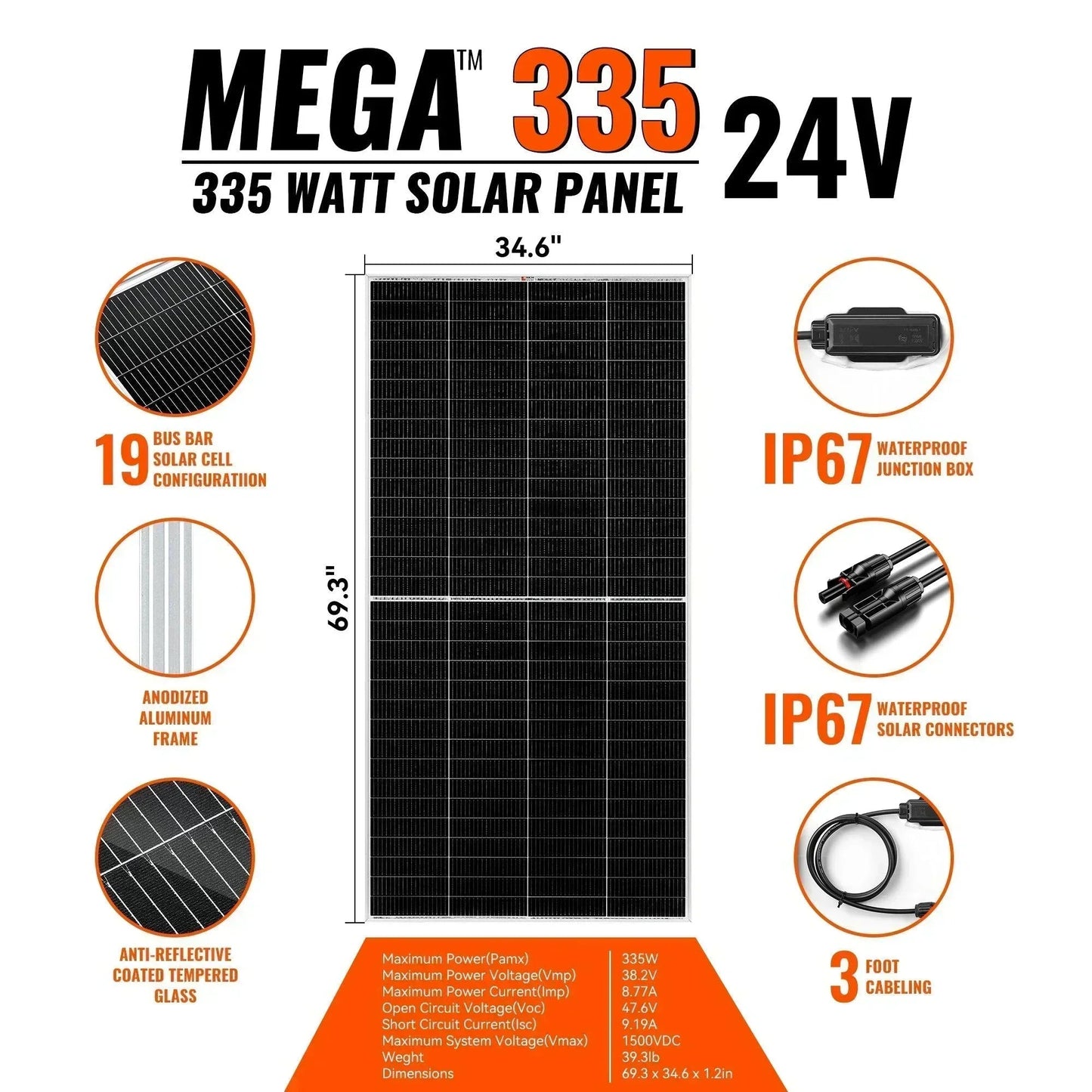

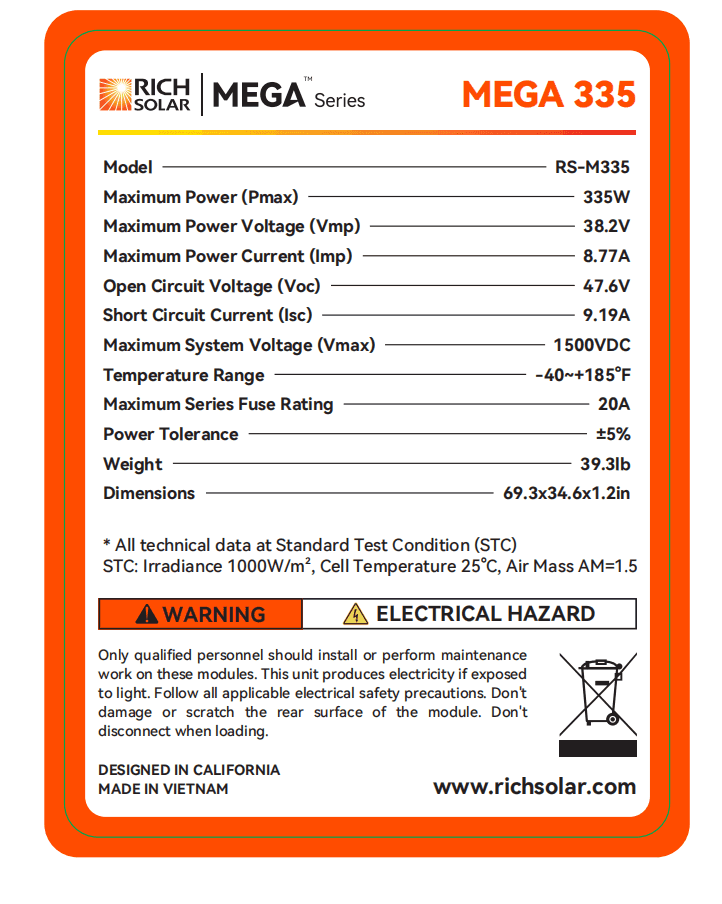

Performance Specifications

• Maximum Power (Pmax): 335 W
• Maximum Power Voltage (Vmp): 38.2 V
• Maximum Power Current (Imp): 8.77 A
• Open Circuit Voltage (Voc): 47.6 V
• Short Circuit Current (Isc): 9.19 A
• Maximum System Voltage (Vmax): 1500 VDC
• Temperature Range: -40°F to 185°F
• Max Series Fuse Rating: 20 A

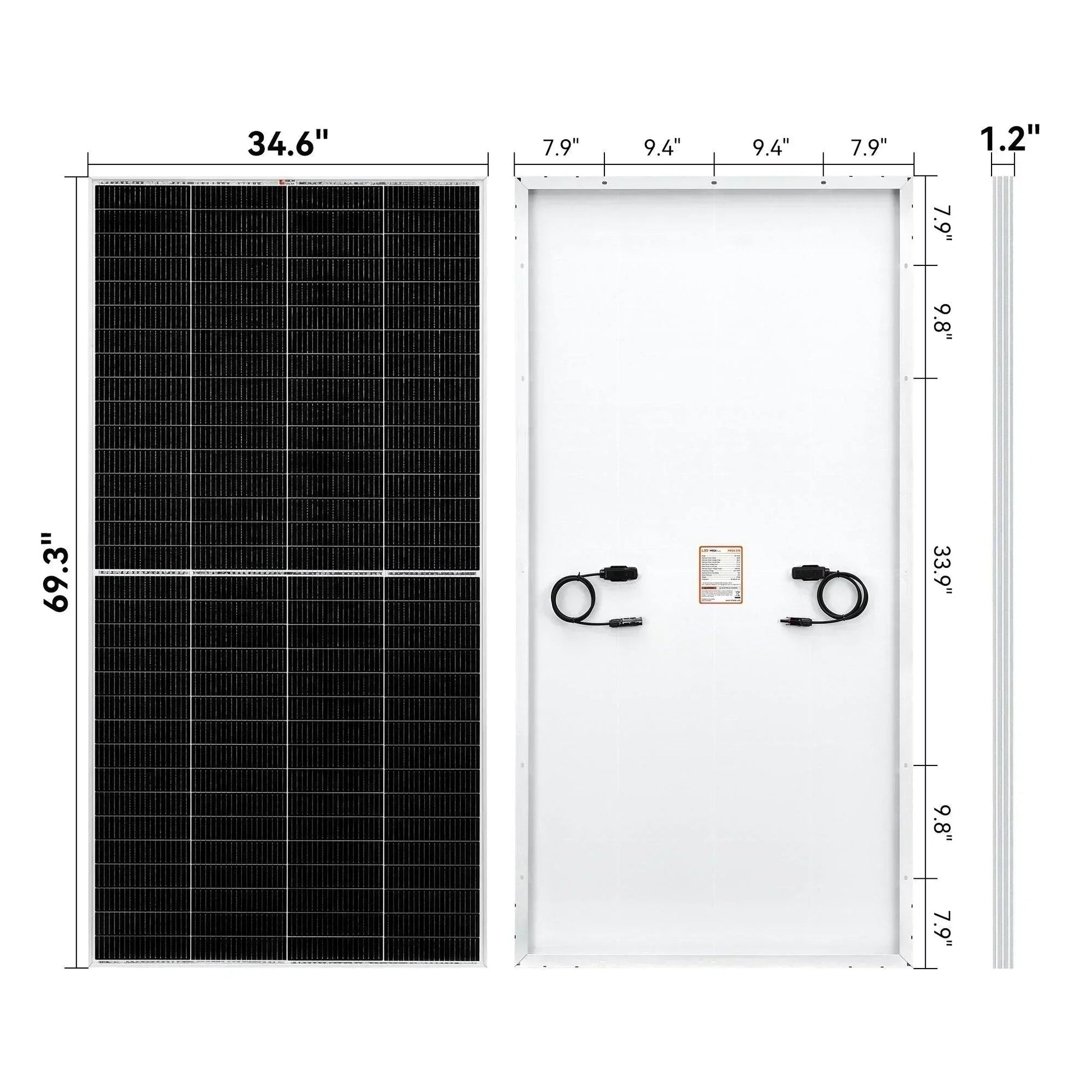

• Dimensions: 69.3 x 34.6 x 1.2 in
• Weight: 39.3 lb

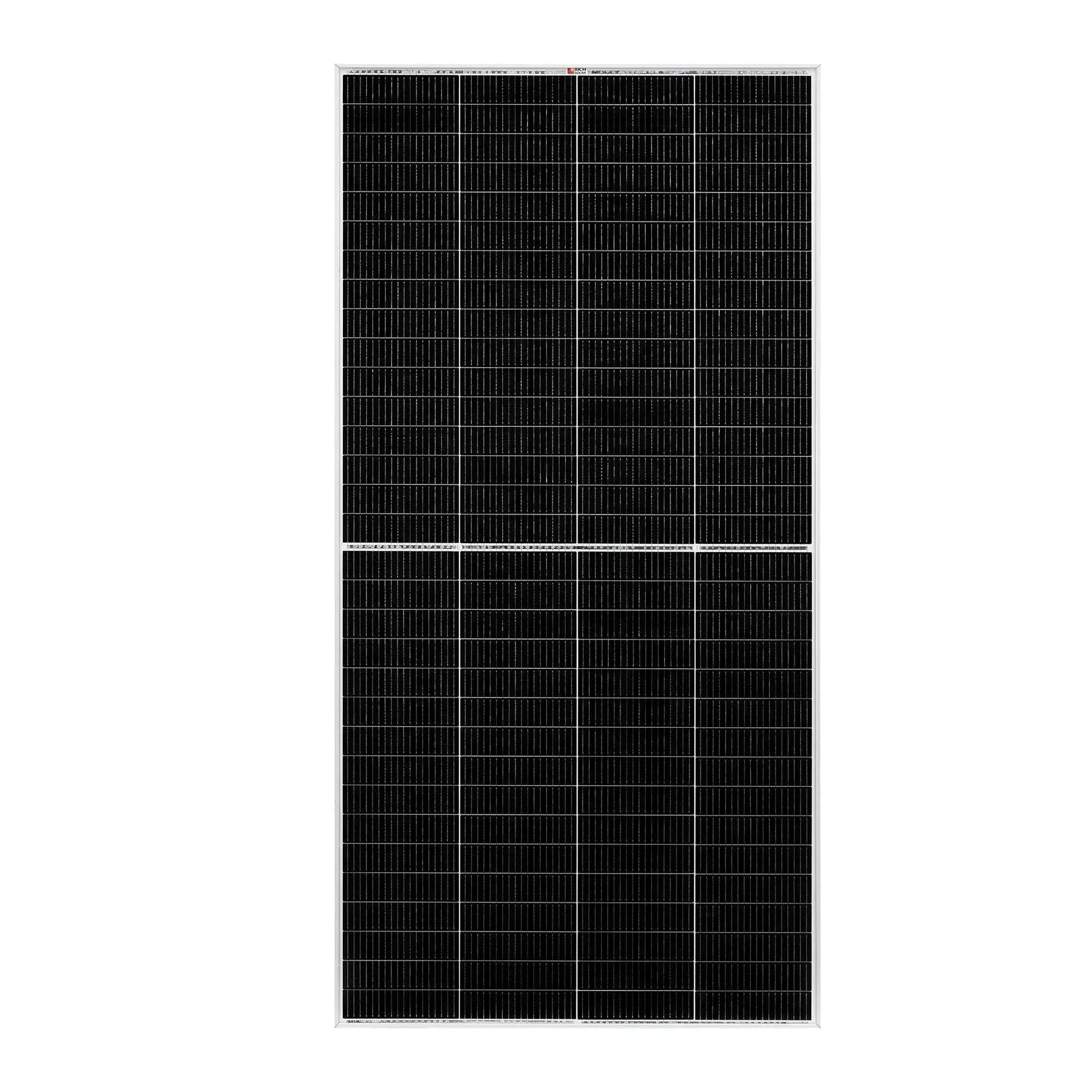

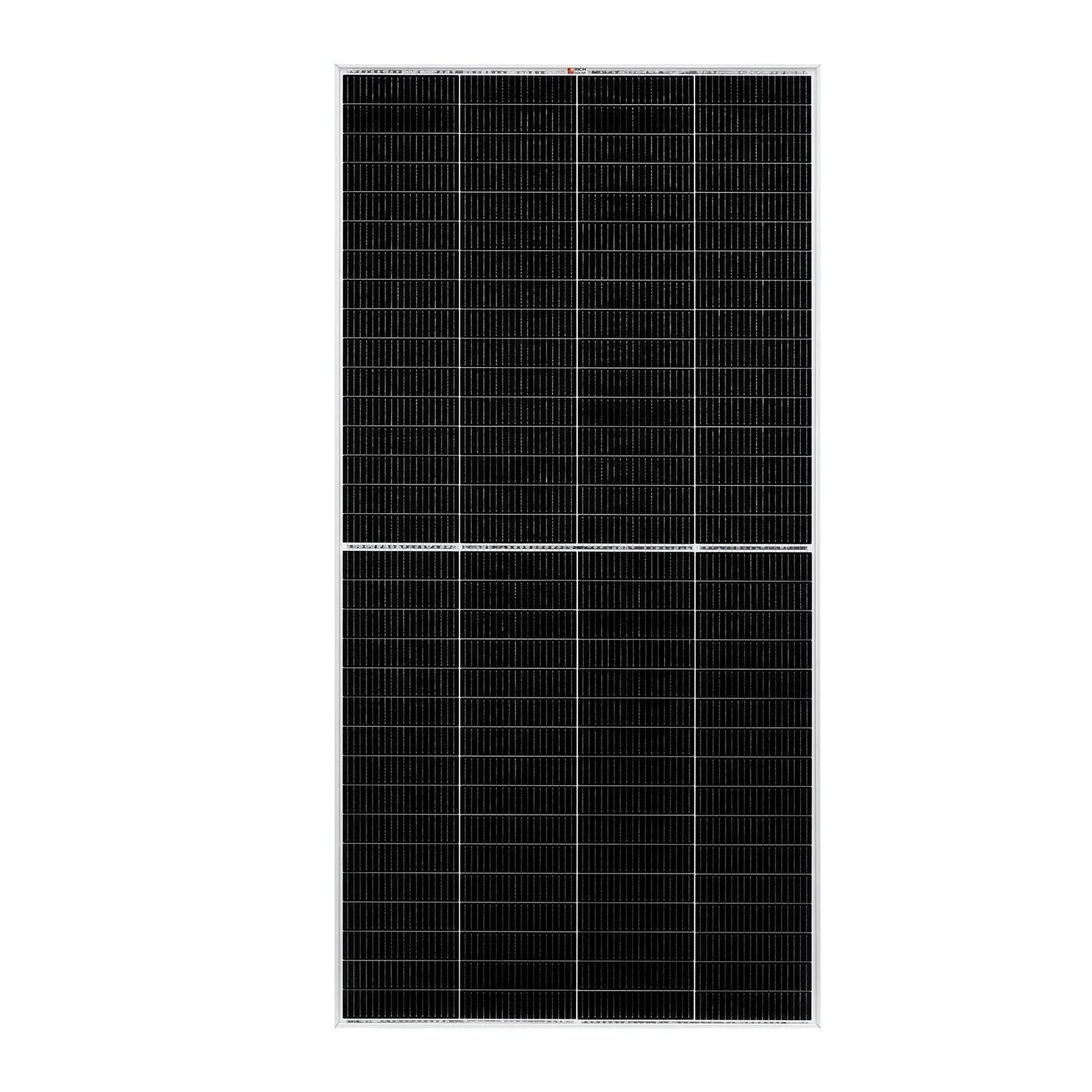

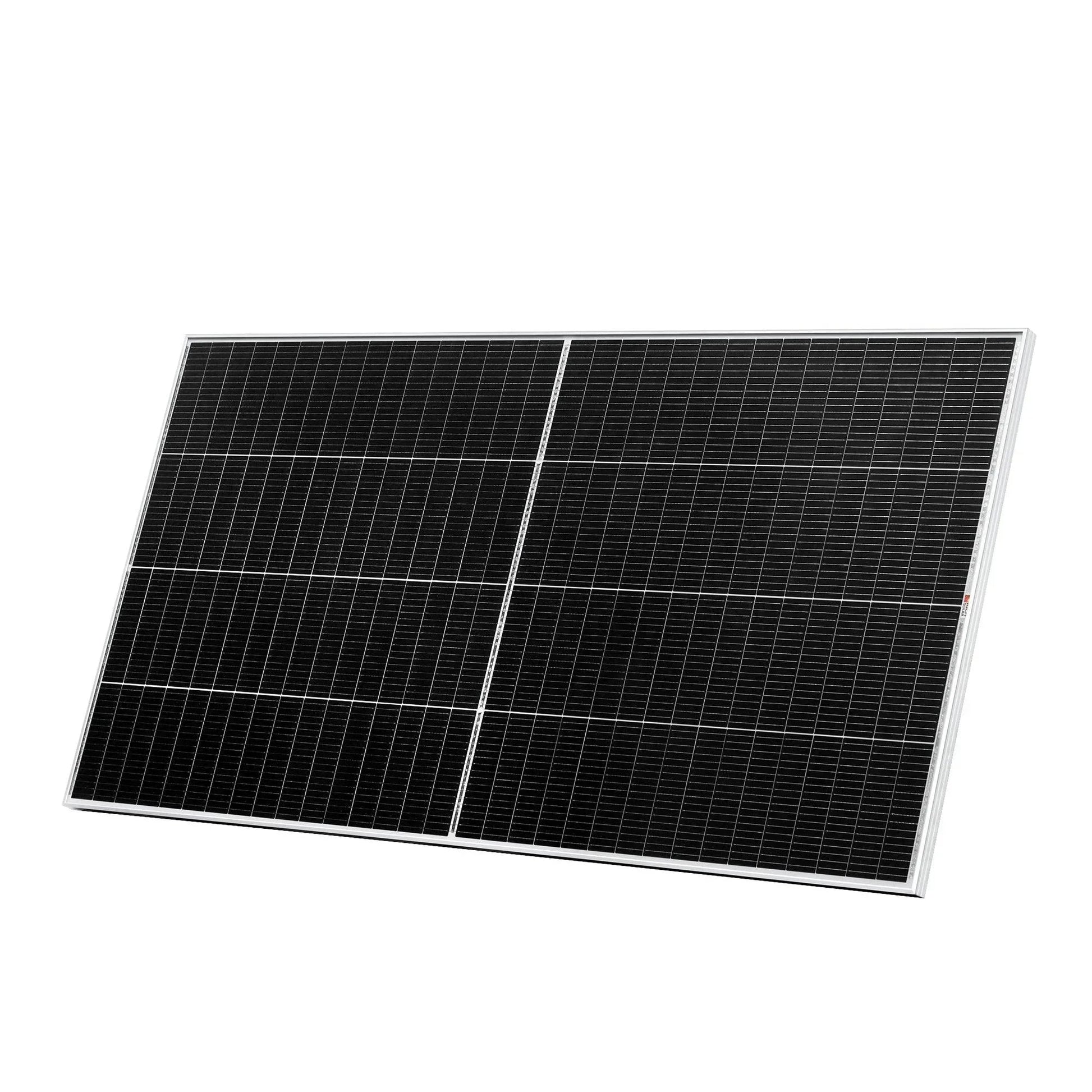

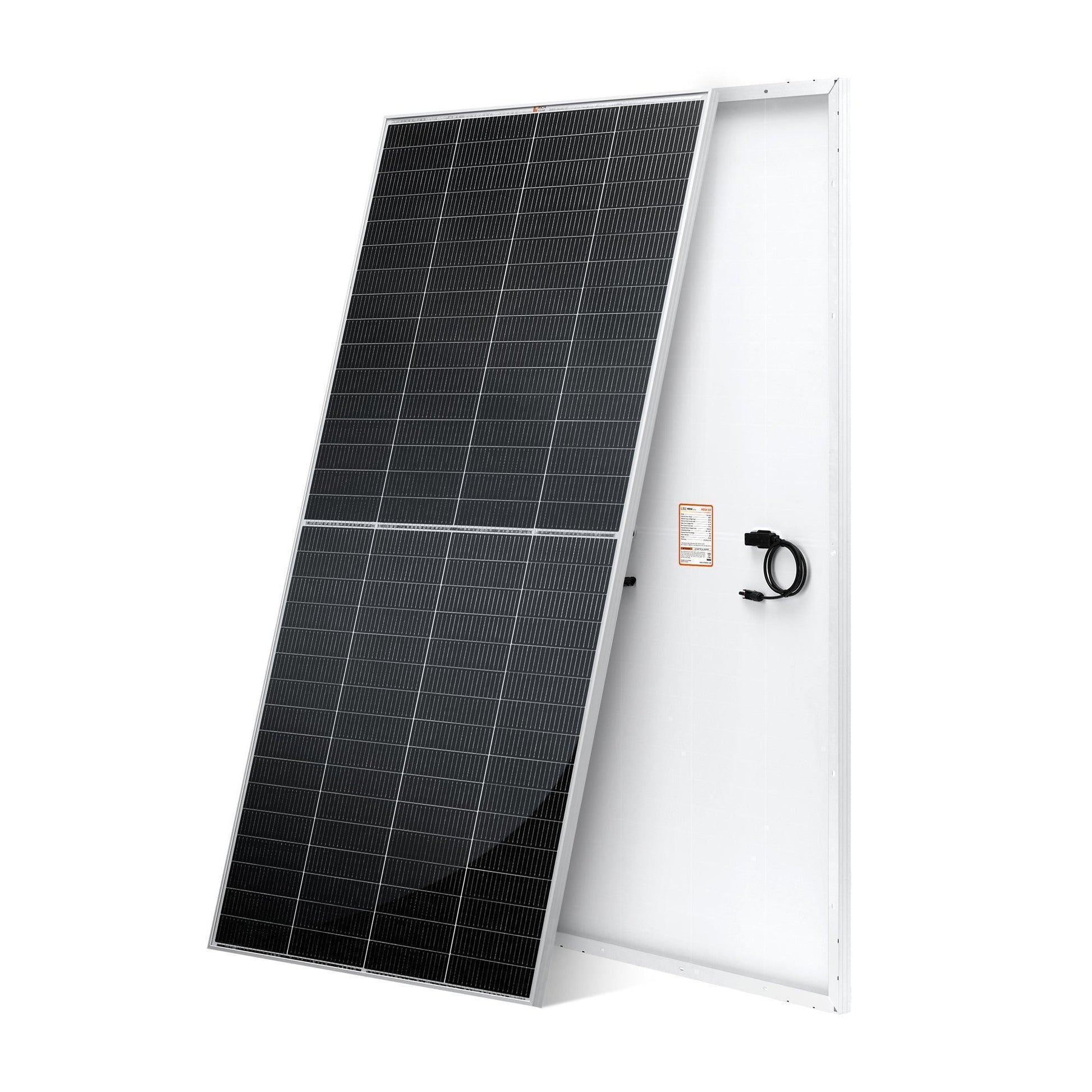

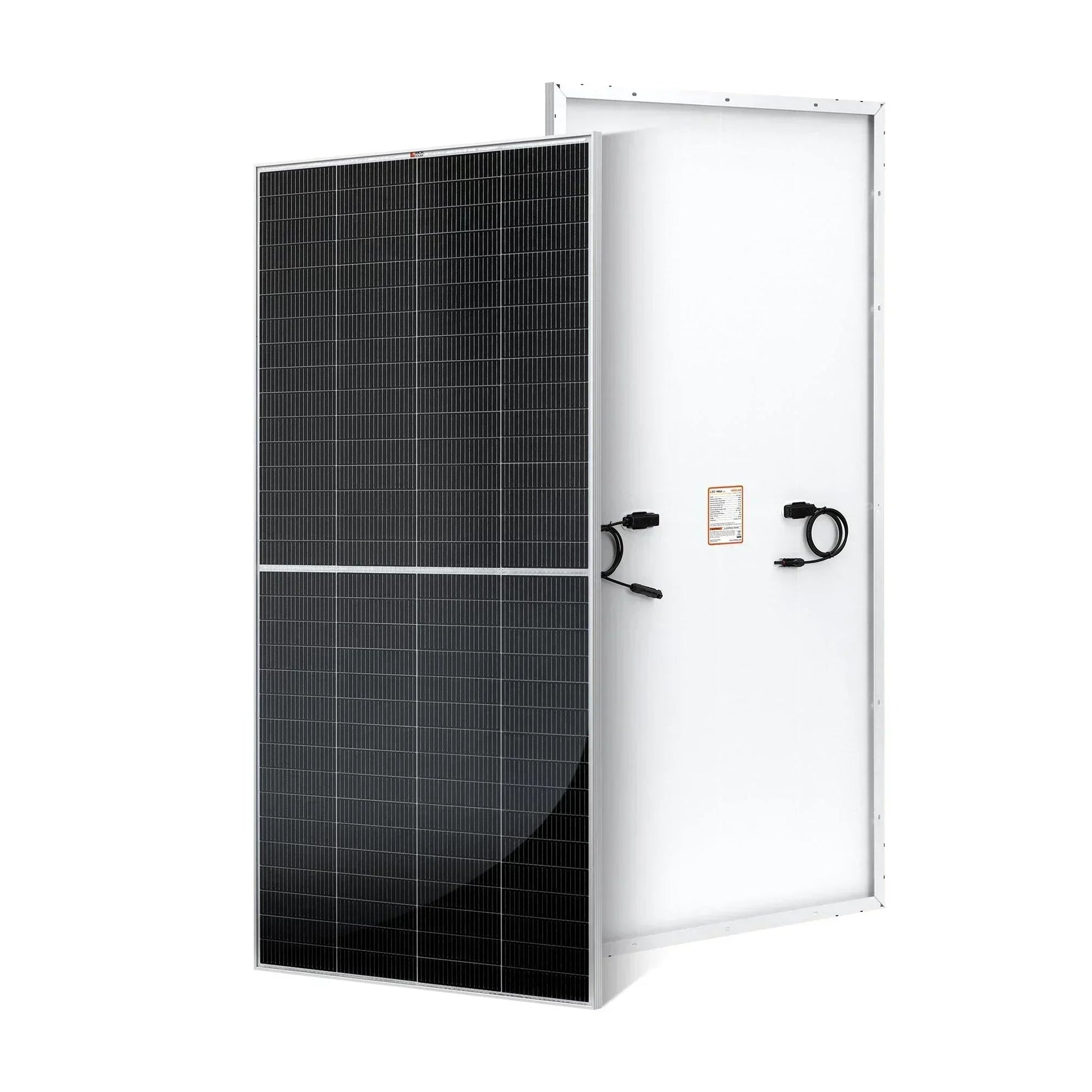

• Panel: 335-watt monocrystalline solar panel

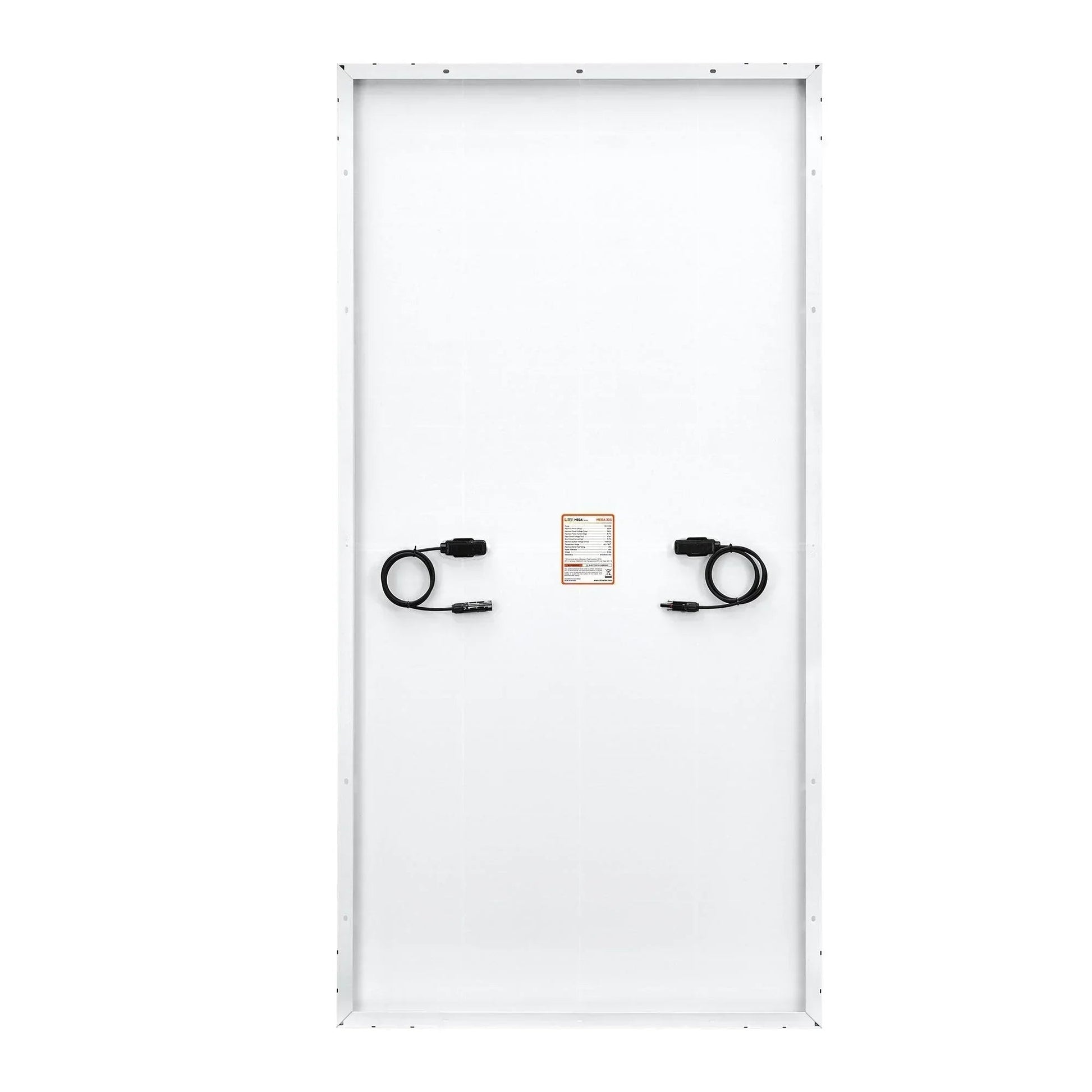

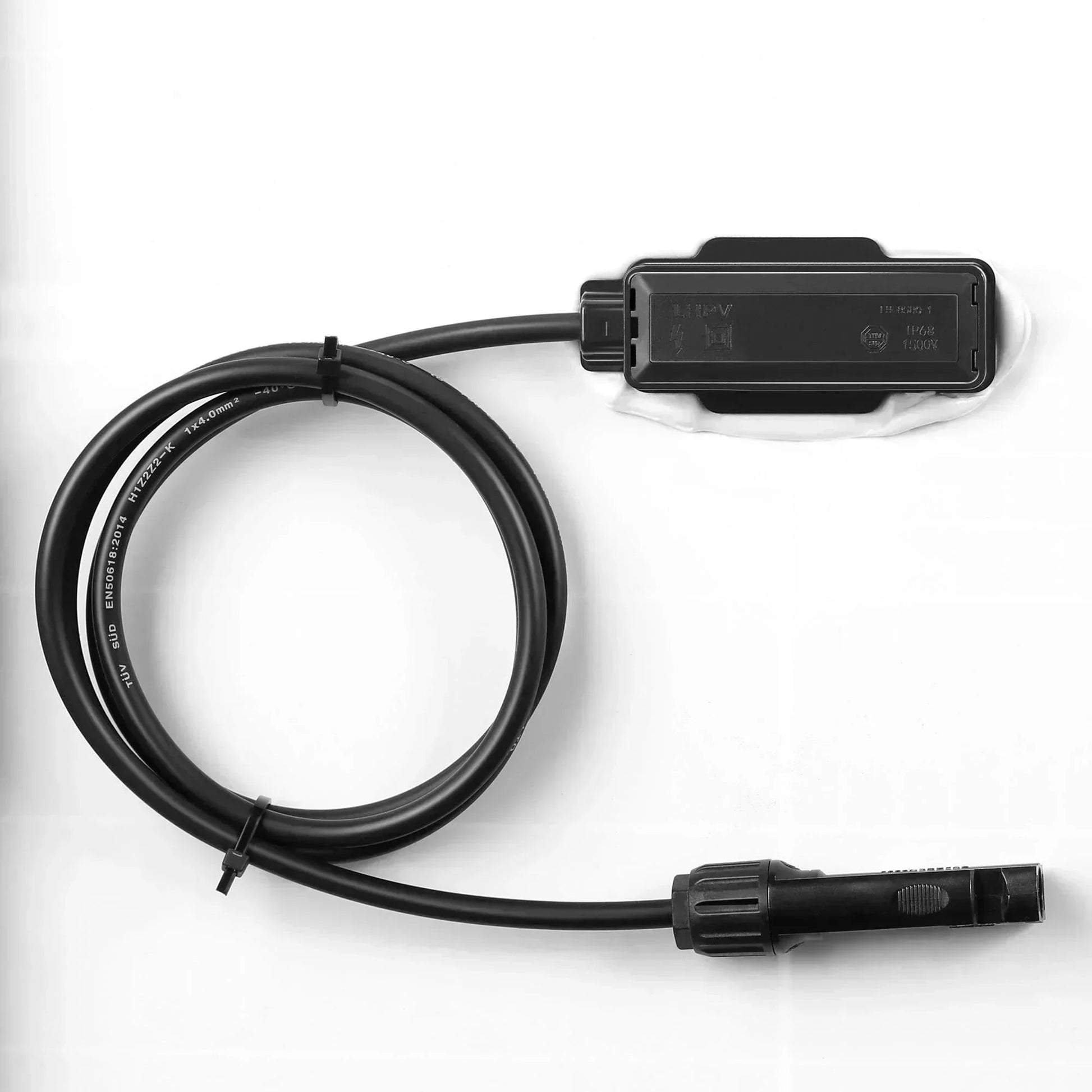

• Panel leads (pair): 3 feet each
• Junction box: IP67-rated waterproof
• Connectors: IP67-rated waterproof solar connectors
• Bypass diodes: built into the junction box

Durability and Design

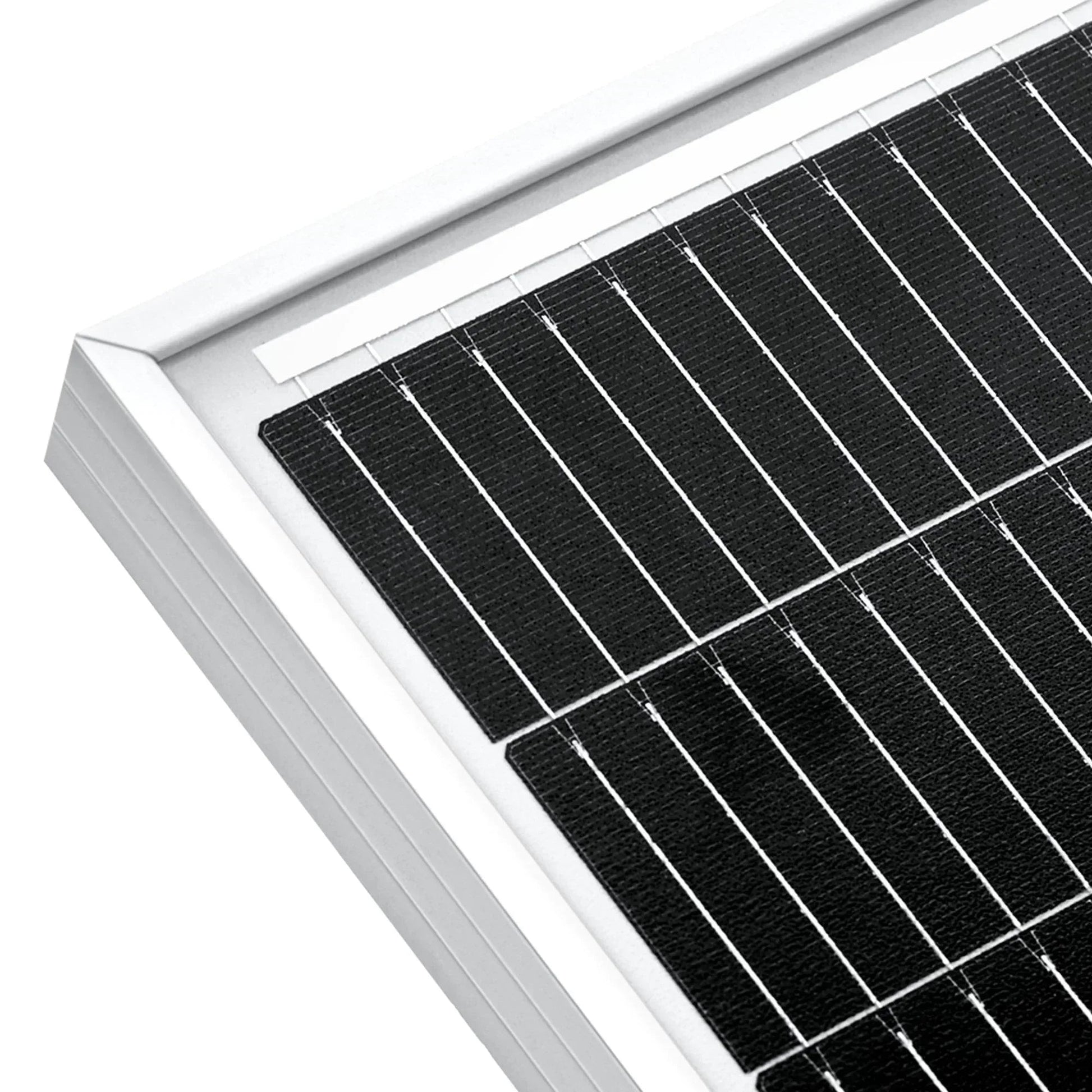

Engineered for harsh conditions, the panel features high-transmission, anti-reflective coated tempered glass and an anodized aluminum frame, delivering robust field performance and long-term weather resistance.

Installation and Compatibility

Fast and reliable mounting is facilitated by 14 pre-drilled holes compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts. The unit ships with 3-foot panel leads and supports series or parallel wiring to match system voltage and design goals.

Safety, Certifications, and Warranty

UL-certified for compliance with industry standards. The assembly includes IP67-rated protection for the junction box and connectors, minimizing ingress and moisture risk. Warranty coverage includes a 25-year power output warranty and a 10-year workmanship warranty, underscoring long-term reliability.

Maintenance and Service

Routine inspections of mounting hardware and electrical connections are recommended as part of standard system upkeep, with service responsive to warranty terms if issues arise.

MEGA 335 Watt Solar Panel | Premium Grid-tie or Off-grid Solar Panel for Residential, Commercial, Agriculture | 25-Year Output Warranty | UL Certified

☑ Industry Standard

Generates 9.8 amps of power, charges 12-volt batteries, 3' quick connect cables with connectors, and works in series or parallel.

☑ High Performance

Excellent low-light performance even on early mornings, evenings, and cloudy days.

☑ Rugged Durability

Built with strong high transmission “Anti-reflective” coated tempered glass, and an anodized aluminum frame.

☑ Simple Installation

Fast and easy installation thanks to 14 pre-drilled holes that are compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.

☑ Warranty

25-year power output warranty and a 10-year workmanship warranty.
