Rich Solar Complete Off-Grid Solar Kit RS-H6548 | 8000W PV Input 48V 120VAC Output
Take command of off-grid power with the RS-H6548 kit. This turnkey solution is designed for RVs, travel trailers, and compact homes, delivering up to 8 kW of PV input across 16 MEGA 410W monocrystalline panels and a 6.5 kW hybrid inverter that yields a reliable 120V AC output for essential loads.
- Inverter and power center: 6500VA/6500W RS-H6548, 120 VAC output, 50/60 Hz auto-sensing, pure sine wave, parallel capability up to 6 units, MPPT input range 90–230 VDC, maximum PV input 8000W (two strings of 4000W), maximum PV open-circuit 250 VDC, peak efficiency 90–93%, monitoring via USB/RS232/RS485/Wi-Fi/dry-contact. Net weight 40.6 lb; dimensions 5.8 × 17.0 × 21.8 in.
- Energy storage: ALPHA 5 PRO RS-B5121P1 lithium iron phosphate battery, 51.2V 100Ah (5.12 kWh), >7000 cycles, IP65, 99.2 lb, 17.7 × 17.8 × 5.2 in. Manufacturer defect warranty 10 years.
- PV modules: 16 × MEGA 410W panels, 410W each, Vmp 31.3V, Imp 13.1A, Vmax 1500VDC, 20.97% module efficiency, 25-year panel warranty; per-panel weight 45.2 lb; dimensions 67.9 × 44.6 × 1.2 in.
- System accessories: Free battery rack RS-RK; Solar PV DC quick disconnect RS-i4 (IP66NW, 1500V, 32A, 7.1 × 6.8 × 4.3 in, 1.7 lb, 10-year warranty); interconnect cables, Y-branch connectors, and a 600A busbar for balanced parallel wiring.
Safety and installation notes: UL-listed components with IP65/IP66 ratings and a comprehensive monitoring interface support remote management. The kit is designed for split-phase or parallel operation and requires professional installation with proper clearances and electrical protection. Maintenance is primarily periodic inspection of connections and battery health; LiFePO4 chemistry minimizes routine upkeep. Ships from California with free technical support.
Warranty and service: Inverter 5-year warranty; batteries 10-year manufacturer defect; panels 25-year warranty; DC disconnect 10-year warranty; service support included.
Rich Solar Complete Off-Grid Solar Kit RS-H6548 | 8000W PV Input 48V 120VAC Output
Everything you need to go completely Off-Grid!
This travel trailer solar system includes flexible solar panels for RV and tiny homes, so you can jumpstart your off-grid solar trailer adventure today.
Best value on the market! Ships from California! Call us for any questions! Free technical support!

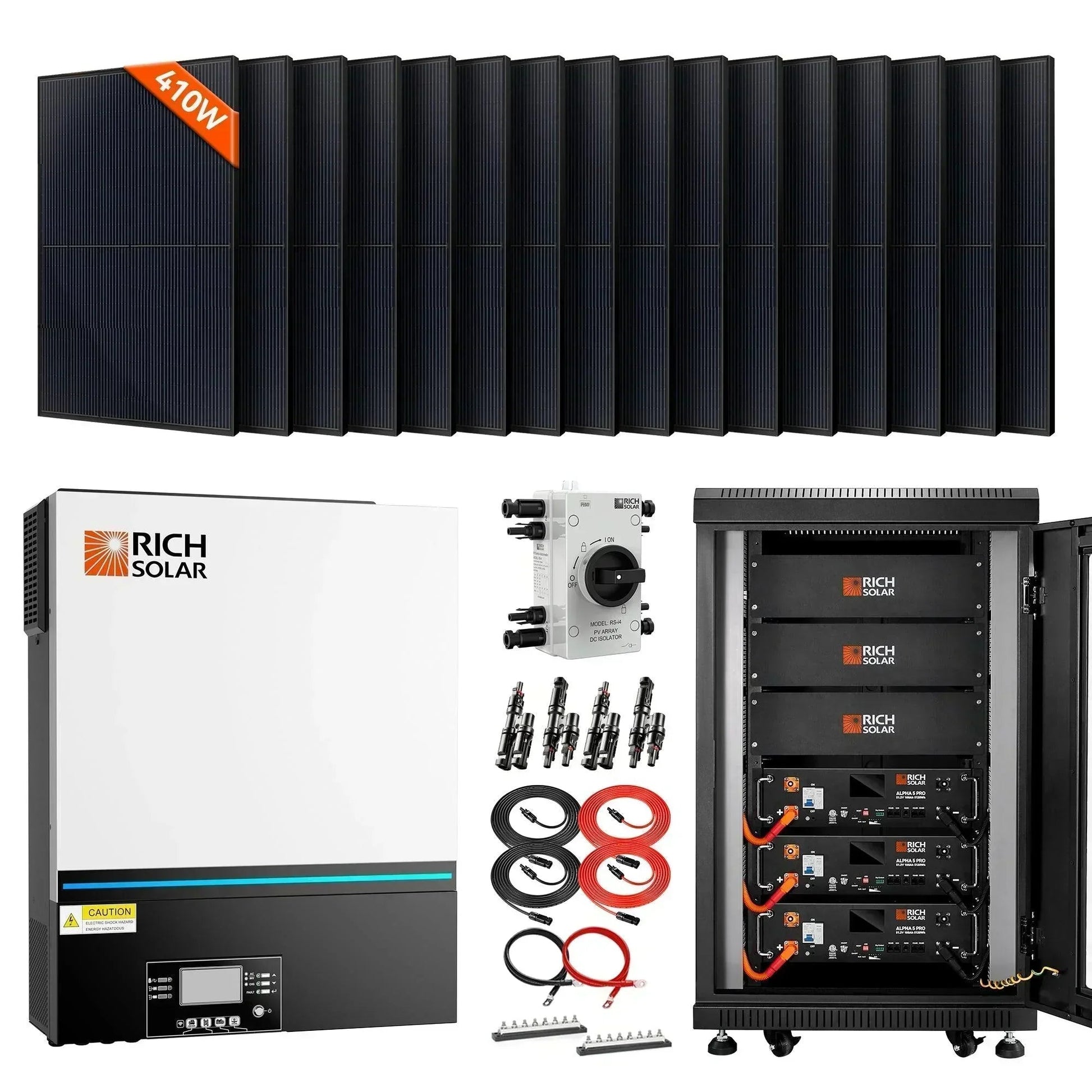

This kit includes:
Solar Panel Options：
🗹 16 x MEGA 410 Watt Monocrystalline Solar Panel (RS-M410)
🗹 1 x 6500 Watt (6.5kW) 48 Volt Off-grid Hybrid Solar Inverter (RS-H6548)
🗹 3 x 5.12kWh ALPHA 5 PRO Server Lithium Iron Phosphate Battery (RS-B5121P1)
🗹 1 x Free Battery Rack (RS-RK)
🗹 1 x Solar PV DC Quick Disconnect Switch (RS-i4)

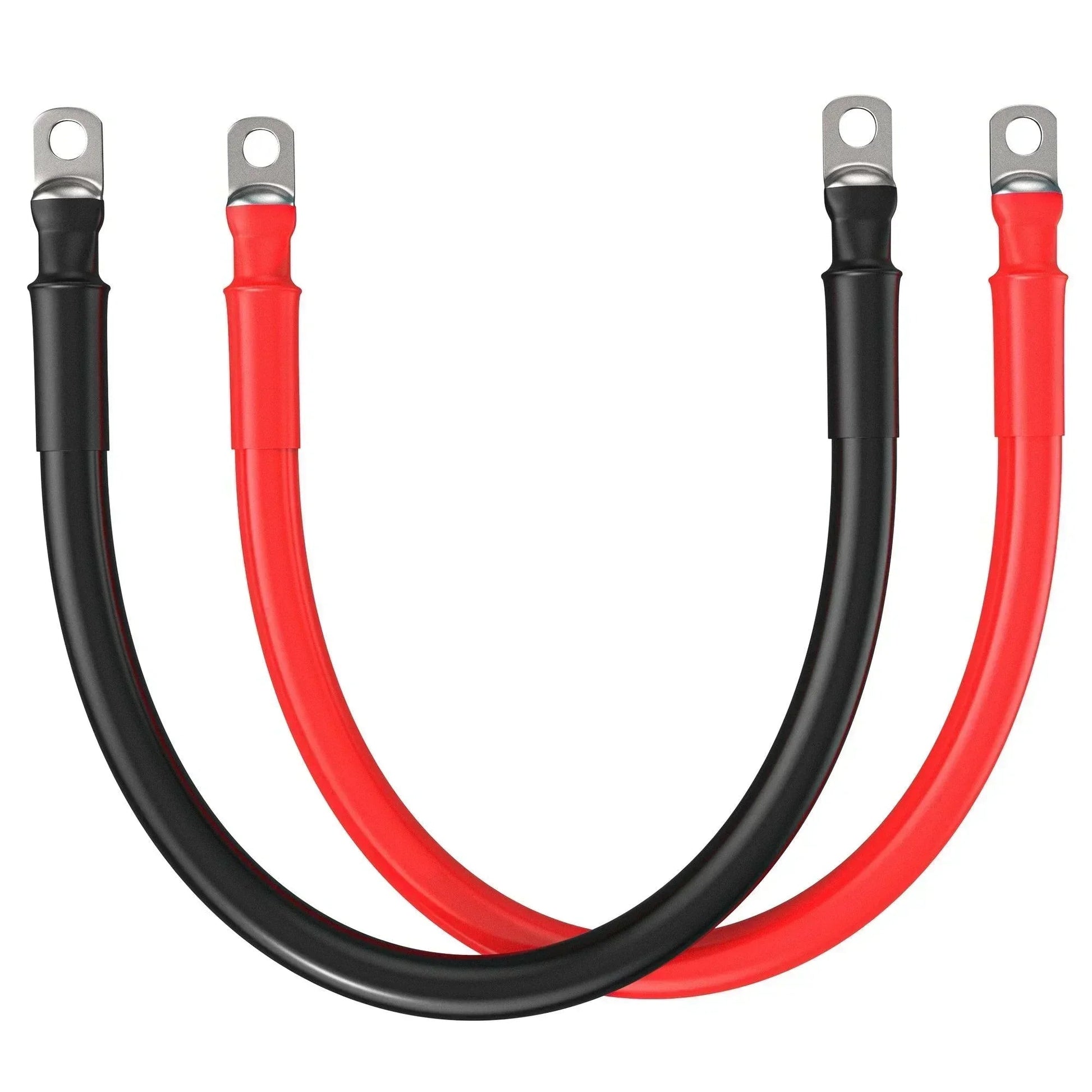

🗹 2 x 4 Foot 2/0 Gauge AWG Wire Set 3/8" (RS-2/0A4F3)

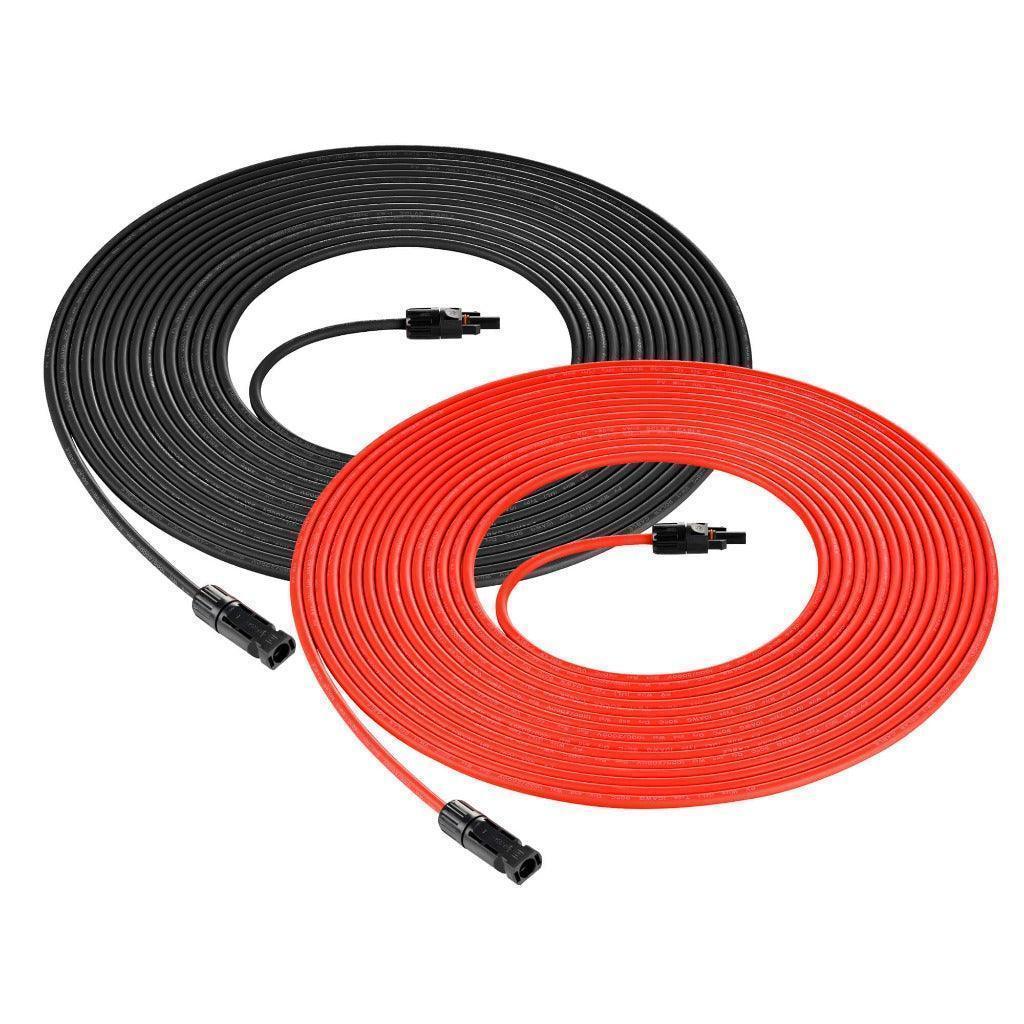

🗹 4 x 10 Gauge 50 Feet Solar Extension Cable (RS-50102)

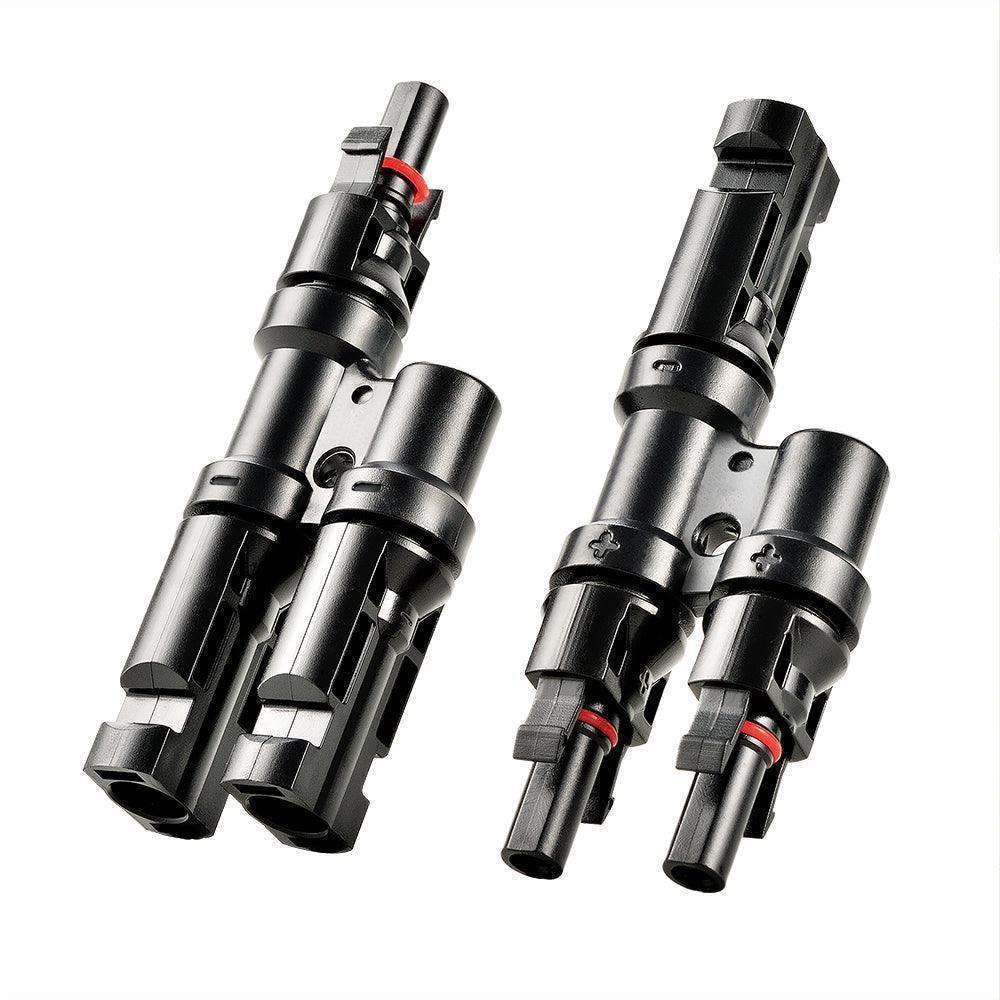

🗹 2 x Y Branch Parallel Connectors 2 to 1 (RS-T2)
🗹 2 x Busbar 600 AMP
How to Setup 6548 Hybrid Inverter in Split-Phase or Parallel Operations
When Not to Update the Firmware on the 6548 Hybrid Inverter
ALPHA 5 PRO | Overview, Unboxing, & Parallel Setup
Tech Specs

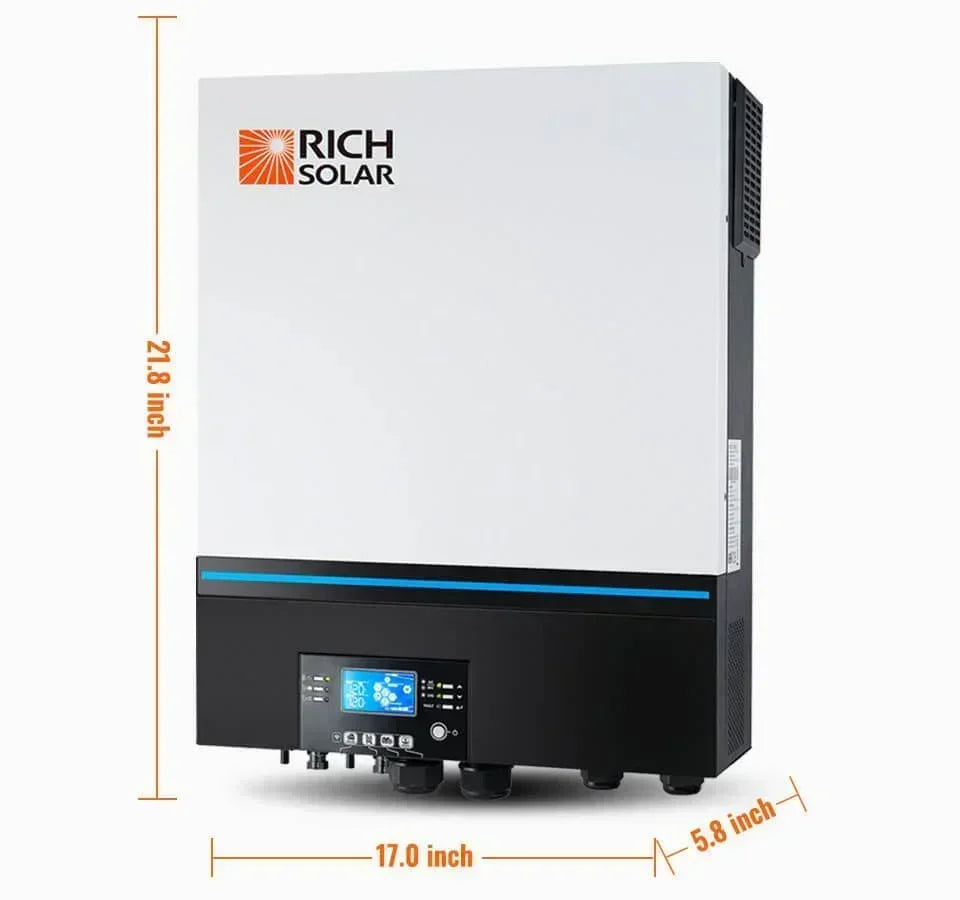

6500W 48V Off-Grid Hybrid Solar Inverter (RS-H6548)
- Rated Inverter Power: 6500VA/6500W
- Parallel Capability: Yes, 6 Units
- Input Voltage: 120 VAC
- Frequency Range: 50 Hz/60 Hz (Auto Sensing)
- Efficiency (Peak): 90% ~ 93%
- Waveform: Pure Sine Wave
- Battery Voltage: 48 VDC
- Solar Charger Type: MPPT
- Maximum PV Array Power: 8000W (4000W x 2)
- MPPT Operating Voltage Range: 90 ~ 230 VDC
- Maximum PV Array Open Circuit Voltage: 250 VDC
- Maximum Charge Current: 120A
- Dimension (DxWxH): 5.8 x 17.0 x 21.8 in
- Net Weight: 40.6 lb
- Communication Interface: USB/RS232/RS485/Wi-Fi/Dry-contact
- Compliance Safety: UL
- Warranty: 5 Years

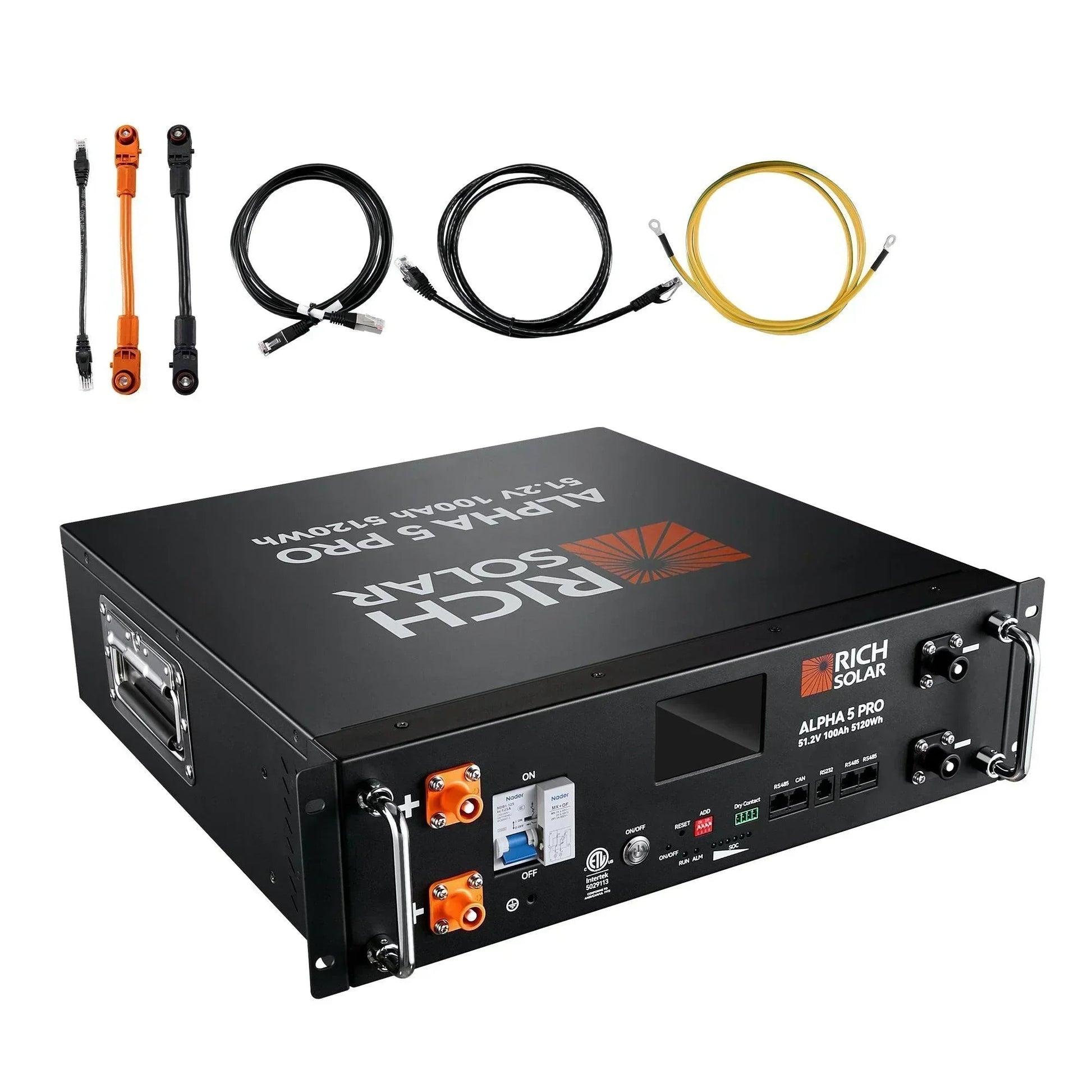

ALPHA 5 | 51.2V 100Ah Server Rack Lithium Iron Phosphate Battery (RS-B5121P1)
- Nominal Voltage: 51.2V
- Nominal Capacity: 100Ah
- Expected Cycle Life: >7000 Cycles
- Energy: 5.12kWh
- Continuous Charge Current: 100A
- Continuous Discharge Current: 100A
- Waterproof: IP65
- Dimensions: 17.7″L x 17.8″W x 5.2″H
- Net Weight:
- Warranty: 10 Years Manufacturer Defect
MEGA 410 Watt Monocrystalline Solar Panel (RS-M410)
- Maximum Power(Pmax): 410W
- Maximum Power Voltage(Vmp): 31.3V
- Maximum Power Current(Imp): 13.1A
- Maximum System Voltage(Vmax): 1500VDC
- Module Efficiency: 20.97%
- Net Weight: 45.2 lb
- Dimensions: 67.9 x 44.6 x 1.2 in
- Warranty: 25 Years

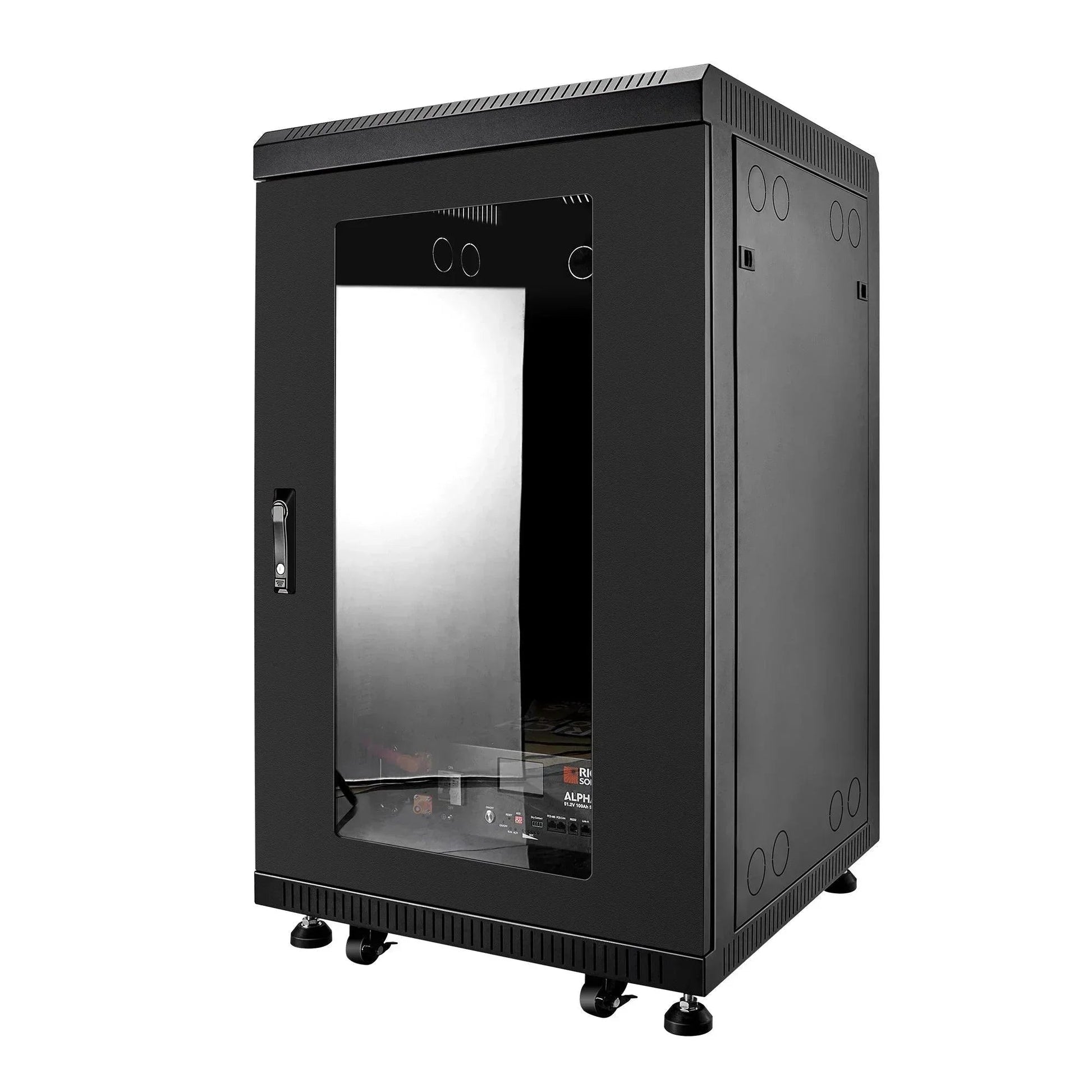

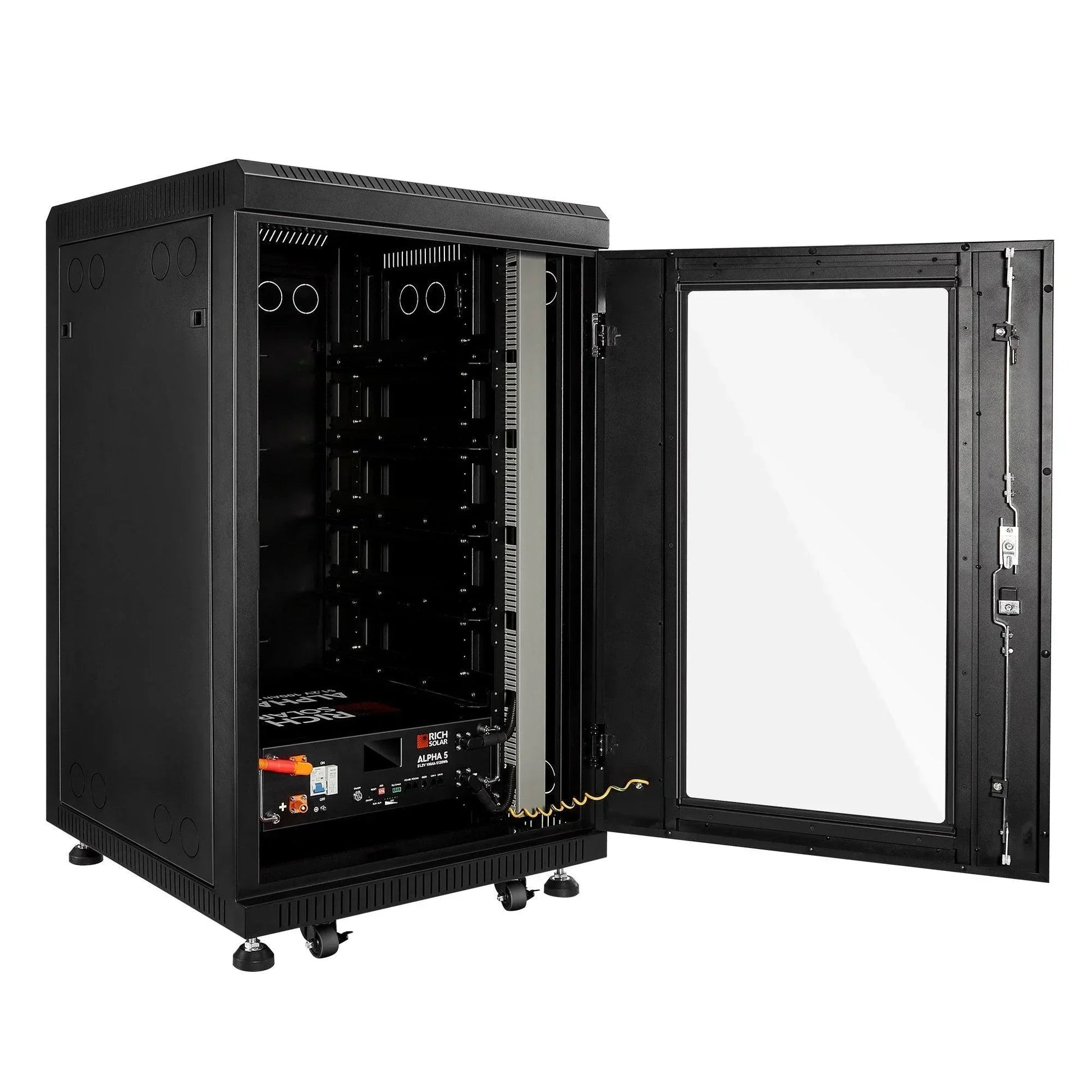

BATTERY SERVER RACK
- Dimensions (LxWxH): 27.6 x 27.6 x 44 in
- Net Weight: 196 lb

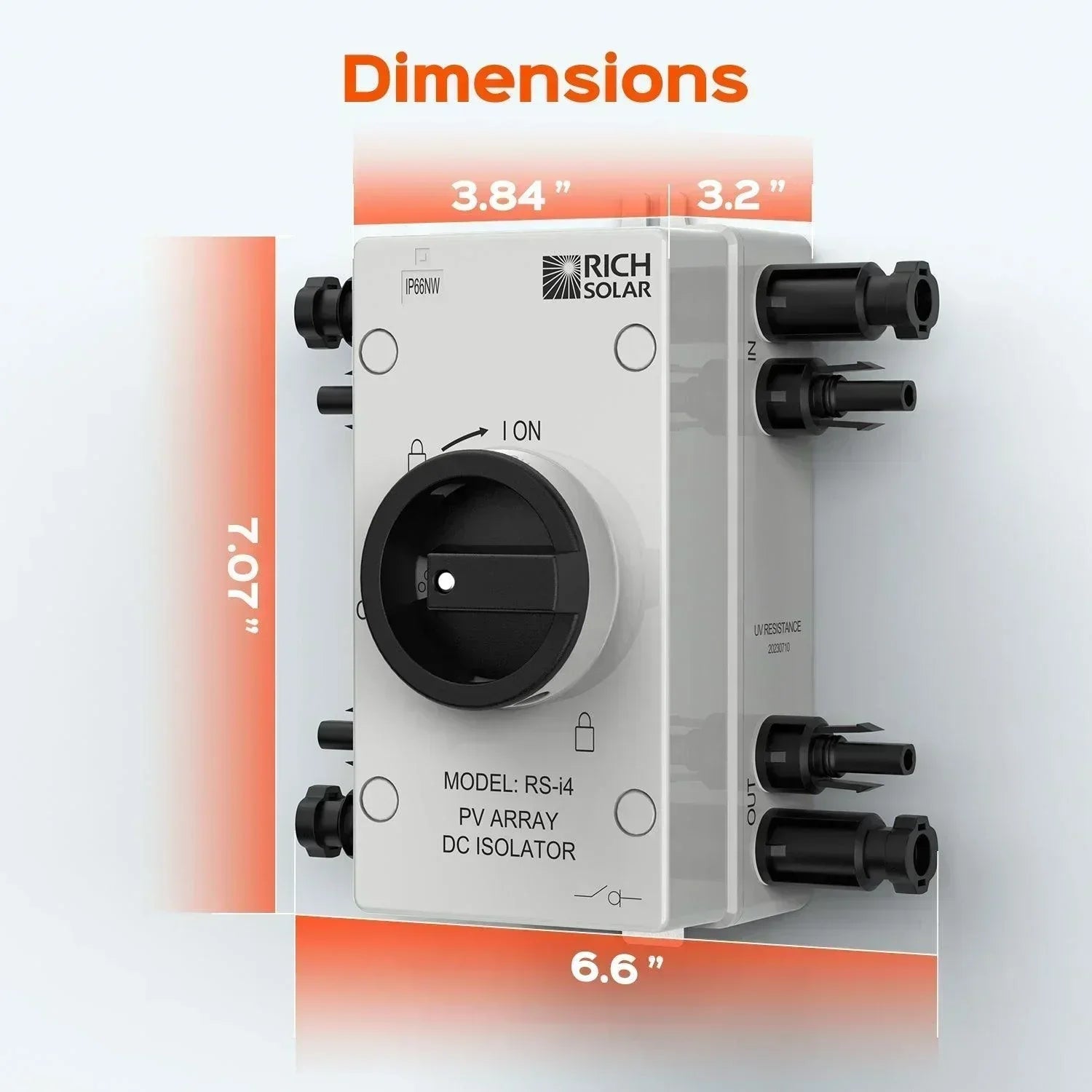

SOLAR PV DC Quick Disconnect Switch (RS-i4)
- 1500 Volts @ 32 Amps
- Waterproof: IP66NW
- Dimensions (HxWxD): 7.1 x 6.8 x 4.3 in
- Net Weight: 1.7lb
- Warranty: 10 Years
User Manual & Specification
6500W 48V Off-Grid Hybrid Solar Inverter (RS-H6548)
