Rich Solar Complete Off-Grid Solar Kit – 13,000W, 120/240V Output, 48VDC
Designed for off-grid living in travel trailers, RVs, and tiny homes, this integrated kit delivers independent power with a 13,000W continuous 120/240V AC output drawn from a 48V DC bus. It combines robust inverters, high-capacity LiFePO4 storage, and heavy-gauge interconnects to run essential appliances during outages or remote excursions.
- Inverters: 2 x 6,500W 48V off-grid hybrid inverters (RS-H6548) delivering 15,000 VA surge, 80–140 VAC selectable output, and parallel capability up to 6 units with built-in Wi‑Fi for monitoring.
- Battery: 4 x 5.12kWh ALPHA 5 PRO Server LiFePO4 packs (RS-B5121P1) totaling 20.48kWh nominal energy, 100A continuous charge current, up to ~7,000 deep cycles, UL1973/UL9540A certified, with advanced BMS safeguards against overcharge, over-discharge, overload, and short circuits.
- System scalability: Parallel operation across multiple inverters and battery strings to tailor capacity for long trips or emergencies; includes a free battery rack for immediate installation.
- Interconnects and cabling: 2 x Solar PV DC quick disconnect switches; 2 x 600A busbars; 4 ft 2/0 AWG interconnect wires; 8 x 10 GA 50 ft extension cables; 4 x 10 GA 30 ft extension cables.
Solar panel options available to tailor generation: MEGA 335W, 400W, or 410W modules (RS-M335, RS-M400, RS-M410).
Ideal use cases: off-grid travel trailers on remote jobsites; tiny homes seeking reliable daily power; RVs during full-time adventures; regional outage preparedness with scalable energy storage.
Safety and compliance: Inverter carries UL certification; ALPHA 5 PRO battery packs carry UL1973 and UL9540A with FCC compliance; protective features include over-temperature, overload, and short-circuit safeguards.
Installation, maintenance, and service: Requires standard electrical installation practices with proper ventilation; perform periodic checks of connections and terminations. Ships from California and includes free technical support; warranty terms available on request.
Rich Solar - Complete Off-Grid Solar Kit | 13,000W 120/240V Output | 48VDC
Everything you need to go completely Off-Grid!
This travel trailer solar system includes flexible solar panels for RV and tiny homes, so you can jumpstart your off-grid solar trailer adventure today.
Best value on the market! Ships from California! Call us for any questions! Free technical support!

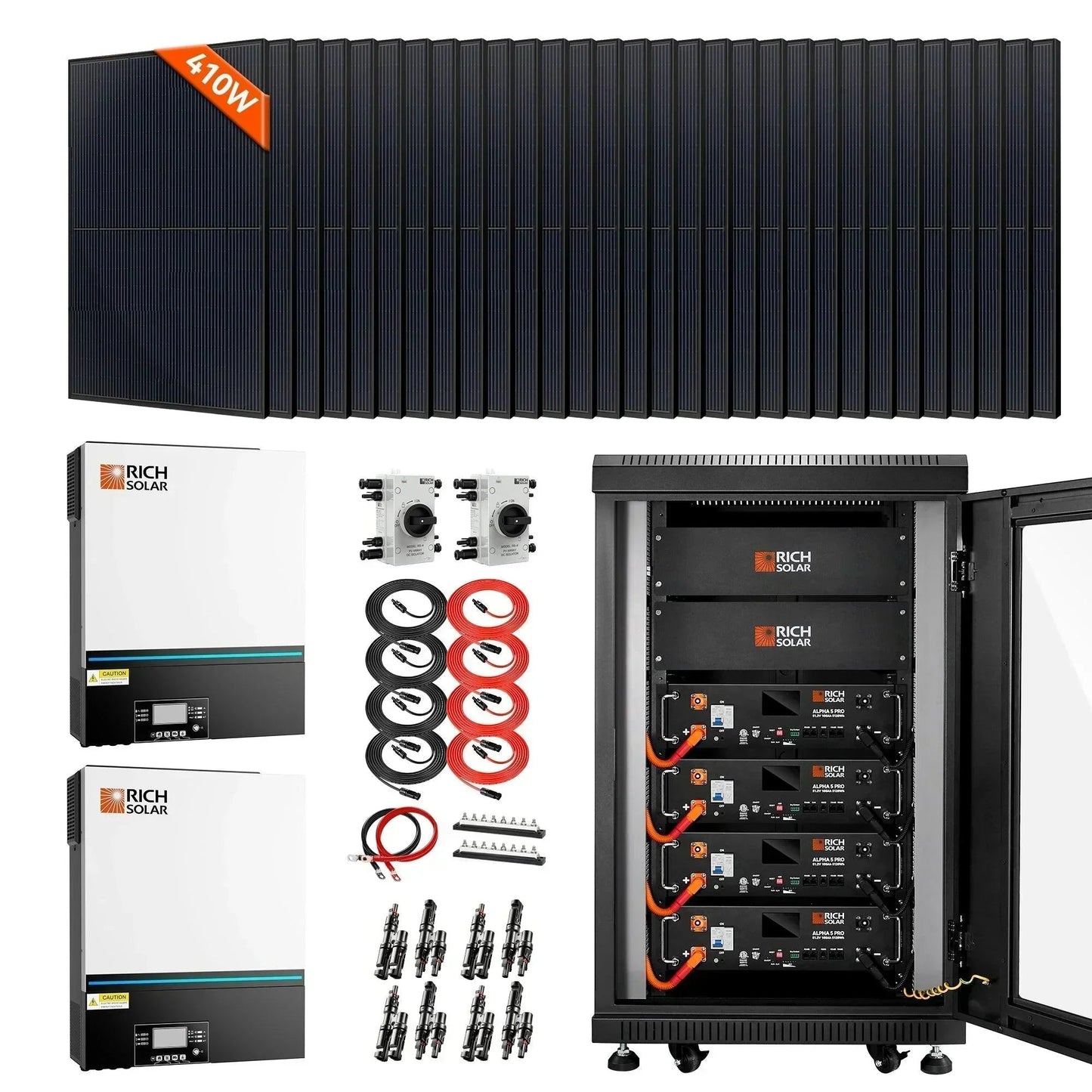

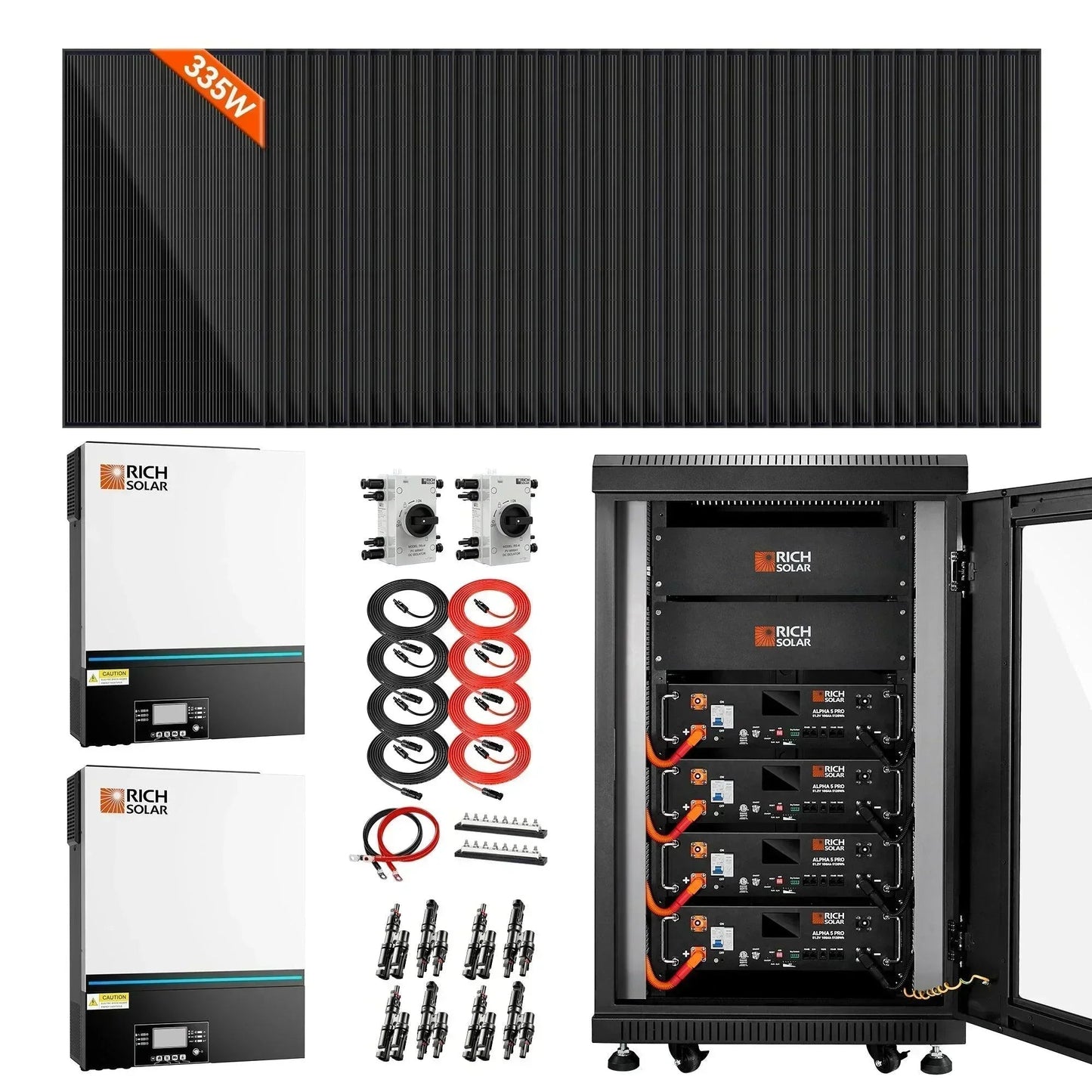

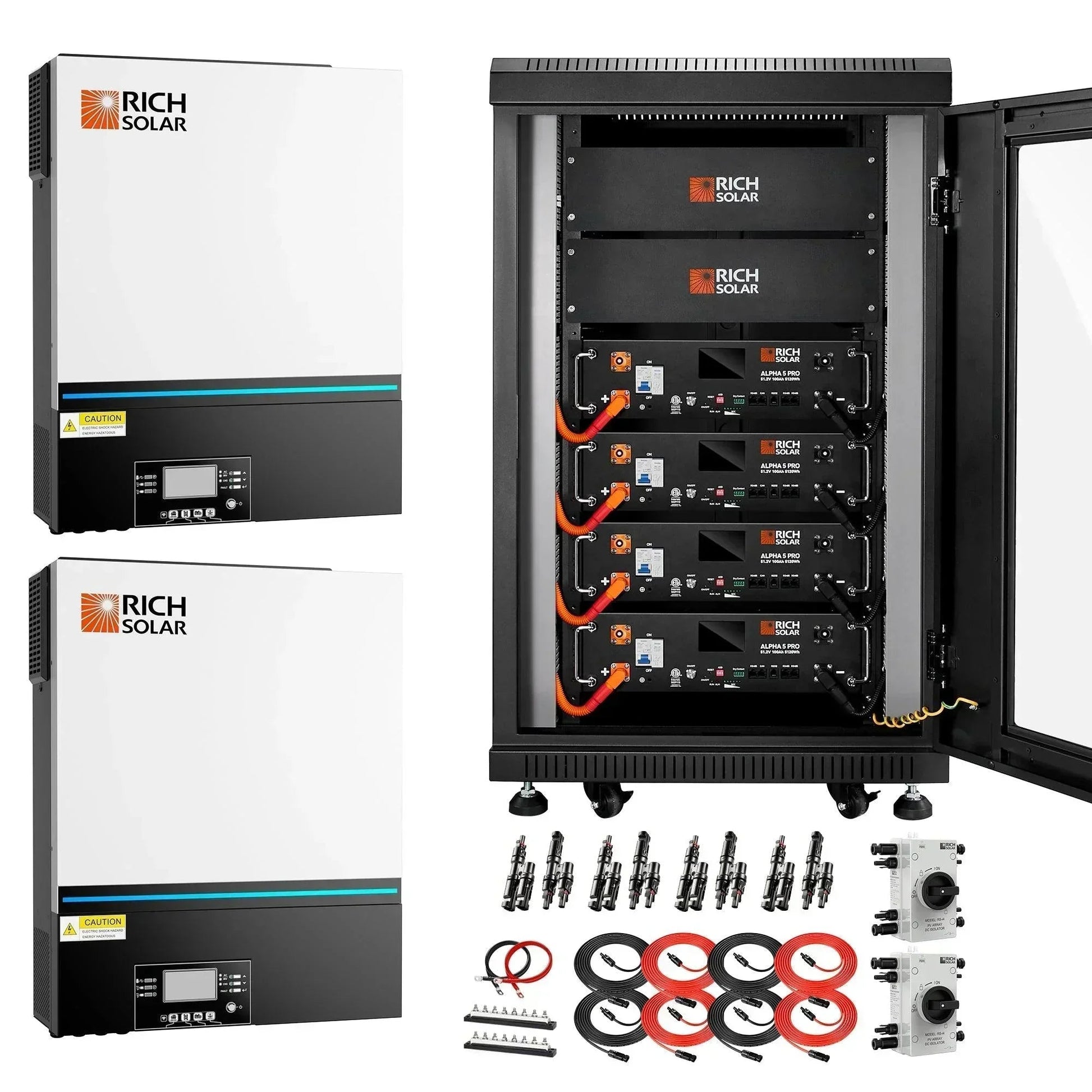

This kit includes:
🗹 2 x 6500 Watt (6.5kW) 48 Volt Off-grid Hybrid Solar Inverter (RS-H6548)
🗹 4 x 5.12kWh ALPHA 5 PRO Server Lithium Iron Phosphate Battery (RS-B5121P1)
🗹 2 x Solar PV DC Quick Disconnect Switch (RS-i4)
🗹 2 x Busbar 600 AMP
🗹 4 x 4 Foot 2/0 Gauge AWG Wire Set 3/8"
🗹 8 x 10 Gauge 50 Feet Solar Extension Cable (RS-50102)
🗹 4 x 10 Gauge 30 Feet Solar Extension Cable (RS-30102-T2)
🗹 1 x Free Battery Rack
Solar Panel Options：
🗹 38 x MEGA 335 Watt Monocrystalline Solar Panel (RS-M335)
🗹 32 x MEGA 400 Watt Monocrystalline Solar Panel (RS-M400)
🗹 30 x MEGA 410 Watt Monocrystalline Solar Panel (RS-M410)
6.5kW Inverter Features:
Power for Off-Grid
- 6500W Continuous Output
- 80-140 VAC Selectable Voltage
- Parallel up to 6 Units
Performance Components
- 15000 VA High Surge Capacity
- Overload Protection
- Over Temperature Protection
Advanced Configurability
- Built-in Wi-Fi for mobile monitoring (Android/iOS App is available)
- Supports USB On-the-Go function
Reliability & Safety
- UL Certification
5120Wh Server ALPHA 5 PRO Features:
LiFePO4 Lithium Battery
- Certification: UL1973, UL9540A, FCC
- 7,000 Deep Cycles Life
- 5120 Watt Hours Energy
- 100A Continuous Charge Current
Performance Components
- Compatible with multiple brands of inverters
- Low maintenance
- Over charging or discharging protection.
- Over current & short circuit protection.
Advanced Configurability
- Parallel up to 15 Batteries
- Connect in Parallel for Larger Capacity
- With Sophisticated Battery Management System (BMS)
Reliable & Warranty
- 10 Years Lifespan
