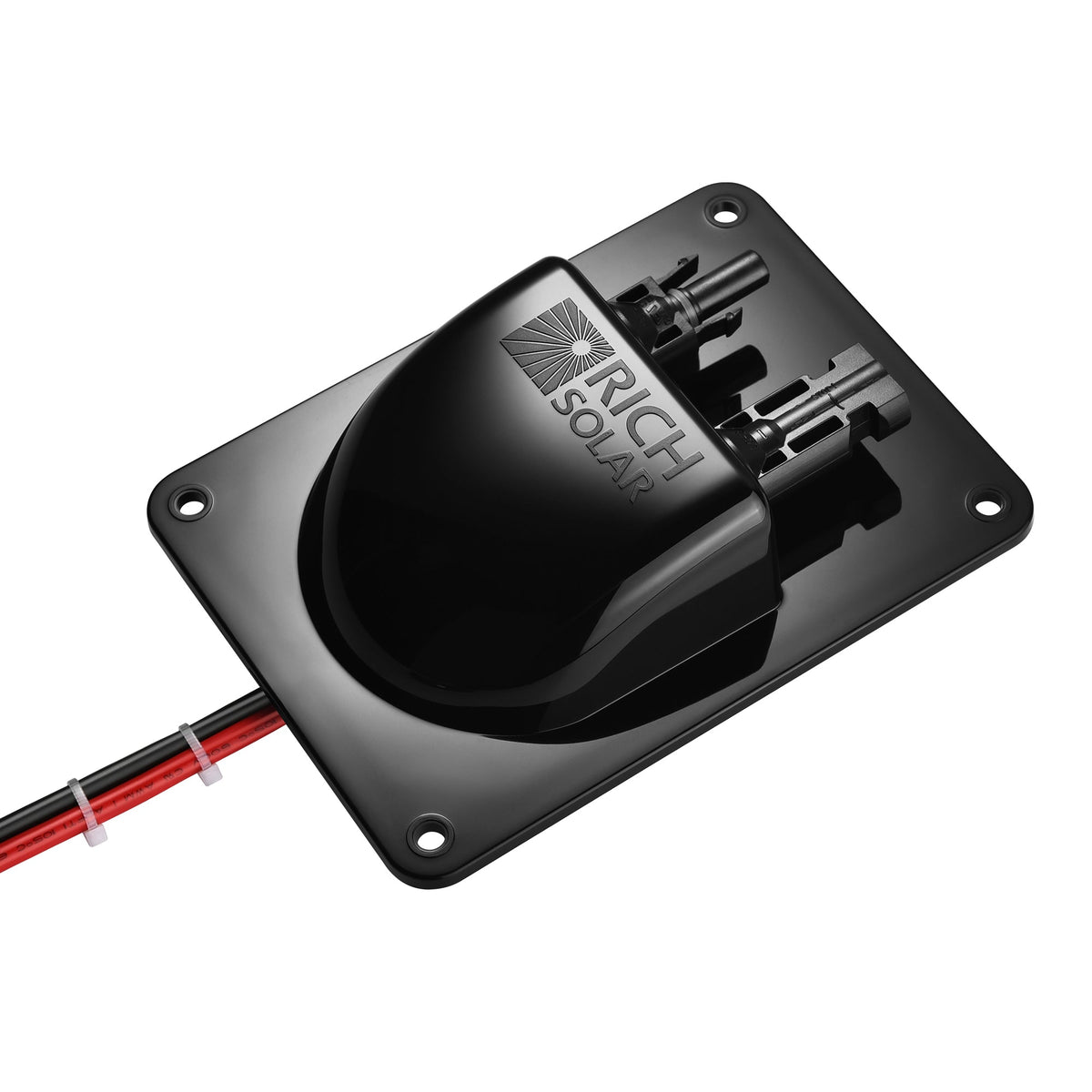

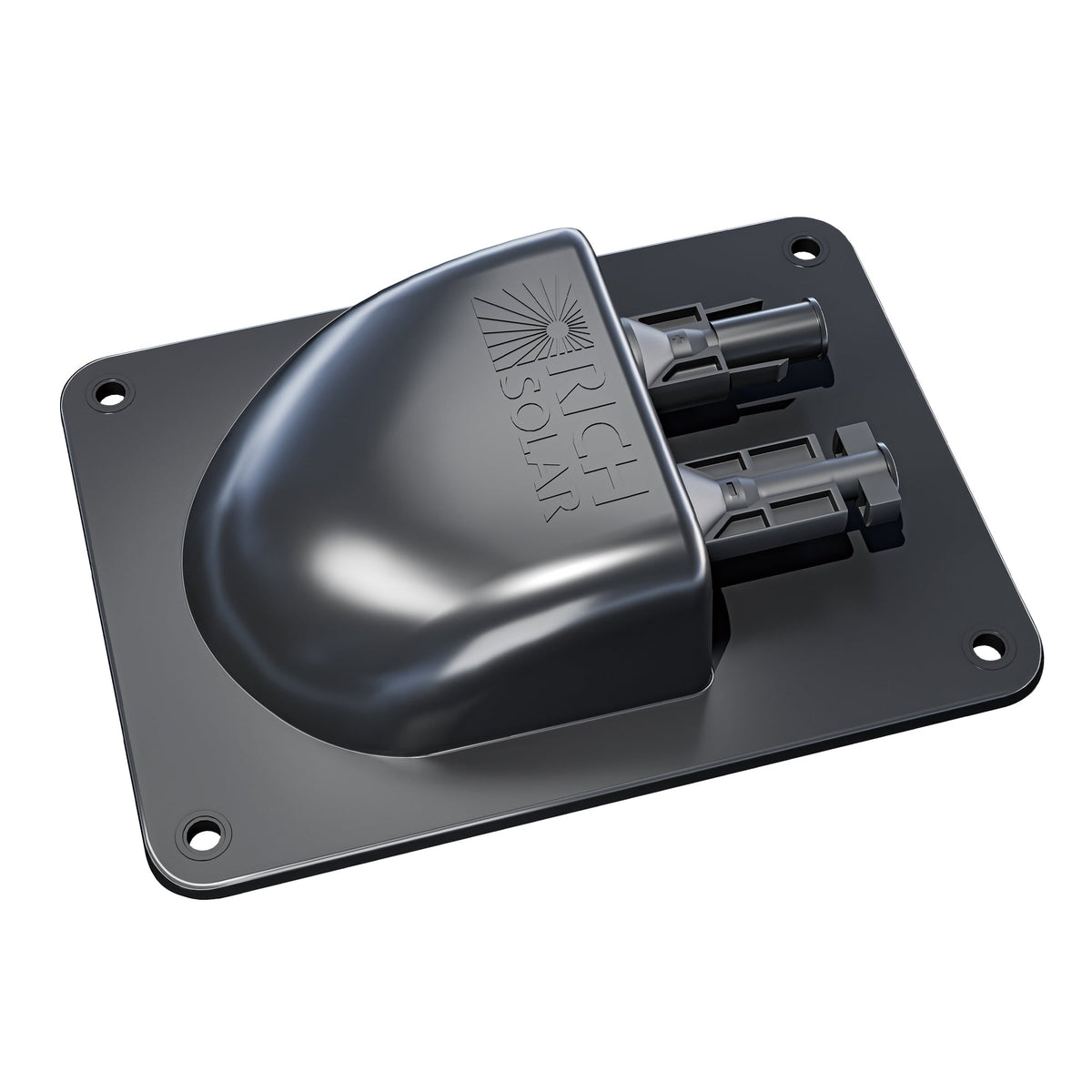

Cable Entry Plate with UL-Listed 10AWG Solar Wiring
Equipment Type: IP68 waterproof cable entry plate with pre-wired solar connectors.
Primary Applications: Outdoor solar cable routing and electrical connections where a compact, weather-resistant entry housing is required.
Performance Specifications
- Maximum current: 42A; continuous current: 30A.
- Maximum voltage: 600V.

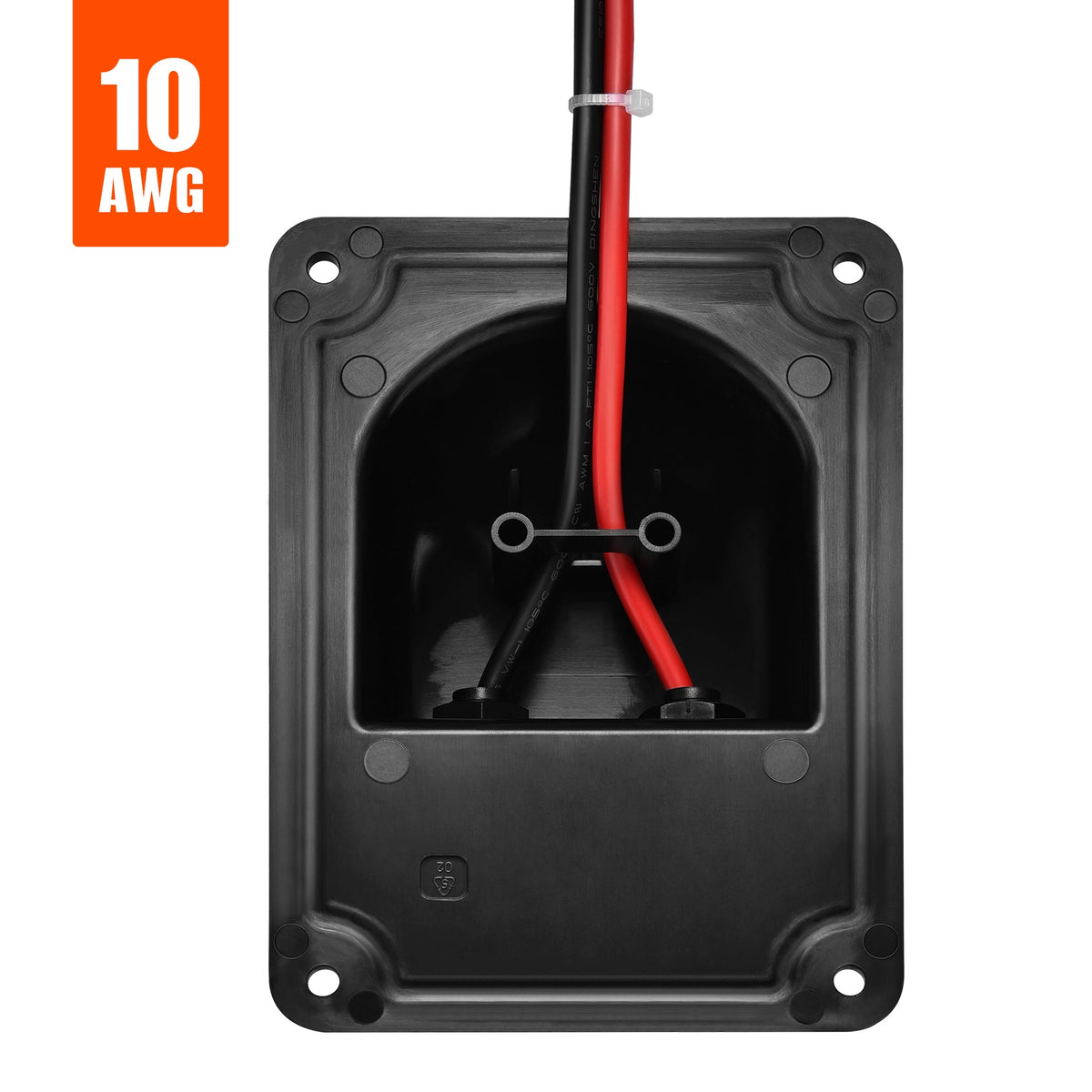

- Wiring: 1 ft of UL 1015 10AWG tin-plated copper wire.
- Wire insulation: PVC, VW-1 flame rated, with a temperature rating of 5°F to 221°F (approximately -15°C to 105°C).
- Housing material: flame-retardant polypropylene (PP).
- Housing operating temperature: -40°F to 185°F (approximately -40°C to 85°C).

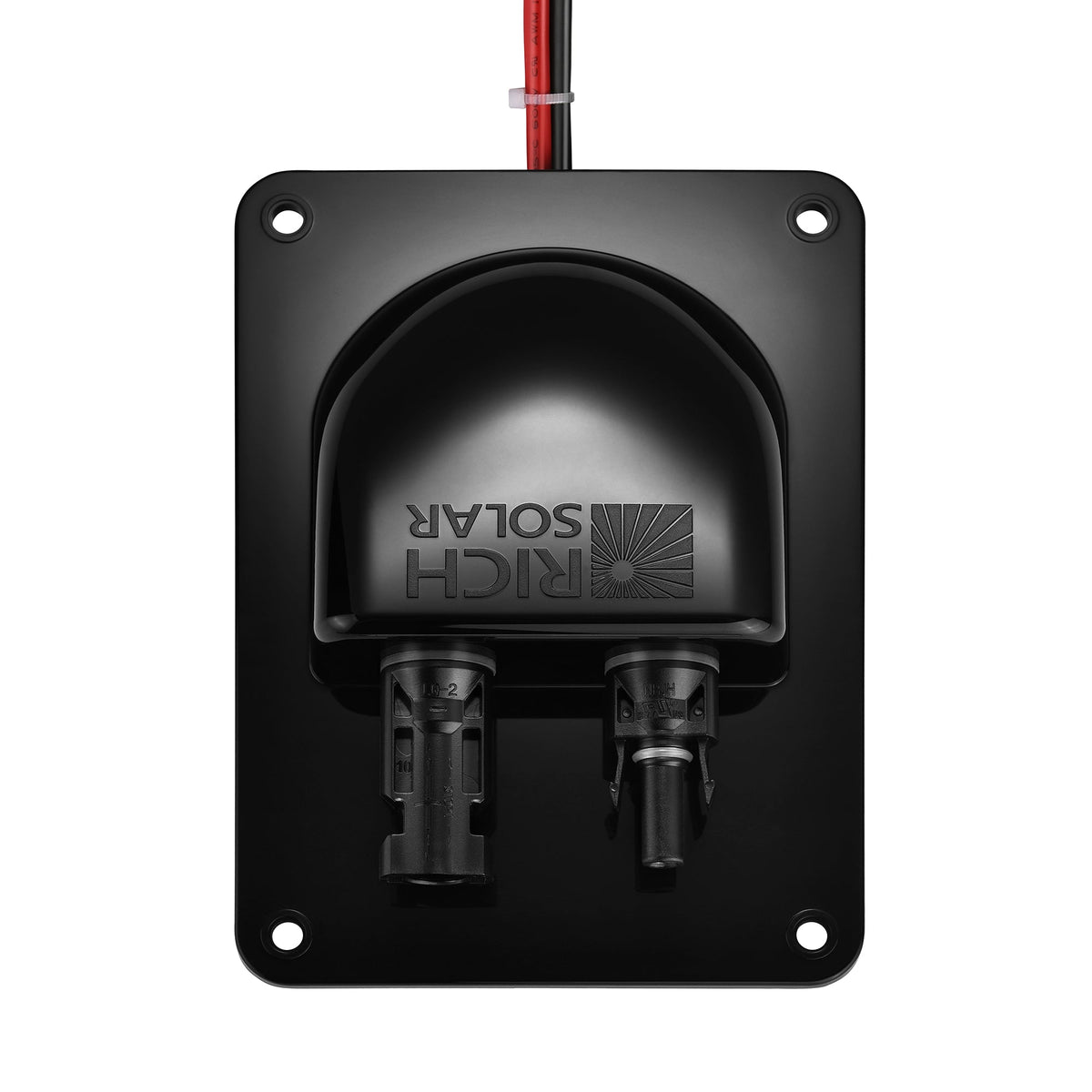

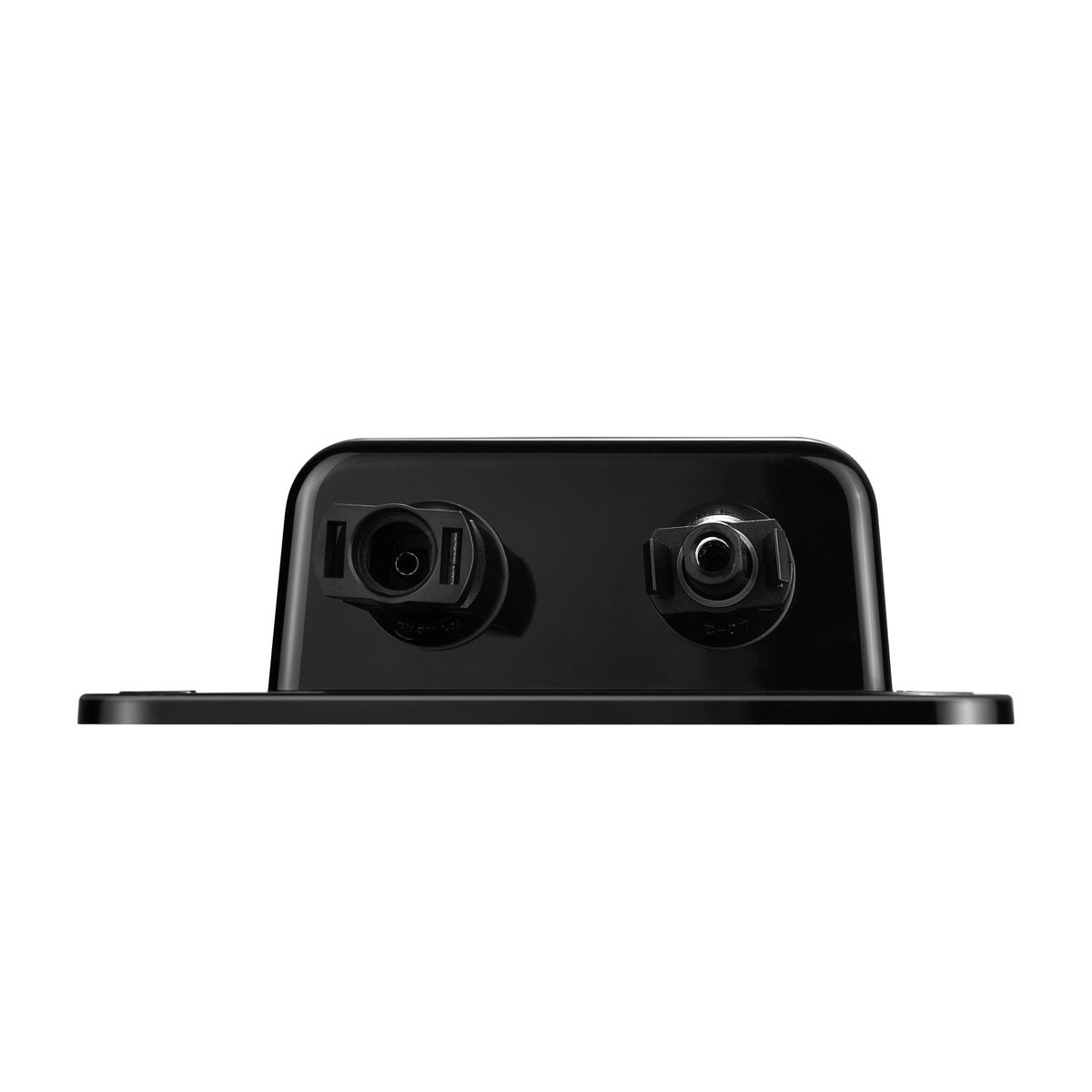

- Solar connector shell: PC; connector and cable gland protection rating: IP68 for water and dust resistance.
- Product dimensions: 5.9 × 4.3 × 1.6 in; weight: 0.29 lb.
Safety Features and Certifications
- UL-listed wiring and UL-listed solar connectors.
- VW-1-rated PVC wire insulation.
- UL94 V-0 flame-class housing and connector components.
- Pre-installed connectors reduce field wiring requirements.
Installation and Maintenance Requirements

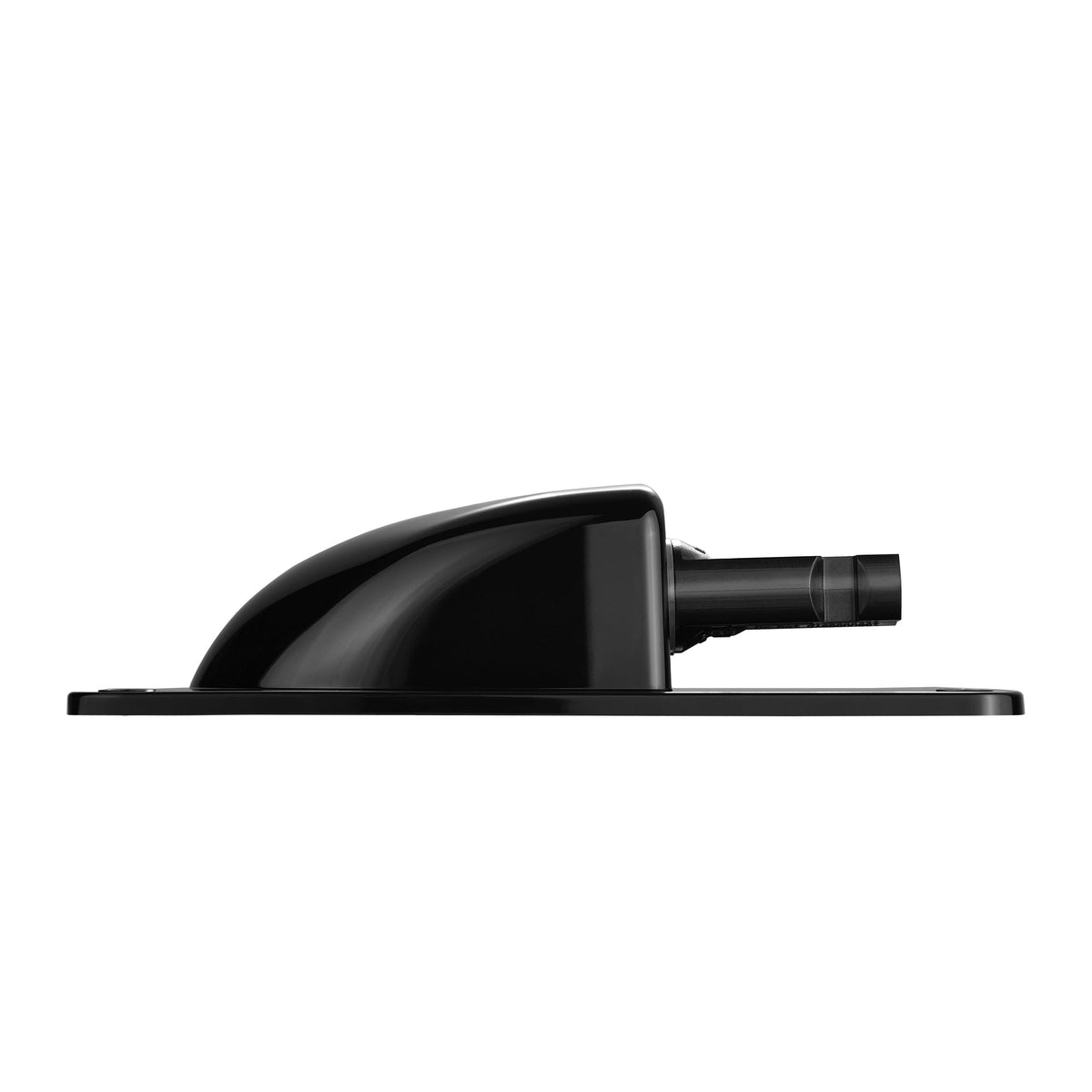

Install the low-profile housing using adhesive, sealant, or screws; mounting hardware is not included. Connect the pre-installed solar connectors and position the cable entry plate within its rated operating temperature range. Allow space for the 5.9 × 4.3 × 1.6 in housing and cable routing.
Warranty and Service Information
Branding/References
Product reference: Cable Entry Plate. Electrical reference: UL 1015 10AWG wire. Certification references: UL Listed, VW-1, and UL94 V-0.
Differentiators

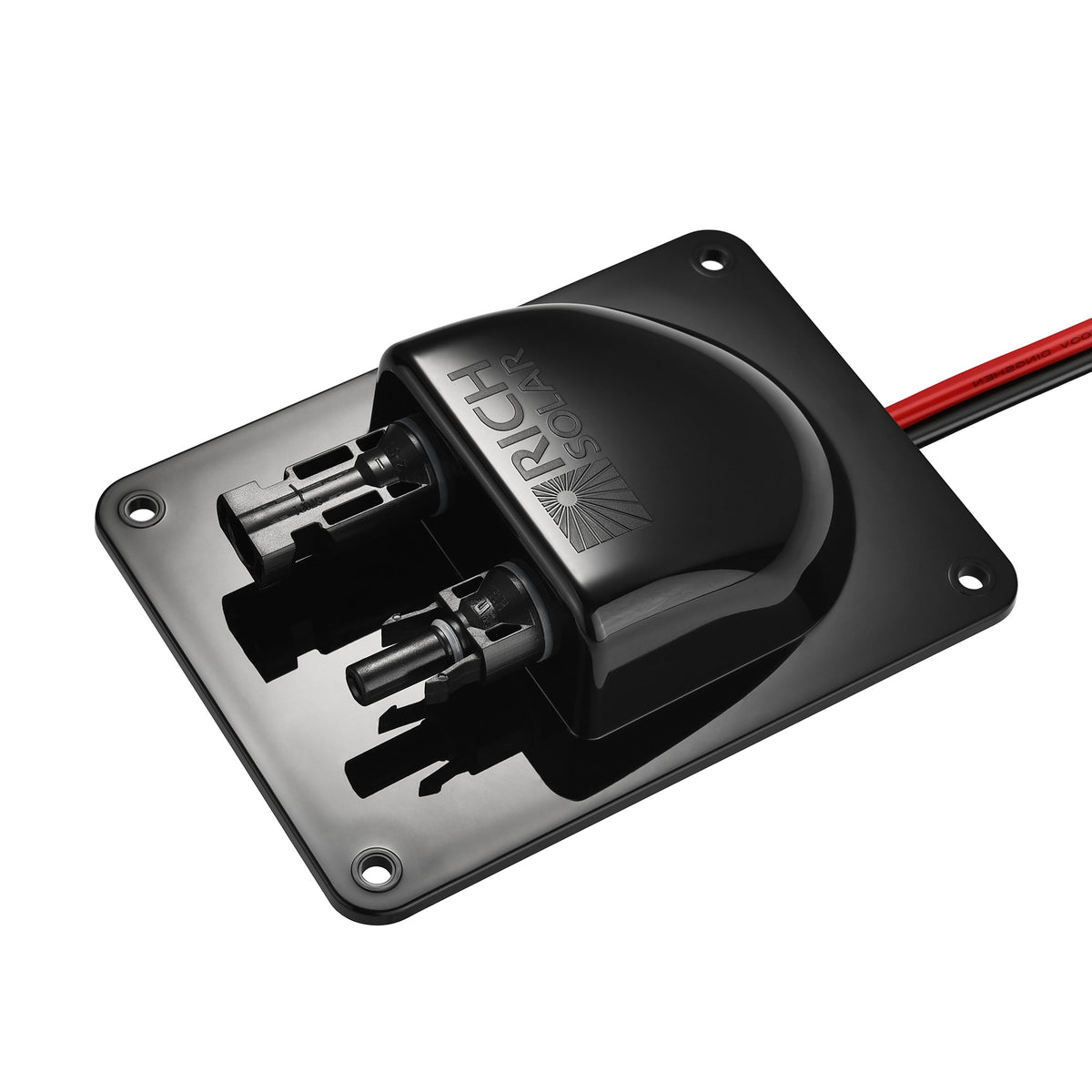

The assembly combines 1 ft pre-wired 10AWG tin-plated copper leads, pre-installed solar connectors, 42A maximum current capacity, and IP68 protection in one compact polypropylene cable entry housing.
