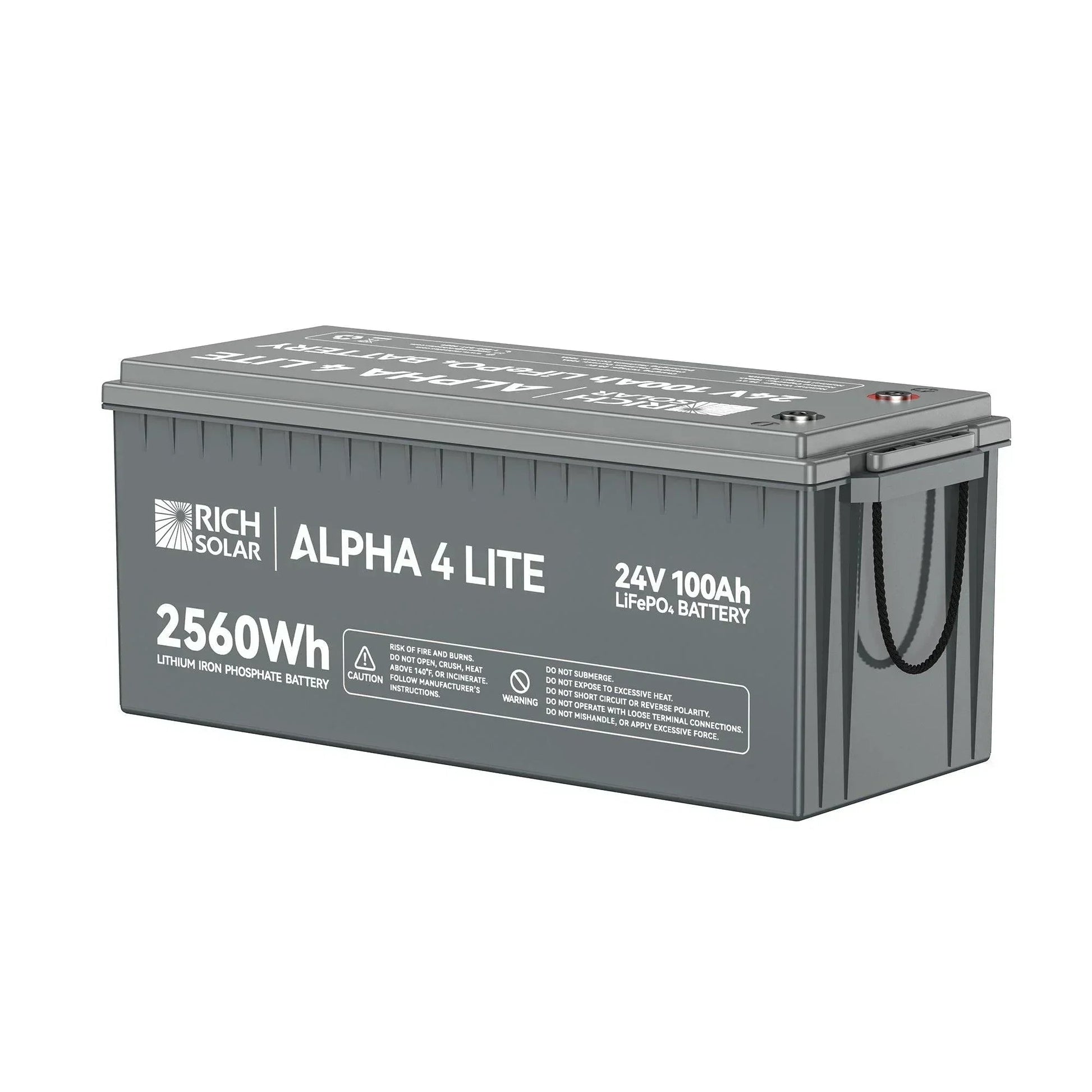

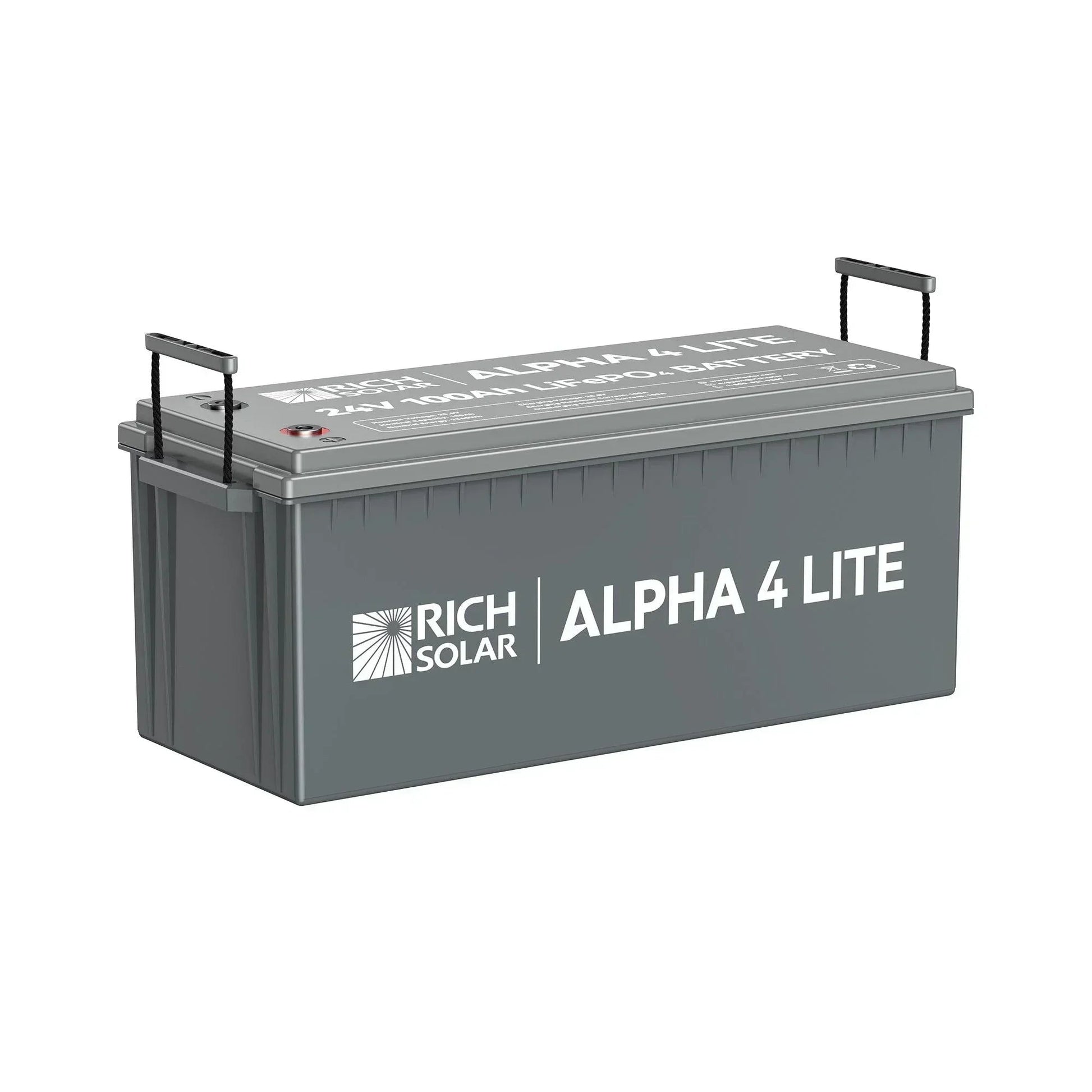

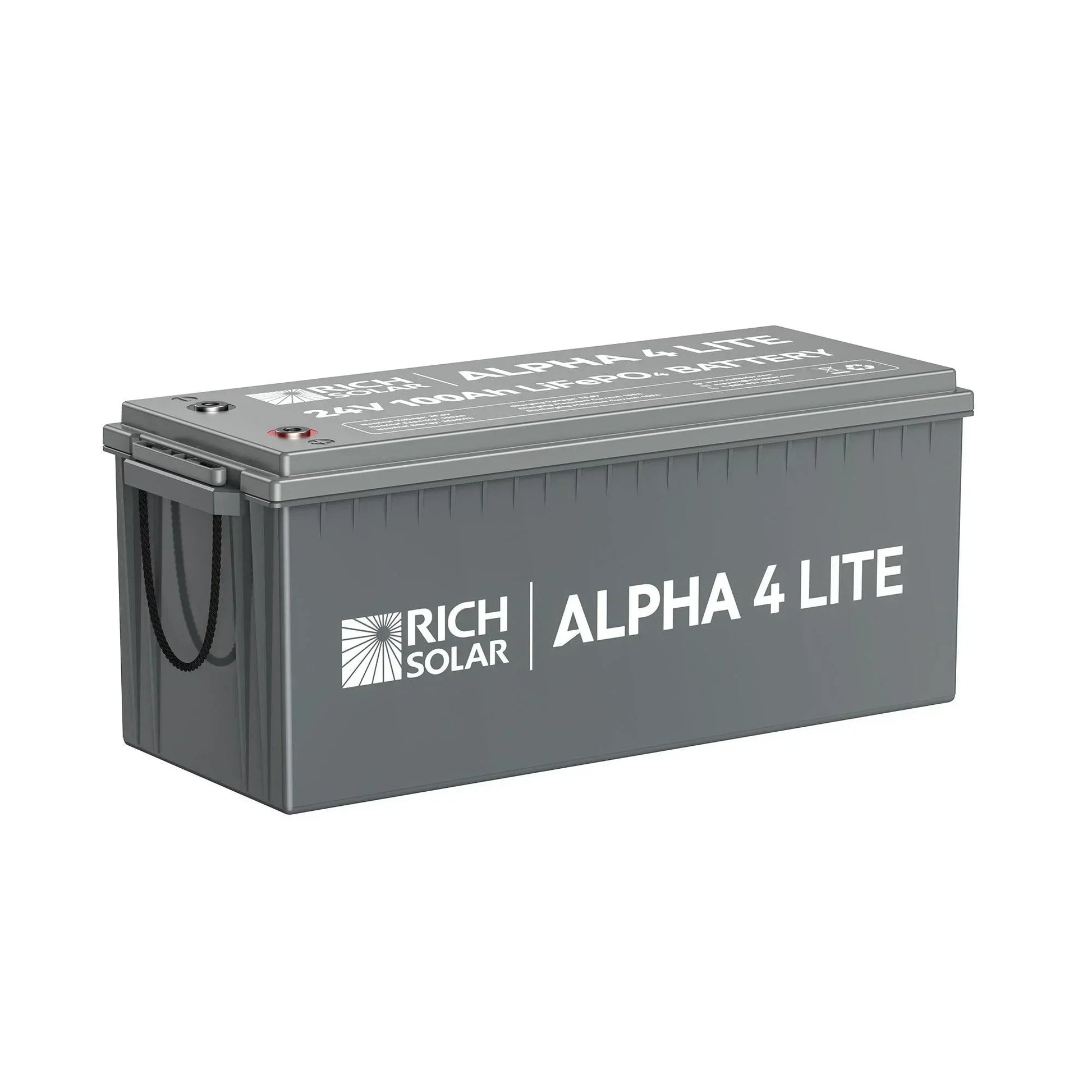

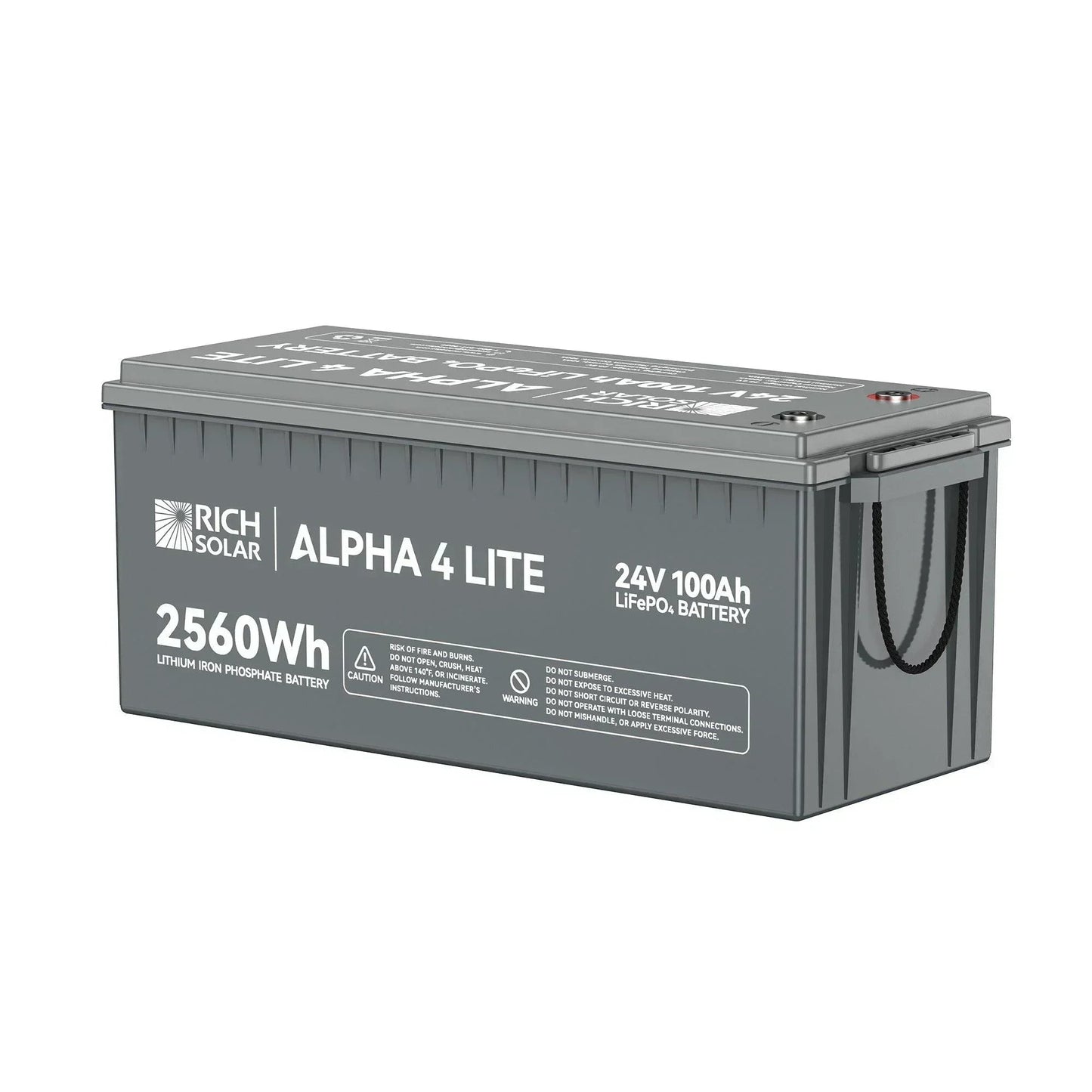

Rich Solar ALPHA 4 LITE 24V 100Ah LiFePO4 Battery
The ALPHA 4 LITE is a 24V LiFePO4 energy storage module engineered for reliable power on the move and when grid access is limited. Ideal for RVs, trailers, vans, boats, off-grid installations, and backup power, it delivers sustained energy for essential loads and high-demand appliances without compromise. With 2560 Wh of stored energy and a compact, durable form, it supports extended outings and demanding applications with confidence.
- Nominal Voltage: 25.6 V
- Nominal Capacity: 100 Ah
- Energy: 2560 Wh
- Charge Voltage: 28.8 V
- Continuous Discharge Current: 100 A
- Cycle Life: > 4000 cycles
- Dimensions (L×W×H): 20.9 × 8.1 × 8.5 in
- Weight: 52.9 lb
Safety and reliability are embedded through an integrated battery management system (BMS) with over-charge protection (detection at 3.75 V ± 0.05 V; recovery at 33.55 V ± 0.05 V) and over-discharge protection (detection at 2.20 V ± 0.08 V; recovery at 2.70 V ± 0.10 V), plus short-circuit protection. Temperature performance supports charging from 32°F to 131°F (0°C to 55°C) and discharging from -4°F to 140°F (-20°C to 60°C). Storage can be maintained from 14°F to 113°F / -10°C to 45°C with up to 90% RH for extended periods (> 3 months).
Installation and maintenance are straightforward: secure, vibration-resistant mounting in a dedicated enclosure; use of cables rated for a 25.6V system and proper fusing/connectors per the system design. The LiFePO4 chemistry and robust BMS minimize routine maintenance, with periodic checks of connections and charge status via the BMS interface.
Warranty and service: 5-year warranty. For service and support, rely on standard channels provided by Rich Solar through official sales and support networks.
Premium Energy; None of the Fuss
If you're looking to get the most out of your battery without worrying about it breaking down on you, the ALPHA 4 LITE is the 24V 200Ah LiFePO4 battery that provides you with all the energy you need. Built with RICH SOLAR's quality materials and boasting 2560Wh, you won't have to worry about running out of energy wherever you are.
With a durable and lightweight design that's packed with individually fused lithium cells, the ALPHA 4 LITE is the no-nonsense battery for people looking to get up and go.
Specifications
BATTERY
Nominal Voltage:
25.6V
Nominal Capacity:
100Ah
Minimum Capacity:
99.5Ah
Cycle Life:
>4000 cycles
Operating Specifications
Capacity:
100 Ah
Energy:
2560 Watt Hours
Charge Voltage:
28.8V
Continuous Discharge Current:
100A
Self Discharge:
< 5%/month
Temperature Performance
Charge Temperature:
32℉ to 131℉ (0℃ to 55℃)
Discharge Temperature:
-4℉ to 140℉ (-20℃ to 60℃)
Storage Temperature:
14°F-113°F / -10℃~45℃ 90％RH Max (More than 3 months)
Physical Specifications
Battery Dimensions(L*W*H):
20.9x8.1x8.5 in
Weight:
52.9 lb
BMS Operation
Over Charge Protection
Over charge detection voltage:
3.75V±0.05V
Over charge detection delay time:
1000ms±500ms
Over charge recovery voltage:
33.55V±0.05V
Over Discharge Protection
Over discharge detection voltage:
2.20V±0.08V
Over discharge detection delay time:
1000ms±500ms
Over discharge recovery voltage:
2.70V±0.10V
Short Circuit Protection: Yes
Warranty: 5 years warranty
