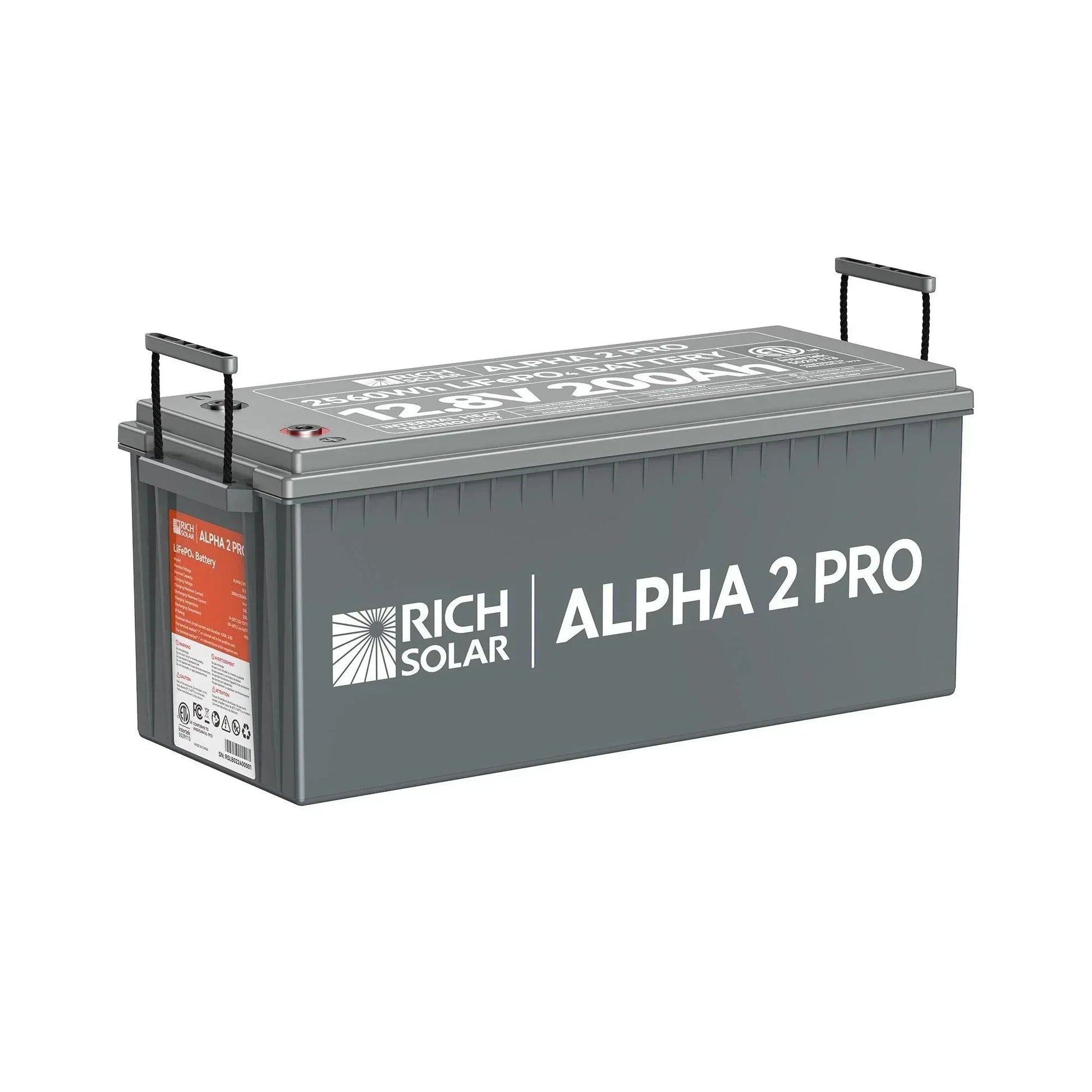

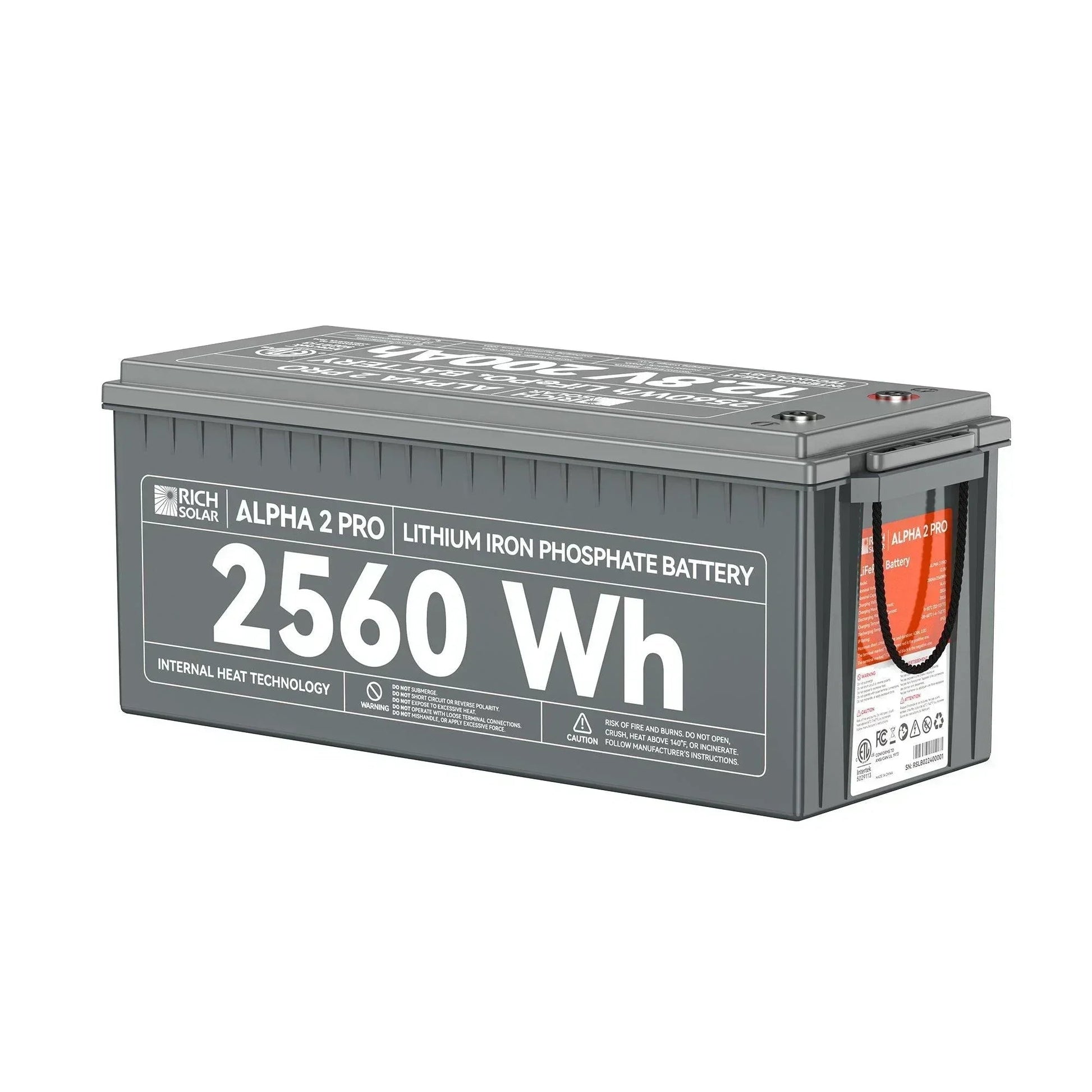

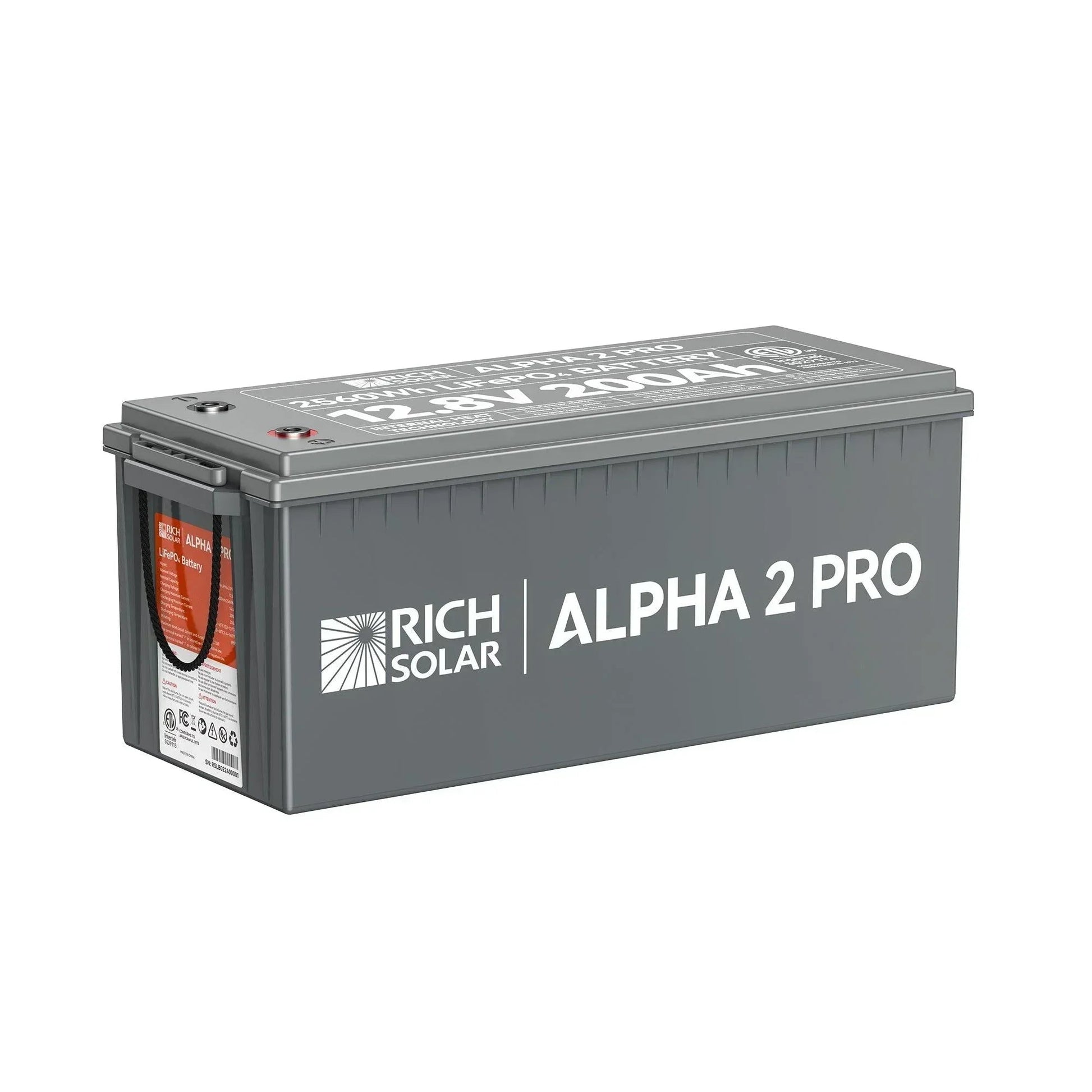

Rich Solar ALPHA 2 PRO 12V 200Ah LiFePO4 Battery

Designed for off-grid living and mobile applications, the ALPHA 2 PRO is a high-capacity 12V LiFePO4 battery ideal for RVs, cabins, and tiny homes. With a nominal energy of 2560Wh and 200Ah of capacity, it delivers reliable power for appliances, lighting, and inverter-based systems while maintaining a compact footprint. The unit supports parallel and series expansion up to 4P4S to scale energy storage as demand grows.

Performance specifications

• Cell Type: LiFePO4
• Nominal Voltage: 12.8V
• Nominal Capacity: 200Ah
• Nominal Energy: 2560Wh
• Cycle Life: 7000 cycles
• BMS: 100A maximum
• Maximum Charging Current: 200A
• Maximum Continuous Discharge Current: 200A
• Discharge Voltage (CC/CV): 14.4V

Charge and thermal performance

• Charge Method: CC/CV
• Charge Voltage: 14.4V ± 0.2V
• Recommended Charge Current: 50A (0.2C)
• Charge Temperature: 0°C to 55°C
• Discharge Temperature: -20°C to 60°C
• Storage Temperature: -10°C to 35°C
• Self-Heating: External Power Draw 100W; Internal Heating Starts < 5°C; Internal Heating Stops > 10°C

Physical characteristics and safety

• Net Weight: 52.9 lb

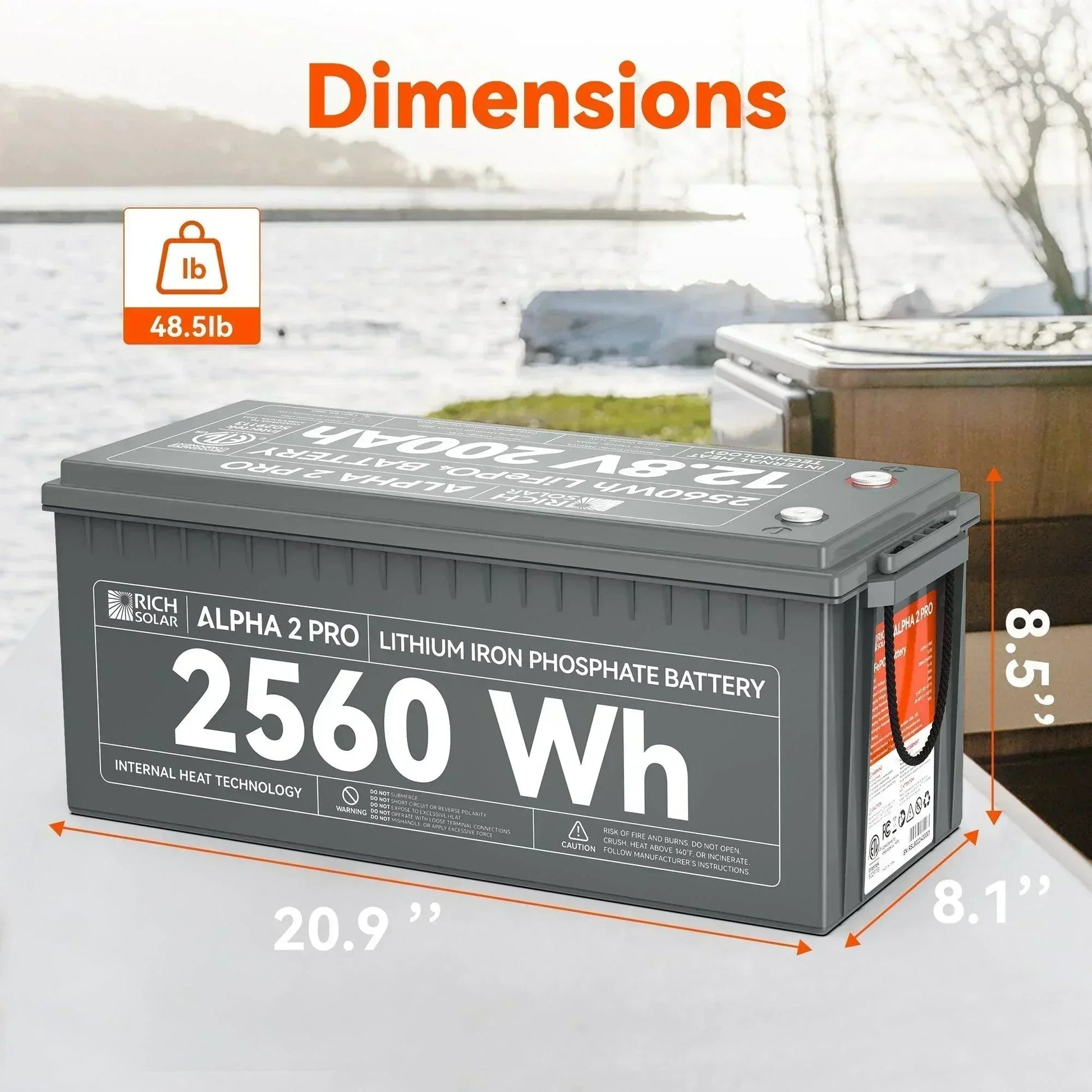

• Dimensions: 20.9 x 8.1 x 8.5 in
• Housing Material: ABS (Flame Retardant)
• Protection Class: IP55
• Certifications: UL1973, FCC, UN38.3, ETL
• Warranty: 10 Years
• Lifetime Cycles: Up to 7,000 cycles

Installation and maintenance

• Designed for 12V systems in RVs, cabins, and tiny homes; system configuration should support 12.8V nominal operation and up to 200A charging/discharging
• Expansion up to 4P4S is supported
• Warranty terms apply; certifications confirm compliance with safety and performance standards
