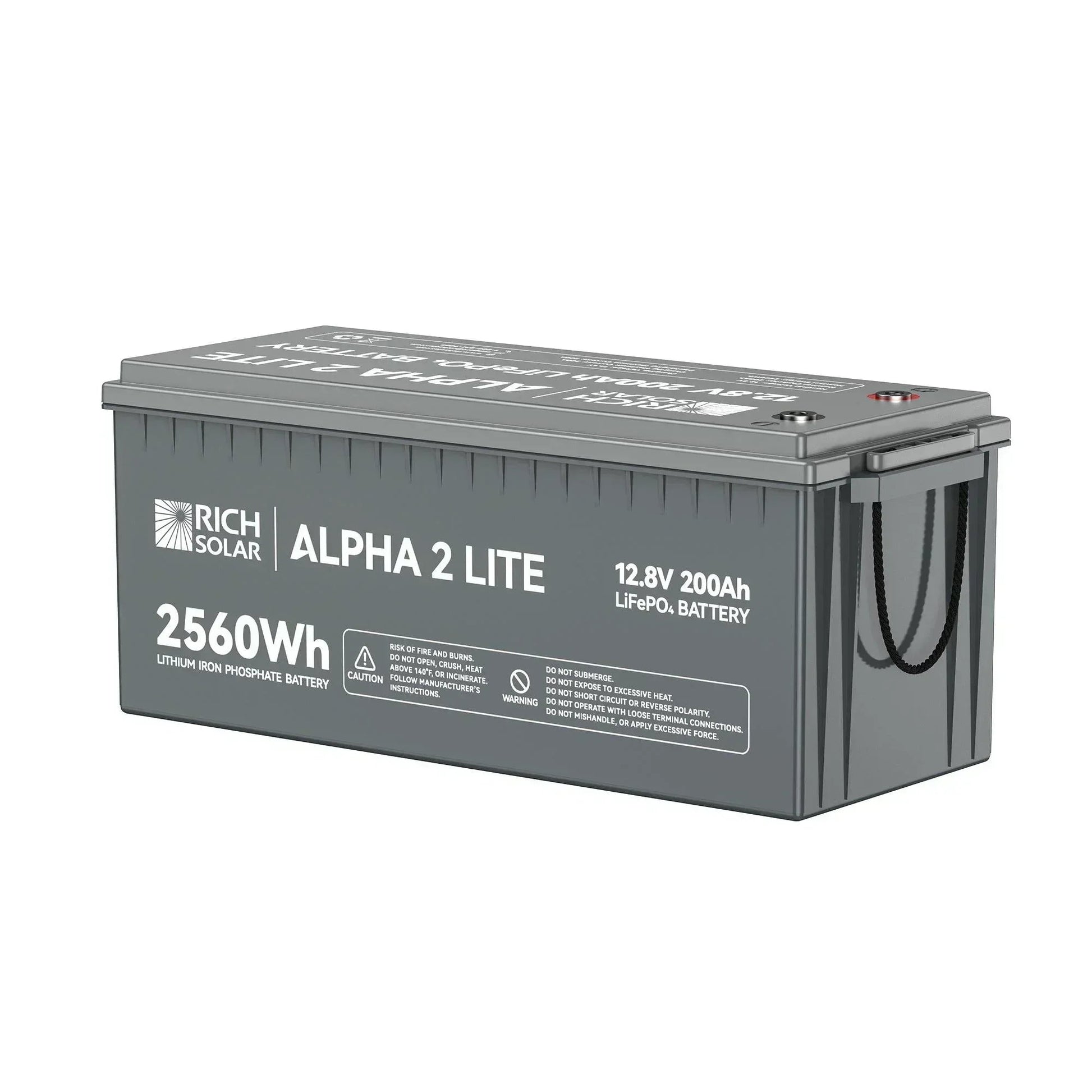

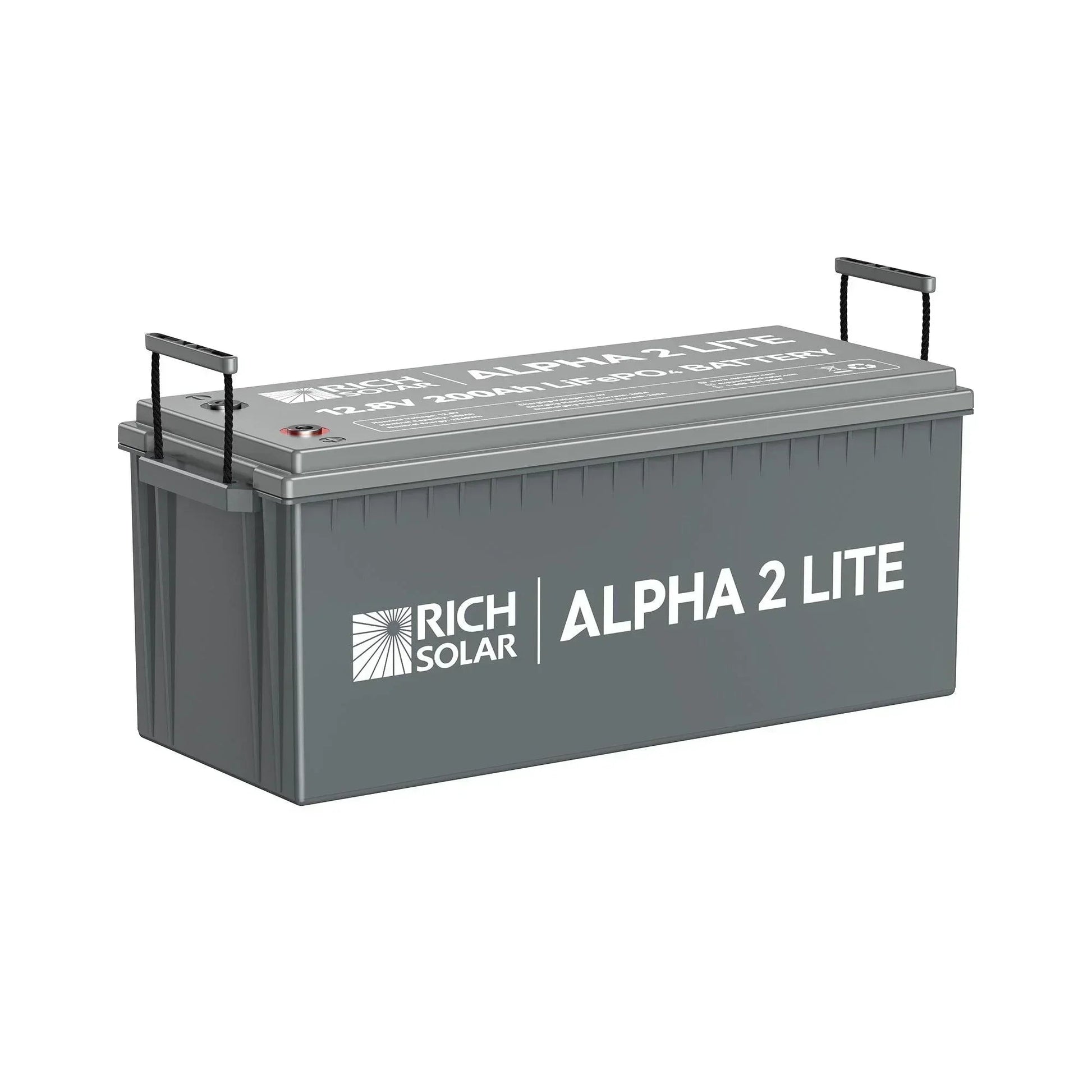

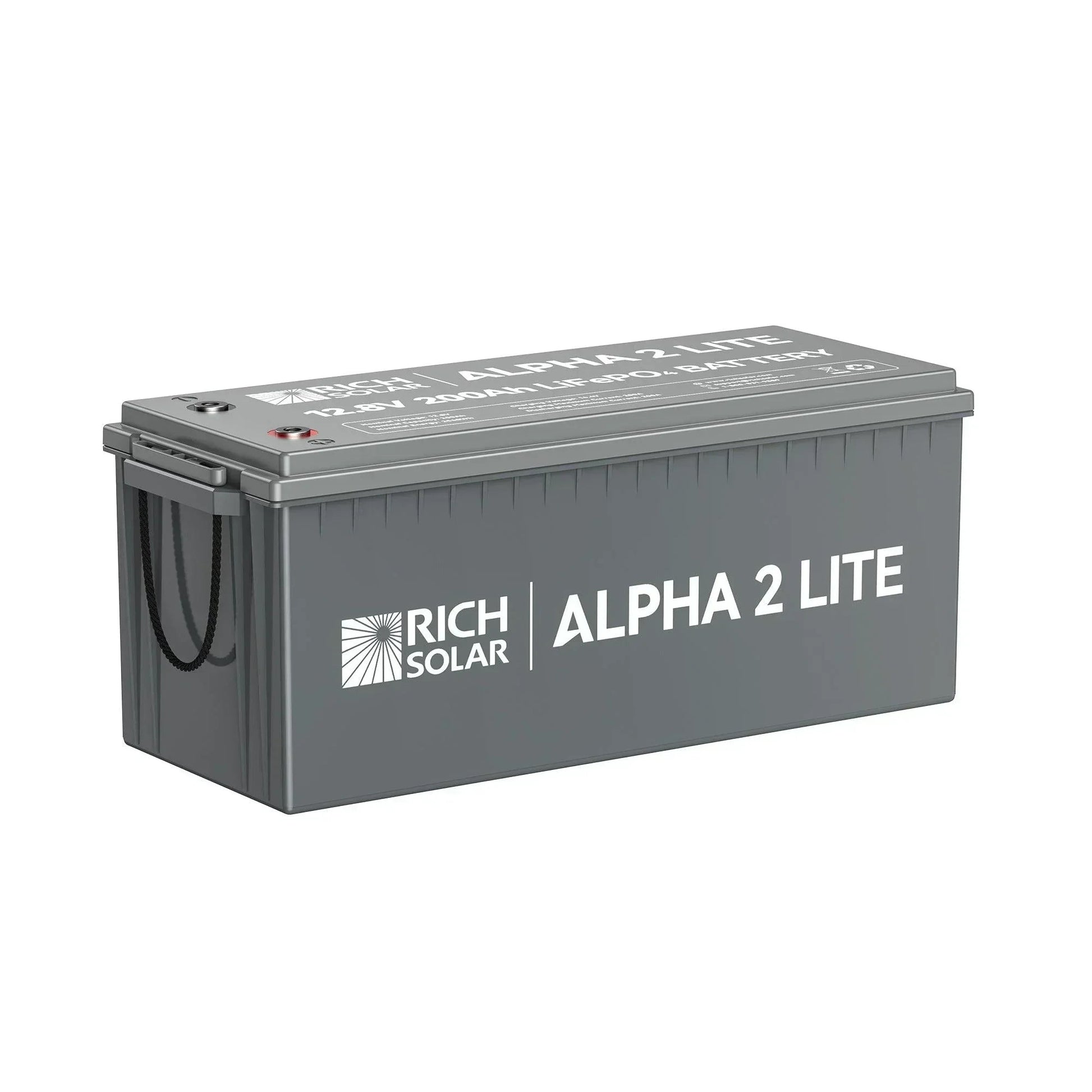

Rich Solar ALPHA 2 LITE – 12V 200Ah LiFePO4 Battery
Designed for adventurers and off‑grid configurations, the ALPHA 2 LITE delivers reliable 12V power for RVs, trailers, vans, boats, and remote installations. With a usable energy of 2560Wh and a robust BMS, it provides heat protection, short‑circuit protection, and cell‑level fault isolation to support long‑haul boondocking, backups, and demanding daily use.
Key specifications
- Nominal Voltage: 12.8V
- Nominal Capacity: 200Ah
- Energy (nominal): 2560Wh
- Charge Voltage: 14.4V
- Continuous Discharge Current: 200A
- Cycle Life: >4000 cycles
- Self‑Discharge: <5%/month
- Charge Temperature Range: 32°F to 131°F (0–55°C)
- Discharge Temperature Range: -4°F to 140°F (-20–60°C)
- Storage Temperature: 14°F–113°F / -10–45°C, 90% RH max (for >3 months)
- Dimensions (L×W×H): 20.9 × 8.1 × 8.5 in
- Weight: 52.9 lb
Safety and protective circuitry
The battery uses individually fused LiFePO4 cells and an advanced BMS to ensure optimal protection. Over‑charge protection detects 3.75V ±0.03V with a 1000 ms delay and recovers at 3.55V (min 3.40V, max 3.60V). Over‑discharge protection engages at 2.20V ±0.08V with a 1000 ms delay and recovers at 2.70V ±0.10V. Short‑circuit protection is inherent, supporting safe, repeated cycling in variable conditions.
Applications and use cases
- RVs, motorhomes, and caravans
- Boats and marine systems
- Off‑grid cabins and remote installations
- Vans, trailers, and other mobile power needs
Installation and maintenance
Engineered for 12V system compatibility; use the provided dimensions and weight for planning space and mounting. Follow manufacturer installation guidelines for wiring, fusing, and charging setup to maximize durability. Regular inspections of connections and adherence to storage temperature guidelines help sustain performance.
Warranty and service
Warranty: 5 years. For service options and support, contact Rich Solar or your authorized distributor.
Energy Whenever You Need
For adventurers and off-gridders looking for durable and powerful energy storage solutions, the new ALPHA 2 LITE is a 12V 200Ah LiFePO4 battery that can provide. Its durable construction and individually fused LiFePO4 cells grant the battery excessive heat protection, short circuit protection, and individual cell failure protection.
Boasting 2560Wh and a BMS system to ensure optimal protection, you won't even have to worry about never having energy. Whether setting up your backup generator or boondocking in the middle of the summer, the ALPHA 2 LITE gives you the freedom to go where you want.
Specifications
BATTERY
Nominal Voltage:
12.8V
Nominal Capacity:
200Ah
Minimum Capacity:
199Ah
Cycle Life:
>4000 cycles
Operating Specifications
Capacity:
200Ah
Energy:
2560 Watt Hours
Charge Voltage:
14.4V
Continuous Discharge Current:
200A
Self Discharge:
< 5%/month
Temperature Performance
Charge Temperature:
32℉ to 131℉ (0℃ to 55℃)
Discharge Temperature:
-4℉ to 140℉ (-20℃ to 60℃)
Storage Temperature:
14°F-113°F / -10℃~45℃ 90％RH Max (More than 3 months)
Physical Specifications
Battery Dimensions(L*W*H):
20.9x8.1x8.5 in
Weight:
52.9 lb
BMS Operation
Over Charge Protection
Over charge detection voltage:
3.75V±0.03V
Over charge detection delay time:
1000ms±500ms
Over charge recovery voltage:
3.55V (Min 3.40V, Max 3.60V)
Over Discharge Protection
Over discharge detection voltage:
2.20V±0.08V
Over discharge detection delay time:
1000ms±500ms
Over discharge recovery voltage:
2.70V±0.10V
Short Circuit Protection: Yes
Warranty: 5 years warranty
