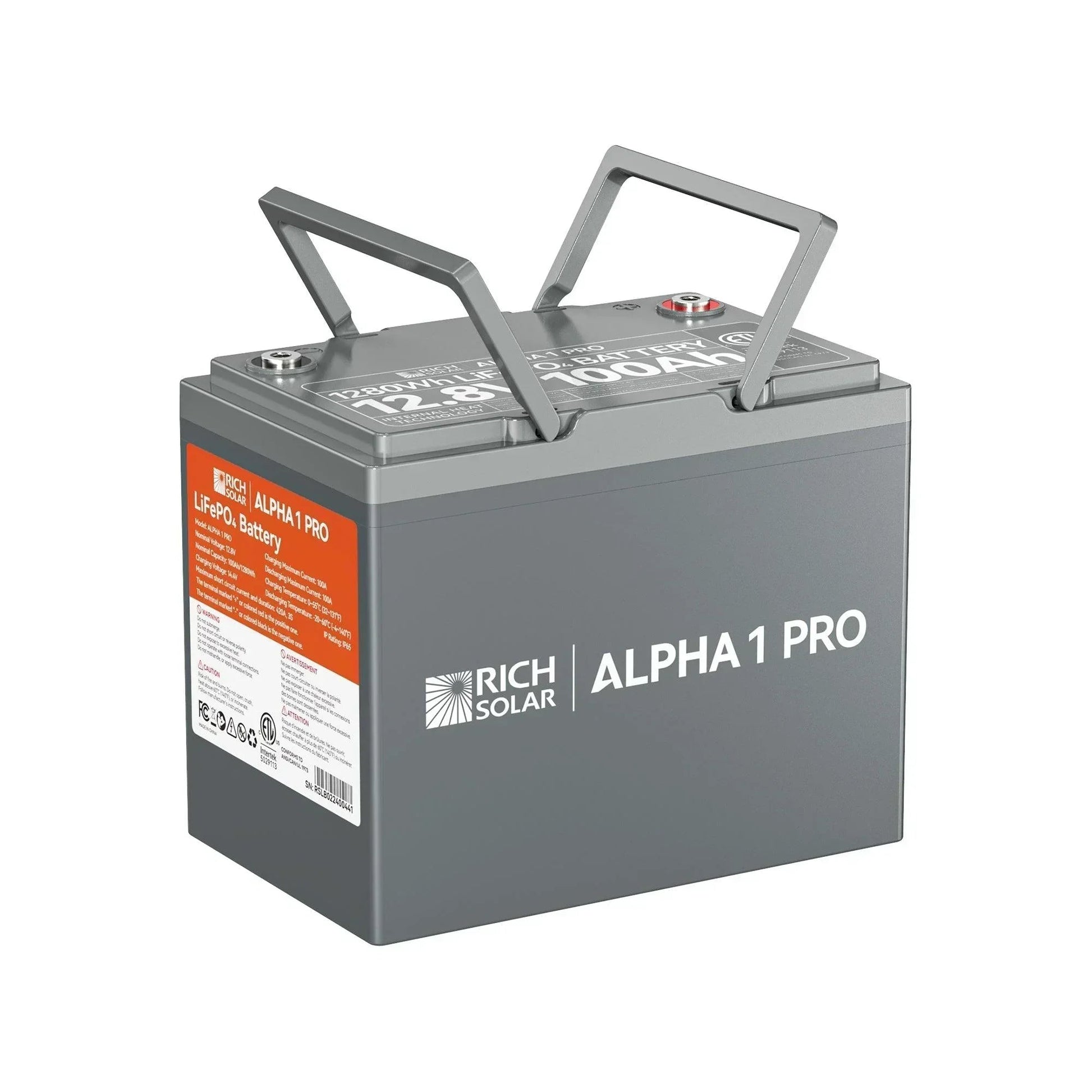

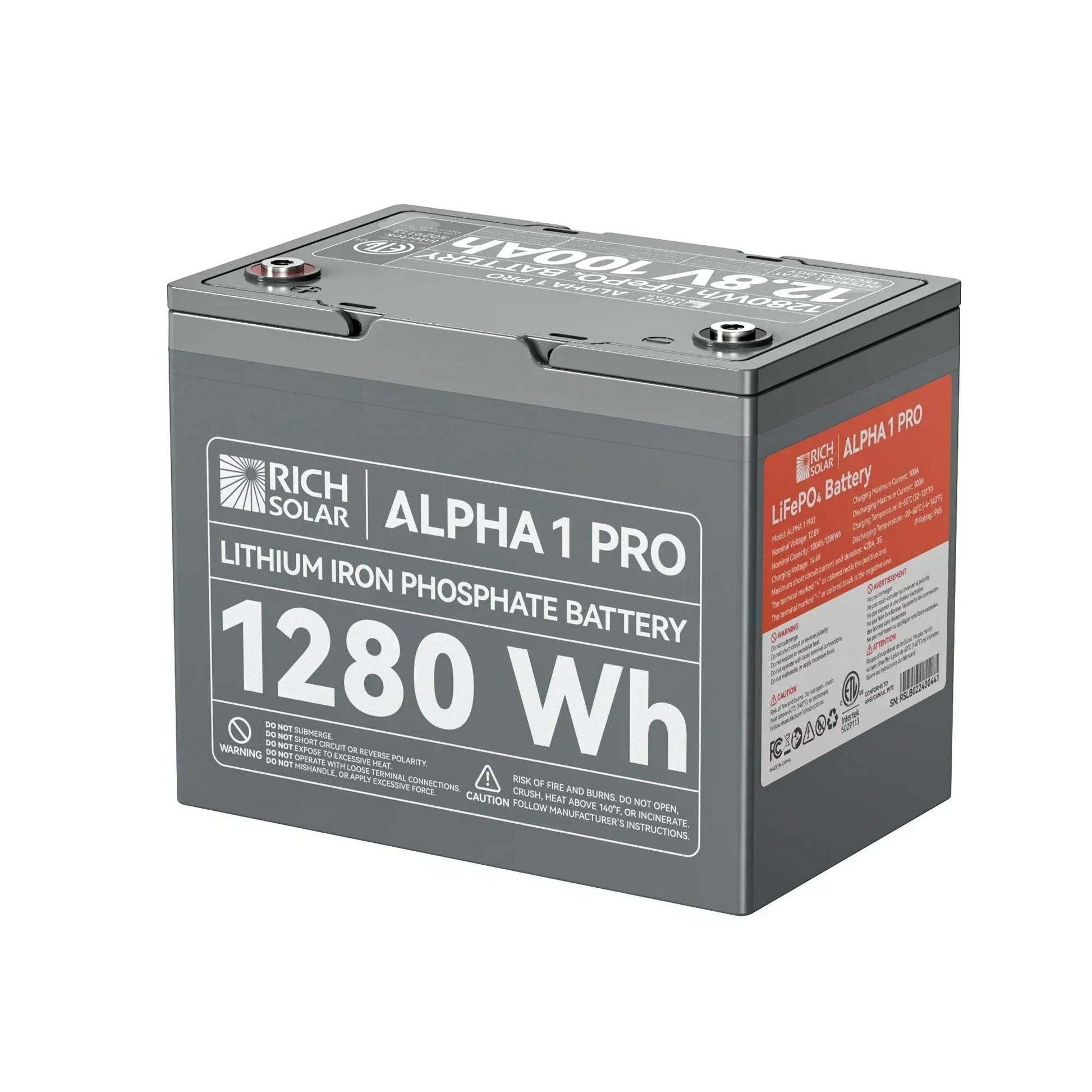

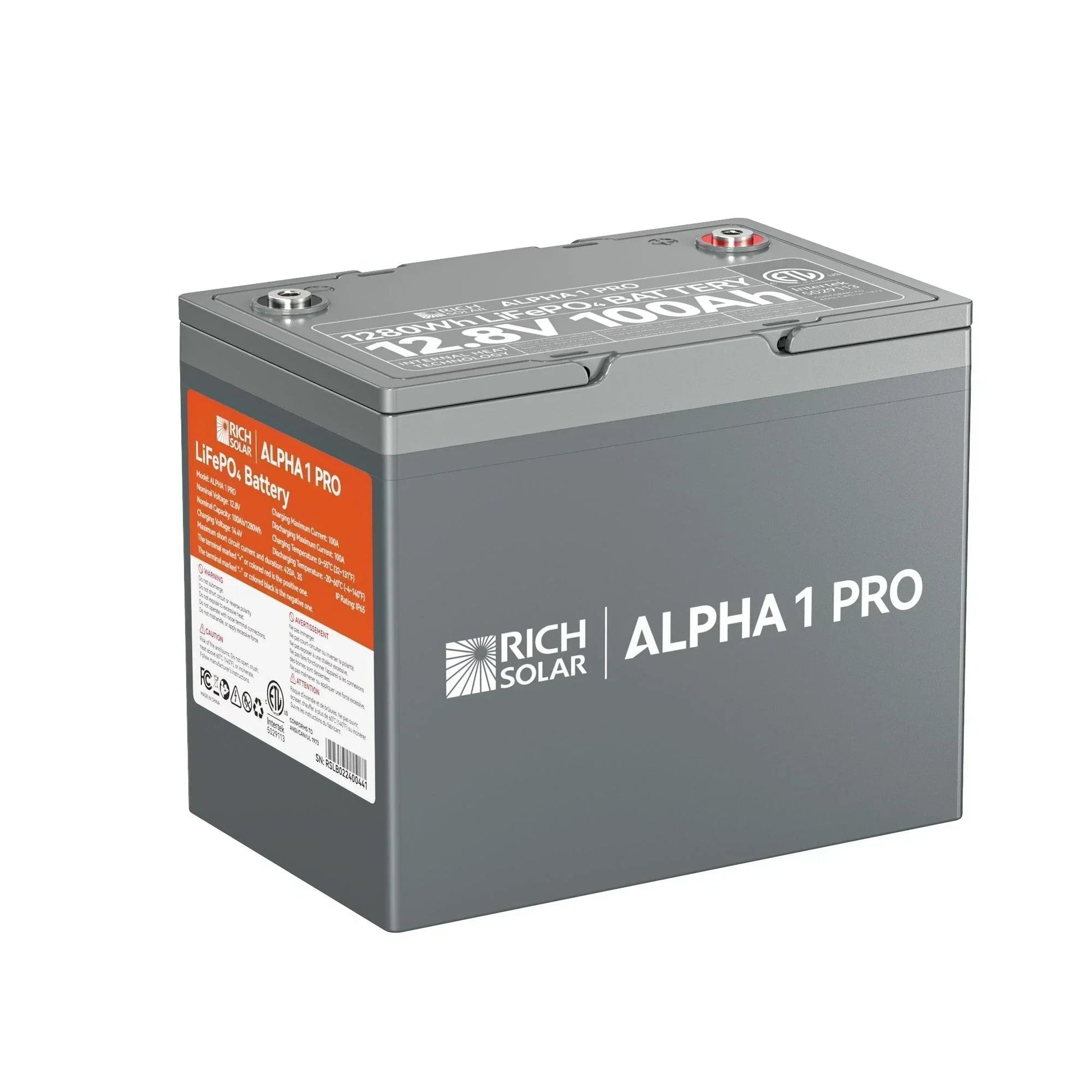

Rich Solar ALPHA 1 PRO 12V 100Ah LiFePO4 Battery

The ALPHA 1 PRO is a high-performance 12V LiFePO4 energy storage solution designed for off-grid power systems, recreational vehicles, and marine applications. With a nominal 12.8V and 100Ah capacity (1280Wh), it delivers dependable energy for critical loads while delivering a long, predictable cycle life of 7,000 cycles.

• Cell Type: LiFePO4
• Nominal Voltage: 12.8V
• Nominal Capacity: 100Ah
• Nominal Energy: 1280Wh
• Cycle Life: 7000 cycles
• Maximum Expansion (Parallel & Series): 4P4S
• BMS: 100A
• Maximum Charging Current: 100A
• Maximum Discharge Current: 100A (continuous); 110A for 10 seconds
• Charge Method: CC/CV
• Charge Voltage: 14.4V ± 0.2V
• Recommend Charge Current: 50A (0.2C)
• Charge Temperature: 32°F to 131°F (0°C to 55°C)
• Discharge Temperature: -4°F to 140°F (-20°C to 60°C)
• Storage Temperature: 14°F to 95°F (-10°C to 35°C)
• Self-Heating: External Power Draw 100W; internal heating starts below 41°F (5°C) and stops above 50°F (10°C)
• Net Weight: 24.0 lb

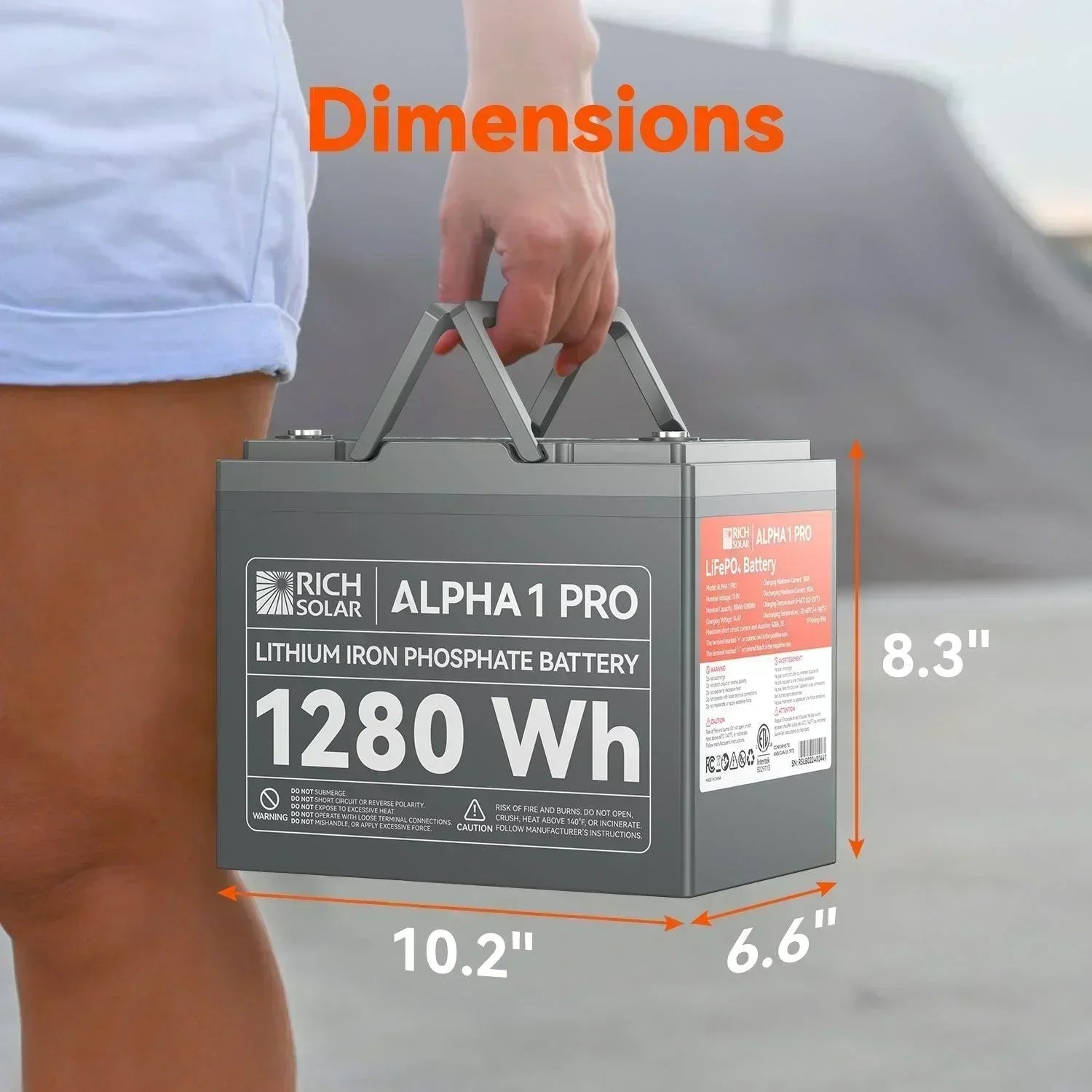

• Size: 10.2 x 6.6 x 8.3 in (Group 24)
• Housing Material: ABS (Flame Retardant Plastic)
• Protection Class: IP65

Safety features and certifications include UL1973, FCC, UN38.3, and ETL compliance, alongside a robust IP65-rated enclosure and flame-retardant ABS housing that enables reliable operation in varied environments.

Installation and maintenance considerations: the unit is designed for expansion up to 4P4S and requires a compatible charging source capable of up to 100A. Follow the specified charge voltage and current (14.4V ± 0.2V, up to 100A; 50A recommended) and operate within the defined temperature and storage ranges to maximize life. Secure mounting to match Group 24 dimensions and ensure proper electrical connections to the 100A BMS.

Warranty and service: 10-year warranty is provided with certifications supporting long-term use. For service terms and support, refer to the manufacturer’s warranty documentation and approved service channels.
