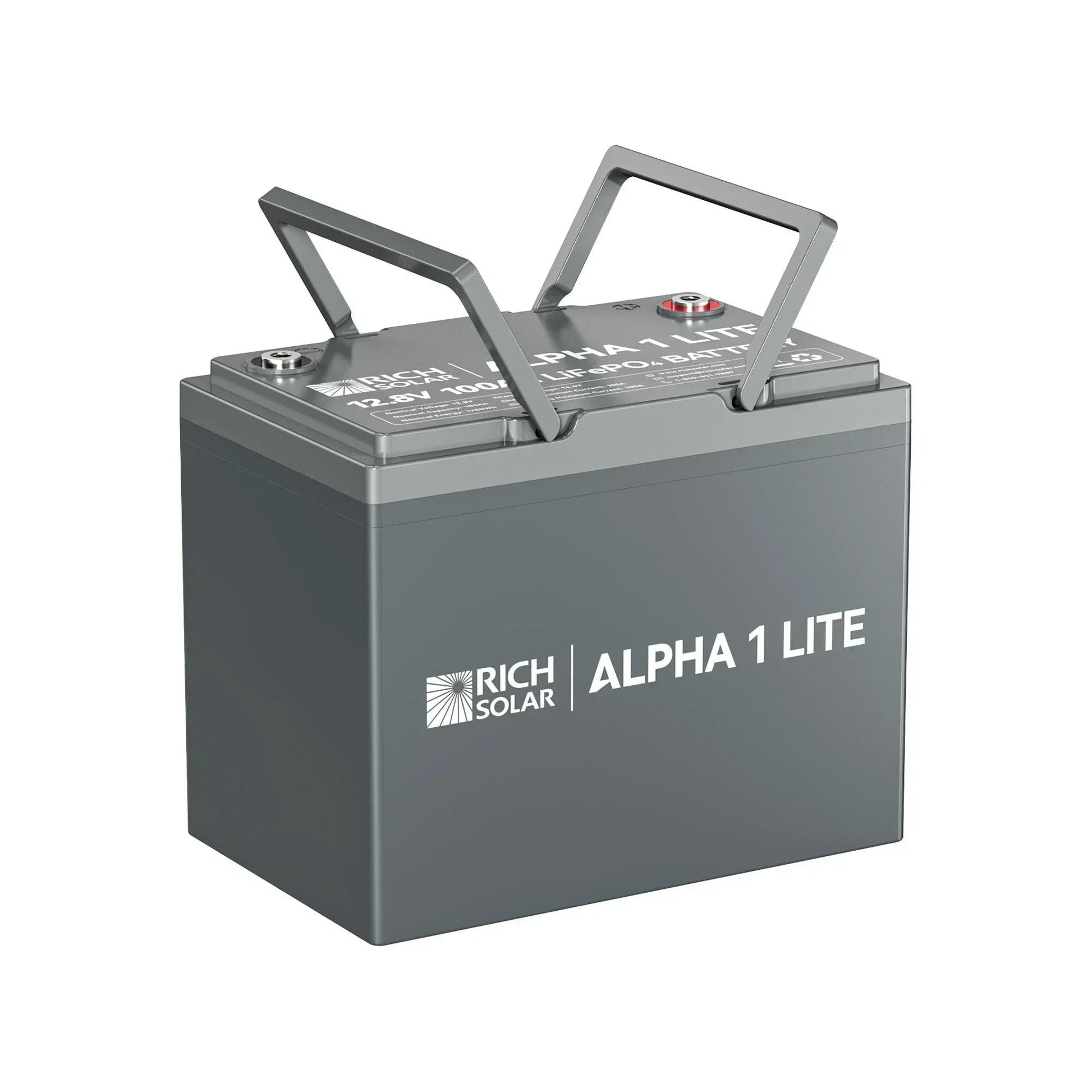

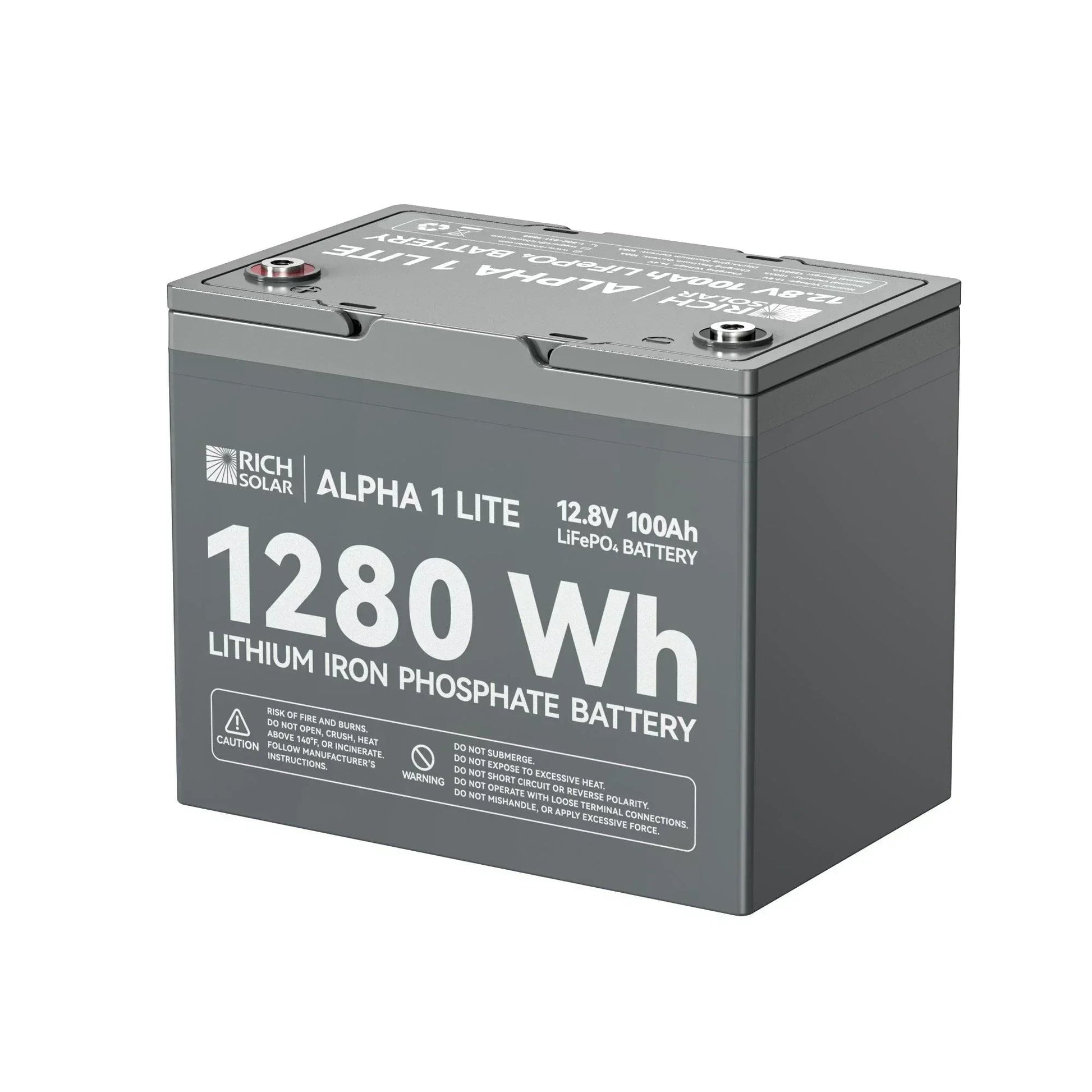

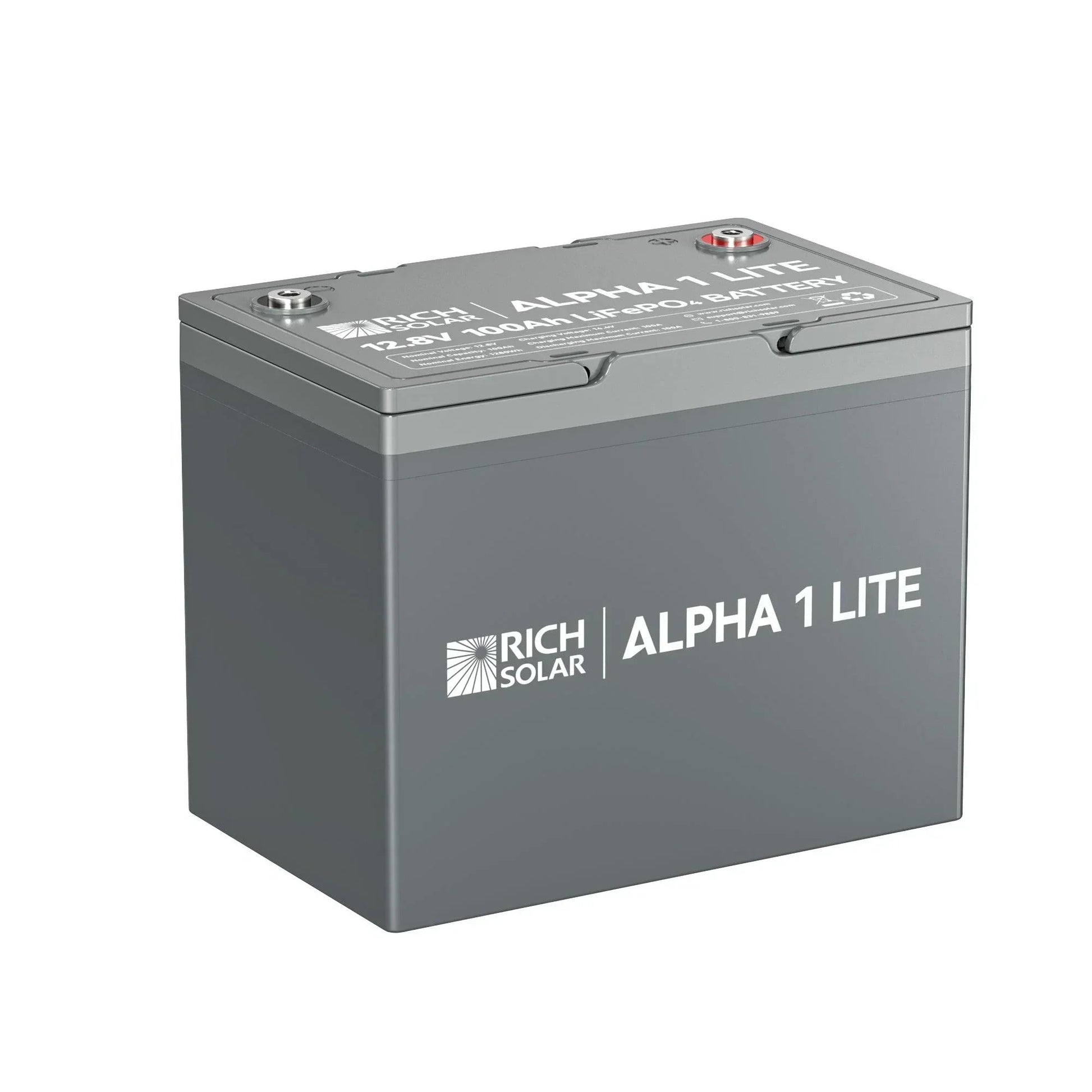

Rich Solar ALPHA 1 LITE 12V 100Ah LiFePO4 Battery
The Rich Solar ALPHA 1 LITE is a compact, high-energy 12V LiFePO4 battery engineered for RVs, trailers, vans, boats, and off-grid power systems. It delivers sustained daily power for essential appliances, lighting, and charging, enabling reliable mobility without frequent recharging.
Key specifications include a nominal voltage of 12.8V, a nominal capacity of 100Ah, and a stored energy of 1280Wh. The battery supports a continuous charge and discharge current of up to 100A and is rated for a cycle life of over 4000 cycles. Charge voltage is set at 14.4V, with low self-discharge (<5% per month).
- Dimensions: 10.2 x 6.6 x 8.3 in; Weight: 24.3 lb
- Operating temperature (charging): 32°F to 131°F (0°C to 55°C)
- Operating temperature (discharging): -4°F to 140°F (-20°C to 60°C)
- Storage temperature: 14°F-113°F (-10°C to 45°C) with up to 90% RH for extended storage
The battery houses a protective BMS with precise over-charge and over-discharge management. Over-charge detection voltage is 3.75V ±0.03V with a 1000 ms ±500 ms delay, and recovery to 3.55V (min 3.40V, max 3.60V). Over-discharge detection voltage is 2.20V ±0.08V with a 1000 ms ±500 ms delay, and recovery to 2.70V ±0.10V. This architecture supports safe, long-term operation in demanding environments.
Installation and maintenance are straightforward for campers and boaters: the ALPHA 1 LITE is a maintenance-light, deep-cycle solution that benefits from secure mounting, proper 12V system integration, and adherence to the device's temperature and charging requirements. The unit should be stored within its specified temperature range when not in use and exercised within its rated cycle life to maximize longevity.
Warranty and service: This battery is backed by a 5-year warranty.
Compact Battery and Packed with Energy
Built with quality materials that are built to last, RICH SOLAR's new ALPHA 1 LITE is a 12V 100Ah battery packed to the brim with premium lithium-ion-phosphate (LiFePO4) cells. Experience a full day of high-quality power output with the ALPHA 1 LITE's capacity of 100Ah, setting you up for a full day on the open road in your RV, camper, or van. With it's low-maintenance, deep-cycle capabilities, and RICH SOLAR premium materials, you can store your energy with ease.
Specifications
BATTERY
Nominal Voltage:
12.8V
Nominal Capacity:
100Ah
Minimum Capacity:
99.5Ah
Cycle Life:
>4000 cycles
Operating Specifications
Operating Voltage:
12.8 V
Capacity:
100 Ah
Energy:
1280 Watt Hours
Charge Voltage:
14.4V
Continuous Charge Current:
100A
Continuous Discharge Current:
100A
Self Discharge:
< 5%/month
TEMPERATURE
Charge Temperature:
32℉ to 131℉ (0℃ to 55℃)
Discharge Temperature:
-4℉ to 140℉ (-20℃ to 60℃)
Storage Temperature:
14°F-113°F / -10℃~45℃ 90％RH Max (More than 3 months)
Physical Specifications
Battery Dimensions(L*W*H):
10.2x6.6x8.3 in
Weight:
24.3 lb
BMS Operation
Over Charge Protection
Over charge detection voltage:
3.75V±0.03V
Over charge detection delay time:
1000ms±500ms
Over charge recovery voltage:
3.55V (Min 3.40V, Max 3.60V)
Over Discharge Protection
Over discharge detection voltage:
2.20V±0.08V
Over discharge detection delay time:
1000ms±500ms
Over discharge recovery voltage:
2.70V±0.10V
Warranty: 5 years
