Rich Solar 800Ah 12V LiFePO4 Off-Grid Battery Kit

Industrial 12V LiFePO4 off-grid battery bank designed for renewable energy storage, backup power, and remote installations. This kit brings four 12V, 200Ah ALPHA 2 LITE modules in parallel, delivering a nominal 12.8V and 200Ah total capacity—approximately 10.24 kWh of usable energy for extended grid independence.

• Nominal Voltage: 12.8V; System Voltage: 12V (nominal)
• Total Energy: ~10.24 kWh (2560 Wh per module × 4)
• Max Charge/Discharge Current: 200A per module; 200A continuous discharge capability for the pack
• Charge Voltage: 14.4V
• Cycle Life: >4000 cycles with proper maintenance
• Temperature Ranges: Charge 32°F–131°F (0°C–55°C); Discharge -4°F–140°F (-20°C–60°C); Storage 14°F–113°F (-10°C–45°C)
• Physical (per module): 20.9 × 8.1 × 8.5 in; Weight: 52.9 lb; Pack weight (4×): ~211.6 lb
• Interconnect: Includes six 1 ft, 2 AWG battery cables for reliable parallel wiring
• BMS and Safety: Each cell is individually fused; over/under voltage protection, short circuit protection, excessive heat protection, over-charge/discharge protection, high/low temperature disconnects; lightweight with removable carry handle

Installation and Maintenance

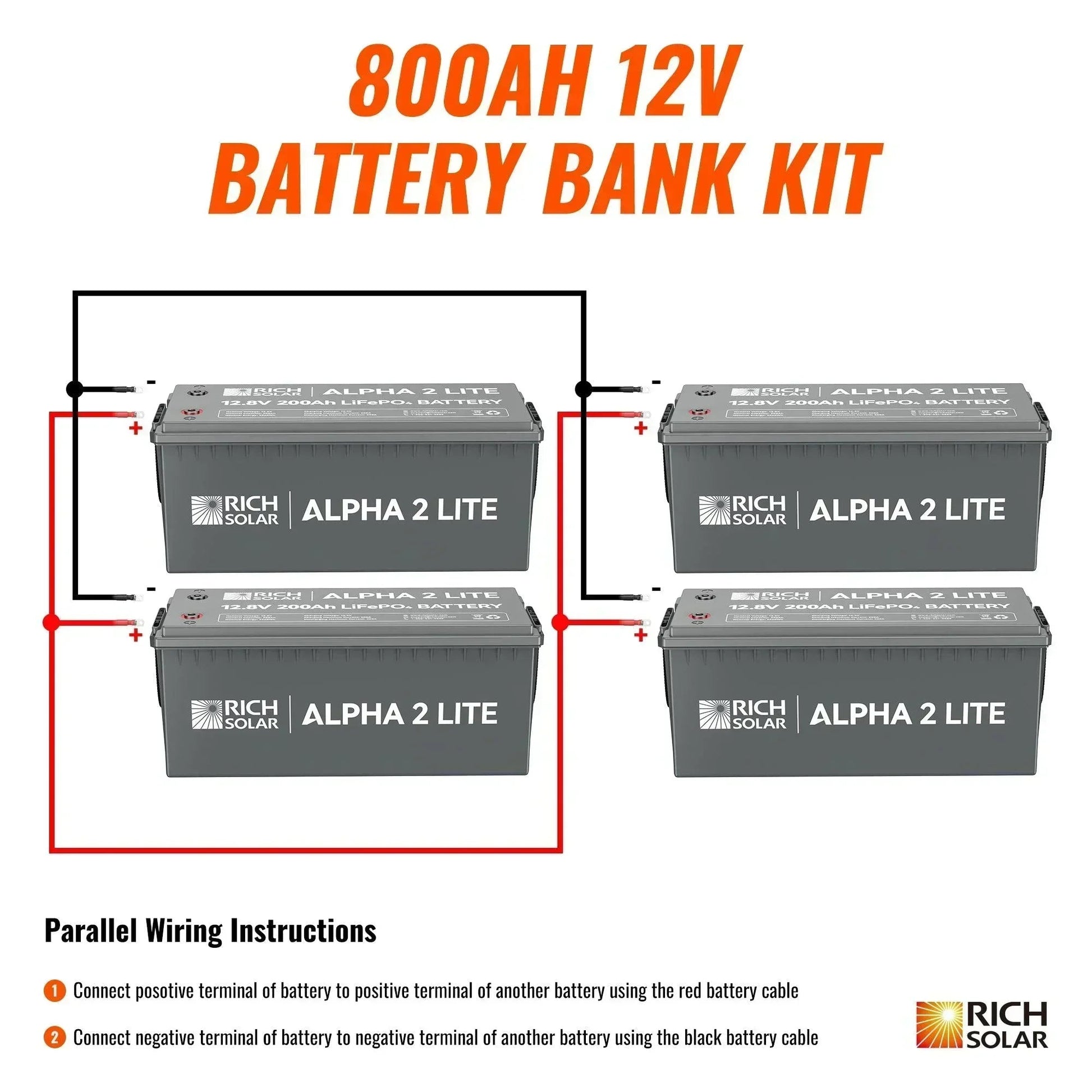

The four ALPHA 2 LITE modules are intended to be wired in parallel to form the 800Ah 12V bank. Use the included interconnect cables to ensure proper polarity and torque at all connection points. The system is designed for low maintenance; regularly verify cable connections and monitor BMS status during commissioning and after extreme operating conditions.

Warranty and Service

Warranty: 5 years. For service terms and support, consult Rich Solar’s published warranty policy and customer support resources.

Rich Solar - 800Ah 12V LiFePO4 Off-Grid Battery Kit | 10.2kWh Deep Cycle Lithium Battery Bank | 4 X ALPHA 2 LITE in Parallel

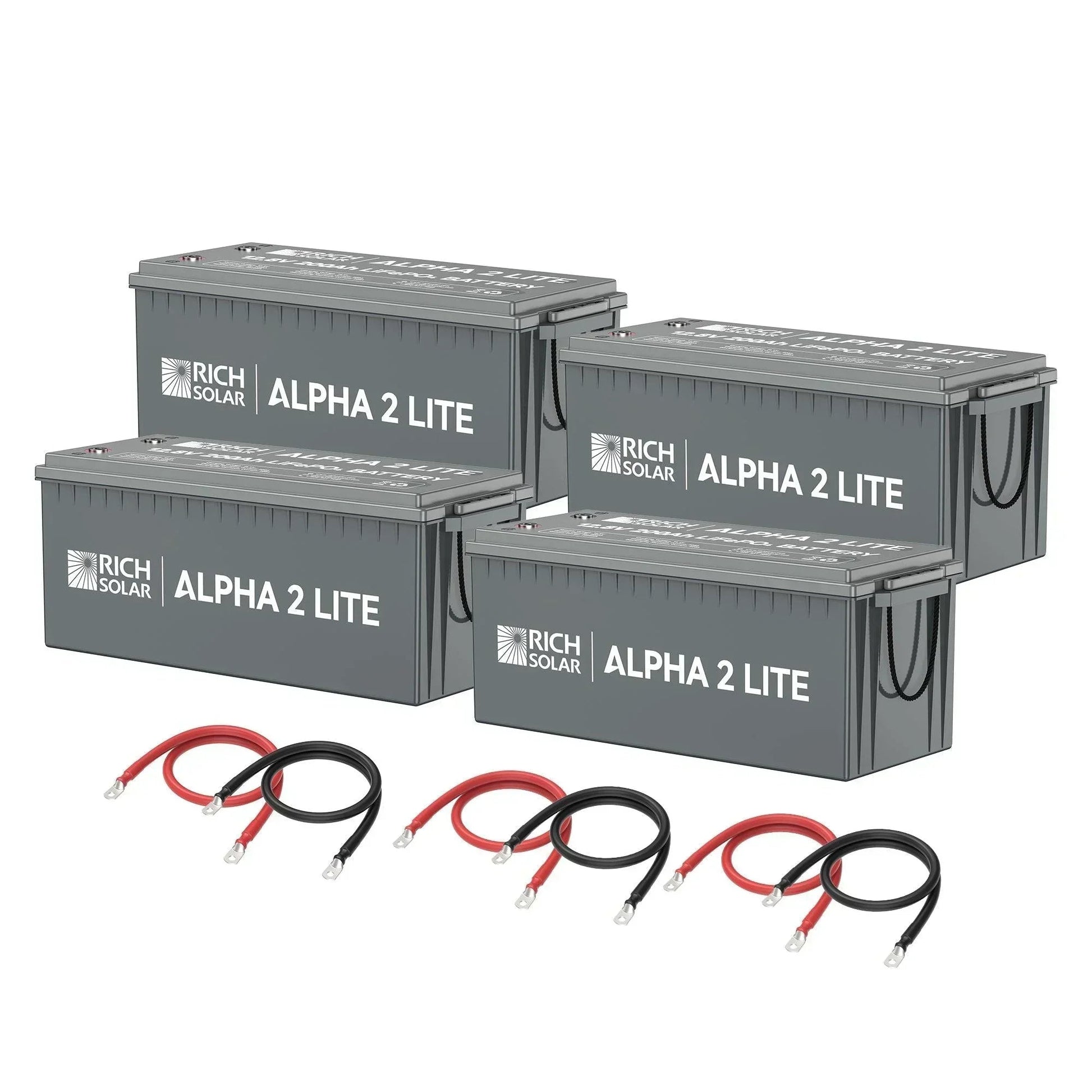

This 800AH 12V 10.2kWh Lithium Battery Bank comes with:

• 4x 12V 200AH LiFePO4 Battery
• 6x 1ft 2 AWG Battery Cable

The ALPHA 2 LITE is a 12V 200 Ah LiFePO4 battery built to be as tougher and more efficient than similar batteries on the market. Manufactured with the finest quality materials, the ALPHA 2 LITE is packed with lithium-iron-phosphate cells for maximum energy efficiency.

With its optimized construction and 200Ah, the ALPHA 2 LITE can provide the energy you need at a moment’s notice. Coupled with its security features and low-maintenance requirements, the ALPHA 2 LITE is the battery for people who need energy storage solutions without fuss.

Features:

• Premium lithium-iron-phosphate cells

• > 10 Year lifespan with proper maintenance

• Unsurpassed high-temperature performance

• Low maintenance

• High amp capacity

• Stable output voltage

• Little self-discharge

• Overcharging or discharging protection

• Overcurrent & short circuit protection

• High & low-temperature disconnects

• Charge Voltage: 14.4V

• Max Charge Current: 200A

• Max Discharge Current: 200A

• Battery Dimensions(L*W*H): 20.9x8.1x8.5 in

• Weight: 52.9 lb

BMS Safety Protection

Every LiFePO4 cell is individually fused with safety and efficiency in mind. If any cells fail, the isolated fuse will prevent any damage to the other cells and allow the battery to function normally.

Other BMS Features include:

• Convenient removable carry handle
• Lightweight
• Short circuit protection
• Over-charge/discharge protection
• Excessive heat protection

Short Circuit Protection: Yes

Warranty: 5 years warranty
