Rich Solar 600 Watt Solar Kit RS-K6004

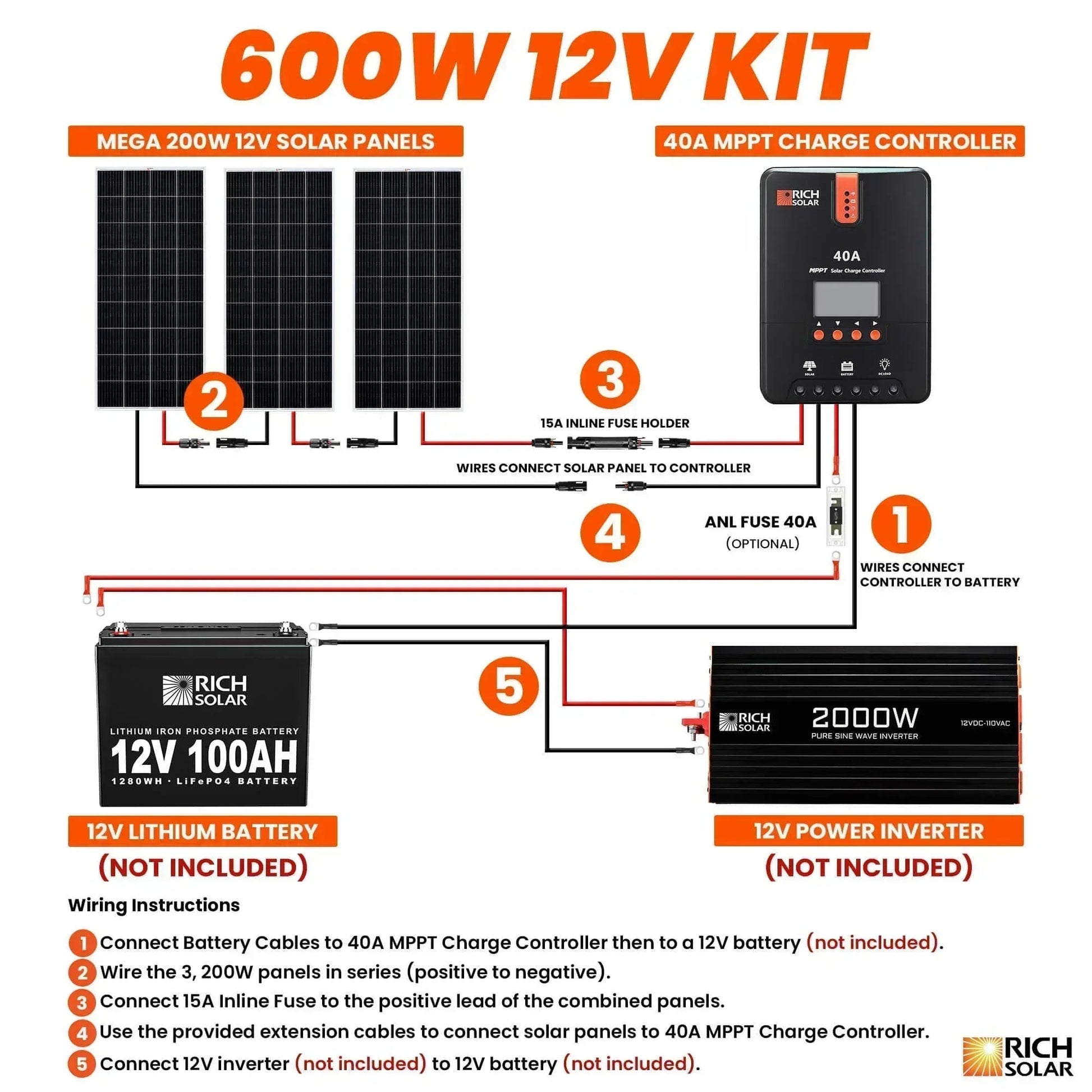

Designed for RVs, boats, and trailers, this integrated 600W solar kit delivers quiet, emission-free power for camping and remote operations. It pairs three 200W monocrystalline panels with a 40A MPPT charge controller for efficient, reliable charging in variable sunlight. The kit is ready to pair with three 100Ah 12V lithium batteries in parallel for a trailer solar system.

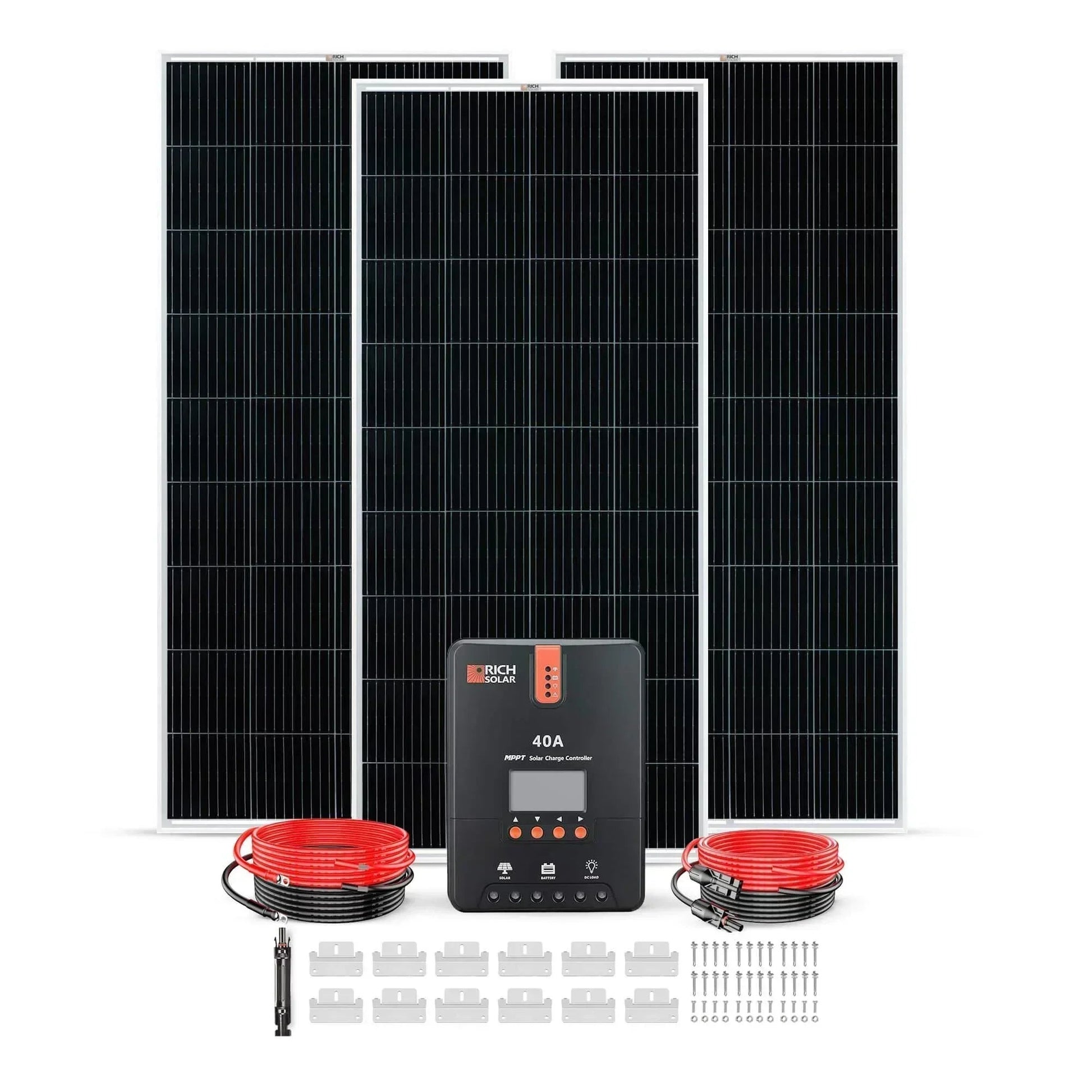

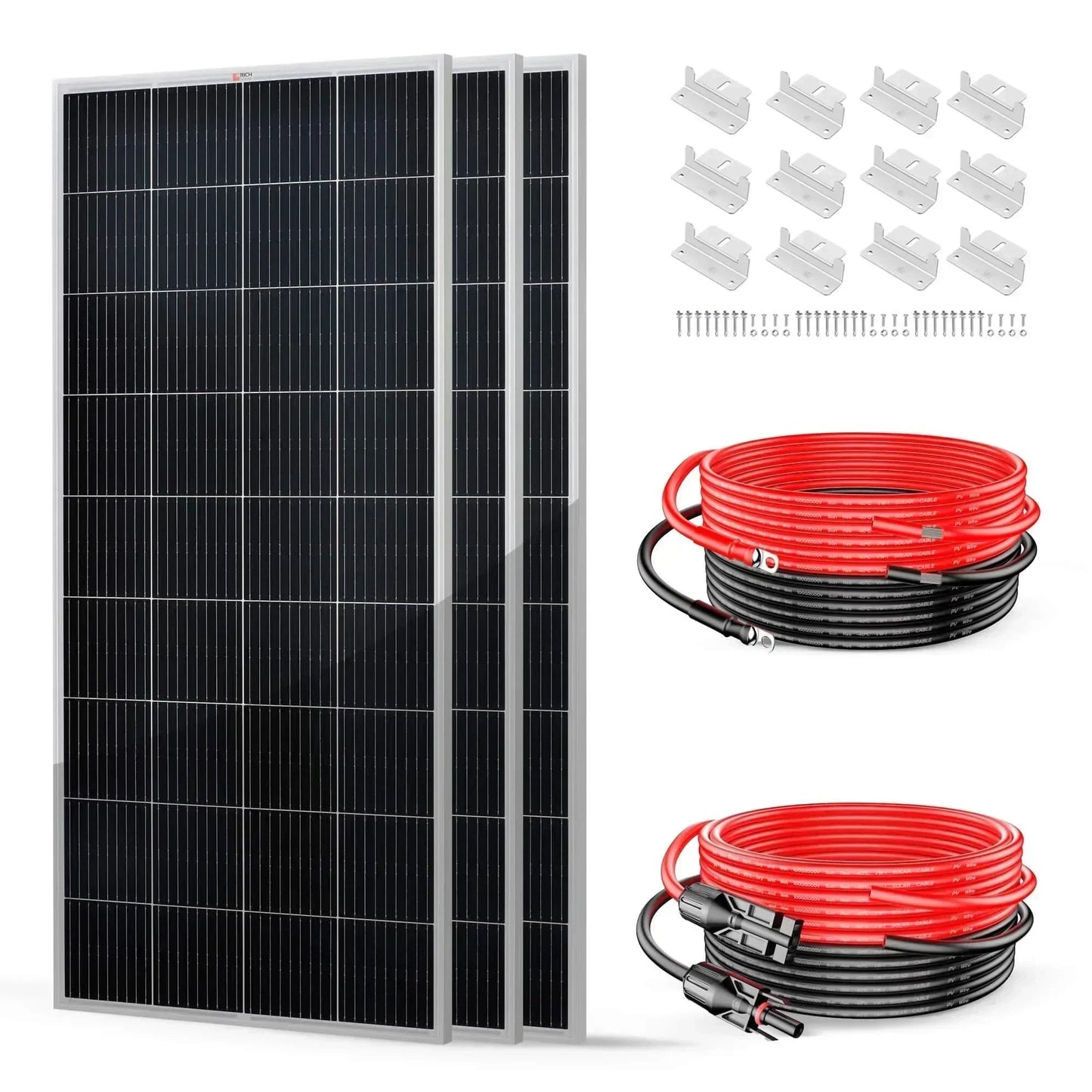

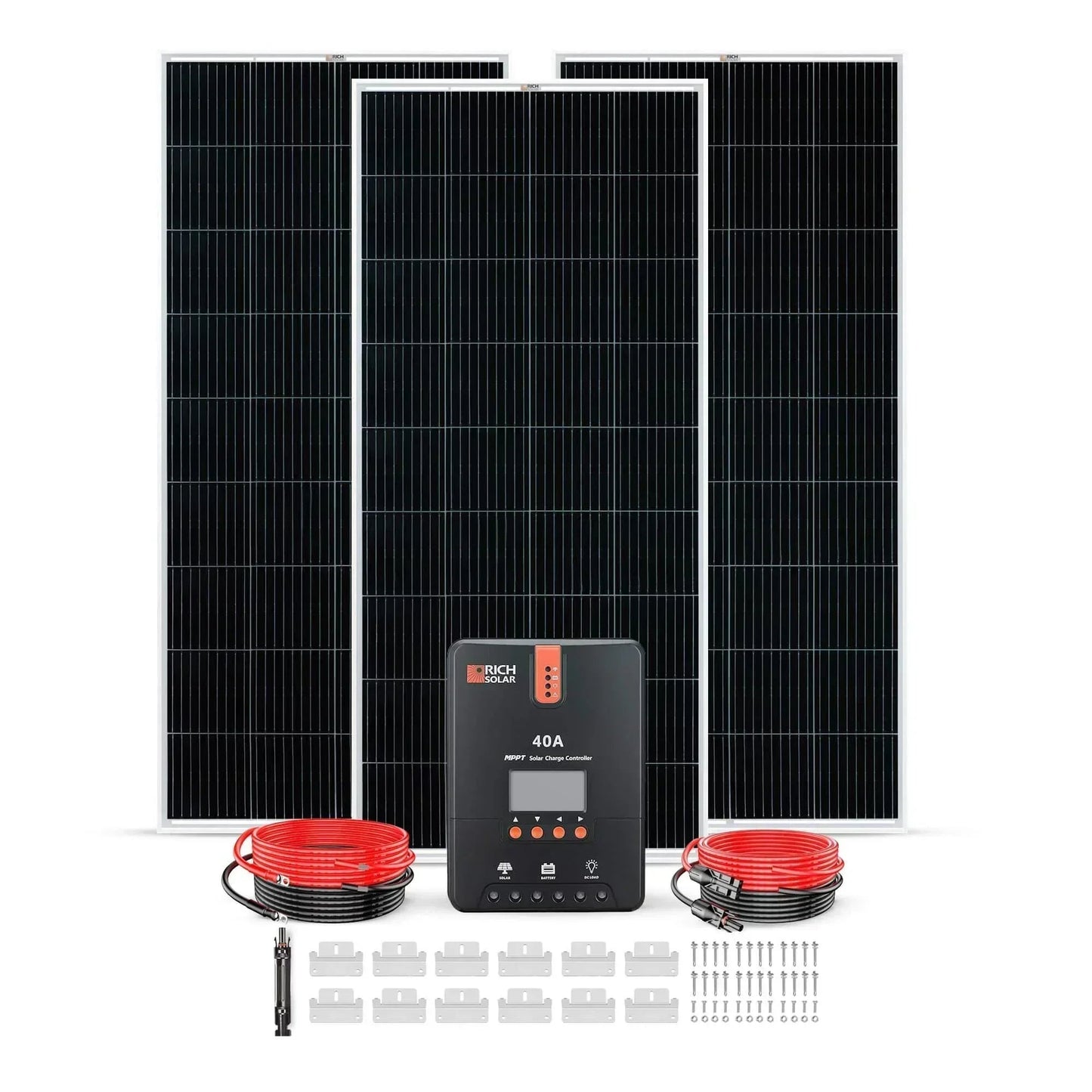

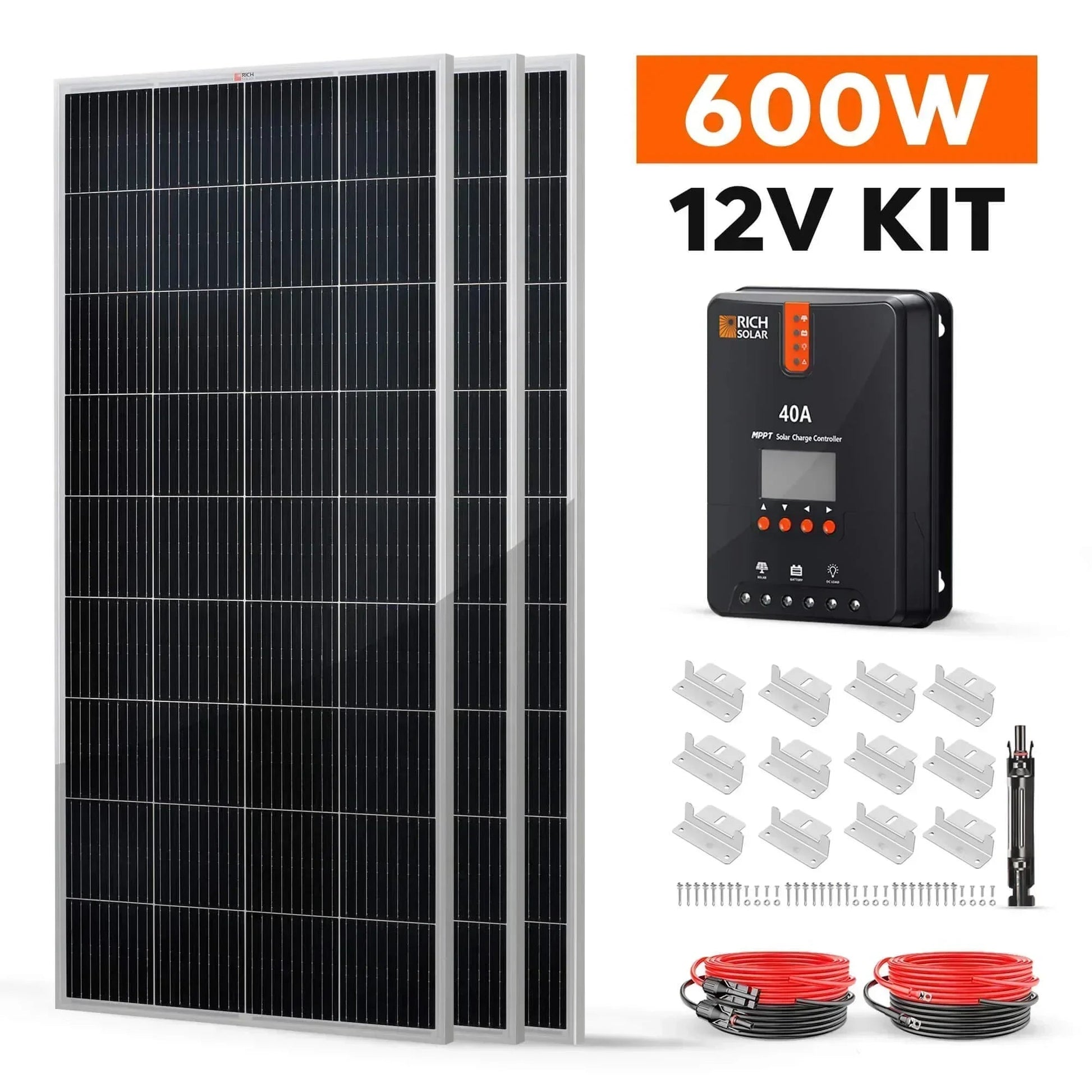

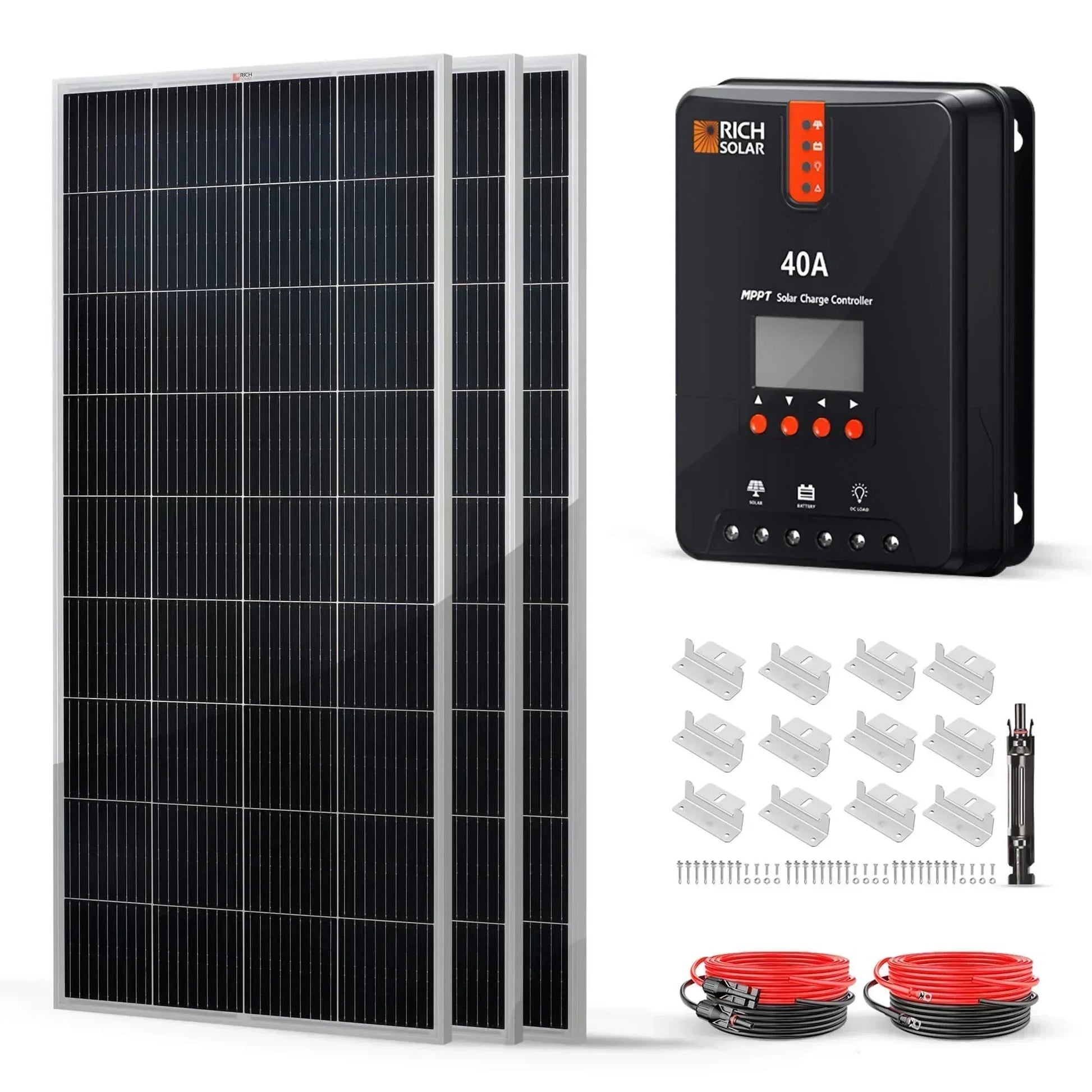

What’s included
- 3 x 200W Monocrystalline Solar Panels (RS-M200) with 9 busbars
- 1 x 40A MPPT Solar Charge Controller (RS-MPPT40)
- 20 AWG red and 20 AWG black solar cables to the controller (RS-20101)
- 10 AWG red and 10 AWG black battery cables (RS-810)
- 3 x Mounting Z Brackets (RS-ZB4C)
- 1 x Inline 15A Fuse Holder with Fuse (RS-SC15F)
Performance and electrical specifications
- Combined maximum power: 600W (3 x 200W panels)
- Panel electricals (per panel): Pmax 200W, Vmp 20.4V, Imp 9.80A, Voc 24.3V, Isc 10.2A
- Panel weight/dimensions (per panel): 26.5 lb; 58.7 x 26.8 x 1.4 in
- 40A MPPT controller provides real-time volts, amps, and amp-hours with overcharge protection
- Pre-assembled wiring harness; no crimping tools required; plug in and go
- Compatibility: expandable with Rich Solar ecosystem for easy upgrades
- Warranty: 25-year output warranty on the panels
Safety features and certifications
- Inline 15A fuse holder safeguards the circuit
- MPPT controller includes overcharge protection
- Certifications: not listed in the provided specifications
Installation and maintenance
- Installation: straightforward mounting on RV trailers using included brackets; pre-assembled harness simplifies setup
- Maintenance: not specified in the product data
Warranty and service
25-year output warranty on the solar panels included in this kit, underscoring long-term durability and performance.
Rich Solar 600 Watt Solar Kit RS-K6004
Our 600W kit contains 3 of our high-efficiency 200W Monocrystalline panels with 9 busbars and our 40A MPPT controller. This kit can be paired with 3 of our 100AH 12V Lithium batteries wired in parallel for your trailer solar system. For a quieter, more peaceful outdoor experience, go solar now and start powering your RV, boat, or trailer!
Package Includes
🗹 3 x 200 Watt Monocrystalline Solar Panel (RS-M200)
🗹 1 x 40A MPPT Solar Charge Controller (RS-MPPT40)
🗹 1 x 20 #10 Gauge Solar Cable (Red), connects the solar panel to the controller (RS-20101)
🗹 1 x 20 #10 Gauge Solar Cable (Black), connects the solar panel to the controller (RS-20101)
🗹 1 x 10 #8 Gauge Battery Cable (Red), connects the controller to the battery (RS-810)
🗹 1 x 10 #8 Gauge Battery Cable (Black), connects the controller to the battery (RS-810)
🗹 3 x Mounting Z Brackets (one set of 4) (RS-ZB4C)
🗹 1 x 15A Inline Fuse Holder with Fuse (RS-SC15F)
High-Efficiency Solar Panel
With the highest-grade monocrystalline solar cells for optimal output, our 200 watt panel is treated with an anti-reflective coating to maximize light absorption.
Simple Installation
Installing solar panels on RV trailers is a breeze with our pre-assembled wiring harness that doesn’t require crimping tools. Since all of our products are compatible with each other, making expansions, upgrades, or additions simple and easy… just plug in and go! This also saves you a lot on RV solar installation costs.
Reliable and Convenient
The digital MPPT charge controller lets you gauge your power with a glance, providing real-time updates of volts, amps, and amp hours. provide peace of mind by protecting your system from overcharging.
25-Year Output Warranty
Buy with confidence knowing that your solar investment will last for the long haul.
200 Watt Solar Panel Specifications
Maximum Power(Pmax): 200W
Maximum Power Voltage(Vmp): 20.4V
Maximum Power Current(Imp): 9.80A
Open Circuit Voltage(Voc): 24.3V
Short Circuit Current(ISC): 10.2A
Weight: 26.5 lbs
Dimensions: 58.7 x 26.8 x 1.4 in
Warranty: 25 years output warranty
